181 2-2. Instrument cluster
2
When driving
HILUX_EE (OM0K132E)

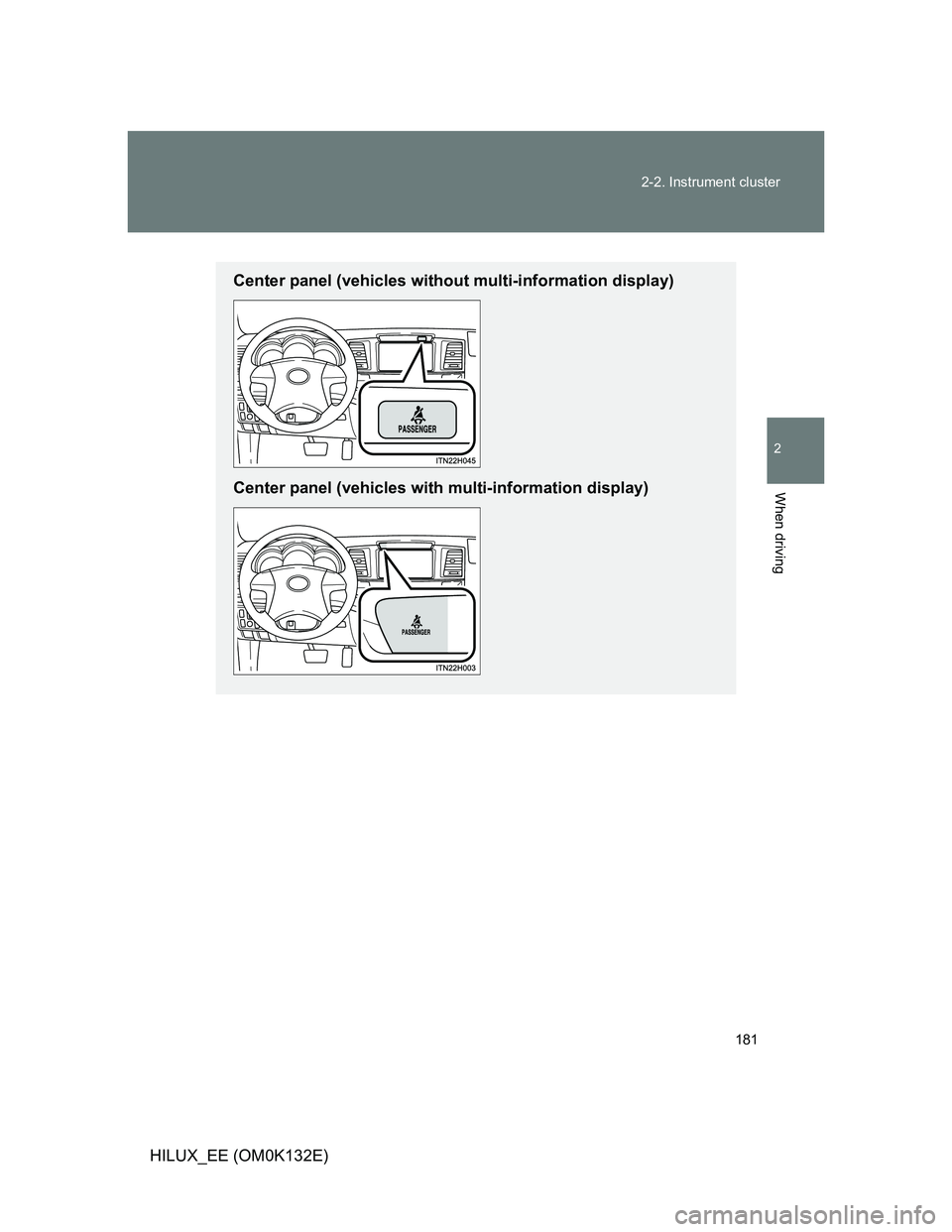

Center panel (vehicles without multi-information display)
Center panel (vehicles with multi-information display)

182 2-2. Instrument cluster
HILUX_EE (OM0K132E)
Indicators

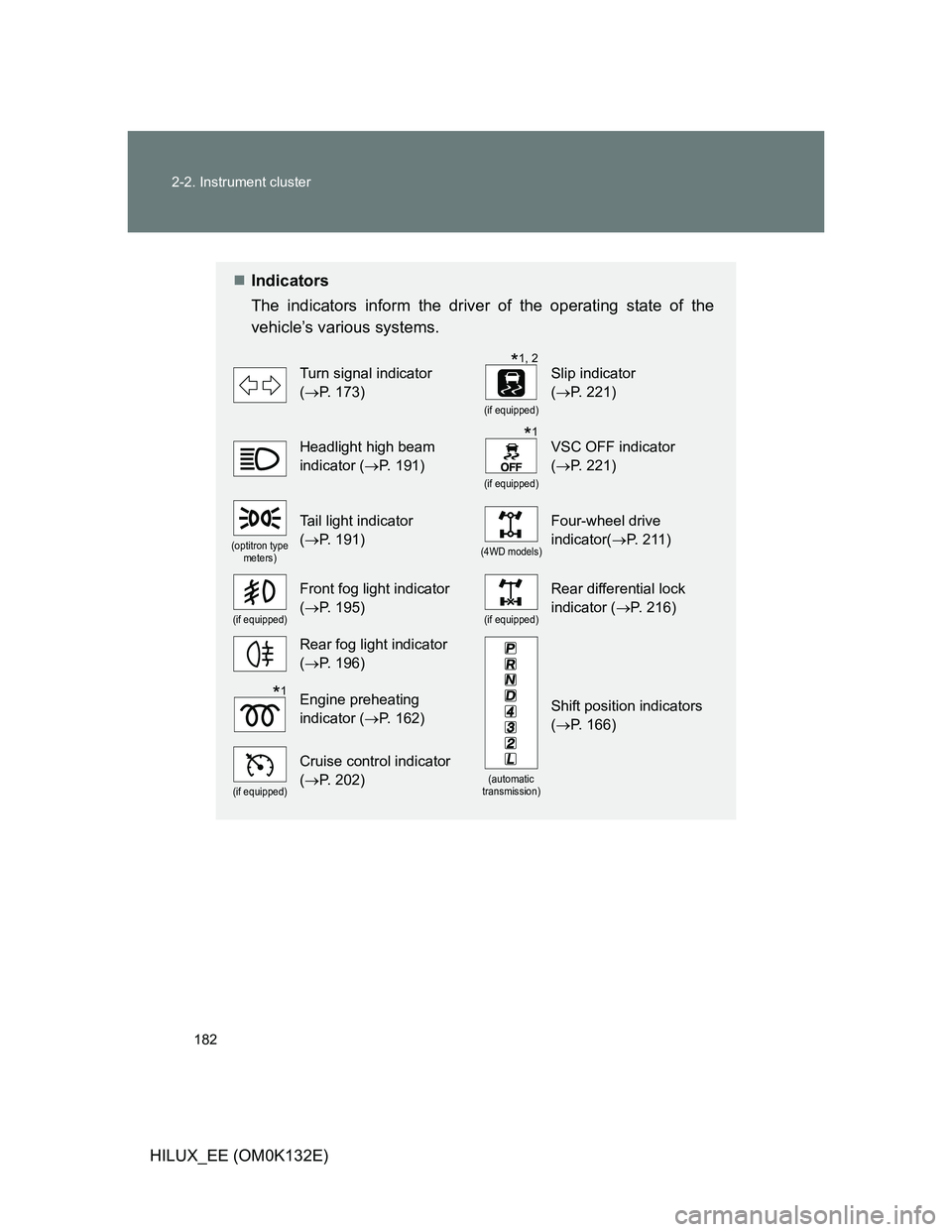

The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(P. 173)
(if equipped)
Slip indicator
(P. 221)
Headlight high beam
indicator (P. 191)
(if equipped)
VSC OFF indicator
(P. 221)
(optitron type
meters)
Tail light indicator
(P. 191)
(4WD models)
Four-wheel drive
indicator(P. 211)
(if equipped)
Front fog light indicator
(P. 195)
(if equipped)
Rear differential lock
indicator (P. 216)
Rear fog light indicator
(P. 196)
(automatic
transmission)
Shift position indicators
(P. 166)Engine preheating
indicator (P. 162)
(if equipped)
Cruise control indicator
(P. 202)
*1, 2
*1
*1

183 2-2. Instrument cluster
2
When driving
HILUX_EE (OM0K132E)
Warning lights

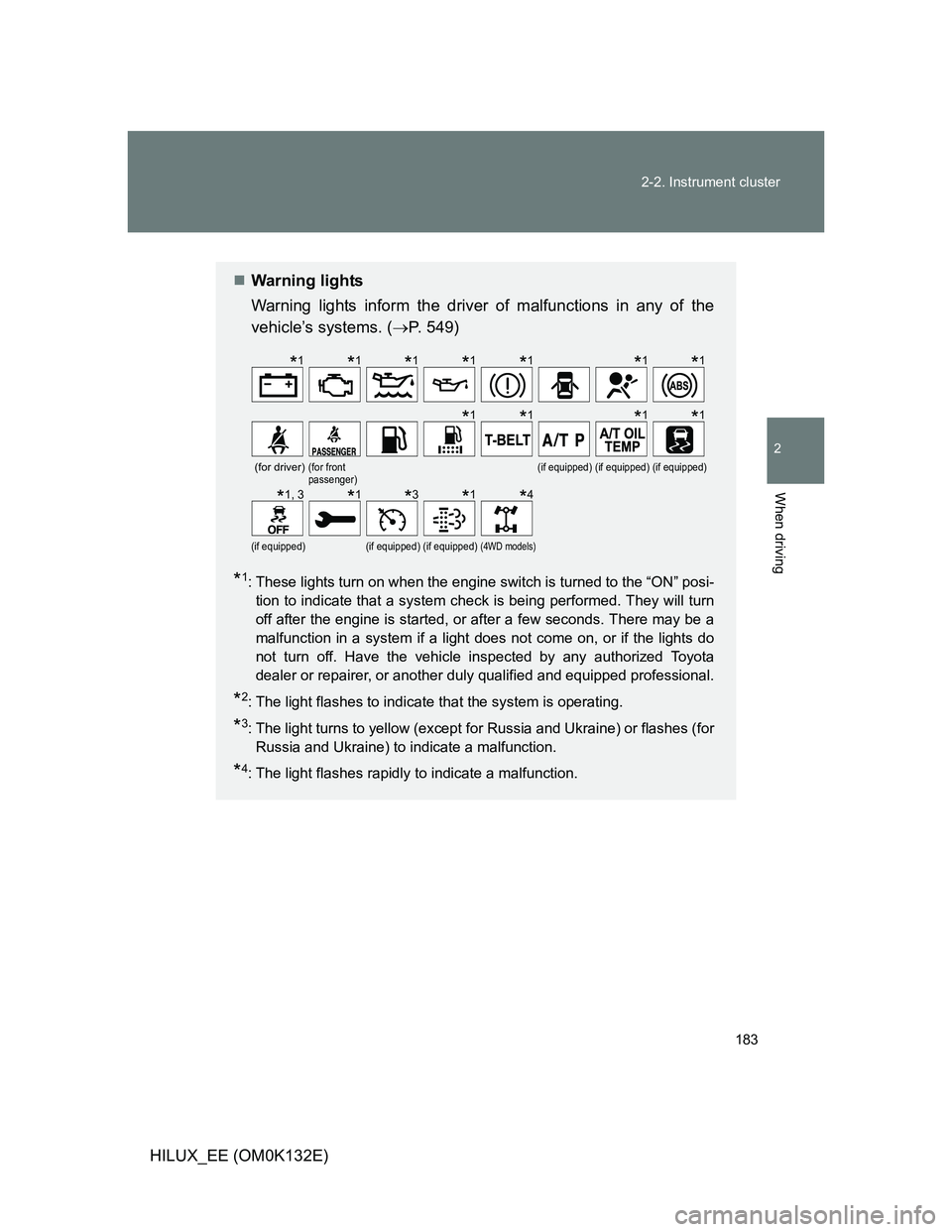

Warning lights inform the driver of malfunctions in any of the
vehicle’s systems. (P. 549)
*1: These lights turn on when the engine switch is turned to the “ON” posi-
tion to indicate that a system check is being performed. They will turn
off after the engine is started, or after a few seconds. There may be a
malfunction in a system if a light does not come on, or if the lights do
not turn off. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
*2: The light flashes to indicate that the system is operating.
*3: The light turns to yellow (except for Russia and Ukraine) or flashes (for
Russia and Ukraine) to indicate a malfunction.
*4: The light flashes rapidly to indicate a malfunction.
(for driver)(for front
passenger)(if equipped)(if equipped)(if equipped)
(if equipped)(if equipped)(if equipped)(4WD models)
*1*1*1*1*1*1*1
*1*1*1*1
*1, 3*1*3*1*4

184 2-2. Instrument cluster
HILUX_EE (OM0K132E)
CAUTION

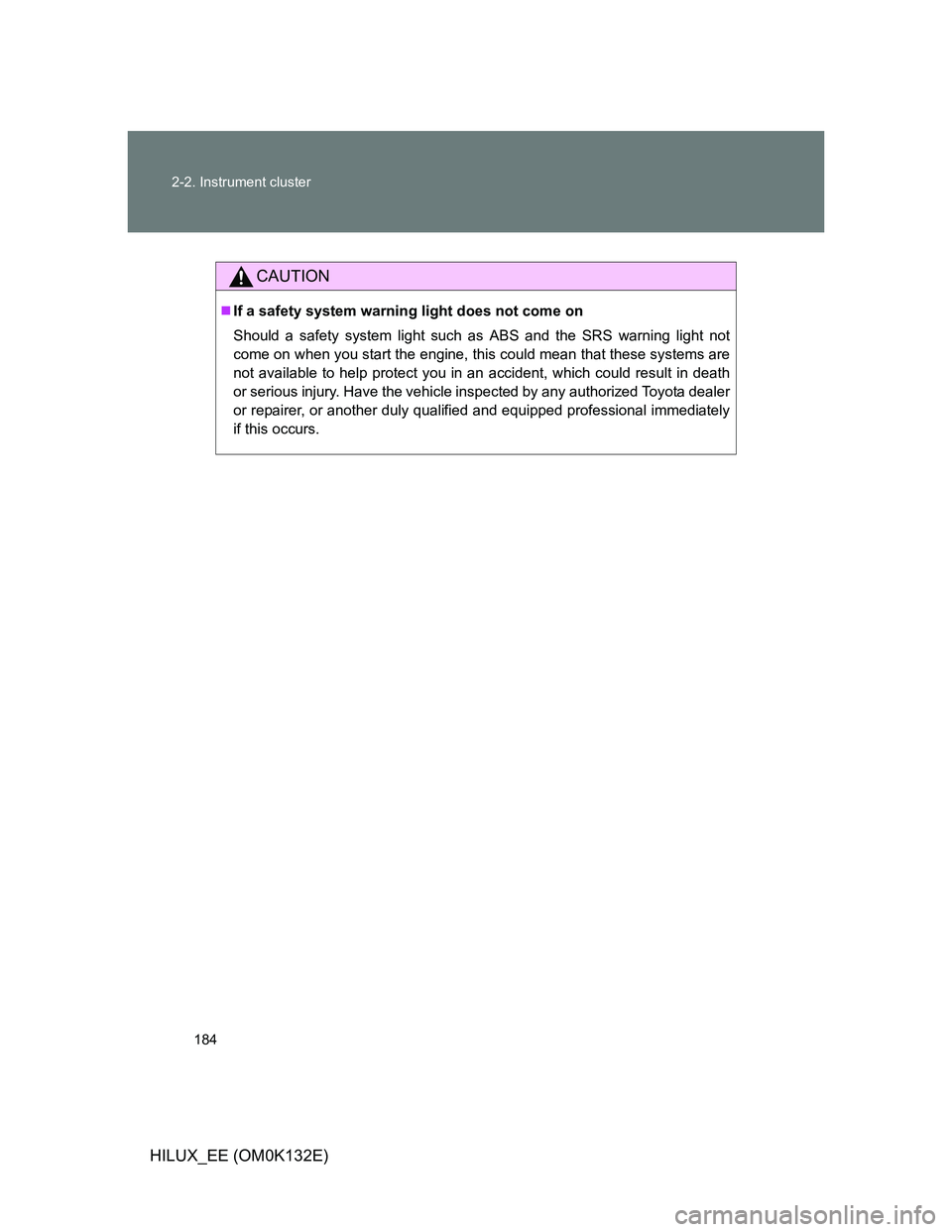

If a safety system warning light does not come on
Should a safety system light such as ABS and the SRS warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional immediately
if this occurs.

185
2-2. Instrument cluster
2
When driving
HILUX_EE (OM0K132E)
Multi-infor mation display

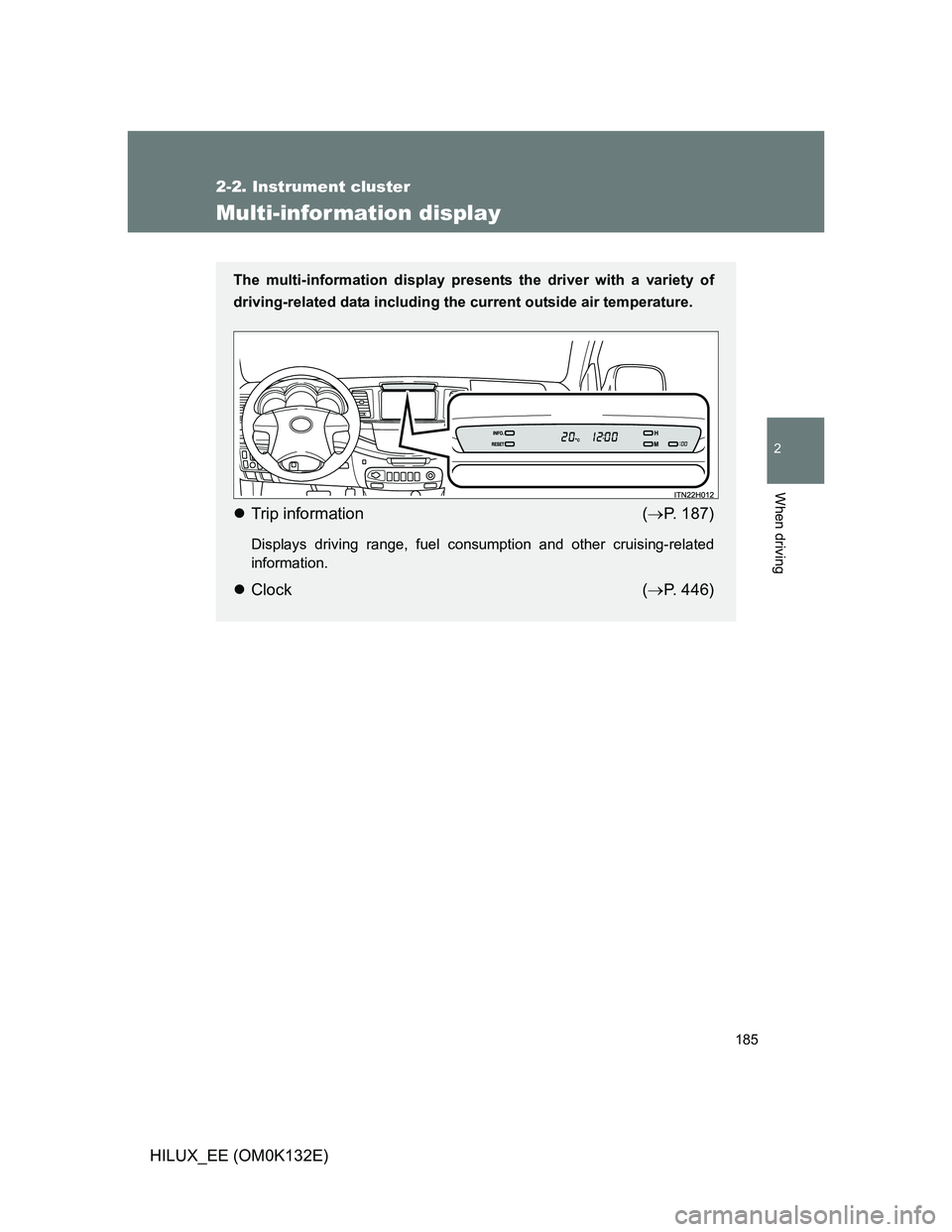

The multi-information display presents the driver with a variety of
driving-related data including the current outside air temperature.
Trip information (P. 187)
Displays driving range, fuel consumption and other cruising-related
information.
Clock (P. 446)

186 2-2. Instrument cluster
HILUX_EE (OM0K132E)

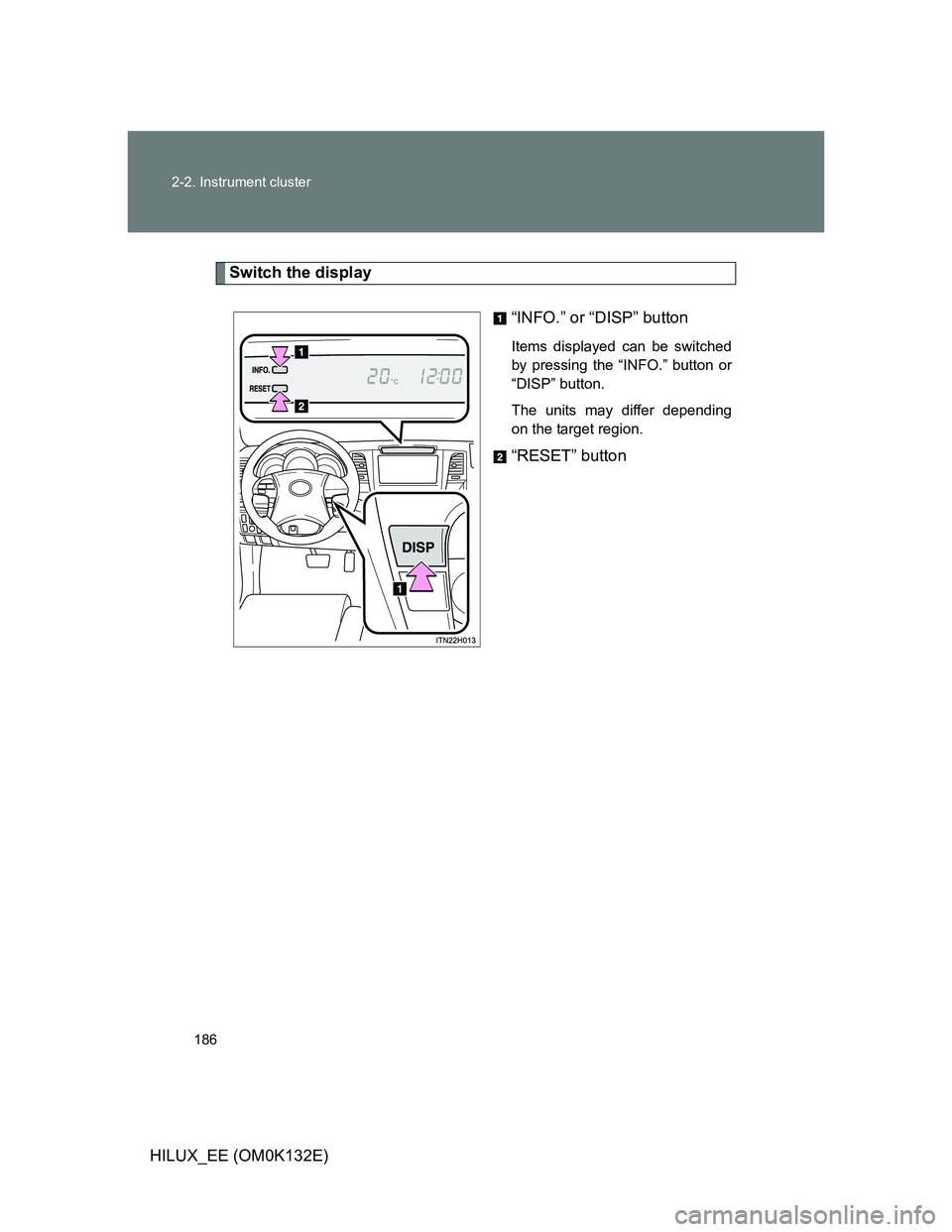

Switch the display
“INFO.” or “DISP” button
Items displayed can be switched
by pressing the “INFO.” button or
“DISP” button.
The units may differ depending
on the target region.
“RESET” button

187 2-2. Instrument cluster
2
When driving
HILUX_EE (OM0K132E)

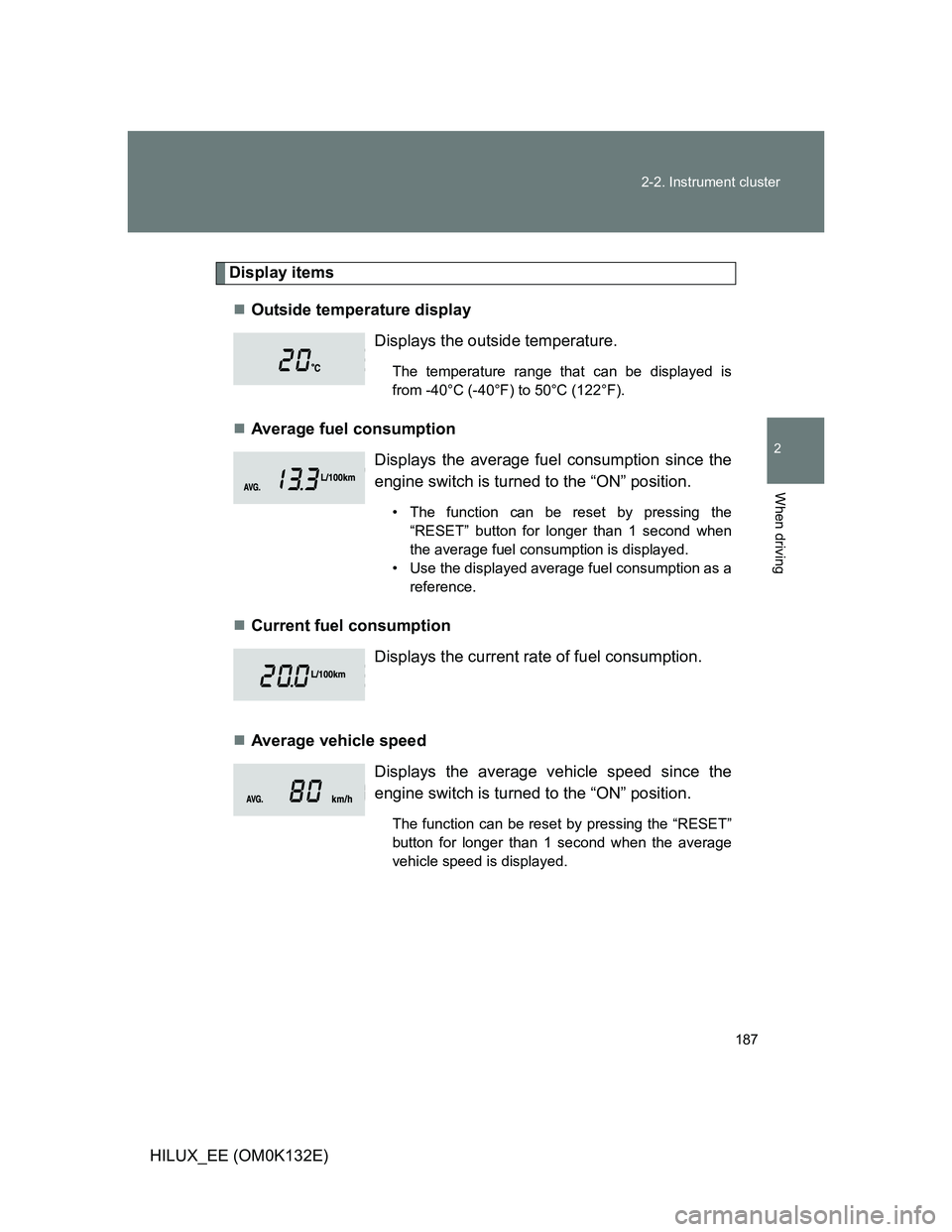

Display items
Outside temperature display
Average fuel consumption
Current fuel consumption
Average vehicle speedDisplays the outside temperature.
The temperature range that can be displayed is
from -40°C (-40°F) to 50°C (122°F).
Displays the average fuel consumption since the
engine switch is turned to the “ON” position.
• The function can be reset by pressing the
“RESET” button for longer than 1 second when
the average fuel consumption is displayed.
• Use the displayed average fuel consumption as a
reference.
Displays the current rate of fuel consumption.
Displays the average vehicle speed since the
engine switch is turned to the “ON” position.
The function can be reset by pressing the “RESET”
button for longer than 1 second when the average
vehicle speed is displayed.

188 2-2. Instrument cluster
HILUX_EE (OM0K132E)Elapsed time
Driving range
Compass
P. 454
Display off

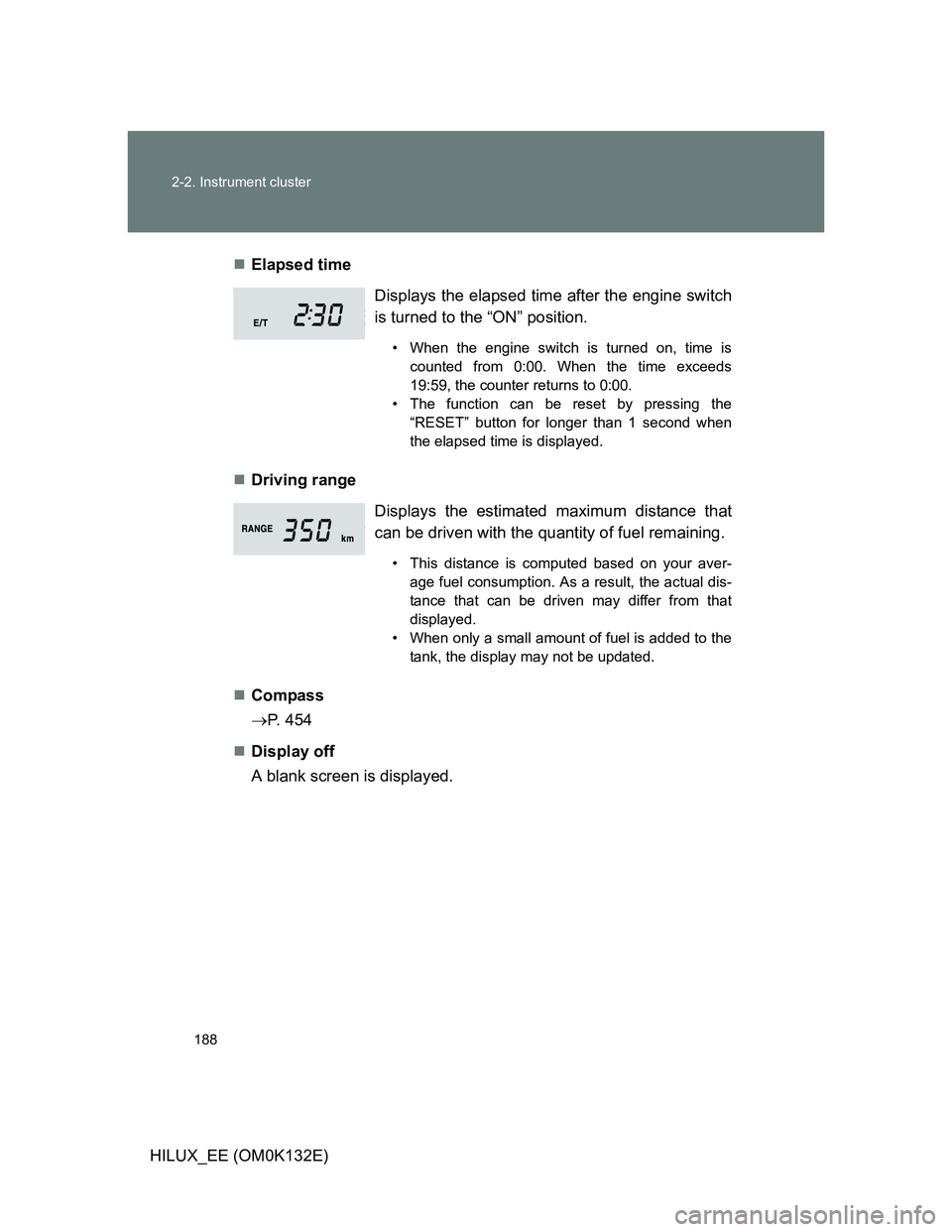

A blank screen is displayed.Displays the elapsed time after the engine switch
is turned to the “ON” position.
• When the engine switch is turned on, time is
counted from 0:00. When the time exceeds
19:59, the counter returns to 0:00.
• The function can be reset by pressing the
“RESET” button for longer than 1 second when
the elapsed time is displayed.
Displays the estimated maximum distance that
can be driven with the quantity of fuel remaining.
• This distance is computed based on your aver-
age fuel consumption. As a result, the actual dis-
tance that can be driven may differ from that
displayed.
• When only a small amount of fuel is added to the
tank, the display may not be updated.

189 2-2. Instrument cluster
2
When driving
HILUX_EE (OM0K132E)
Set up display (if equipped)

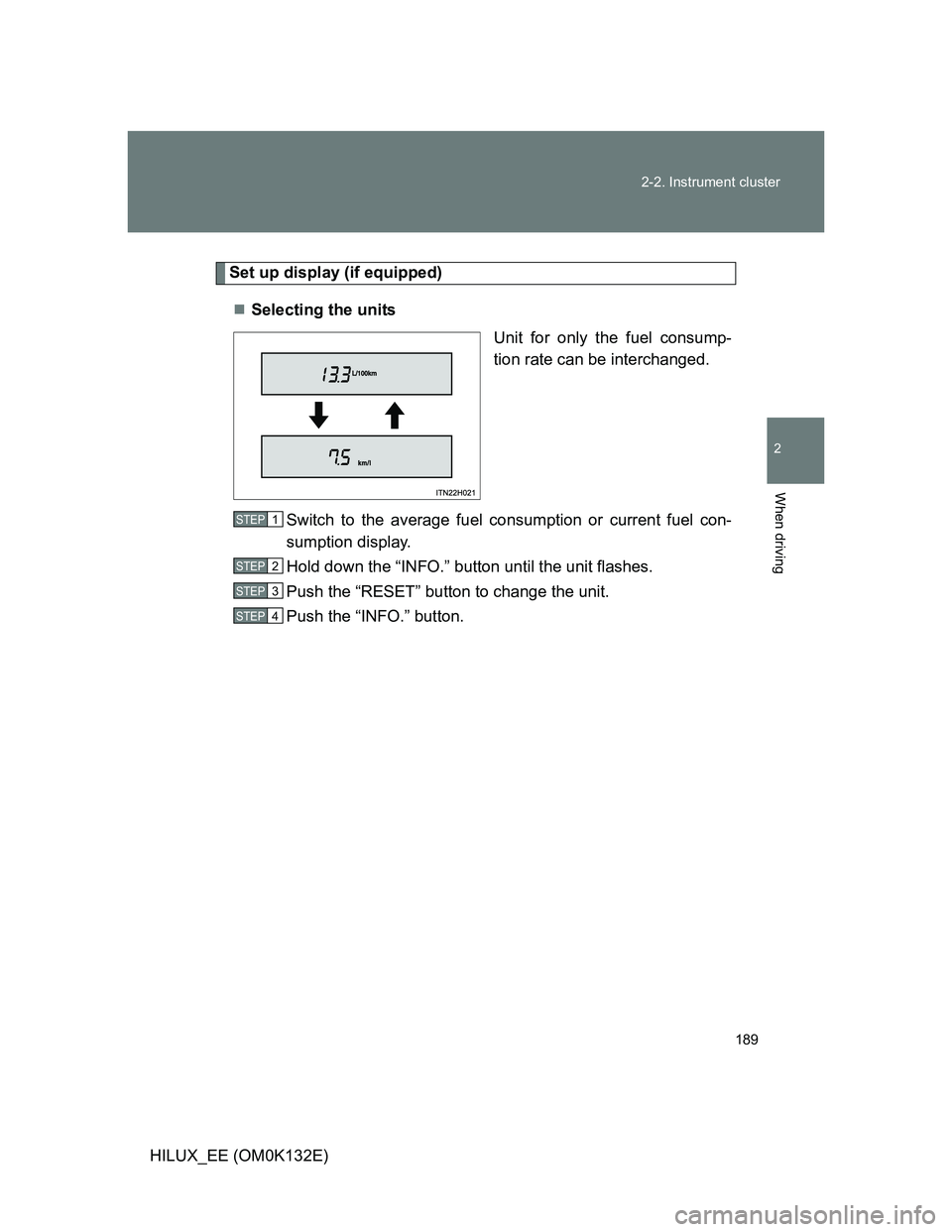

Selecting the units
Unit for only the fuel consump-
tion rate can be interchanged.
Switch to the average fuel consumption or current fuel con-
sumption display.
Hold down the “INFO.” button until the unit flashes.
Push the “RESET” button to change the unit.
Push the “INFO.” button.
STEP1
STEP2
STEP3
STEP4

190 2-2. Instrument cluster
HILUX_EE (OM0K132E)
Outside temperature display

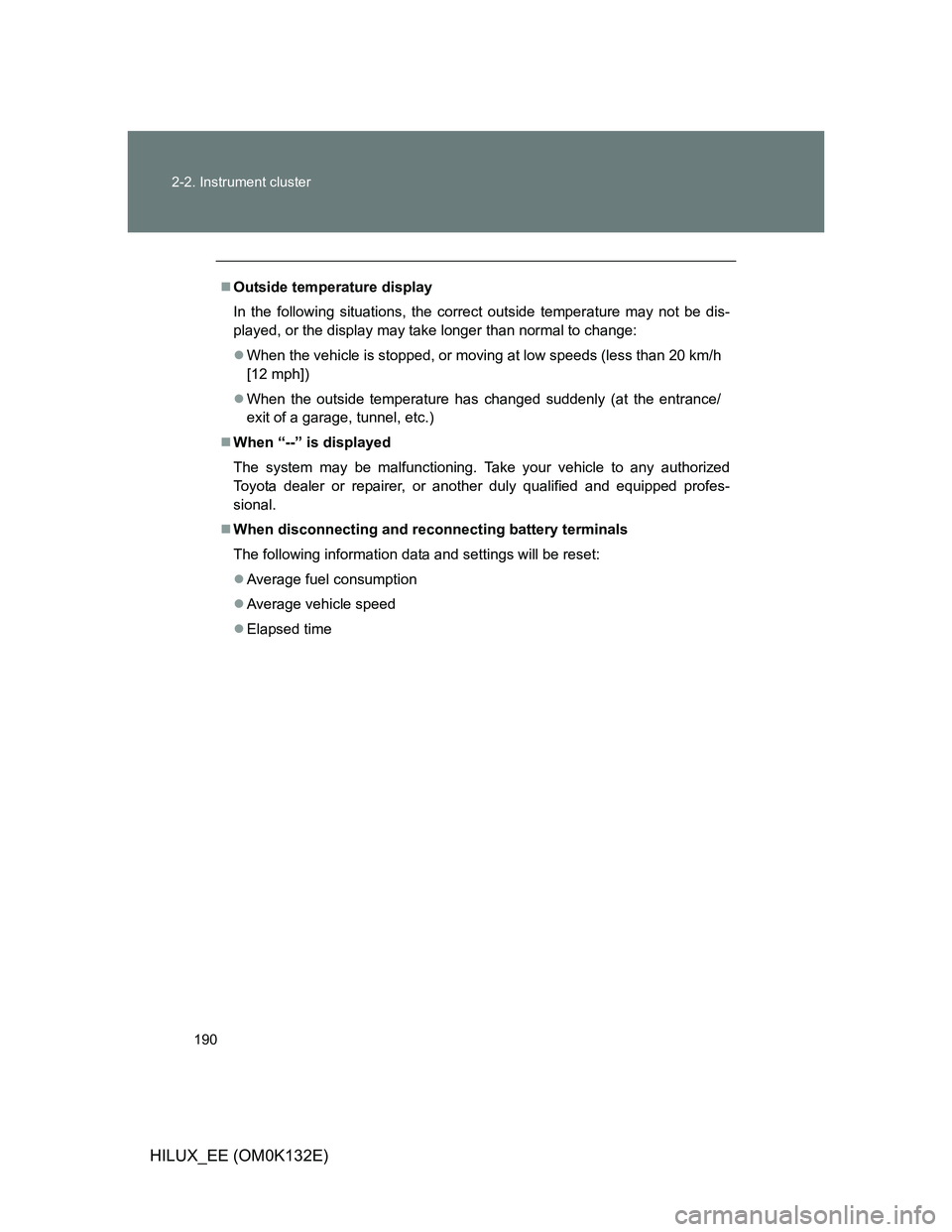

In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change:
When the vehicle is stopped, or moving at low speeds (less than 20 km/h
[12 mph])
When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
When “--” is displayed
The system may be malfunctioning. Take your vehicle to any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
When disconnecting and reconnecting battery terminals
The following information data and settings will be reset:
Average fuel consumption
Average vehicle speed
Elapsed time
