TOYOTA HILUX 2012 Owners Manual (in English)

201
2-3. Operating the lights and wipers
2
When driving
HILUX_EE (OM0K132E)

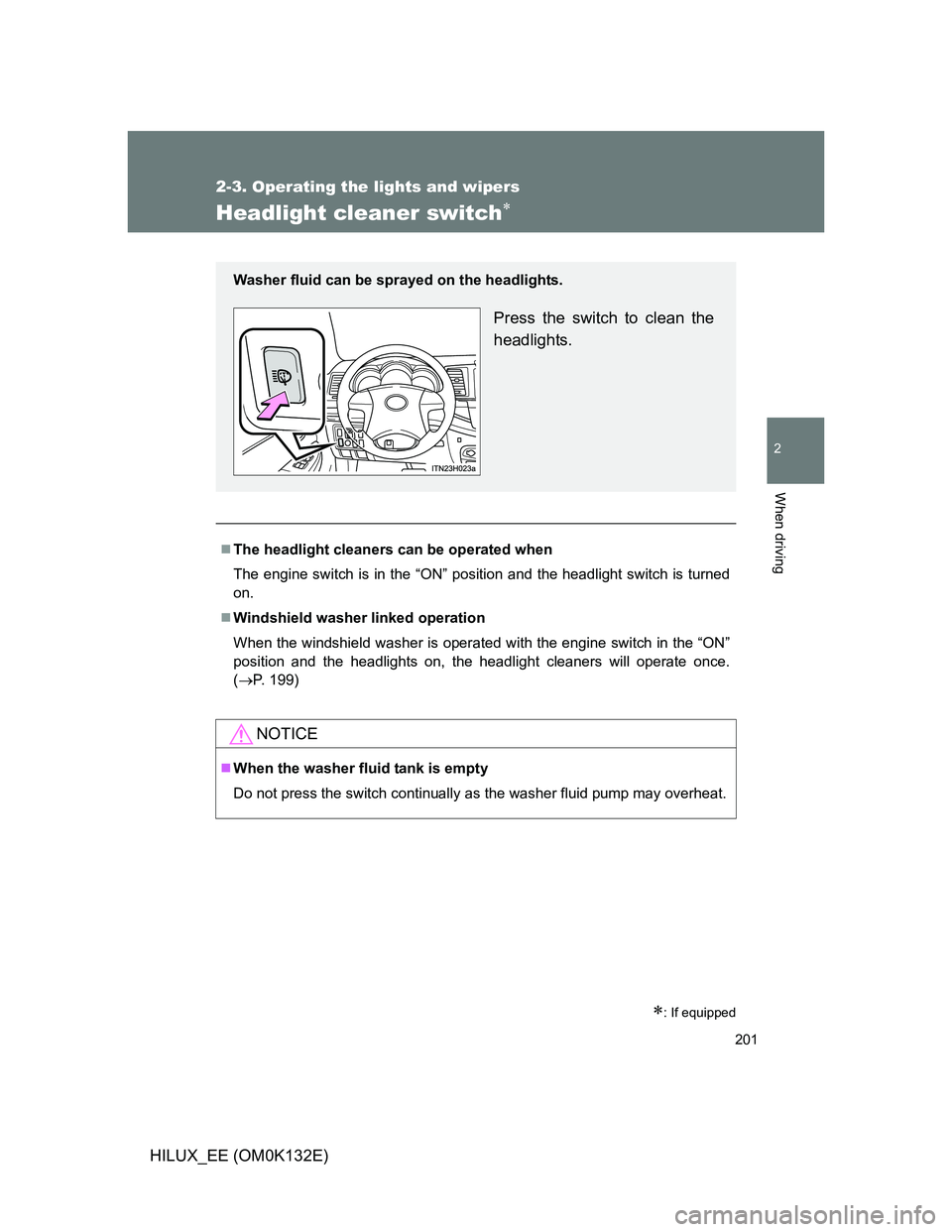

Headlight cleaner switch
: If equipped
The headlight cleaners can be operated when
The engine switch is in the “ON” position and the headlight switch is turned
on.
Windshield washer linked operation
When the windshield washer is operated with the engine switch in the “ON”
position and the headlights on, the headlight cleaners will operate once.
(P. 199)
NOTICE
When the washer fluid tank is empty
Do not press the switch continually as the washer fluid pump may overheat.
Washer fluid can be sprayed on the headlights.
Press the switch to clean the
headlights.

202
HILUX_EE (OM0K132E)
2-4. Using other driving systems

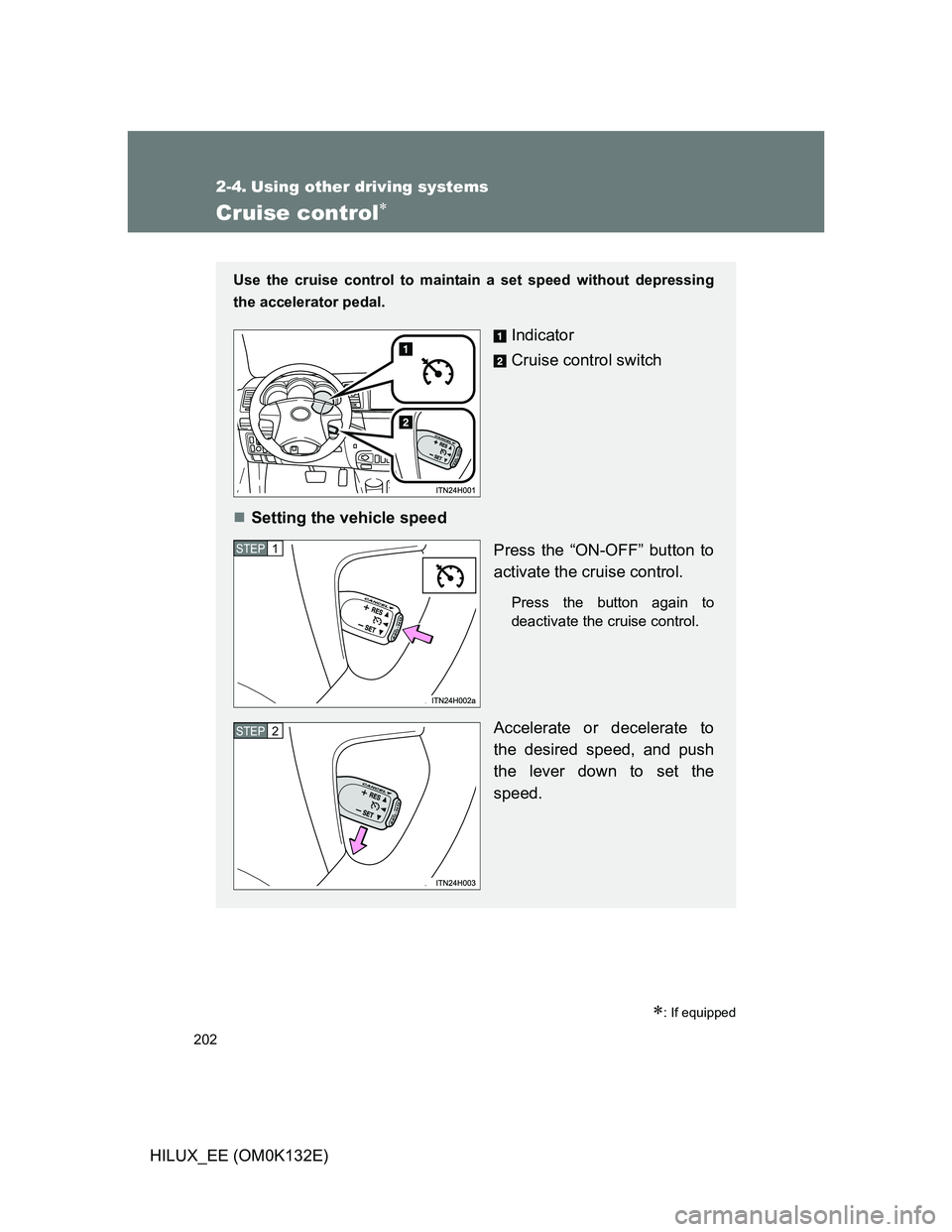

Cruise control
: If equipped
Use the cruise control to maintain a set speed without depressing
the accelerator pedal.
Indicator
Cruise control switch
Setting the vehicle speed
Press the “ON-OFF” button to
activate the cruise control.
Press the button again to
deactivate the cruise control.
Accelerate or decelerate to
the desired speed, and push
the lever down to set the
speed.
STEP1
STEP2

203 2-4. Using other driving systems
2
When driving
HILUX_EE (OM0K132E)

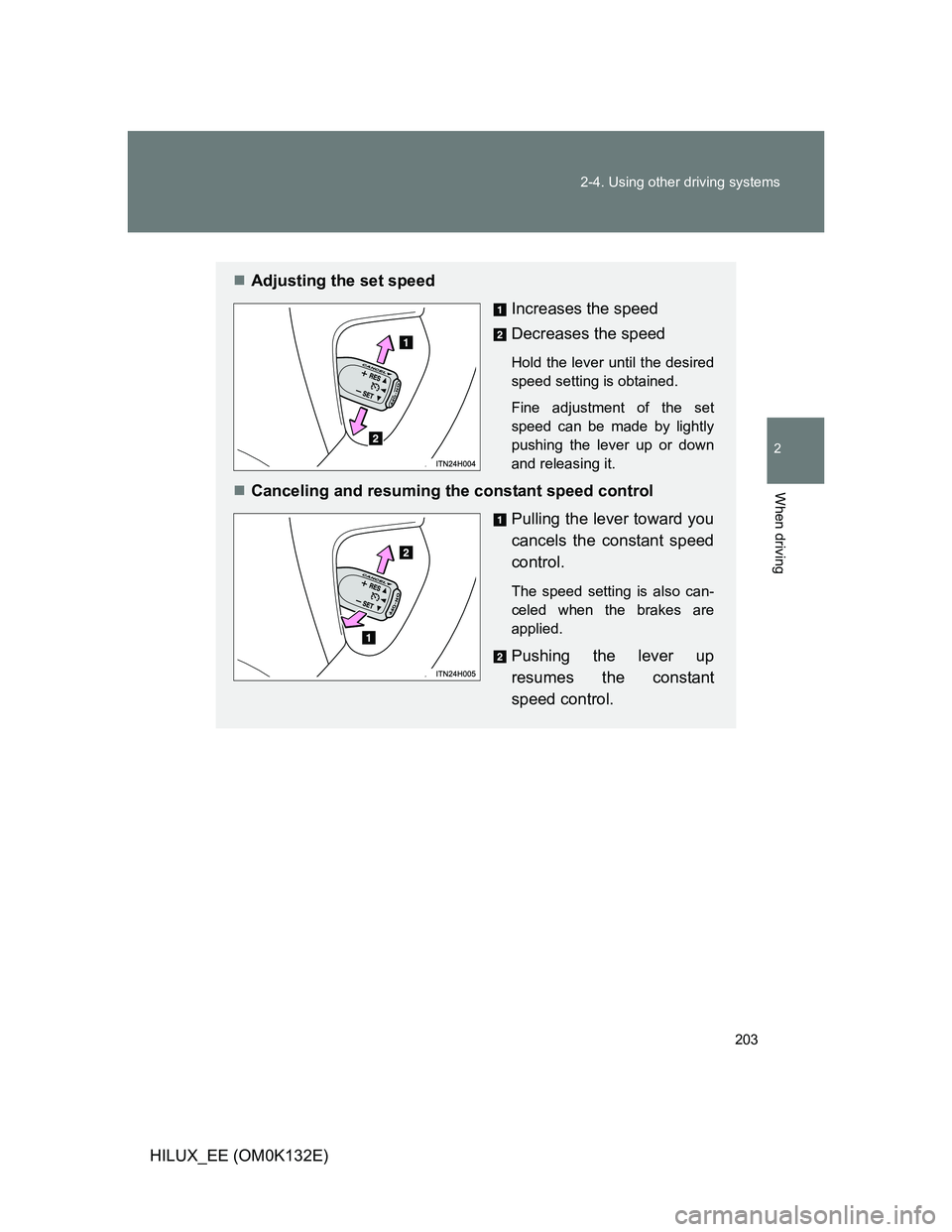

Adjusting the set speed
Increases the speed
Decreases the speed
Hold the lever until the desired
speed setting is obtained.
Fine adjustment of the set
speed can be made by lightly
pushing the lever up or down
and releasing it.
Canceling and resuming the constant speed control
Pulling the lever toward you
cancels the constant speed
control.
The speed setting is also can-
celed when the brakes are
applied.
Pushing the lever up
resumes the constant
speed control.

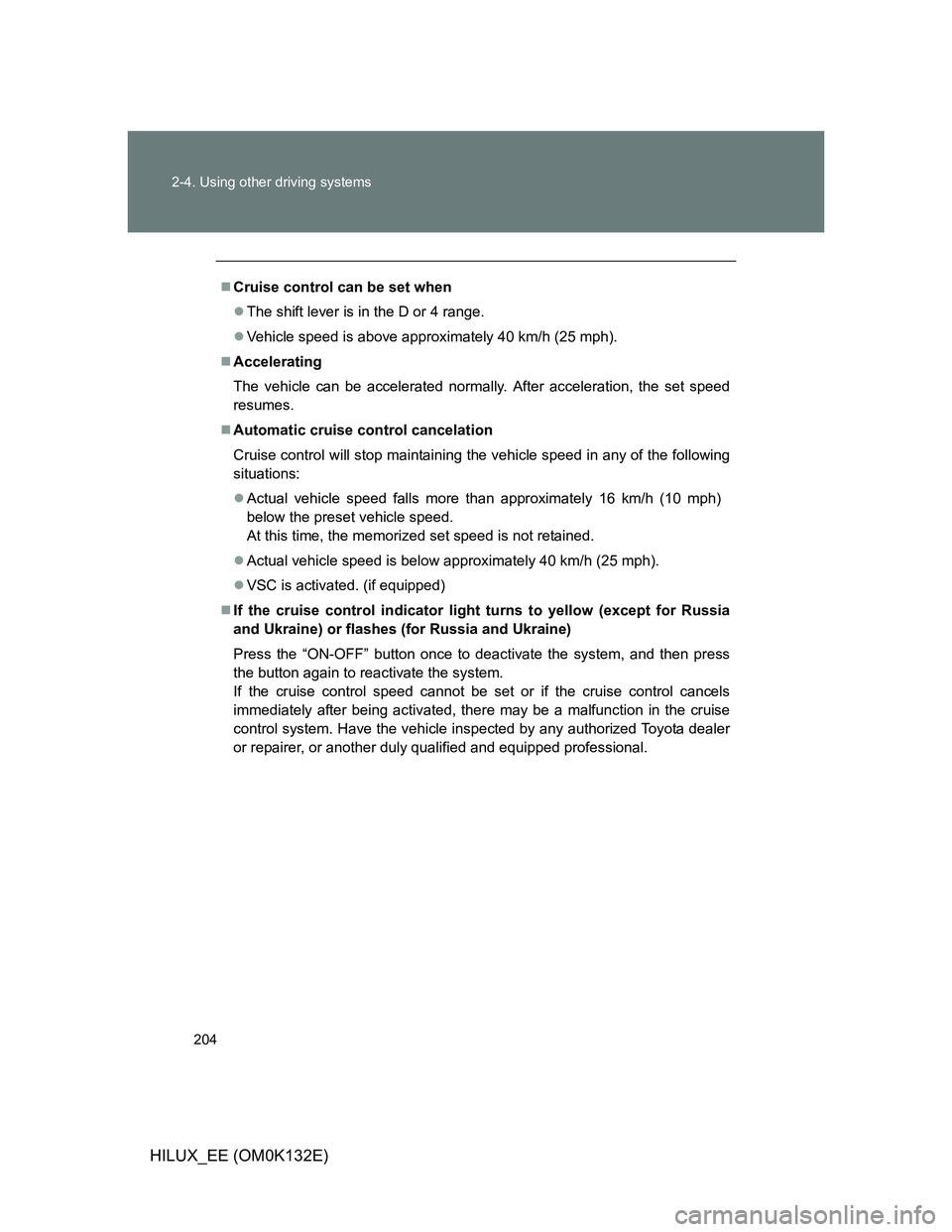

204 2-4. Using other driving systems
HILUX_EE (OM0K132E)
Cruise control can be set when
The shift lever is in the D or 4 range.
Vehicle speed is above approximately 40 km/h (25 mph).
Accelerating
The vehicle can be accelerated normally. After acceleration, the set speed
resumes.
Automatic cruise control cancelation
Cruise control will stop maintaining the vehicle speed in any of the following
situations:
Actual vehicle speed falls more than approximately 16 km/h (10 mph)
below the preset vehicle speed.
At this time, the memorized set speed is not retained.
Actual vehicle speed is below approximately 40 km/h (25 mph).
VSC is activated. (if equipped)
If the cruise control indicator light turns to yellow (except for Russia
and Ukraine) or flashes (for Russia and Ukraine)
Press the “ON-OFF” button once to deactivate the system, and then press
the button again to reactivate the system.
If the cruise control speed cannot be set or if the cruise control cancels
immediately after being activated, there may be a malfunction in the cruise
control system. Have the vehicle inspected by any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.

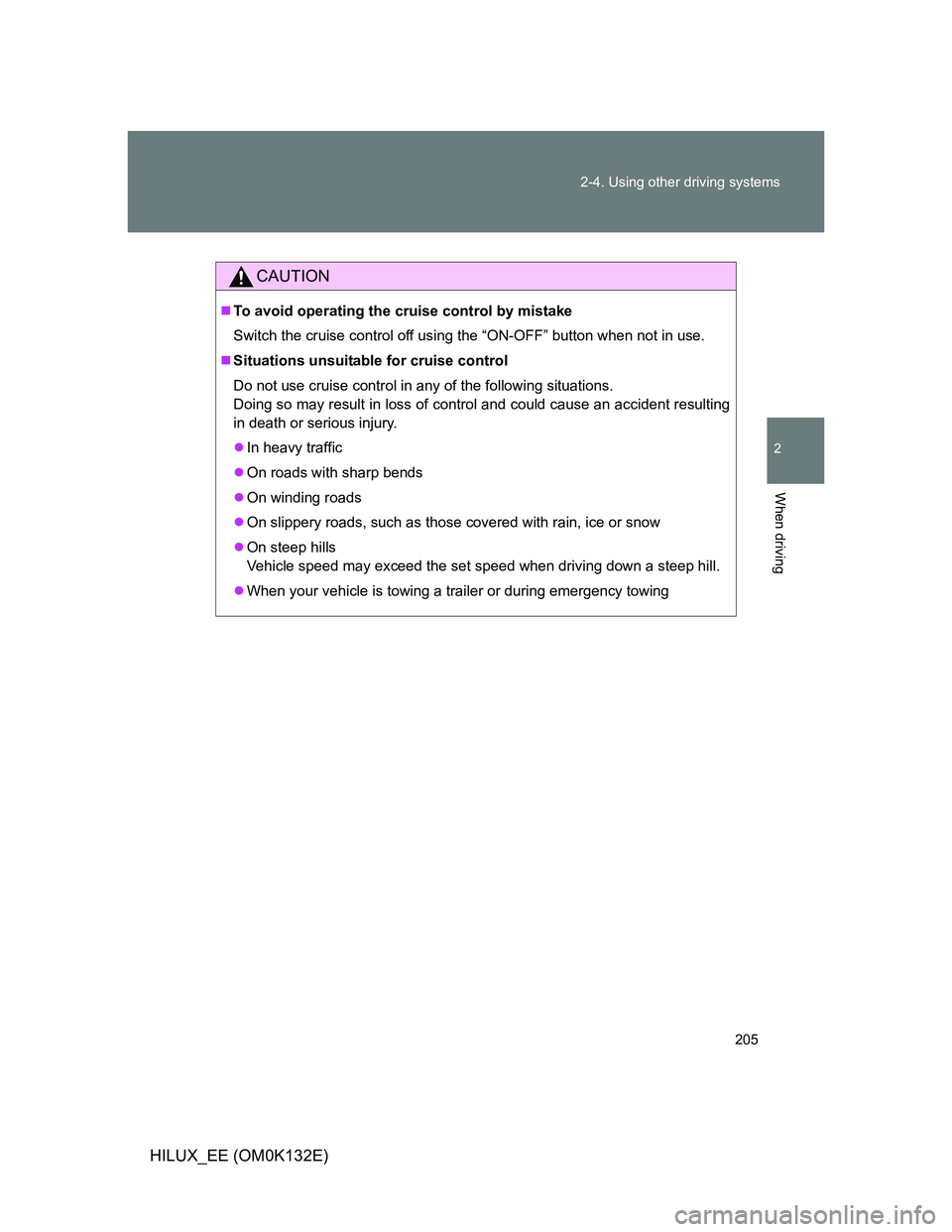

205 2-4. Using other driving systems
2
When driving
HILUX_EE (OM0K132E)
CAUTION
To avoid operating the cruise control by mistake
Switch the cruise control off using the “ON-OFF” button when not in use.
Situations unsuitable for cruise control
Do not use cruise control in any of the following situations.
Doing so may result in loss of control and could cause an accident resulting
in death or serious injury.
In heavy traffic
On roads with sharp bends
On winding roads
On slippery roads, such as those covered with rain, ice or snow
On steep hills
Vehicle speed may exceed the set speed when driving down a steep hill.
When your vehicle is towing a trailer or during emergency towing

206
2-4. Using other driving systems
HILUX_EE (OM0K132E)

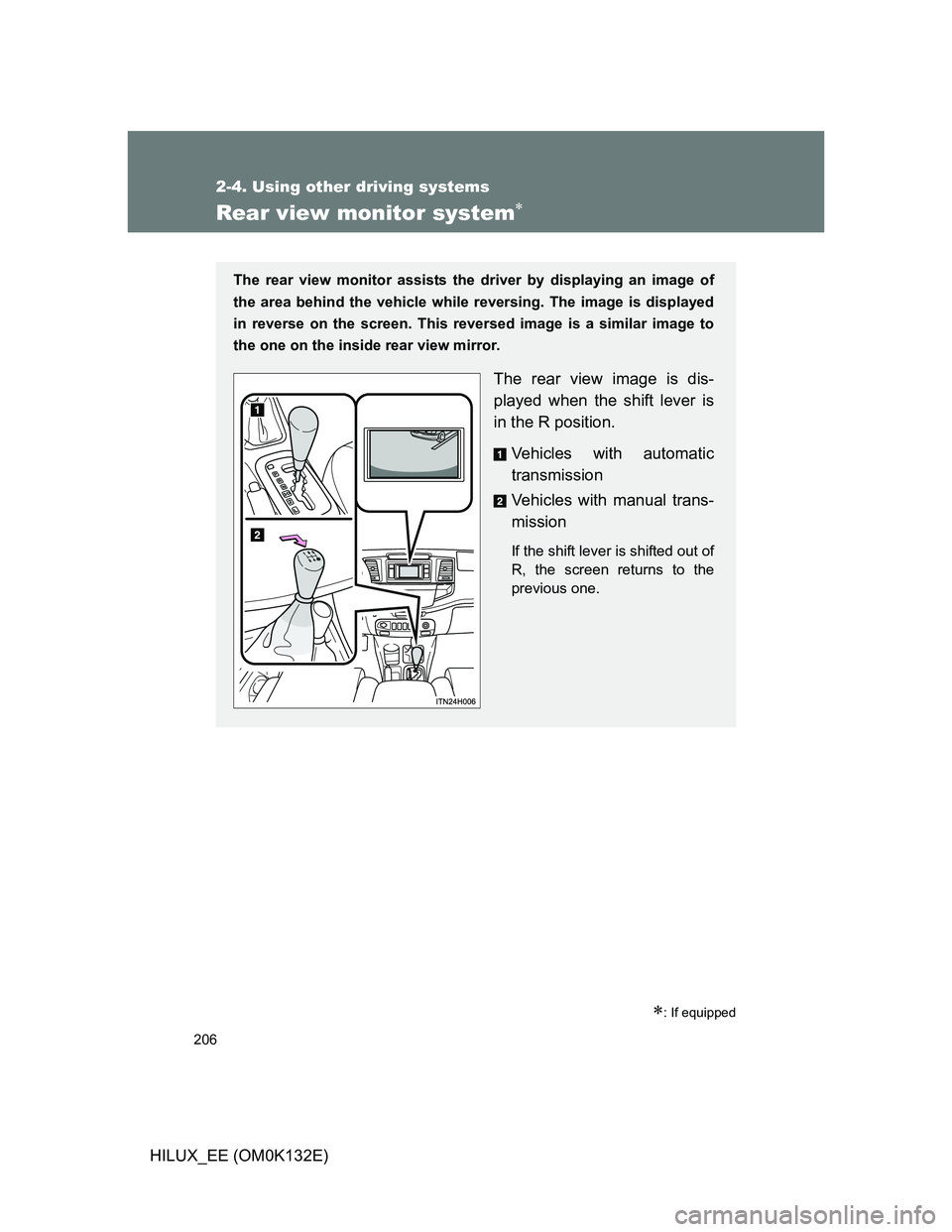

Rear view monitor system
: If equipped
The rear view monitor assists the driver by displaying an image of
the area behind the vehicle while reversing. The image is displayed
in reverse on the screen. This reversed image is a similar image to
the one on the inside rear view mirror.
The rear view image is dis-
played when the shift lever is
in the R position.
Vehicles with automatic
transmission
Vehicles with manual trans-
mission
If the shift lever is shifted out of
R, the screen returns to the
previous one.

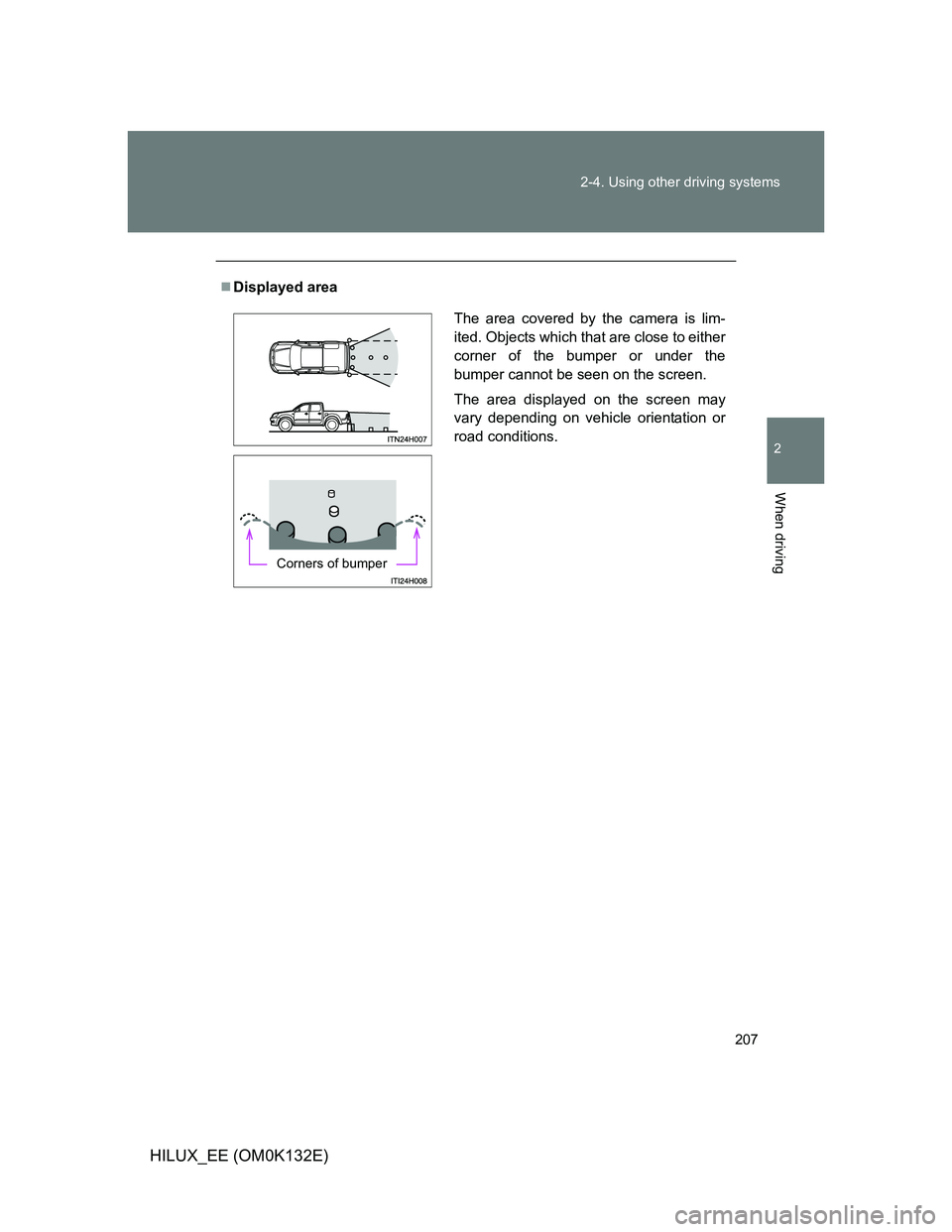

207 2-4. Using other driving systems
2
When driving
HILUX_EE (OM0K132E)
Displayed area
The area covered by the camera is lim-
ited. Objects which that are close to either
corner of the bumper or under the
bumper cannot be seen on the screen.
The area displayed on the screen may
vary depending on vehicle orientation or
road conditions.
Corners of bumper

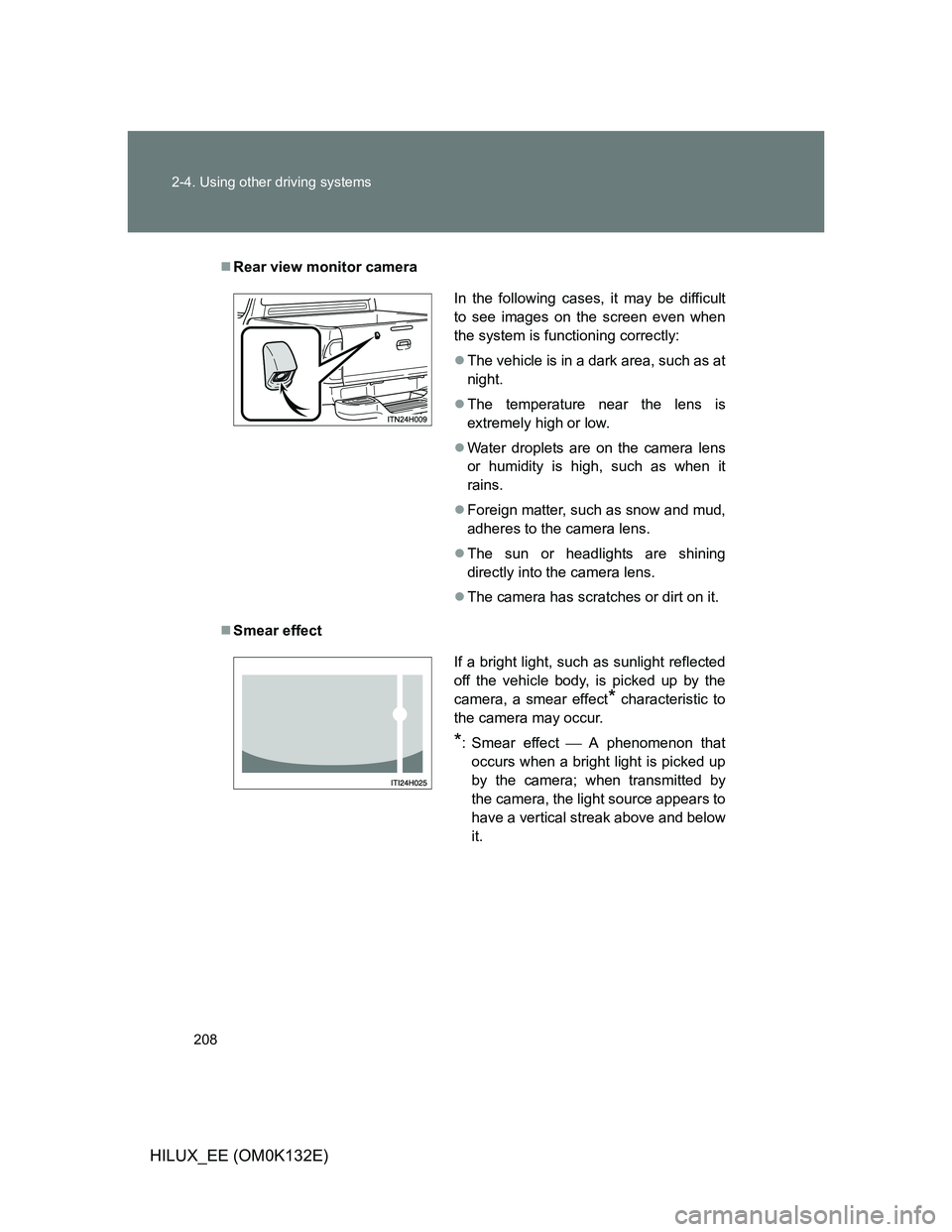

208 2-4. Using other driving systems
HILUX_EE (OM0K132E)
Rear view monitor camera
Smear effect
In the following cases, it may be difficult
to see images on the screen even when
the system is functioning correctly:
The vehicle is in a dark area, such as at
night.
The temperature near the lens is
extremely high or low.
Water droplets are on the camera lens
or humidity is high, such as when it
rains.
Foreign matter, such as snow and mud,
adheres to the camera lens.
The sun or headlights are shining
directly into the camera lens.
The camera has scratches or dirt on it.
If a bright light, such as sunlight reflected
off the vehicle body, is picked up by the
camera, a smear effect
* characteristic to
the camera may occur.
*: Smear effectA phenomenon that
occurs when a bright light is picked up
by the camera; when transmitted by
the camera, the light source appears to
have a vertical streak above and below
it.

209 2-4. Using other driving systems
2
When driving
HILUX_EE (OM0K132E)

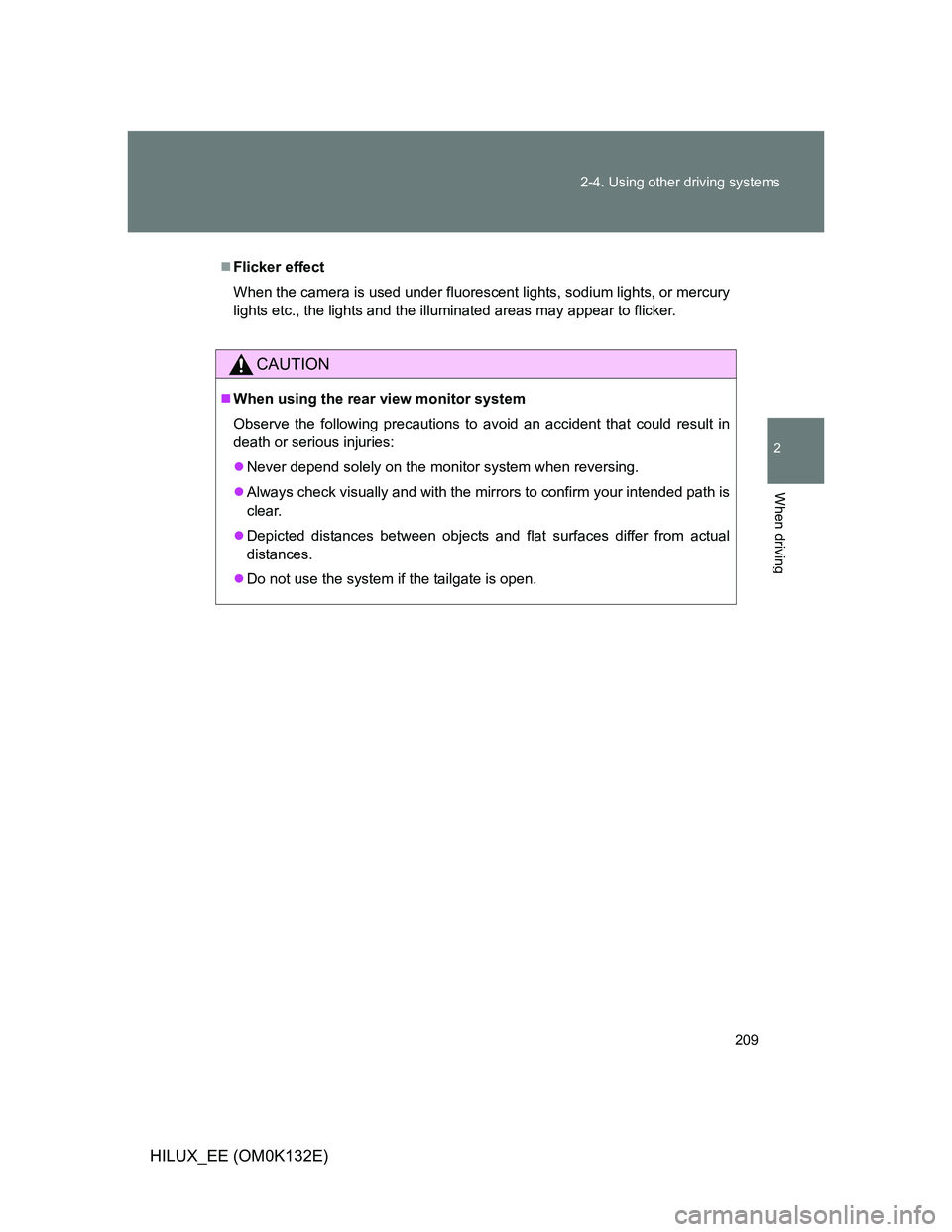

Flicker effect
When the camera is used under fluorescent lights, sodium lights, or mercury
lights etc., the lights and the illuminated areas may appear to flicker.
CAUTION
When using the rear view monitor system
Observe the following precautions to avoid an accident that could result in
death or serious injuries:
Never depend solely on the monitor system when reversing.
Always check visually and with the mirrors to confirm your intended path is
clear.
Depicted distances between objects and flat surfaces differ from actual
distances.
Do not use the system if the tailgate is open.

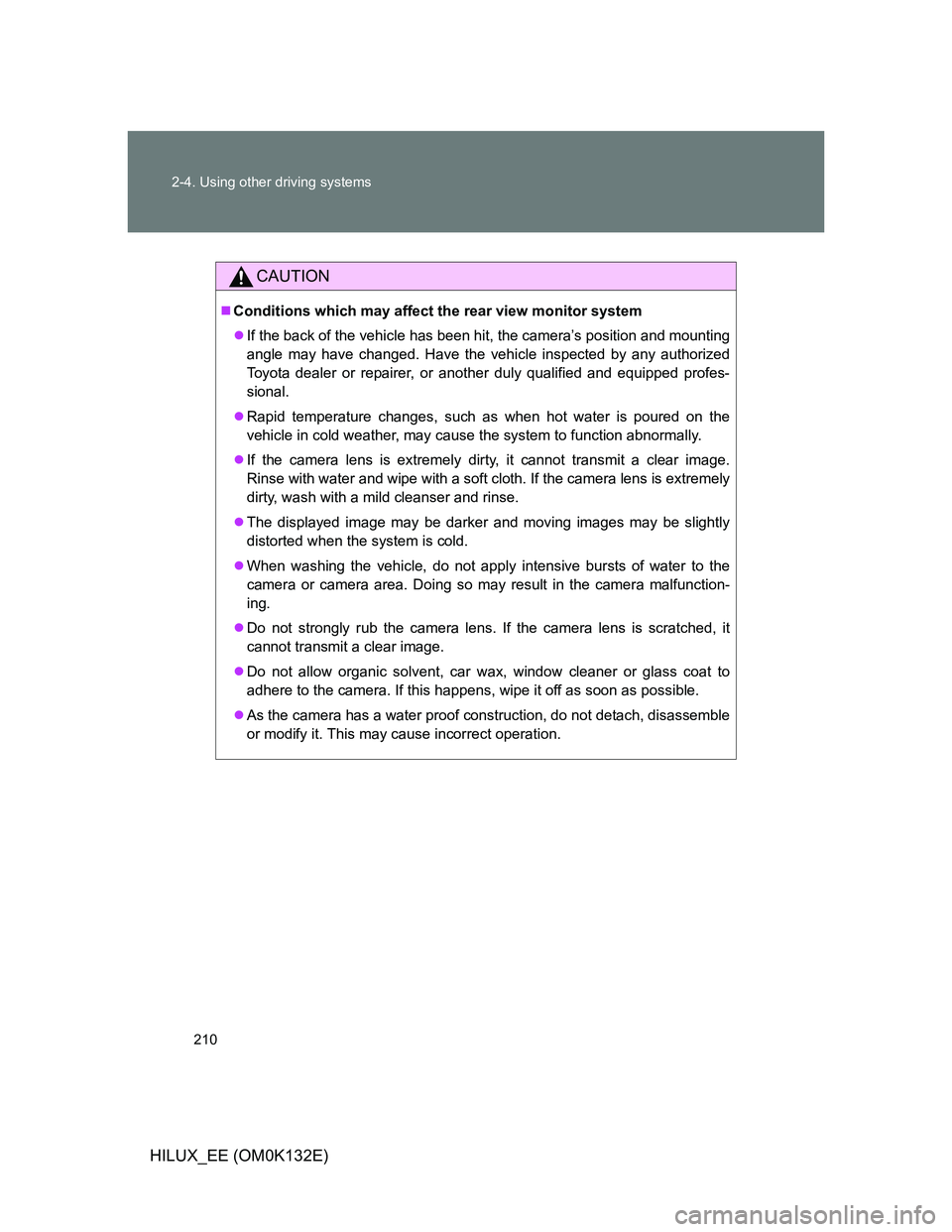

210 2-4. Using other driving systems
HILUX_EE (OM0K132E)
CAUTION
Conditions which may affect the rear view monitor system
If the back of the vehicle has been hit, the camera’s position and mounting
angle may have changed. Have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
Rapid temperature changes, such as when hot water is poured on the
vehicle in cold weather, may cause the system to function abnormally.
If the camera lens is extremely dirty, it cannot transmit a clear image.
Rinse with water and wipe with a soft cloth. If the camera lens is extremely
dirty, wash with a mild cleanser and rinse.
The displayed image may be darker and moving images may be slightly
distorted when the system is cold.
When washing the vehicle, do not apply intensive bursts of water to the
camera or camera area. Doing so may result in the camera malfunction-
ing.
Do not strongly rub the camera lens. If the camera lens is scratched, it
cannot transmit a clear image.
Do not allow organic solvent, car wax, window cleaner or glass coat to
adhere to the camera. If this happens, wipe it off as soon as possible.
As the camera has a water proof construction, do not detach, disassemble
or modify it. This may cause incorrect operation.
