391 3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K189E_(EE)

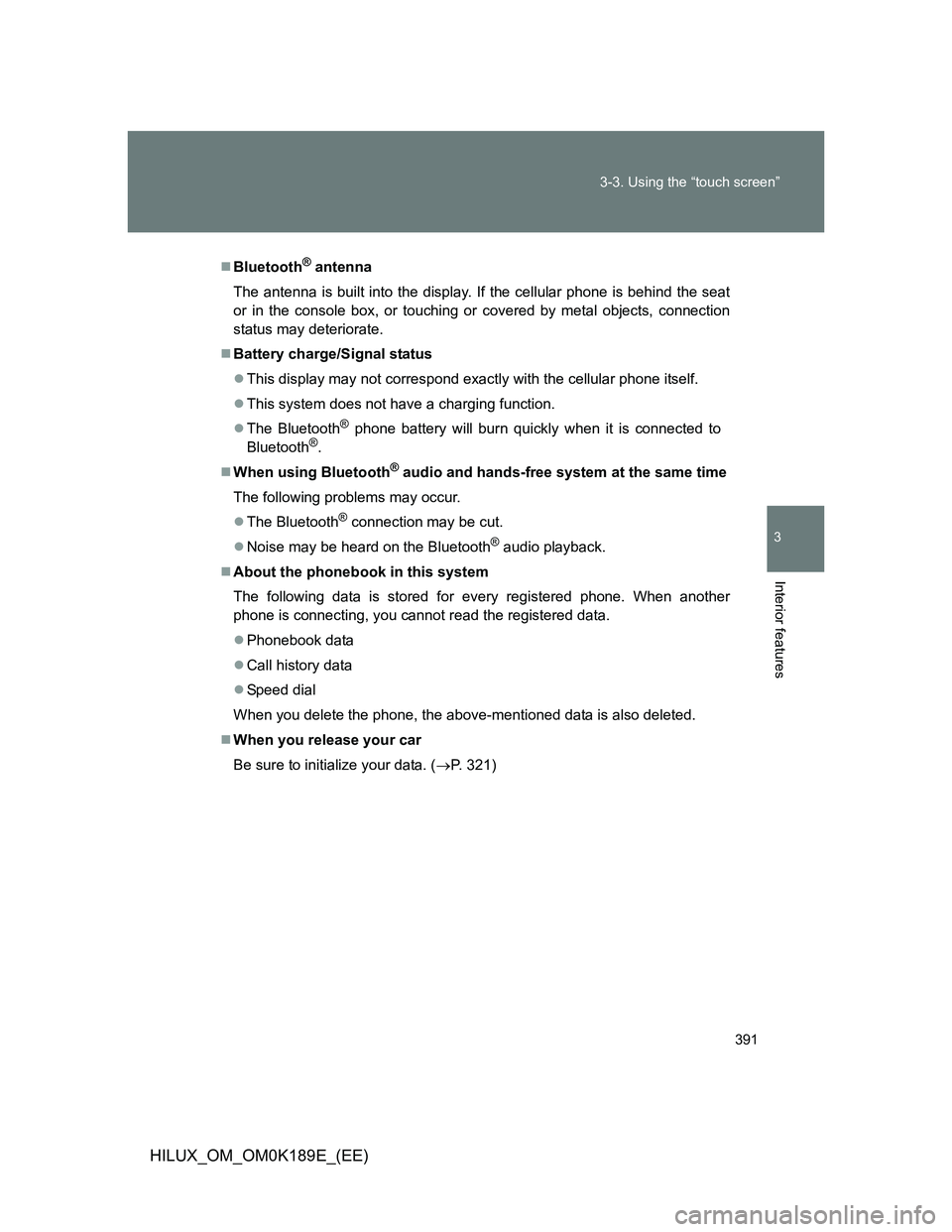

Bluetooth® antenna
The antenna is built into the display. If the cellular phone is behind the seat
or in the console box, or touching or covered by metal objects, connection
status may deteriorate.
Battery charge/Signal status
This display may not correspond exactly with the cellular phone itself.
This system does not have a charging function.
The Bluetooth
® phone battery will burn quickly when it is connected to
Bluetooth®.
When using Bluetooth
® audio and hands-free system at the same time
The following problems may occur.
The Bluetooth
® connection may be cut.
Noise may be heard on the Bluetooth
® audio playback.
About the phonebook in this system
The following data is stored for every registered phone. When another
phone is connecting, you cannot read the registered data.
Phonebook data
Call history data
Speed dial
When you delete the phone, the above-mentioned data is also deleted.
When you release your car
Be sure to initialize your data. (P. 321)

392 3-3. Using the “touch screen”
HILUX_OM_OM0K189E_(EE)

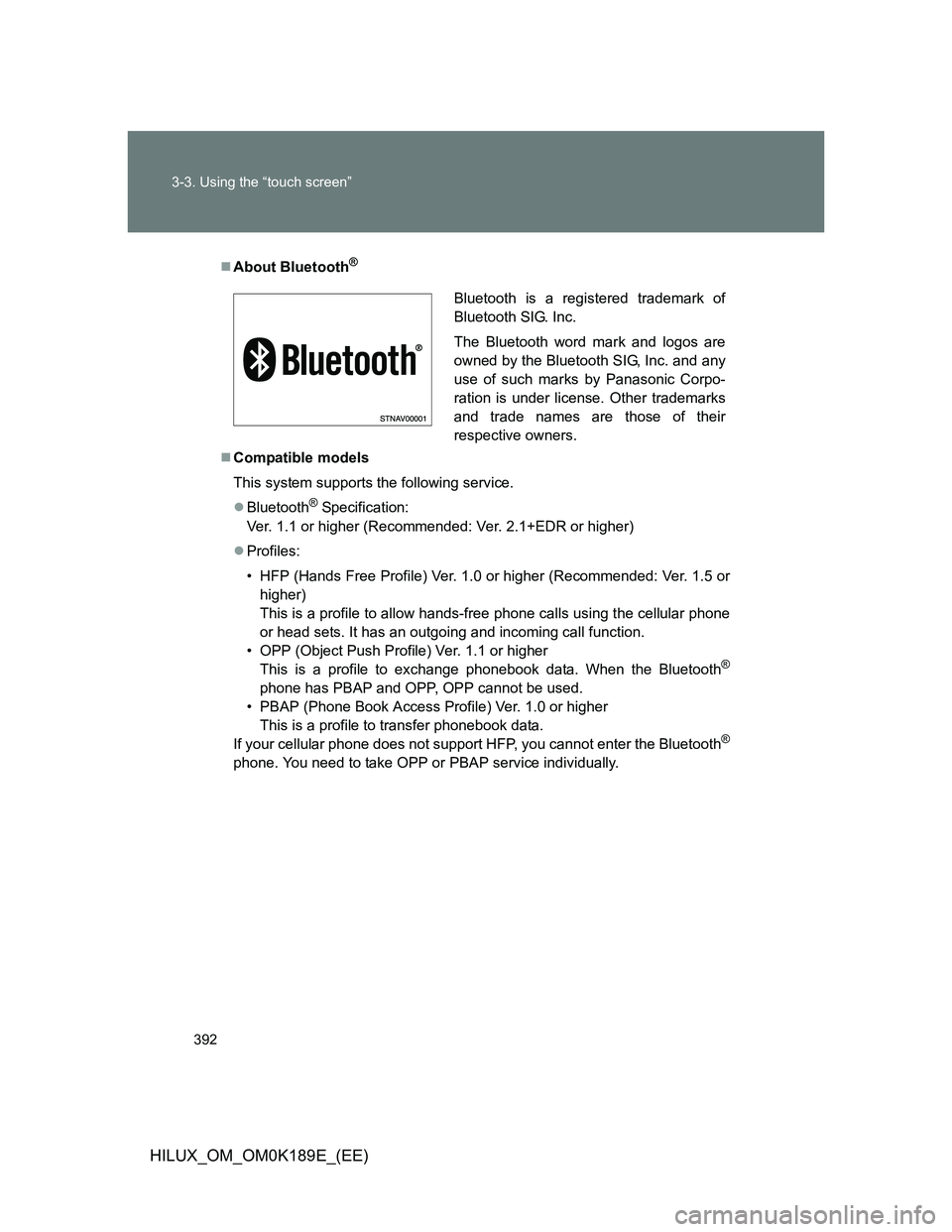

About Bluetooth®
Compatible models
This system supports the following service.
Bluetooth
® Specification:
Ver. 1.1 or higher (Recommended: Ver. 2.1+EDR or higher)
Profiles:
• HFP (Hands Free Profile) Ver. 1.0 or higher (Recommended: Ver. 1.5 or
higher)
This is a profile to allow hands-free phone calls using the cellular phone
or head sets. It has an outgoing and incoming call function.
• OPP (Object Push Profile) Ver. 1.1 or higher
This is a profile to exchange phonebook data. When the Bluetooth
®
phone has PBAP and OPP, OPP cannot be used.
• PBAP (Phone Book Access Profile) Ver. 1.0 or higher
This is a profile to transfer phonebook data.
If your cellular phone does not support HFP, you cannot enter the Bluetooth
®
phone. You need to take OPP or PBAP service individually.
Bluetooth is a registered trademark of
Bluetooth SIG. Inc.
The Bluetooth word mark and logos are
owned by the Bluetooth SIG, Inc. and any
use of such marks by Panasonic Corpo-
ration is under license. Other trademarks
and trade names are those of their
respective owners.

393 3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K189E_(EE)
Certification
Declaration of Conformity (DoC)
Hereby, Panasonic Corporation, declares that this Bluetooth Module ASSY
(YEAP01A112) is in compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC.
The latest original “DECLARATION of CONFORMITY” (DoC) is available at
the address stated.
[DoC Website address] http://www.ptc.panasonic.de/
(To see the DoC for the product’s component, input the product search num-
ber: YEAP01A112)

394 3-3. Using the “touch screen”
HILUX_OM_OM0K189E_(EE)

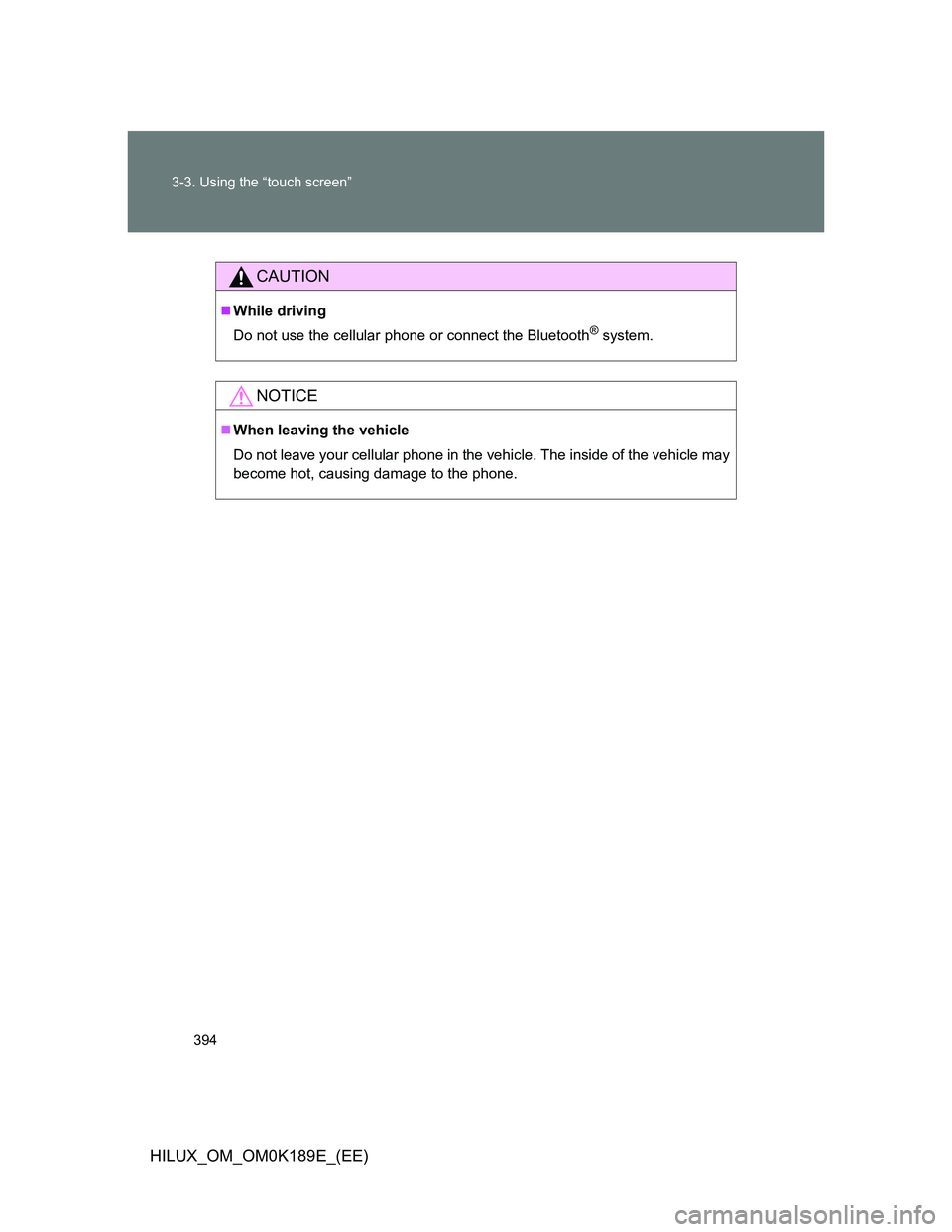

CAUTION
While driving
Do not use the cellular phone or connect the Bluetooth
® system.
NOTICE
When leaving the vehicle
Do not leave your cellular phone in the vehicle. The inside of the vehicle may
become hot, causing damage to the phone.

395
3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K189E_(EE)

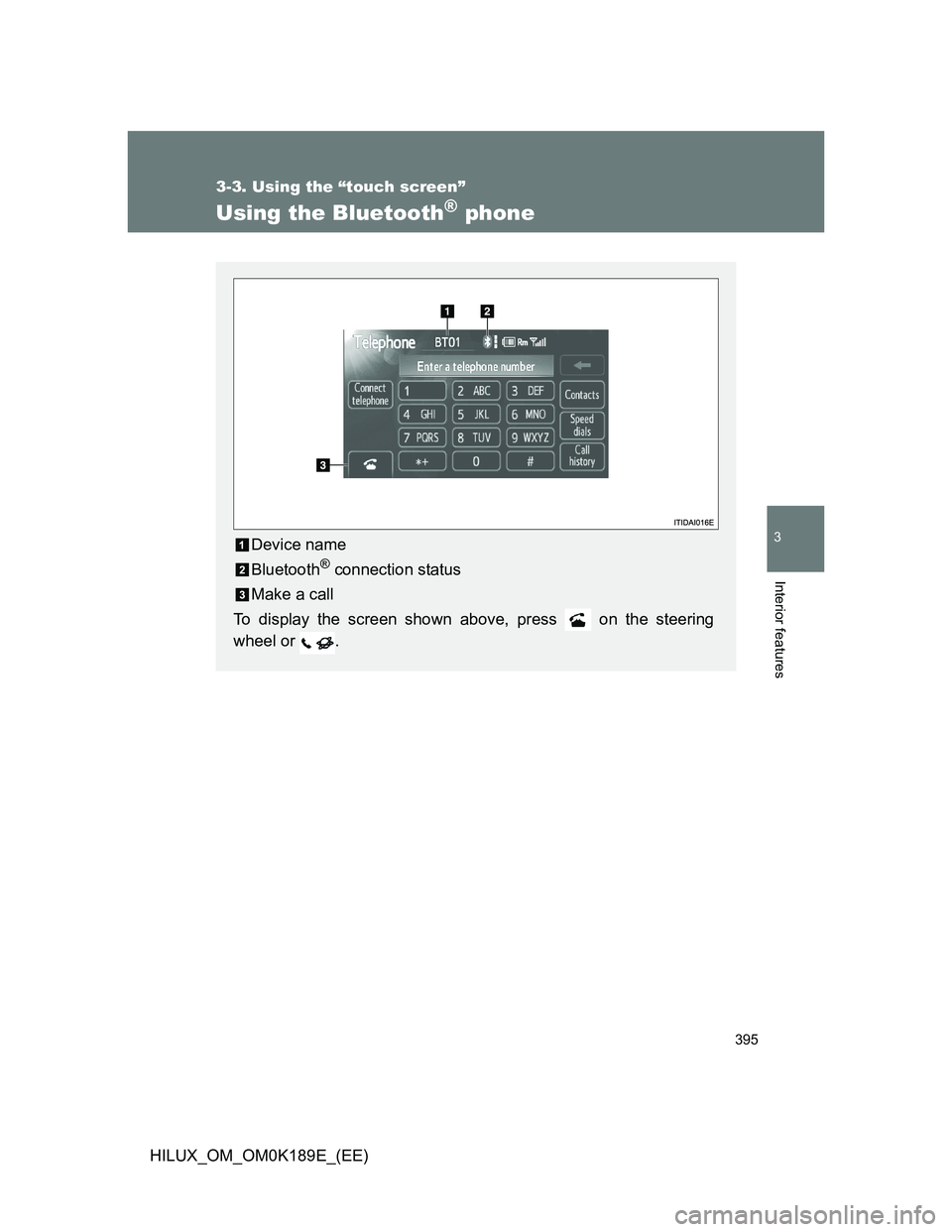

Using the Bluetooth® phone
Device name
Bluetooth
® connection status
Make a call
To display the screen shown above, press on the steering
wheel or .

396 3-3. Using the “touch screen”
HILUX_OM_OM0K189E_(EE)

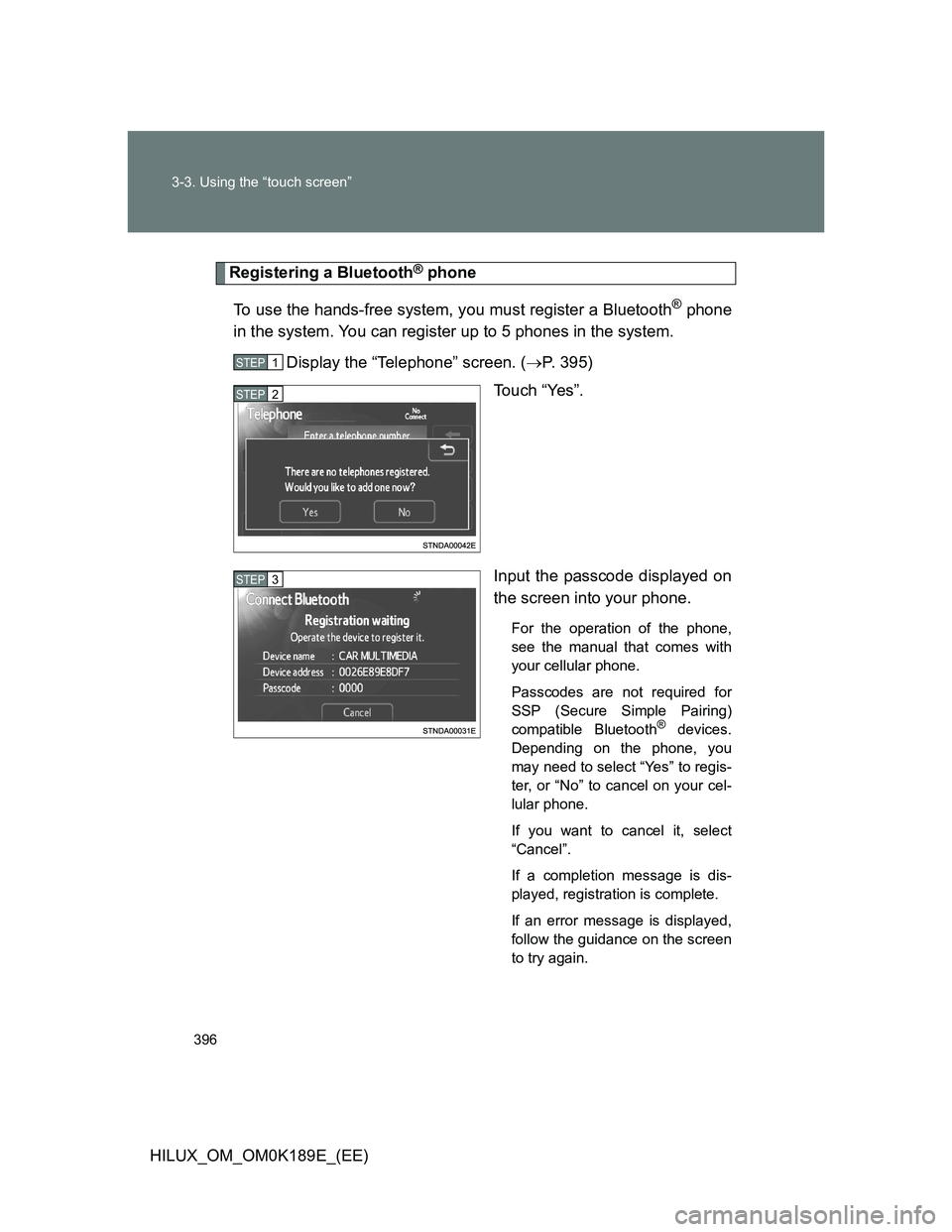

Registering a Bluetooth® phone
To use the hands-free system, you must register a Bluetooth
® phone
in the system. You can register up to 5 phones in the system.
Display the “Telephone” screen. (P. 395)
Touch “Yes”.
Input the passcode displayed on
the screen into your phone.
For the operation of the phone,
see the manual that comes with
your cellular phone.
Passcodes are not required for
SSP (Secure Simple Pairing)
compatible Bluetooth
® devices.
Depending on the phone, you
may need to select “Yes” to regis-
ter, or “No” to cancel on your cel-
lular phone.
If you want to cancel it, select
“Cancel”.
If a completion message is dis-
played, registration is complete.
If an error message is displayed,
follow the guidance on the screen
to try again.
STEP1
STEP2
STEP3

397 3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K189E_(EE)

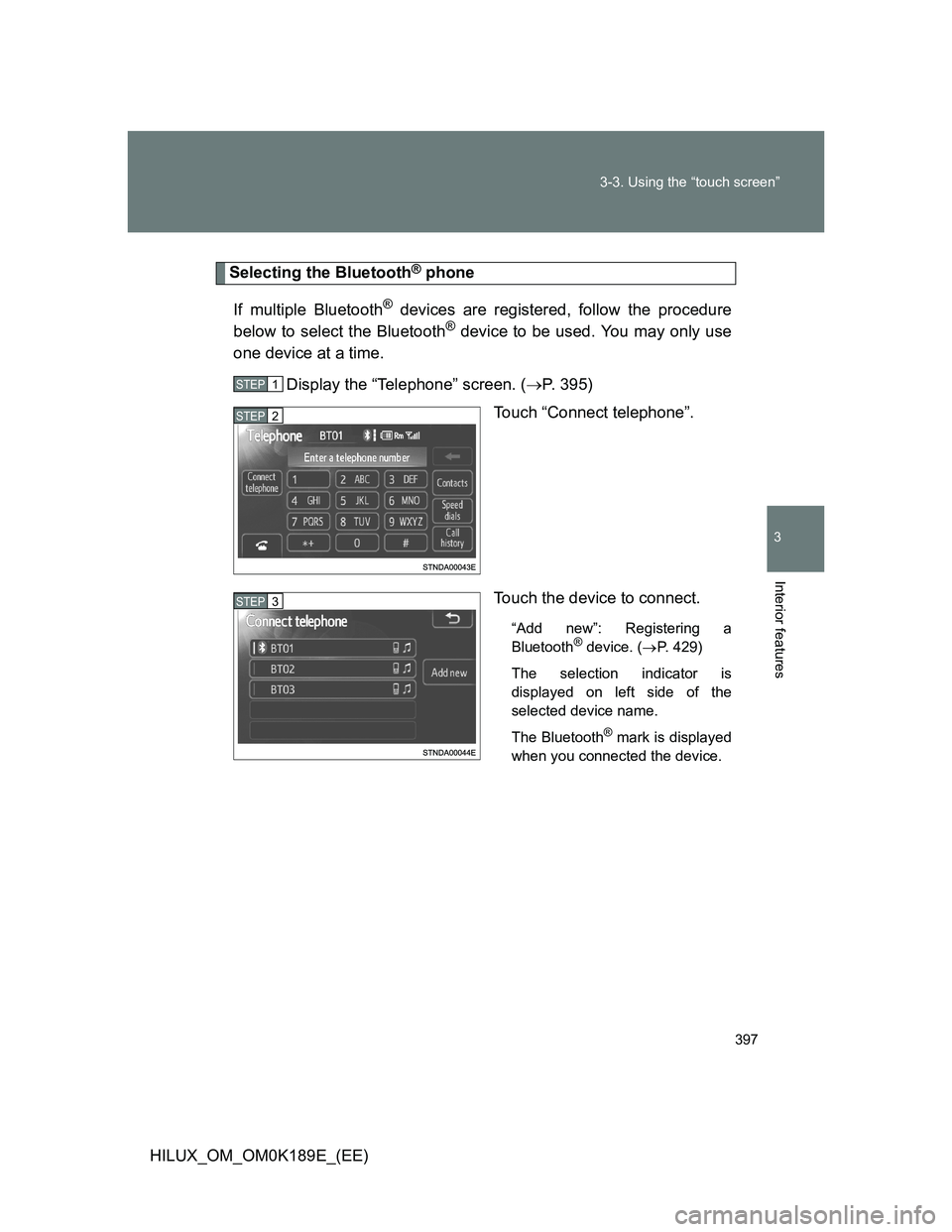

Selecting the Bluetooth® phone
If multiple Bluetooth
® devices are registered, follow the procedure
below to select the Bluetooth® device to be used. You may only use
one device at a time.
Display the “Telephone” screen. (P. 395)
Touch “Connect telephone”.
Touch the device to connect.
“Add new”: Registering a
Bluetooth® device. (P. 429)
The selection indicator is
displayed on left side of the
selected device name.
The Bluetooth
® mark is displayed
when you connected the device.
STEP1
STEP2
STEP3

398 3-3. Using the “touch screen”
HILUX_OM_OM0K189E_(EE)

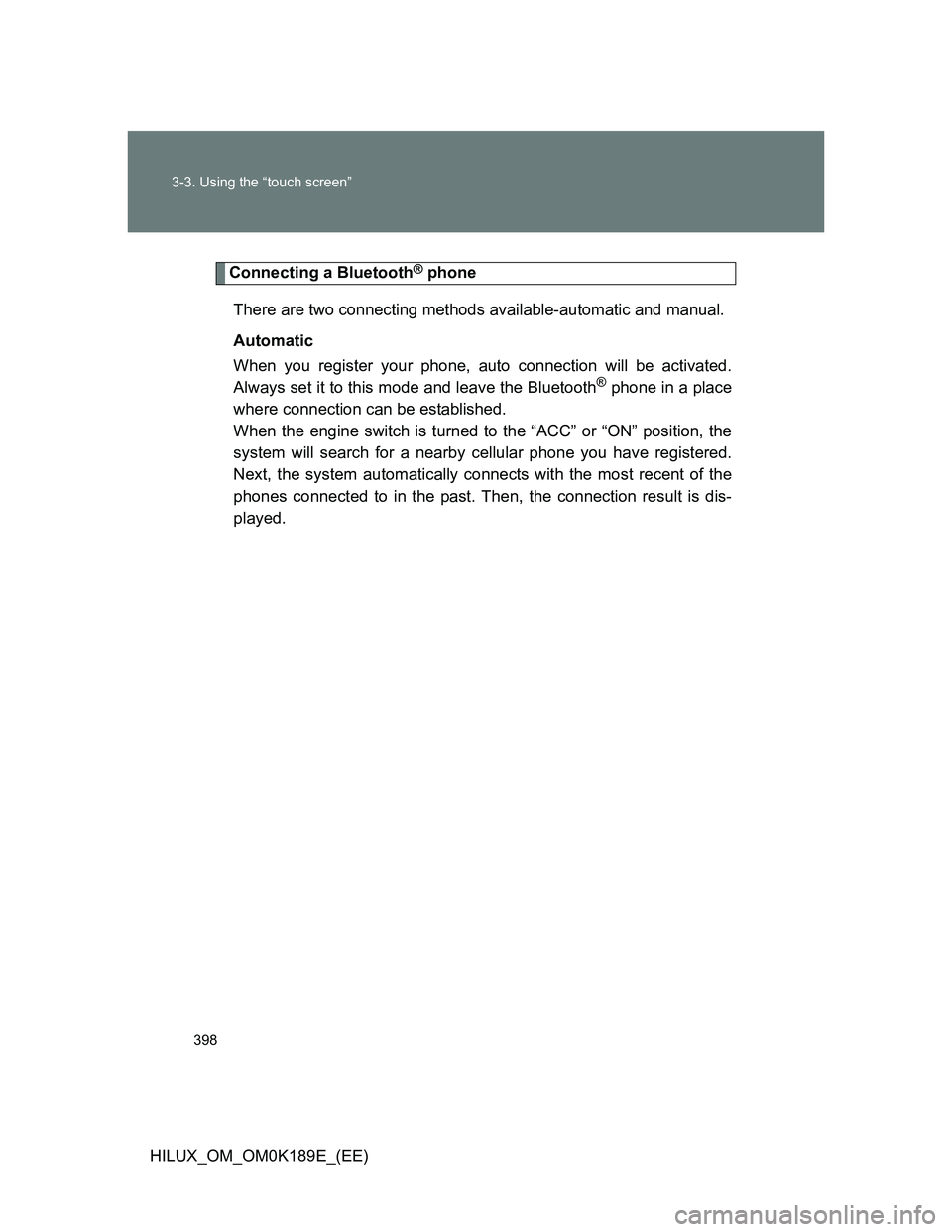

Connecting a Bluetooth® phone
There are two connecting methods available-automatic and manual.
Automatic
When you register your phone, auto connection will be activated.
Always set it to this mode and leave the Bluetooth
® phone in a place
where connection can be established.
When the engine switch is turned to the “ACC” or “ON” position, the
system will search for a nearby cellular phone you have registered.
Next, the system automatically connects with the most recent of the
phones connected to in the past. Then, the connection result is dis-
played.

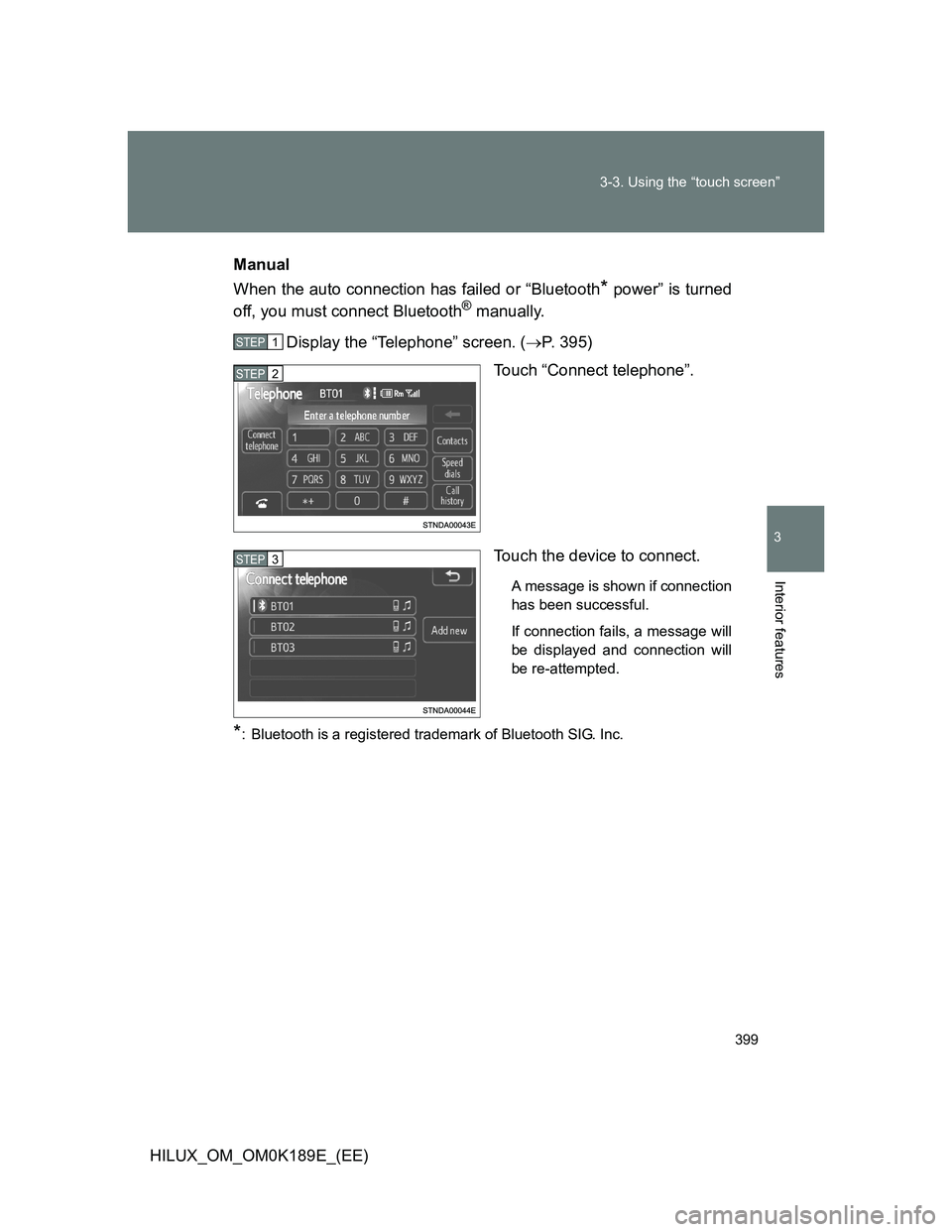

399 3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K189E_(EE)Manual
When the auto connection has failed or “Bluetooth
* power” is turned
off, you must connect Bluetooth® manually.
Display the “Telephone” screen
. (P. 395)
Touch “Connect telephone”.
Touch the device to connect.
A message is shown if connection
has been successful.
If connection fails, a message will
be displayed and connection will
be re-attempted.
*: Bluetooth is a registered trademark of Bluetooth SIG. Inc.
STEP1
STEP2
STEP3

400 3-3. Using the “touch screen”
HILUX_OM_OM0K189E_(EE)

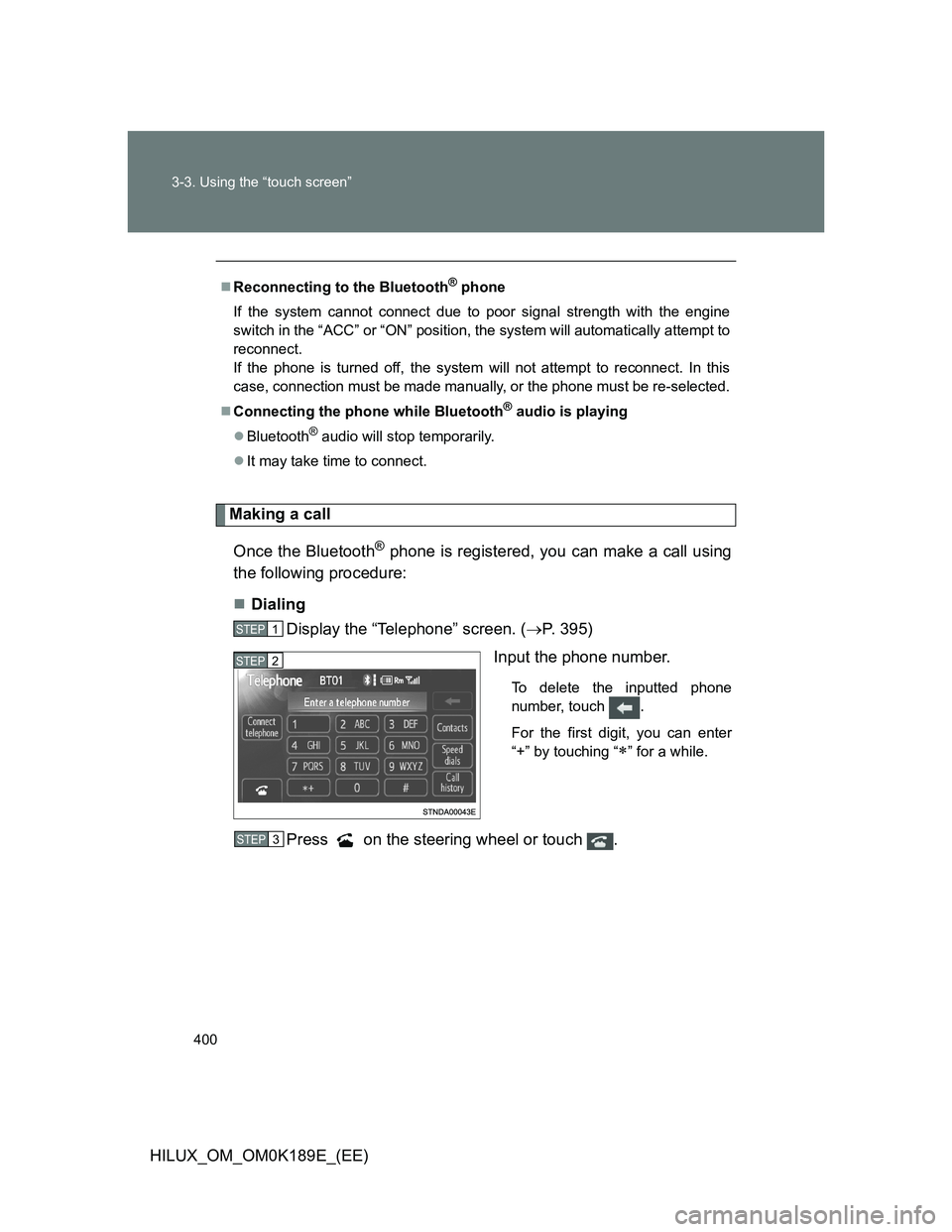

Making a call
Once the Bluetooth
® phone is registered, you can make a call using
the following procedure:
Dialing
Display the “Telephone” screen. (P. 395)
Input the phone number.
To delete the inputted phone
number, touch
.
For the first digit, you can enter
“+” by touching “
” for a while.
Press on the steering wheel or touch .
Reconnecting to the Bluetooth® phone
If the system cannot connect due to poor signal strength with the engine
switch in the “ACC” or “ON” position, the system will automatically attempt to
reconnect.
If the phone is turned off, the system will not attempt to reconnect. In this
case, connection must be made manually, or the phone must be re-selected.
Connecting the phone while Bluetooth
® audio is playing
Bluetooth
® audio will stop temporarily.
It may take time to connect.
STEP1
STEP2
STEP3
