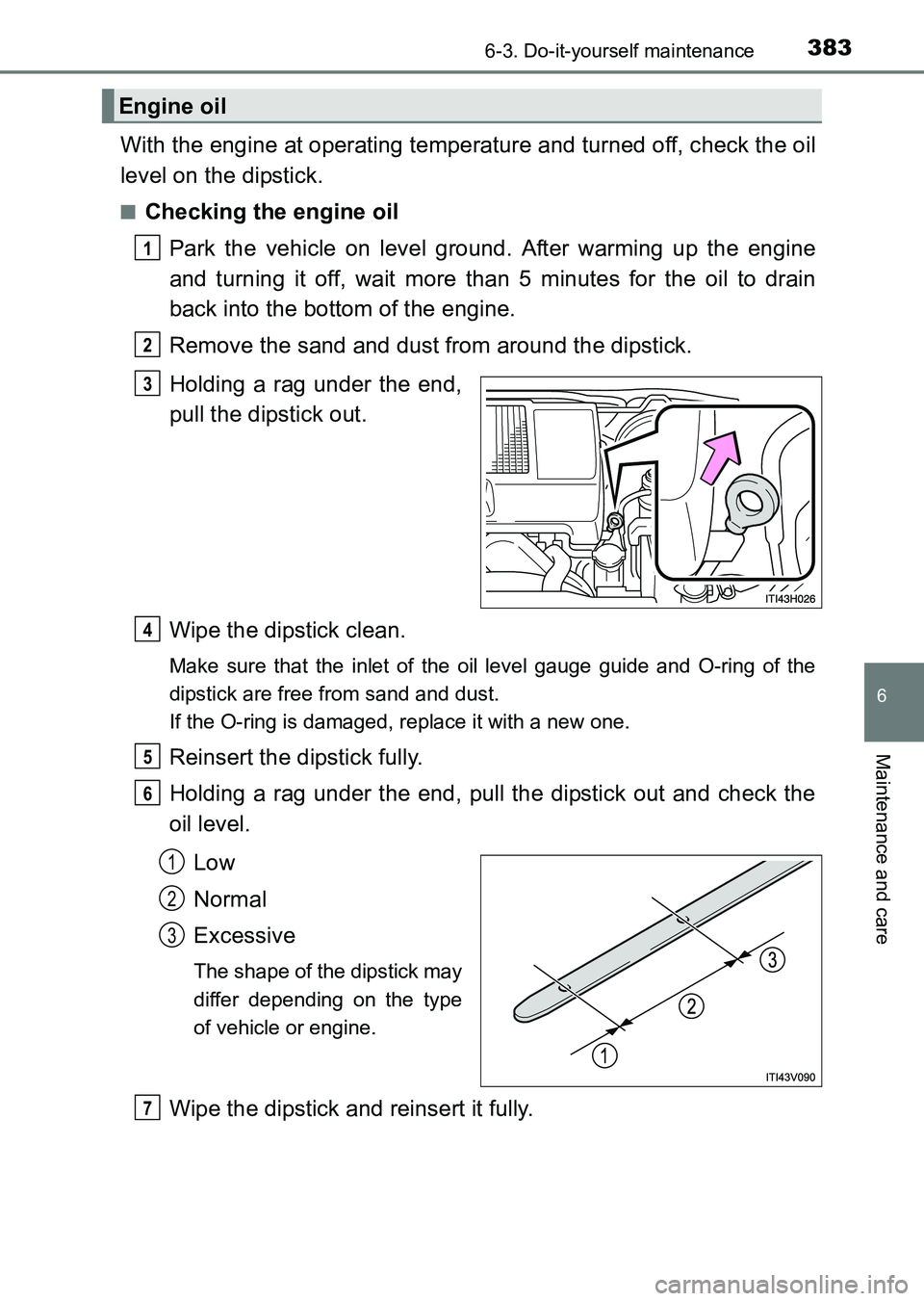

3836-3. Do-it-yourself maintenance
6
Maintenance and care
HILUX_OM_OM0K219E_(EE)
With the engine at operating temperature and turned off, check the oil
level on the dipstick.
■Checking the engine oilPark the vehicle on level ground. After warming up the engine
and turning it off, wait more than 5 minutes for the oil to drain
back into the bottom of the engine.
Remove the sand and dust from around the dipstick.
Holding a rag under the end,
pull the dipstick out.
Wipe the dipstick clean.
Make sure that the inlet of the oil level gauge guide and O-ring of the
dipstick are free from sand and dust.
If the O-ring is damaged, replace it with a new one.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check the
oil level.
Low
Normal
Excessive
The shape of the dipstick may
differ depending on the type
of vehicle or engine.
Wipe the dipstick and reinsert it fully.
Engine oil
1
2
3
4
5
6
1
2
3
7
HILUX_OM_OM0K219E_(EE).book Page 383 Wednesday, May 14, 2014 3:06 PM

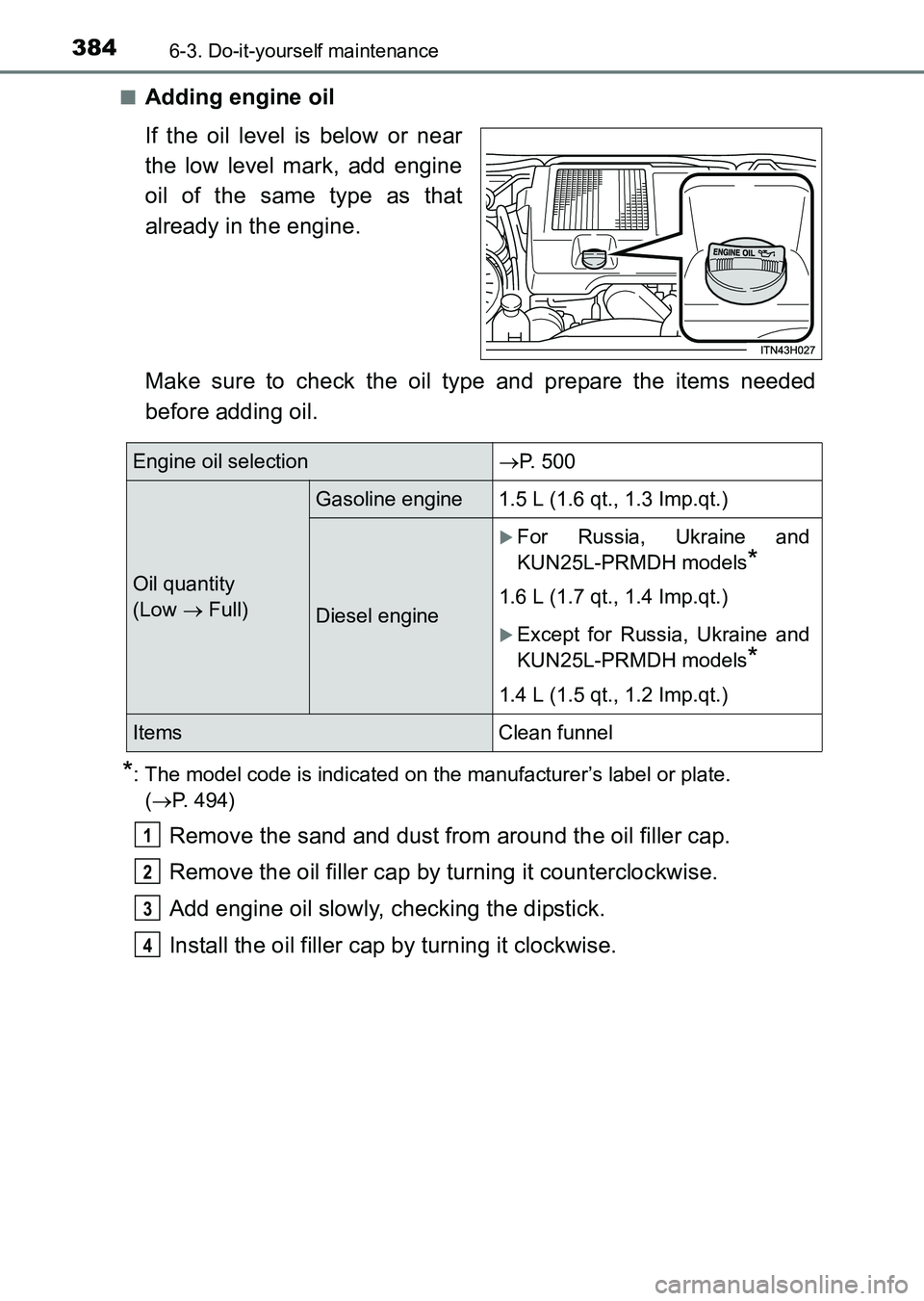

3846-3. Do-it-yourself maintenance
HILUX_OM_OM0K219E_(EE)■
Adding engine oil
If the oil level is below or near
the low level mark, add engine
oil of the same type as that
already in the engine.
Make sure to check the oil type and prepare the items needed
before adding oil.
*: The model code is indicated on the manufacturer’s label or plate.
(→ P. 494)
Remove the sand and dust from around the oil filler cap.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
Engine oil selection→P. 500
Oil quantity
(Low → Full)
Gasoline engine 1.5 L (1.6 qt., 1.3 Imp.qt.)
Diesel engine
XFor Russia, Ukraine and
KUN25L-PRMDH models
*
1.6 L (1.7 qt., 1.4 Imp.qt.)
XExcept for Russia, Ukraine and
KUN25L-PRMDH models
*
1.4 L (1.5 qt., 1.2 Imp.qt.)
Items Clean funnel
1
2
3
4
HILUX_OM_OM0K219E_(EE).book Page 384 Wednesday, May 14, 2014 3:06 PM

511
8

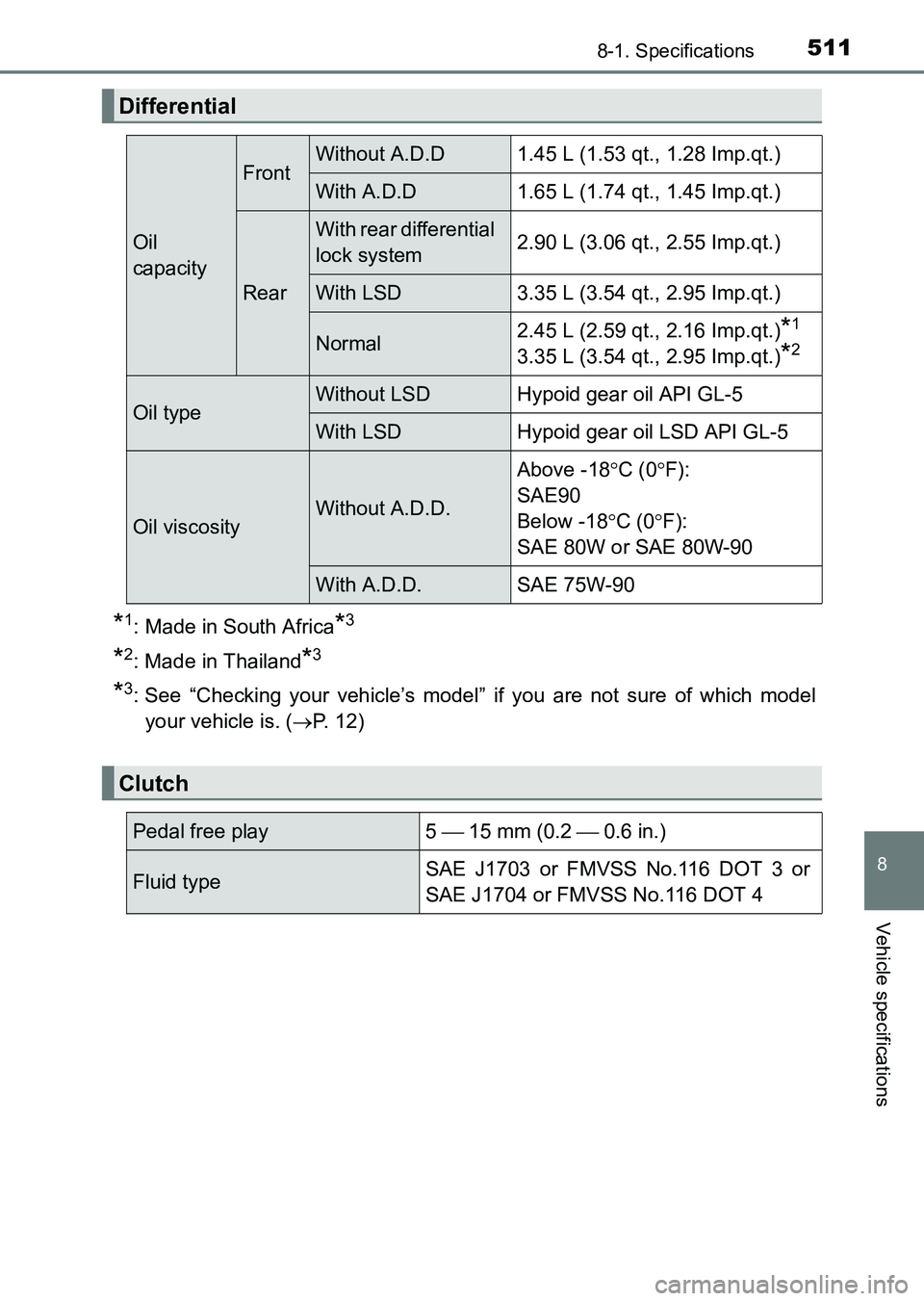

8-1. Specifications
Vehicle specifications
HILUX_OM_OM0K219E_(EE)
*1: Made in South Africa*3
*2: Made in Thailand*3
*3: See “Checking your vehicle’s model” if you are not sure of which modelyour vehicle is. ( →P. 12)
Differential
Oil
capacity
FrontWithout A.D.D1.45 L (1.53 qt., 1.28 Imp.qt.)
With A.D.D1.65 L (1.74 qt., 1.45 Imp.qt.)
Rear
With rear differential
lock system2.90 L (3.06 qt., 2.55 Imp.qt.)
With LSD3.35 L (3.54 qt., 2.95 Imp.qt.)
Normal2.45 L (2.59 qt., 2.16 Imp.qt.)*1
3.35 L (3.54 qt., 2.95 Imp.qt.)*2
Oil typeWithout LSDHypoid gear oil API GL-5
With LSDHypoid gear oil LSD API GL-5
Oil viscosityWithout A.D.D.
Above -18 °C (0 °F):
SAE90
Below -18 °C (0 °F):
SAE 80W or SAE 80W-90
With A.D.D.SAE 75W-90
Clutch
Pedal free play 5  15 mm (0.2  0.6 in.)
Fluid type SAE J1703 or FMVSS No.116 DOT 3 or
SAE J1704 or FMVSS No.116 DOT 4
HILUX_OM_OM0K219E_(EE).book Page 511 Wednesday, May 14, 2014
3:06 PM

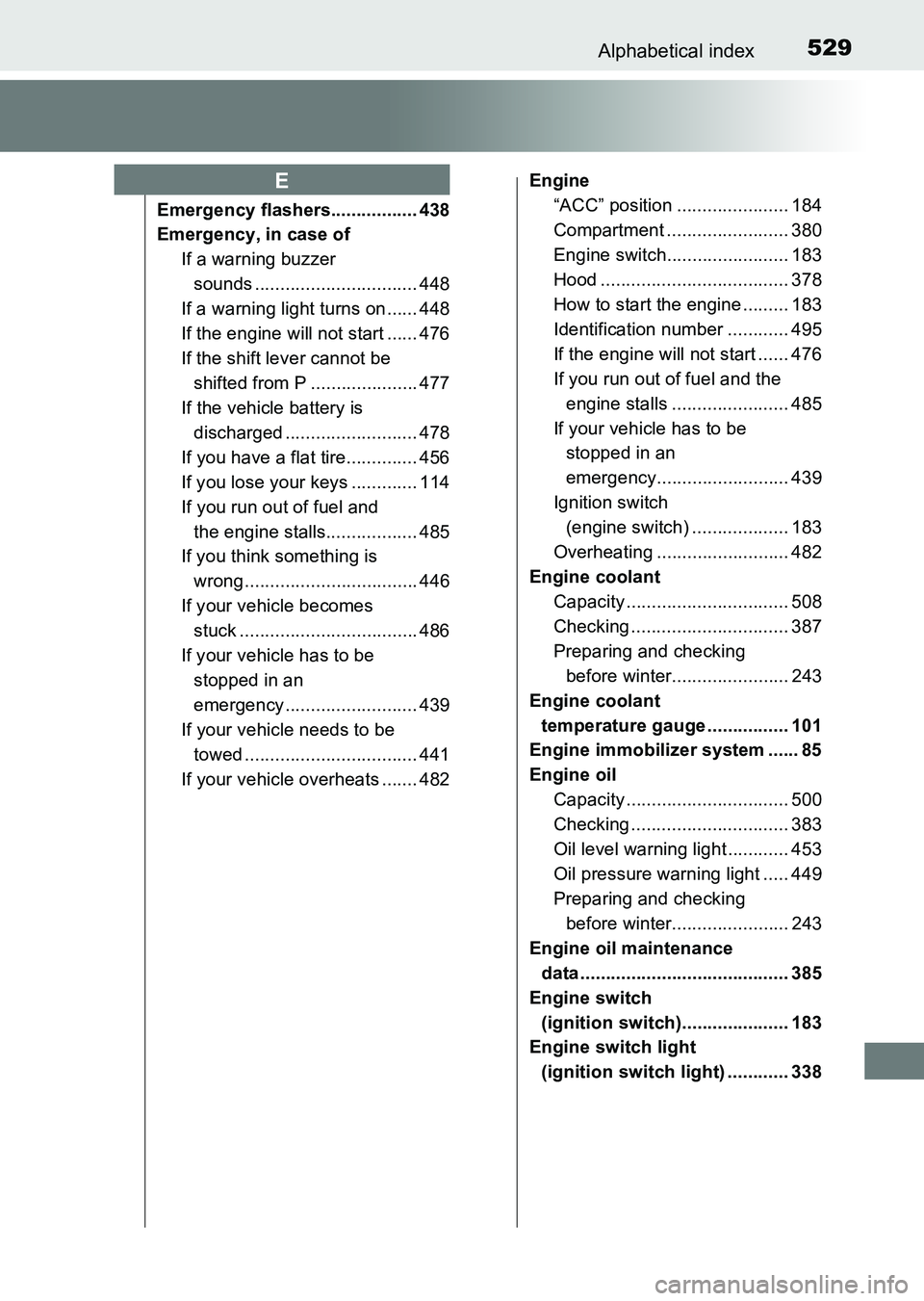

529Alphabetical index
HILUX_OM_OM0K219E_(EE)
Emergency flashers................. 438
Emergency, in case ofIf a warning buzzer sounds ................................ 448
If a warning light turns on ...... 448
If the engine will not start ...... 476
If the shift lever cannot be shifted from P ..................... 477
If the vehicle battery is discharged .......................... 478
If you have a flat tire.............. 456
If you lose your keys ............. 114
If you run out of fuel and the engine stalls.................. 485
If you think something is
wrong.................................. 446
If your vehicle becomes stuck ................................... 486
If your vehicle has to be stopped in an
emergency.......................... 439
If your vehicle needs to be towed .................................. 441
If your vehicle overheats ....... 482 Engine
“ACC” position ...................... 184
Compartment ........................ 380
Engine switch........................ 183
Hood ..................................... 378
How to start the engine ......... 183
Identification number ............ 495
If the engine will not start ...... 476
If you run out of fuel and the engine stalls ....................... 485
If your vehicle has to be stopped in an
emergency.......................... 439
Ignition switch (engine switch) ................... 183
Overheating .......................... 482
Engine coolant Capacity ................................ 508
Checking ............................... 387
Preparing and checking
before winter....................... 243
Engine coolant temperature gauge ................ 101
Engine immobilizer system ...... 85
Engine oil
Capacity ................................ 500
Checking ............................... 383
Oil level warning light ............ 453
Oil pressure warning light ..... 449
Preparing and checking before winter....................... 243
Engine oil maintenance data ......................................... 385
Engine switch (ignition switch)..................... 183
Engine switch light
(ignition switch light) ............ 338
E
HILUX_OM_OM0K219E_(EE).book Page 529 Wednesday, May 14, 2014 3:06 PM

536Alphabetical index
HILUX_OM_OM0K219E_(EE)
Warning lightsABS ....................................... 450
Automatic transmission fluid temperature ........................ 450
Brake system ........................ 448
Charging system ................... 449
DPF system .......................... 451
Electronic engine control
system ................................ 449
Engine oil change reminder ............................. 453
Fuel system........................... 451
Low engine oil level............... 453
Low engine oil pressure ........ 449
Low fuel level ........................ 452
Malfunction indicator lamp .... 449
Open door ............................. 452
Seat belt reminder light ......... 452
Slip indicator ......................... 450
SRS....................................... 449
Timing belt replacement........ 450
Unengaged “Park”................. 452
Washer Checking ............................... 394
Preparing and checking
before winter....................... 243
Switch ................................... 204
Washing and waxing ............... 364
Weights ..................................... 491
Wheels ...................................... 402 Replacing wheels .................. 456
Size ....................................... 513 Window glasses....................... 149
Window lock switch ................ 150
Windows
Power windows ..................... 149
Rear window defogger .......... 268
Washer ................................. 204
Windshield wipers Intermittent windshield wipers ................................. 204
Winter driving tips ................... 243
Wireless communication ........ 307
Wireless remote control key .......................................... 115Locking/Unlocking................. 115
Replacing the battery ............ 406
WMA disc ................................. 281
HILUX_OM_OM0K219E_(EE).book Page 536 Wednesday, May 14, 2014 3:06 PM
