fog light bulb TOYOTA HILUX 2015 Owners Manual (in English)

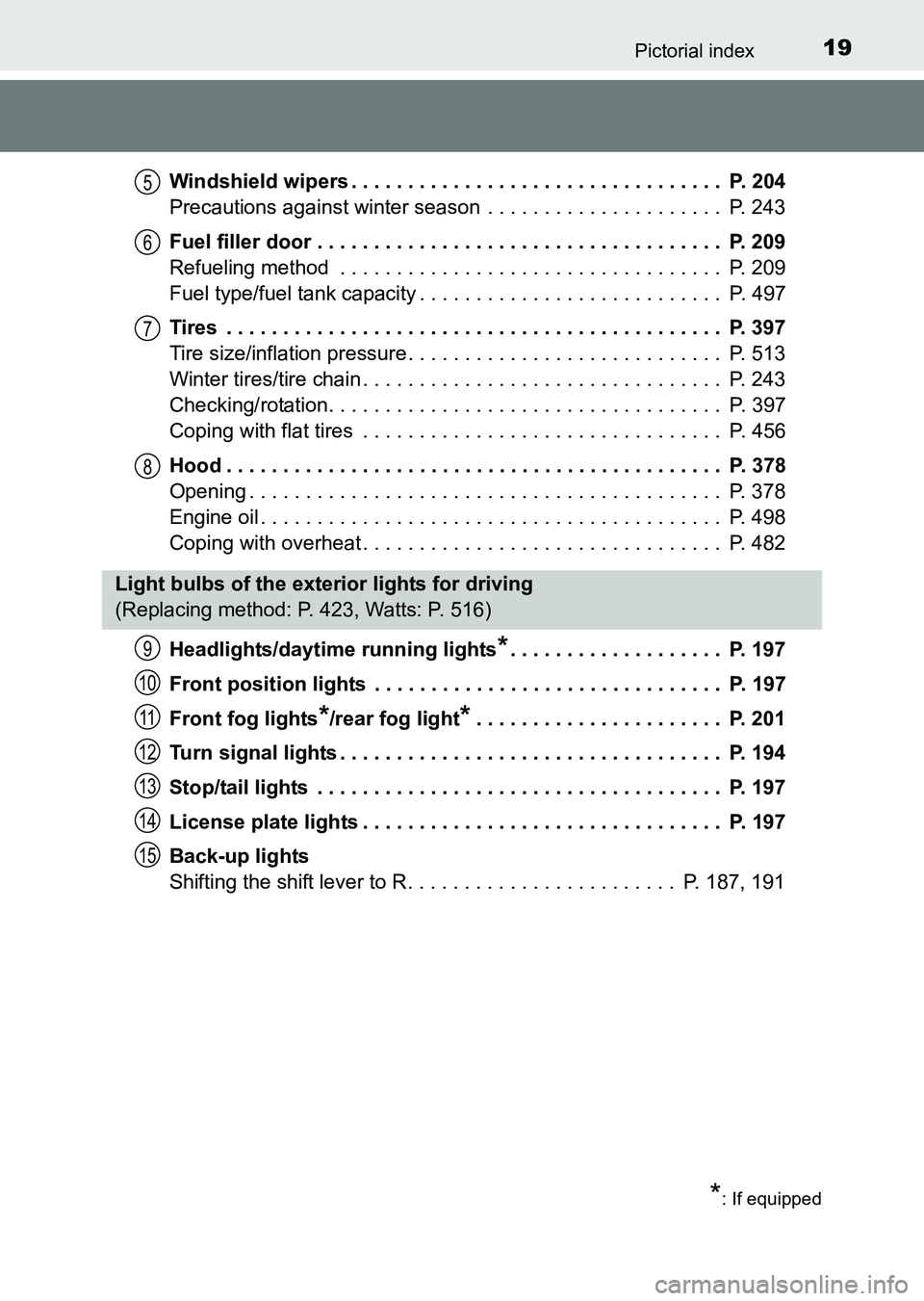

19Pictorial index
HILUX_OM_OM0K219E_(EE)Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 204
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 243
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 209
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 209
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 497
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 397
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 513
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 243
Checking/rotation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 397
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 456
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 378
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 378
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 498
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 482
Headlights/daytime running lights
*. . . . . . . . . . . . . . . . . . . P. 197
Front position lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 197
Front fog lights
*/rear fog light*. . . . . . . . . . . . . . . . . . . . . . P. 201
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 194
Stop/tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 197
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 197
Back-up lights
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . P. 187, 191
5
6
7
8
Light bulbs of the exterior lights for driving
(Replacing method: P. 423, Watts: P. 516)
*: If equipped
9
10
11
12
13
14
15
HILUX_OM_OM0K219E_(EE).book Page 19 Wednesday, May 14, 2014 3:06 PM

21Pictorial index
HILUX_OM_OM0K219E_(EE)Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 204
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 243
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 209
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 209
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 497
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 397
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 513
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 243
Checking/rotation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 397
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 456
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 378
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 378
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 498
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 482
Camera
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 219
Headlights/daytime running lights
*. . . . . . . . . . . . . . . . . . . P. 197
Front position lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 197
Front fog lights
*/rear fog light*. . . . . . . . . . . . . . . . . . . . . . P. 201
Turn signal lights
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 194
Stop/tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 197
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 197
Back-up lights
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . P. 187, 191
5
6
7
8
9
Light bulbs of the exterior lights for driving
(Replacing method: P. 423, Watts: P. 516)
*: If equipped
10
11
12
13
14
15
16
HILUX_OM_OM0K219E_(EE).book Page 21 Wednesday, May 14, 2014 3:06 PM

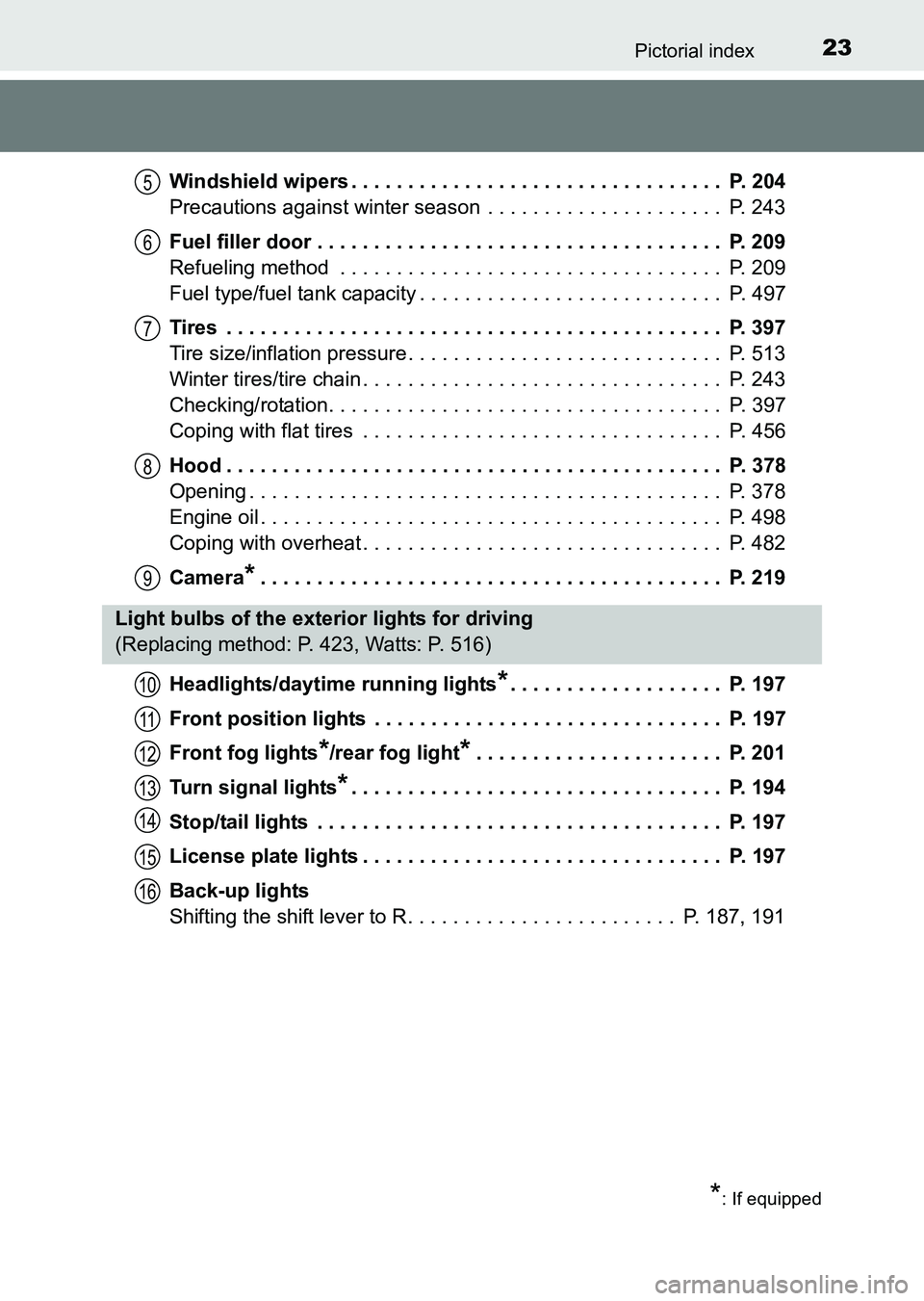

23Pictorial index
HILUX_OM_OM0K219E_(EE)Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 204
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 243
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 209
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 209
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 497
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 397
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 513
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 243
Checking/rotation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 397
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 456
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 378
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 378
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 498
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 482
Camera
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 219
Headlights/daytime running lights
*. . . . . . . . . . . . . . . . . . . P. 197
Front position lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 197
Front fog lights
*/rear fog light*. . . . . . . . . . . . . . . . . . . . . . P. 201
Turn signal lights
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 194
Stop/tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 197
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 197
Back-up lights
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . P. 187, 191
5
6
7
8
9
Light bulbs of the exterior lights for driving
(Replacing method: P. 423, Watts: P. 516)
*: If equipped
10
11
12
13
14
15
16
HILUX_OM_OM0K219E_(EE).book Page 23 Wednesday, May 14, 2014 3:06 PM

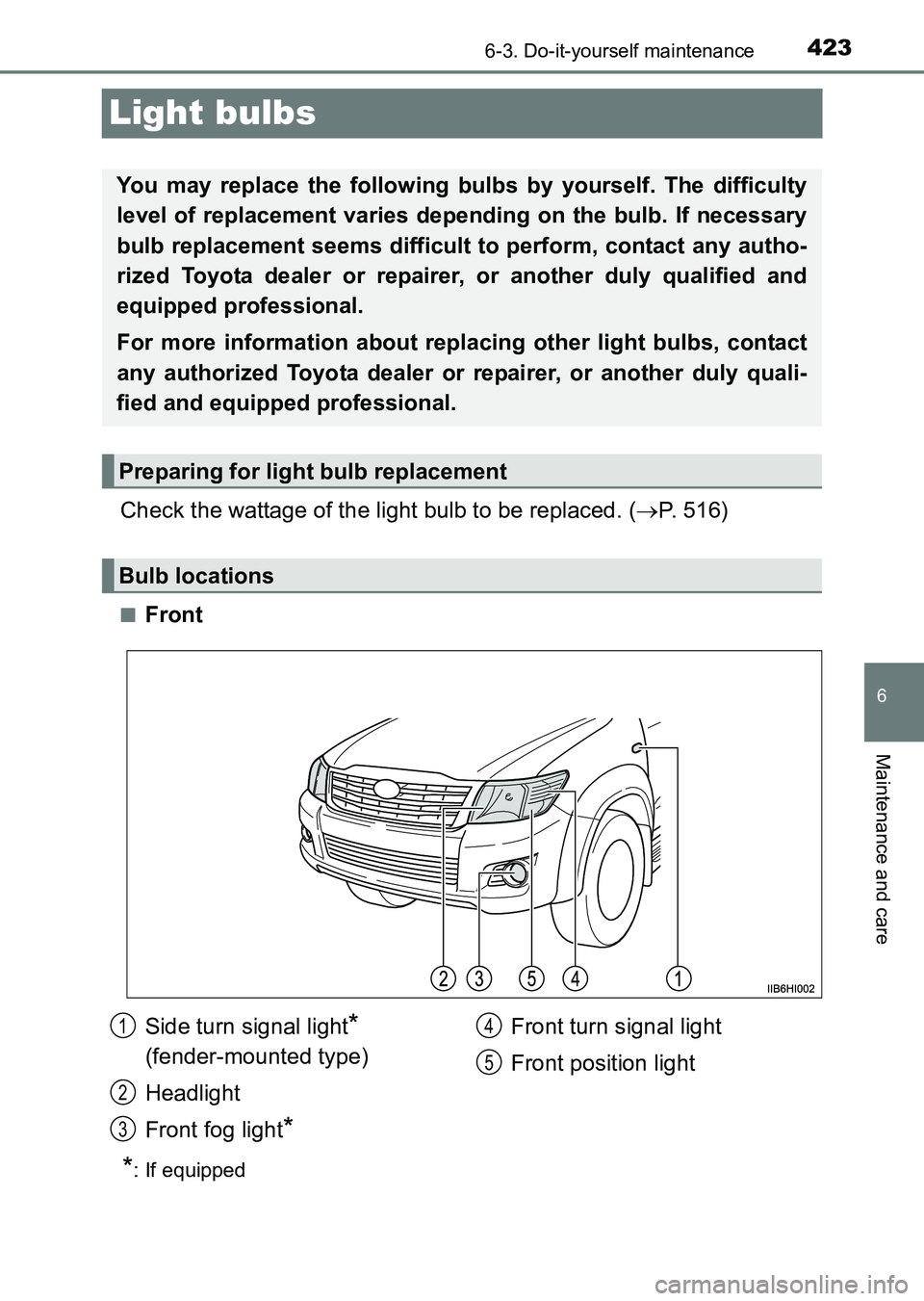

423
6
6-3. Do-it-yourself maintenance
Maintenance and care
HILUX_OM_OM0K219E_(EE)
Light bulbs
Check the wattage of the light bulb to be replaced. (→P. 516)
■Front
*: If equipped
You may replace the following bulbs by yourself. The difficulty
level of replacement varies depending on the bulb. If necessary
bulb replacement seems difficult to perform, contact any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
For more information about replacing other light bulbs, contact
any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
Preparing for light bulb replacement
Bulb locations
Side turn signal light*
(fender-mounted type)
Headlight
Front fog light
*
Front turn signal light
Front position light1
2
3
4
5
HILUX_OM_OM0K219E_(EE).book Page 423 Wednesday, May 14, 2014 3:06 PM

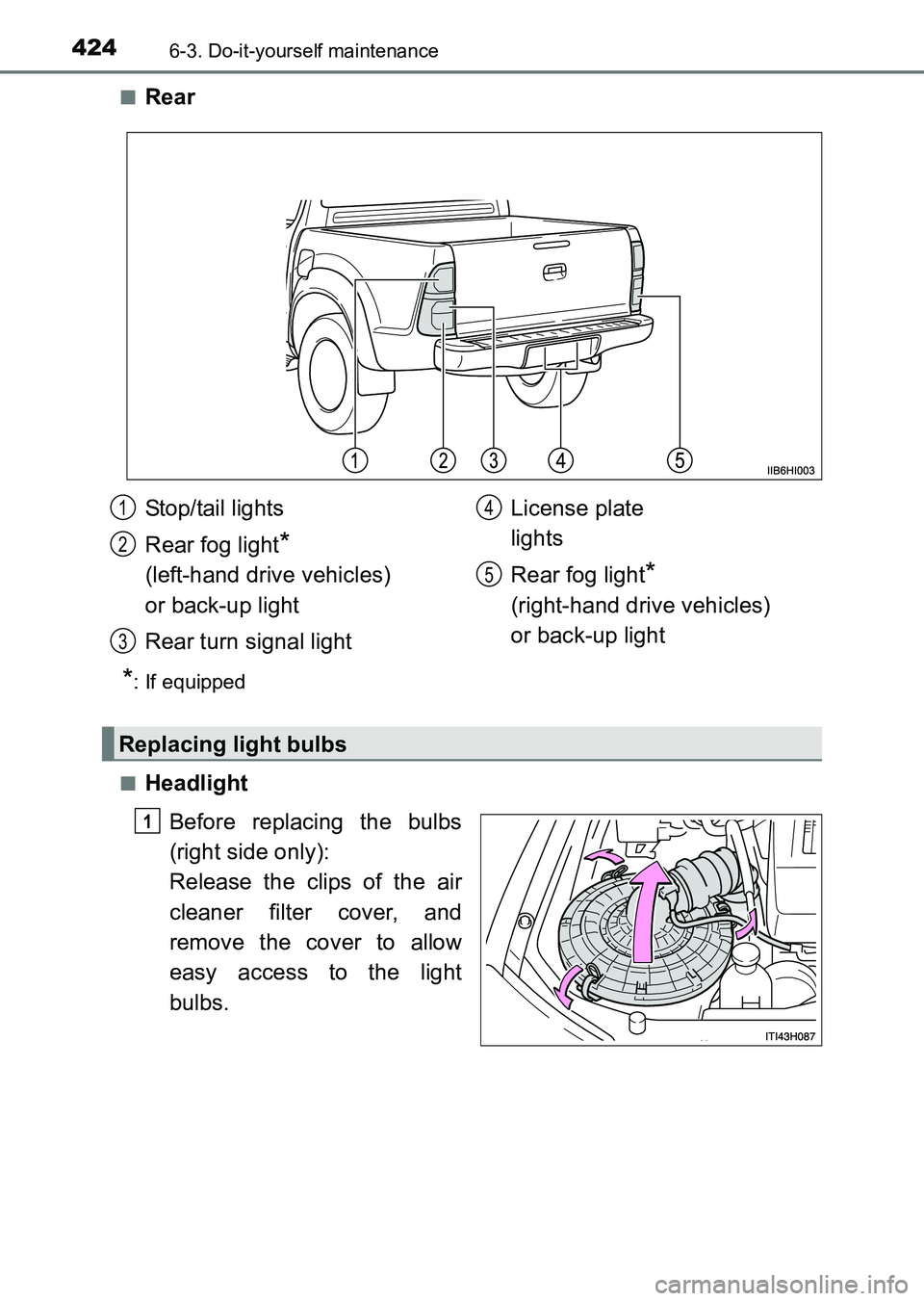

4246-3. Do-it-yourself maintenance
HILUX_OM_OM0K219E_(EE)■
Rear
*: If equipped
■
Headlight Before replacing the bulbs
(right side only):
Release the clips of the air
cleaner filter cover, and
remove the cover to allow
easy access to the light
bulbs.
Stop/tail lights
Rear fog light
*
(left-hand drive vehicles)
or back-up light
Rear turn signal light License plate
lights
Rear fog light
*
(right-hand drive vehicles)
or back-up light
1
2
3
4
5
Replacing light bulbs
1
HILUX_OM_OM0K219E_(EE).book Page 424 Wednesday, May 14, 2014 3:06 PM

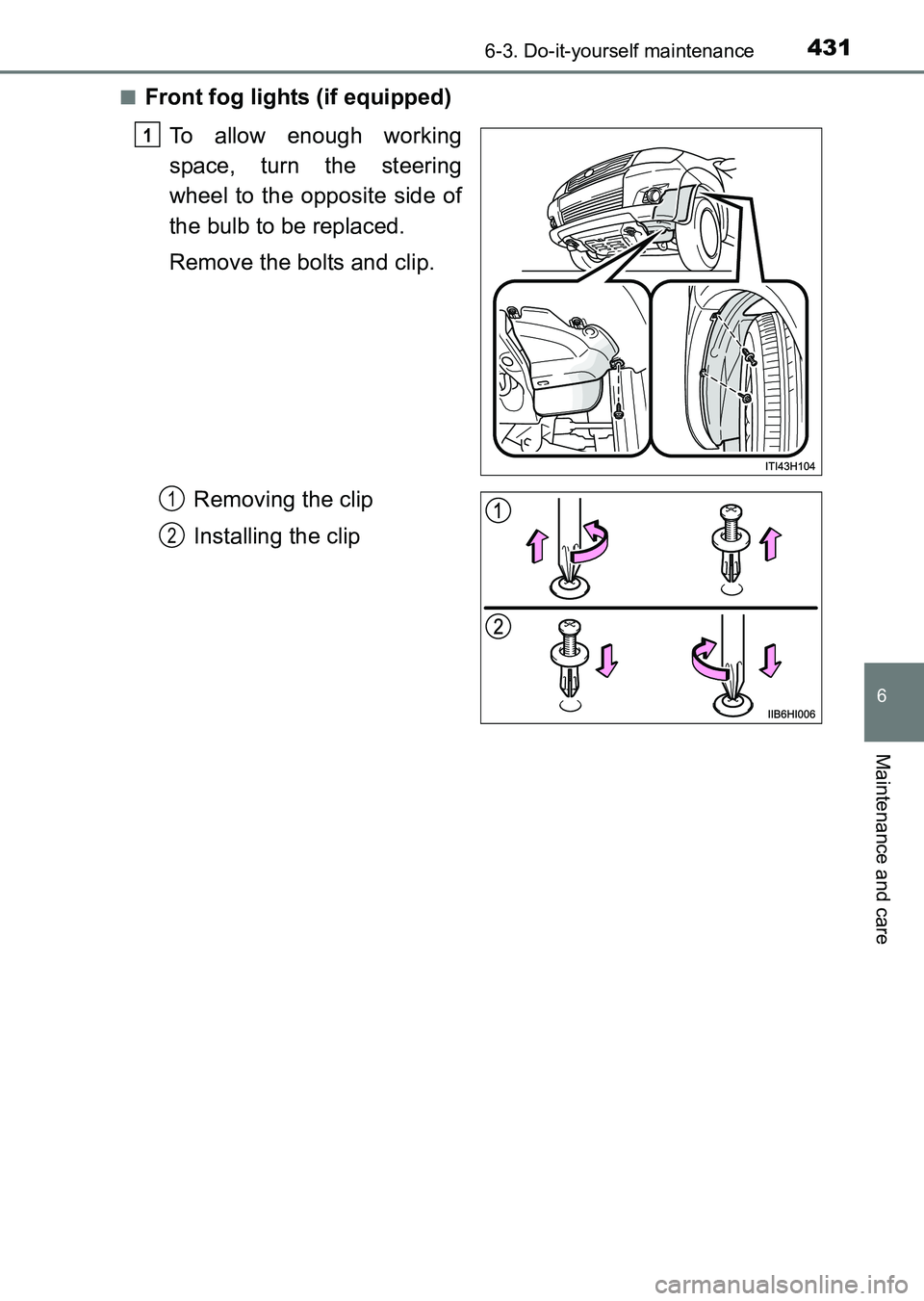

4316-3. Do-it-yourself maintenance
6
Maintenance and care
HILUX_OM_OM0K219E_(EE)■
Front fog lights (if equipped)
To allow enough working
space, turn the steering
wheel to the opposite side of
the bulb to be replaced.
Remove the bolts and clip.
Removing the clip
Installing the clip
1
1
2
HILUX_OM_OM0K219E_(EE).book Page 431 Wednesday, May 14, 2014 3:06 PM

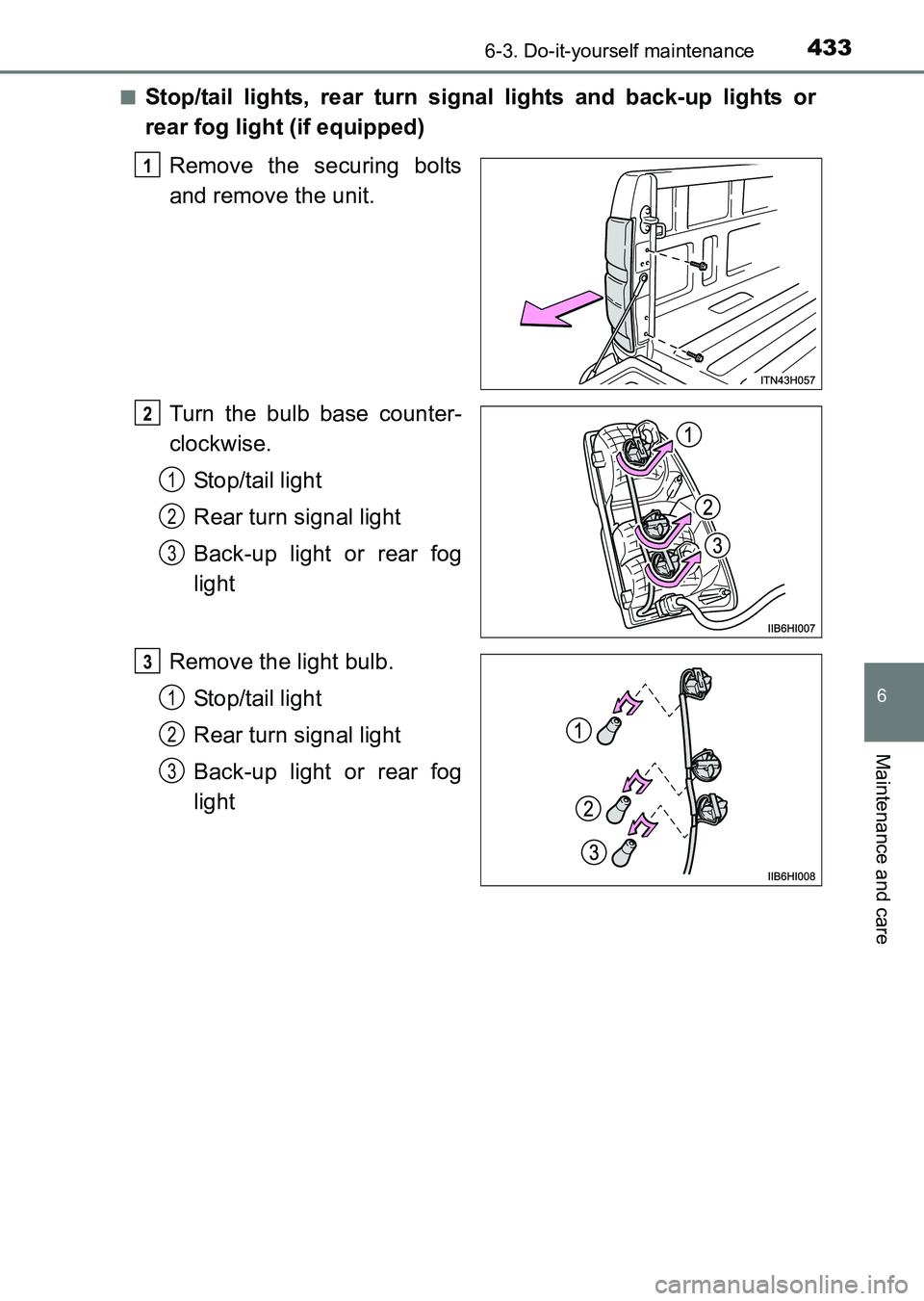

4336-3. Do-it-yourself maintenance
6
Maintenance and care
HILUX_OM_OM0K219E_(EE)■
Stop/tail lights, rear turn signal lights and back-up lights or
rear fog light (if equipped)
Remove the securing bolts
and remove the unit.
Turn the bulb base counter-
clockwise. Stop/tail light
Rear turn signal light
Back-up light or rear fog
light
Remove the light bulb. Stop/tail light
Rear turn signal light
Back-up light or rear fog
light
1
2
1
2
3
3
1
2
3
HILUX_OM_OM0K219E_(EE).book Page 433 Wednesday, May 14, 2014 3:06 PM

5168-1. Specifications
HILUX_OM_OM0K219E_(EE)A: H4 halogen bulbs
B: H16 halogen bulbs
C: Wedge base bulbs (clear)
D: Wedge base bulbs (amber) E: Single end bulbs (amber) F: Single end bulbs (clear)
G: Double end bulbs
*: If equipped
Light bulbs
Light bulbsWTyp e
Exterior Headlights 60/55 A
Front fog lights
*19 B
Front position lights 5 C
Front turn signal lights 21 D
Side turn signal lights Fender-mounted type
Mirror-mounted type 5
5C
D
Rear turn signal lights 21 E
Back-up lights 21 F
Rear fog light
*21 F
License plate lights 5 C
Stop/tail lights 21/5 F
Interior Interior light 8 G
Personal lights*8C
HILUX_OM_OM0K219E_(EE).book Page 516 Wednesday, May 14, 2014
3:06 PM

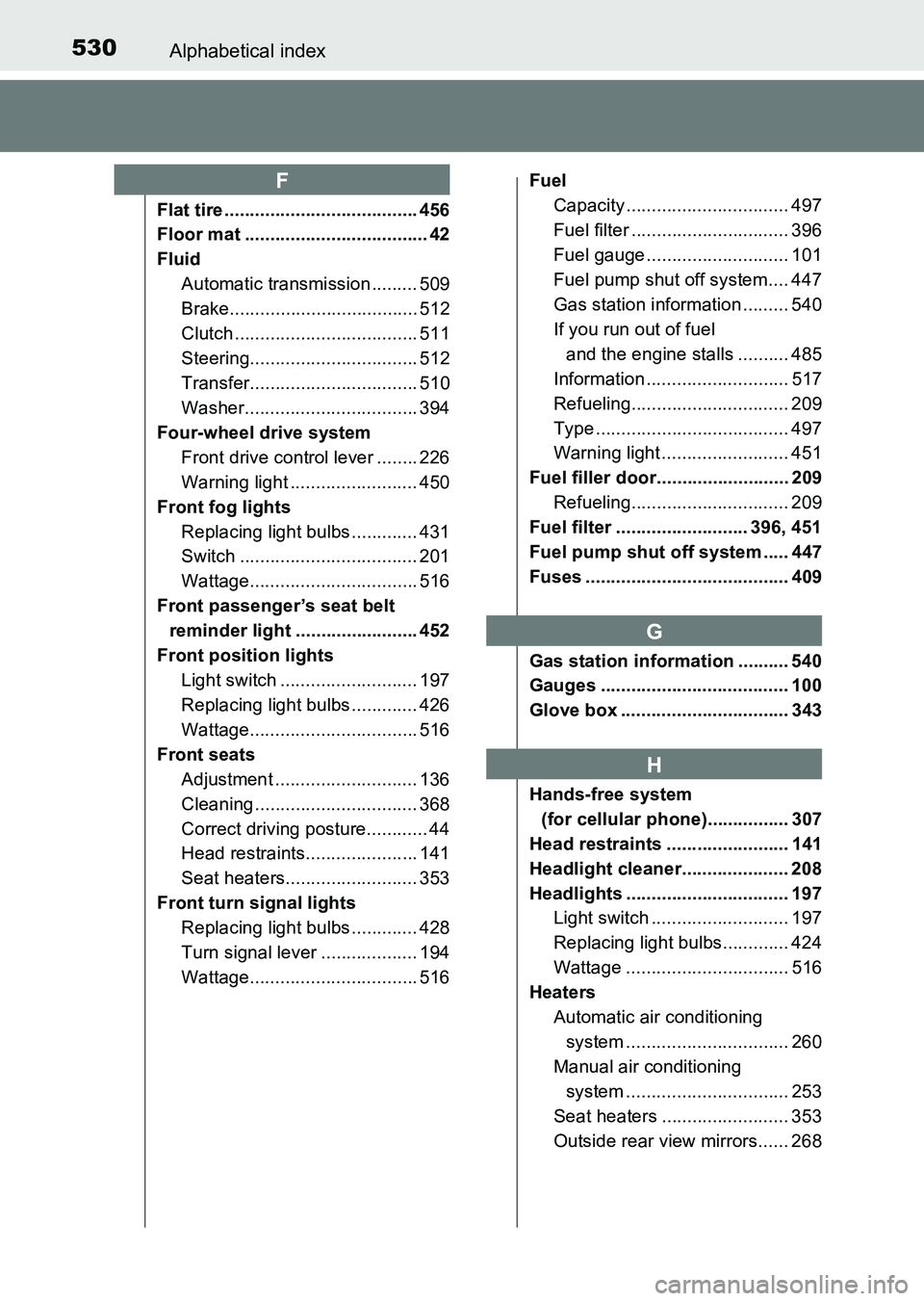

530Alphabetical index
HILUX_OM_OM0K219E_(EE)
Flat tire ...................................... 456
Floor mat .................................... 42
FluidAutomatic transmission ......... 509
Brake..................................... 512
Clutch.................................... 511
Steering................................. 512
Transfer................................. 510
Washer.................................. 394
Four-wheel drive system Front drive control lever ........ 226
Warning light ......................... 450
Front fog lights Replacing light bulbs ............. 431
Switch ................................... 201
Wattage................................. 516
Front passenger’s seat belt reminder light ........................ 452
Front position lights Light switch ........................... 197
Replacing light bulbs ............. 426
Wattage................................. 516
Front seats Adjustment ............................ 136
Cleaning ................................ 368
Correct driving posture............ 44
Head restraints...................... 141
Seat heaters.......................... 353
Front turn signal lights Replacing light bulbs ............. 428
Turn signal lever ................... 194
Wattage................................. 516 Fuel
Capacity ................................ 497
Fuel filter ............................... 396
Fuel gauge ............................ 101
Fuel pump shut off system.... 447
Gas station information ......... 540
If you run out of fuel and the engine stalls .......... 485
Information ............................ 517
Refueling............................... 209
Type ...................................... 497
Warning light ......................... 451
Fuel filler door.......................... 209 Refueling............................... 209
Fuel filter .......................... 396, 451
Fuel pump shut off system ..... 447
Fuses ........................................ 409
Gas station information .......... 540
Gauges ..................................... 100
Glove box ................................. 343
Hands-free system (for cellular phone)................ 307
Head restraints ........................ 141
Headlight cleaner..................... 208
Headlights ................................ 197 Light switch ........................... 197
Replacing light bulbs............. 424
Wattage ................................ 516
Heaters Automatic air conditioning system ................................ 260
Manual air conditioning
system ................................ 253
Seat heaters ......................... 353
Outside rear view mirrors...... 268
F
G
H
HILUX_OM_OM0K219E_(EE).book Page 530 Wednesday, May 14, 2014 3:06 PM

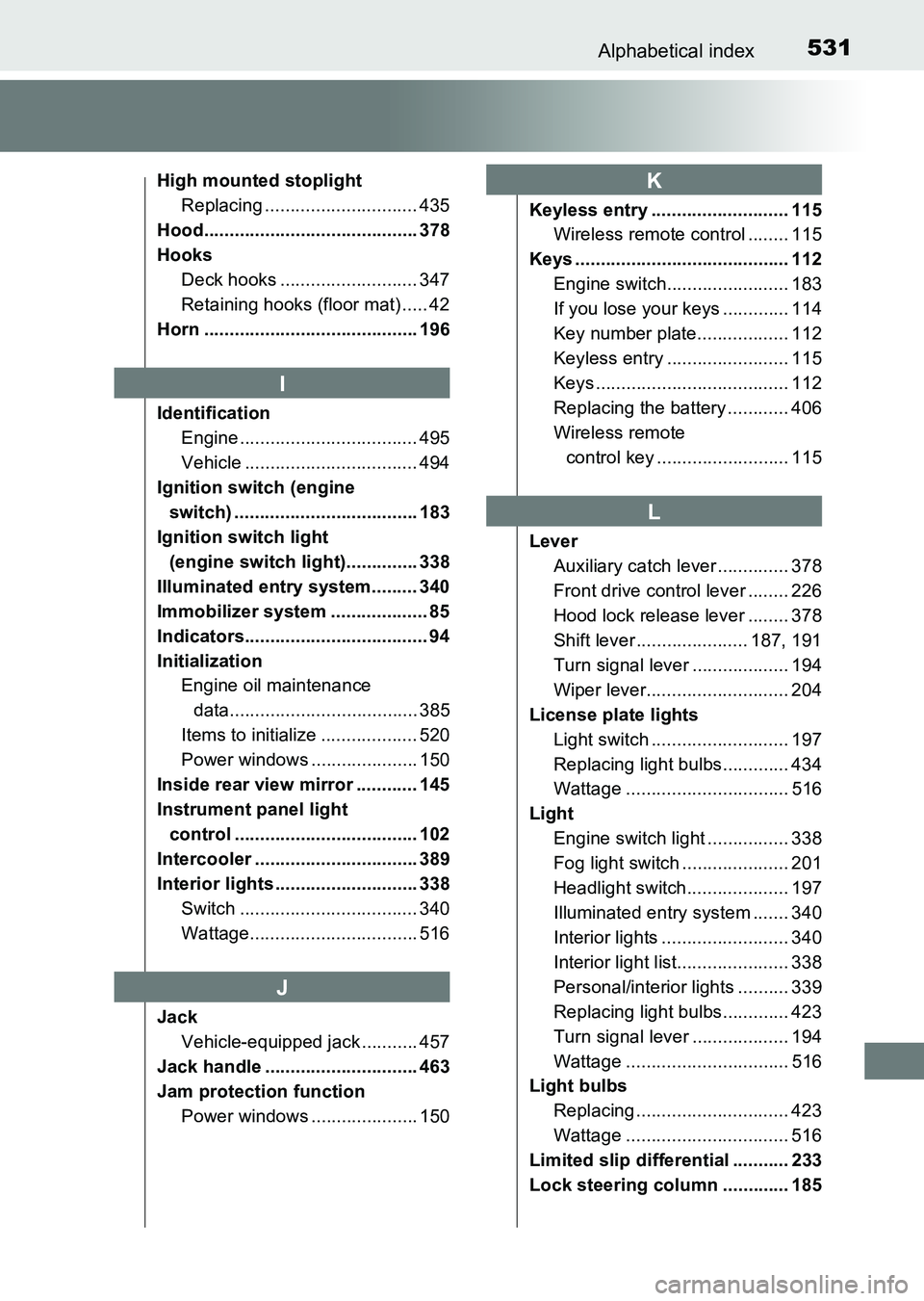

531Alphabetical index
HILUX_OM_OM0K219E_(EE)
High mounted stoplightReplacing .............................. 435
Hood.......................................... 378
Hooks Deck hooks ........................... 347
Retaining hooks (floor mat) ..... 42
Horn .......................................... 196
Identification Engine ................................... 495
Vehicle .................................. 494
Ignition switch (engine switch) .................................... 183
Ignition switch light
(engine switch light).............. 338
Illuminated entry system......... 340
Immobilizer system ................... 85
Indicators.................................... 94
Initialization Engine oil maintenance
data..................................... 385
Items to initialize ................... 520
Power windows ..................... 150
Inside rear view mirror ............ 145
Instrument panel light control .................................... 102
Intercooler ................................ 389
Interior lights ............................ 338 Switch ................................... 340
Wattage................................. 516
Jack Vehicle-equipped jack ........... 457
Jack handle .............................. 463
Jam protection function
Power windows ..................... 150 Keyless entry ........................... 115
Wireless remote control ........ 115
Keys .......................................... 112 Engine switch........................ 183
If you lose your keys ............. 114
Key number plate.................. 112
Keyless entry ........................ 115
Keys ...................................... 112
Replacing the battery ............ 406
Wireless remote control key .......................... 115
Lever Auxiliary catch lever .............. 378
Front drive control lever ........ 226
Hood lock release lever ........ 378
Shift lever ...................... 187, 191
Turn signal lever ................... 194
Wiper lever............................ 204
License plate lights Light switch ........................... 197
Replacing light bulbs............. 434
Wattage ................................ 516
Light Engine switch light ................ 338
Fog light switch ..................... 201
Headlight switch.................... 197
Illuminated entry system ....... 340
Interior lights ......................... 340
Interior light list...................... 338
Personal/interior lights .......... 339
Replacing light bulbs............. 423
Turn signal lever ................... 194
Wattage ................................ 516
Light bulbs
Replacing .............................. 423
Wattage ................................ 516
Limited slip differential ........... 233
Lock steering column ............. 185
I
J
K
L
HILUX_OM_OM0K219E_(EE).book Page 531 Wednesday, May 14, 2014 3:06 PM
