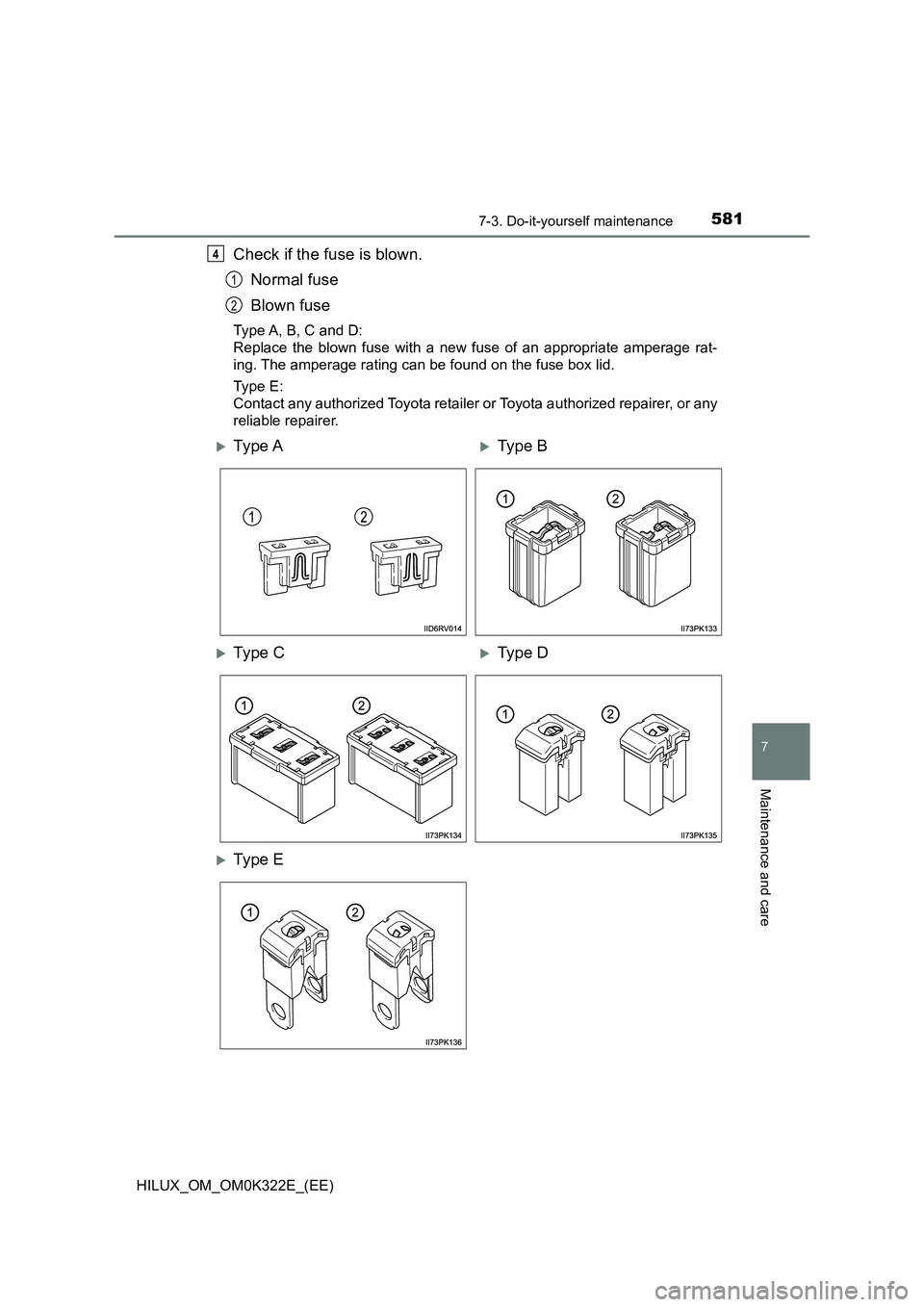

Check if the fuse is blown.
Normal fuse
Blown fuse
Type A, B, C and D:
Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.
Type E:
Contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
4
1
2
Ty pe AType B
Ty pe CType D
Ty pe E

5827-3. Do-it-yourself maintenance
HILUX_OM_OM0K322E_(EE)
■After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( P. 583)
● If the replaced fuse blows again, have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
WARNING
■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer as soon as possible.

5837-3. Do-it-yourself maintenance
HILUX_OM_OM0K322E_(EE)
7
Maintenance and care
Light bulbs
Check the wattage of the light bulb to be replaced. (P. 691)
■Front
Vehicles with halogen headlights
*: If equipped
You may replace the following bulbs by yourself. The difficulty
level of replacement varies depending on the bulb. As there is a
danger that components may be damaged, we recommend that
replacement is carried out by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
Preparing for light bulb replacement
Bulb locations
Front turn signal light
Front position light/daytime run-
ning light*
Headlight
Halogen front fog light*
1
2
3
4

5847-3. Do-it-yourself maintenance
HILUX_OM_OM0K322E_(EE)
Vehicles with LED headlights
*: If equipped
■Rear
*: If equipped
Headlight (high beam)
Front turn signal light
Halogen front fog light*1
2
3
Rear fog light*
(left-hand drive vehicles)
or back-up light
License plate light
Stop/tail light
Rear fog light*
(right-hand drive vehicles)
or back-up light
Rear turn signal light
1
2
3
4
5

5857-3. Do-it-yourself maintenance
HILUX_OM_OM0K322E_(EE)
7
Maintenance and care
■Headlight high/low beams (vehicles with halogen headlights)
Unplug the connector and
remove the rubber cover.
Release the bulb retaining
spring.
Remove the bulb.
To install a new bulb, align the
tabs of the bulb with the cutouts
of the mounting hole.
When installing, reverse the steps listed.
Replacing light bulbs
1
2
3
4

5867-3. Do-it-yourself maintenance
HILUX_OM_OM0K322E_(EE)
■Headlight high beams (vehicles with LED headlights)
Unplug the connector while
depressing the lock release.
Turn the bulb base counter-
clockwise.
Replace the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb
base.
1
2
3
4

5877-3. Do-it-yourself maintenance
HILUX_OM_OM0K322E_(EE)
7
Maintenance and care
Install the connector
Shake the bulb base gently to
check that it is not loose, turn
the headlight high beams on
once and visually confirm that
no light is leaking through the
mounting.
■Front position lights/daytime running lights (if equipped)
(vehicles with halogen headlights)
Turn the bulb base counterclockwise.
Remove the light bulb.
When installing, reverse the steps listed.
5
1
Vehicles without daytime
running lights
Vehicles with daytime running
lights
2
Vehicles without daytime
running lights
Vehicles with daytime running
lights
3

5887-3. Do-it-yourself maintenance
HILUX_OM_OM0K322E_(EE)
■Front turn signal lights
Vehicles with halogen headlights
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3

5897-3. Do-it-yourself maintenance
HILUX_OM_OM0K322E_(EE)
7
Maintenance and care
Vehicles with LED headlights
To allow enough working
space, turn the steering
wheel to the opposite side
where the bulb to be
replaced is located.
Remove the screws and
clips.
Removing the clip
Installing the clip
1
1
2
Ty pe AType B

5907-3. Do-it-yourself maintenance
HILUX_OM_OM0K322E_(EE)
Partly remove the fender
liner and turn the bulb base
counterclockwise.
Remove the light bulb.
When installing, reverse the steps listed.
Bumper
Fender
liner
2
3
4
