■If “T-BELT MAINTENANCE REQUIRED”/“T-BELT maintenance required”
is shown on the multi-information display
The timing belt is scheduled to be changed.
Have the timing belt checked and/or changed by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
■ If “DIFFERENTIAL OIL TEMP HIGH COOLING TIME REQUIRED”/“Diffe-
rential oil temp high Cooling time required” is shown on the multi-infor-
mation display
The differential oil temperature is too high.
Wait until the warning message goes off.
■ If “ENGINE OIL LEVEL LOW ADD OR REPLACE”/“Engine oil level low
Add or replace” is shown on the multi-information display
The engine oil level is low. (This warning message may be displayed if the
vehicle is stopped on a slope. Move to a level surface and check to see if the
message goes off.)
Check the level of the engine oil and add or replace oil if necessary.
( P. 540)
■ If “POWER TURNED OFF TO SAVE BATTERY”/“Power turned off to save
battery” is shown on the multi-information display
Power was turned off due to the automatic power off function.
Next time when starting the engine, increase the engine speed slightly and
maintain that level for approximately 5 minutes to recharge the battery.

6228-2. Steps to take in an emergency
HILUX_OM_OM0K322E_(EE)
■ If “DPF FULL SEE OWNER’S MANUAL”/“DPF full See owner’s manual”
or “DPF FULL MANUAL REGENERATION REQUIRED SEE OWNER’S
MANUAL”/“DPF full Manual regeneration required See owner’s manual”
is shown on the multi-information display
The deposit collected in the filter needs to be regenerated.
Vehicles without DPF system switch:
To regenerate the filter, the following driving methods are recommended*.
● By driving continuously (for example, at around 65 km/h [40 mph] for 20 to
30 minutes).
● By avoiding short trips, or by driving continuously (leaving the engine run-
ning for long periods of time).
When the outside temperature is approximately -15 C (5F) or lower, check
the engine is warmed up before driving the vehicle to regenerate the filter. If
the engine is cold, warm up the engine by driving the vehicle downshifting to
increase the engine speed. Depending on the situation, it may be necessary
to depress the accelerator pedal until the engine speed is increased to 3000
rpm.
The warning message will disappear when regeneration is completed. How-
ever, if this driving cannot be carried out, or if the message does not disap-
pear even after driving, have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer immediately.
For details of the DPF system, refer to P. 398.
*: When driving, pay sufficient attention to weather, road conditions, terrain
and traffic conditions, and drive according to traffic laws.
Vehicles with DPF system switch:
 P. 399
■ If “FRONT CAMERA UNAVAILABLE”/“Front Camera Unavailable” or
“FRONT CAMERA VISION BLOCKED CLEAN AND DEMIST WIND-
SHIELD”/“Front Camera Vision Blocked Clean and Demist Windshield”
is shown on the multi-information display
The following systems may be suspended until the problem shown in the
message is resolved. ( P. 333, 610)
● PCS (Pre-Collision System)
● LDA (Lane Departure Alert)
● RSA (Road Sign Assist)
■ If “Check RSA system” is shown on the multi-information display
The RSA system is malfunctioning.
Have the vehicle inspected by any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer immediately.

6238-2. Steps to take in an emergency
HILUX_OM_OM0K322E_(EE)
8
When trouble arises

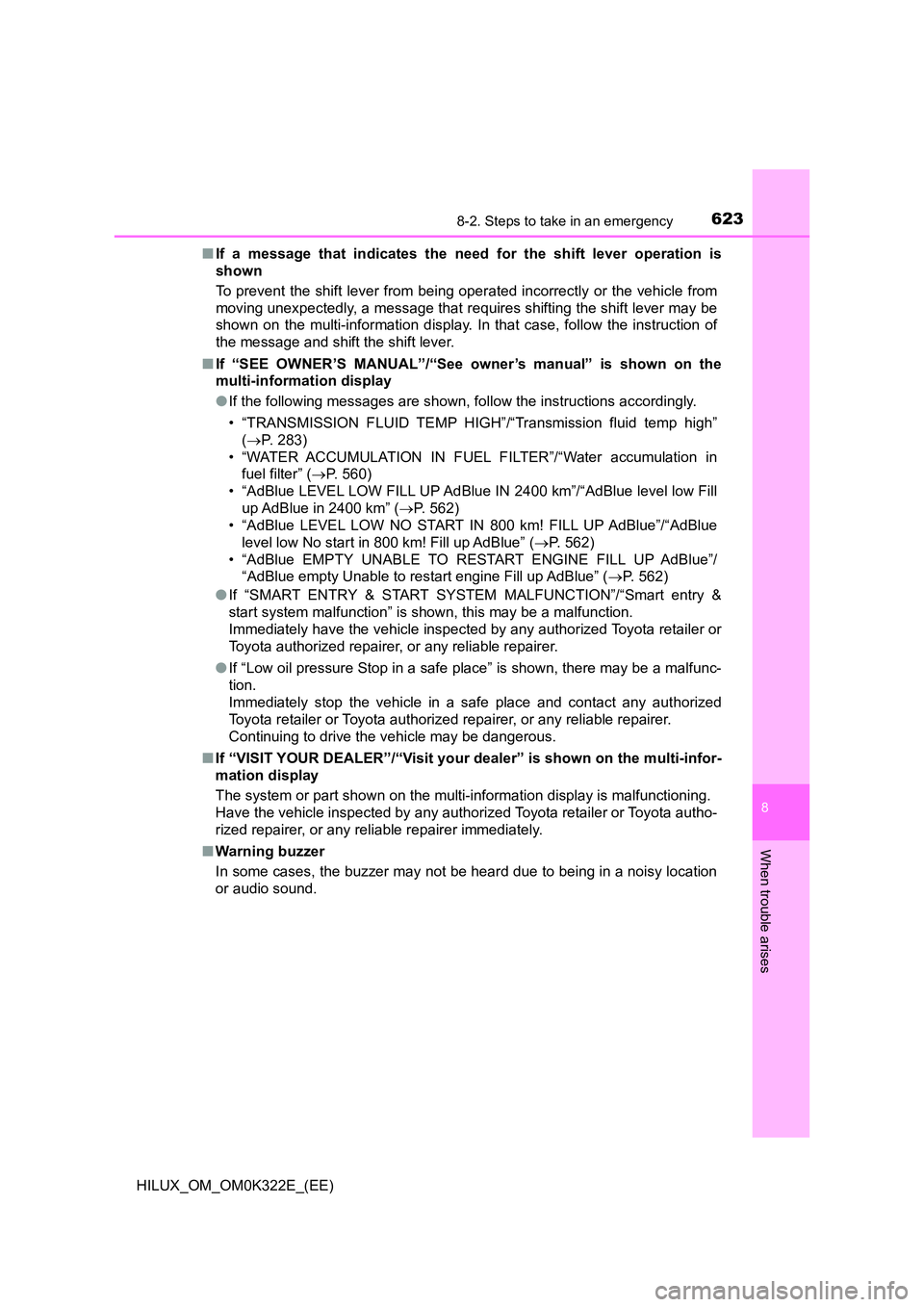

■If a message that indicates the need for the shift lever operation is
shown
To prevent the shift lever from being operated incorrectly or the vehicle from
moving unexpectedly, a message that requires shifting the shift lever may be
shown on the multi-information display. In that case, follow the instruction of
the message and shift the shift lever.
■ If “SEE OWNER’S MANUAL”/“See owner’s manual” is shown on the
multi-information display
● If the following messages are shown, follow the instructions accordingly.
• “TRANSMISSION FLUID TEMP HIGH”/“Transmission fluid temp high”
( P. 283)
• “WATER ACCUMULATION IN FUEL FILTER”/“Water accumulation in
fuel filter” ( P. 560)
• “AdBlue LEVEL LOW FILL UP AdBlue IN 2400 km”/“AdBlue level low Fill
up AdBlue in 2400 km” ( P. 562)
• “AdBlue LEVEL LOW NO START IN 800 km! FILL UP AdBlue”/“AdBlue
level low No start in 800 km! Fill up AdBlue” ( P. 5 6 2 )
• “AdBlue EMPTY UNABLE TO RESTART ENGINE FILL UP AdBlue”/
“AdBlue empty Unable to restart engine Fill up AdBlue” ( P. 562)
● If “SMART ENTRY & START SYSTEM MALFUNCTION”/“Smart entry &
start system malfunction” is shown, this may be a malfunction.
Immediately have the vehicle inspected by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
● If “Low oil pressure Stop in a safe place” is shown, there may be a malfunc-
tion.
Immediately stop the vehicle in a safe place and contact any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer.
Continuing to drive the vehicle may be dangerous.
■ If “VISIT YOUR DEALER”/“Visit your dealer” is shown on the multi-infor-
mation display
The system or part shown on the multi- information display is malfunctioning.
Have the vehicle inspected by any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer immediately.
■ Warning buzzer
In some cases, the buzzer may not be heard due to being in a noisy location
or audio sound.

6248-2. Steps to take in an emergency
HILUX_OM_OM0K322E_(EE)
WARNING
■If a warning light comes on or a warning buzzer sounds when a warn-
ing message is shown on the multi-information display
Check and follow the message shown on the multi-information display. Fail-
ure to do so may result in death or serious injury.
NOTICE
■ While the engine oil level warning is displayed
Continued engine operation with lo w engine oil will damage the engine.
■ If “WATER ACCUMULATION IN FUEL FILTER SEE OWNER’S MAN-
UAL”/“Water accumulation in fuel fi lter See owner’s manual” is shown
on the multi-information display
Never drive the vehicle if the warning message is displayed. Continued driv-
ing with water accumulated in the fuel filter will damage the fuel injection
pump.

6258-2. Steps to take in an emergency
HILUX_OM_OM0K322E_(EE)
8
When trouble arises

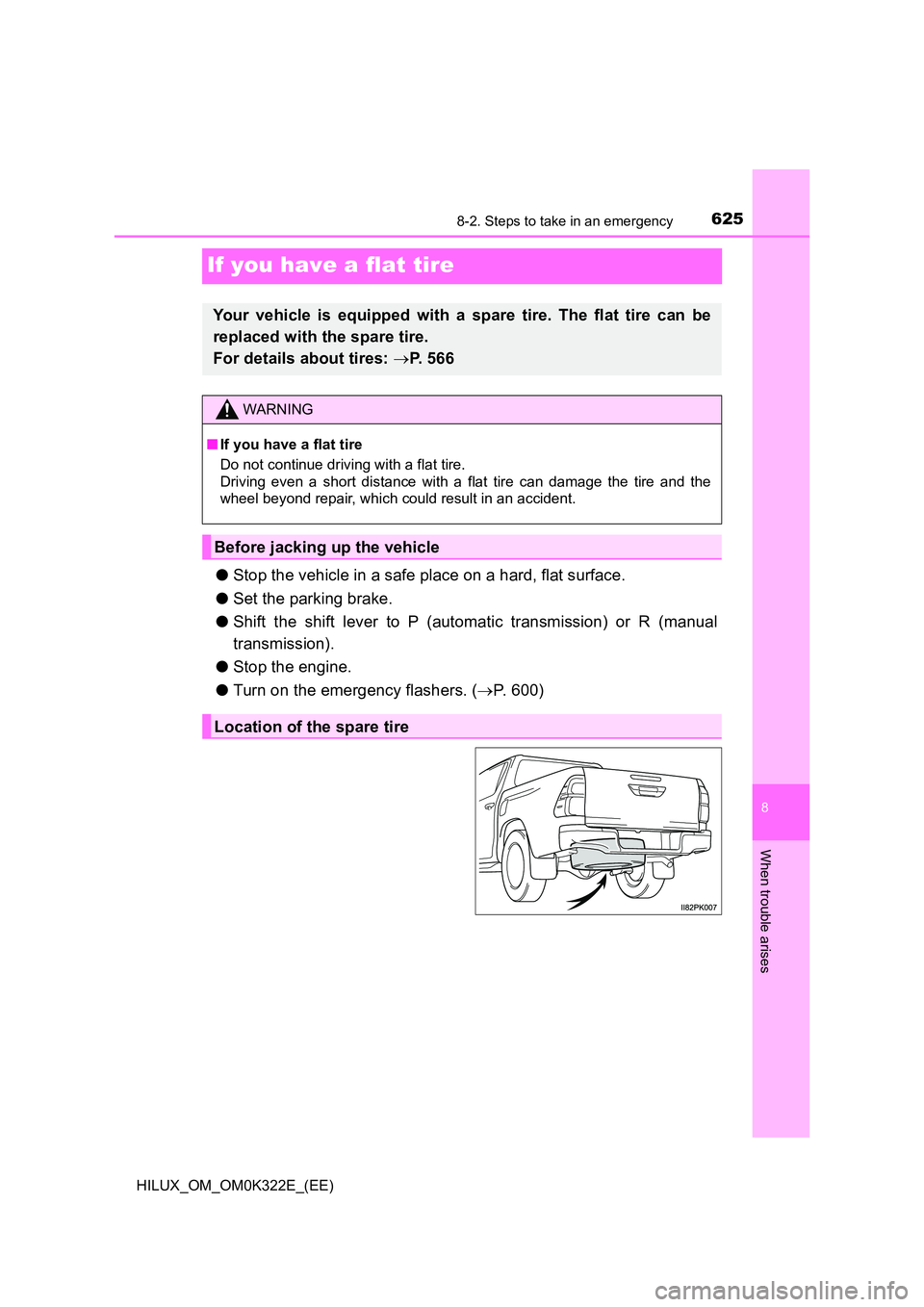

If you have a flat tire
●Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P (automatic transmission) or R (manual
transmission).
● Stop the engine.
● Turn on the emergency flashers. (P. 600)
Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
For details about tires: P. 5 6 6
WARNING
■If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair, which could result in an accident.
Before jacking up the vehicle
Location of the spare tire

6268-2. Steps to take in an emergency
HILUX_OM_OM0K322E_(EE)
Single-cab models
The jack and tools are stored
behind the seat.
Smart-cab models
The jack and tools are stored
under the lid.
Double-cab models
The jack and tools are stored
under the bottom cushion.
Location of the jack and tools

6278-2. Steps to take in an emergency
HILUX_OM_OM0K322E_(EE)
8
When trouble arises

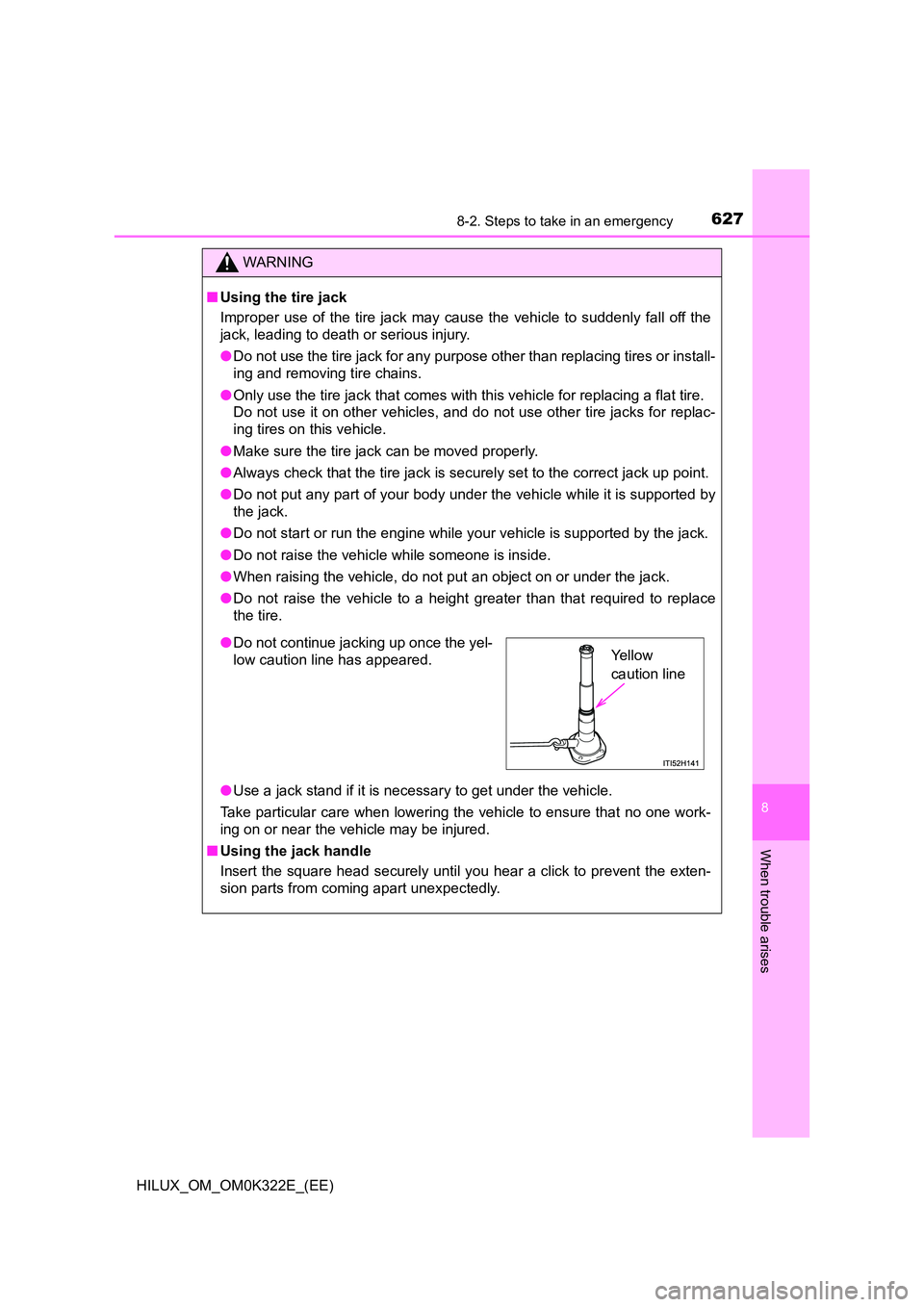

WARNING
■Using the tire jack
Improper use of the tire jack may cause the vehicle to suddenly fall off the
jack, leading to death or serious injury.
● Do not use the tire jack for any purpose other than replacing tires or install-
ing and removing tire chains.
● Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replac-
ing tires on this vehicle.
● Make sure the tire jack can be moved properly.
● Always check that the tire jack is securely set to the correct jack up point.
● Do not put any part of your body under the vehicle while it is supported by
the jack.
● Do not start or run the engine while your vehicle is supported by the jack.
● Do not raise the vehicle while someone is inside.
● When raising the vehicle, do not put an object on or under the jack.
● Do not raise the vehicle to a height greater than that required to replace
the tire.
● Use a jack stand if it is necessary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that no one work-
ing on or near the vehicle may be injured.
■ Using the jack handle
Insert the square head securely until you hear a click to prevent the exten-
sion parts from coming apart unexpectedly.
● Do not continue jacking up once the yel-
low caution line has appeared.Ye l l o w
caution line

6288-2. Steps to take in an emergency
HILUX_OM_OM0K322E_(EE)

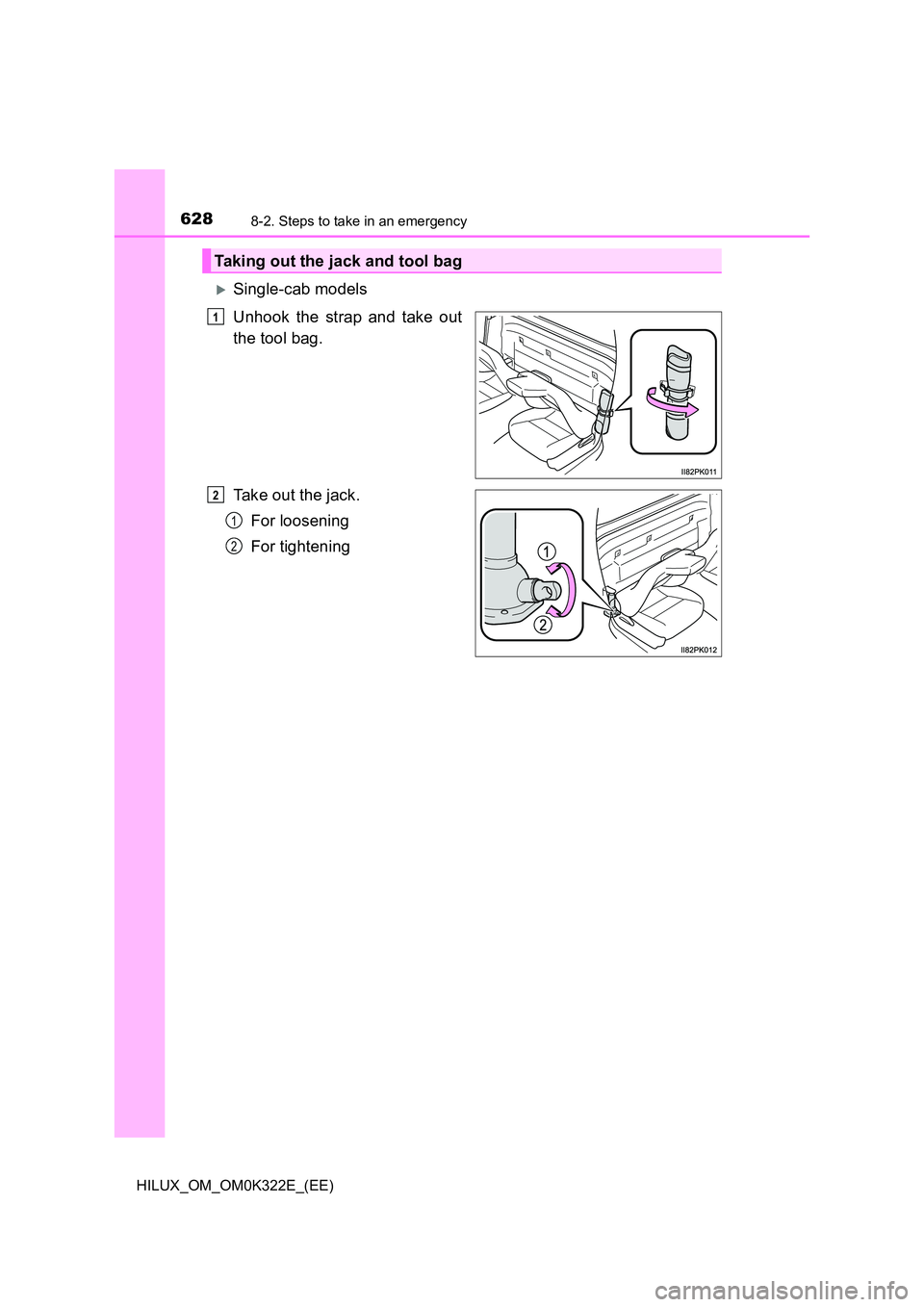

Single-cab models
Unhook the strap and take out
the tool bag.
Take out the jack.
For loosening
For tightening
Taking out the jack and tool bag
1
2
1
2

6298-2. Steps to take in an emergency
HILUX_OM_OM0K322E_(EE)
8
When trouble arises

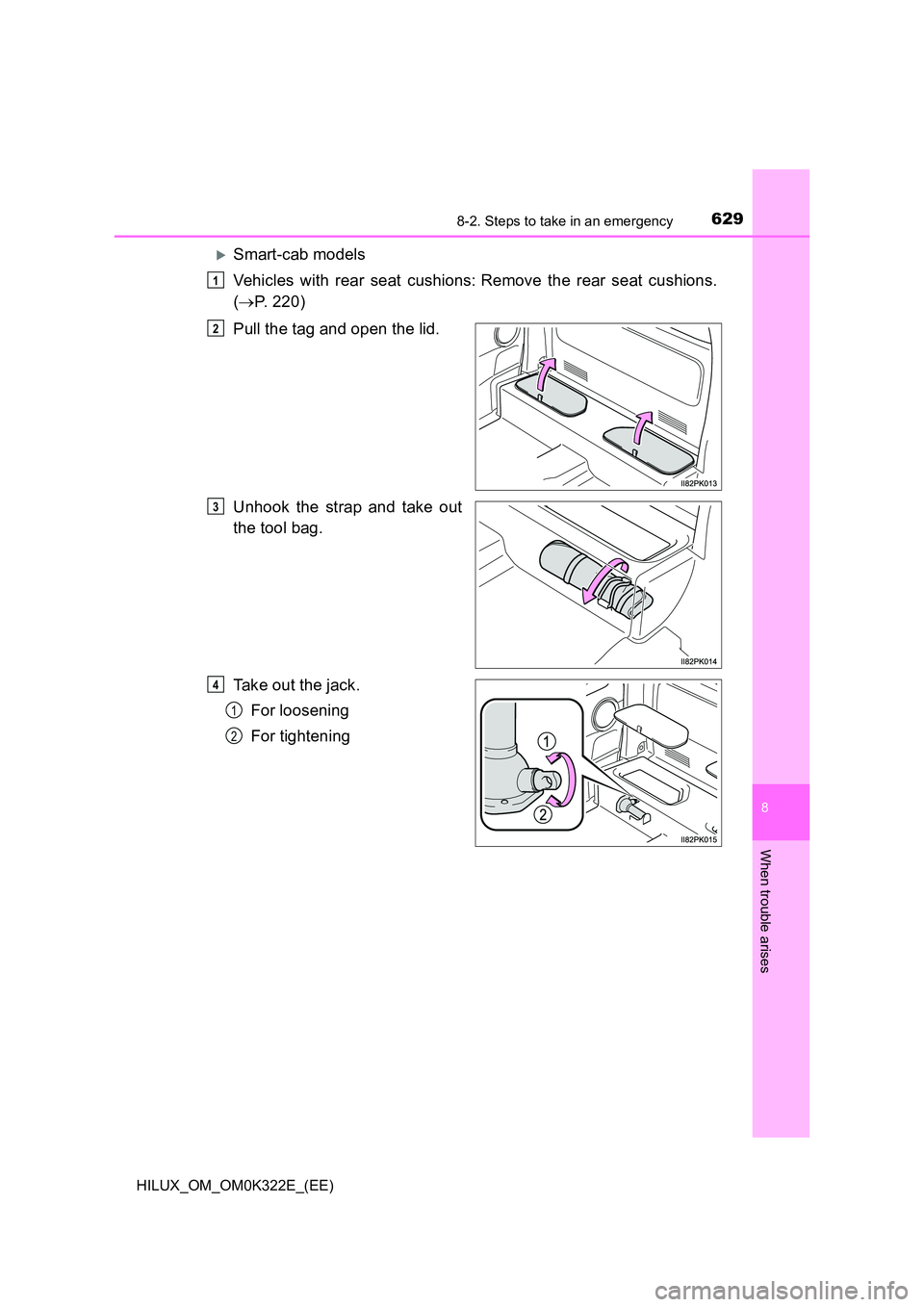

Smart-cab models
Vehicles with rear seat cushions:Remove the rear seat cushions.
( P. 220)
Pull the tag and open the lid.
Unhook the strap and take out
the tool bag.
Take out the jack.
For loosening
For tightening
1
2
3
4
1
2

6308-2. Steps to take in an emergency
HILUX_OM_OM0K322E_(EE)

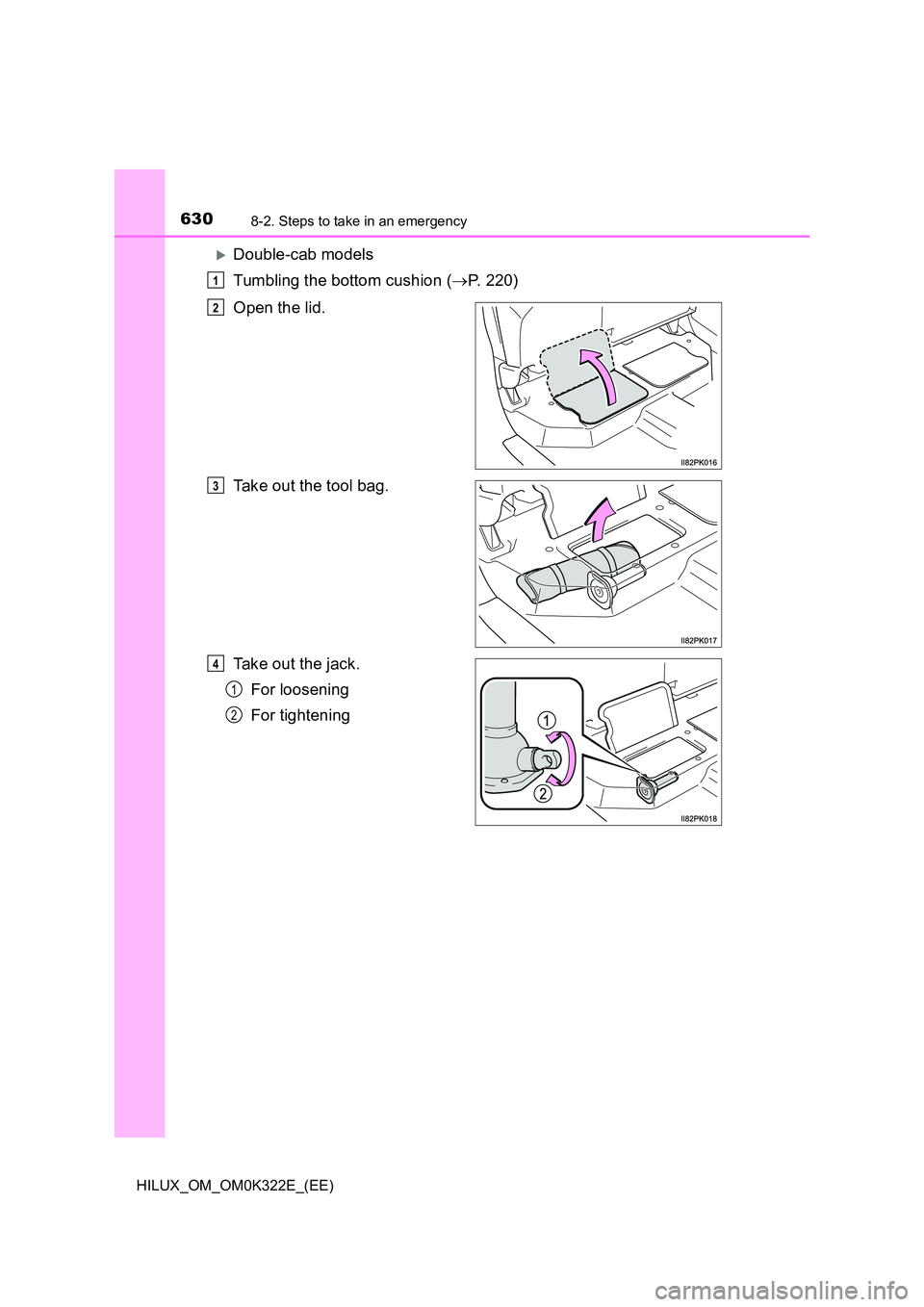

Double-cab models
Tumbling the bottom cushion ( P. 220)
Open the lid.
Take out the tool bag.
Take out the jack.
For loosening
For tightening
1
2
3
4
1
2
