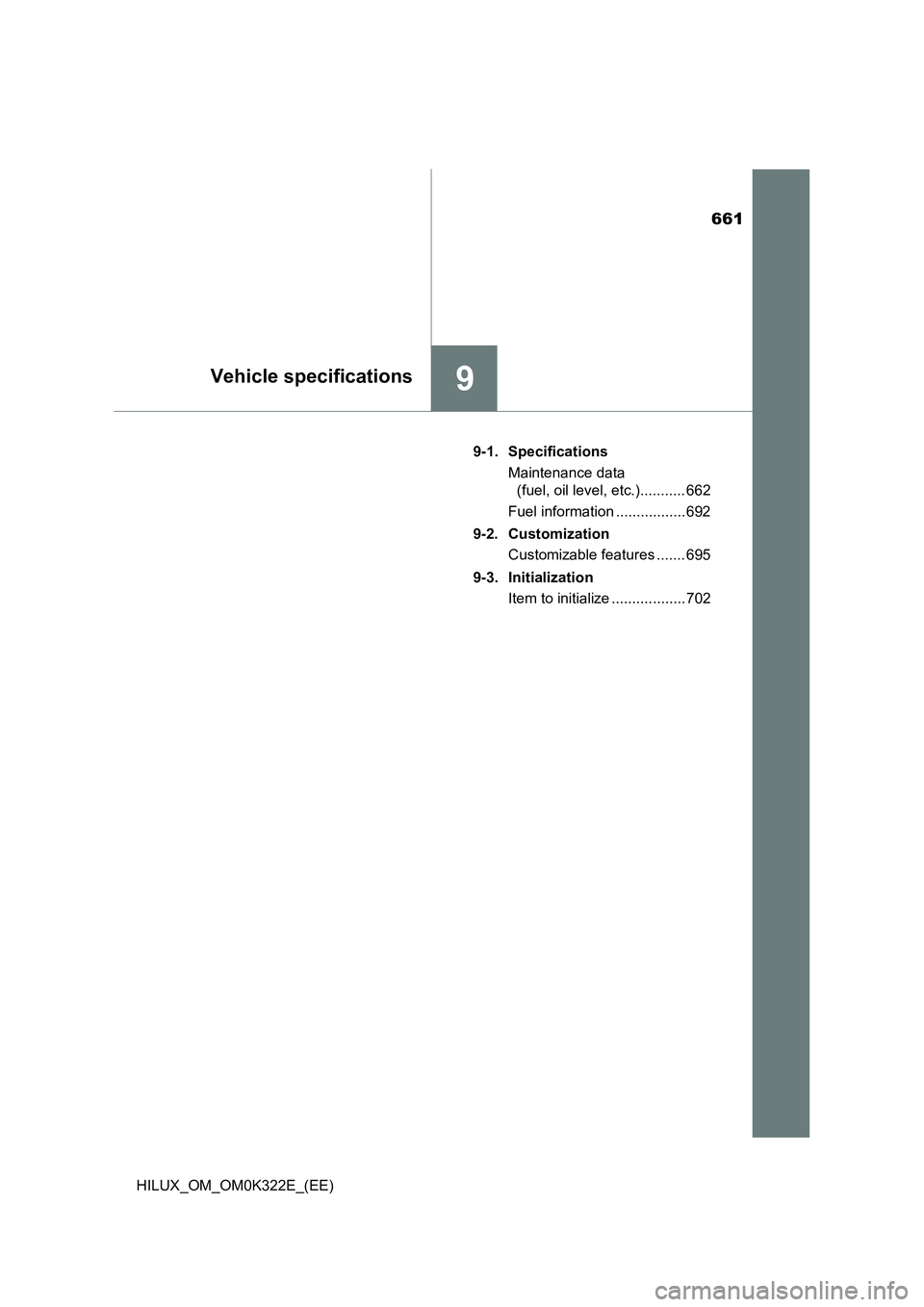

TOYOTA HILUX 2017 Owners Manual (in English)

661
9Vehicle specifications
HILUX_OM_OM0K322E_(EE)
9-1. Specifications
Maintenance data
(fuel, oil level, etc.)........... 662
Fuel information ................. 692
9-2. Customization
Customizable features ....... 695
9-3. Initialization
Item to initialize .................. 702

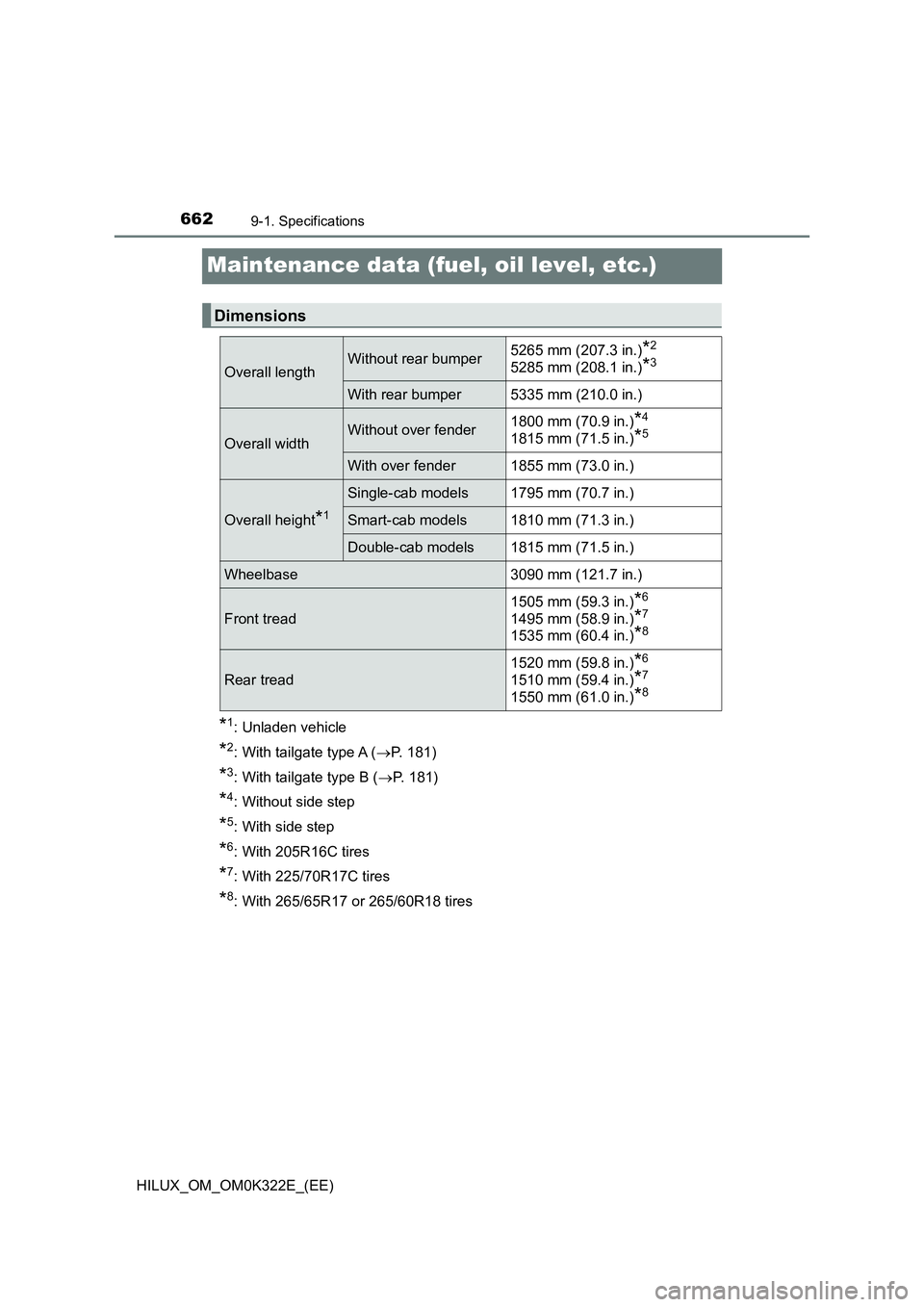

6629-1. Specifications
HILUX_OM_OM0K322E_(EE)
Maintenance data (fuel, oil level, etc.)
*1: Unladen vehicle
*2: With tailgate type A (P. 181)
*3: With tailgate type B (P. 181)
*4: Without side step
*5: With side step
*6: With 205R16C tires
*7: With 225/70R17C tires
*8: With 265/65R17 or 265/60R18 tires
Dimensions
Overall lengthWithout rear bumper 5265 mm (207.3 in.)*2
5285 mm (208.1 in.)*3
With rear bumper 5335 mm (210.0 in.)
Overall widthWithout over fender1800 mm (70.9 in.)*4
1815 mm (71.5 in.)*5
With over fender 1855 mm (73.0 in.)
Overall height*1
Single-cab models 1795 mm (70.7 in.)
Smart-cab models 1810 mm (71.3 in.)
Double-cab models 1815 mm (71.5 in.)
Wheelbase 3090 mm (121.7 in.)
Front tread
1505 mm (59.3 in.)*6
1495 mm (58.9 in.)*7
1535 mm (60.4 in.)*8
Rear tread
1520 mm (59.8 in.)*6
1510 mm (59.4 in.)*7
1550 mm (61.0 in.)*8

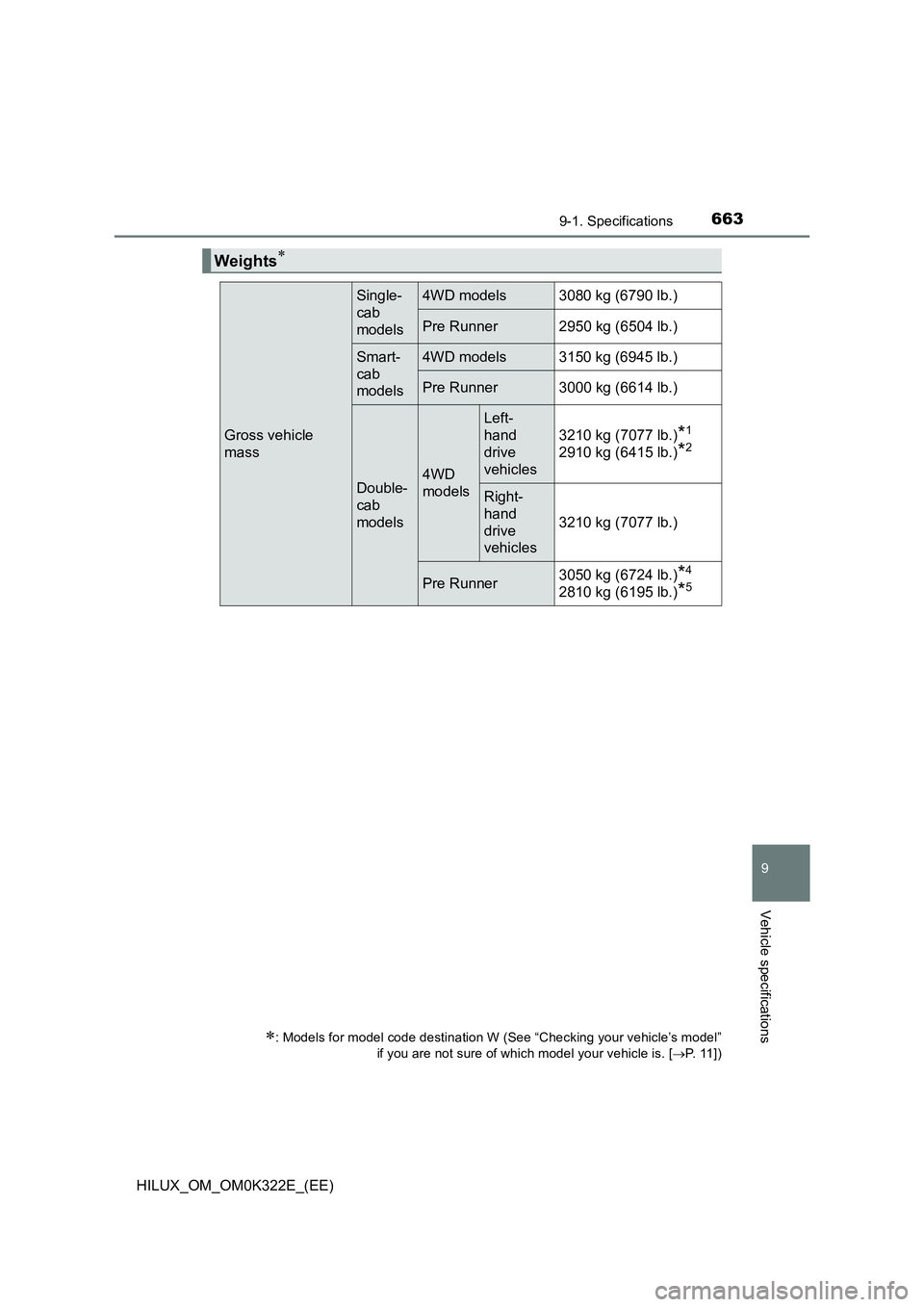

663
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K322E_(EE)
Weights
: Models for model code destination W (See “Checking your vehicle’s model”
if you are not sure of which model your vehicle is. [ P. 11])
Gross vehicle
mass
Single-
cab
models
4WD models 3080 kg (6790 lb.)
Pre Runner 2950 kg (6504 lb.)
Smart-
cab
models
4WD models 3150 kg (6945 lb.)
Pre Runner 3000 kg (6614 lb.)
Double-
cab
models
4WD
models
Left-
hand
drive
vehicles
3210 kg (7077 lb.)*1
2910 kg (6415 lb.)*2
Right-
hand
drive
vehicles
3210 kg (7077 lb.)
Pre Runner 3050 kg (6724 lb.)*4
2810 kg (6195 lb.)*5

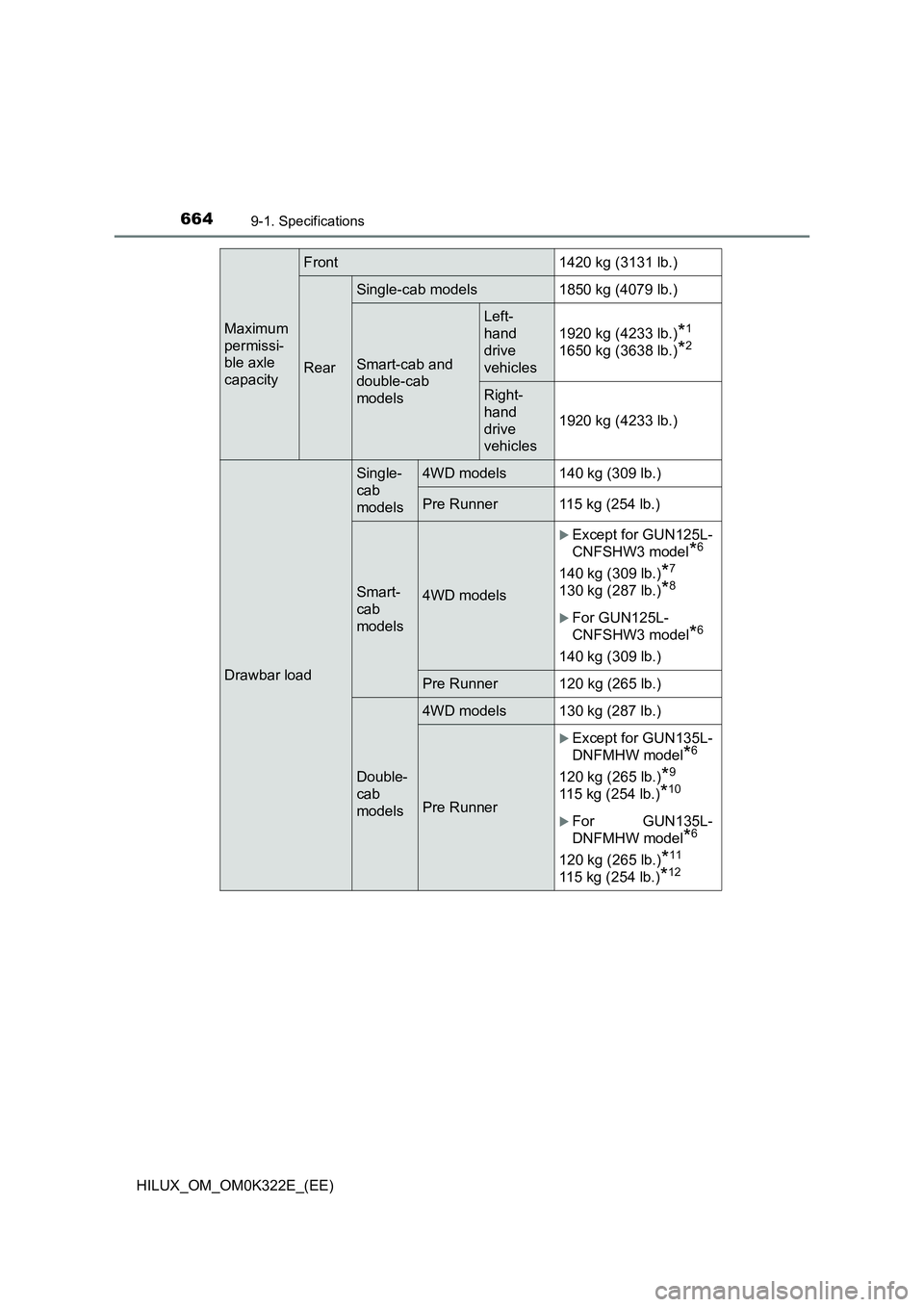

6649-1. Specifications
HILUX_OM_OM0K322E_(EE)
Maximum
permissi-
ble axle
capacity
Front 1420 kg (3131 lb.)
Rear
Single-cab models 1850 kg (4079 lb.)
Smart-cab and
double-cab
models
Left-
hand
drive
vehicles
1920 kg (4233 lb.)*1
1650 kg (3638 lb.)*2
Right-
hand
drive
vehicles
1920 kg (4233 lb.)
Drawbar load
Single-
cab
models
4WD models 140 kg (309 lb.)
Pre Runner 115 kg (254 lb.)
Smart-
cab
models
4WD models
Except for GUN125L-
CNFSHW3 model*6
140 kg (309 lb.)*7
130 kg (287 lb.)*8
For GUN125L-
CNFSHW3 model*6
140 kg (309 lb.)
Pre Runner 120 kg (265 lb.)
Double-
cab
models
4WD models 130 kg (287 lb.)
Pre Runner
Except for GUN135L-
DNFMHW model*6
120 kg (265 lb.)*9
115 kg (254 lb.)*10
For GUN135L-
DNFMHW model*6
120 kg (265 lb.)*11
115 kg (254 lb.)*12

665
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K322E_(EE)
*1: Except for Russia, EURO VI model*3 for Ukraine and Israel, and EURO
V and VI models*3 for Turkey
*2: For Russia, EURO VI model*3 for Ukraine and Israel, and EURO V and
VI models*3 for Turkey
*3: EURO V and VI are emission standards. If it is not clear that your vehicle
meets relevant standards, contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
*4: Except for EURO VI model*3 for Israel, and EURO V and VI models*3 for
Turkey
*5: For EURO VI model*3 for Israel, and EURO V and VI models*3 for Tur-
key
*6: The model code is indicated on the manufacturer’s plate or label.
( P. 666)
*7: Without rear seat cushion
*8: With rear seat cushion
*9: Except for EURO VI model*3 for Israel, and EURO V model*3 for Turkey
*10: For EURO VI model*3 for Israel, and EURO V model*3 for Turkey
*11: Except for EURO V and VI models*3 for Turkey
*12: For EURO V and VI models*3 for Turkey
To w i n g
capacity
Without brake 750 kg (1653 lb.)
With
brake
Single-
cab
models
4WD models 3500 kg (7716 lb.)
Pre Runner 2800 kg (6173 lb.)
Smart-
cab
models
4WD models
Except for GUN125L-
CNFSHW3 model*6
3500 kg (7716 lb.)*7
3200 kg (7055 lb.)*8
For GUN125L-
CNFSHW3 model*6
3500 kg (7716 lb.)
Pre Runner 3000 kg (6614 lb.)
Double-
cab
models
4WD models 3200 kg (7055 lb.)
Pre Runner 3000 kg (6614 lb.)*4
2800 kg (6173 lb.)*5

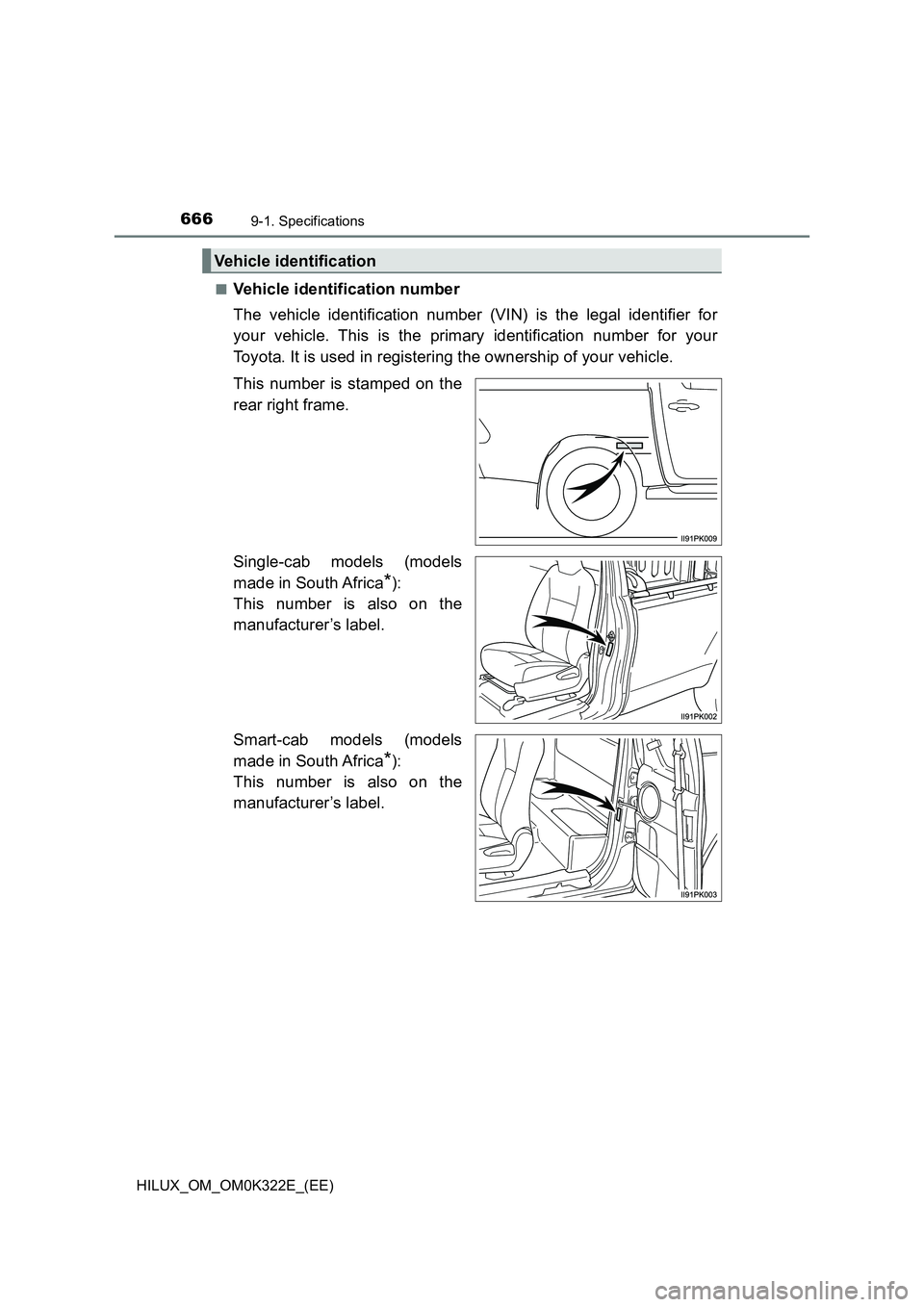

6669-1. Specifications
HILUX_OM_OM0K322E_(EE)
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped on the
rear right frame.
Single-cab models (models
made in South Africa*):
This number is also on the
manufacturer’s label.
Smart-cab models (models
made in South Africa*):
This number is also on the
manufacturer’s label.
Vehicle identification

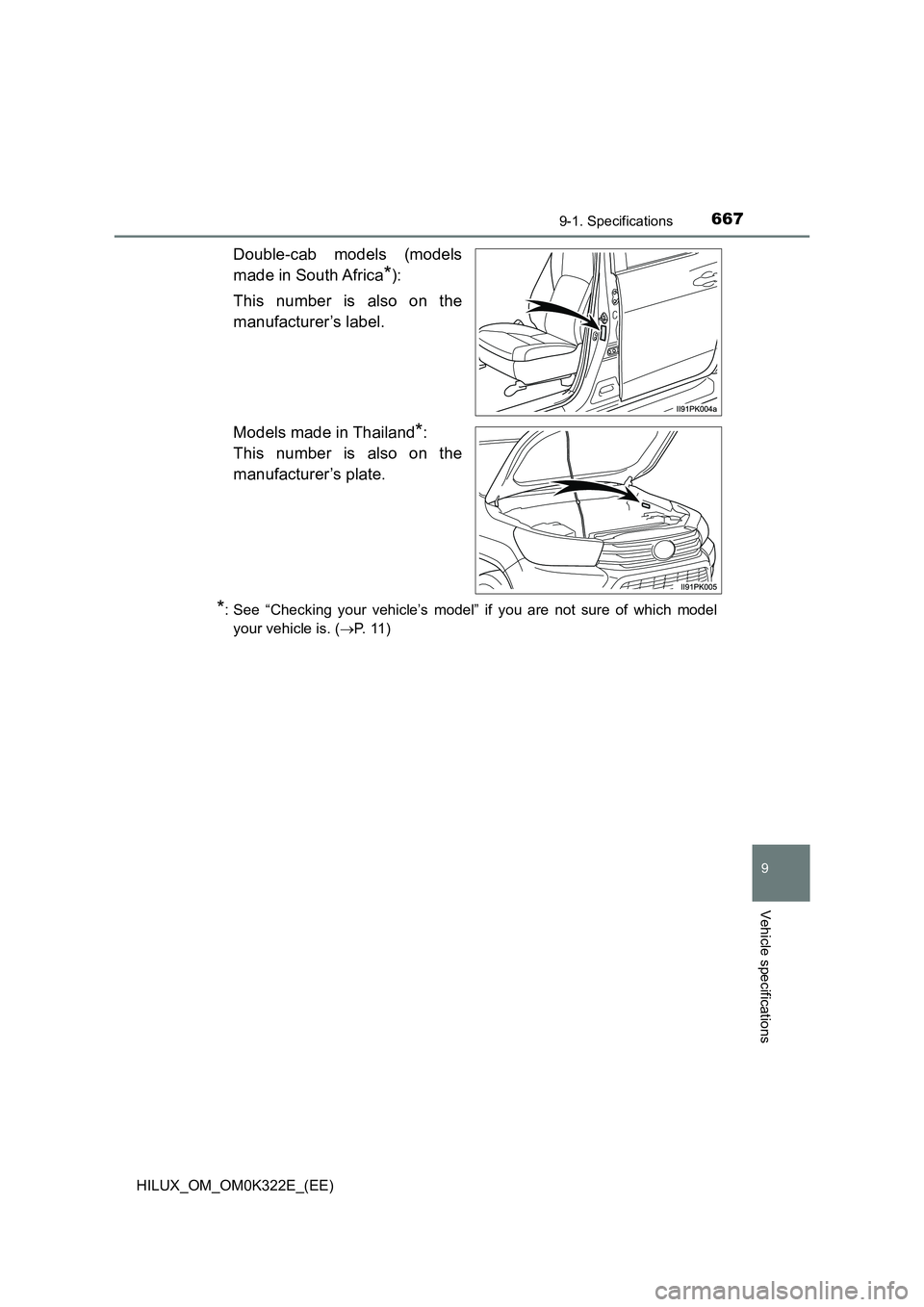

667
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K322E_(EE)
Double-cab models (models
made in South Africa*):
This number is also on the
manufacturer’s label.
Models made in Thailand*:
This number is also on the
manufacturer’s plate.
*: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. ( P. 1 1 )

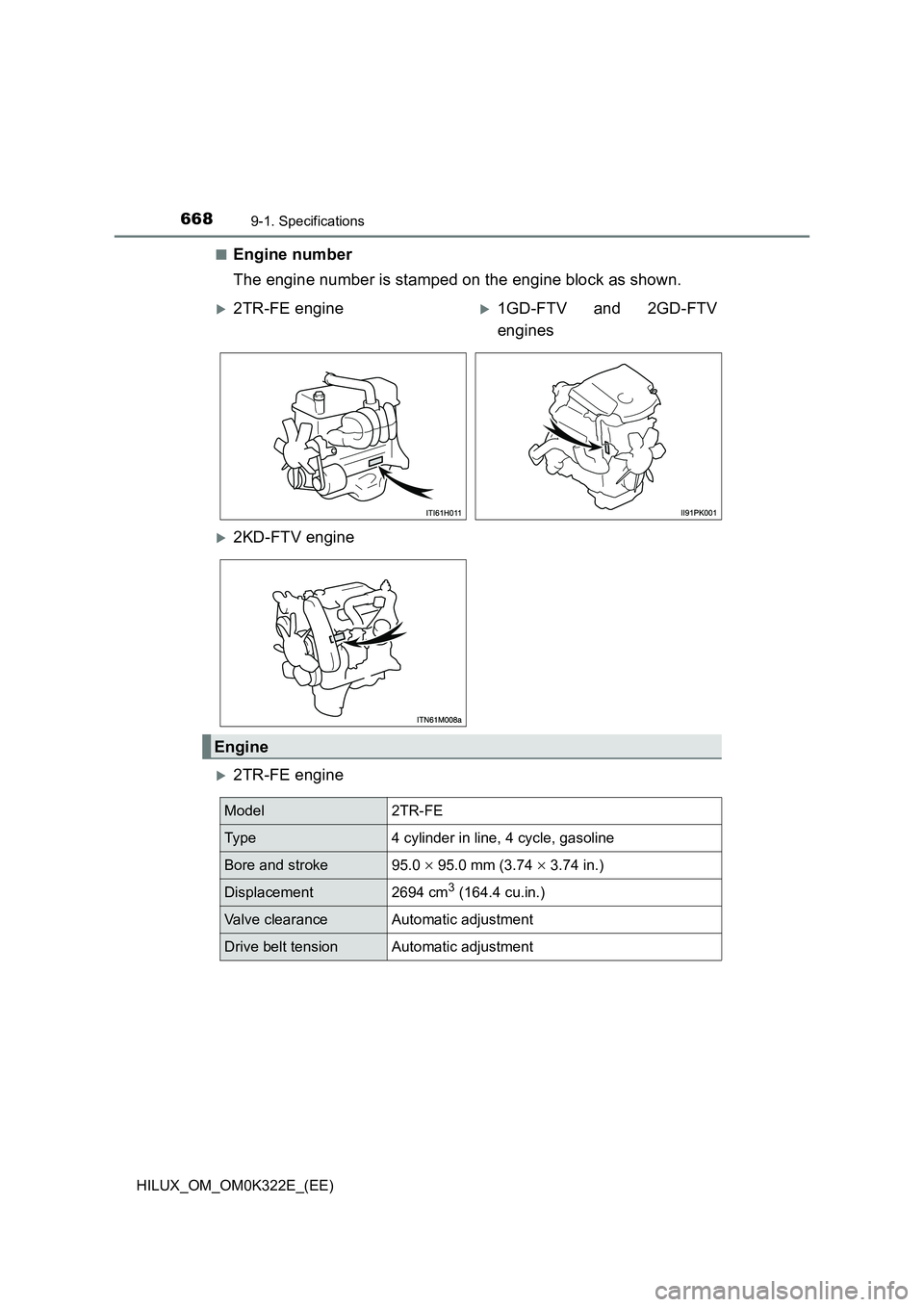

6689-1. Specifications
HILUX_OM_OM0K322E_(EE)
■Engine number
The engine number is stamped on the engine block as shown.
2TR-FE engine
2TR-FE engine1GD-FTV and 2GD-FTV
engines
2KD-FTV engine
Engine
Model2TR-FE
Ty p e4 cylinder in line, 4 cycle, gasoline
Bore and stroke95.0  95.0 mm (3.74  3.74 in.)
Displacement2694 cm3 (164.4 cu.in.)
Valve clearanceAutomatic adjustment
Drive belt tensionAutomatic adjustment

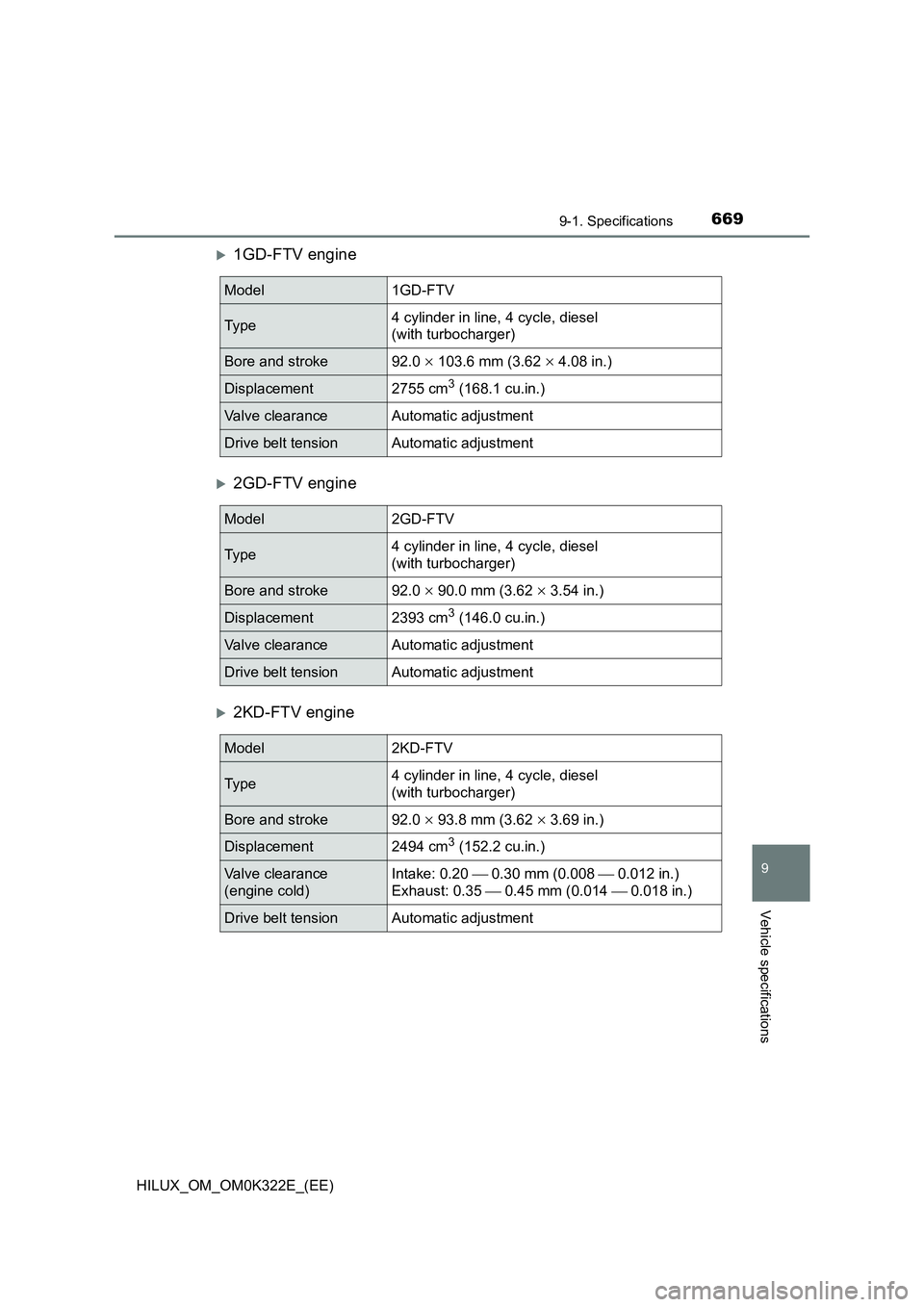

669
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K322E_(EE)
1GD-FTV engine
2GD-FTV engine
2KD-FTV engine
Model1GD-FTV
Ty p e4 cylinder in line, 4 cycle, diesel
(with turbocharger)
Bore and stroke92.0  103.6 mm (3.62  4.08 in.)
Displacement2755 cm3 (168.1 cu.in.)
Valve clearanceAutomatic adjustment
Drive belt tensionAutomatic adjustment
Model2GD-FTV
Ty p e4 cylinder in line, 4 cycle, diesel
(with turbocharger)
Bore and stroke92.0  90.0 mm (3.62  3.54 in.)
Displacement2393 cm3 (146.0 cu.in.)
Valve clearanceAutomatic adjustment
Drive belt tensionAutomatic adjustment
Model2KD-FTV
Ty p e4 cylinder in line, 4 cycle, diesel
(with turbocharger)
Bore and stroke92.0  93.8 mm (3.62  3.69 in.)
Displacement2494 cm3 (152.2 cu.in.)
Valve clearance
(engine cold)
Intake: 0.20  0.30 mm (0.008  0.012 in.)
Exhaust: 0.35  0.45 mm (0.014  0.018 in.)
Drive belt tensionAutomatic adjustment

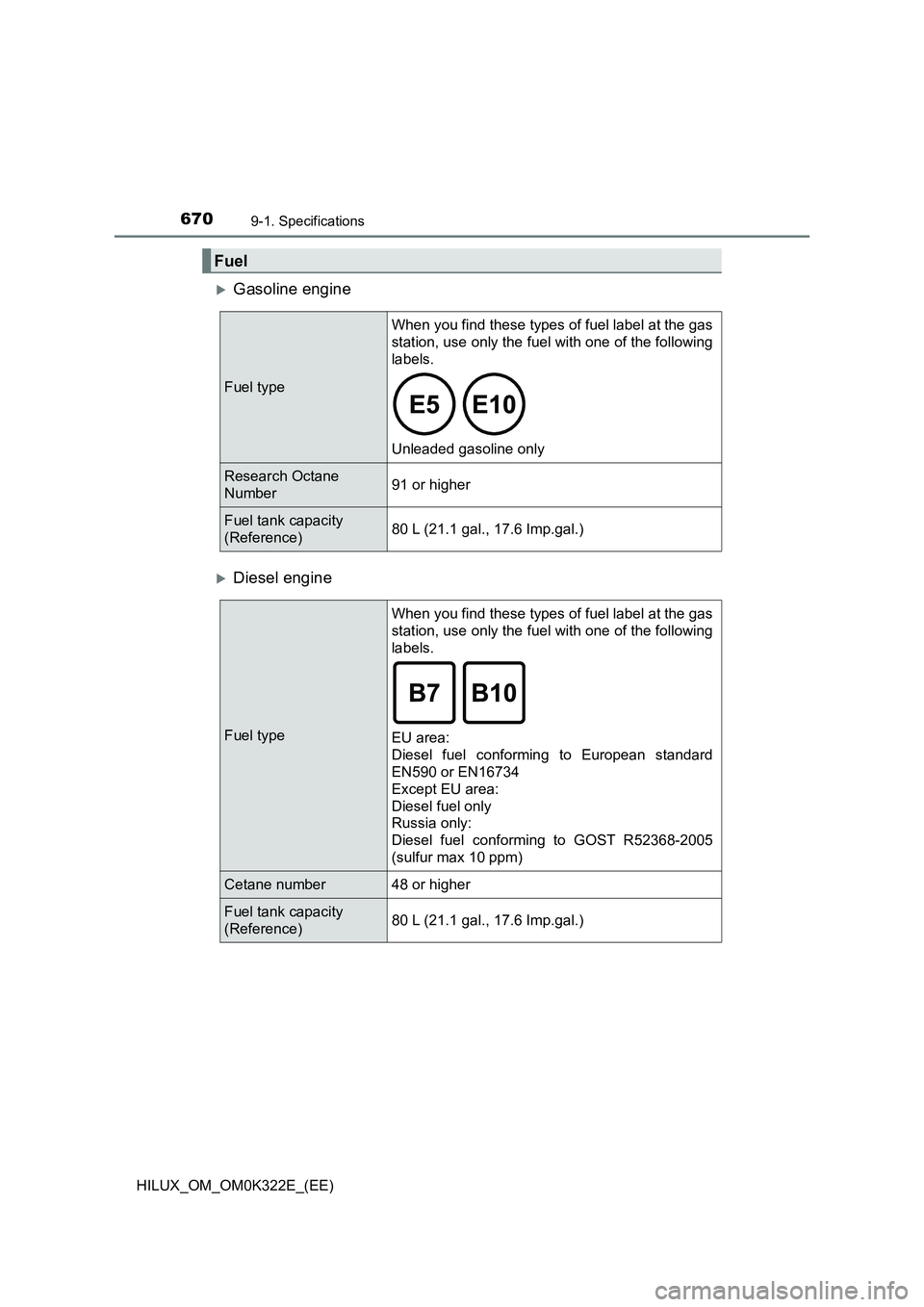

6709-1. Specifications
HILUX_OM_OM0K322E_(EE)
Gasoline engine
Diesel engine
Fuel
Fuel type
When you find these types of fuel label at the gas
station, use only the fuel with one of the following
labels.

Unleaded gasoline only
Research Octane
Number 91 or higher
Fuel tank capacity
(Reference)80 L (21.1 gal., 17.6 Imp.gal.)
Fuel type
When you find these types of fuel label at the gas
station, use only the fuel with one of the following
labels.

EU area:
Diesel fuel conforming to European standard
EN590 or EN16734
Except EU area:
Diesel fuel only
Russia only:
Diesel fuel conforming to GOST R52368-2005
(sulfur max 10 ppm)
Cetane number 48 or higher
Fuel tank capacity
(Reference)80 L (21.1 gal., 17.6 Imp.gal.)
