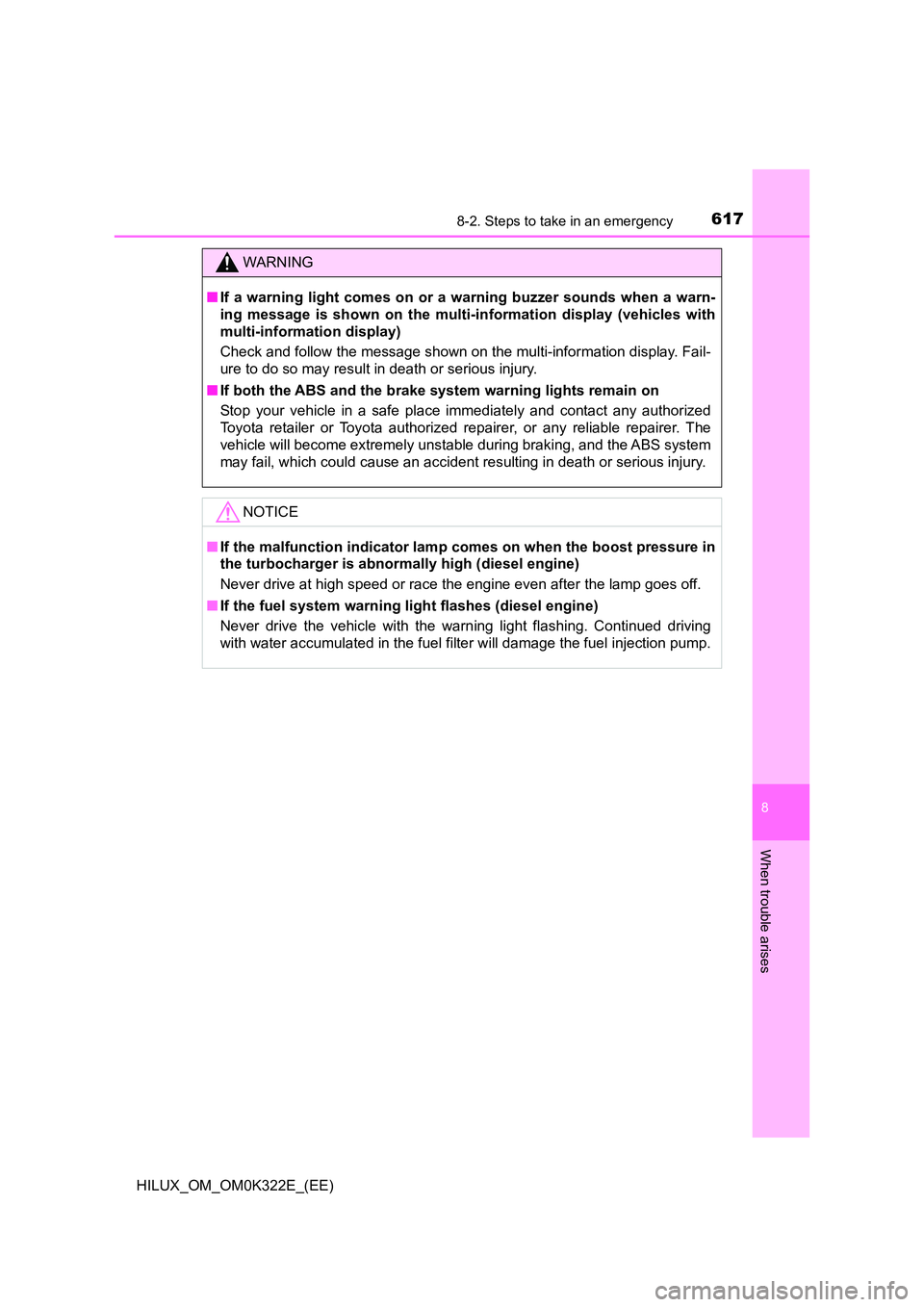

6178-2. Steps to take in an emergency
HILUX_OM_OM0K322E_(EE)
8
When trouble arises
WARNING
■If a warning light comes on or a warning buzzer sounds when a warn-
ing message is shown on the multi-information display (vehicles with
multi-information display)
Check and follow the message shown on the multi-information display. Fail-
ure to do so may result in death or serious injury.
■ If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact any authorized
Toyota retailer or Toyota authorized r epairer, or any reliable repairer. The
vehicle will become extremely unstable during braking, and the ABS system
may fail, which could cause an accident resulting in death or serious injury.
NOTICE
■ If the malfunction indicator lamp comes on when the boost pressure in
the turbocharger is abnormally high (diesel engine)
Never drive at high speed or race the engine even after the lamp goes off.
■ If the fuel system warning light flashes (diesel engine)
Never drive the vehicle with the warn ing light flashing. Continued driving
with water accumulated in the fuel filter will damage the fuel injection pump.

6188-2. Steps to take in an emergency
HILUX_OM_OM0K322E_(EE)
If a warning message is displayed
Master warning light
The master warning light also comes on or flashes in order to indicate that
a message is currently being displayed on the multi-information display.
Multi-information display
Handling method
Follow the instructions of the message on the multi-information display.
If any of the warning messages comes on again after the following
actions have been performed, contact any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer.
: If equipped
The multi-information display shows warnings of system mal-
functions, incorrectly performed operations, and messages that
indicate a need for maintenance. When a message is shown,
perform the correction procedure appropriate to the message.
Vehicles with multi-information
display type A
Vehicles with multi-information
display type B
1
2
3

6198-2. Steps to take in an emergency
HILUX_OM_OM0K322E_(EE)
8
When trouble arises
The warning lights and warning buzzers operate as follows depending
on the content of the message. If a message indicates the need for
inspection by a dealer, have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer
immediately.
*: A buzzer sounds the first time a message is shown on the multi-informa-
tion display.
Messages and warnings
System
warning
light
Warning
buzzer*Warning
Comes on Comes on Sounds Indicates an important situation, such
as when a system related to driving is
malfunctioning or that danger may
result if the correction procedure is not
performedComes onSounds
Comes on
or flashesSounds
Indicates an important situation, such
as when the systems shown on the
multi-information display may be mal-
functioning
FlashesSounds
Indicates a situation, such as when
damage to the vehicle or danger may
result
Comes onDoes not
sound
Indicates a condition, such as mal-
function of electrical components, their
condition, or indicates the need for
maintenance
FlashesDoes not
sound
Indicates a situation, such as when an
operation has been performed incor-
rectly, or indicates how to perform an
operation correctly

6218-2. Steps to take in an emergency
HILUX_OM_OM0K322E_(EE)
8
When trouble arises
■If “T-BELT MAINTENANCE REQUIRED”/“T-BELT maintenance required”
is shown on the multi-information display
The timing belt is scheduled to be changed.
Have the timing belt checked and/or changed by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
■ If “DIFFERENTIAL OIL TEMP HIGH COOLING TIME REQUIRED”/“Diffe-
rential oil temp high Cooling time required” is shown on the multi-infor-
mation display
The differential oil temperature is too high.
Wait until the warning message goes off.
■ If “ENGINE OIL LEVEL LOW ADD OR REPLACE”/“Engine oil level low
Add or replace” is shown on the multi-information display
The engine oil level is low. (This warning message may be displayed if the
vehicle is stopped on a slope. Move to a level surface and check to see if the
message goes off.)
Check the level of the engine oil and add or replace oil if necessary.
( P. 540)
■ If “POWER TURNED OFF TO SAVE BATTERY”/“Power turned off to save
battery” is shown on the multi-information display
Power was turned off due to the automatic power off function.
Next time when starting the engine, increase the engine speed slightly and
maintain that level for approximately 5 minutes to recharge the battery.

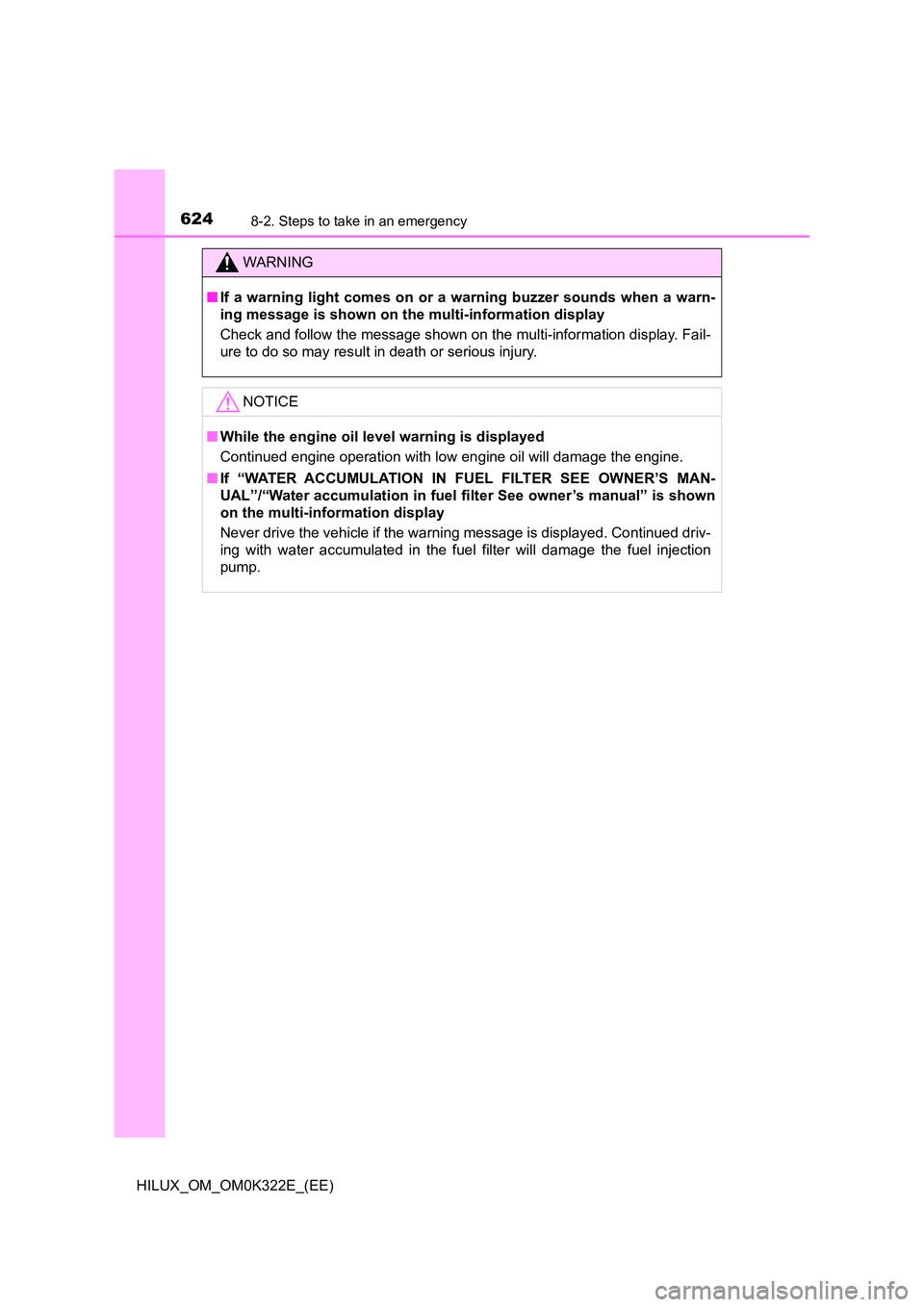

6248-2. Steps to take in an emergency
HILUX_OM_OM0K322E_(EE)
WARNING
■If a warning light comes on or a warning buzzer sounds when a warn-
ing message is shown on the multi-information display
Check and follow the message shown on the multi-information display. Fail-
ure to do so may result in death or serious injury.
NOTICE
■ While the engine oil level warning is displayed
Continued engine operation with lo w engine oil will damage the engine.
■ If “WATER ACCUMULATION IN FUEL FILTER SEE OWNER’S MAN-
UAL”/“Water accumulation in fuel fi lter See owner’s manual” is shown
on the multi-information display
Never drive the vehicle if the warning message is displayed. Continued driv-
ing with water accumulated in the fuel filter will damage the fuel injection
pump.

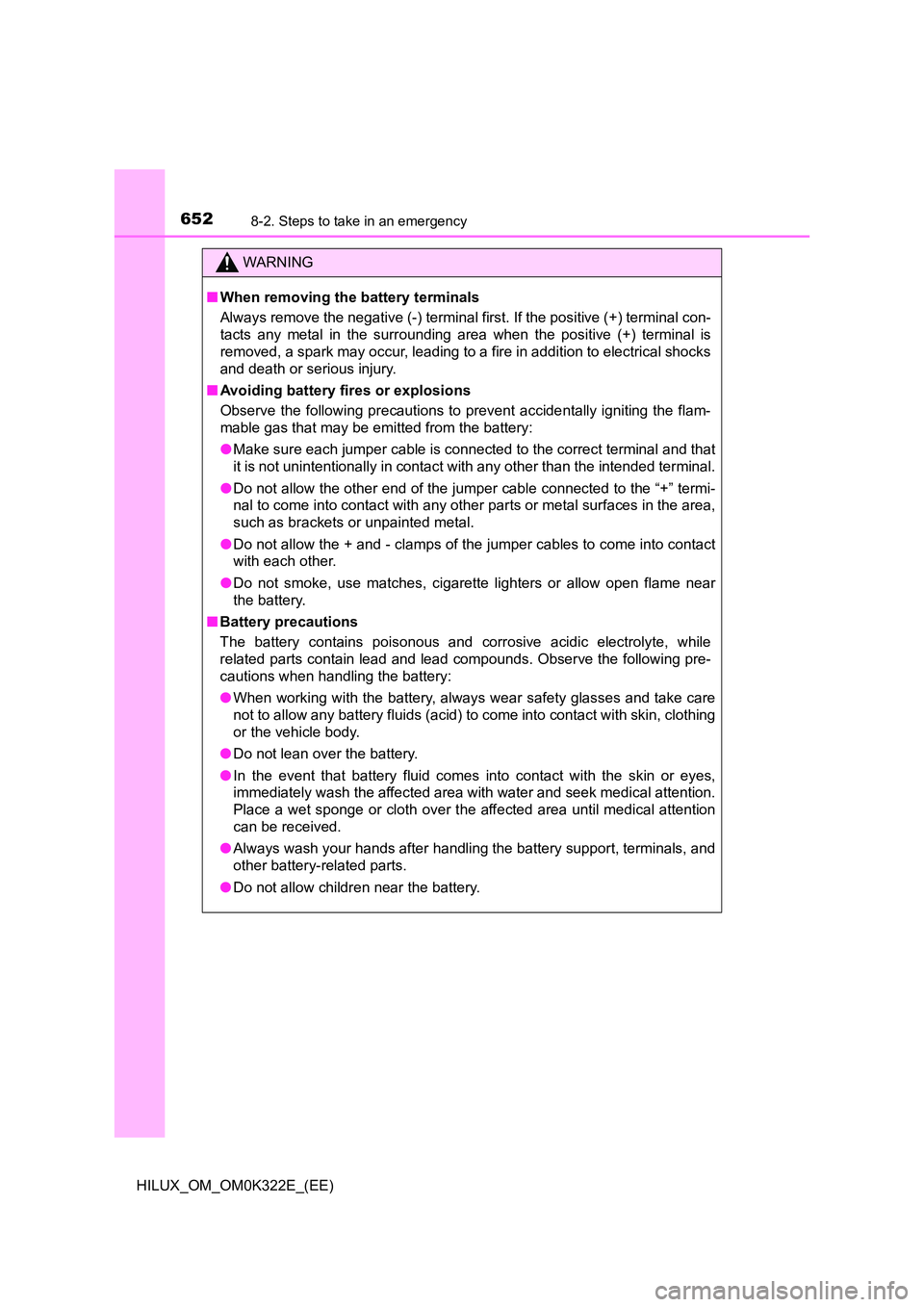

6528-2. Steps to take in an emergency
HILUX_OM_OM0K322E_(EE)
WARNING
■When removing the battery terminals
Always remove the negative (-) terminal first. If the positive (+) terminal con-
tacts any metal in the surrounding area when the positive (+) terminal is
removed, a spark may occur, leading to a fire in addition to electrical shocks
and death or serious injury.
■ Avoiding battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flam-
mable gas that may be emitted from the battery:
● Make sure each jumper cable is connected to the correct terminal and that
it is not unintentionally in contact with any other than the intended terminal.
● Do not allow the other end of the jumper cable connected to the “+” termi-
nal to come into contact with any other parts or metal surfaces in the area,
such as brackets or unpainted metal.
● Do not allow the + and - clamps of the jumper cables to come into contact
with each other.
● Do not smoke, use matches, cigarette lighters or allow open flame near
the battery.
■ Battery precautions
The battery contains poisonous and corrosive acidic electrolyte, while
related parts contain lead and lead compounds. Observe the following pre-
cautions when handling the battery:
● When working with the battery, always wear safety glasses and take care
not to allow any battery fluids (acid) to come into contact with skin, clothing
or the vehicle body.
● Do not lean over the battery.
● In the event that battery fluid comes into contact with the skin or eyes,
immediately wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention
can be received.
● Always wash your hands after handling the battery support, terminals, and
other battery-related parts.
● Do not allow children near the battery.

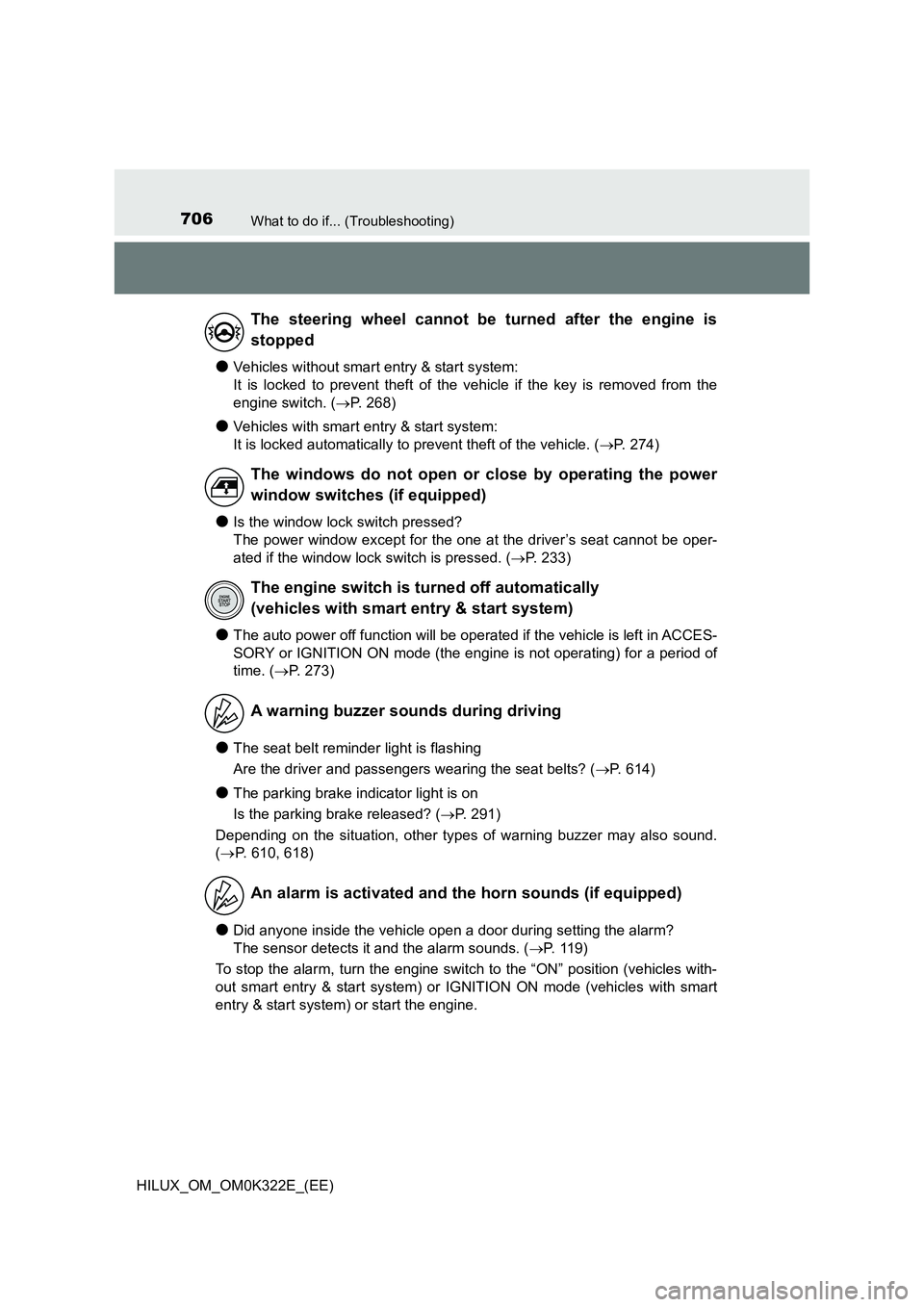

706What to do if... (Troubleshooting)
HILUX_OM_OM0K322E_(EE)
●Vehicles without smart entry & start system:
It is locked to prevent theft of the vehicle if the key is removed from the
engine switch. ( P. 2 6 8 )
●Vehicles with smart entry & start system:
It is locked automatically to prevent theft of the vehicle. ( P. 274)
●Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be oper-
ated if the window lock switch is pressed. ( P. 233)
●The auto power off function will be operated if the vehicle is left in ACCES-
SORY or IGNITION ON mode (the engine is not operating) for a period of
time. ( P. 273)
●The seat belt reminder light is flashing
Are the driver and passengers wearing the seat belts? ( P. 614)
●The parking brake indicator light is on
Is the parking brake released? ( P. 291)
Depending on the situation, other types of warning buzzer may also sound.
( P. 610, 618)
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. ( P. 119)
To stop the alarm, turn the engine switch to the “ON” position (vehicles with-
out smart entry & start system) or IGNITION ON mode (vehicles with smart
entry & start system) or start the engine.
The steering wheel cannot be turned after the engine is
stopped
The windows do not open or close by operating the power
window switches (if equipped)
The engine switch is turned off automatically
(vehicles with smart entry & start system)
A warning buzzer sounds during driving
An alarm is activated and the horn sounds (if equipped)

707What to do if... (Troubleshooting)
HILUX_OM_OM0K322E_(EE)
●Is the message displayed on the multi-information display?
Check the message on the multi-information display.
●When a warning light turns on or a warning message is displayed, refer to
P. 610, 618.
●Stop the vehicle in a safe place and replace the flat tire with the spare tire.
( P. 625)
●Try the procedure for when the vehicle becomes stuck in mud, dirt, or
snow. ( P. 658)
A warning buzzer sounds when leaving the vehicle
(vehicles with smart entry & start system)
A warning light turns on or a warning message is displayed
When a problem has occurred
If you have a flat tire
The vehicle becomes stuck

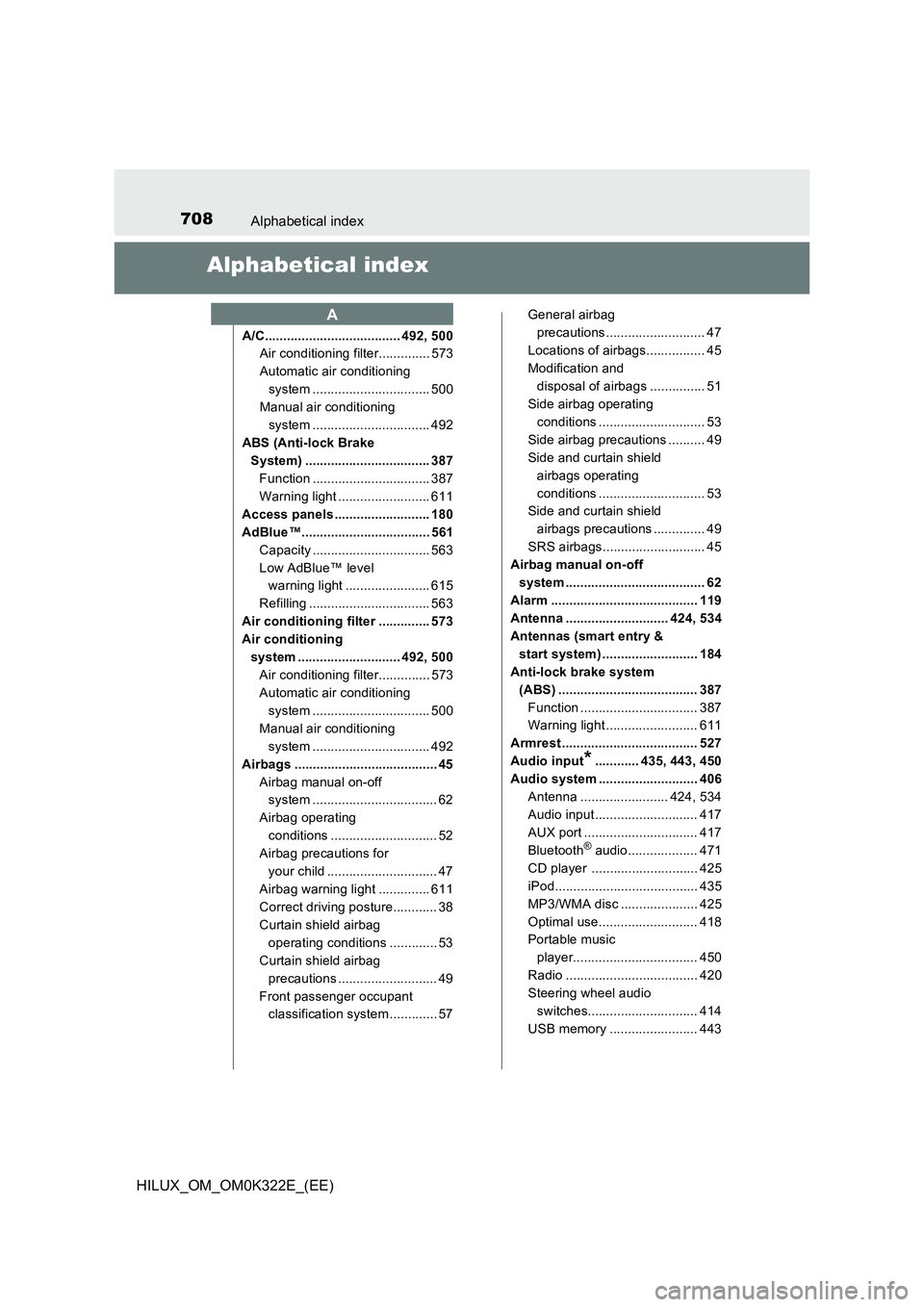

708Alphabetical index
HILUX_OM_OM0K322E_(EE)
Alphabetical index
A/C..................................... 492, 500
Air conditioning filter.............. 573
Automatic air conditioning
system ................................ 500
Manual air conditioning
system ................................ 492
ABS (Anti-lock Brake
System) .................................. 387
Function ................................ 387
Warning light ......................... 611
Access panels .......................... 180
AdBlue™................................... 561
Capacity ................................ 563
Low AdBlue™ level
warning light ....................... 615
Refilling ................................. 563
Air conditioning filter .............. 573
Air conditioning
system ............................ 492, 500
Air conditioning filter.............. 573
Automatic air conditioning
system ................................ 500
Manual air conditioning
system ................................ 492
Airbags ....................................... 45
Airbag manual on-off
system .................................. 62
Airbag operating
conditions ............................. 52
Airbag precautions for
your child .............................. 47
Airbag warning light .............. 611
Correct driving posture............ 38
Curtain shield airbag
operating conditions ............. 53
Curtain shield airbag
precautions ........................... 49
Front passenger occupant
classification system ............. 57
General airbag
precautions........................... 47
Locations of airbags................ 45
Modification and
disposal of airbags ............... 51
Side airbag operating
conditions ............................. 53
Side airbag precautions .......... 49
Side and curtain shield
airbags operating
conditions ............................. 53
Side and curtain shield
airbags precautions .............. 49
SRS airbags............................ 45
Airbag manual on-off
system ...................................... 62
Alarm ........................................ 119
Antenna ............................ 424, 534
Antennas (smart entry &
start system) .......................... 184
Anti-lock brake system
(ABS) ...................................... 387
Function ................................ 387
Warning light ......................... 611
Armrest ..................................... 527
Audio input*............ 435, 443, 450
Audio system ........................... 406
Antenna ........................ 424, 534
Audio input ............................ 417
AUX port ............................... 417
Bluetooth® audio................... 471
CD player ............................. 425
iPod....................................... 435
MP3/WMA disc ..................... 425
Optimal use........................... 418
Portable music
player.................................. 450
Radio .................................... 420
Steering wheel audio
switches.............................. 414
USB memory ........................ 443
A

709Alphabetical index
HILUX_OM_OM0K322E_(EE)
Automatic air conditioning
system
Air conditioning filter.............. 573
Automatic air conditioning
system ................................ 500
Automatic disconnecting
differential .............................. 363
Automatic light
control system ....................... 296
Automatic transmission .......... 277
If the shift lever cannot be
shifted from P ..................... 282
AUX port*................................. 450
Auxiliary boxes ........................ 518
Back-up lights
Replacing light bulbs ............. 594
Wattage................................. 691
Battery
Battery checking ................... 555
If the vehicle battery is
discharged .......................... 648
Preparing and checking
before winter....................... 402
Warning light ......................... 610
Bluetooth®*.............................. 478
Audio system ........................ 471
Hands-free system
(for cellular phone).............. 451
Registering/removing a
Bluetooth® device ............... 459
Selecting a Bluetooth®
device ......................... 460, 461
Wireless
communication ................... 451
Bluetooth® audio*................... 451
Bluetooth® phone*.................. 451
Deleting the call history......... 466
Making a call ......................... 473
Managing speed dials ........... 473
Managing the contacts.......... 468
Phone settings ...................... 464
Receiving a call..................... 475
Speaking on the phone ......... 473
Bottle holders .......................... 517
Brake
Fluid ...................................... 688
Override system warning
light..................................... 613
Parking brake........................ 291
Warning light ......................... 610
Brake assist ............................. 387
Break-in tips ............................. 241
Brightness control
Instrument panel light
control................................. 134
Care
Aluminum wheels.................. 535
Exterior ................................. 534
Interior................................... 537
Seat belts .............................. 538
CD player*................................ 425
Chains....................................... 403
Child restraint system ............... 65
Child seats definition............... 68
Child seats installation ...... 81, 90
Installing CRS with
ISOFIX rigid anchor.............. 86
Installing CRS with
seat belts .............................. 74
Installing CRS with
top strap ............................... 92
B
C
*: Refer to “Navigation and multimedia system Owner’s manual”.
