remote control TOYOTA HILUX 2020 (in English) Owner's Manual

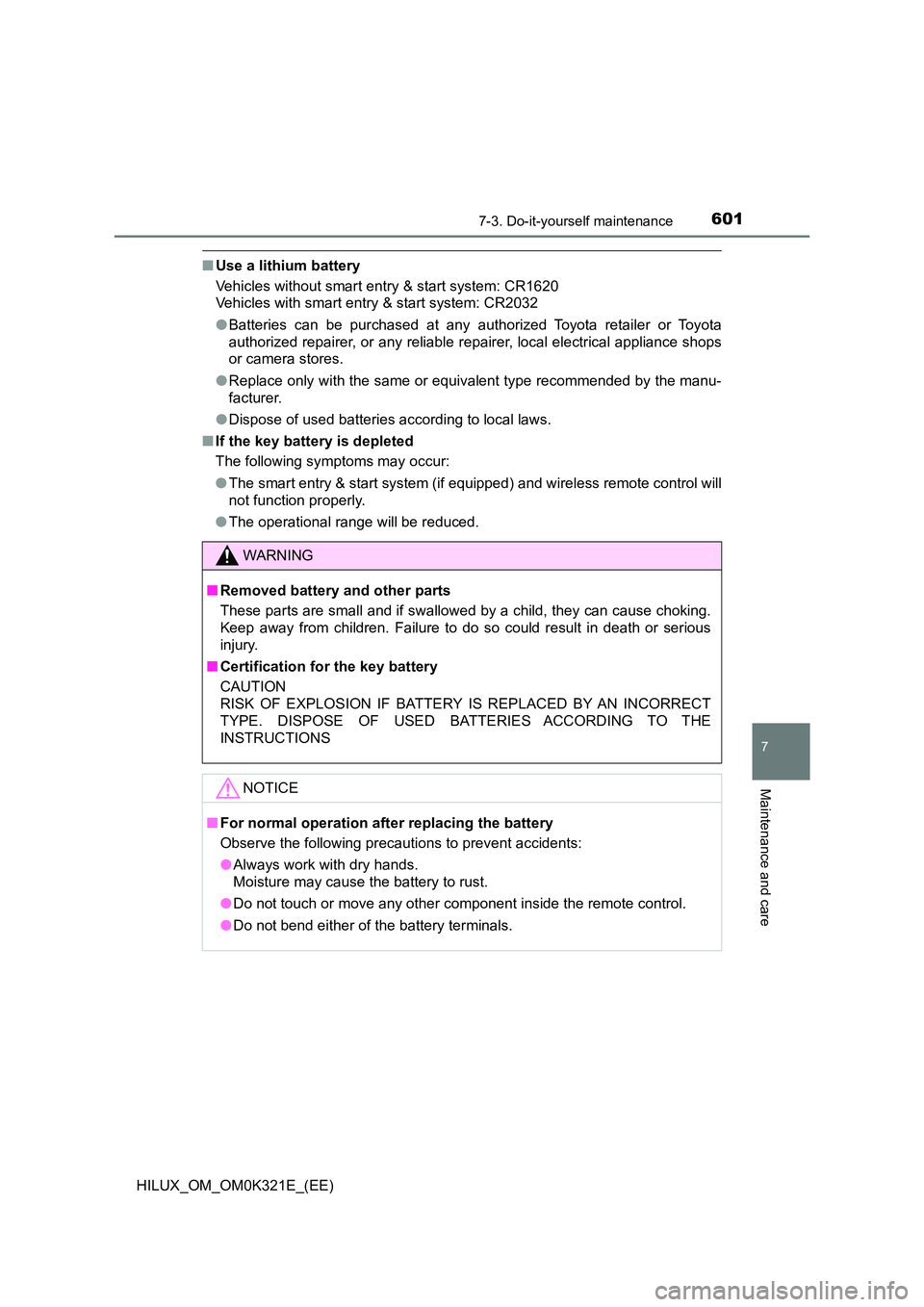

6017-3. Do-it-yourself maintenance
HILUX_OM_OM0K321E_(EE)
7
Maintenance and care
■Use a lithium battery
Vehicles without smart entry & start system: CR1620
Vehicles with smart entry & start system: CR2032
● Batteries can be purchased at any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer, local electrical appliance shops
or camera stores.
● Replace only with the same or equivalent type recommended by the manu-
facturer.
● Dispose of used batteries according to local laws.
■ If the key battery is depleted
The following symptoms may occur:
● The smart entry & start system (if equipped) and wireless remote control will
not function properly.
● The operational range will be reduced.
WARNING
■Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.
■ Certification for the key battery
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT
TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE
INSTRUCTIONS
NOTICE
■ For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
● Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other component inside the remote control.
● Do not bend either of the battery terminals.

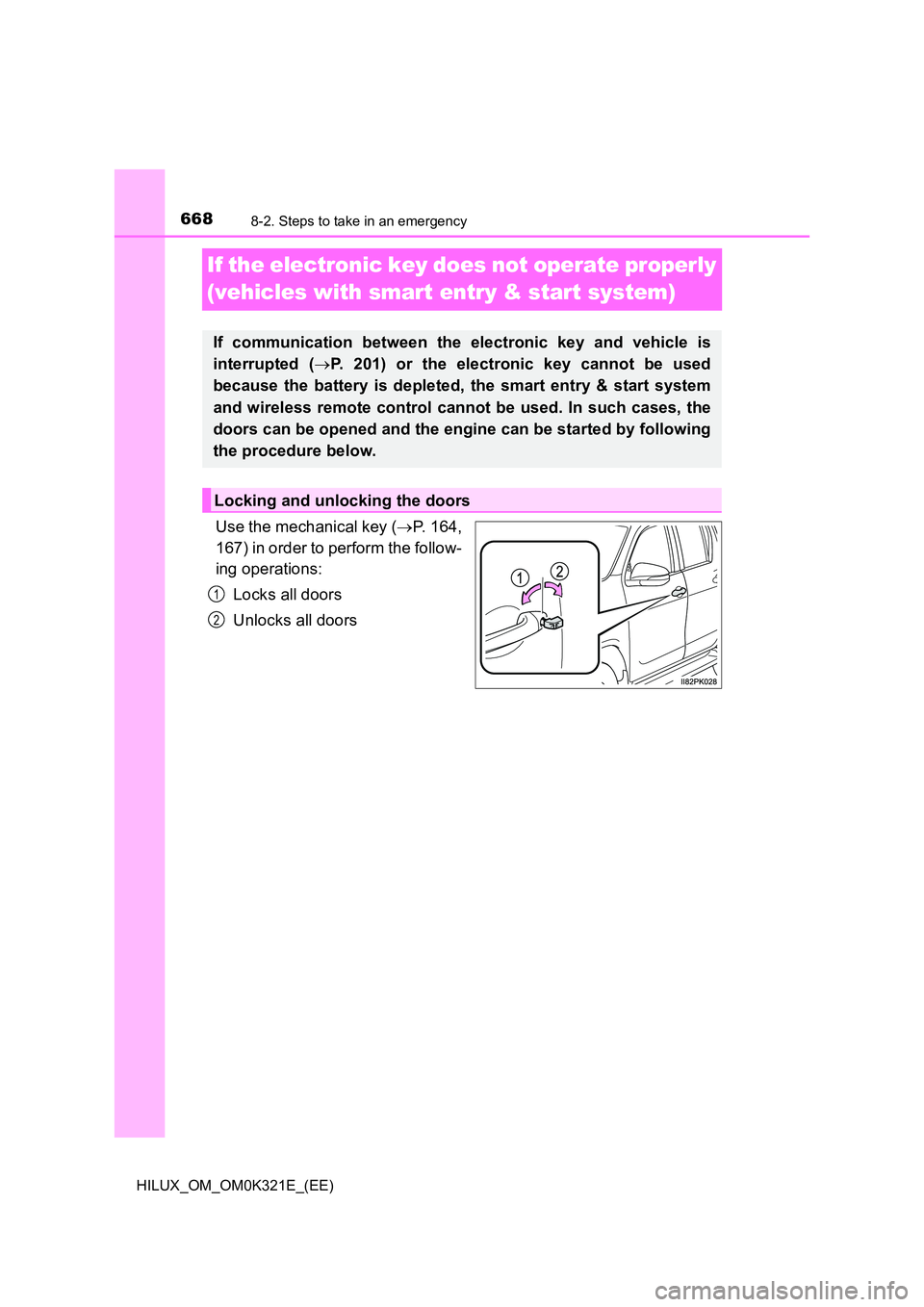

6688-2. Steps to take in an emergency
HILUX_OM_OM0K321E_(EE)
If the electronic key does not operate properly
(vehicles with smart entry & start system)
Use the mechanical key (P. 164,
167) in order to perform the follow-
ing operations:
Locks all doors
Unlocks all doors
If communication between the electronic key and vehicle is
interrupted ( P. 201) or the electronic key cannot be used
because the battery is depleted, the smart entry & start system
and wireless remote control cannot be used. In such cases, the
doors can be opened and the engine can be started by following
the procedure below.
Locking and unlocking the doors
1
2

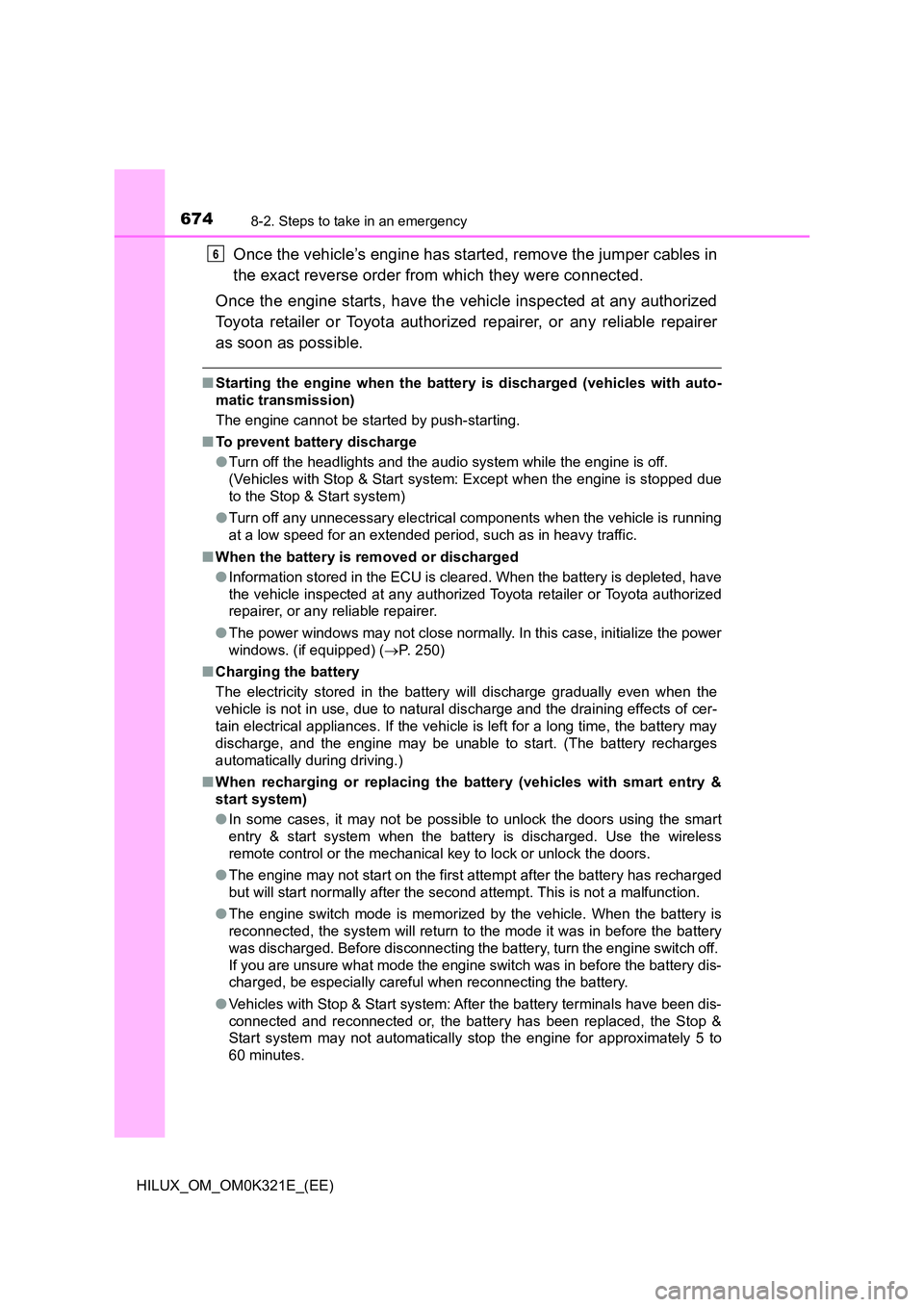

6748-2. Steps to take in an emergency
HILUX_OM_OM0K321E_(EE)
Once the vehicle’s engine has started, remove the jumper cables in
the exact reverse order from which they were connected.
Once the engine starts, have the vehicle inspected at any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer
as soon as possible.
■ Starting the engine when the battery is discharged (vehicles with auto-
matic transmission)
The engine cannot be started by push-starting.
■ To prevent battery discharge
● Turn off the headlights and the audio system while the engine is off.
(Vehicles with Stop & Start system: Except when the engine is stopped due
to the Stop & Start system)
● Turn off any unnecessary electrical components when the vehicle is running
at a low speed for an extended period, such as in heavy traffic.
■ When the battery is removed or discharged
● Information stored in the ECU is cleared. When the battery is depleted, have
the vehicle inspected at any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
● The power windows may not close normally. In this case, initialize the power
windows. (if equipped) ( P. 250)
■ Charging the battery
The electricity stored in the battery will discharge gradually even when the
vehicle is not in use, due to natural discharge and the draining effects of cer-
tain electrical appliances. If the vehicle is left for a long time, the battery may
discharge, and the engine may be unable to start. (The battery recharges
automatically during driving.)
■ When recharging or replacing the battery (vehicles with smart entry &
start system)
● In some cases, it may not be possible to unlock the doors using the smart
entry & start system when the battery is discharged. Use the wireless
remote control or the mechanical key to lock or unlock the doors.
● The engine may not start on the first attempt after the battery has recharged
but will start normally after the second attempt. This is not a malfunction.
● The engine switch mode is memorized by the vehicle. When the battery is
reconnected, the system will return to the mode it was in before the battery
was discharged. Before disconnecting the battery, turn the engine switch off.
If you are unsure what mode the engine switch was in before the battery dis-
charged, be especially careful when reconnecting the battery.
● Vehicles with Stop & Start system: After the battery terminals have been dis-
connected and reconnected or, the battery has been replaced, the Stop &
Start system may not automatically stop the engine for approximately 5 to
60 minutes.
6

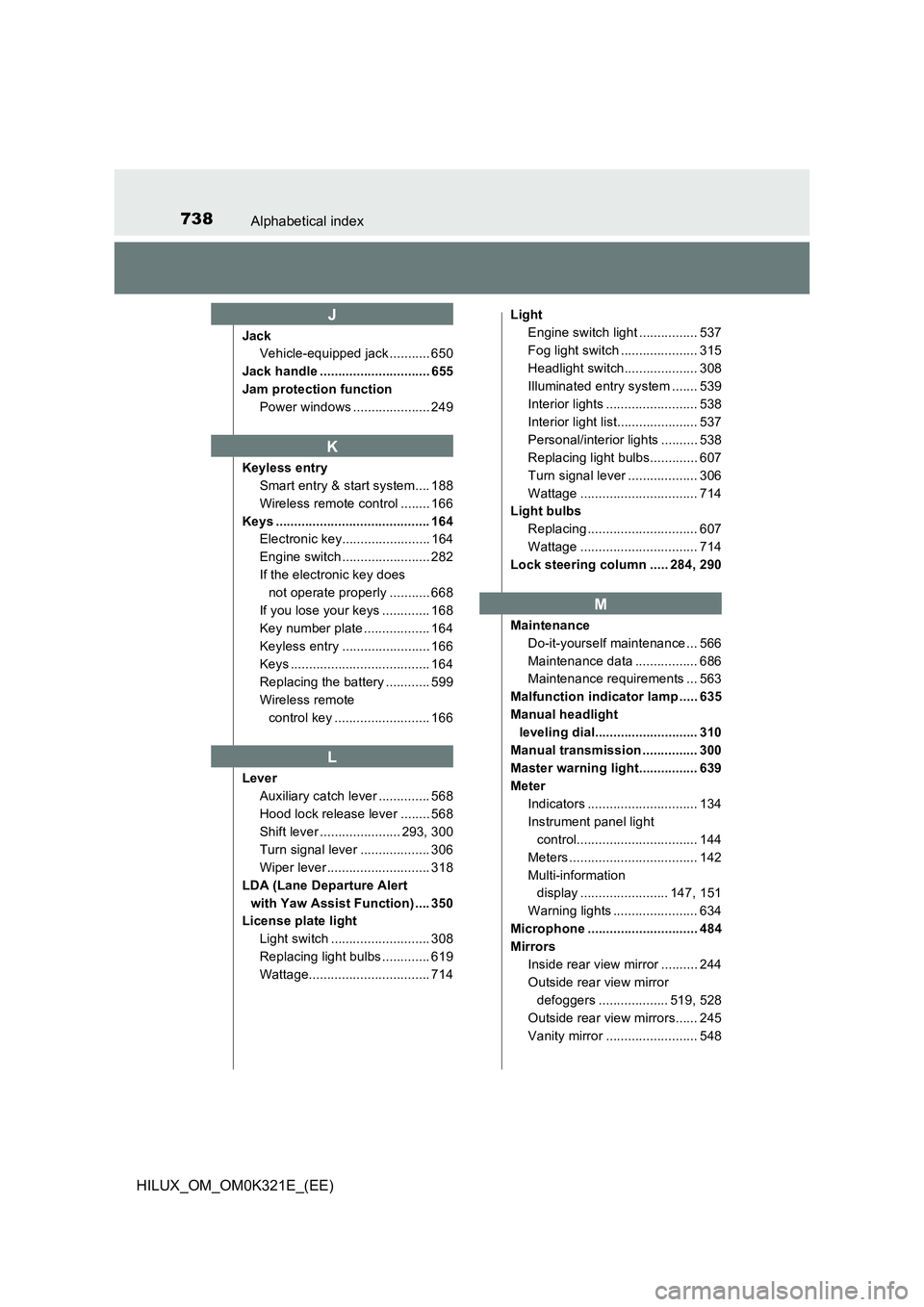

738Alphabetical index
HILUX_OM_OM0K321E_(EE)
Jack
Vehicle-equipped jack ........... 650
Jack handle .............................. 655
Jam protection function
Power windows ..................... 249
Keyless entry
Smart entry & start system.... 188
Wireless remote control ........ 166
Keys .......................................... 164
Electronic key........................ 164
Engine switch ........................ 282
If the electronic key does
not operate properly ........... 668
If you lose your keys ............. 168
Key number plate .................. 164
Keyless entry ........................ 166
Keys ...................................... 164
Replacing the battery ............ 599
Wireless remote
control key .......................... 166
Lever
Auxiliary catch lever .............. 568
Hood lock release lever ........ 568
Shift lever ...................... 293, 300
Turn signal lever ................... 306
Wiper lever ............................ 318
LDA (Lane Departure Alert
with Yaw Assist Function) .... 350
License plate light
Light switch ........................... 308
Replacing light bulbs ............. 619
Wattage................................. 714
Light
Engine switch light ................ 537
Fog light switch ..................... 315
Headlight switch.................... 308
Illuminated entry system ....... 539
Interior lights ......................... 538
Interior light list...................... 537
Personal/interior lights .......... 538
Replacing light bulbs............. 607
Turn signal lever ................... 306
Wattage ................................ 714
Light bulbs
Replacing .............................. 607
Wattage ................................ 714
Lock steering column ..... 284, 290
Maintenance
Do-it-yourself maintenance ... 566
Maintenance data ................. 686
Maintenance requirements ... 563
Malfunction indicator lamp ..... 635
Manual headlight
leveling dial............................ 310
Manual transmission ............... 300
Master warning light................ 639
Meter
Indicators .............................. 134
Instrument panel light
control................................. 144
Meters ................................... 142
Multi-information
display ........................ 147, 151
Warning lights ....................... 634
Microphone .............................. 484
Mirrors
Inside rear view mirror .......... 244
Outside rear view mirror
defoggers ................... 519, 528
Outside rear view mirrors...... 245
Vanity mirror ......................... 548
J
K
L
M

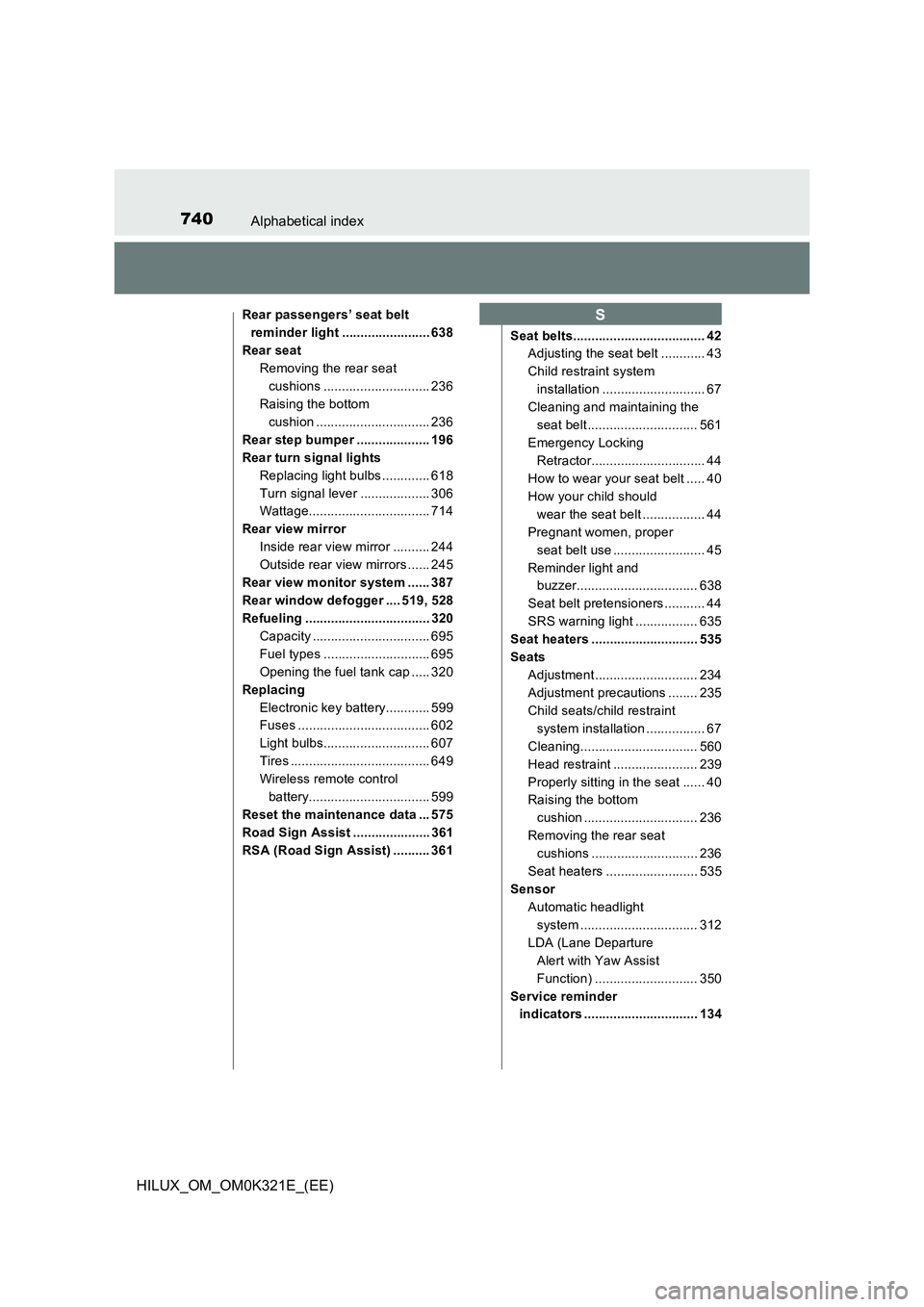

740Alphabetical index
HILUX_OM_OM0K321E_(EE)
Rear passengers’ seat belt
reminder light ........................ 638
Rear seat
Removing the rear seat
cushions ............................. 236
Raising the bottom
cushion ............................... 236
Rear step bumper .................... 196
Rear turn signal lights
Replacing light bulbs ............. 618
Turn signal lever ................... 306
Wattage................................. 714
Rear view mirror
Inside rear view mirror .......... 244
Outside rear view mirrors ...... 245
Rear view monitor system ...... 387
Rear window defogger .... 519, 528
Refueling .................................. 320
Capacity ................................ 695
Fuel types ............................. 695
Opening the fuel tank cap ..... 320
Replacing
Electronic key battery............ 599
Fuses .................................... 602
Light bulbs............................. 607
Tires ...................................... 649
Wireless remote control
battery................................. 599
Reset the maintenance data ... 575
Road Sign Assist ..................... 361
RSA (Road Sign Assist) .......... 361
Seat belts.................................... 42
Adjusting the seat belt ............ 43
Child restraint system
installation ............................ 67
Cleaning and maintaining the
seat belt .............................. 561
Emergency Locking
Retractor............................... 44
How to wear your seat belt ..... 40
How your child should
wear the seat belt ................. 44
Pregnant women, proper
seat belt use ......................... 45
Reminder light and
buzzer................................. 638
Seat belt pretensioners ........... 44
SRS warning light ................. 635
Seat heaters ............................. 535
Seats
Adjustment ............................ 234
Adjustment precautions ........ 235
Child seats/child restraint
system installation ................ 67
Cleaning................................ 560
Head restraint ....................... 239
Properly sitting in the seat ...... 40
Raising the bottom
cushion ............................... 236
Removing the rear seat
cushions ............................. 236
Seat heaters ......................... 535
Sensor
Automatic headlight
system ................................ 312
LDA (Lane Departure
Alert with Yaw Assist
Function) ............................ 350
Service reminder
indicators ............................... 134
S

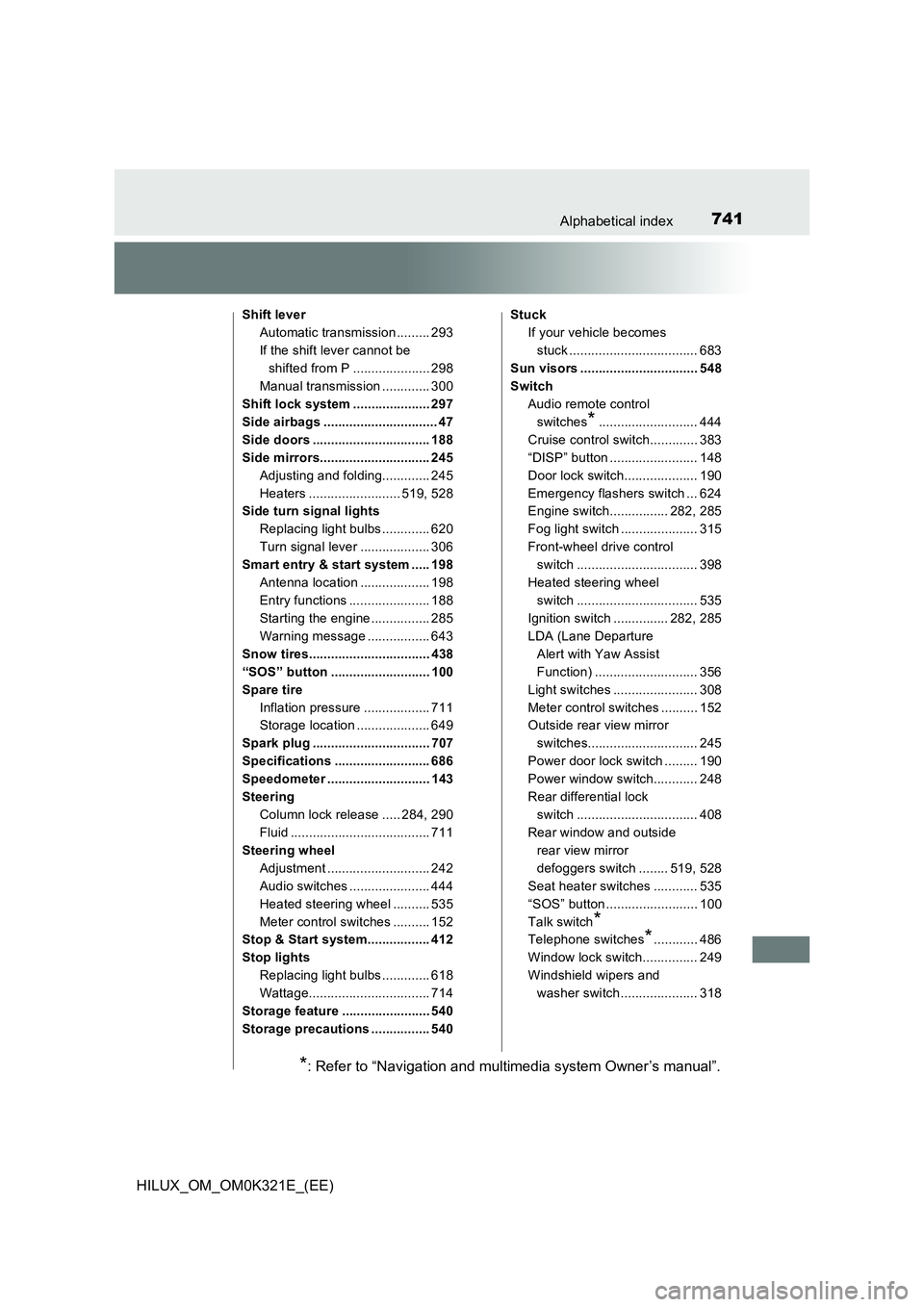

741Alphabetical index
HILUX_OM_OM0K321E_(EE)
Shift lever
Automatic transmission ......... 293
If the shift lever cannot be
shifted from P ..................... 298
Manual transmission ............. 300
Shift lock system ..................... 297
Side airbags ............................... 47
Side doors ................................ 188
Side mirrors.............................. 245
Adjusting and folding............. 245
Heaters ......................... 519, 528
Side turn signal lights
Replacing light bulbs ............. 620
Turn signal lever ................... 306
Smart entry & start system ..... 198
Antenna location ................... 198
Entry functions ...................... 188
Starting the engine ................ 285
Warning message ................. 643
Snow tires................................. 438
“SOS” button ........................... 100
Spare tire
Inflation pressure .................. 711
Storage location .................... 649
Spark plug ................................ 707
Specifications .......................... 686
Speedometer ............................ 143
Steering
Column lock release ..... 284, 290
Fluid ...................................... 711
Steering wheel
Adjustment ............................ 242
Audio switches ...................... 444
Heated steering wheel .......... 535
Meter control switches .......... 152
Stop & Start system................. 412
Stop lights
Replacing light bulbs ............. 618
Wattage................................. 714
Storage feature ........................ 540
Storage precautions ................ 540
Stuck
If your vehicle becomes
stuck ................................... 683
Sun visors ................................ 548
Switch
Audio remote control
switches*........................... 444
Cruise control switch............. 383
“DISP” button ........................ 148
Door lock switch.................... 190
Emergency flashers switch ... 624
Engine switch................ 282, 285
Fog light switch ..................... 315
Front-wheel drive control
switch ................................. 398
Heated steering wheel
switch ................................. 535
Ignition switch ............... 282, 285
LDA (Lane Departure
Alert with Yaw Assist
Function) ............................ 356
Light switches ....................... 308
Meter control switches .......... 152
Outside rear view mirror
switches.............................. 245
Power door lock switch ......... 190
Power window switch............ 248
Rear differential lock
switch ................................. 408
Rear window and outside
rear view mirror
defoggers switch ........ 519, 528
Seat heater switches ............ 535
“SOS” button ......................... 100
Talk switch*
Telephone switches*............ 486
Window lock switch............... 249
Windshield wipers and
washer switch ..................... 318
*: Refer to “Navigation and multimedia system Owner’s manual”.

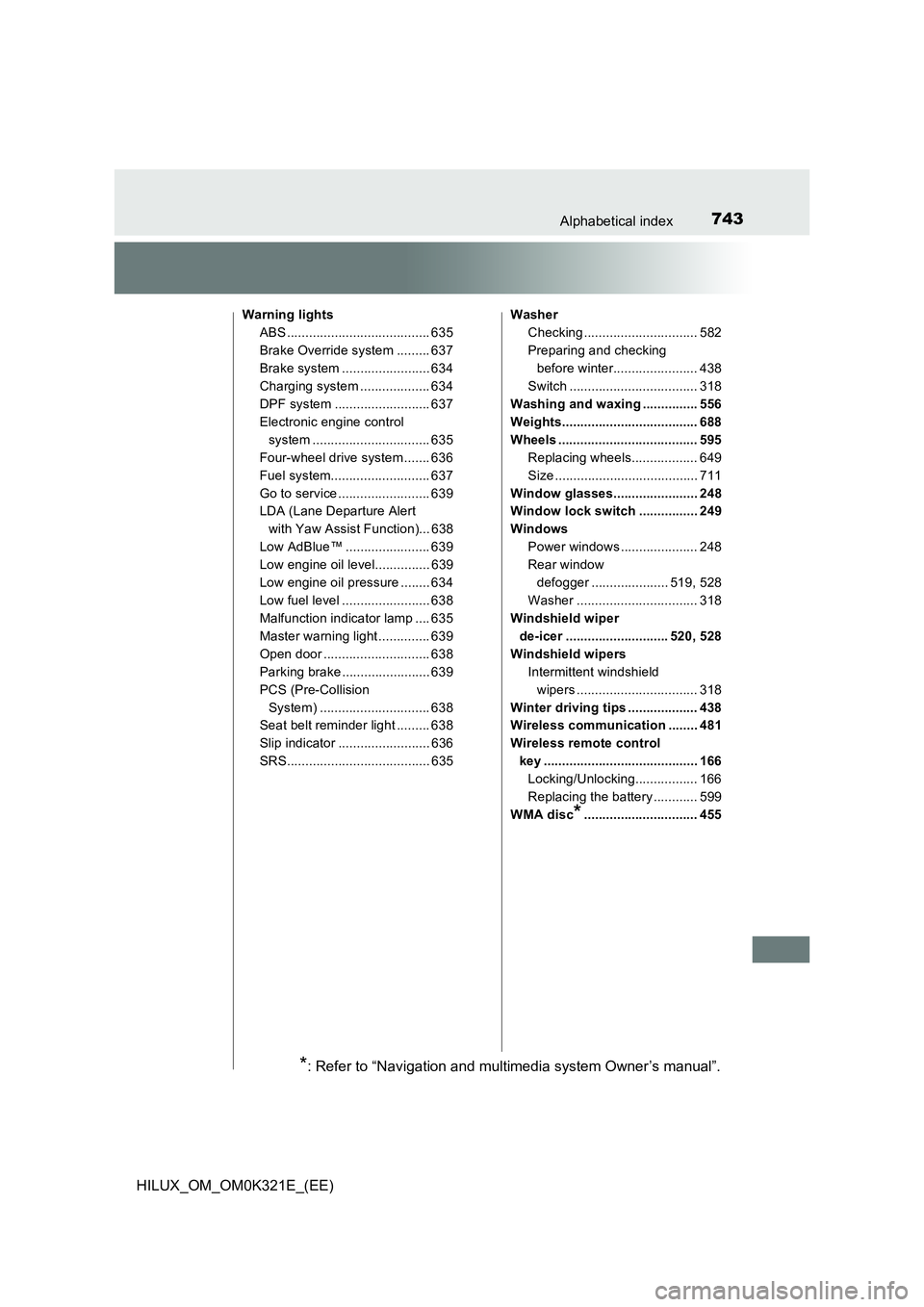

743Alphabetical index
HILUX_OM_OM0K321E_(EE)
Warning lights
ABS ....................................... 635
Brake Override system ......... 637
Brake system ........................ 634
Charging system ................... 634
DPF system .......................... 637
Electronic engine control
system ................................ 635
Four-wheel drive system ....... 636
Fuel system........................... 637
Go to service ......................... 639
LDA (Lane Departure Alert
with Yaw Assist Function)... 638
Low AdBlue™ ....................... 639
Low engine oil level............... 639
Low engine oil pressure ........ 634
Low fuel level ........................ 638
Malfunction indicator lamp .... 635
Master warning light .............. 639
Open door ............................. 638
Parking brake ........................ 639
PCS (Pre-Collision
System) .............................. 638
Seat belt reminder light ......... 638
Slip indicator ......................... 636
SRS....................................... 635
Washer
Checking ............................... 582
Preparing and checking
before winter....................... 438
Switch ................................... 318
Washing and waxing ............... 556
Weights..................................... 688
Wheels ...................................... 595
Replacing wheels.................. 649
Size ....................................... 711
Window glasses....................... 248
Window lock switch ................ 249
Windows
Power windows ..................... 248
Rear window
defogger ..................... 519, 528
Washer ................................. 318
Windshield wiper
de-icer ............................ 520, 528
Windshield wipers
Intermittent windshield
wipers ................................. 318
Winter driving tips ................... 438
Wireless communication ........ 481
Wireless remote control
key .......................................... 166
Locking/Unlocking................. 166
Replacing the battery ............ 599
WMA disc*............................... 455
*: Refer to “Navigation and multimedia system Owner’s manual”.
