TOYOTA HILUX 2020 Owners Manual (in English)

3314-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K321E_(EE)

3324-5. Using the driving support systems
HILUX_OM_OM0K321E_(EE)

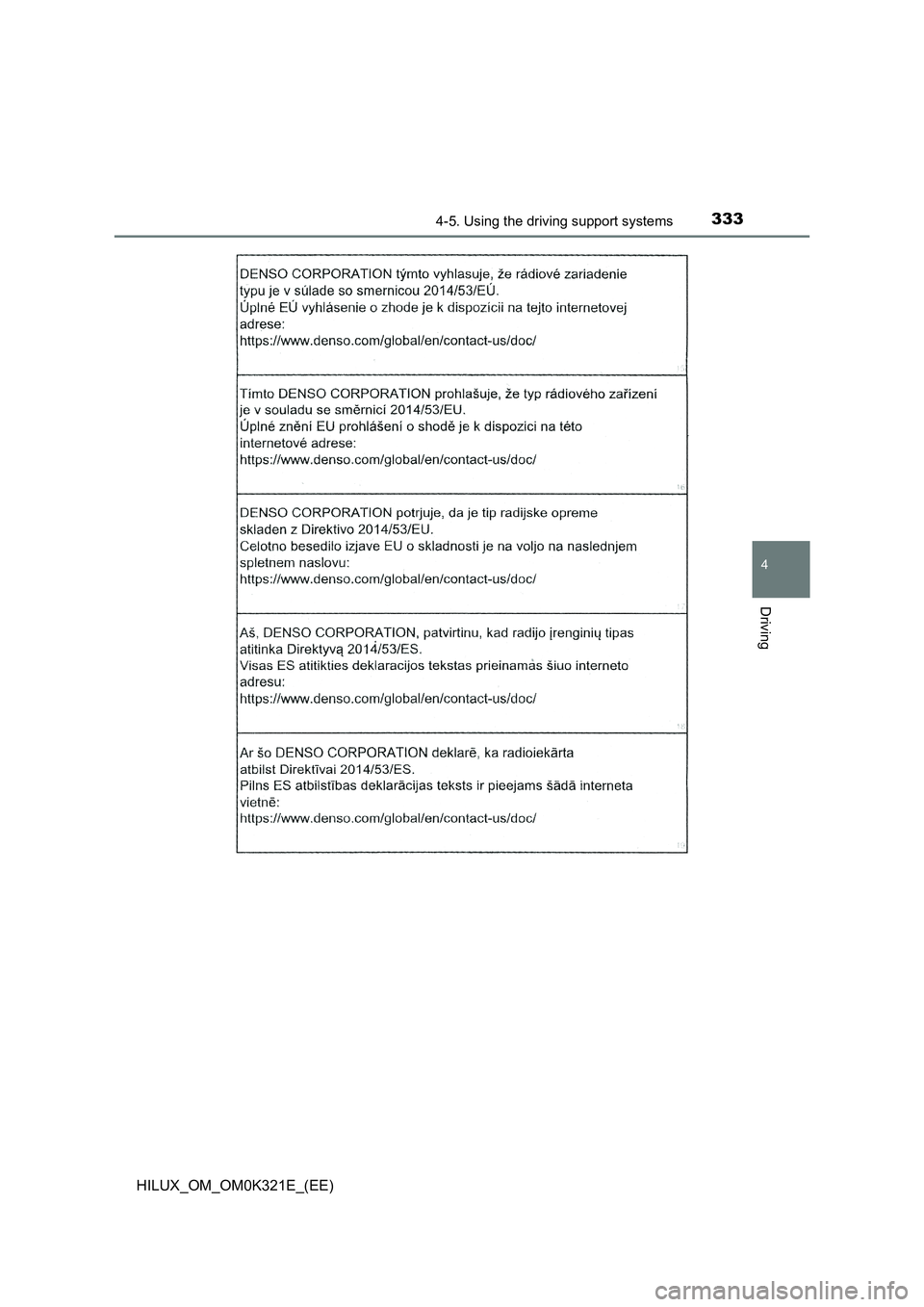

3334-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K321E_(EE)

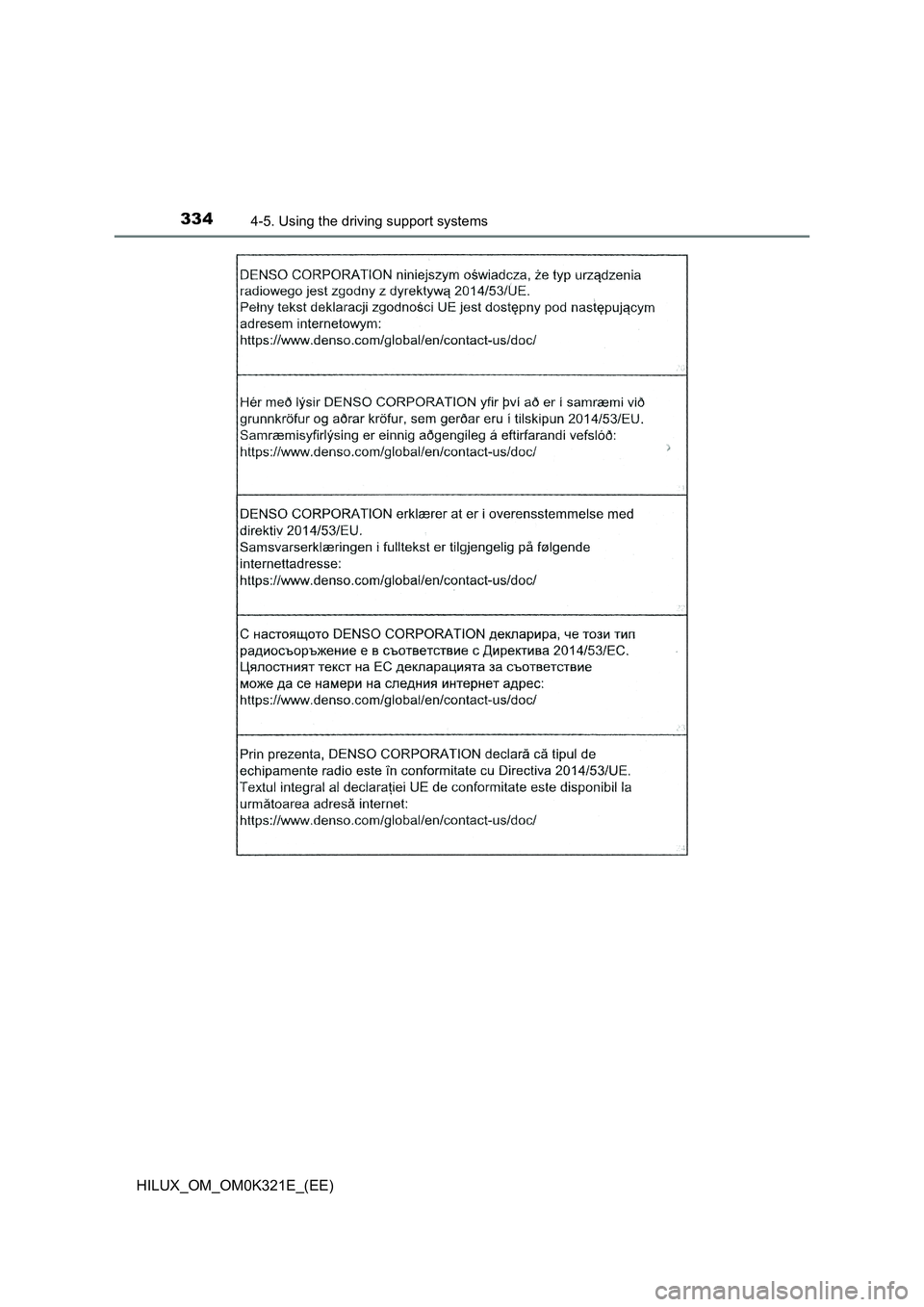

3344-5. Using the driving support systems
HILUX_OM_OM0K321E_(EE)

3354-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K321E_(EE)

3364-5. Using the driving support systems
HILUX_OM_OM0K321E_(EE)

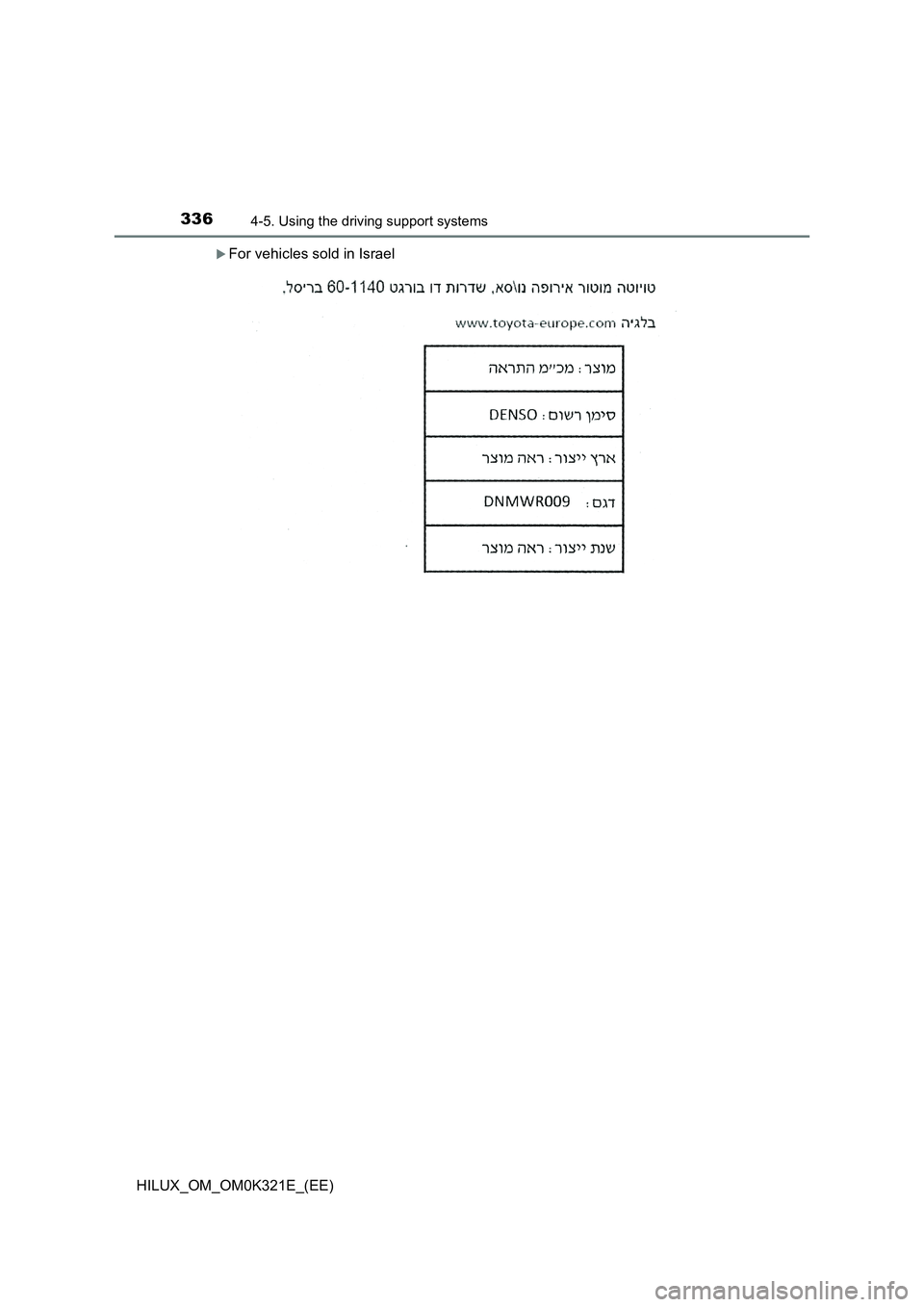

For vehicles sold in Israel

3374-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K321E_(EE)

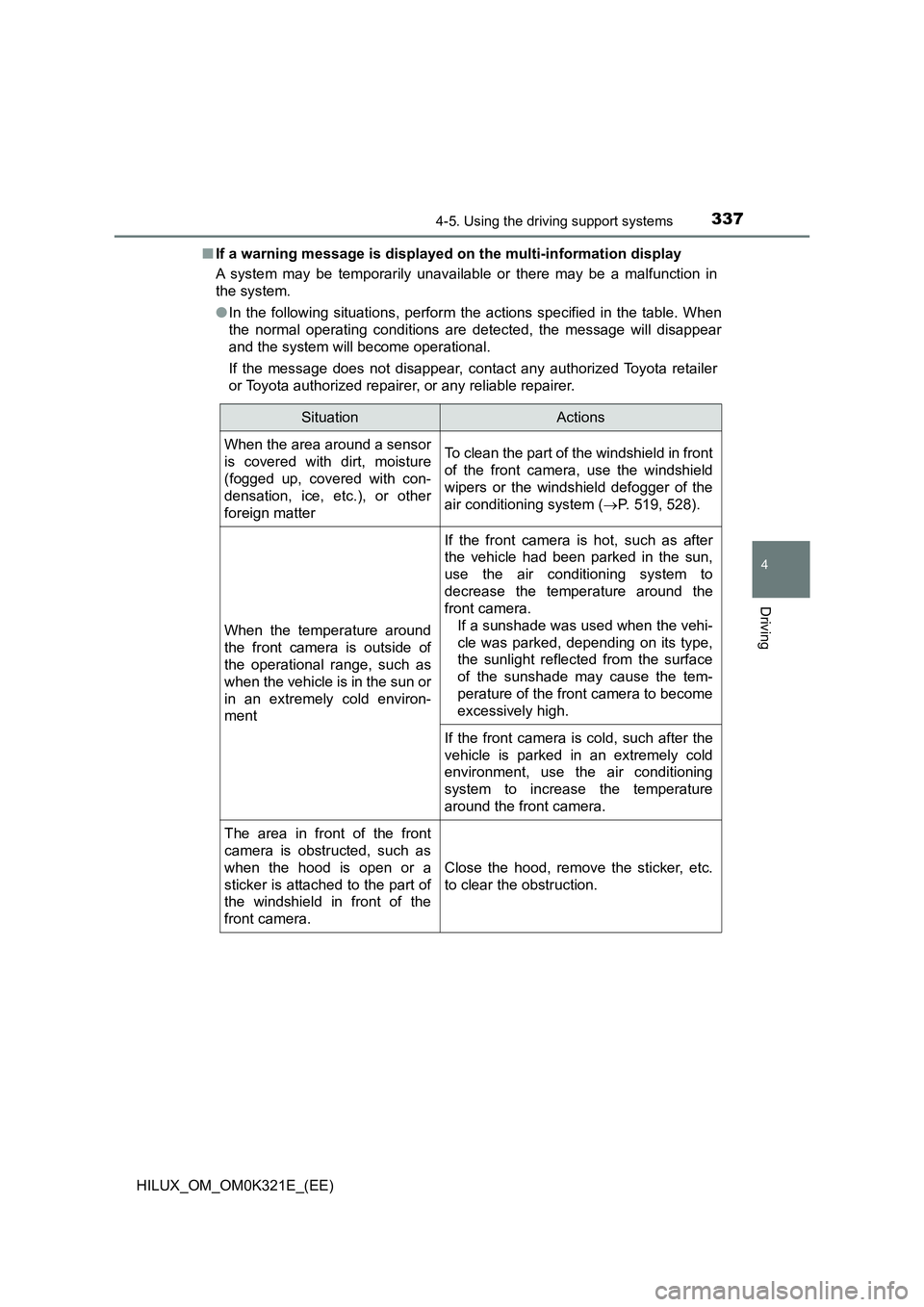

■ If a warning message is displayed on the multi-information display
A system may be temporarily unavailable or there may be a malfunction in
the system.
● In the following situations, perform the actions specified in the table. When
the normal operating conditions are detected, the message will disappear
and the system will become operational.
If the message does not disappear, contact any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer.
SituationActions
When the area around a sensor
is covered with dirt, moisture
(fogged up, covered with con-
densation, ice, etc.), or other
foreign matter
To clean the part of the windshield in front
of the front camera, use the windshield
wipers or the windshield defogger of the
air conditioning system ( P. 519, 528).
When the temperature around
the front camera is outside of
the operational range, such as
when the vehicle is in the sun or
in an extremely cold environ-
ment
If the front camera is hot, such as after
the vehicle had been parked in the sun,
use the air conditioning system to
decrease the temperature around the
front camera.
If a sunshade was used when the vehi-
cle was parked, depending on its type,
the sunlight reflected from the surface
of the sunshade may cause the tem-
perature of the front camera to become
excessively high.
If the front camera is cold, such after the
vehicle is parked in an extremely cold
environment, use the air conditioning
system to increase the temperature
around the front camera.
The area in front of the front
camera is obstructed, such as
when the hood is open or a
sticker is attached to the part of
the windshield in front of the
front camera.
Close the hood, remove the sticker, etc.
to clear the obstruction.

3384-5. Using the driving support systems
HILUX_OM_OM0K321E_(EE)

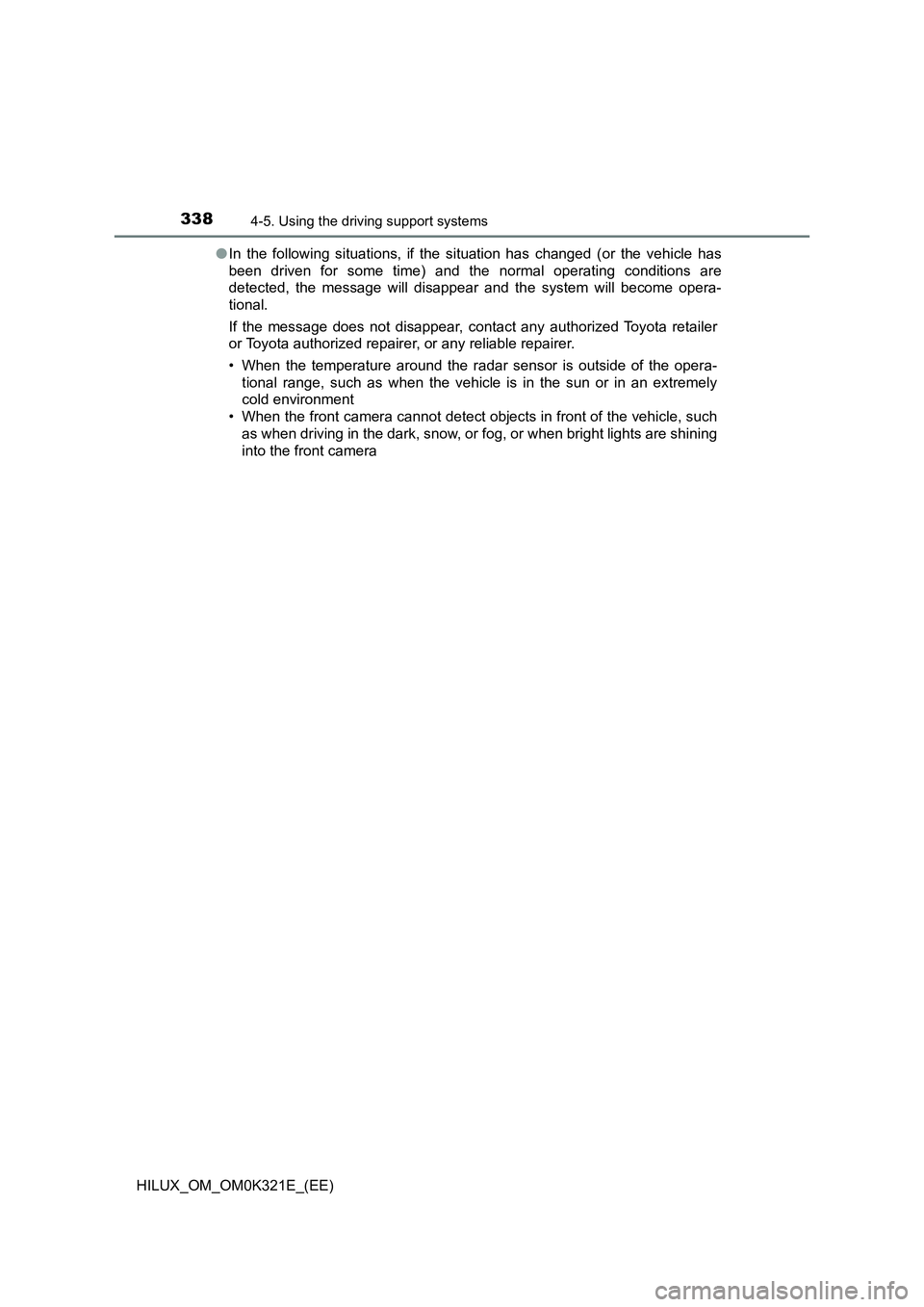

● In the following situations, if the situation has changed (or the vehicle has
been driven for some time) and the normal operating conditions are
detected, the message will disappear and the system will become opera-
tional.
If the message does not disappear, contact any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer.
• When the temperature around the radar sensor is outside of the opera-
tional range, such as when the vehicle is in the sun or in an extremely
cold environment
• When the front camera cannot detect objects in front of the vehicle, such
as when driving in the dark, snow, or fog, or when bright lights are shining
into the front camera

339
4
4-5. Using the driving support systems
Driving
HILUX_OM_OM0K321E_(EE)

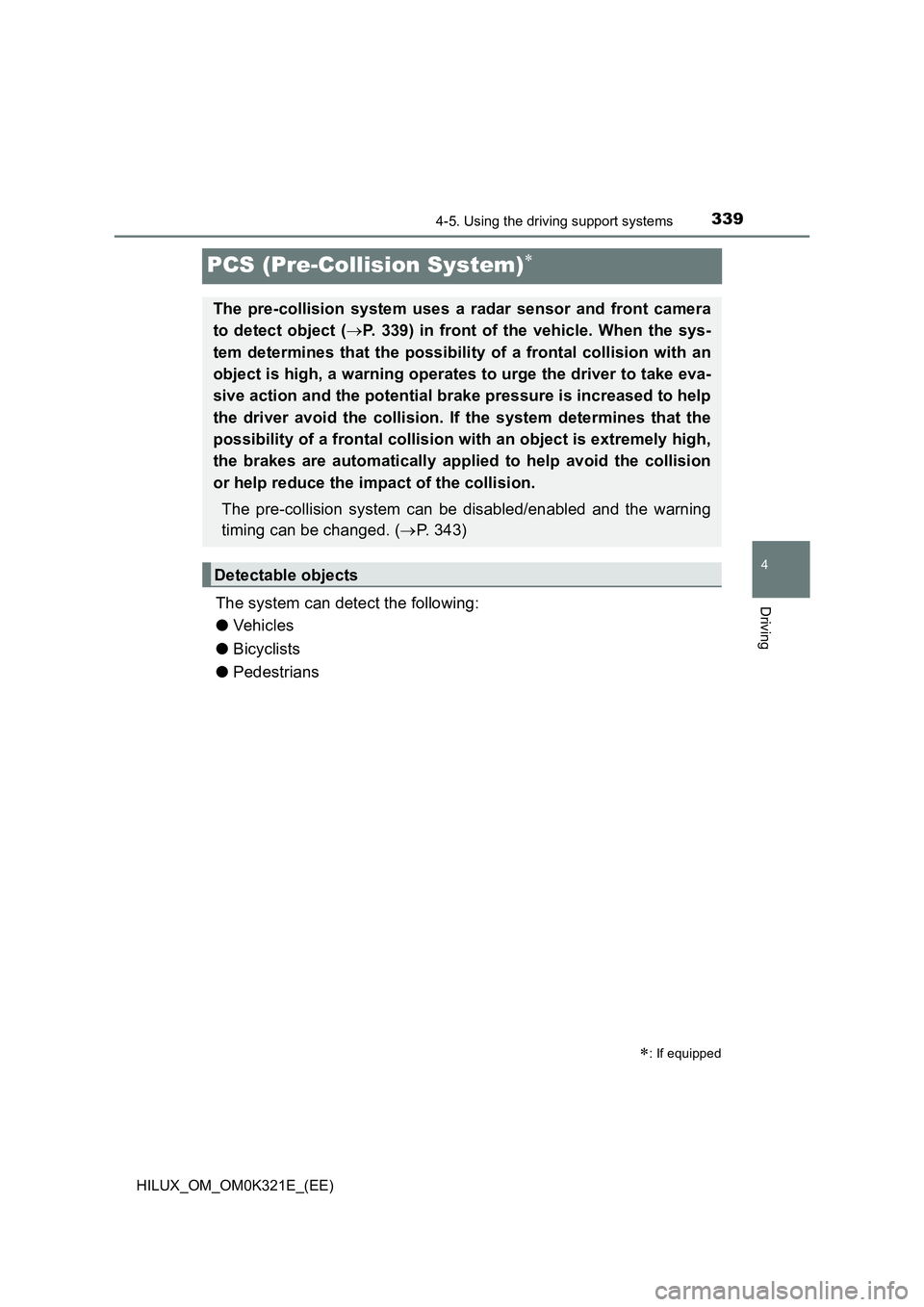

PCS (Pre-Collision System)
The system can detect the following:
● Ve hi cl e s
● Bicyclists
● Pedestrians
: If equipped
The pre-collision system uses a radar sensor and front camera
to detect object ( P. 339) in front of the vehicle. When the sys-
tem determines that the possibility of a frontal collision with an
object is high, a warning operates to urge the driver to take eva-
sive action and the potential brake pressure is increased to help
the driver avoid the collision. If the system determines that the
possibility of a frontal collision with an object is extremely high,
the brakes are automatically applied to help avoid the collision
or help reduce the impact of the collision.
The pre-collision system can be disabled/enabled and the warning
timing can be changed. ( P. 343)
Detectable objects

3404-5. Using the driving support systems
HILUX_OM_OM0K321E_(EE)

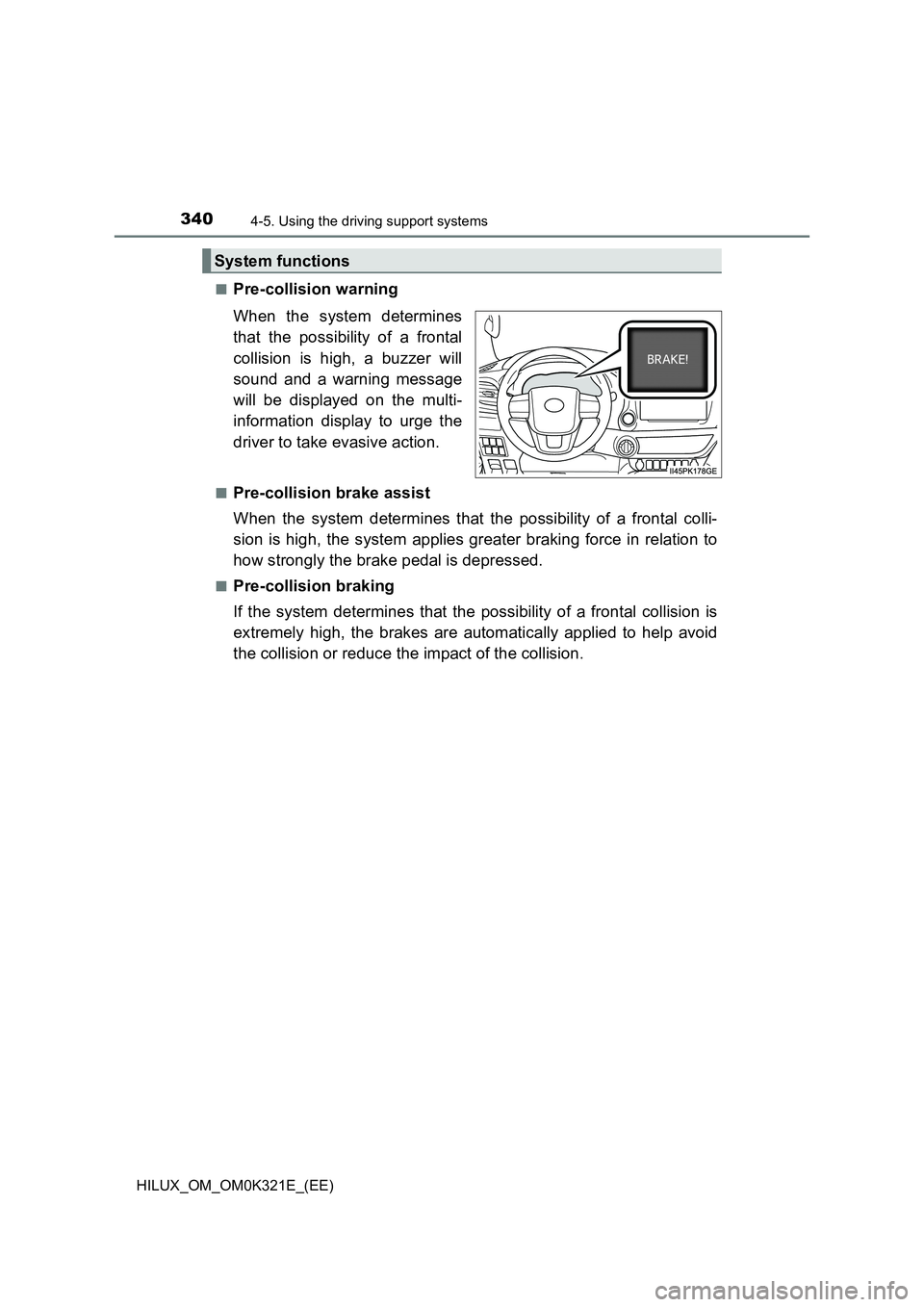

■Pre-collision warning
When the system determines
that the possibility of a frontal
collision is high, a buzzer will
sound and a warning message
will be displayed on the multi-
information display to urge the
driver to take evasive action.
■Pre-collision brake assist
When the system determines that the possibility of a frontal colli-
sion is high, the system applies greater braking force in relation to
how strongly the brake pedal is depressed.
■Pre-collision braking
If the system determines that the possibility of a frontal collision is
extremely high, the brakes are automatically applied to help avoid
the collision or reduce the impact of the collision.
System functions
