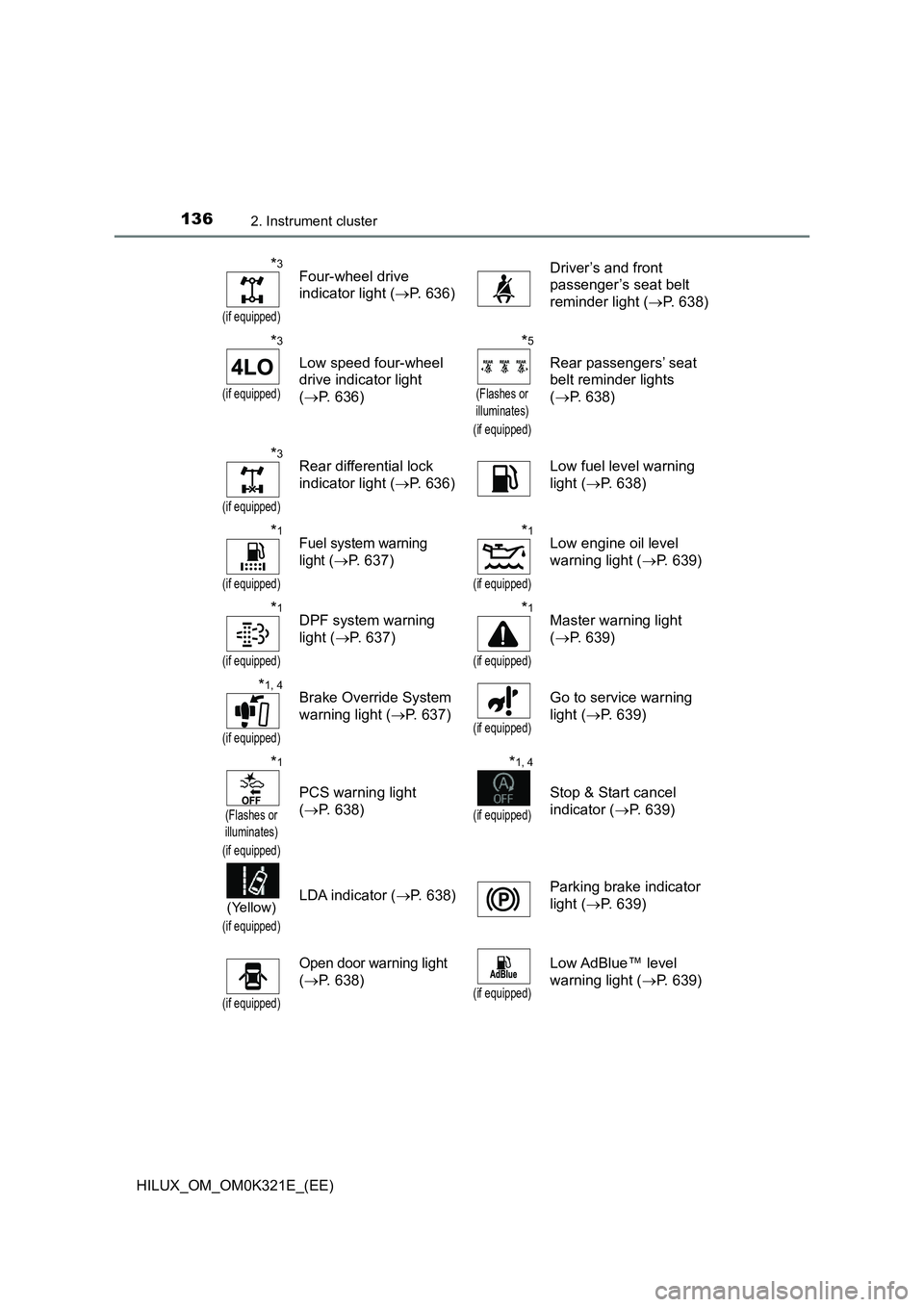

1362. Instrument cluster
HILUX_OM_OM0K321E_(EE)
*3
(if equipped)
Four-wheel drive
indicator light ( P. 636)
Driver’s and front
passenger’s seat belt
reminder light ( P. 638)
*3
(if equipped)
Low speed four-wheel
drive indicator light
( P. 636)
*5
(Flashes or
illuminates)
(if equipped)
Rear passengers’ seat
belt reminder lights
( P. 638)
*3
(if equipped)
Rear differential lock
indicator light ( P. 636)
Low fuel level warning
light ( P. 638)
*1
(if equipped)
Fuel system warning
light ( P. 637)
*1
(if equipped)
Low engine oil level
warning light ( P. 639)
*1
(if equipped)
DPF system warning
light ( P. 637)
*1
(if equipped)
Master warning light
( P. 639)
*1, 4
(if equipped)
Brake Override System
warning light ( P. 637)(if equipped)
Go to service warning
light ( P. 639)
*1
(Flashes or
illuminates)
(if equipped)
PCS warning light
( P. 638)
*1, 4
(if equipped)
Stop & Start cancel
indicator ( P. 639)
(Yellow)
(if equipped)
LDA indicator (P. 638) Parking brake indicator
light ( P. 639)
(if equipped)
Open door warning light
( P. 638)(if equipped)
Low AdBlue™ level
warning light ( P. 639)

1382. Instrument cluster
HILUX_OM_OM0K321E_(EE)

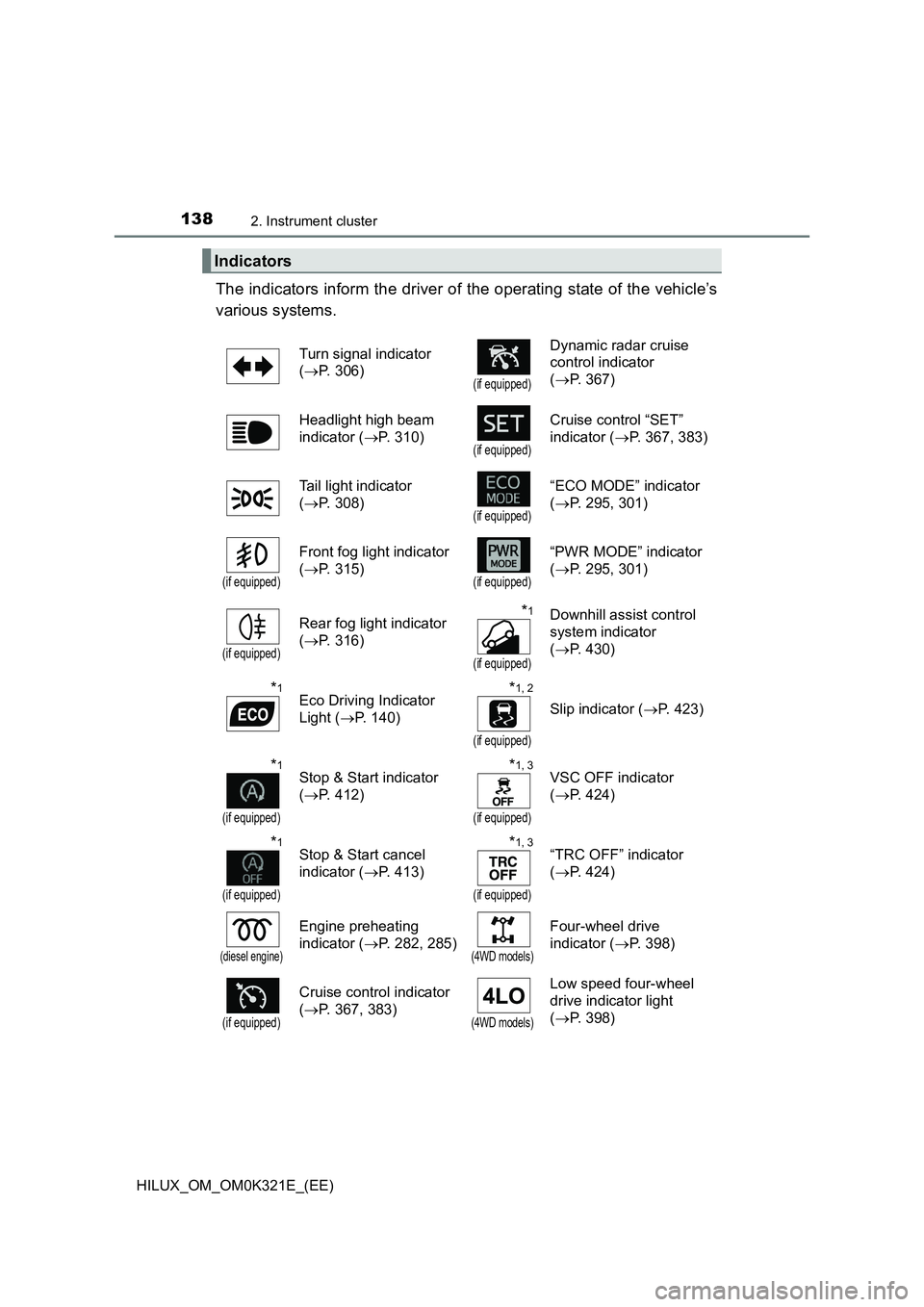

The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
( P. 306)(if equipped)
Dynamic radar cruise
control indicator
( P. 367)
Headlight high beam
indicator ( P. 310)(if equipped)
Cruise control “SET”
indicator ( P. 367, 383)
Tail light indicator
( P. 308)(if equipped)
“ECO MODE” indicator
( P. 295, 301)
(if equipped)
Front fog light indicator
( P. 315)(if equipped)
“PWR MODE” indicator
( P. 295, 301)
(if equipped)
Rear fog light indicator
( P. 316)
*1
(if equipped)
Downhill assist control
system indicator
( P. 430)
*1Eco Driving Indicator
Light ( P. 140)
*1, 2
(if equipped)
Slip indicator (P. 423)
*1
(if equipped)
Stop & Start indicator
( P. 412)
*1, 3
(if equipped)
VSC OFF indicator
( P. 424)
*1
(if equipped)
Stop & Start cancel
indicator ( P. 413)
*1, 3
(if equipped)
“TRC OFF” indicator
( P. 424)
(diesel engine)
Engine preheating
indicator ( P. 282, 285)(4WD models)
Four-wheel drive
indicator ( P. 398)
(if equipped)
Cruise control indicator
( P. 367, 383)(4WD models)
Low speed four-wheel
drive indicator light
( P. 398)

1392. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K321E_(EE)

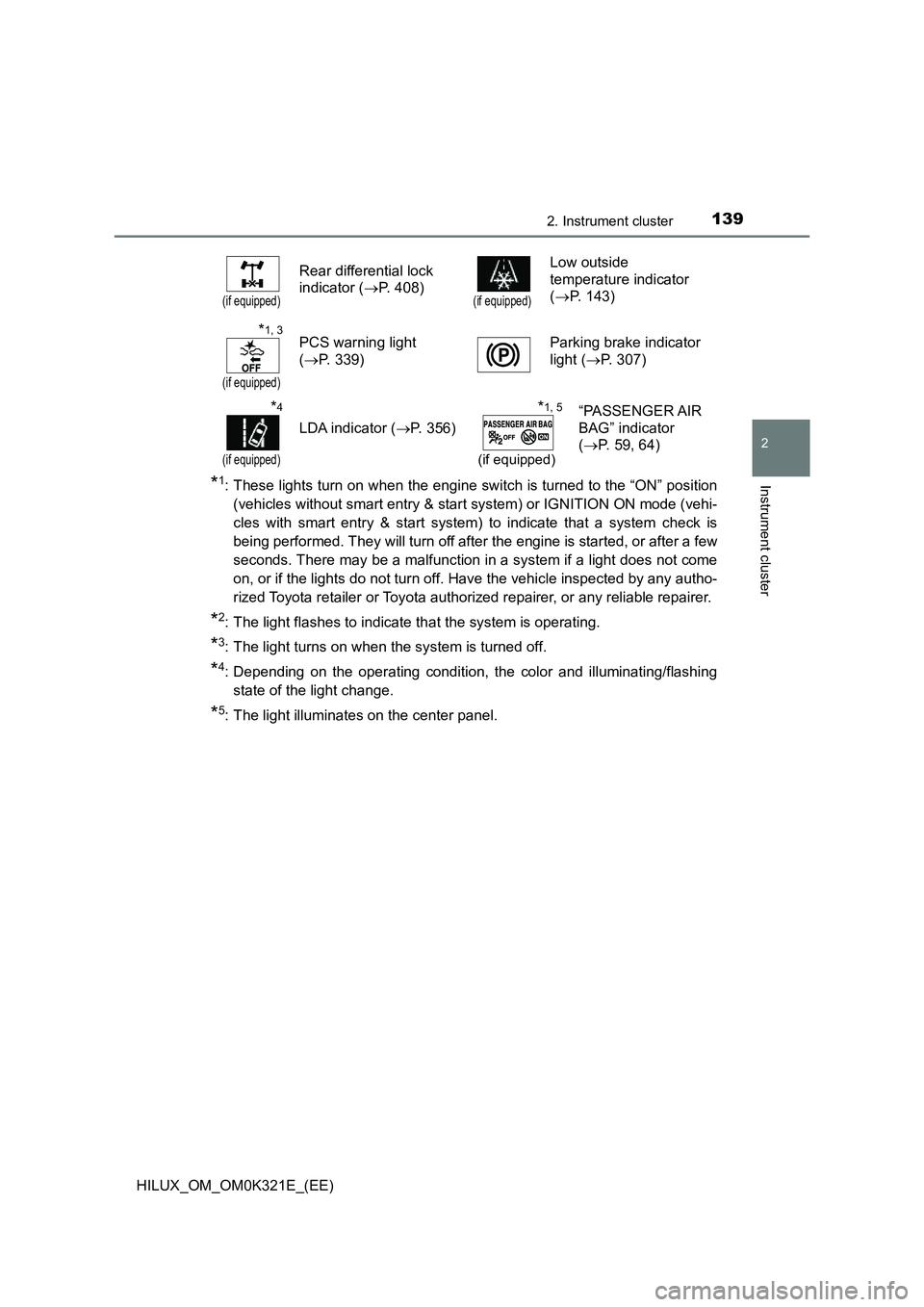

*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without smart entry & start system) or IGNITION ON mode (vehi-
cles with smart entry & start system) to indicate that a system check is
being performed. They will turn off after the engine is started, or after a few
seconds. There may be a malfunction in a system if a light does not come
on, or if the lights do not turn off. Have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
*2: The light flashes to indicate that the system is operating.
*3: The light turns on when the system is turned off.
*4: Depending on the operating condition, the color and illuminating/flashing
state of the light change.
*5: The light illuminates on the center panel.
(if equipped)
Rear differential lock
indicator ( P. 408)(if equipped)
Low outside
temperature indicator
( P. 143)
*1, 3
(if equipped)
PCS warning light
( P. 339)
Parking brake indicator
light ( P. 307)
*4
(if equipped)
LDA indicator (P. 356)
*1, 5
(if equipped)
“PASSENGER AIR
BAG” indicator
( P. 59, 64)

1402. Instrument cluster
HILUX_OM_OM0K321E_(EE)

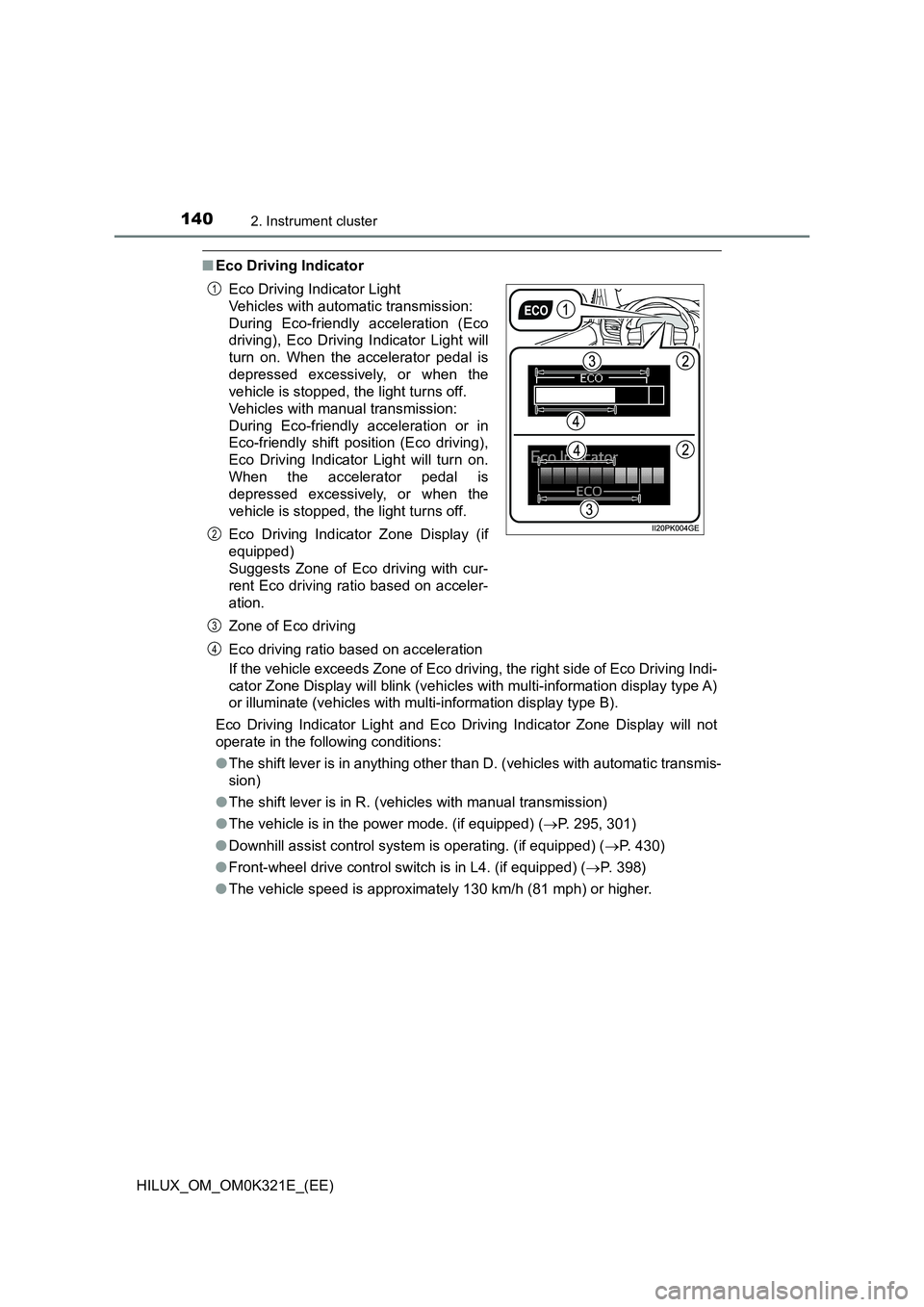

■Eco Driving Indicator
If the vehicle exceeds Zone of Eco driving, the right side of Eco Driving Indi-
cator Zone Display will blink (vehicles with multi-information display type A)
or illuminate (vehicles with multi-information display type B).
Eco Driving Indicator Light and Eco Driving Indicator Zone Display will not
operate in the following conditions:
● The shift lever is in anything other than D. (vehicles with automatic transmis-
sion)
● The shift lever is in R. (vehicles with manual transmission)
● The vehicle is in the power mode. (if equipped) (P. 295, 301)
● Downhill assist control system is operating. (if equipped) (P. 430)
● Front-wheel drive control switch is in L4. (if equipped) (P. 398)
● The vehicle speed is approximately 130 km/h (81 mph) or higher.
Eco Driving Indicator Light
Vehicles with automatic transmission:
During Eco-friendly acceleration (Eco
driving), Eco Driving Indicator Light will
turn on. When the accelerator pedal is
depressed excessively, or when the
vehicle is stopped, the light turns off.
Vehicles with manual transmission:
During Eco-friendly acceleration or in
Eco-friendly shift position (Eco driving),
Eco Driving Indicator Light will turn on.
When the accelerator pedal is
depressed excessively, or when the
vehicle is stopped, the light turns off.
Eco Driving Indicator Zone Display (if
equipped)
Suggests Zone of Eco driving with cur-
rent Eco driving ratio based on acceler-
ation.
Zone of Eco driving
Eco driving ratio based on acceleration
1
2
3
4

1412. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K321E_(EE)

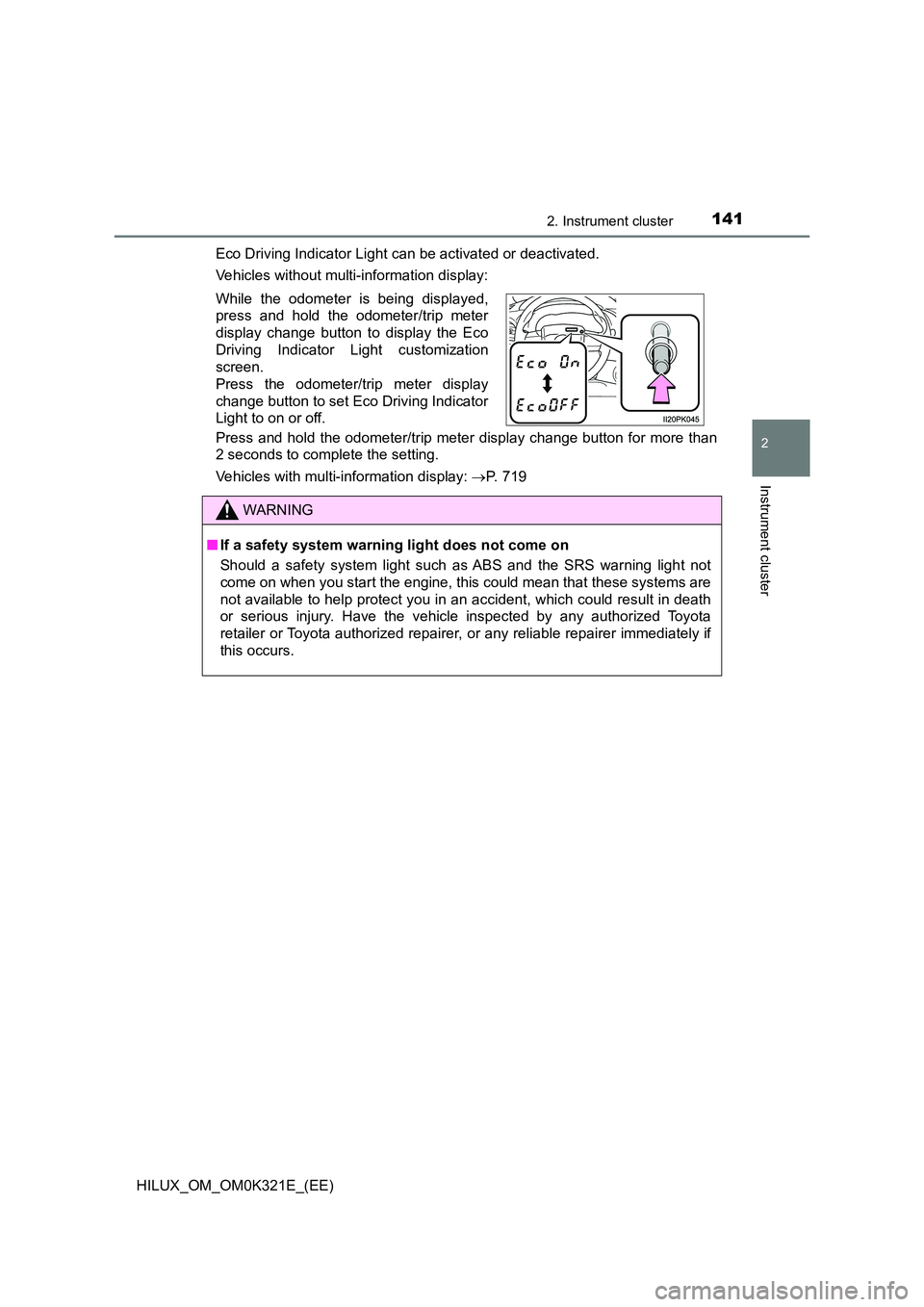

Eco Driving Indicator Light can be activated or deactivated.
Vehicles without multi-information display:
Press and hold the odometer/trip meter display change button for more than
2 seconds to complete the setting.
Vehicles with multi-information display: P. 719
While the odometer is being displayed,
press and hold the odometer/trip meter
display change button to display the Eco
Driving Indicator Light customization
screen.
Press the odometer/trip meter display
change button to set Eco Driving Indicator
Light to on or off.
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as ABS and the SRS warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer immediately if
this occurs.

1432. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K321E_(EE)

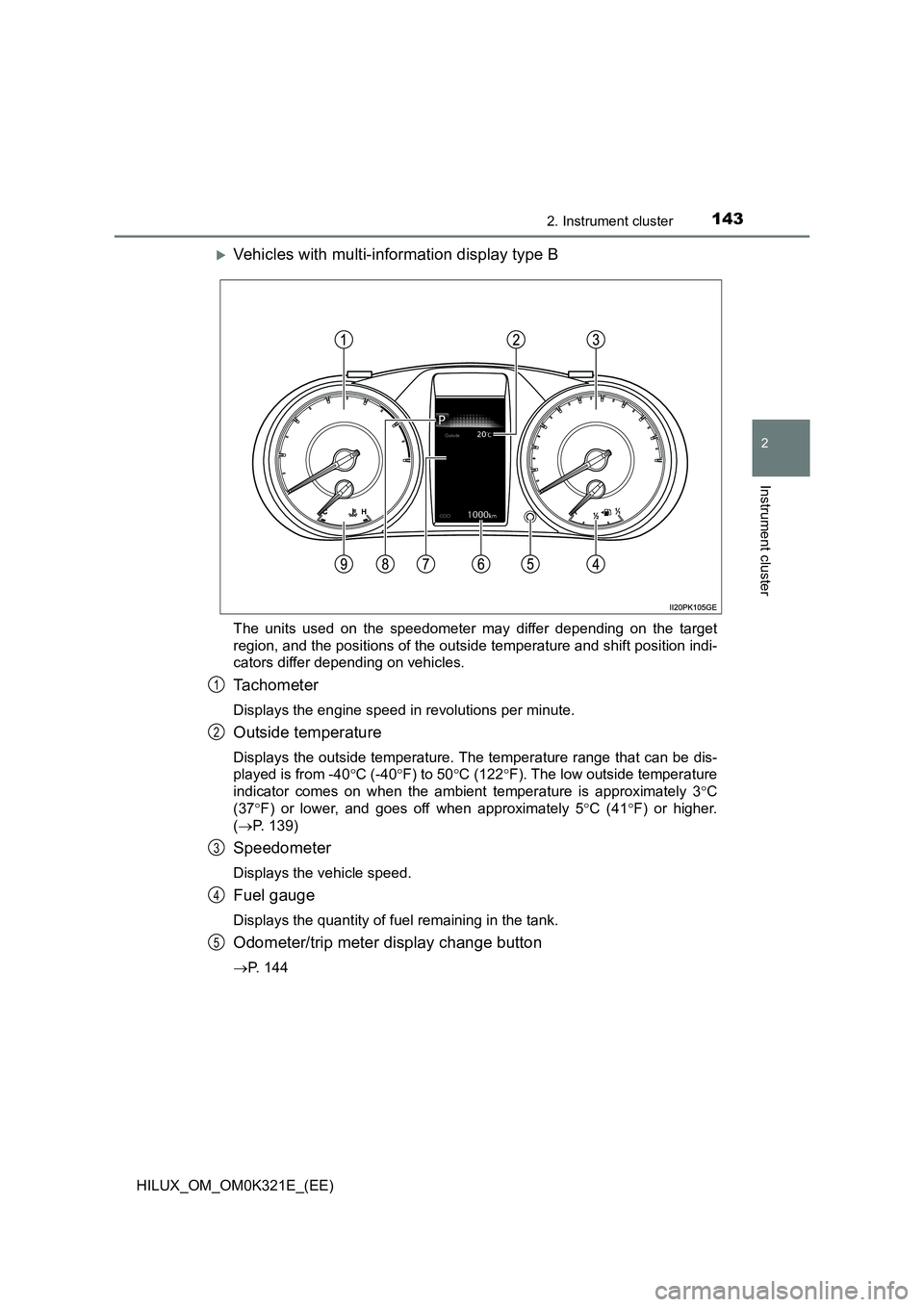

Vehicles with multi-information display type B
The units used on the speedometer may differ depending on the target
region, and the positions of the outside temperature and shift position indi-
cators differ depending on vehicles.
Tachometer
Displays the engine speed in revolutions per minute.
Outside temperature
Displays the outside temperature. The temperature range that can be dis-
played is from -40 C (-40F) to 50C (122F). The low outside temperature
indicator comes on when the ambient temperature is approximately 3 C
(37 F) or lower, and goes off when approximately 5C (41F) or higher.
( P. 139)
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Odometer/trip meter display change button
P. 144
1
2
3
4
5

1462. Instrument cluster
HILUX_OM_OM0K321E_(EE)

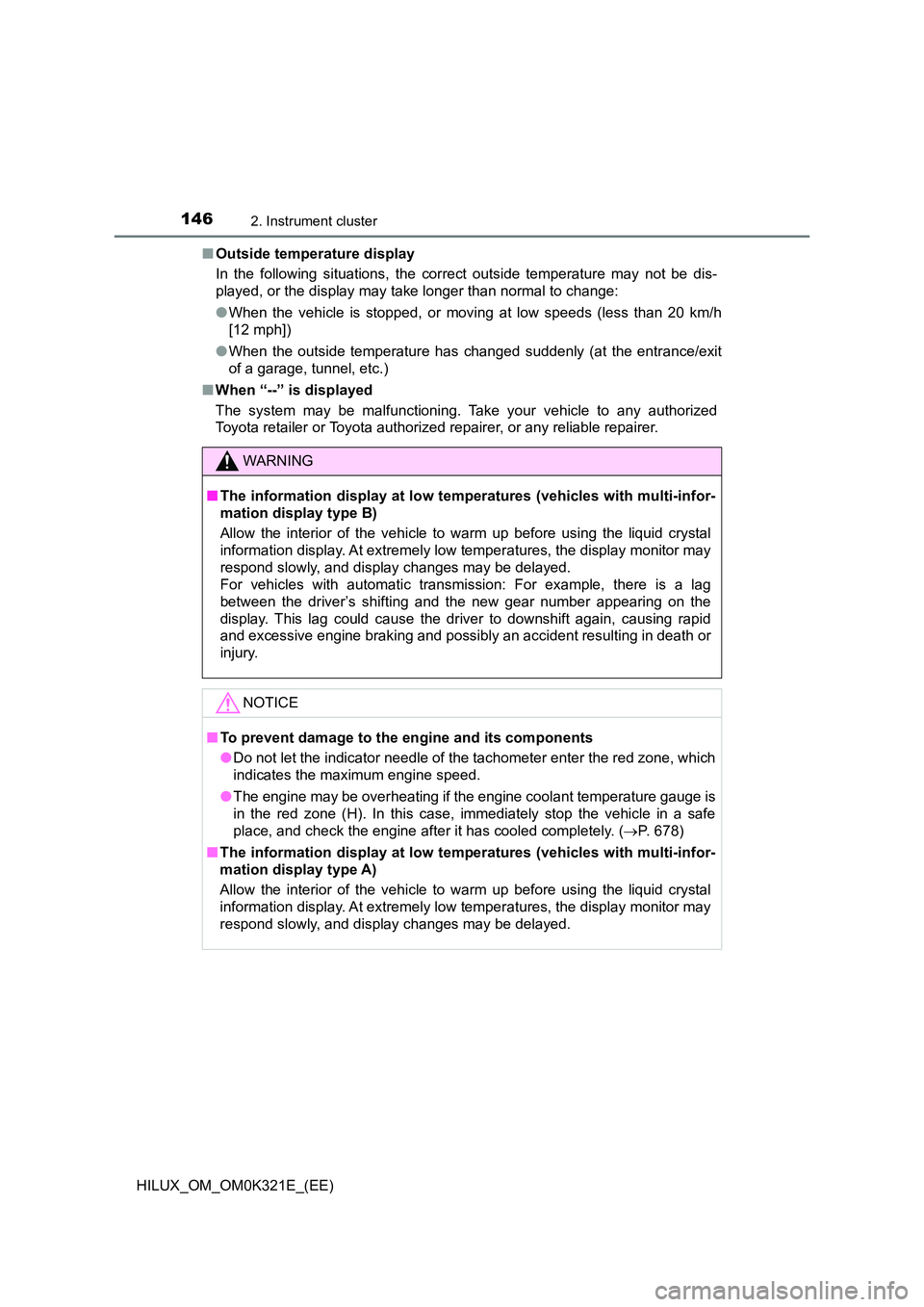

■ Outside temperature display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change:
● When the vehicle is stopped, or moving at low speeds (less than 20 km/h
[12 mph])
● When the outside temperature has changed suddenly (at the entrance/exit
of a garage, tunnel, etc.)
■ When “--” is displayed
The system may be malfunctioning. Take your vehicle to any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer.
WARNING
■ The information display at low temperatures (vehicles with multi-infor-
mation display type B)
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the display monitor may
respond slowly, and display changes may be delayed.
For vehicles with automatic transmission: For example, there is a lag
between the driver’s shifting and the new gear number appearing on the
display. This lag could cause the driver to downshift again, causing rapid
and excessive engine braking and possibly an accident resulting in death or
injury.
NOTICE
■ To prevent damage to the engine and its components
● Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● The engine may be overheating if the engine coolant temperature gauge is
in the red zone (H). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. ( P. 678)
■ The information display at low temperatures (vehicles with multi-infor-
mation display type A)
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the display monitor may
respond slowly, and display changes may be delayed.

147
2
2. Instrument cluster
Instrument cluster
HILUX_OM_OM0K321E_(EE)

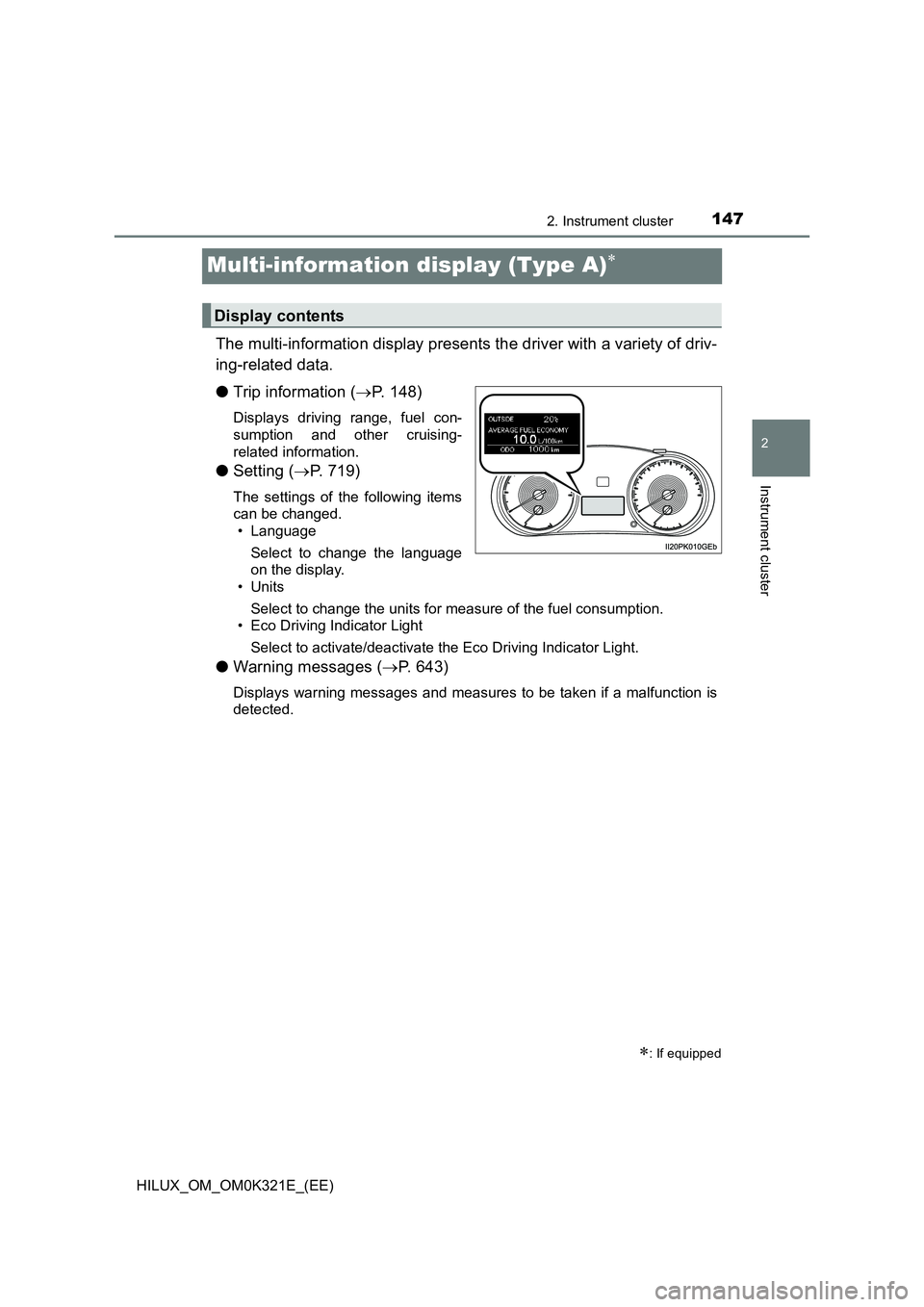

Multi-information display (Type A)
The multi-information display presents the driver with a variety of driv-
ing-related data.
● Trip information (P. 148)
Displays driving range, fuel con-
sumption and other cruising-
related information.
● Setting (P. 719)
The settings of the following items
can be changed.
• Language
Select to change the language
on the display.
•Units
Select to change the units for measure of the fuel consumption.
• Eco Driving Indicator Light
Select to activate/deactivate the Eco Driving Indicator Light.
● Warning messages (P. 643)
Displays warning messages and measures to be taken if a malfunction is
detected.
: If equipped
Display contents

1492. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K321E_(EE)

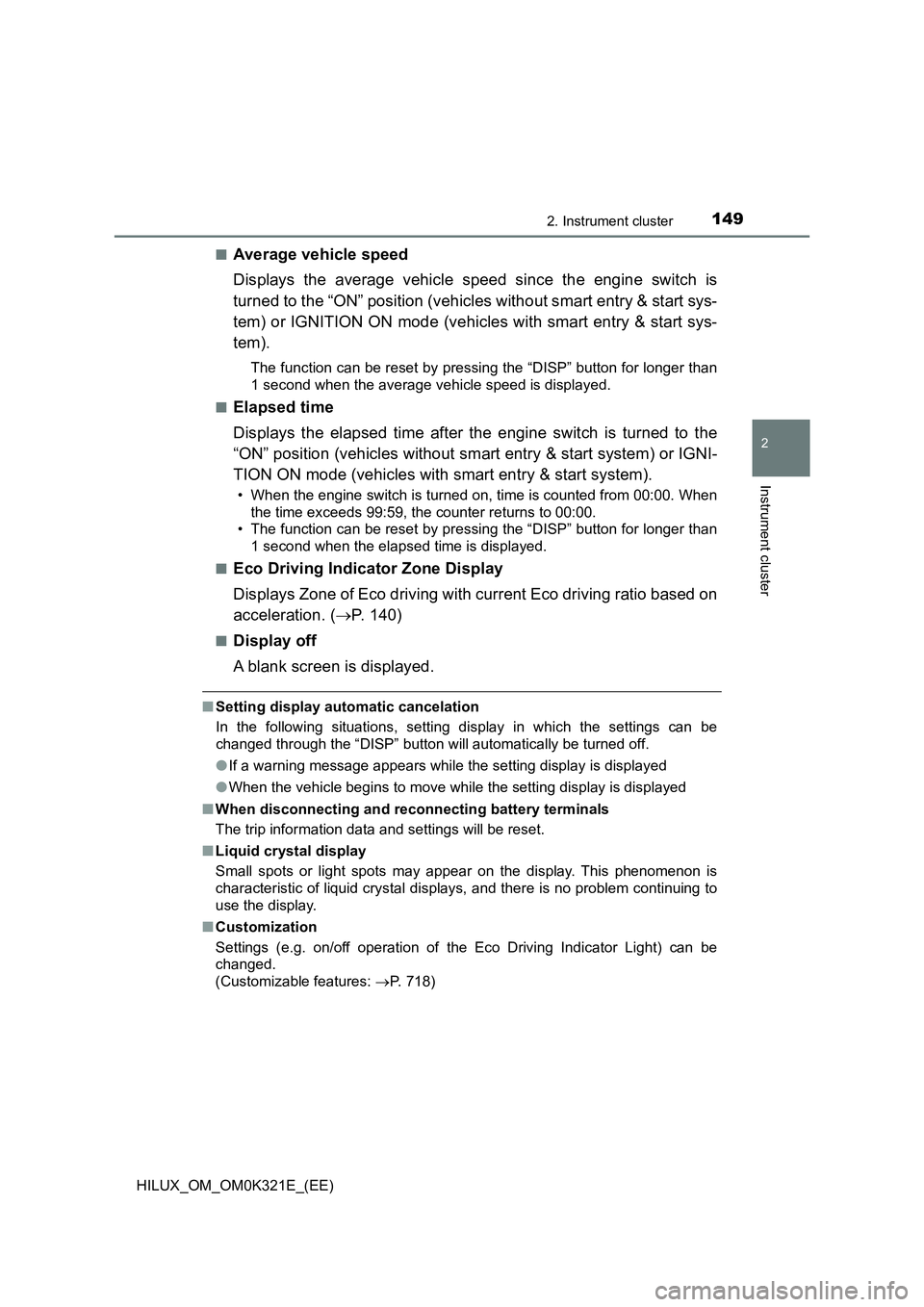

■Average vehicle speed
Displays the average vehicle speed since the engine switch is
turned to the “ON” position (vehicles without smart entry & start sys-
tem) or IGNITION ON mode (vehicles with smart entry & start sys-
tem).
The function can be reset by pressing the “DISP” button for longer than
1 second when the average vehicle speed is displayed.
■Elapsed time
Displays the elapsed time after the engine switch is turned to the
“ON” position (vehicles without smart entry & start system) or IGNI-
TION ON mode (vehicles with smart entry & start system).
• When the engine switch is turned on, time is counted from 00:00. When
the time exceeds 99:59, the counter returns to 00:00.
• The function can be reset by pressing the “DISP” button for longer than
1 second when the elapsed time is displayed.
■Eco Driving Indicator Zone Display
Displays Zone of Eco driving with current Eco driving ratio based on
acceleration. ( P. 140)
■Display off
A blank screen is displayed.
■ Setting display automatic cancelation
In the following situations, setting display in which the settings can be
changed through the “DISP” button will automatically be turned off.
● If a warning message appears while the setting display is displayed
● When the vehicle begins to move while the setting display is displayed
■ When disconnecting and reconnecting battery terminals
The trip information data and settings will be reset.
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
■ Customization
Settings (e.g. on/off operation of the Eco Driving Indicator Light) can be
changed.
(Customizable features: P. 718)

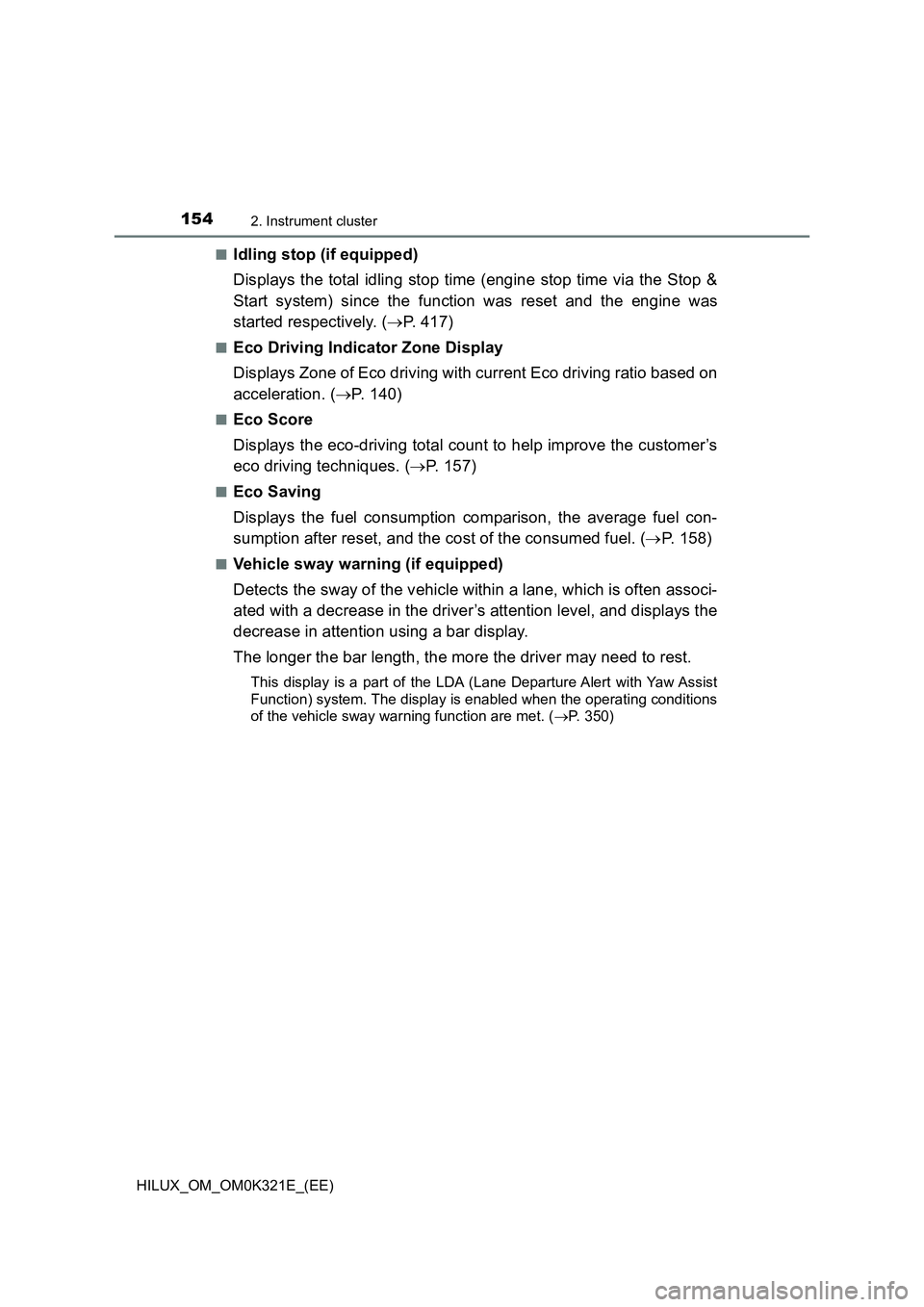

1542. Instrument cluster
HILUX_OM_OM0K321E_(EE)
■Idling stop (if equipped)
Displays the total idling stop time (engine stop time via the Stop &
Start system) since the function was reset and the engine was
started respectively. ( P. 417)
■Eco Driving Indicator Zone Display
Displays Zone of Eco driving with current Eco driving ratio based on
acceleration. ( P. 140)
■Eco Score
Displays the eco-driving total count to help improve the customer’s
eco driving techniques. ( P. 157)
■Eco Saving
Displays the fuel consumption comparison, the average fuel con-
sumption after reset, and the cost of the consumed fuel. ( P. 158)
■Vehicle sway warning (if equipped)
Detects the sway of the vehicle within a lane, which is often associ-
ated with a decrease in the driver’s attention level, and displays the
decrease in attention using a bar display.
The longer the bar length, the more the driver may need to rest.
This display is a part of the LDA (Lane Departure Alert with Yaw Assist
Function) system. The display is enabled when the operating conditions
of the vehicle sway warning function are met. ( P. 350)
