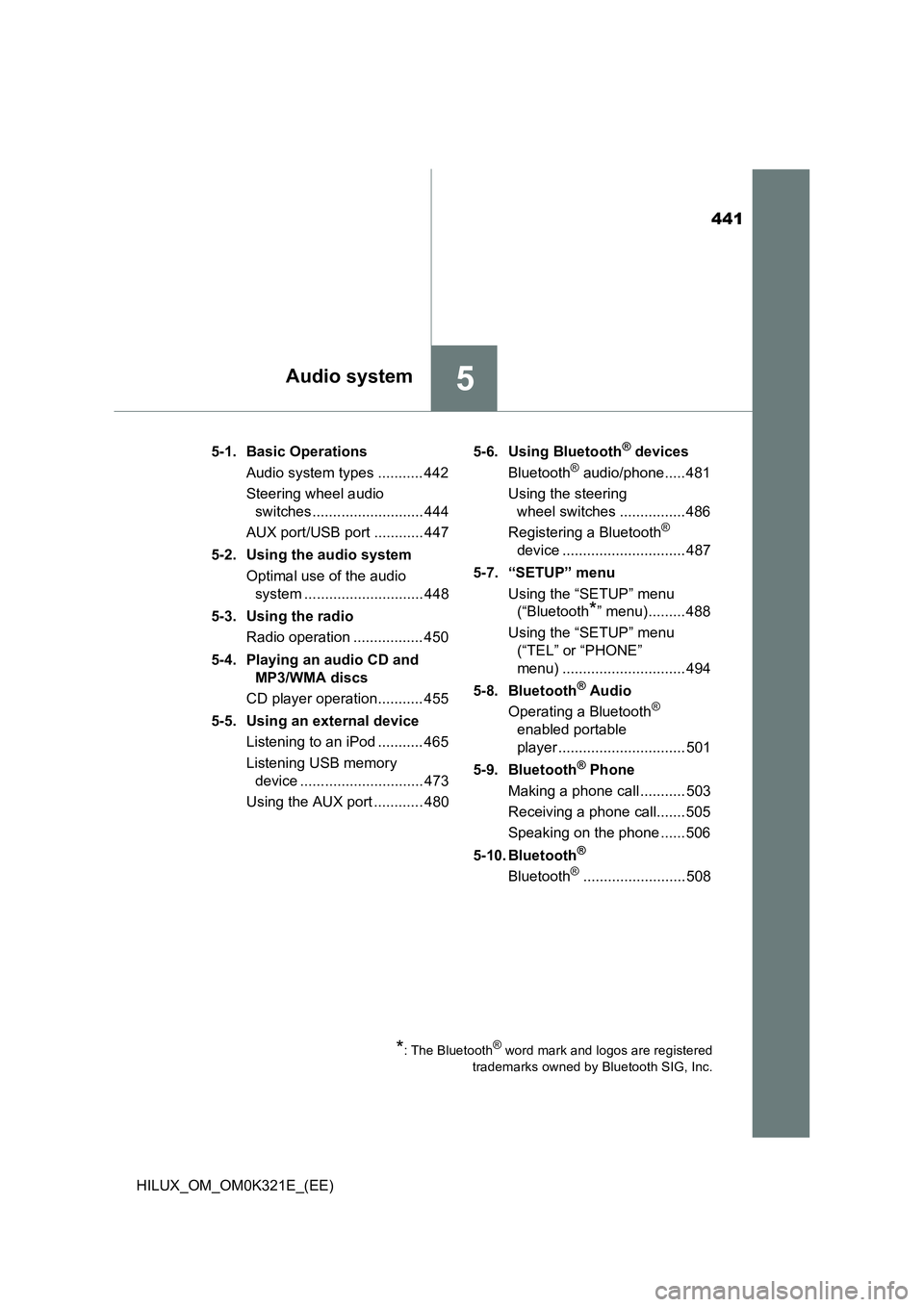

TOYOTA HILUX 2020 Owners Manual (in English)

441
5Audio system
HILUX_OM_OM0K321E_(EE)
5-1. Basic Operations
Audio system types ........... 442
Steering wheel audio
switches ........................... 444
AUX port/USB port ............ 447
5-2. Using the audio system
Optimal use of the audio
system ............................. 448
5-3. Using the radio
Radio operation ................. 450
5-4. Playing an audio CD and
MP3/WMA discs
CD player operation........... 455
5-5. Using an external device
Listening to an iPod ........... 465
Listening USB memory
device .............................. 473
Using the AUX port ............ 480
5-6. Using Bluetooth® devices
Bluetooth® audio/phone..... 481
Using the steering
wheel switches ................ 486
Registering a Bluetooth®
device .............................. 487
5-7. “SETUP” menu
Using the “SETUP” menu
(“Bluetooth*” menu)......... 488
Using the “SETUP” menu
(“TEL” or “PHONE”
menu) .............................. 494
5-8. Bluetooth® Audio
Operating a Bluetooth®
enabled portable
player ............................... 501
5-9. Bluetooth® Phone
Making a phone call ........... 503
Receiving a phone call....... 505
Speaking on the phone ...... 506
5-10. Bluetooth®
Bluetooth®......................... 508
*: The Bluetooth® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc.

4425-1. Basic Operations
HILUX_OM_OM0K321E_(EE)
Audio system types
Vehicles with multimedia system
Refer to the “Navigation and multimedia system Owner’s manual”.
Vehicles without multimedia system
CD player with AM/FM radio
● Ty pe A
● Ty pe B
This illustration is for a left-hand drive vehicle. Some button positions
are reversed for right-hand drive vehicles. (type B only)
: If equipped

4435-1. Basic Operations
5
Audio system
HILUX_OM_OM0K321E_(EE)

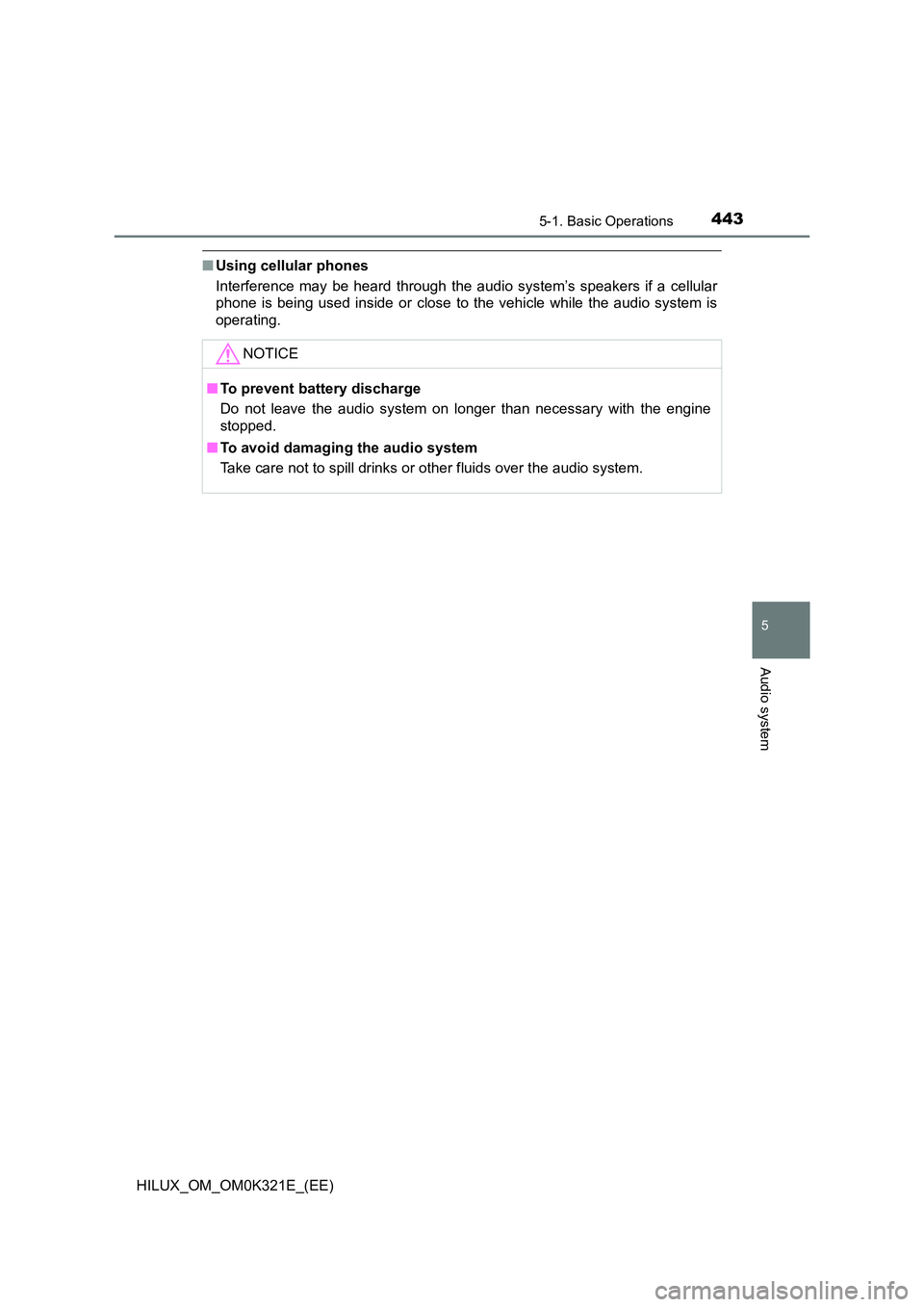

■Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular
phone is being used inside or close to the vehicle while the audio system is
operating.
NOTICE
■ To prevent battery discharge
Do not leave the audio system on longer than necessary with the engine
stopped.
■ To avoid damaging the audio system
Take care not to spill drinks or other fluids over the audio system.

4445-1. Basic Operations
HILUX_OM_OM0K321E_(EE)

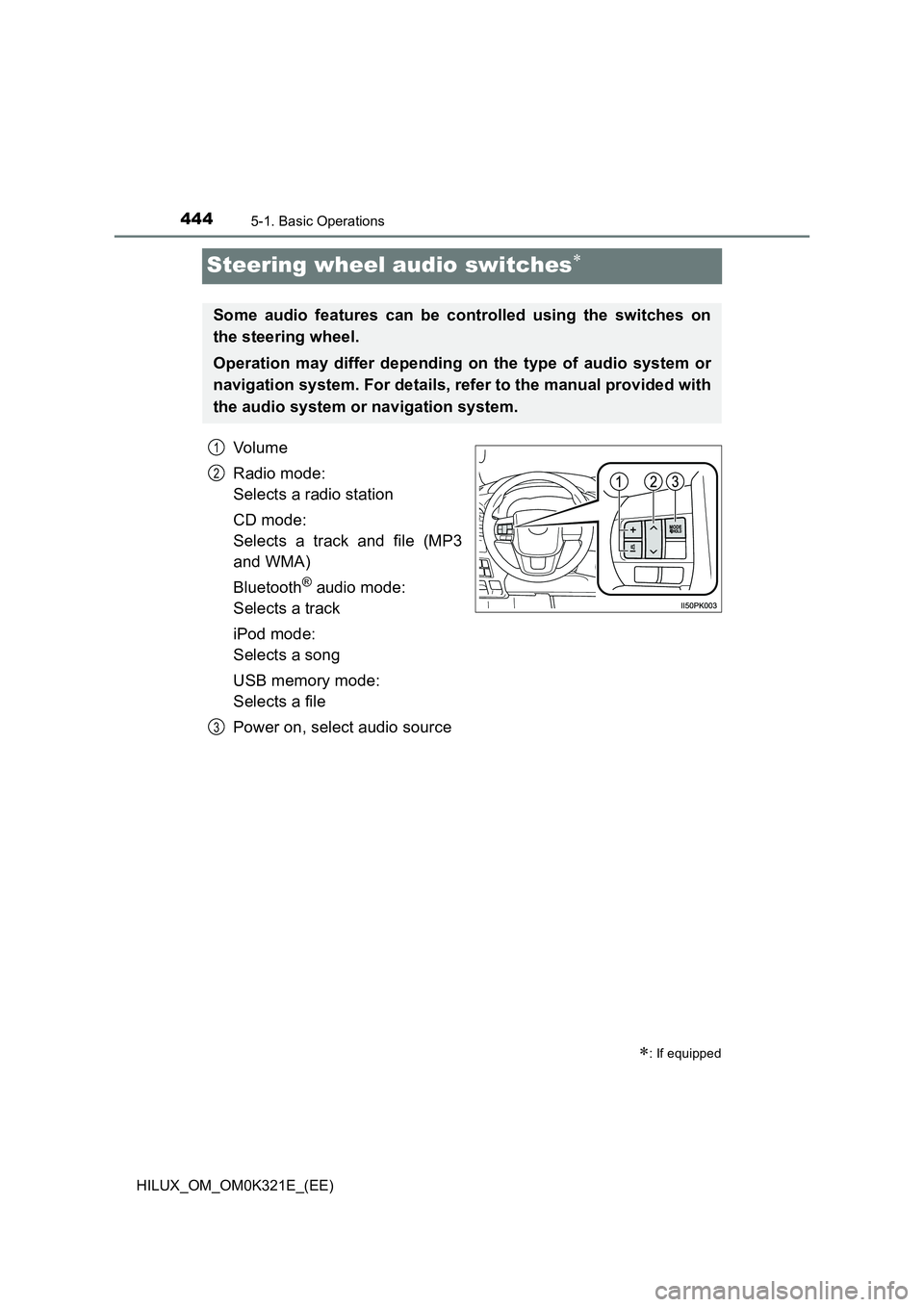

Steering wheel audio switches
Vo lu m e
Radio mode:
Selects a radio station
CD mode:
Selects a track and file (MP3
and WMA)
Bluetooth® audio mode:
Selects a track
iPod mode:
Selects a song
USB memory mode:
Selects a file
Power on, select audio source
: If equipped
Some audio features can be controlled using the switches on
the steering wheel.
Operation may differ depending on the type of audio system or
navigation system. For details, refer to the manual provided with
the audio system or navigation system.
1
2
3

4455-1. Basic Operations
5
Audio system
HILUX_OM_OM0K321E_(EE)
Press the “MODE” switch when the audio system is turned off.
Press the “MODE” switch when the audio system is turned on. The
audio source changes as follows each time the button is pressed. If a
mode cannot be used, it will be skipped.
AM FM1FM2*CD modeiPod or USB memory
Bluetooth® audio* AUX
*: If equipped
Press the “+” switch to increase the volume and the “-” switch to
decrease the volume.
Hold down the switch to continue increasing or decreasing the volume.
Press and hold the “MODE” switch.
To cancel, press and hold the switch again.
Press the “MODE” switch to select the radio mode.
Press the “ ” or “” switch to select a preset station.
To scan for receivable stations, press and hold the switch until you hear a
beep.
Turning on the power
Changing the audio source
Adjusting the volume
Silencing a sound
Selecting a radio station
1
2

4465-1. Basic Operations
HILUX_OM_OM0K321E_(EE)

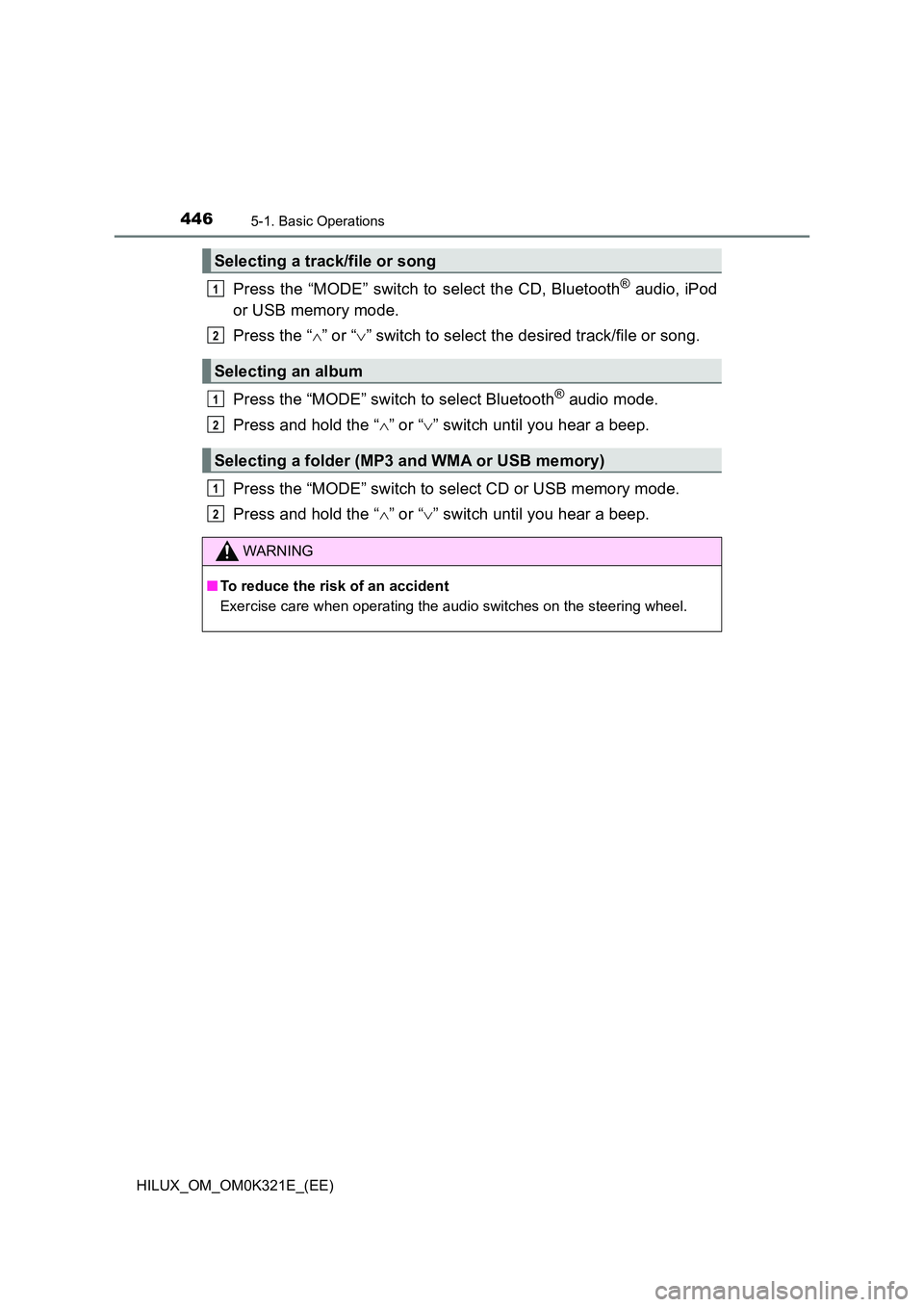

Press the “MODE” switch to select the CD, Bluetooth® audio, iPod
or USB memory mode.
Press the “ ” or “” switch to select the desired track/file or song.
Press the “MODE” switch to select Bluetooth® audio mode.
Press and hold the “ ” or “” switch until you hear a beep.
Press the “MODE” switch to select CD or USB memory mode.
Press and hold the “ ” or “” switch until you hear a beep.
Selecting a track/file or song
Selecting an album
Selecting a folder (MP3 and WMA or USB memory)
WARNING
■To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
1
2
1
2
1
2

447
5
5-1. Basic Operations
Audio system
HILUX_OM_OM0K321E_(EE)

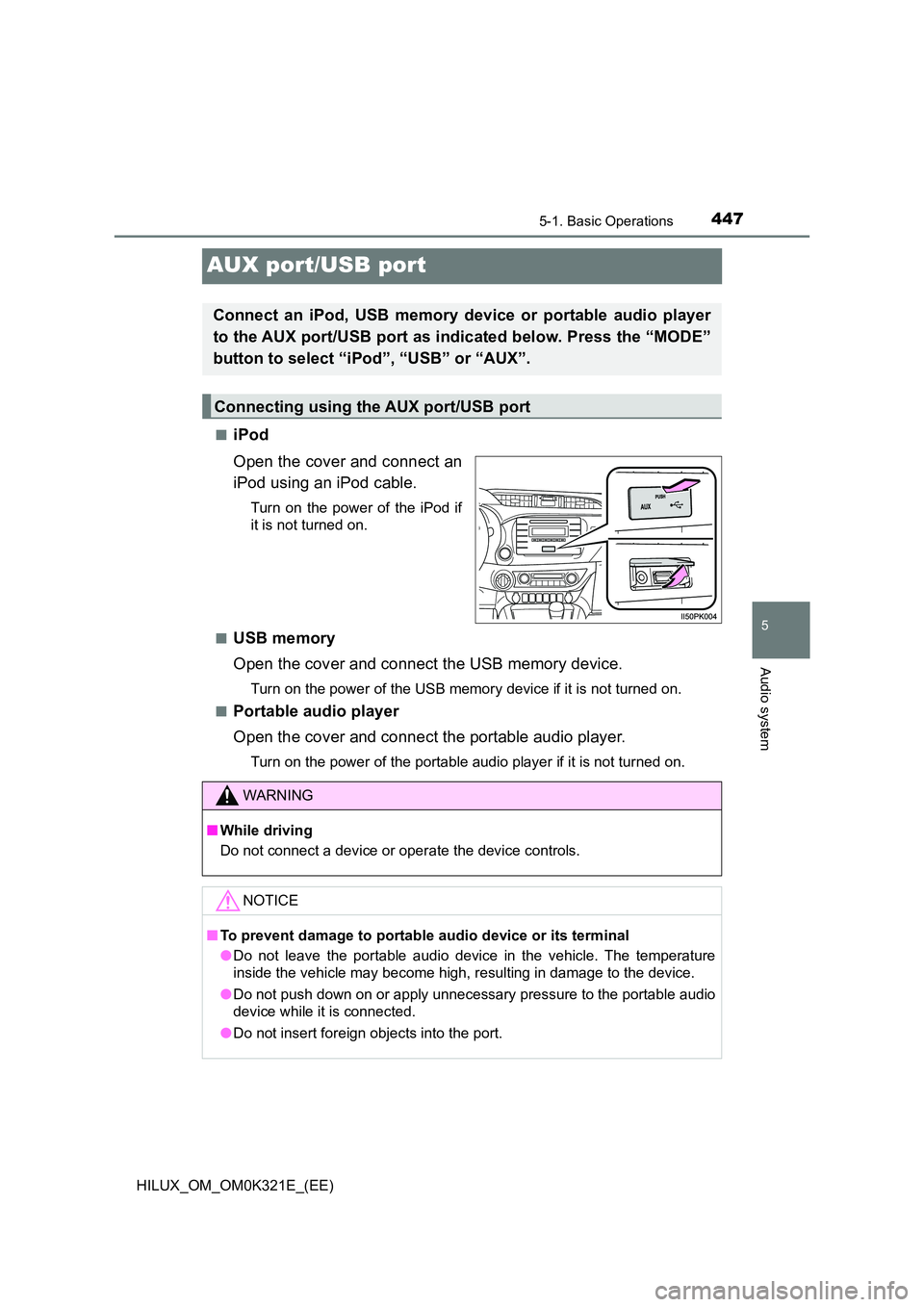

AUX port/USB port
■iPod
Open the cover and connect an
iPod using an iPod cable.
Turn on the power of the iPod if
it is not turned on.
■USB memory
Open the cover and connect the USB memory device.
Turn on the power of the USB memory device if it is not turned on.
■Portable audio player
Open the cover and connect the portable audio player.
Turn on the power of the portable audio player if it is not turned on.
Connect an iPod, USB memory device or portable audio player
to the AUX port/USB port as indicated below. Press the “MODE”
button to select “iPod”, “USB” or “AUX”.
Connecting using the AUX port/USB port
WARNING
■ While driving
Do not connect a device or operate the device controls.
NOTICE
■ To prevent damage to portable audio device or its terminal
● Do not leave the portable audio device in the vehicle. The temperature
inside the vehicle may become high, resulting in damage to the device.
● Do not push down on or apply unnecessary pressure to the portable audio
device while it is connected.
● Do not insert foreign objects into the port.

4485-2. Using the audio system
HILUX_OM_OM0K321E_(EE)

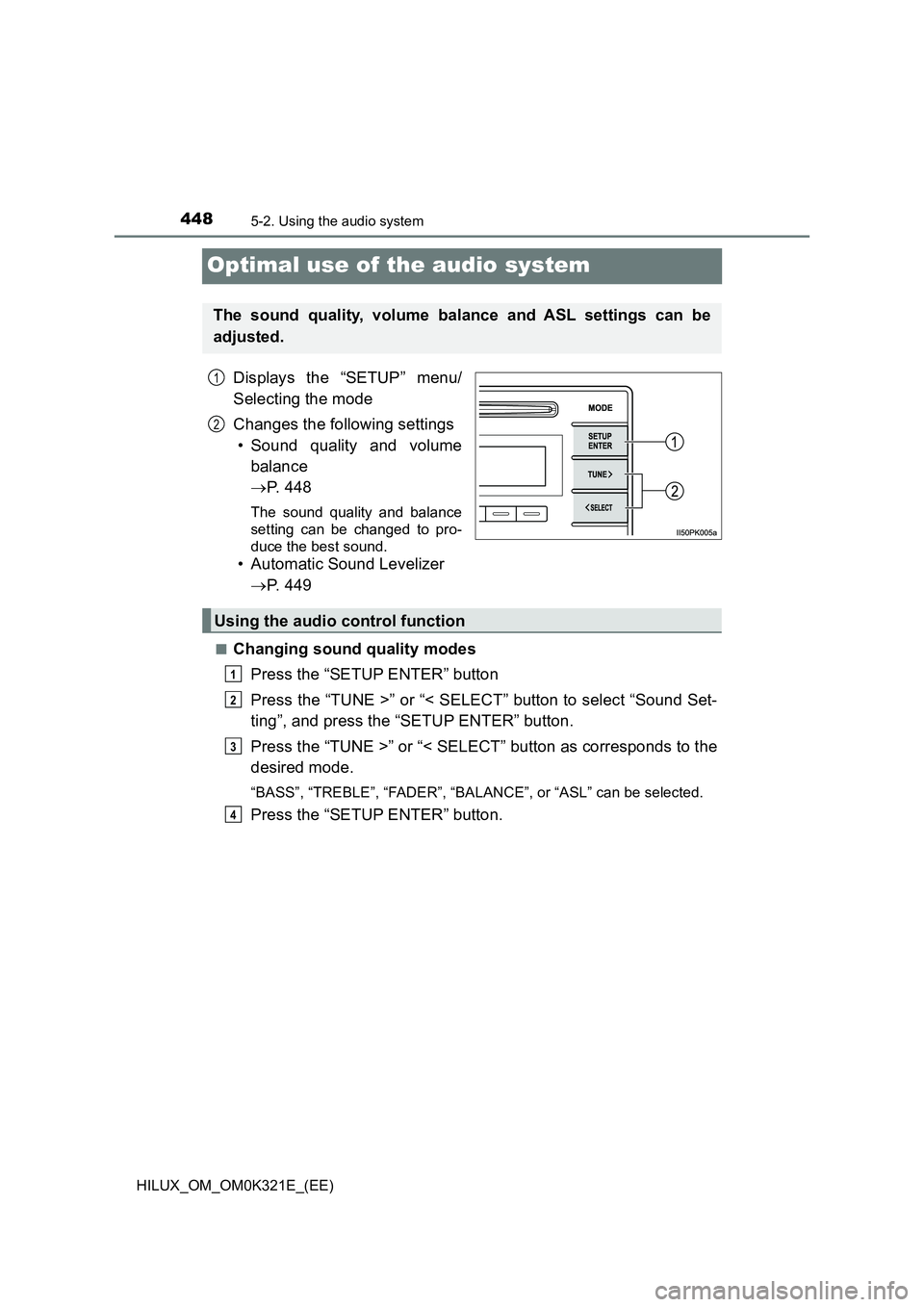

Optimal use of the audio system
Displays the “SETUP” menu/
Selecting the mode
Changes the following settings
• Sound quality and volume
balance
 P. 4 4 8
The sound quality and balance
setting can be changed to pro-
duce the best sound.
• Automatic Sound Levelizer
 P. 4 4 9
■Changing sound quality modes
Press the “SETUP ENTER” button
Press the “TUNE >” or “< SELECT” button to select “Sound Set-
ting”, and press the “SETUP ENTER” button.
Press the “TUNE >” or “< SELECT” button as corresponds to the
desired mode.
“BASS”, “TREBLE”, “FADER”, “BAL ANCE”, or “ASL” can be selected.
Press the “SETUP ENTER” button.
The sound quality, volume balance and ASL settings can be
adjusted.
1
2
Using the audio control function
1
2
3
4

4495-2. Using the audio system
5
Audio system
HILUX_OM_OM0K321E_(EE)

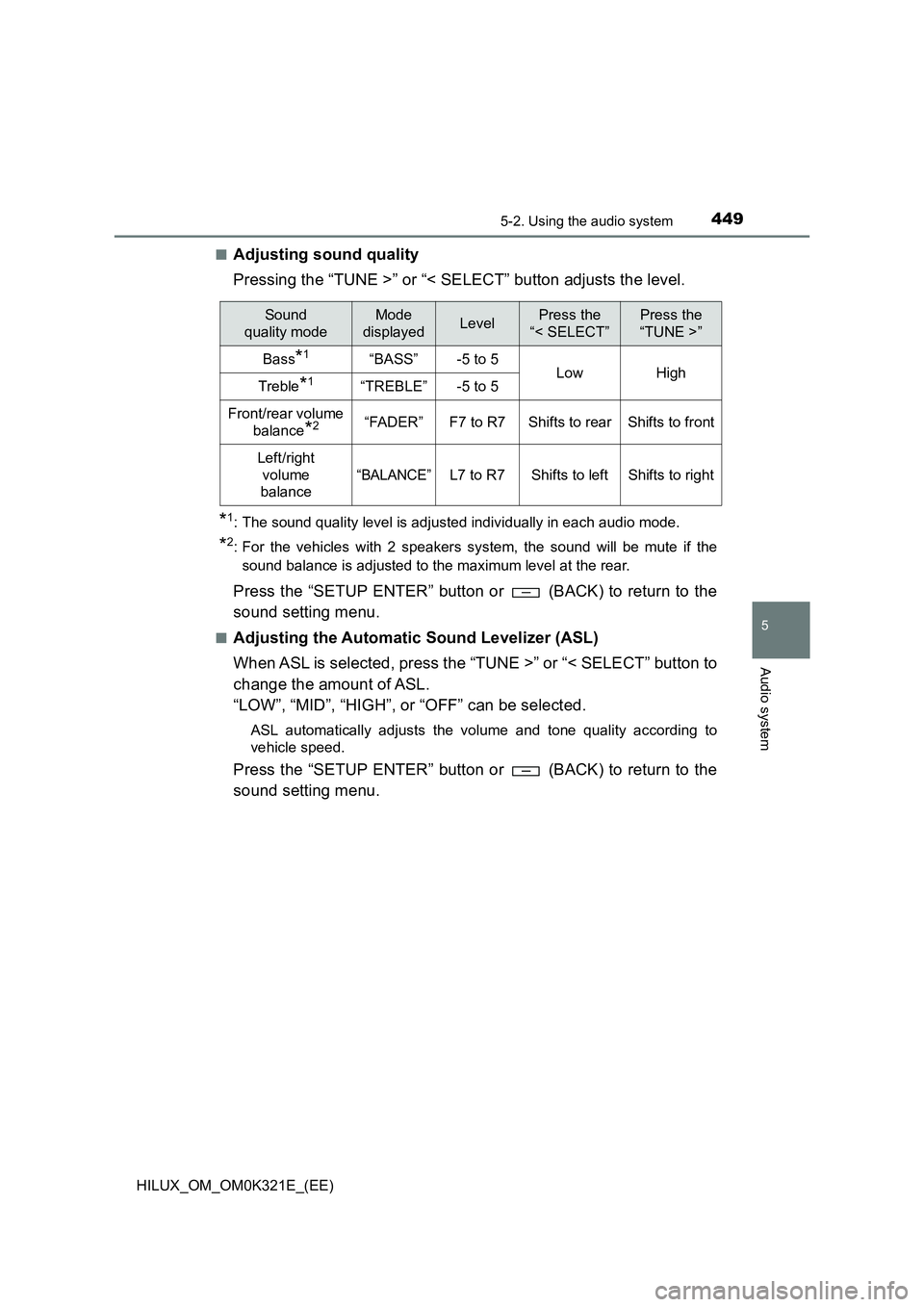

■Adjusting sound quality
Pressing the “TUNE >” or “< SELECT” button adjusts the level.
*1: The sound quality level is adjusted individually in each audio mode.
*2: For the vehicles with 2 speakers system, the sound will be mute if the
sound balance is adjusted to the maximum level at the rear.
Press the “SETUP ENTER” button or (BACK) to return to the
sound setting menu.
■Adjusting the Automatic Sound Levelizer (ASL)
When ASL is selected, press the “TUNE >” or “< SELECT” button to
change the amount of ASL.
“LOW”, “MID”, “HIGH”, or “OFF” can be selected.
ASL automatically adjusts the volume and tone quality according to
vehicle speed.
Press the “SETUP ENTER” button or (BACK) to return to the
sound setting menu.
Sound
quality mode
Mode
displayedLevelPress the
“< SELECT”
Press the
“TUNE >”
Bass*1“BASS”-5 to 5LowHighTreble*1“TREBLE”-5 to 5
Front/rear volume
balance*2“FADER”F7 to R7Shifts to rearShifts to front
Left/right
volume
balance
“BALANCE”L7 to R7Shifts to leftShifts to right

4505-3. Using the radio
HILUX_OM_OM0K321E_(EE)
Radio operation
Ty pe A
Press the “MODE” button until “AM” or “FM” is displayed.
