TOYOTA HILUX 2020 Owners Manual (in English)

6818-2. Steps to take in an emergency
HILUX_OM_OM0K321E_(EE)
8
When trouble arises
Start the engine to check that the radiator cooling fan operates and
to check for coolant leaks from the radiator or hoses.
If the fan is not operating:
Stop the engine immediately and contact any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
If the fan is operating:
Have the vehicle inspected at the nearest authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer.
WARNING
■ When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
● If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot.
● Keep hands and clothing (especially a tie, a scarf or a muffler) away from
the fans and belts. Failure to do so may cause the hands or clothing to be
caught, resulting in serious injury.
● Do not loosen the radiator cap (if equipped), the engine coolant reservoir
cap or intercooler coolant reservoir cap (if equipped) while the engine and
radiator are hot. High temperature steam or coolant could spray out.
NOTICE
■ When adding engine coolant
Add coolant slowly after the engine has cooled down sufficiently. Adding
cool coolant to a hot engine too quickly can cause damage to the engine.
■ To prevent damage to the cooling system
Observe the following precautions:
● Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).
● Do not use any coolant additive.
6
7

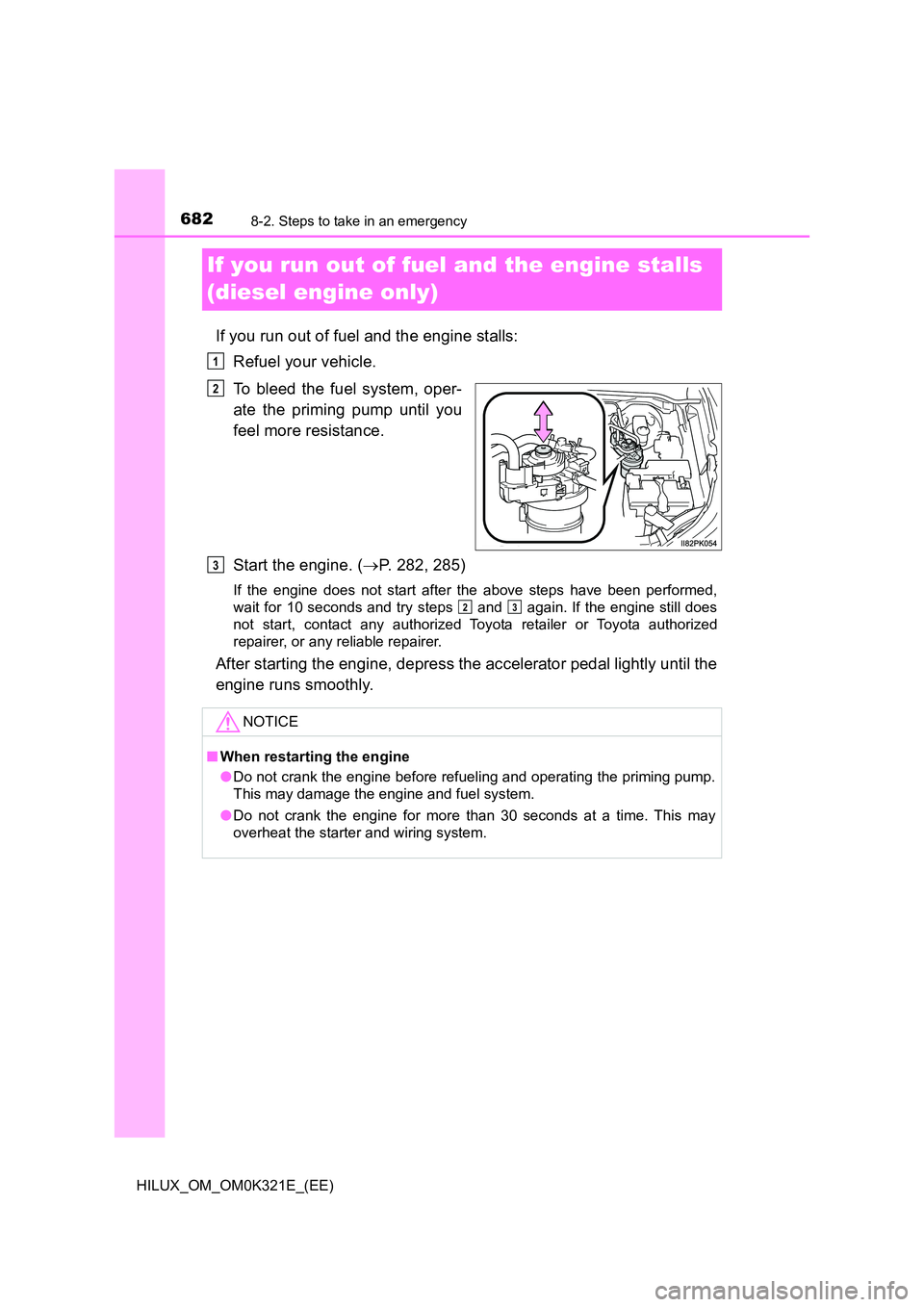

6828-2. Steps to take in an emergency
HILUX_OM_OM0K321E_(EE)
If you run out of fuel and the engine stalls
(diesel engine only)
If you run out of fuel and the engine stalls:
Refuel your vehicle.
To bleed the fuel system, oper-
ate the priming pump until you
feel more resistance.
Start the engine. ( P. 282, 285)
If the engine does not start after the above steps have been performed,
wait for 10 seconds and try steps and again. If the engine still does
not start, contact any authorized Toyo ta retailer or Toyota authorized
repairer, or any reliable repairer.
After starting the engine, depress the accelerator pedal lightly until the
engine runs smoothly.
1
2
NOTICE
■ When restarting the engine
● Do not crank the engine before refueling and operating the priming pump.
This may damage the engine and fuel system.
● Do not crank the engine for more than 30 seconds at a time. This may
overheat the starter and wiring system.
3
23

6838-2. Steps to take in an emergency
HILUX_OM_OM0K321E_(EE)
8
When trouble arises
If the vehicle becomes stuck
Stop the engine. Set the parking brake and shift the shift lever to P
(automatic transmission) or N (manual transmission).
Remove the mud, snow or sand from around the stuck tire.
Place wood, stones or some other material under the tires to help
provide traction.
Restart the engine.
Vehicles with rear differential lock system: Lock the rear differential.
( P. 408)
Shift the shift lever to the D or R position (automatic transmission)
or 1 or R position (manual transmission) and carefully apply the
accelerator to free the vehicle.
■ When it is difficult to free the vehicle (vehicles with TRC/A-TRC system)
Press to turn off TRC/A-TRC.
Vehicles without multi-information display
Vehicles with multi-information display
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
1
2
3
4
5
6

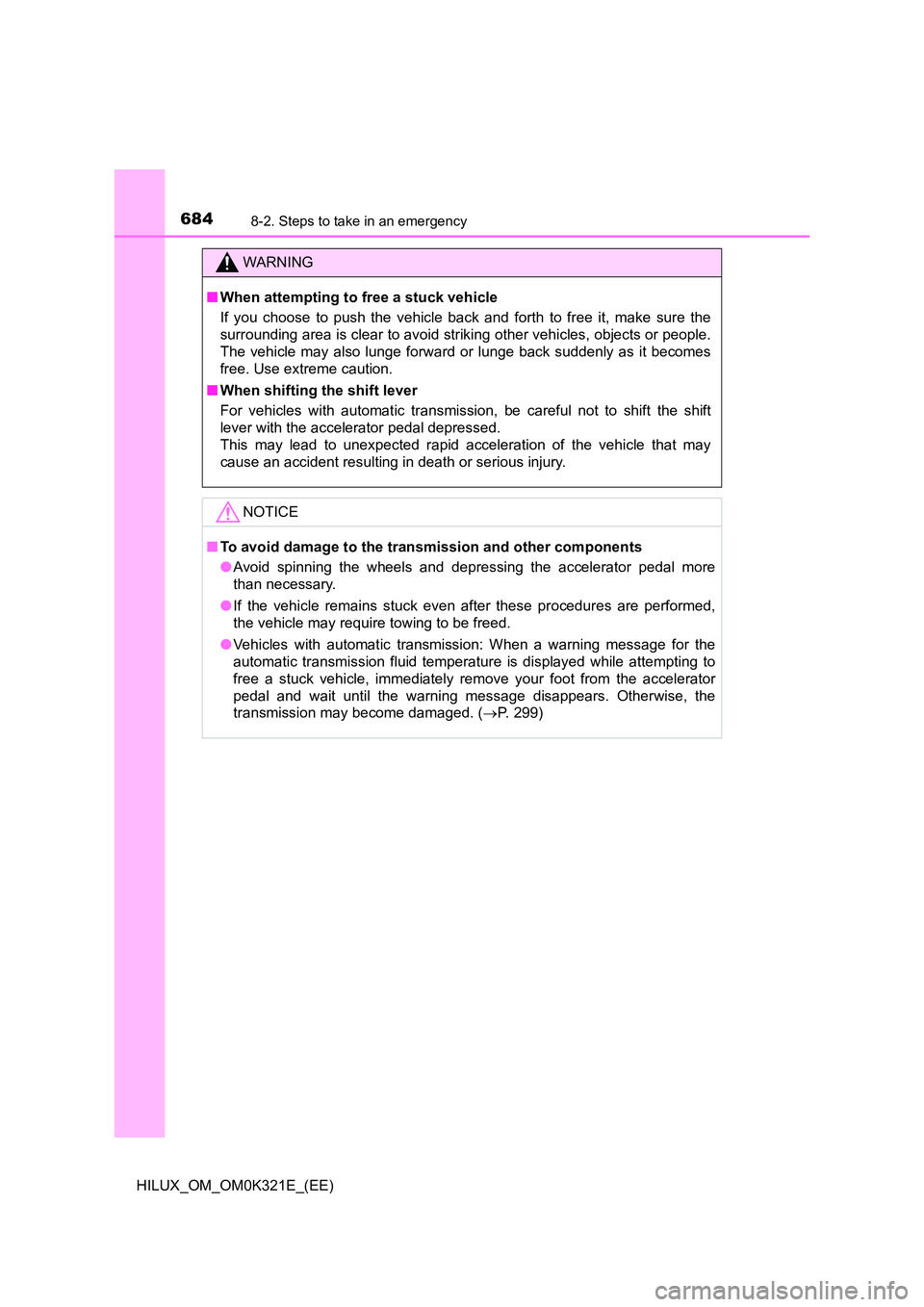

6848-2. Steps to take in an emergency
HILUX_OM_OM0K321E_(EE)
WARNING
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When shifting the shift lever
For vehicles with automatic transmission, be careful not to shift the shift
lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
NOTICE
■ To avoid damage to the transmission and other components
● Avoid spinning the wheels and depressing the accelerator pedal more
than necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.
● Vehicles with automatic transmission: When a warning message for the
automatic transmission fluid temperature is displayed while attempting to
free a stuck vehicle, immediately remove your foot from the accelerator
pedal and wait until the warning message disappears. Otherwise, the
transmission may become damaged. ( P. 299)

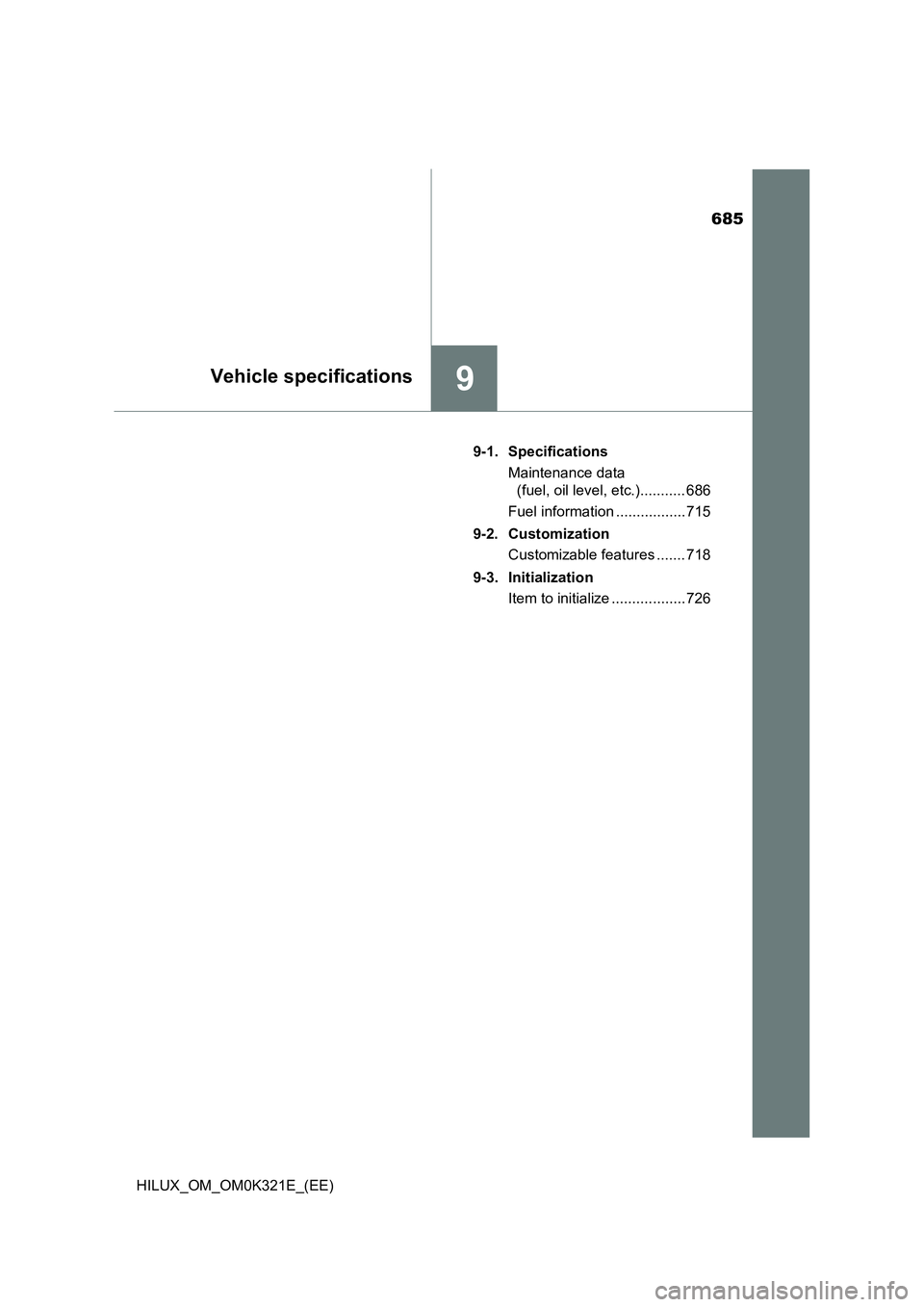

685
9Vehicle specifications
HILUX_OM_OM0K321E_(EE)
9-1. Specifications
Maintenance data
(fuel, oil level, etc.)........... 686
Fuel information ................. 715
9-2. Customization
Customizable features ....... 718
9-3. Initialization
Item to initialize .................. 726

6869-1. Specifications
HILUX_OM_OM0K321E_(EE)
Maintenance data (fuel, oil level, etc.)
*1: Unladen vehicle
*2: With tailgate type A (P. 195)
*3: With tailgate type B (P. 195)
*4: With exterior type A*7
*5: With exterior type B*7
*6: With exterior type C*7
*7: See “How to identify exterior type” to check the type of your vehicle.
( P. 687)
*8: Without side step
*9: With side step
*10: With 205R16C tires
*11: With 225/70R17C tires
*12: With 265/65R17 or 265/60R18 tires
Dimensions
Overall length
Without rear bumper 5265 mm (207.3 in.)*2
5285 mm (208.1 in.)*3
With rear bumper
5335 mm (210.0 in.)*4
5320 mm (209.4 in.)*5
5350 mm (210.6 in.)*6
Overall widthWithout over fender 1800 mm (70.9 in.)*8
1815 mm (71.5 in.)*9
With over fender 1855 mm (73.0 in.)
Overall height*1
Single-cab models 1795 mm (70.7 in.)
Smart-cab models 1810 mm (71.3 in.)
Double-cab models 1815 mm (71.5 in.)
Wheelbase 3090 mm (121.7 in.)
Front tread
1505 mm (59.3 in.)*10
1495 mm (58.9 in.)*11
1535 mm (60.4 in.)*12
Rear tread
1520 mm (59.8 in.)*10
1510 mm (59.4 in.)*11
1550 mm (61.0 in.)*12

687
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K321E_(EE)

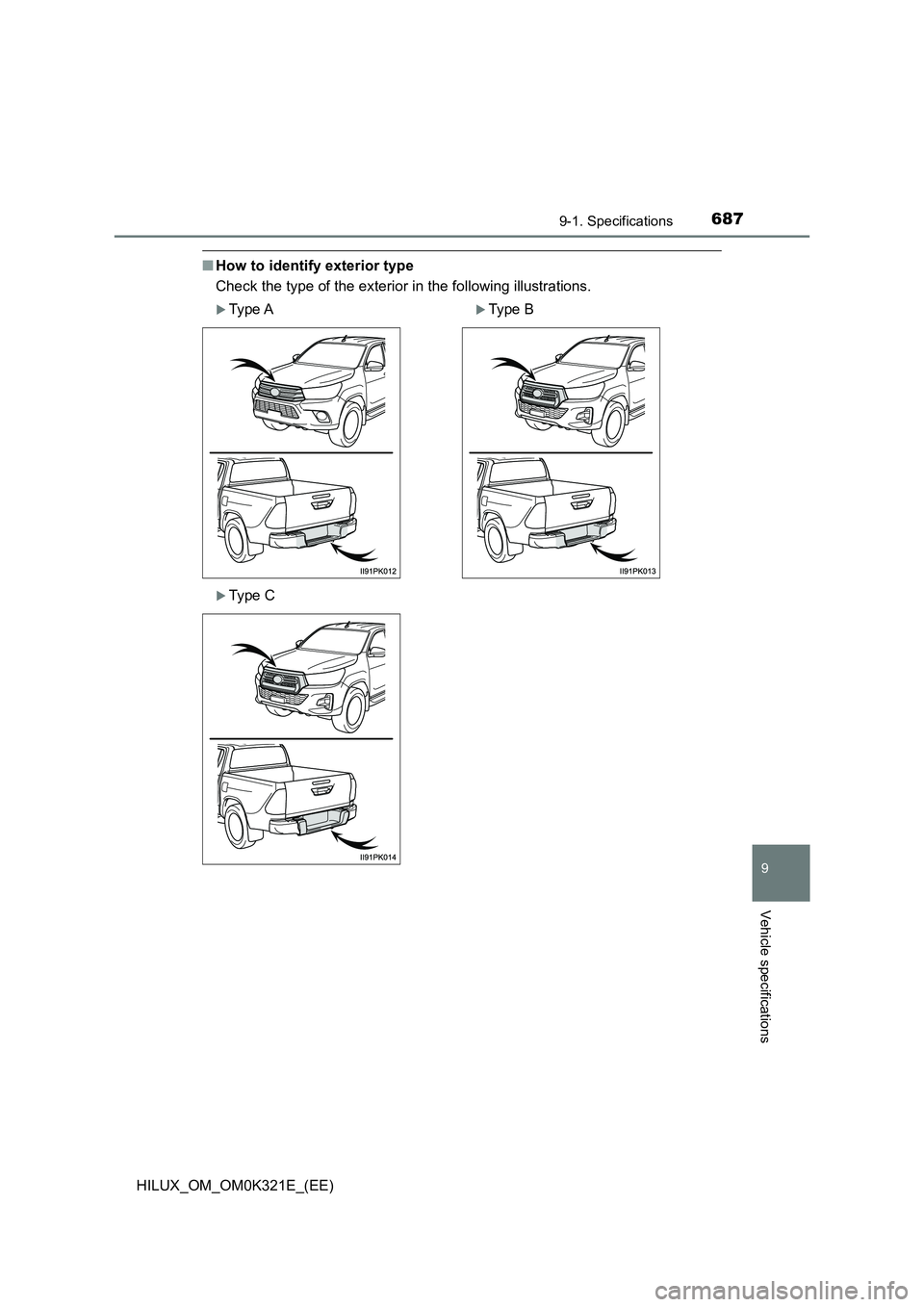

■How to identify exterior type
Check the type of the exterior in the following illustrations.
Type AType B
Type C

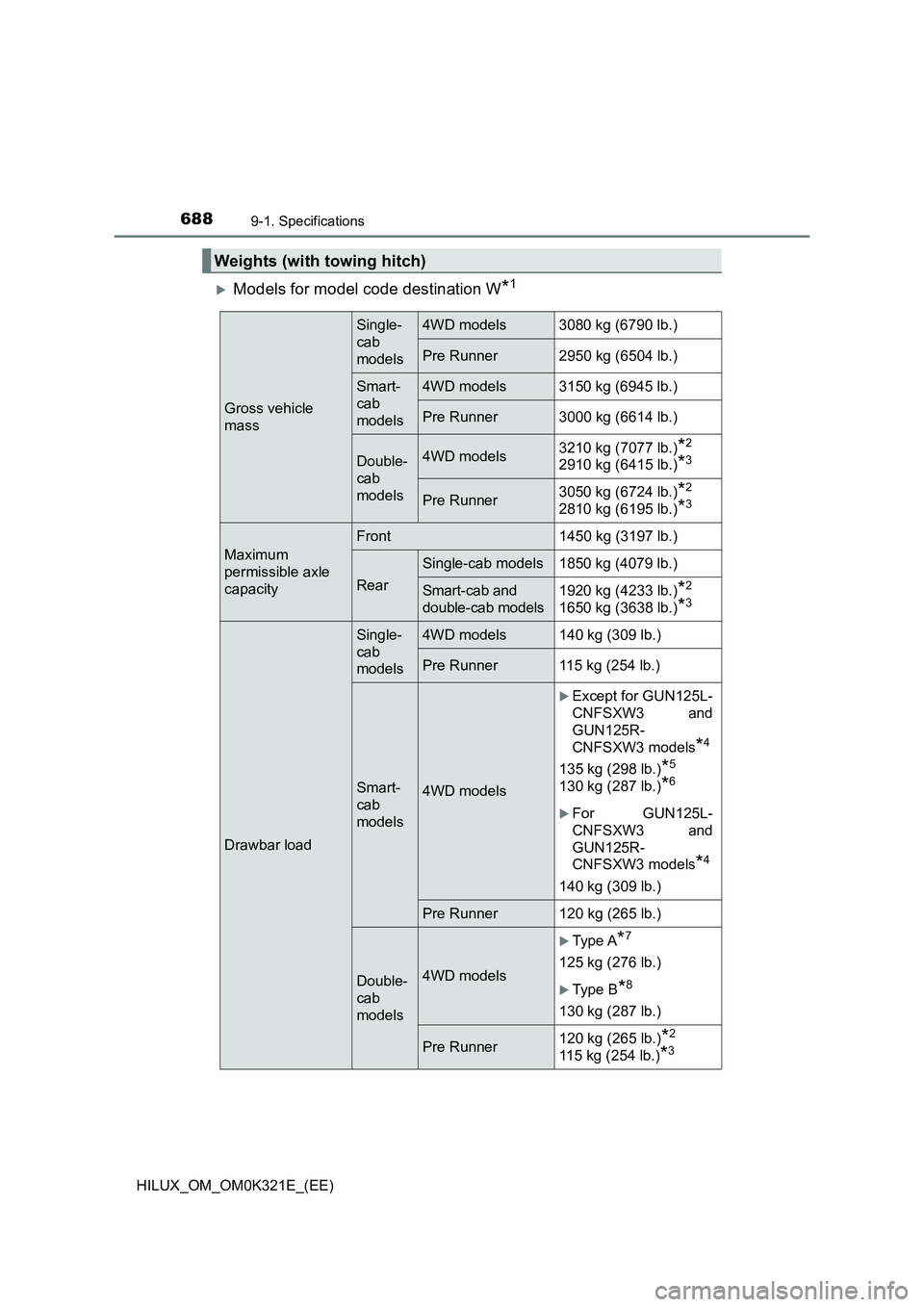

6889-1. Specifications
HILUX_OM_OM0K321E_(EE)
Models for model code destination W*1
Weights (with towing hitch)
Gross vehicle
mass
Single-
cab
models
4WD models 3080 kg (6790 lb.)
Pre Runner 2950 kg (6504 lb.)
Smart-
cab
models
4WD models 3150 kg (6945 lb.)
Pre Runner 3000 kg (6614 lb.)
Double-
cab
models
4WD models 3210 kg (7077 lb.)*2
2910 kg (6415 lb.)*3
Pre Runner3050 kg (6724 lb.)*2
2810 kg (6195 lb.)*3
Maximum
permissible axle
capacity
Front 1450 kg (3197 lb.)
Rear
Single-cab models 1850 kg (4079 lb.)
Smart-cab and
double-cab models
1920 kg (4233 lb.)*2
1650 kg (3638 lb.)*3
Drawbar load
Single-
cab
models
4WD models 140 kg (309 lb.)
Pre Runner 115 kg (254 lb.)
Smart-
cab
models
4WD models
Except for GUN125L-
CNFSXW3 and
GUN125R-
CNFSXW3 models*4
135 kg (298 lb.)*5
130 kg (287 lb.)*6
For GUN125L-
CNFSXW3 and
GUN125R-
CNFSXW3 models*4
140 kg (309 lb.)
Pre Runner 120 kg (265 lb.)
Double-
cab
models
4WD models
Type A*7
125 kg (276 lb.)
Type B*8
130 kg (287 lb.)
Pre Runner 120 kg (265 lb.)*2
115 kg (254 lb.)*3

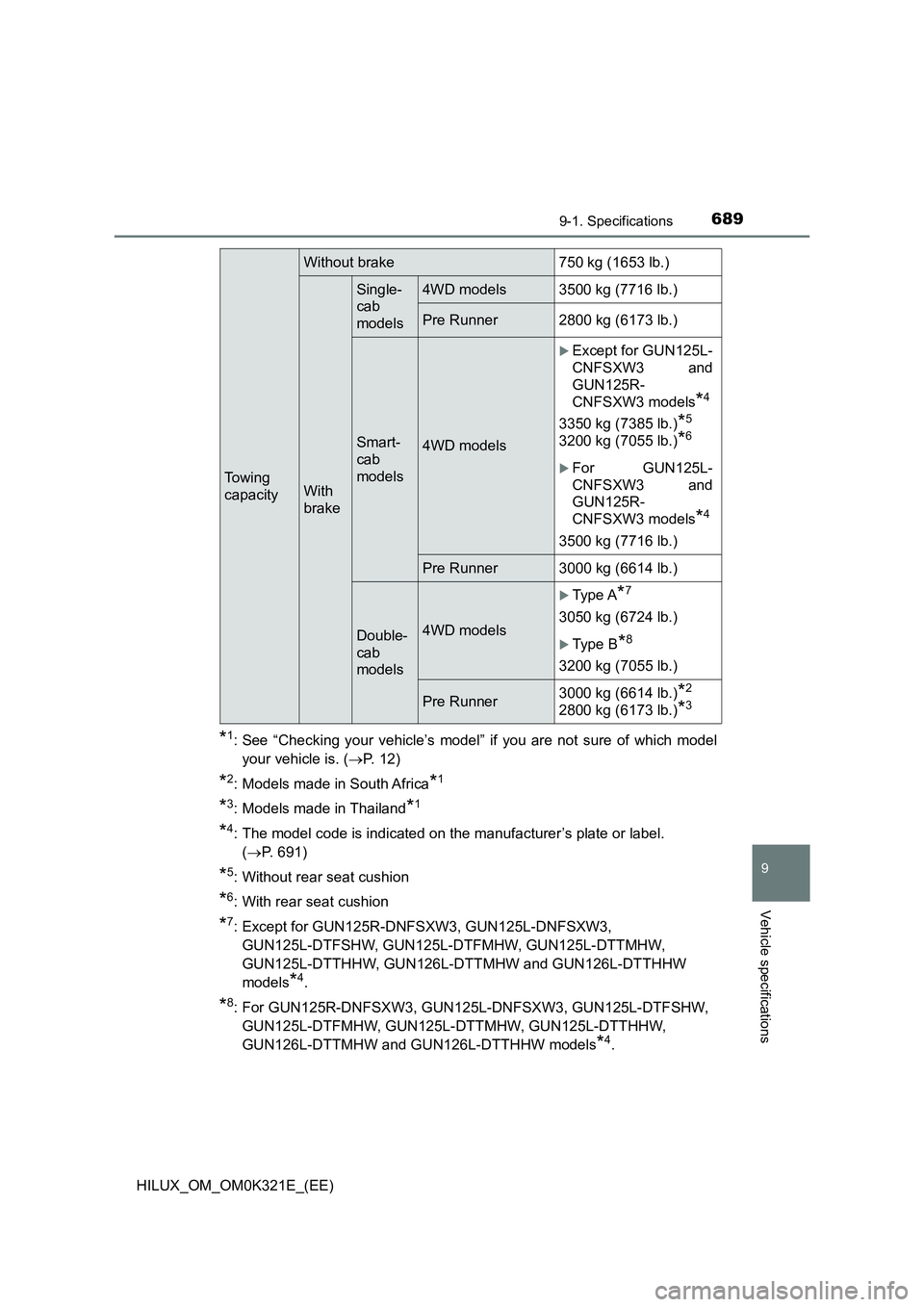

689
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K321E_(EE)
*1: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. ( P. 12)
*2: Models made in South Africa*1
*3: Models made in Thailand*1
*4: The model code is indicated on the manufacturer’s plate or label.
( P. 691)
*5: Without rear seat cushion
*6: With rear seat cushion
*7: Except for GUN125R-DNFSXW3, GUN125L-DNFSXW3,
GUN125L-DTFSHW, GUN125L-DTFMHW, GUN125L-DTTMHW,
GUN125L-DTTHHW, GUN126L-DTTMHW and GUN126L-DTTHHW
models*4.
*8: For GUN125R-DNFSXW3, GUN125L-DNFSXW3, GUN125L-DTFSHW,
GUN125L-DTFMHW, GUN125L-DTTMHW, GUN125L-DTTHHW,
GUN126L-DTTMHW and GUN126L-DTTHHW models*4.
To w i n g
capacity
Without brake 750 kg (1653 lb.)
With
brake
Single-
cab
models
4WD models 3500 kg (7716 lb.)
Pre Runner 2800 kg (6173 lb.)
Smart-
cab
models
4WD models
Except for GUN125L-
CNFSXW3 and
GUN125R-
CNFSXW3 models*4
3350 kg (7385 lb.)*5
3200 kg (7055 lb.)*6
For GUN125L-
CNFSXW3 and
GUN125R-
CNFSXW3 models*4
3500 kg (7716 lb.)
Pre Runner 3000 kg (6614 lb.)
Double-
cab
models
4WD models
Type A*7
3050 kg (6724 lb.)
Type B*8
3200 kg (7055 lb.)
Pre Runner 3000 kg (6614 lb.)*2
2800 kg (6173 lb.)*3

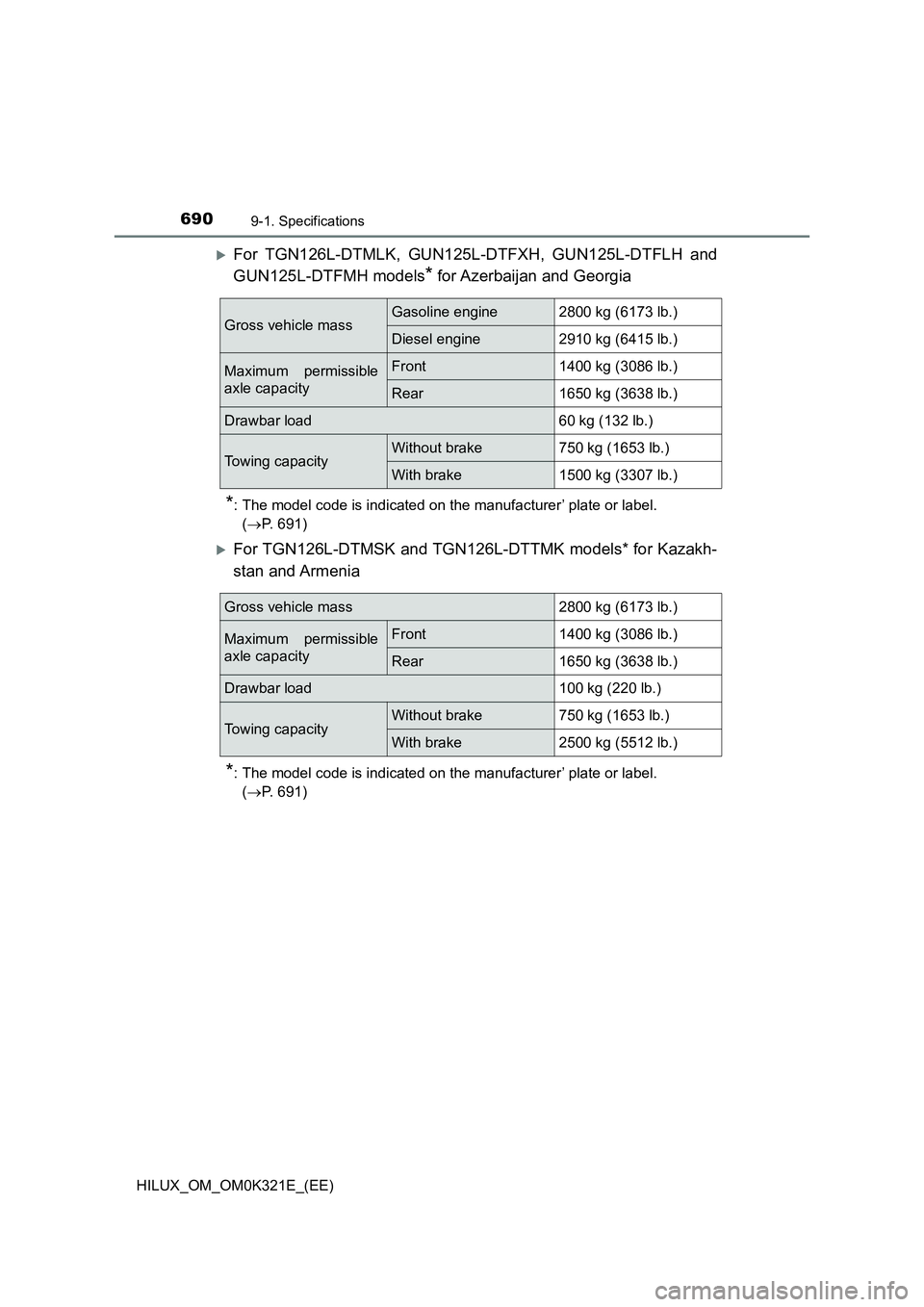

6909-1. Specifications
HILUX_OM_OM0K321E_(EE)
For TGN126L-DTMLK, GUN125L-DTFXH, GUN125L-DTFLH and
GUN125L-DTFMH models* for Azerbaijan and Georgia
*: The model code is indicated on the manufacturer’ plate or label.
( P. 691)
For TGN126L-DTMSK and TGN126L-DTTMK models* for Kazakh-
stan and Armenia
*: The model code is indicated on the manufacturer’ plate or label.
( P. 691)
Gross vehicle massGasoline engine2800 kg (6173 lb.)
Diesel engine2910 kg (6415 lb.)
Maximum permissible
axle capacity
Front1400 kg (3086 lb.)
Rear1650 kg (3638 lb.)
Drawbar load60 kg (132 lb.)
Towing capacityWithout brake750 kg (1653 lb.)
With brake1500 kg (3307 lb.)
Gross vehicle mass2800 kg (6173 lb.)
Maximum permissible
axle capacity
Front1400 kg (3086 lb.)
Rear1650 kg (3638 lb.)
Drawbar load100 kg (220 lb.)
Towing capacityWithout brake750 kg (1653 lb.)
With brake2500 kg (5512 lb.)
