9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K321E_(EE)

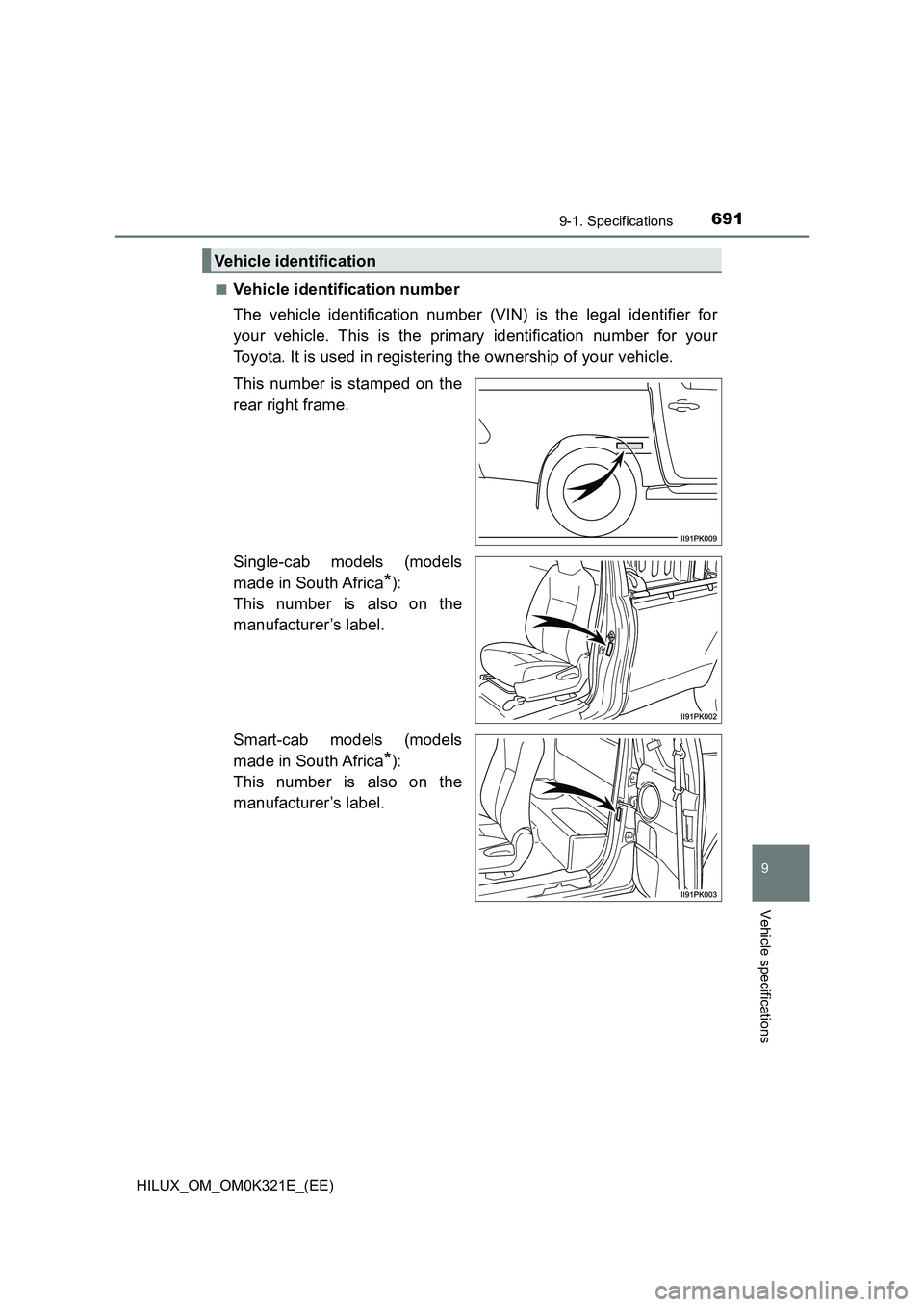

■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped on the
rear right frame.
Single-cab models (models
made in South Africa*):
This number is also on the
manufacturer’s label.
Smart-cab models (models
made in South Africa*):
This number is also on the
manufacturer’s label.
Vehicle identification

6929-1. Specifications
HILUX_OM_OM0K321E_(EE)

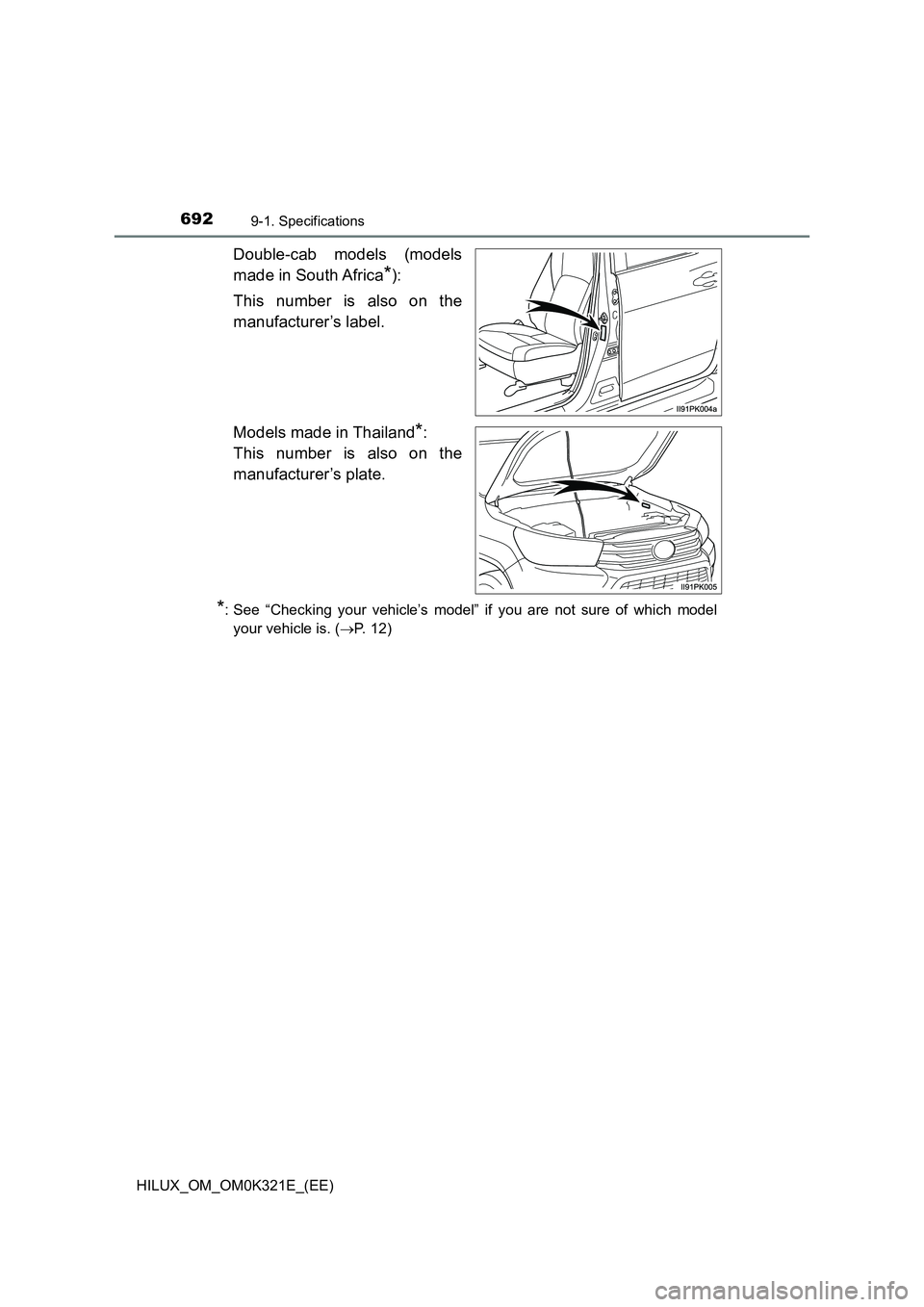

Double-cab models (models
made in South Africa*):
This number is also on the
manufacturer’s label.
Models made in Thailand*:
This number is also on the
manufacturer’s plate.
*: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. ( P. 1 2 )

693
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K321E_(EE)

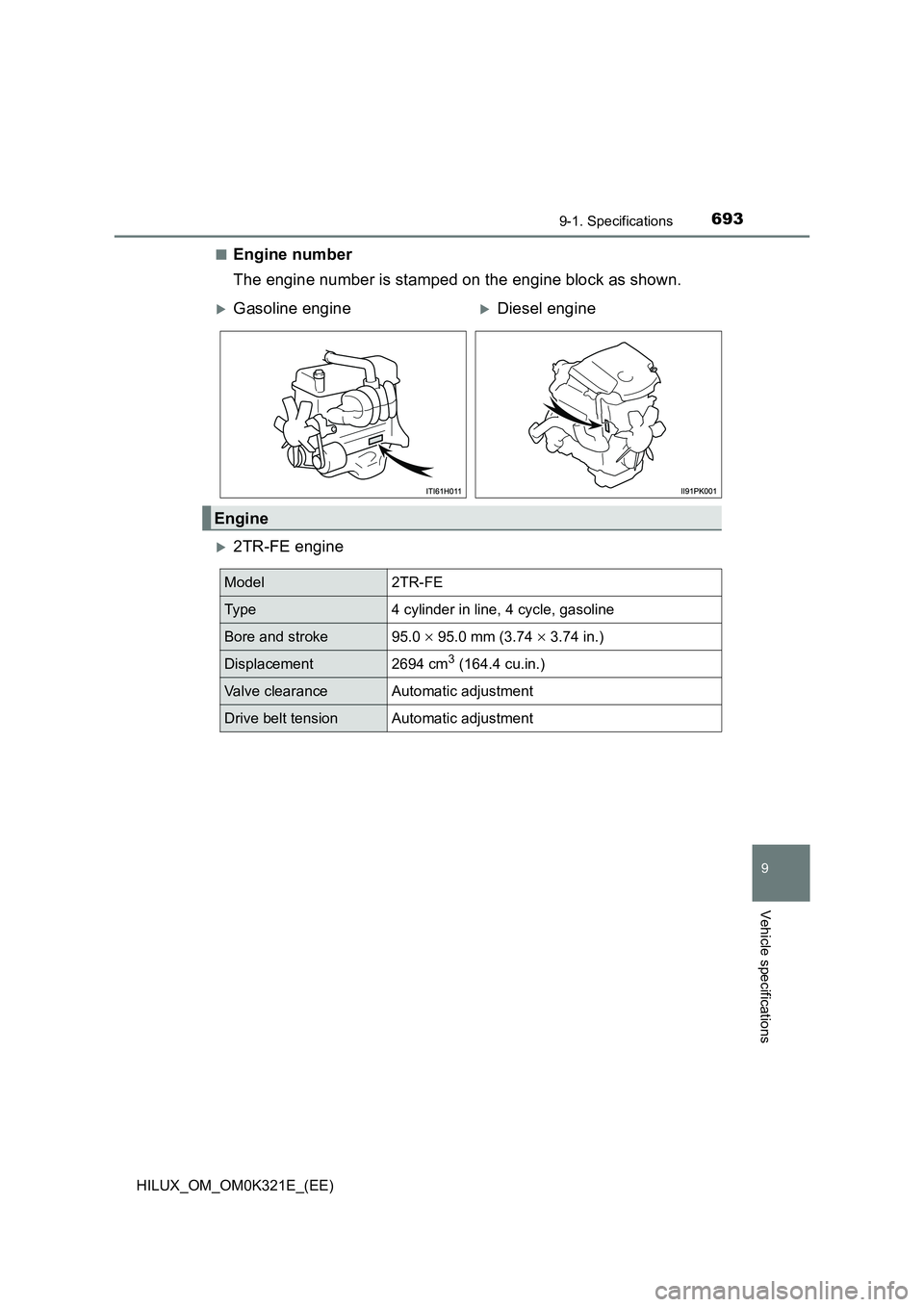

■Engine number
The engine number is stamped on the engine block as shown.
2TR-FE engine
Gasoline engineDiesel engine
Engine
Model2TR-FE
Ty p e4 cylinder in line, 4 cycle, gasoline
Bore and stroke95.0  95.0 mm (3.74  3.74 in.)
Displacement2694 cm3 (164.4 cu.in.)
Valve clearanceAutomatic adjustment
Drive belt tensionAutomatic adjustment

6949-1. Specifications
HILUX_OM_OM0K321E_(EE)

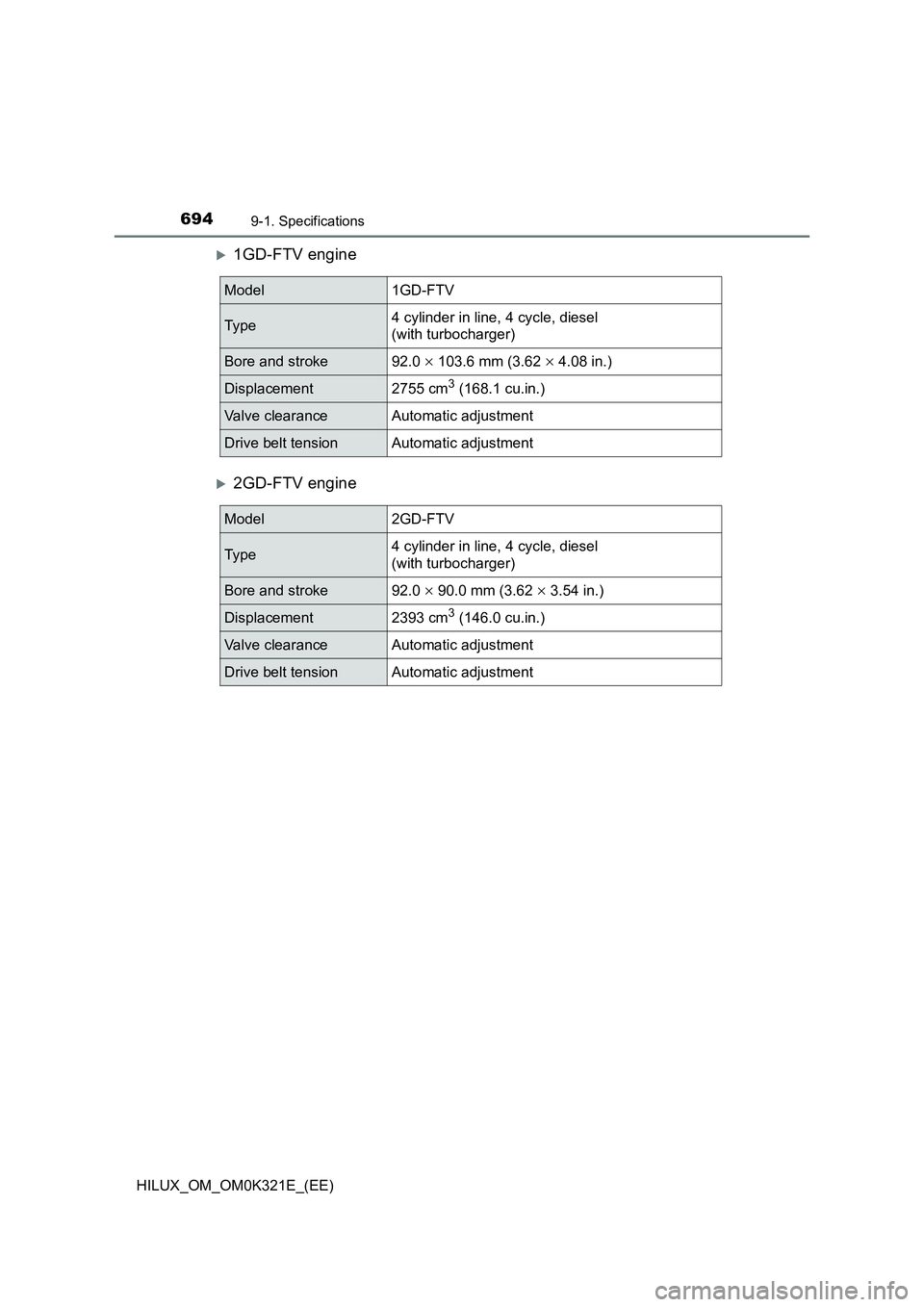

1GD-FTV engine
2GD-FTV engine
Model1GD-FTV
Ty p e4 cylinder in line, 4 cycle, diesel
(with turbocharger)
Bore and stroke92.0  103.6 mm (3.62  4.08 in.)
Displacement2755 cm3 (168.1 cu.in.)
Valve clearanceAutomatic adjustment
Drive belt tensionAutomatic adjustment
Model2GD-FTV
Ty p e4 cylinder in line, 4 cycle, diesel
(with turbocharger)
Bore and stroke92.0  90.0 mm (3.62  3.54 in.)
Displacement2393 cm3 (146.0 cu.in.)
Valve clearanceAutomatic adjustment
Drive belt tensionAutomatic adjustment

695
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K321E_(EE)
Gasoline engine
Diesel engine
Fuel
Fuel type
When you find these types of fuel label at the gas
station, use only the fuel with one of the following
labels.

Unleaded gasoline only
Research Octane
Number 91 or higher
Fuel tank capacity
(Reference)80 L (21.1 gal., 17.6 Imp.gal.)
Fuel type
When you find these types of fuel label at the gas
station, use only the fuel with one of the following
labels.

EU area:
Diesel fuel conforming to European standard
EN590 or EN16734
Except EU area:
Diesel fuel only
Russia only:
Diesel fuel conforming to GOST R52368-2005
(sulfur max 10 ppm)
Cetane number 48 or higher
Fuel tank capacity
(Reference)80 L (21.1 gal., 17.6 Imp.gal.)

6969-1. Specifications
HILUX_OM_OM0K321E_(EE)
Gasoline engine (except for EURO V models*1)
*1: EURO V is an emission standard. If it is not clear that your vehicle meets
relevant standards, contact any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.
*2: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving”, SN
“Resource-Conserving” or SN PLUS “Resource-Conserving”; or
ILSAC multigrade engine oil
15W-40 and 20W-50:
API grade SL, SM, SN or SN PLUS multigrade engine oil
Recommended viscosity (SAE):
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 0W-20, 5W-20
or 5W-30 engine oil is recom-
mended.
Lubrication system
Oil capacity
(Drain and refill  reference*2)
With filter
Without filter
5.6 L (5.9 qt., 4.9 Imp.qt.)
5.3 L (5.6 qt., 4.7 Imp.qt.)
Temperature range anticipated
before next oil change

697
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K321E_(EE)
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.

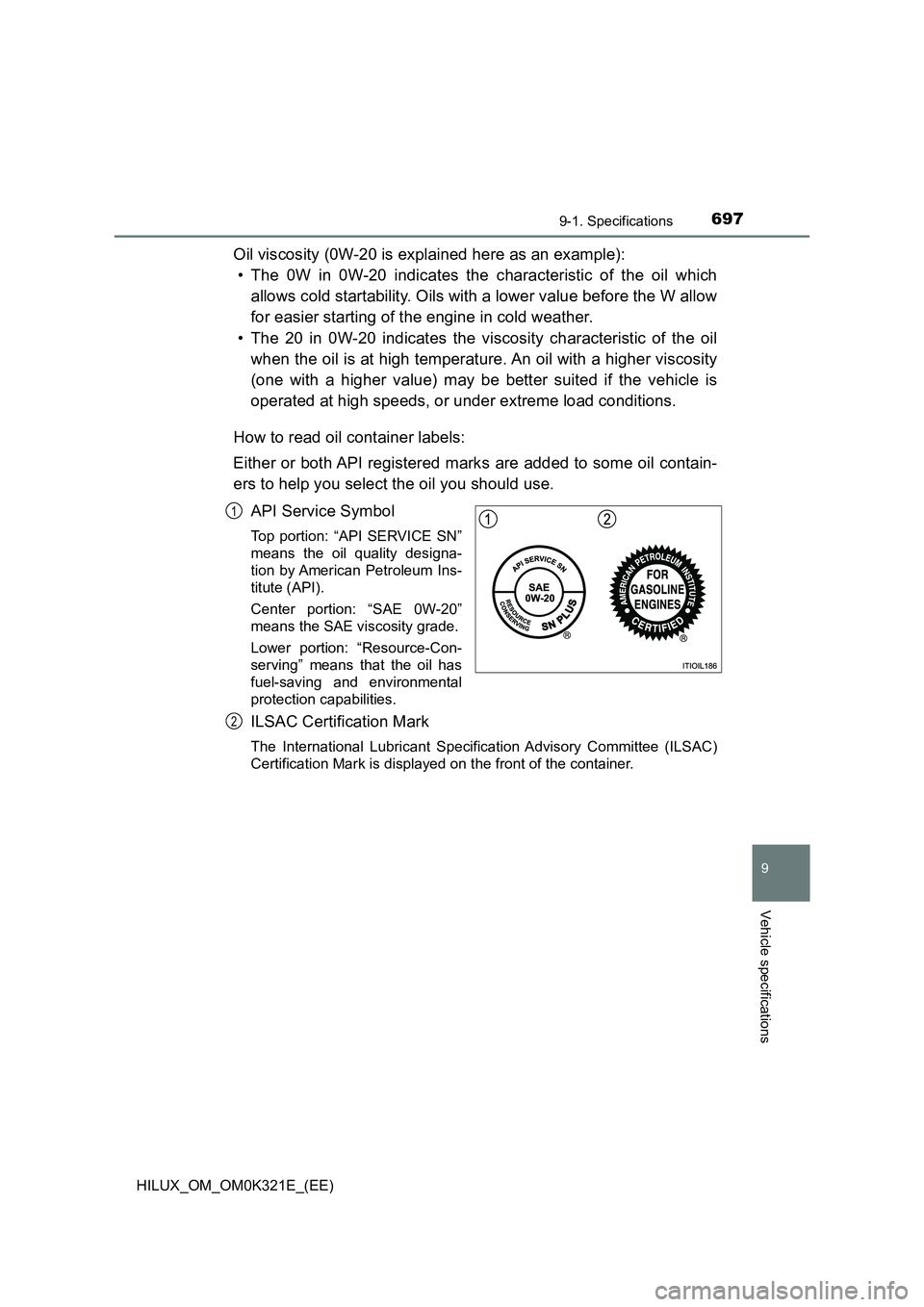

How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designa-
tion by American Petroleum Ins-
titute (API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-Con-
serving” means that the oil has
fuel-saving and environmental
protection capabilities.
ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
1
2

6989-1. Specifications
HILUX_OM_OM0K321E_(EE)
Gasoline engine (for EURO V models*1)
*1: EURO V is an emission standard. If it is not clear that your vehicle meets
relevant standards, contact any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.
*2: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving”, SN
“Resource-Conserving” or SN PLUS “Resource-Conserving”; or
ILSAC multigrade engine oil
15W-40:
API grade SL, SM, SN or SN PLUS multigrade engine oil
Recommended viscosity (SAE):
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 0W-20, 5W-20
or 5W-30 engine oil is recom-
mended.
Oil capacity
(Drain and refill  reference*2)
With filter
Without filter
5.6 L (5.9 qt., 4.9 Imp.qt.)
5.3 L (5.6 qt., 4.7 Imp.qt.)
Temperature range anticipated
before next oil change

699
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K321E_(EE)
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designa-
tion by American Petroleum Ins-
titute (API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-Con-
serving” means that the oil has
fuel-saving and environmental
protection capabilities.
ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
1
2

7009-1. Specifications
HILUX_OM_OM0K321E_(EE)
Diesel engine (except for EURO IV, V and VI models*1)
*1: EURO IV, V and VI are emission standards. If it is not clear that your vehi-
cle meets relevant standards, contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
*2: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.

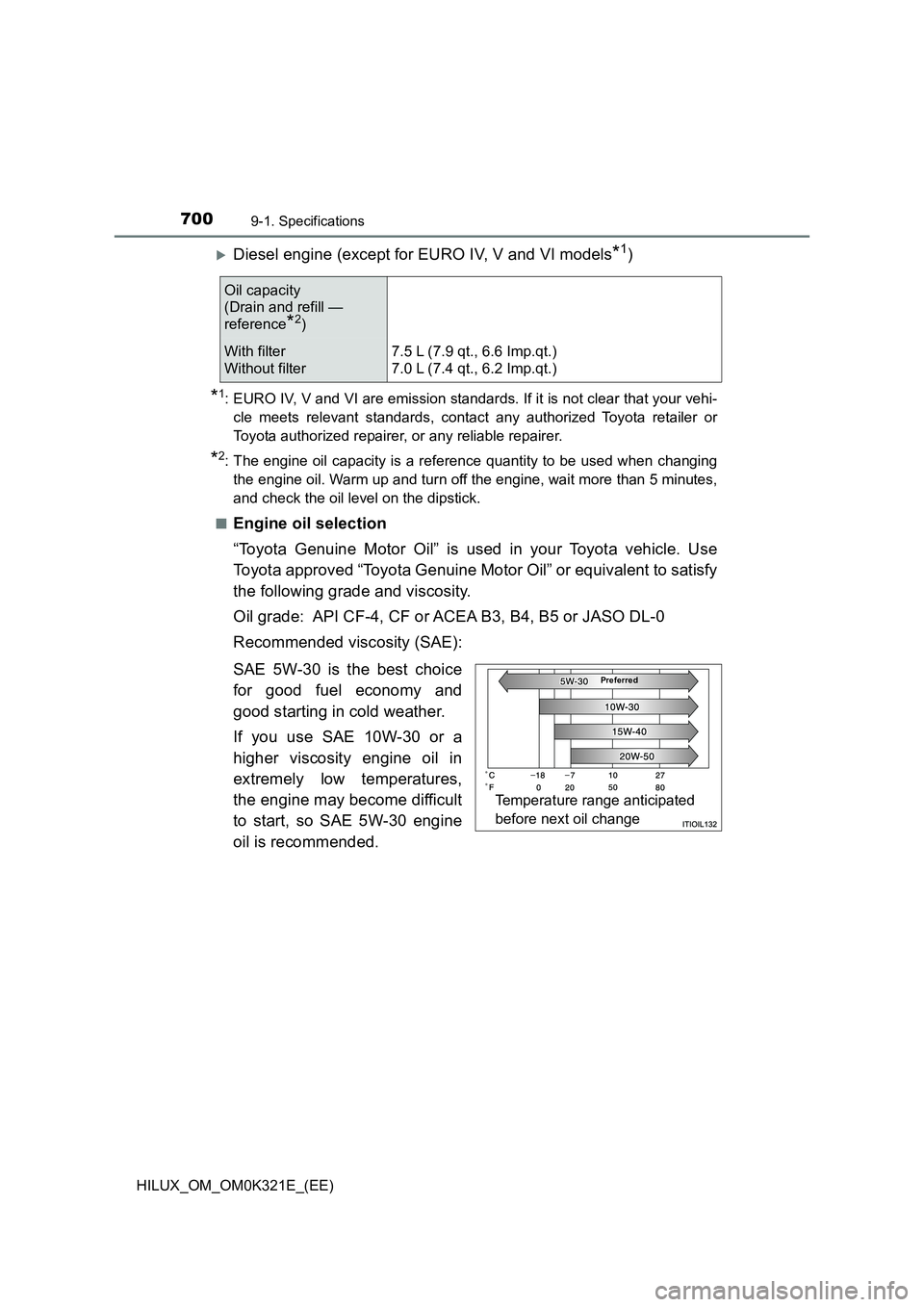

■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade: API CF-4, CF or ACEA B3, B4, B5 or JASO DL-0
Recommended viscosity (SAE):
SAE 5W-30 is the best choice
for good fuel economy and
good starting in cold weather.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 5W-30 engine
oil is recommended.
Oil capacity
(Drain and refill —
reference*2)
With filter
Without filter
7.5 L (7.9 qt., 6.6 Imp.qt.)
7.0 L (7.4 qt., 6.2 Imp.qt.)
Preferred
Temperature range anticipated
before next oil change
