bulb TOYOTA HILUX 2020 Owners Manual (in English)

5
1
9
8
6
5
4
3
2
HILUX_OM_OM0K321E_(EE)
7
6-4. Using the other interior
features
Other interior features ........548
• Sun visors ......................548
• Vanity mirror ..................548
• Clock .............................549
• Power outlets .................550
• Grocery bag hooks ........552
• Coat hooks ....................553
• Armrest ..........................553
7-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ..........556
Cleaning and protecting
the vehicle interior ...........560
7-2. Maintenance
Maintenance
requirements....................563
7-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ......................566
Hood ..................................568
Engine compartment..........570
Tires ...................................590
Tire inflation pressure ........593
Wheels ...............................595
Air conditioning filter ..........597
Wireless remote control/
electronic key battery.......599
Checking and
replacing fuses ................602
Light bulbs .........................607
8-1. Essential information
Emergency flashers .......... 624
If your vehicle has to
be stopped in an
emergency ...................... 625
8-2. Steps to take in an
emergency
If your vehicle needs
to be towed ..................... 627
If you think something is
wrong .............................. 632
Fuel pump shut off
system (gasoline engine
only) ................................ 633
If a warning light turns on
or a warning buzzer
sounds ............................ 634
If a warning message is
displayed ......................... 643
If you have a flat tire .......... 649
If the engine will not
start ................................. 666
If the electronic key does
not operate properly
(vehicles with smart
entry & start system) ....... 668
If the vehicle battery is
discharged ...................... 672
If your vehicle
overheats ........................ 678
If you run out of fuel
and the engine stalls
(diesel engine only) ......... 682
If the vehicle becomes
stuck................................ 683
7Maintenance and care
8When trouble arises

19Pictorial index
HILUX_OM_OM0K321E_(EE)
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 318
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 438
To prevent freezing (windshield wiper de-icer)*1. . . . . . . . . . . P. 520
Fuel filler door*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 320
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 320
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 695
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 590
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 711
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 438
Checking/rotation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 591
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 649
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 568
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 568
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 696
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 678
Camera*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 387
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 308
Front position lights/daytime running lights*1. . . . . . . . . . P. 308
Front fog lights*1/rear fog light*1, 2. . . . . . . . . . . . . . . . . . . P. 315
Front turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 306
Side turn signal lights (fender-mounted type or
mirror-mounted type) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 306
Rear turn signal lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 306
Stop/tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 308
Downhill assist control system*1. . . . . . . . . . . . . . . . . . . . . . . P. 430
License plate light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 308
Back-up lights*2
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . P. 293, 300
4
5
6
7
8
Light bulbs of the exterior lights for driving
(Replacing method: P. 607, Watts: P. 714)
*1: If equipped
*2: They may be located on the opposite side depending on the target region.
9
10
11
12
13
14
15
16
17

3064-2. Driving procedures
HILUX_OM_OM0K321E_(EE)
Turn signal lever
Right turn
Left turn
Lane change to the right (move
the lever partway and release
it)
The right hand signals will flash 3
times.
Lane change to the left (move
the lever partway and release
it)
The left hand signals will flash 3
times.
■ Turn signals can be operated when
Vehicles without smart entry & start system
The engine switch is in the “ON” position.
Vehicles with smart entry & start system
The engine switch is in IGNITION ON mode.
■ If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
■ If the turn signals stop flashing before a lane change has been per-
formed
Operate the lever again.
■ To discontinue flashing of the turn signals during a lane change
Operate the lever in the opposite direction.
■ Customization
The number of times the turn signals flash during a lane change can be
changed.
(Customizable features: P. 718)
Operating instructions
1
2
3
4

555
7Maintenance and care
HILUX_OM_OM0K321E_(EE)
7-1. Maintenance and care
Cleaning and protecting
the vehicle exterior .......... 556
Cleaning and protecting
the vehicle interior ........... 560
7-2. Maintenance
Maintenance
requirements.................... 563
7-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ...................... 566
Hood .................................. 568
Engine compartment.......... 570
Tires ................................... 590
Tire inflation pressure ........ 593
Wheels ............................... 595
Air conditioning filter .......... 597
Wireless remote control/
electronic key battery....... 599
Checking and
replacing fuses ................ 602
Light bulbs ......................... 607

5667-3. Do-it-yourself maintenance
HILUX_OM_OM0K321E_(EE)
Do-it-yourself service precautions
If you perform maintenance by yourself, be sure to follow the
correct procedure as given in these sections.
ItemsParts and tools
Battery condition
( P. 578)
•Warm water• Baking soda•Grease
• Conventional wrench (for terminal clamp bolts)
• Distilled water
Engine coolant/
intercooler
coolant
(if equipped) level
( P. 576)
• “Toyota Super Long Life Coolant” or a similar high
quality ethylene glycol-based non-silicate, non-
amine, non-nitrite and non-borate coolant with long-
life hybrid organic acid technology
“Toyota Super Long Life Coolant” is pre-mixed with
50% coolant and 50% deionized water.
• Funnel (used only for adding coolant)
Engine oil level
( P. 573)
• “Toyota Genuine Motor Oil” or equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses (P. 6 0 2 )• Fuse with same amperage rating as original
Light bulbs
( P. 607)
• Bulb with same number and wattage rating as origi-
nal
• Phillips-head screwdriver
• Flathead screwdriver•Wrench
Radiator,
condenser and
intercooler
(if equipped)
( P. 577)

Tire inflation
pressure
( P. 593)
• Tire pressure gauge• Compressed air source
Washer fluid
( P. 582)
• Water or washer fluid containing antifreeze (for win-
ter use)
• Funnel (used only for adding water or washer fluid)

6067-3. Do-it-yourself maintenance
HILUX_OM_OM0K321E_(EE)
■After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( P. 607)
● If the replaced fuse blows again, have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
WARNING
■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer as soon as possible.

6077-3. Do-it-yourself maintenance
HILUX_OM_OM0K321E_(EE)
7
Maintenance and care

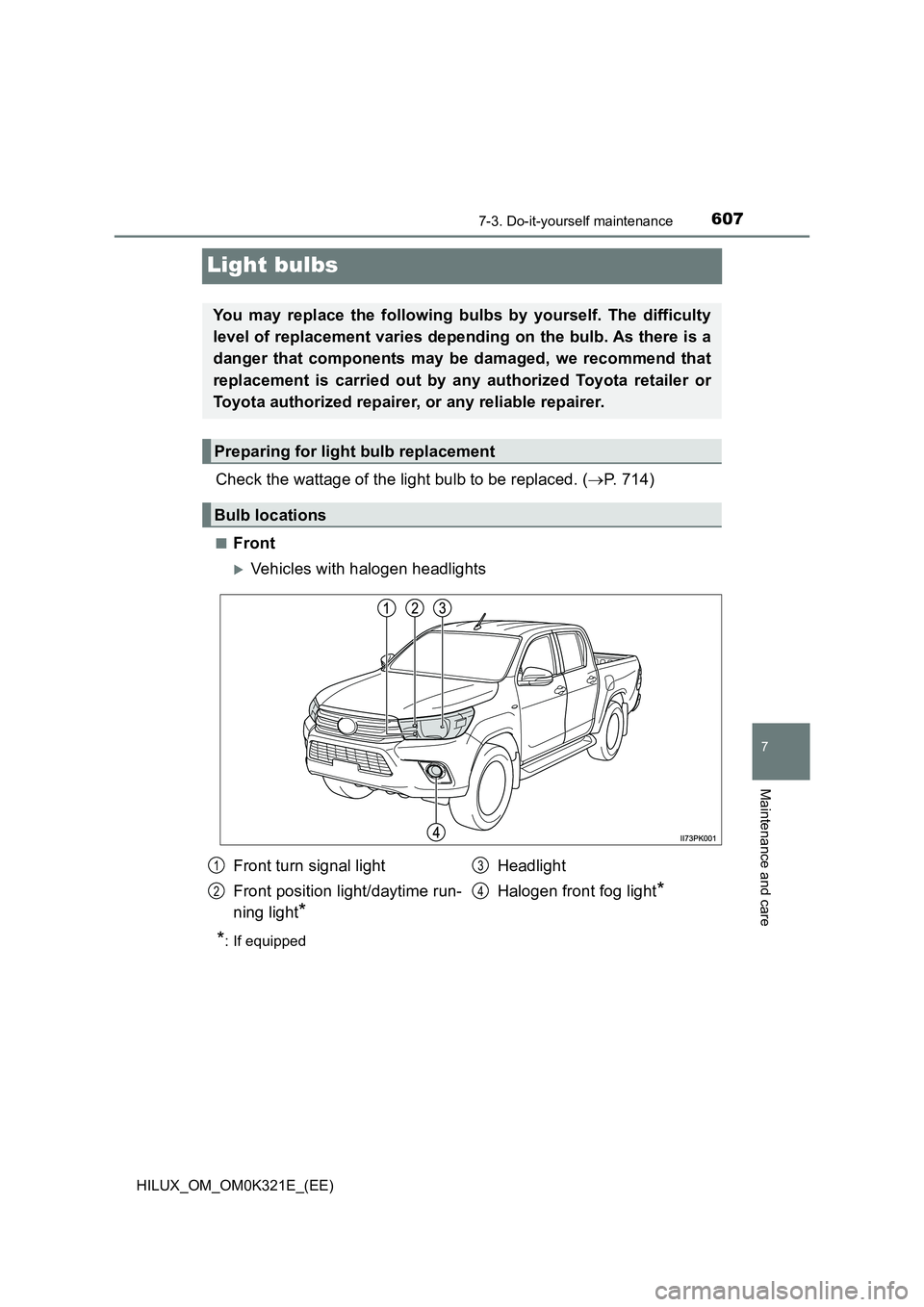

Light bulbs
Check the wattage of the light bulb to be replaced. (P. 714)
■Front
Vehicles with halogen headlights
*: If equipped
You may replace the following bulbs by yourself. The difficulty
level of replacement varies depending on the bulb. As there is a
danger that components may be damaged, we recommend that
replacement is carried out by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
Preparing for light bulb replacement
Bulb locations
Front turn signal light
Front position light/daytime run-
ning light*
Headlight
Halogen front fog light*
1
2
3
4

6097-3. Do-it-yourself maintenance
HILUX_OM_OM0K321E_(EE)
7
Maintenance and care
■Headlight high/low beams (vehicles with halogen headlights)
Unplug the connector and
remove the rubber cover.
Release the bulb retaining
spring.
Remove the bulb.
To install a new bulb, align the
tabs of the bulb with the cutouts
of the mounting hole.
When installing, reverse the steps listed.
Replacing light bulbs
1
2
3
4

6107-3. Do-it-yourself maintenance
HILUX_OM_OM0K321E_(EE)
■Headlight high beams (vehicles with LED headlights)
Unplug the connector while
depressing the lock release.
Turn the bulb base counter-
clockwise.
Replace the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb
base.
1
2
3
4

6117-3. Do-it-yourself maintenance
HILUX_OM_OM0K321E_(EE)
7
Maintenance and care
Install the connector
Shake the bulb base gently to
check that it is not loose, turn
the headlight high beams on
once and visually confirm that
no light is leaking through the
mounting.
■Front position lights/daytime running lights (if equipped)
(vehicles with halogen headlights)
Turn the bulb base counterclockwise.
Remove the light bulb.
When installing, reverse the steps listed.
5
1
Vehicles without daytime
running lights
Vehicles with daytime running
lights
2
Vehicles without daytime
running lights
Vehicles with daytime running
lights
3
