461-1. For safe use
HILUX_OM_OM0K321E_(EE)
WARNING
■When children are in the vehicle
 P. 9 3
■ Seat belt pretensioners
● Do not place anything, such as a cushion, on the front passenger’s seat.
Doing so will disperse the passenger’s weight, which prevents the sensor
from detecting the passenger’s weight properly. As a result, the seat belt
pretensioner for the front passenger’s seat may not activate in the event of
a collision.
● If the pretensioner has activated, the SRS warning light will come on. In
that case, the seat belt cannot be used again and must be replaced at any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
■ Adjustable shoulder anchor (if equipped)
Always make sure the shoulder belt is positioned across the center of your
shoulder. The belt should be kept away from your neck, but not falling off
your shoulder. Failure to do so could reduce the amount of protection in an
accident and cause death or serious injuries in the event of a sudden stop,
sudden swerve or accident. ( P. 43)
■ Seat belt damage and wear
● Do not damage the seat belts by allowing the belt, plate, or buckle to be
jammed in the door.
● Inspect the seat belt system periodically. Check for cuts, fraying, and loose
parts. Do not use a damaged seat belt until it is replaced. Damaged seat
belts cannot protect an occupant from death or serious injury.
● Ensure that the belt and plate are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
● Replace the seat assembly, including the belts, if your vehicle has been
involved in a serious accident, even if there is no obvious damage.
● Do not attempt to install, remove, modify, disassemble or dispose of the
seat belts. Have any necessary repairs carried out by any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer. Inap-
propriate handling may lead to incorrect operation.

3084-3. Operating the lights and wipers
HILUX_OM_OM0K321E_(EE)

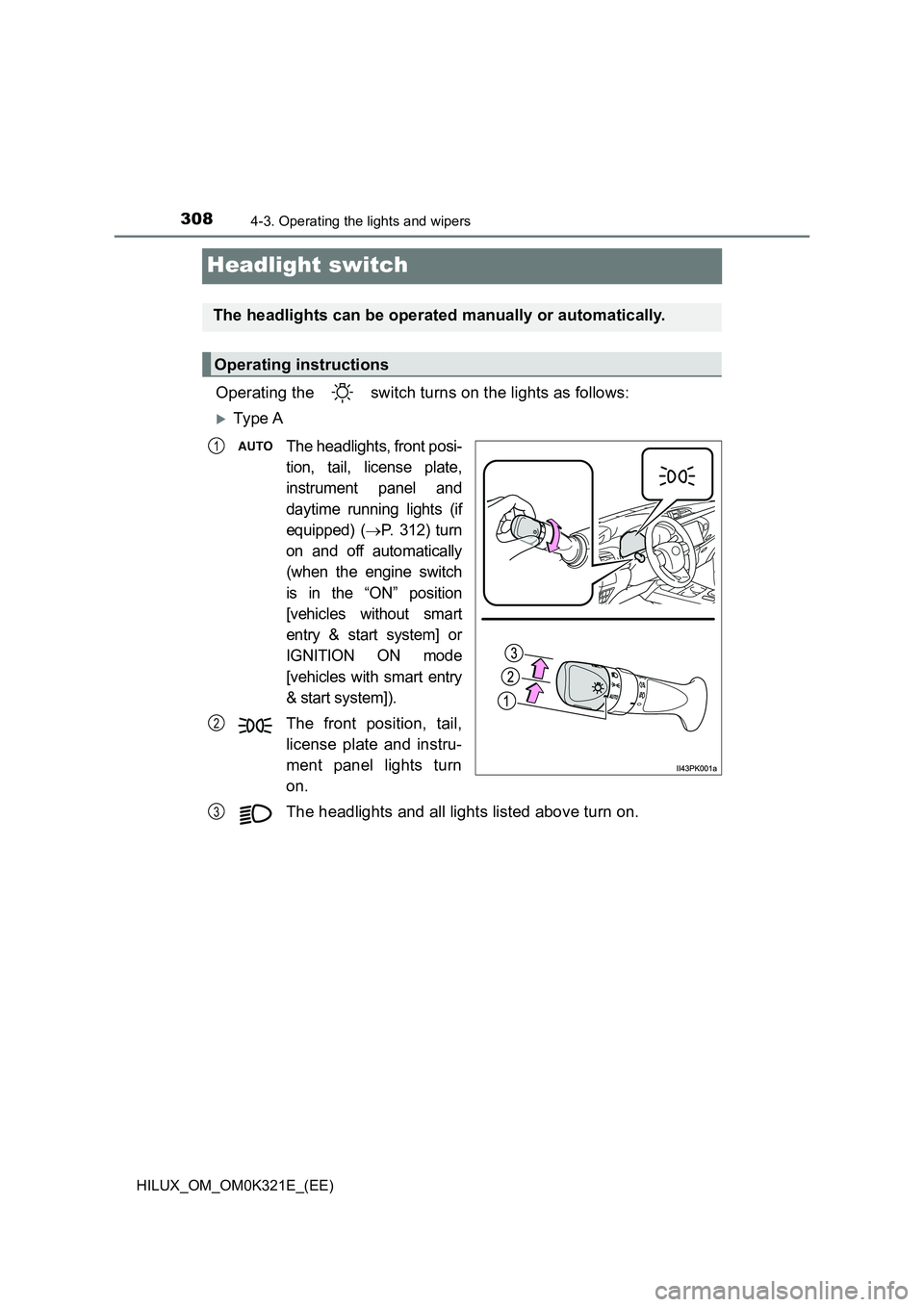

Headlight switch
Operating the switch turns on the lights as follows:
Ty pe A
The headlights, front posi-
tion, tail, license plate,
instrument panel and
daytime running lights (if
equipped) (P. 312) turn
on and off automatically
(when the engine switch
is in the “ON” position
[vehicles without smart
entry & start system] or
IGNITION ON mode
[vehicles with smart entry
& start system]).
The front position, tail,
license plate and instru-
ment panel lights turn
on.
The headlights and all lights listed above turn on.
The headlights can be operated manually or automatically.
Operating instructions
1
2
3

3094-3. Operating the lights and wipers
4
Driving
HILUX_OM_OM0K321E_(EE)

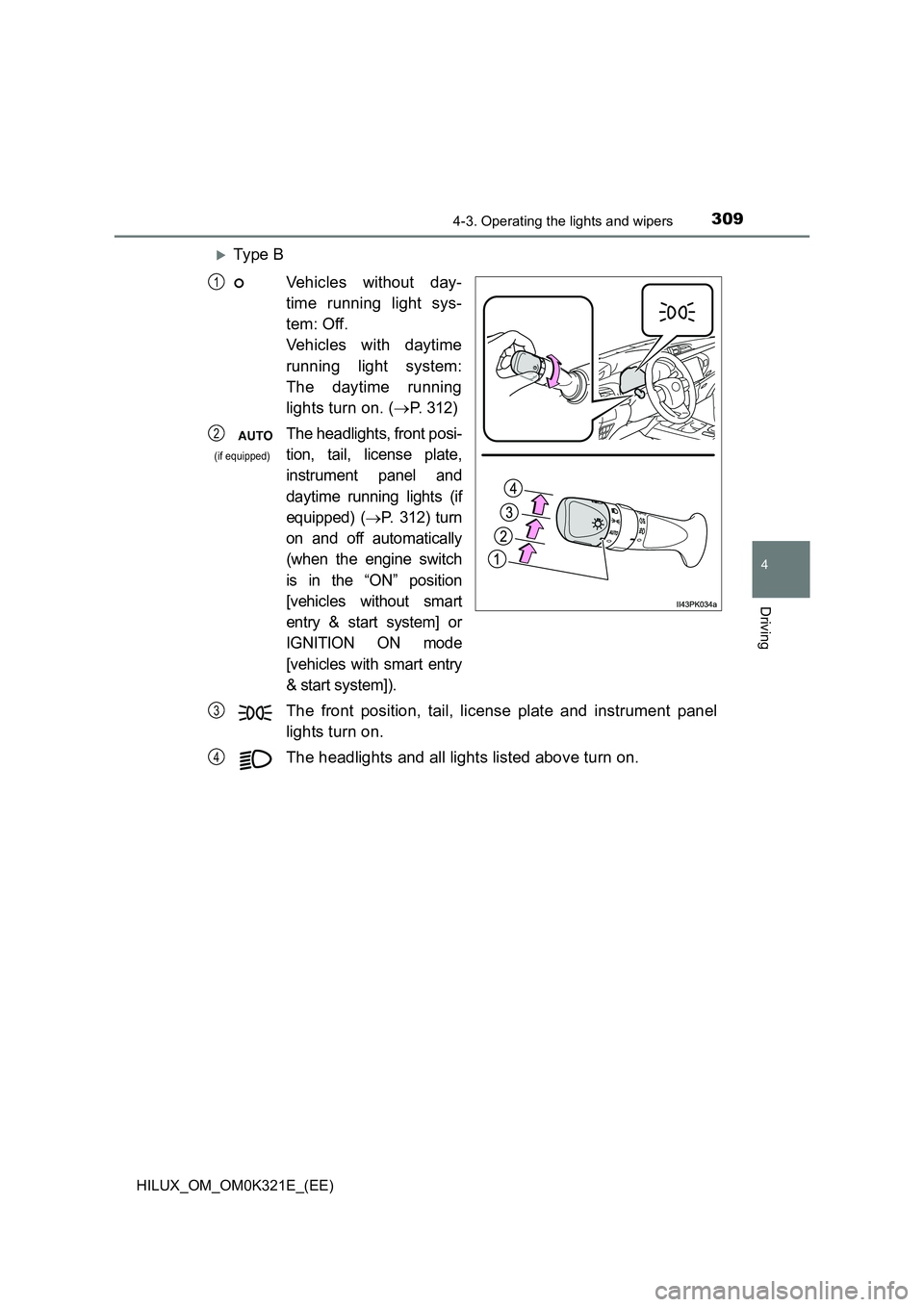

Ty pe B
Vehicles without day-
time running light sys-
tem: Off.
Vehicles with daytime
running light system:
The daytime running
lights turn on. ( P. 3 1 2)
The headlights, front posi-
tion, tail, license plate,
instrument panel and
daytime running lights (if
equipped) (P. 312) turn
on and off automatically
(when the engine switch
is in the “ON” position
[vehicles without smart
entry & start system] or
IGNITION ON mode
[vehicles with smart entry
& start system]).
The front position, tail, license plate and instrument panel
lights turn on.
The headlights and all lights listed above turn on.
1
2
(if equipped)
3
4

3474-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K321E_(EE)

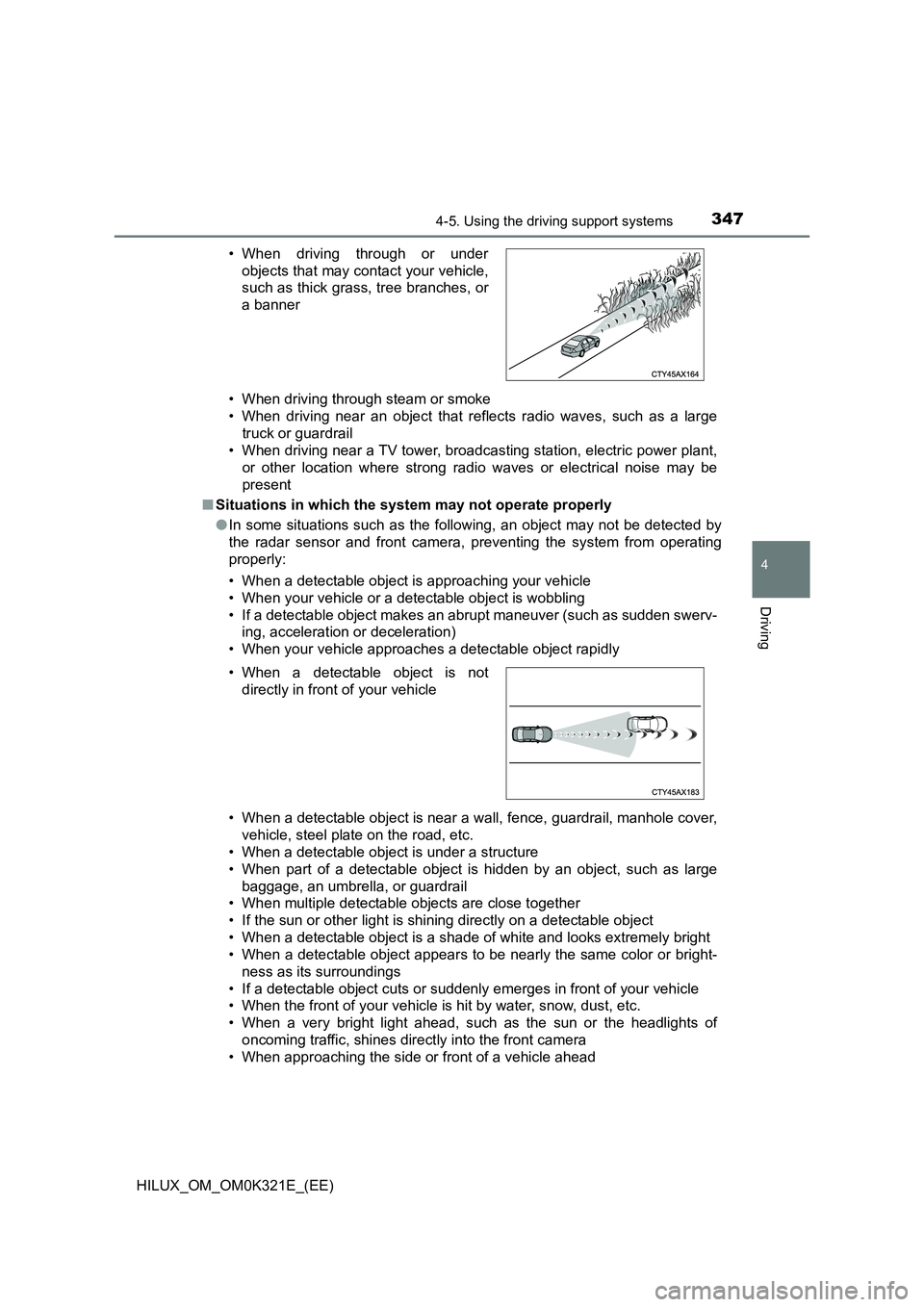

• When driving through steam or smoke
• When driving near an object that reflects radio waves, such as a large
truck or guardrail
• When driving near a TV tower, broadcasting station, electric power plant,
or other location where strong radio waves or electrical noise may be
present
■ Situations in which the system may not operate properly
● In some situations such as the following, an object may not be detected by
the radar sensor and front camera, pr eventing the system from operating
properly:
• When a detectable object is approaching your vehicle
• When your vehicle or a detectable object is wobbling
• If a detectable object makes an abrupt maneuver (such as sudden swerv-
ing, acceleration or deceleration)
• When your vehicle approaches a detectable object rapidly
• When a detectable object is near a wall, fence, guardrail, manhole cover,
vehicle, steel plate on the road, etc.
• When a detectable object is under a structure
• When part of a detectable object is hidden by an object, such as large
baggage, an umbrella, or guardrail
• When multiple detectable objects are close together
• If the sun or other light is shining directly on a detectable object
• When a detectable object is a shade of white and looks extremely bright
• When a detectable object appears to be nearly the same color or bright-
ness as its surroundings
• If a detectable object cuts or suddenly emerges in front of your vehicle
• When the front of your vehicle is hit by water, snow, dust, etc.
• When a very bright light ahead, such as the sun or the headlights of
oncoming traffic, shines dire ctly into the front camera
• When approaching the side or front of a vehicle ahead
• When driving through or under
objects that may contact your vehicle,
such as thick grass, tree branches, or
a banner
• When a detectable object is not
directly in front of your vehicle

6087-3. Do-it-yourself maintenance
HILUX_OM_OM0K321E_(EE)
Vehicles with LED headlights
*: If equipped
■Rear
*: If equipped
Headlight (high beam)
Front turn signal light
Halogen front fog light*1
2
3
Rear fog light*
(left-hand drive vehicles)
or back-up light
License plate light
Stop/tail light
Rear fog light*
(right-hand drive vehicles)
or back-up light
Rear turn signal light
1
2
3
4
5

6197-3. Do-it-yourself maintenance
HILUX_OM_OM0K321E_(EE)
7
Maintenance and care

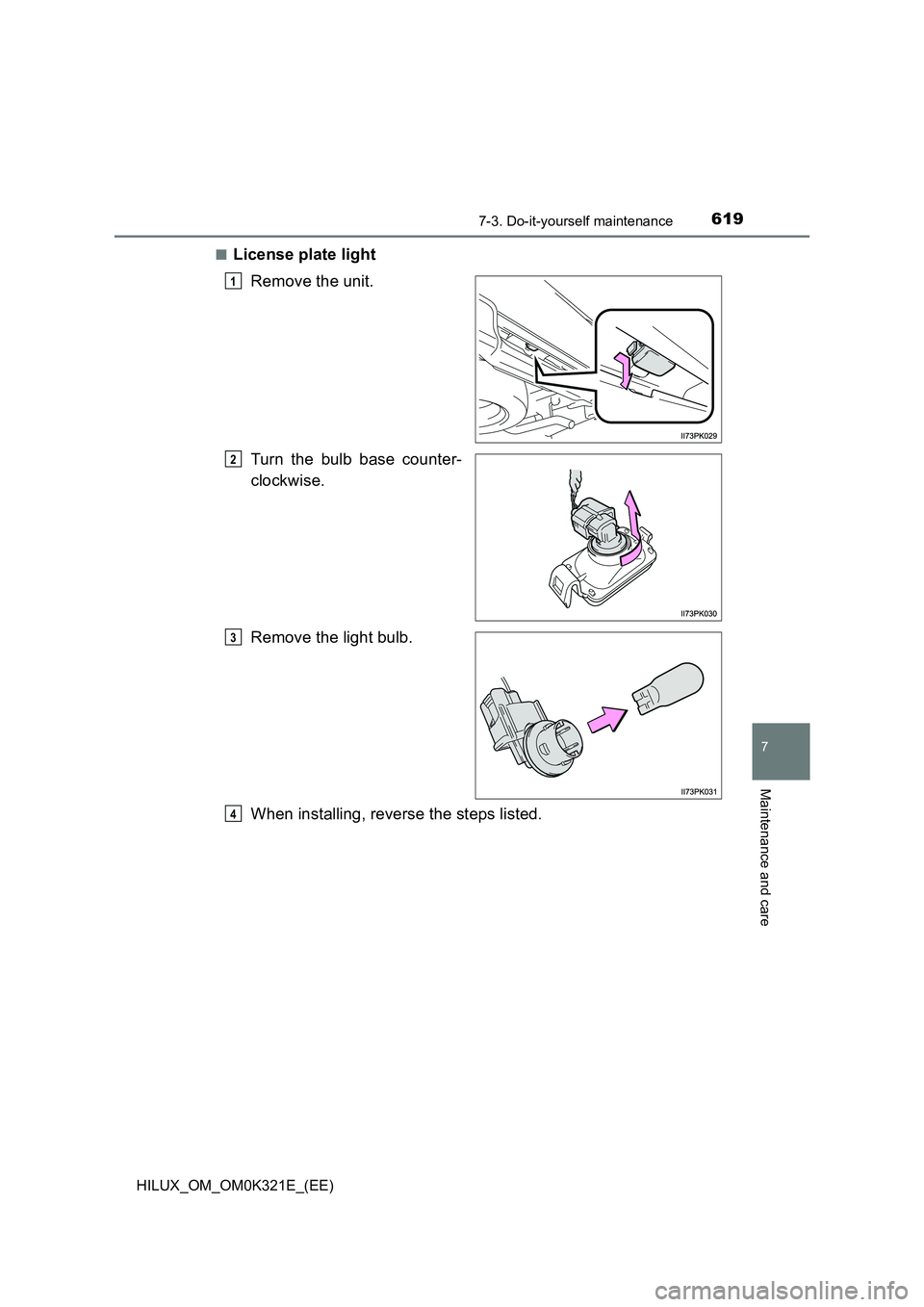

■License plate light
Remove the unit.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4

7149-1. Specifications
HILUX_OM_OM0K321E_(EE)
*1: If equipped
*2: The wattage differs depending on the specification. When replacing, use a
light bulb with the same wattage as the original bulb.
Light bulbs
Light bulbsWTyp e
Exterior
Headlights
High/low beams (halogen headlights)
High beams (LED headlights)
60/55
60
A
B
Halogen front fog lights*119 C
Front position lights (halogen headlights)
Without daytime running lights
With daytime running lights
5
21/5
D
D
Front turn signal lights
Halogen headlights
LED headlights
21
21
E
F
Rear turn signal lights 21 E
Back-up lights 21 G
Rear fog light*121 G
License plate light 5 D
Stop/tail lights 21/5 G
Interior Interior light*18H
Personal/interior lights 5 or 8*2D
A: H4 halogen bulbs
B: HB3 halogen bulbs
C: H16 halogen bulbs
D: Wedge base bulbs (clear)
E: Single end bulbs (amber)
F: Wedge base bulbs (amber)
G: Single end bulbs (clear)
H: Double end bulbs

738Alphabetical index
HILUX_OM_OM0K321E_(EE)
Jack
Vehicle-equipped jack ........... 650
Jack handle .............................. 655
Jam protection function
Power windows ..................... 249
Keyless entry
Smart entry & start system.... 188
Wireless remote control ........ 166
Keys .......................................... 164
Electronic key........................ 164
Engine switch ........................ 282
If the electronic key does
not operate properly ........... 668
If you lose your keys ............. 168
Key number plate .................. 164
Keyless entry ........................ 166
Keys ...................................... 164
Replacing the battery ............ 599
Wireless remote
control key .......................... 166
Lever
Auxiliary catch lever .............. 568
Hood lock release lever ........ 568
Shift lever ...................... 293, 300
Turn signal lever ................... 306
Wiper lever ............................ 318
LDA (Lane Departure Alert
with Yaw Assist Function) .... 350
License plate light
Light switch ........................... 308
Replacing light bulbs ............. 619
Wattage................................. 714
Light
Engine switch light ................ 537
Fog light switch ..................... 315
Headlight switch.................... 308
Illuminated entry system ....... 539
Interior lights ......................... 538
Interior light list...................... 537
Personal/interior lights .......... 538
Replacing light bulbs............. 607
Turn signal lever ................... 306
Wattage ................................ 714
Light bulbs
Replacing .............................. 607
Wattage ................................ 714
Lock steering column ..... 284, 290
Maintenance
Do-it-yourself maintenance ... 566
Maintenance data ................. 686
Maintenance requirements ... 563
Malfunction indicator lamp ..... 635
Manual headlight
leveling dial............................ 310
Manual transmission ............... 300
Master warning light................ 639
Meter
Indicators .............................. 134
Instrument panel light
control................................. 144
Meters ................................... 142
Multi-information
display ........................ 147, 151
Warning lights ....................... 634
Microphone .............................. 484
Mirrors
Inside rear view mirror .......... 244
Outside rear view mirror
defoggers ................... 519, 528
Outside rear view mirrors...... 245
Vanity mirror ......................... 548
J
K
L
M
