1673-1. Key information
3
Operation of each component
HILUX_OM_OM0K321E_(EE)
To take out the mechanical key,
slide the release lever and take
the key out.
The mechanical key can only be
inserted in one direction, as the
key only has grooves on one side.
If the key cannot be inserted in a
lock cylinder, turn it over and re-
attempt to insert it.
After using the mechanical key, store it in the electronic key. Carry the
mechanical key together with the electronic key. If the electronic key bat-
tery is depleted or the entry func tion does not operate properly, you will
need the mechanical key. ( P. 668)
■Panic mode (if equipped)
■ When required to leave the vehicle’s key with a parking attendant
Lock the glove box as circumstances demand. ( P. 541)
Vehicles without smart entry & start system
Carry the master key for your own use and provide the attendant with the
valet key.
Vehicles with smart entry & start system
Remove the mechanical key for your own use and provide the attendant with
the electronic key only. If there is the supplementary key, carry the supple-
mentary key for your own use as well as the mechanical key.
Using the mechanical key (vehicles with smart entry & start sys-
tem)
When is pressed for longer than
about one second, an alarm will sound
intermittently and the vehicle lights will
flash to deter any person from trying to
break into or damage your vehicle.
To stop the alarm, press any button on the
wireless remote control.

1993-2. Opening, closing and locking the doors
3
Operation of each component
HILUX_OM_OM0K321E_(EE)
■ Effective range (areas within which the electronic key is detected)
When starting the engine or changing engine switch modes
The system can be operated when the electronic key is inside the vehicle.
(The electronic key is not detected when it is on the floor or on the instru-
ment panel.)
■ Battery-saving function
The battery-saving function will be activated in order to prevent the electronic
key battery and the battery from being discharged while the vehicle is not in
operation for a long time.
■ Electronic Key Battery-Saving Function
When battery-saving mode is set, battery depletion is minimized by stopping
the electronic key from receiving radio waves.
When locking or unlocking the doors
The system can be operated when the
electronic key is within about 0.7 m (2.3
ft.) of either of the lock/unlock button on
the outside door handle. (Only the
doors detecting the key can be oper-
ated.)
Press twice while pressing and
holding . Confirm that the electronic
key indicator flashes 4 times.
While the battery-saving mode is set, the
smart entry & start system cannot be
used. To cancel the function, press any of
the electronic key buttons.

2033-2. Opening, closing and locking the doors
3
Operation of each component
HILUX_OM_OM0K321E_(EE)
■ If the smart entry & start system does not operate properly
● Locking and unlocking the doors: Use the mechanical key. (P. 668)
● Starting the engine: P. 669
■ Electronic key battery depletion
● The standard battery life is 1 to 2 years.
● If the battery becomes low, an alarm will sound in the cabin when the engine
stops.
● As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate that the electronic key battery may be depleted. Replace the battery
when necessary. ( P. 599)
• The smart entry & start system or the wireless remote control does not
operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
● To avoid serious deterioration, do not leave the electronic key within 1 m (3
ft.) of the following electrical appliances that produce a magnetic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Table lamps
• Induction cookers
■ If “KEY LEFT INSIDE VEHICLE”/“Key left inside vehicle” is shown on the
multi-information display (if equipped)
An attempt was made to lock the doors using the smart entry & start system
while the electronic key was still inside the vehicle, or an attempt was made
to lock either front door by opening a door and putting the inside lock button
into the lock position, then closing the door by pulling on the outside door
handle with the electronic key still inside the vehicle.
Retrieve the electronic key from the vehicle and lock the doors again.
■ Customization that can be configured at any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer
Settings (e.g. smart entry & start system) can be changed.
(Customizable features: P. 718)
■ If the smart entry & start system has been deactivated in a customized
setting
● Locking and unlocking the doors:
Use the wireless remote control or mechanical key. ( P. 188, 668)
● Starting the engine and changing engine switch modes: P. 669
● Stopping the engine: P. 287

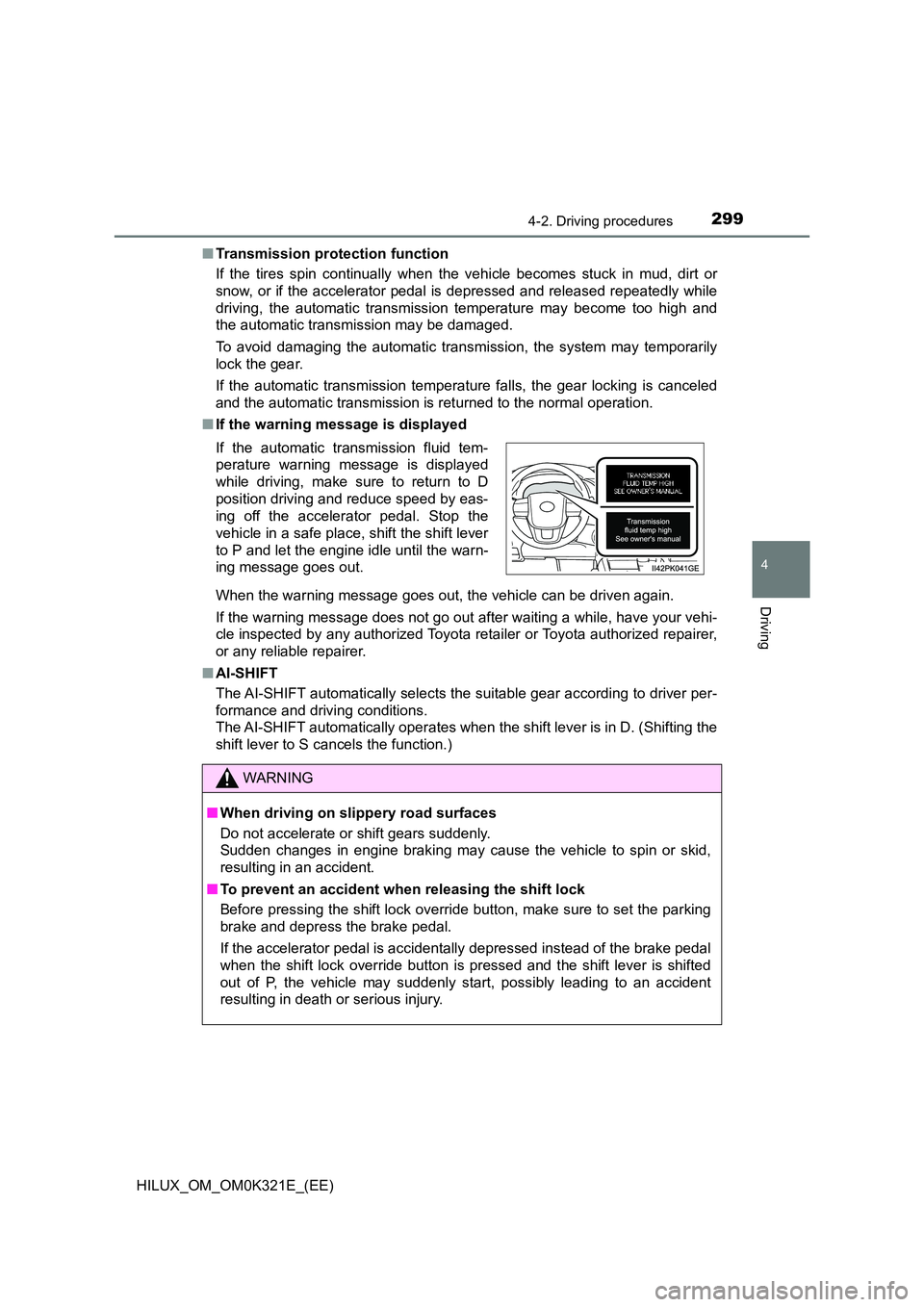

2994-2. Driving procedures
4
Driving
HILUX_OM_OM0K321E_(EE)
■ Transmission protection function
If the tires spin continually when the vehicle becomes stuck in mud, dirt or
snow, or if the accelerator pedal is depressed and released repeatedly while
driving, the automatic transmission temperature may become too high and
the automatic transmission may be damaged.
To avoid damaging the automatic transmission, the system may temporarily
lock the gear.
If the automatic transmission temperature falls, the gear locking is canceled
and the automatic transmission is returned to the normal operation.
■ If the warning message is displayed
When the warning message goes out, the vehicle can be driven again.
If the warning message does not go out after waiting a while, have your vehi-
cle inspected by any authorized Toyota retailer or Toyota authorized repairer,
or any reliable repairer.
■ AI-SHIFT
The AI-SHIFT automatically selects the suitable gear according to driver per-
formance and driving conditions.
The AI-SHIFT automatically operates when the shift lever is in D. (Shifting the
shift lever to S cancels the function.)
If the automatic transmission fluid tem-
perature warning message is displayed
while driving, make sure to return to D
position driving and reduce speed by eas-
ing off the accelerator pedal. Stop the
vehicle in a safe place, shift the shift lever
to P and let the engine idle until the warn-
ing message goes out.
WARNING
■ When driving on slippery road surfaces
Do not accelerate or shift gears suddenly.
Sudden changes in engine braking may cause the vehicle to spin or skid,
resulting in an accident.
■ To prevent an accident when releasing the shift lock
Before pressing the shift lock override button, make sure to set the parking
brake and depress the brake pedal.
If the accelerator pedal is accidentally depressed instead of the brake pedal
when the shift lock override button is pressed and the shift lever is shifted
out of P, the vehicle may suddenly start, possibly leading to an accident
resulting in death or serious injury.

741Alphabetical index
HILUX_OM_OM0K321E_(EE)
Shift lever
Automatic transmission ......... 293
If the shift lever cannot be
shifted from P ..................... 298
Manual transmission ............. 300
Shift lock system ..................... 297
Side airbags ............................... 47
Side doors ................................ 188
Side mirrors.............................. 245
Adjusting and folding............. 245
Heaters ......................... 519, 528
Side turn signal lights
Replacing light bulbs ............. 620
Turn signal lever ................... 306
Smart entry & start system ..... 198
Antenna location ................... 198
Entry functions ...................... 188
Starting the engine ................ 285
Warning message ................. 643
Snow tires................................. 438
“SOS” button ........................... 100
Spare tire
Inflation pressure .................. 711
Storage location .................... 649
Spark plug ................................ 707
Specifications .......................... 686
Speedometer ............................ 143
Steering
Column lock release ..... 284, 290
Fluid ...................................... 711
Steering wheel
Adjustment ............................ 242
Audio switches ...................... 444
Heated steering wheel .......... 535
Meter control switches .......... 152
Stop & Start system................. 412
Stop lights
Replacing light bulbs ............. 618
Wattage................................. 714
Storage feature ........................ 540
Storage precautions ................ 540
Stuck
If your vehicle becomes
stuck ................................... 683
Sun visors ................................ 548
Switch
Audio remote control
switches*........................... 444
Cruise control switch............. 383
“DISP” button ........................ 148
Door lock switch.................... 190
Emergency flashers switch ... 624
Engine switch................ 282, 285
Fog light switch ..................... 315
Front-wheel drive control
switch ................................. 398
Heated steering wheel
switch ................................. 535
Ignition switch ............... 282, 285
LDA (Lane Departure
Alert with Yaw Assist
Function) ............................ 356
Light switches ....................... 308
Meter control switches .......... 152
Outside rear view mirror
switches.............................. 245
Power door lock switch ......... 190
Power window switch............ 248
Rear differential lock
switch ................................. 408
Rear window and outside
rear view mirror
defoggers switch ........ 519, 528
Seat heater switches ............ 535
“SOS” button ......................... 100
Talk switch*
Telephone switches*............ 486
Window lock switch............... 249
Windshield wipers and
washer switch ..................... 318
*: Refer to “Navigation and multimedia system Owner’s manual”.
