wheel torque TOYOTA HILUX 2020 Owners Manual (in English)

4234-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K321E_(EE)

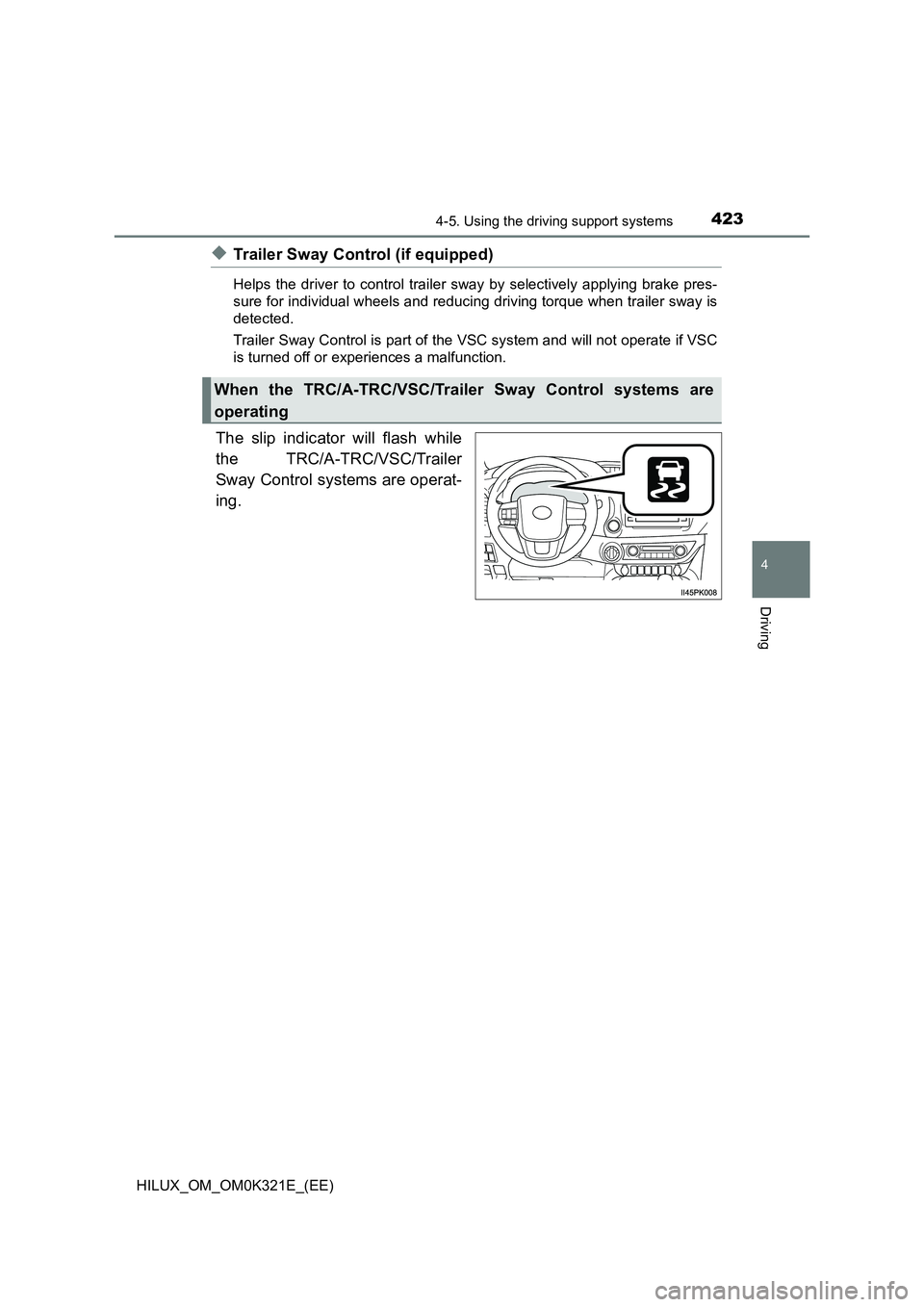

◆Trailer Sway Control (if equipped)
Helps the driver to control trailer sway by selectively applying brake pres-
sure for individual wheels and reducing driving torque when trailer sway is
detected.
Trailer Sway Control is part of the VSC system and will not operate if VSC
is turned off or experiences a malfunction.
The slip indicator will flash while
the TRC/A-TRC/VSC/Trailer
Sway Control systems are operat-
ing.
When the TRC/A-TRC/VSC/Trailer Sway Control systems are
operating

6598-2. Steps to take in an emergency
HILUX_OM_OM0K321E_(EE)
8
When trouble arises
WARNING

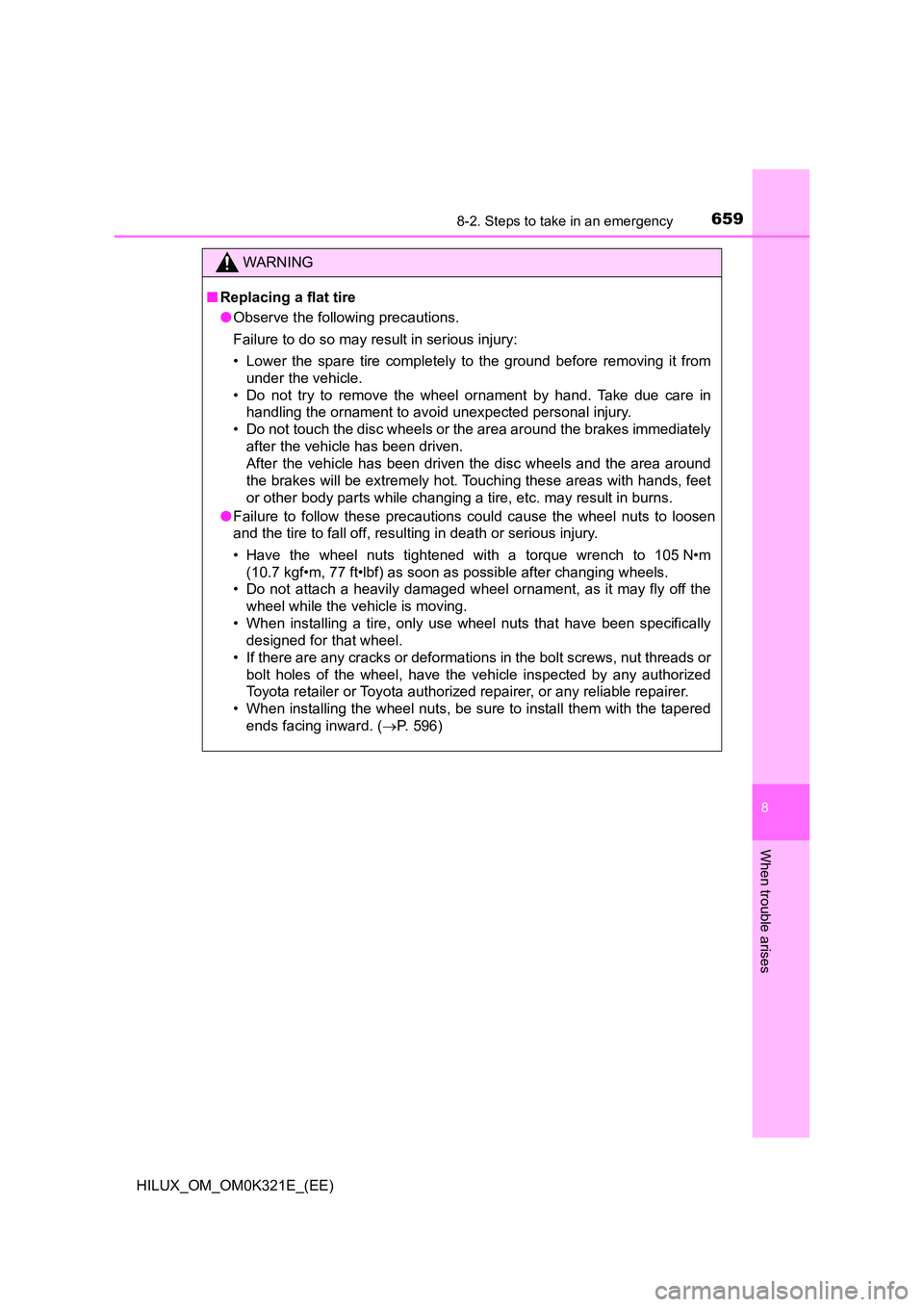

■Replacing a flat tire
● Observe the following precautions.
Failure to do so may result in serious injury:
• Lower the spare tire completely to the ground before removing it from
under the vehicle.
• Do not try to remove the wheel ornament by hand. Take due care in
handling the ornament to avoid unexpected personal injury.
• Do not touch the disc wheels or the area around the brakes immediately
after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around
the brakes will be extremely hot. Touching these areas with hands, feet
or other body parts while changing a tire, etc. may result in burns.
● Failure to follow these precautions could cause the wheel nuts to loosen
and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 105 N•m
(10.7 kgf•m, 77 ft•lbf) as soon as possible after changing wheels.
• Do not attach a heavily damaged wheel ornament, as it may fly off the
wheel while the vehicle is moving.
• When installing a tire, only use wheel nuts that have been specifically
designed for that wheel.
• If there are any cracks or deformations in the bolt screws, nut threads or
bolt holes of the wheel, have the vehicle inspected by any authorized
Toyota retailer or Toyota authoriz ed repairer, or any reliable repairer.
• When installing the wheel nuts, be sure to install them with the tapered
ends facing inward. ( P. 596)

6618-2. Steps to take in an emergency
HILUX_OM_OM0K321E_(EE)
8
When trouble arises

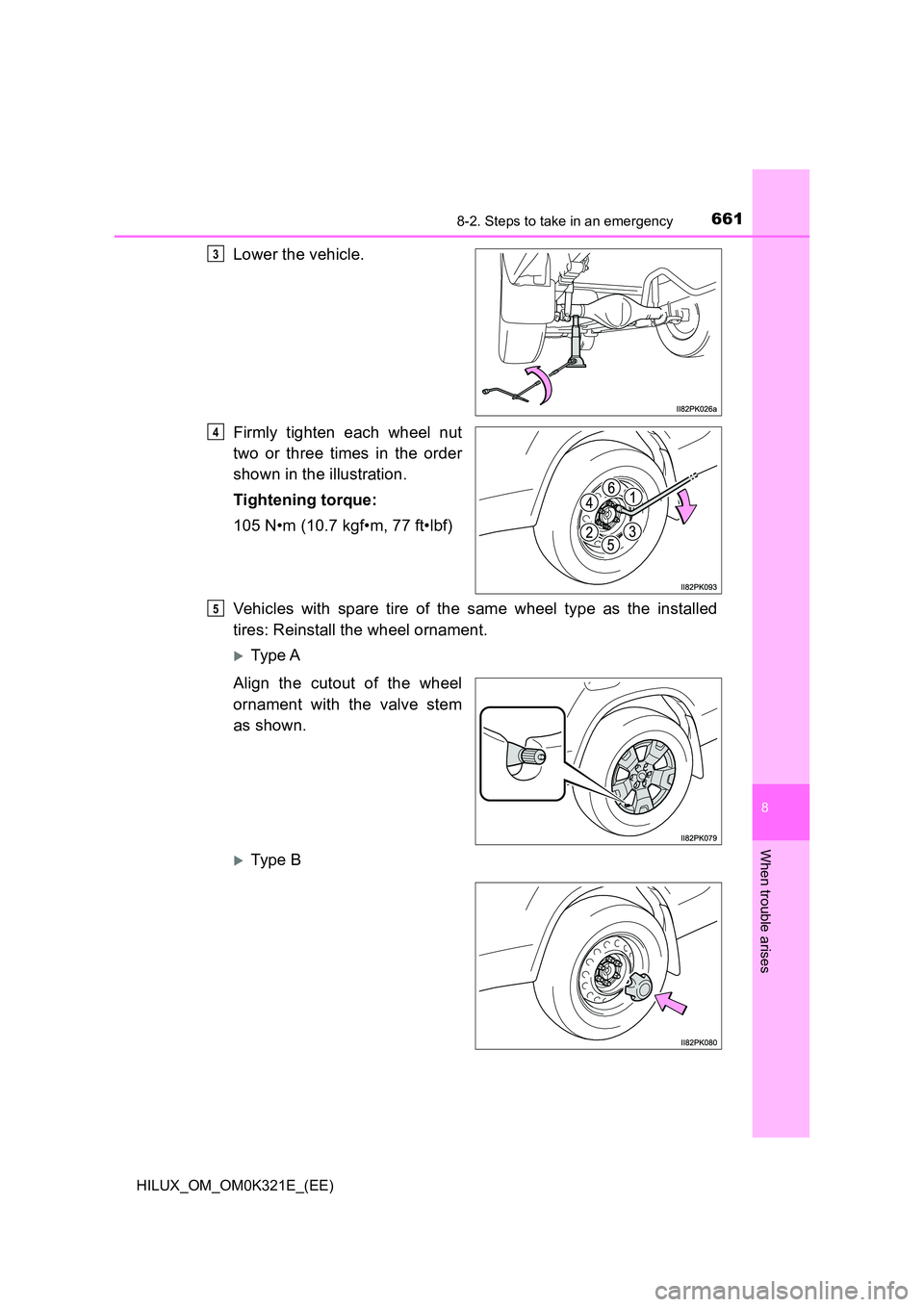

Lower the vehicle.
Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.
Tightening torque:
105 N•m (10.7 kgf•m, 77 ft•lbf)
Vehicles with spare tire of the same wheel type as the installed
tires: Reinstall the wheel ornament.
Type A
Align the cutout of the wheel
ornament with the valve stem
as shown.
Type B
3
4
5

6638-2. Steps to take in an emergency
HILUX_OM_OM0K321E_(EE)
8
When trouble arises

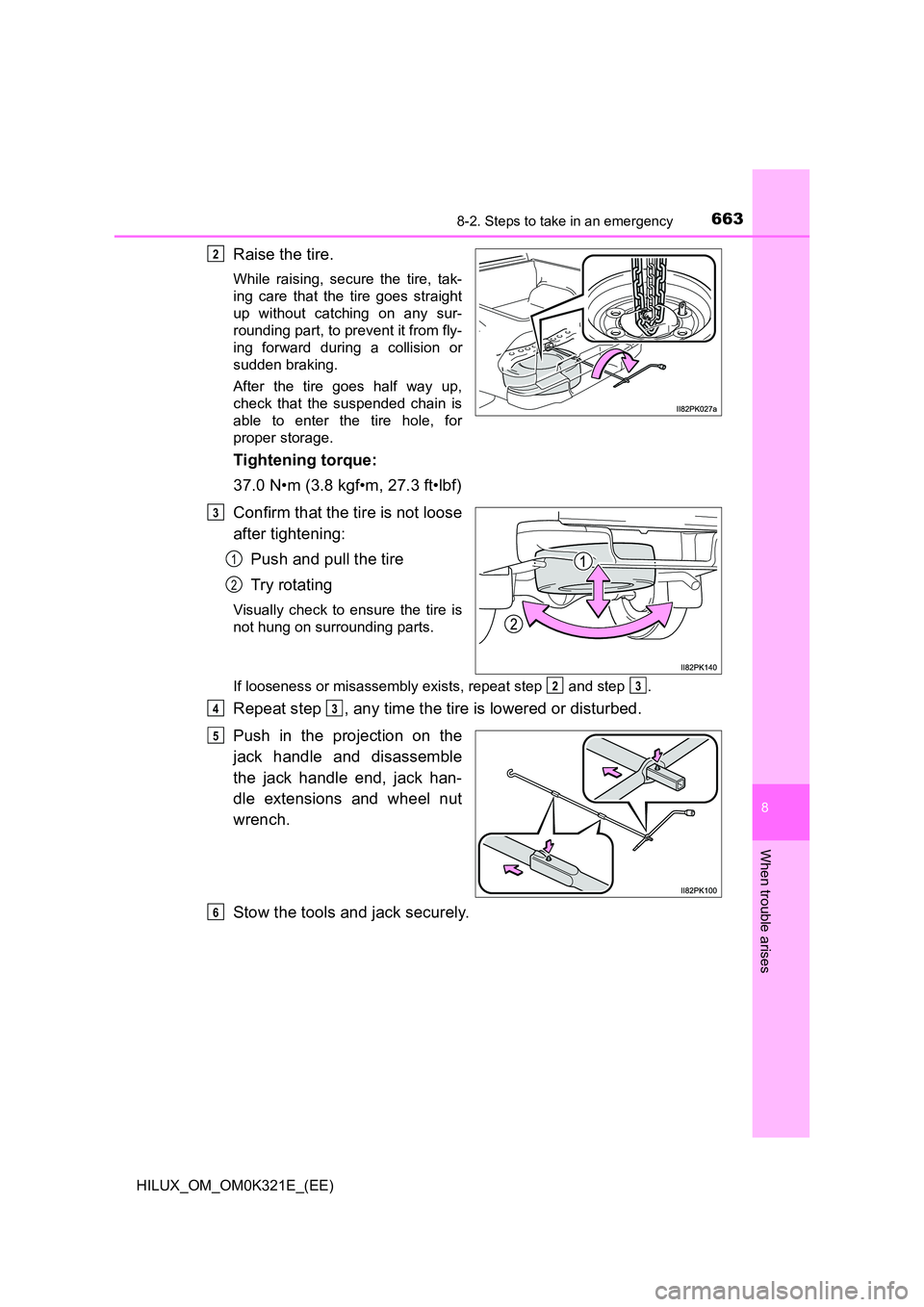

Raise the tire.
While raising, secure the tire, tak-
ing care that the tire goes straight
up without catching on any sur-
rounding part, to prevent it from fly-
ing forward during a collision or
sudden braking.
After the tire goes half way up,
check that the suspended chain is
able to enter the tire hole, for
proper storage.
Tightening torque:
37.0 N•m (3.8 kgf•m, 27.3 ft•lbf)
Confirm that the tire is not loose
after tightening:
Push and pull the tire
Try rotating
Visually check to ensure the tire is
not hung on surrounding parts.
If looseness or misassembly exists, repeat step and step .
Repeat step , any time the tire is lowered or disturbed.
Push in the projection on the
jack handle and disassemble
the jack handle end, jack han-
dle extensions and wheel nut
wrench.
Stow the tools and jack securely.
2
3
1
2
23
43
5
6

711
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K321E_(EE)

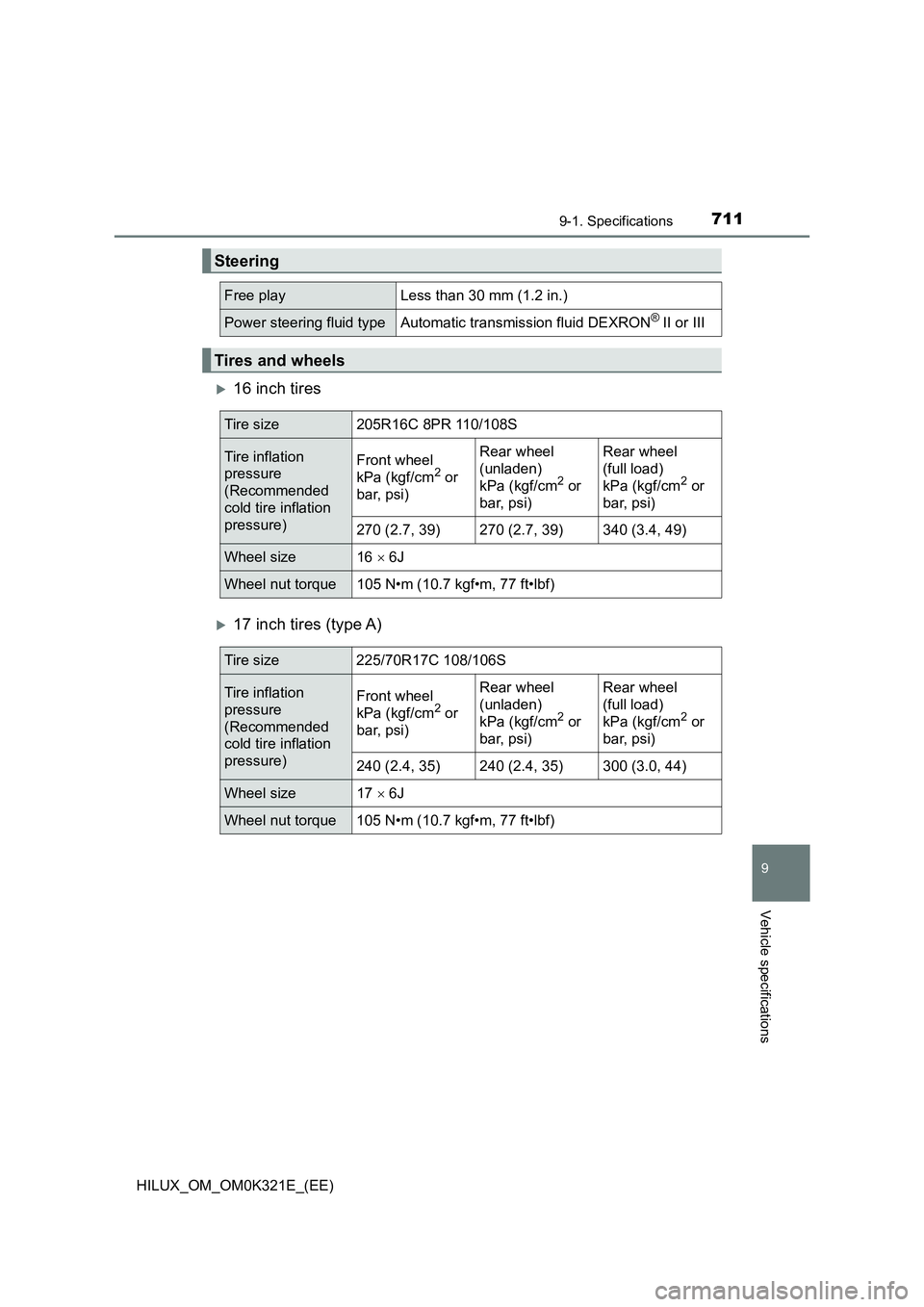

16 inch tires
17 inch tires (type A)
Steering
Free playLess than 30 mm (1.2 in.)
Power steering fluid typeAutomatic transmission fluid DEXRON® II or III
Tires and wheels
Tire size205R16C 8PR 110/108S
Tire inflation
pressure
(Recommended
cold tire inflation
pressure)
Front wheel
kPa (kgf/cm2 or
bar, psi)
Rear wheel
(unladen)
kPa (kgf/cm2 or
bar, psi)
Rear wheel
(full load)
kPa (kgf/cm2 or
bar, psi)
270 (2.7, 39)270 (2.7, 39)340 (3.4, 49)
Wheel size16  6J
Wheel nut torque105 N•m (10.7 kgf•m, 77 ft•lbf)
Tire size 225/70R17C 108/106S
Tire inflation
pressure
(Recommended
cold tire inflation
pressure)
Front wheel
kPa (kgf/cm2 or
bar, psi)
Rear wheel
(unladen)
kPa (kgf/cm2 or
bar, psi)
Rear wheel
(full load)
kPa (kgf/cm2 or
bar, psi)
240 (2.4, 35)240 (2.4, 35)300 (3.0, 44)
Wheel size17  6J
Wheel nut torque 105 N•m (10.7 kgf•m, 77 ft•lbf)

7129-1. Specifications
HILUX_OM_OM0K321E_(EE)

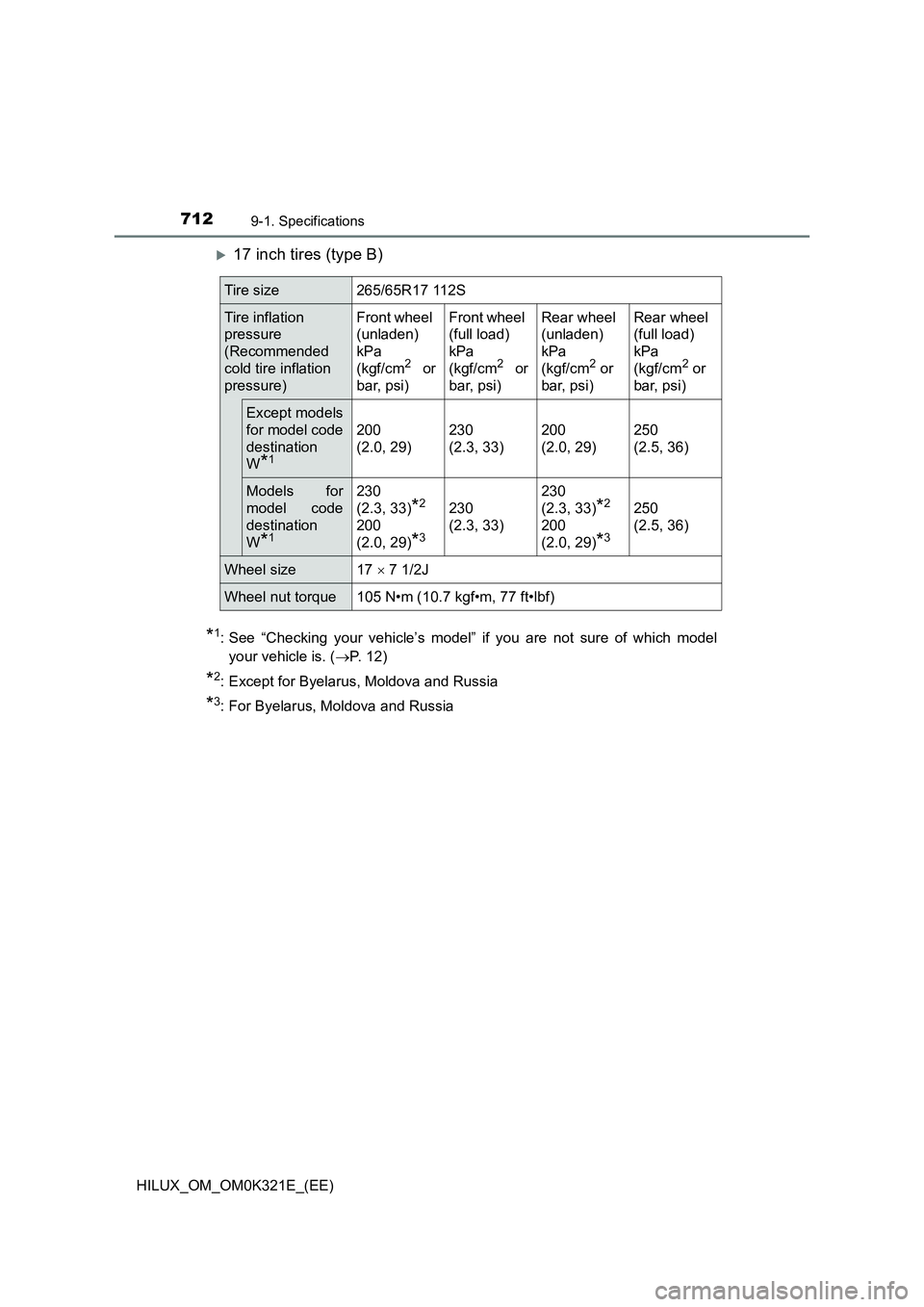

17 inch tires (type B)
*1: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. ( P. 12)
*2: Except for Byelarus, Moldova and Russia
*3: For Byelarus, Moldova and Russia
Tire size265/65R17 112S
Tire inflation
pressure
(Recommended
cold tire inflation
pressure)
Front wheel
(unladen)
kPa
(kgf/cm2 or
bar, psi)
Front wheel
(full load)
kPa
(kgf/cm2 or
bar, psi)
Rear wheel
(unladen)
kPa
(kgf/cm2 or
bar, psi)
Rear wheel
(full load)
kPa
(kgf/cm2 or
bar, psi)
Except models
for model code
destination
W*1
200
(2.0, 29)
230
(2.3, 33)
200
(2.0, 29)
250
(2.5, 36)
Models for
model code
destination
W*1
230
(2.3, 33)*2
200
(2.0, 29)*3
230
(2.3, 33)
230
(2.3, 33)*2
200
(2.0, 29)*3
250
(2.5, 36)
Wheel size17  7 1/2J
Wheel nut torque105 N•m (10.7 kgf•m, 77 ft•lbf)

713
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K321E_(EE)
18 inch tires
*1: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. ( P. 12)
*2: Except for Byelarus, Moldova and Russia
*3: For Byelarus, Moldova and Russia
■When towing a trailer (models for model code destination W*)
Add 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi) to the recommended tire inflation
pressure and drive at speeds below 100 km/h (62 mph).
*: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. ( P. 12)

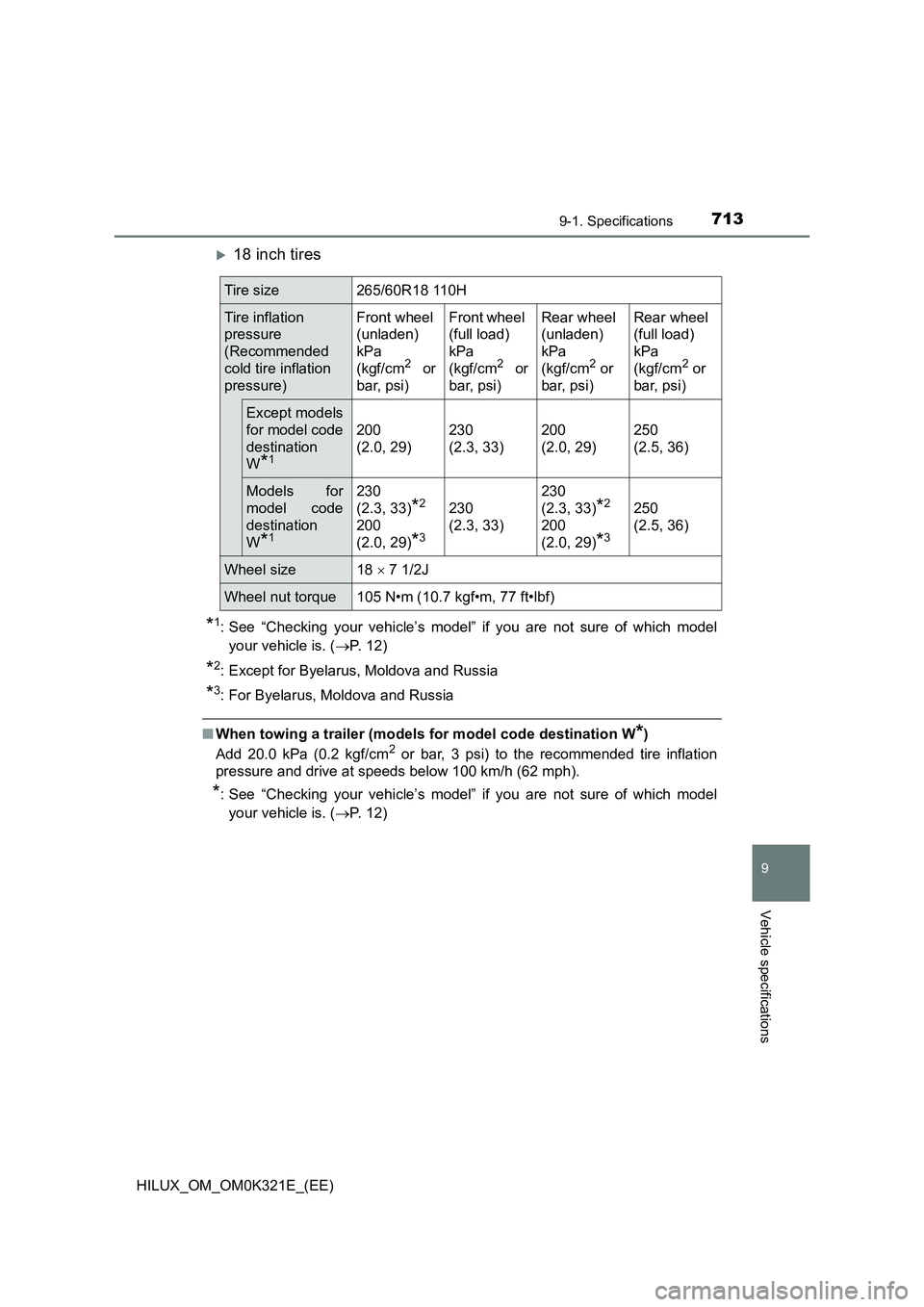

Tire size265/60R18 110H
Tire inflation
pressure
(Recommended
cold tire inflation
pressure)
Front wheel
(unladen)
kPa
(kgf/cm2 or
bar, psi)
Front wheel
(full load)
kPa
(kgf/cm2 or
bar, psi)
Rear wheel
(unladen)
kPa
(kgf/cm2 or
bar, psi)
Rear wheel
(full load)
kPa
(kgf/cm2 or
bar, psi)
Except models
for model code
destination
W*1
200
(2.0, 29)
230
(2.3, 33)
200
(2.0, 29)
250
(2.5, 36)
Models for
model code
destination
W*1
230
(2.3, 33)*2
200
(2.0, 29)*3
230
(2.3, 33)
230
(2.3, 33)*2
200
(2.0, 29)*3
250
(2.5, 36)
Wheel size18  7 1/2J
Wheel nut torque105 N•m (10.7 kgf•m, 77 ft•lbf)
