TOYOTA HILUX 2021 Owners Manual (in English)

159
3
3-2. Opening, closing and locking the doors
Operation of each component
HILUX_OM_OM0K513E_(EE)
Access panels (smar t-cab models only)
Open the front door widely.
Pull (from the outside) or push
(from the inside) the inside han-
dle of the access panels.
Open the access panels.
You can open and close the access panels only when the front door is
widely opened.
The access panels (rear door) can be opened using the inside
handle.
1
2
NOTICE
Q When opening or closing the front door and access panels
The front door and access panels could be damaged if they hit each other
when being opened or closed.
3

1603-2. Opening, closing and locking the doors
HILUX_OM_OM0K513E_(EE)

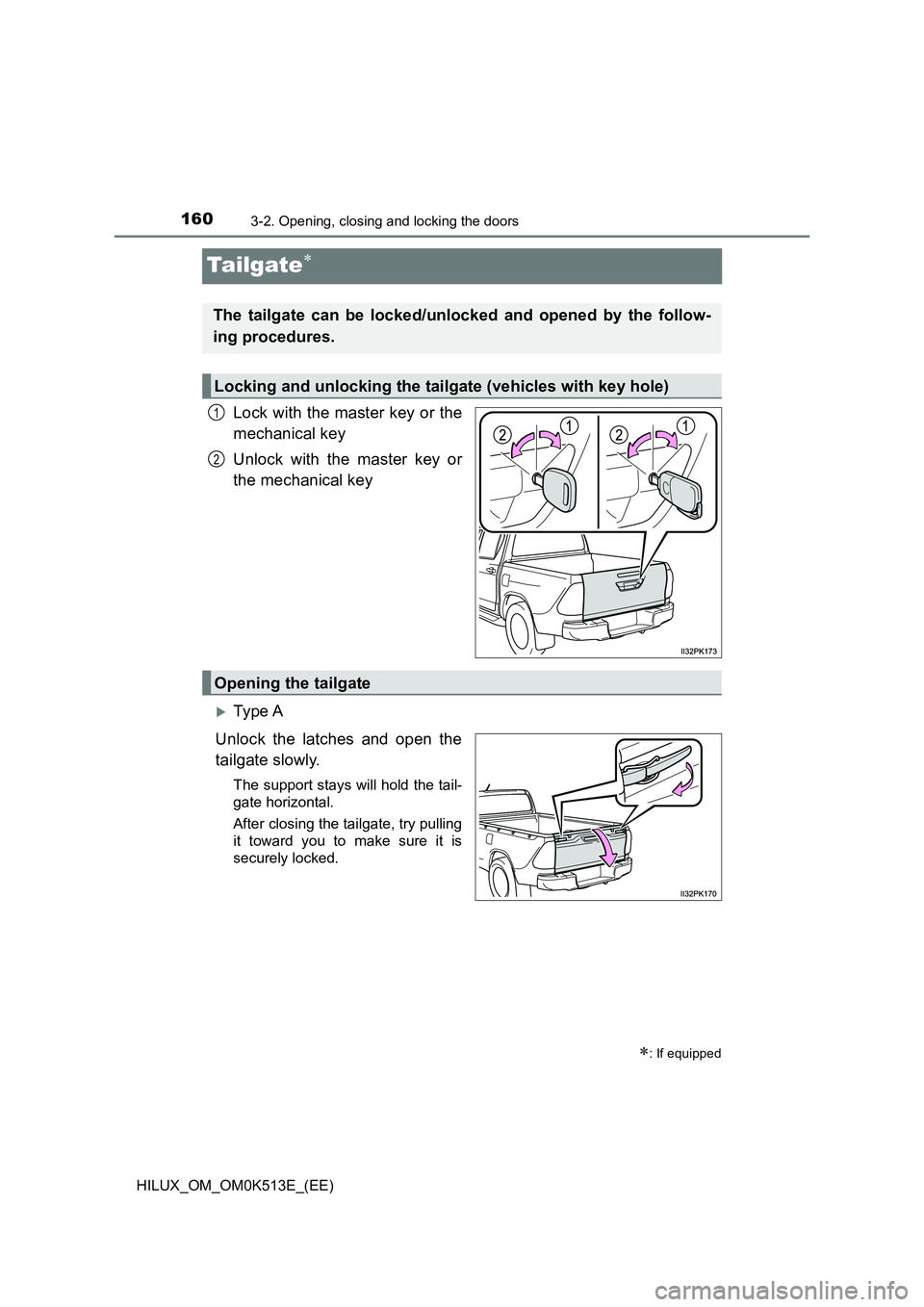

Ta i lg at e
Lock with the master key or the
mechanical key
Unlock with the master key or
the mechanical key
Ty pe A
Unlock the latches and open the
tailgate slowly.
The support stays will hold the tail-
gate horizontal.
After closing the tailgate, try pulling
it toward you to make sure it is
securely locked.
: If equipped
The tailgate can be locked/unlocked and opened by the follow-
ing procedures.
Locking and unlocking the tailgate (vehicles with key hole)
1
2
Opening the tailgate

1613-2. Opening, closing and locking the doors
3
Operation of each component
HILUX_OM_OM0K513E_(EE)
Ty pe B
Pull the handle and open the tail-
gate slowly.
The support stays will hold the tail-
gate horizontal.
After closing the tailgate, try pulling
it toward you to make sure it is
securely locked.
Release the brackets on the sup-
port stays from the lugs on both
sides as shown in the illustration.
The rear step bumper is for rear
end protection and easier step-up
loading.
Lowering the tailgate (vehicles without rear bumper)
Rear step bumper (if equipped)

1623-2. Opening, closing and locking the doors
HILUX_OM_OM0K513E_(EE)

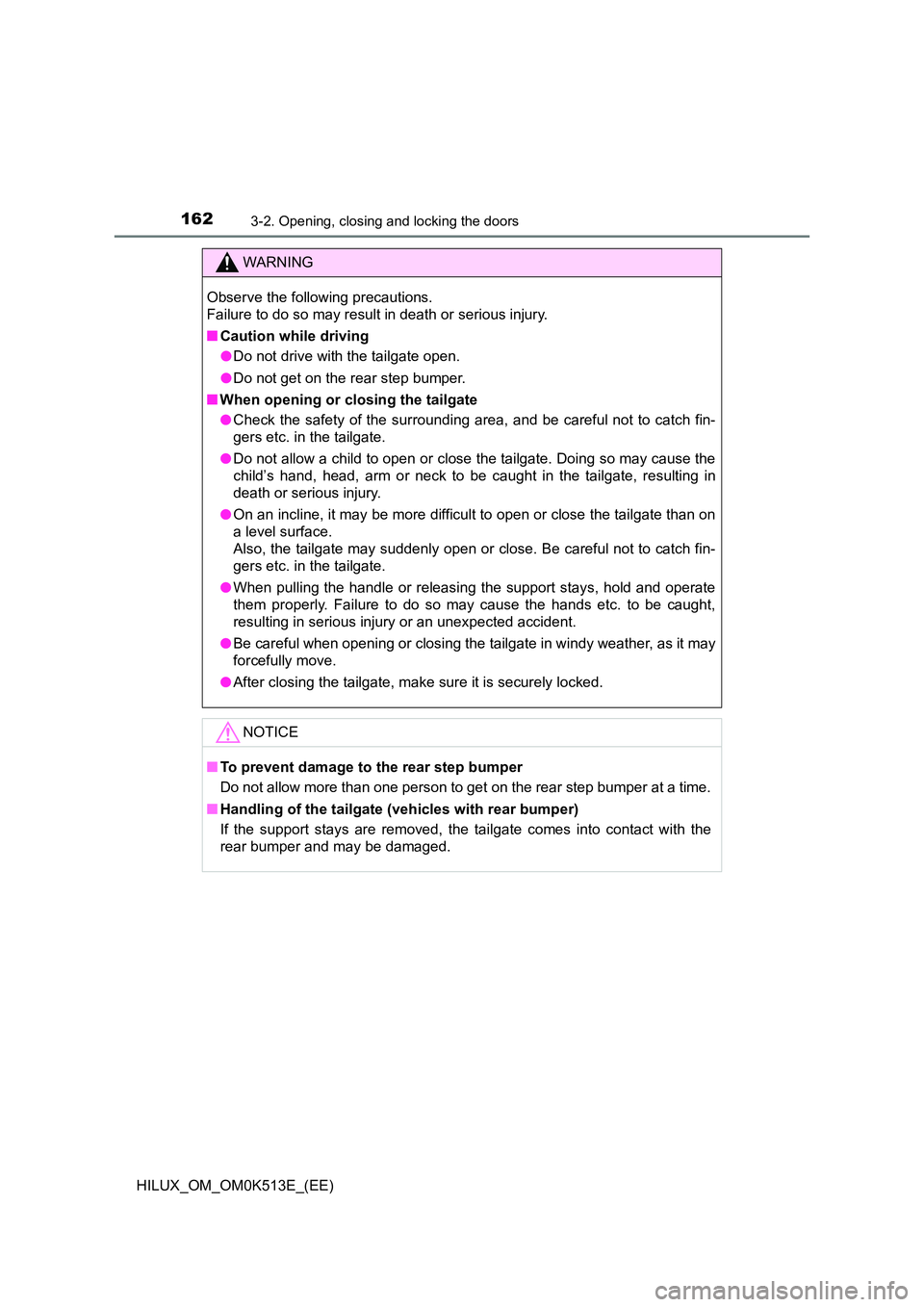

WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
Q Caution while driving
O Do not drive with the tailgate open.
O Do not get on the rear step bumper.
Q When opening or closing the tailgate
O Check the safety of the surrounding area, and be careful not to catch fin-
gers etc. in the tailgate.
O Do not allow a child to open or close the tailgate. Doing so may cause the
child’s hand, head, arm or neck to be caught in the tailgate, resulting in
death or serious injury.
O On an incline, it may be more difficult to open or close the tailgate than on
a level surface.
Also, the tailgate may suddenly open or close. Be careful not to catch fin-
gers etc. in the tailgate.
O When pulling the handle or releasing the support stays, hold and operate
them properly. Failure to do so may cause the hands etc. to be caught,
resulting in serious injury or an unexpected accident.
O Be careful when opening or closing the tailgate in windy weather, as it may
forcefully move.
O After closing the tailgate, make sure it is securely locked.
NOTICE
QTo prevent damage to the rear step bumper
Do not allow more than one person to get on the rear step bumper at a time.
Q Handling of the tailgate (vehicles with rear bumper)
If the support stays are removed, the tailgate comes into contact with the
rear bumper and may be damaged.

163
3
3-2. Opening, closing and locking the doors
Operation of each component
HILUX_OM_OM0K513E_(EE)
Smar t entr y & start system
OLocks and unlocks the doors (P. 153)
O Starts and stops the engine (P. 223)
QAntenna location
: If equipped
The following operations can be performed simply by carrying
the electronic key on your person, for example in your pocket.
The driver should always carry the electronic key.
Antennas outside the cabin
Antennas inside the cabin
1
2

1643-2. Opening, closing and locking the doors
HILUX_OM_OM0K513E_(EE)
Q Effective range (areas within which the electronic key is detected)
When starting the engine or changing engine switch modes
The system can be operated when the electronic key is inside the vehicle.
(The electronic key is not detected when it is on the floor or on the instru-
ment panel.)
Q Battery-saving function
The battery-saving function will be acti vated in order to prevent the battery
from being discharged while the vehicle is not in operation for a long time.
Q Electronic Key Battery-Saving Function
When battery-saving mode is set, battery depletion is minimized by stopping
the electronic key from receiving radio waves.
When locking or unlocking the doors
The system can be operated when the
electronic key is within about 0.7 m (2.3
ft.) of either of the lock/unlock button on
the outside door handle. (Only the
doors detecting the key can be oper-
ated.)
Press twice while pressing and
holding . Confirm that the electronic
key indicator flashes 4 times.
While the battery-saving mode is set, the
smart entry & start system cannot be
used. To cancel the function, press any of
the electronic key buttons.

1653-2. Opening, closing and locking the doors
3
Operation of each component
HILUX_OM_OM0K513E_(EE)

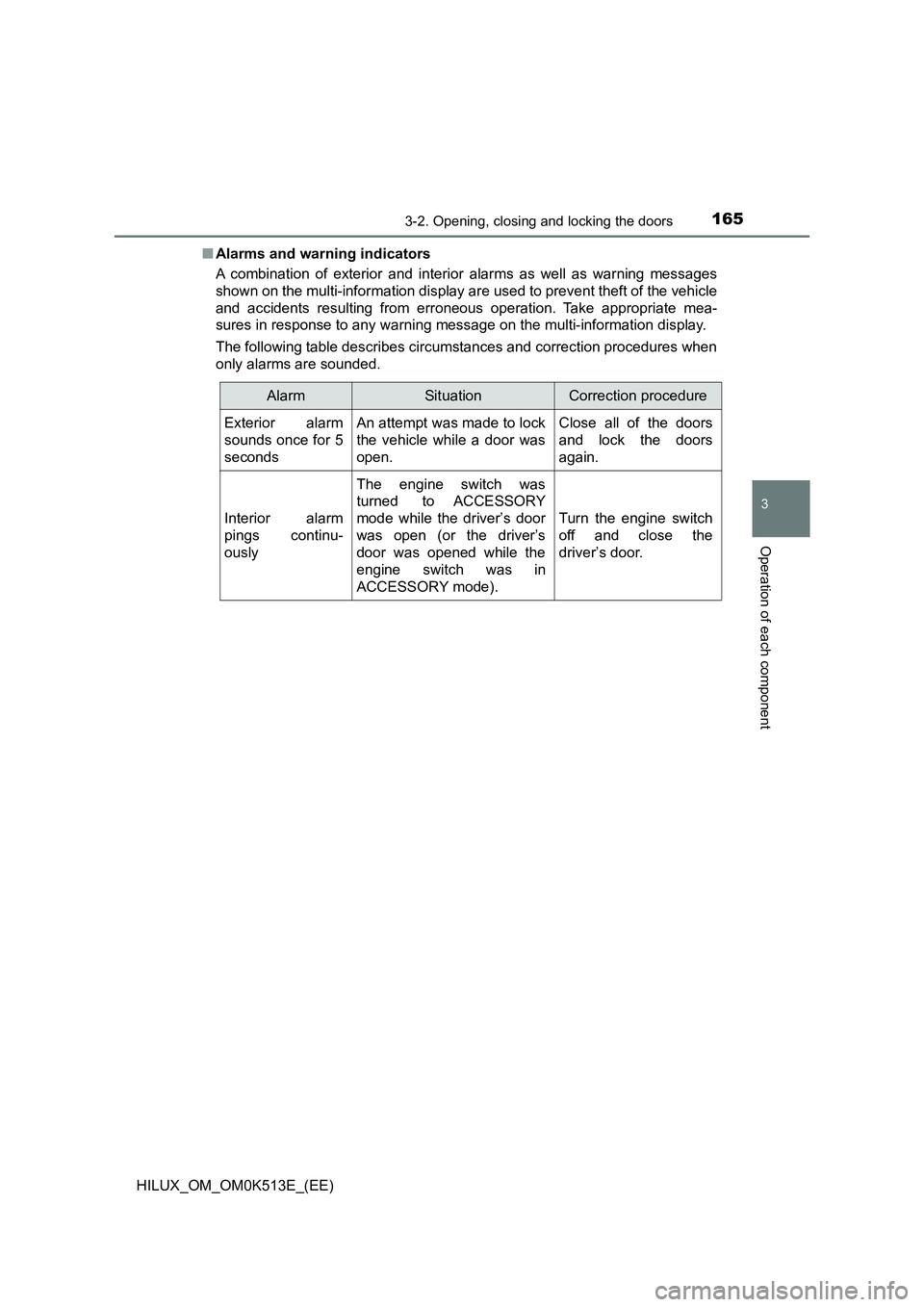

Q Alarms and warning indicators
A combination of exterior and interior alarms as well as warning messages
shown on the multi-information display are used to prevent theft of the vehicle
and accidents resulting from erroneous operation. Take appropriate mea-
sures in response to any warning message on the multi-information display.
The following table describes circumstances and correction procedures when
only alarms are sounded.
AlarmSituationCorrection procedure
Exterior alarm
sounds once for 5
seconds
An attempt was made to lock
the vehicle while a door was
open.
Close all of the doors
and lock the doors
again.
Interior alarm
pings continu-
ously
The engine switch was
turned to ACCESSORY
mode while the driver’s door
was open (or the driver’s
door was opened while the
engine switch was in
ACCESSORY mode).
Turn the engine switch
off and close the
driver’s door.

1663-2. Opening, closing and locking the doors
HILUX_OM_OM0K513E_(EE)
Q Conditions affecting operation
The smart entry & start system uses weak radio waves. In the following situa-
tions, the communication between the electronic key and the vehicle may be
affected, preventing the smart entry & start system, wireless remote control
and engine immobilizer system from operating properly.
(Ways of coping: P. 600)
O When the electronic key battery is depleted
O Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise
O When carrying a portable radio, cellular phone, cordless phone or other
wireless communication device
O When the electronic key is in contact with, or is covered by the following
metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
O When multiple electronic keys are in the vicinity
O When other wireless keys (that emit radio waves) are being used nearby
O When carrying the electronic key together with the following devices that
emit radio waves
• Another vehicle’s electronic key or a wireless key that emits radio waves
• Personal computers or pers onal digital assistants (PDAs)
• Digital audio players
• Portable game systems
O If window tint with a metallic content or metallic objects are attached to the
rear window
O When the electronic key is placed near a battery charger or electronic devices

1673-2. Opening, closing and locking the doors
3
Operation of each component
HILUX_OM_OM0K513E_(EE)
Q Note for the entry function
O Even if the electronic key is within the effective range (detection areas)
when locking or unlocking the doors, the system may not operate properly if
the electronic key is too close to the window or outside door handle, near
the ground, or in a high place.
O Do not leave the electronic key on top of the instrument panel or near the
door pockets when exiting the vehicle. Depending on the radio wave recep-
tion conditions, it may be detected by the antenna outside the cabin and the
doors will become lockable from the outside, possibly trapping the electronic
key inside the vehicle.
O As long as the electronic key is within the effective range, the doors may be
locked or unlocked by anyone. However, only the doors detecting the elec-
tronic key can be used to unlock the vehicle.
O Even if the electronic key is not inside the vehicle, it may be possible to start
the engine if the electronic key is near the window.
O If the wireless remote control is used to lock the doors when the electronic
key is near the vehicle, there is a possibility that the door may not be
unlocked by the entry function. (Use the wireless remote control to unlock
the doors.)
O Pulling the outside door handle while pressing the lock/unlock button on the
outside door handle may prevent the doors from being unlocked. In this
case, return the door handle to the original position, press the lock/unlock
button again, and check that the doors unlock before pulling the door handle
again.
O Unlocking the vehicle may take more time if another electronic key is within
the effective range.
Q When the vehicle is not driven for extended periods
O To prevent theft of the vehicle, do not leave the electronic key within 2 m
(6 ft.) of the vehicle.
O The smart entry & start system can be deactivated in advance. Ask any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer for details.
Q To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get
the electronic key too close to the vehicle when operating the system from the
outside of the vehicle.
Depending on the position and holding condition of the electronic key, the key
may not be detected correctly and the system may not operate properly. (The
alarm may go off accidentally, or the door lock prevention function may not
operate.)

1683-2. Opening, closing and locking the doors
HILUX_OM_OM0K513E_(EE)
Q If the smart entry & start system does not operate properly
O Locking and unlocking the doors: Use the mechanical key. (P. 600)
O Starting the engine: P. 601
Q Electronic key battery depletion
O The standard battery life is 1 to 2 years.
O If the battery becomes low, an alarm will sound in the cabin when the engine
stops.
O As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate that the electronic key battery may be depleted. Replace the battery
when necessary. ( P. 516)
• The smart entry & start system or the wireless remote control does not
operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
O To avoid serious deterioration, do not leave the electronic key within 1 m (3
ft.) of the following electrical appliances that produce a magnetic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Table lamps
• Induction cookers
Q If “Key left inside vehicle” is shown on the multi-information display
An attempt was made to lock the doors using the smart entry & start system
while the electronic key was still inside the vehicle, or an attempt was made
to lock either front door by opening a door and putting the inside lock button
into the lock position, then closing the door by pulling on the outside door
handle with the electronic key still inside the vehicle.
Retrieve the electronic key from the vehicle and lock the doors again.
Q Customization that can be configured at any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer
Settings (e.g. smart entry & start system) can be changed.
(Customizable features: P. 646)
Q If the smart entry & start system has been deactivated in a customized
setting
O Locking and unlocking the doors:
Use the wireless remote control or mechanical key. ( P. 153, 600)
O Starting the engine and changing engine switch modes: P. 601
O Stopping the engine: P. 225
