1392. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K513E_(EE)

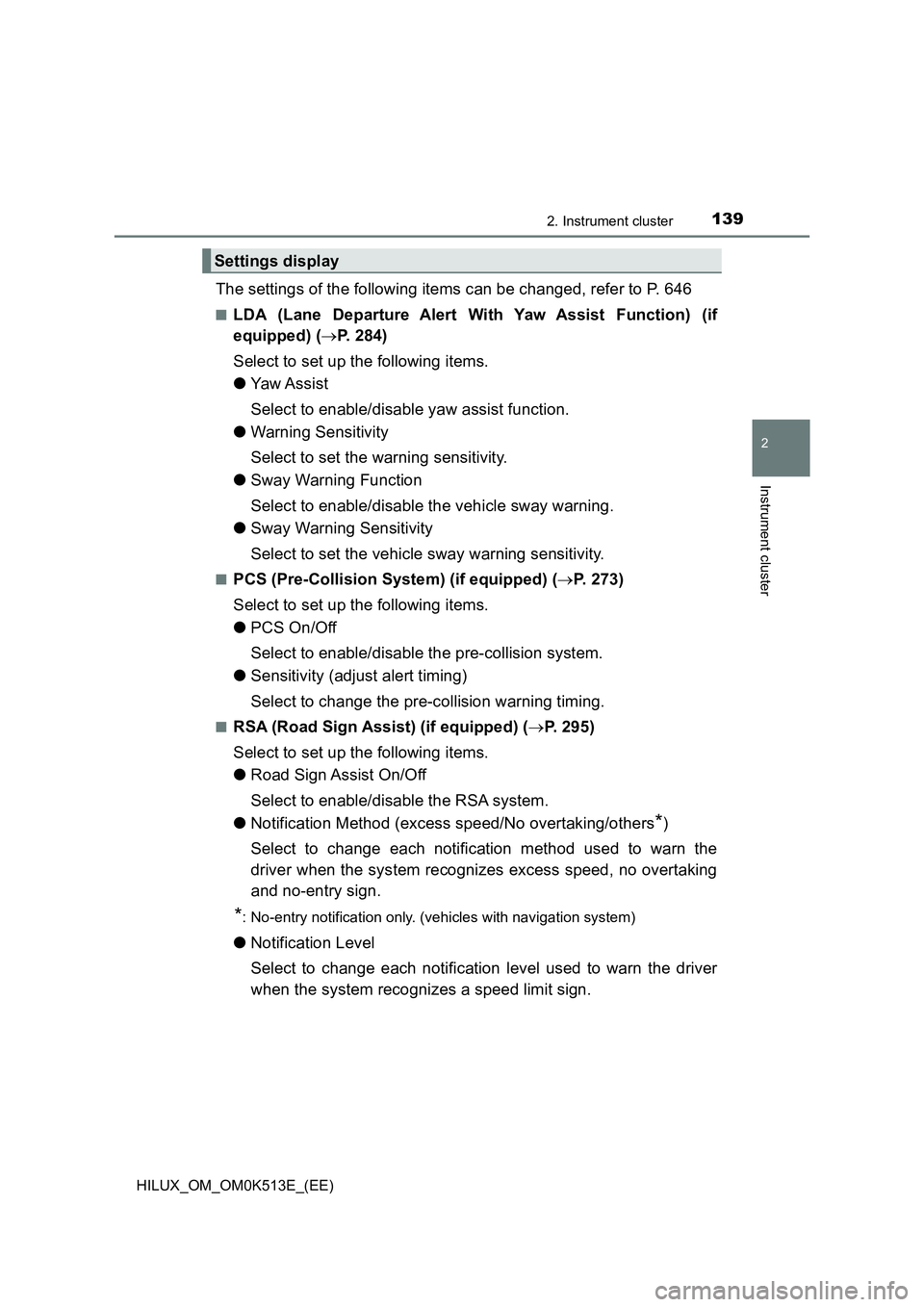

The settings of the following items can be changed, refer to P. 646
QLDA (Lane Departure Alert With Yaw Assist Function) (if
equipped) ( P. 284)
Select to set up the following items.
O Yaw Assist
Select to enable/disable yaw assist function.
O Warning Sensitivity
Select to set the warning sensitivity.
O Sway Warning Function
Select to enable/disable the vehicle sway warning.
O Sway Warning Sensitivity
Select to set the vehicle sway warning sensitivity.
QPCS (Pre-Collision System) (if equipped) ( P. 273)
Select to set up the following items.
O PCS On/Off
Select to enable/disable the pre-collision system.
O Sensitivity (adjust alert timing)
Select to change the pre-collision warning timing.
QRSA (Road Sign Assist) (if equipped) ( P. 295)
Select to set up the following items.
O Road Sign Assist On/Off
Select to enable/disable the RSA system.
O Notification Method (excess speed/No overtaking/others*)
Select to change each notification method used to warn the
driver when the system recognizes excess speed, no overtaking
and no-entry sign.
*: No-entry notification only. (vehicles with navigation system)
O Notification Level
Select to change each notification level used to warn the driver
when the system recognizes a speed limit sign.
Settings display

1402. Instrument cluster
HILUX_OM_OM0K513E_(EE)
QDRCC(RSA) (if equipped) ( P. 312)
Select to enable/disable the Dynamic Radar Cruise Control with
Road Sign Assist.
QVehicle Setting
Idling stop (if equipped)
Select to change the idling stop time (engine stop time via the
Stop & Start system) when the air conditioning system is on.
QMeter Customization
O Language
Select to change the language on the display.
O Units
Select to change the unit for measure of the fuel consumption.
O Eco Driving Indicator Light
Select to activate/deactivate the Eco Driving Indicator Light.
(P. 128)
O switch settings
You can register 1 screen as the top screen. To register, press
and hold while the desired screen is displayed.
O Drive information 1 and 2
Select to select up to 2 items that will be displayed on a drive
information screen, up to 2 drive information screens can be set.
O Pop-up display (if equipped)
Select to set the pop-up displays, which may appear in some sit-
uations, on/off.
O Accent color (if equipped)
Select to change the accent colors on the screen, such as the
cursor color.

1412. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K513E_(EE)
OEco Saving
Select to set or change the fuel consumption comparison and
fuel price.
O Initialization
Registered or changed meter settings will be deleted or returned
to their default setting.
Q Pop-up display
The pop-up display is displayed on the multi-information display according to
the operating conditions of the following functions:
O Route guidance display of the navigation system-linked system (if equipped)
O Incoming call display of the hands-free phone system (if equipped)
O Stop & Start system operation time (if equipped)
O Stop & Start system operation status (if equipped)
The pop-up display function can be set on/off. ( P. 647)
Q Eco Score
Driving conditions are displayed in 5 stages and divided into 3 categories:
start, cruise and stop. Every time the vehicle is stopped, the score is dis-
played. (Every time the vehicle is accelerated the score that was last dis-
played is reset. Accumulative scores are not calculated.)
Eco cruise
Displays the eco level calculated from acceleration operation amount when
driving the vehicle
Eco stop
Displays the eco level calculated from time between releasing the accelera-
tor pedal and vehicle stop
Eco Score
Totals the counts of the eco start, eco
cruise and eco stop, and displays the
result.
Eco start
Displays the eco level calculated from
degree of acceleration when starting
the vehicle
1
2
3
4

1422. Instrument cluster
HILUX_OM_OM0K513E_(EE)
If the accelerator pedal is not depressed, such as when the vehicle is driven
using cruise control (if equipped) or dynamic radar cruise control (if
equipped), the driven distance is not included in the Eco Score.
The Eco Score evaluation differs depending on the driving conditions and
environmental factors. The Eco Score may not be linked to fuel consumption.
The Eco Score will not operate in the following conditions:
O The vehicle speed is approximately 130 km/h (80 mph) or higher.
O The shift lever is in a position other than D. (vehicles with automatic trans-
mission)
O A paddle shift switch is operated. (vehicles with paddle shift switches)
O Front-wheel drive control switch is in L4. (if equipped)
O Downhill assist control system is operating. (if equipped)
O The vehicle is in the power mode. (if equipped)
Q Eco Saving
Displays the fuel consumption comparison, the average fuel consumption
after reset, and the cost of the consumed fuel.
• The function can be reset by pressing more than 1 second when the
average fuel consumption after reset is displayed
• Use the average fuel consumption as a reference
Savings/fuel cost
Displays the possible savings if the fuel consumption comparison is set,
and displays the actual fuel cost if the fuel consumption comparison is not
set.
Use the displayed fuel cost and savings as a reference. Depending on refuel-
ing methods, driving conditions and environmental factors, the displayed fuel
cost may differ from the actual fuel cost, and in some cases, the fuel cost and
savings may not be linked to the Eco Score evaluation.
Q Eco Saving setting
The fuel price and fuel consumption comparison settings can be set in the
settings display. Use the meter control switches to select while the vehicle
is stopped and press , and select “Eco Saving” and press .
Fuel consumption comparison
Displays the set fuel consumption that
is compared with the actual fuel con-
sumption.
Average fuel consumption after reset
Displays the average fuel consumption
since the function was reset.
1
2
3

1432. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K513E_(EE)

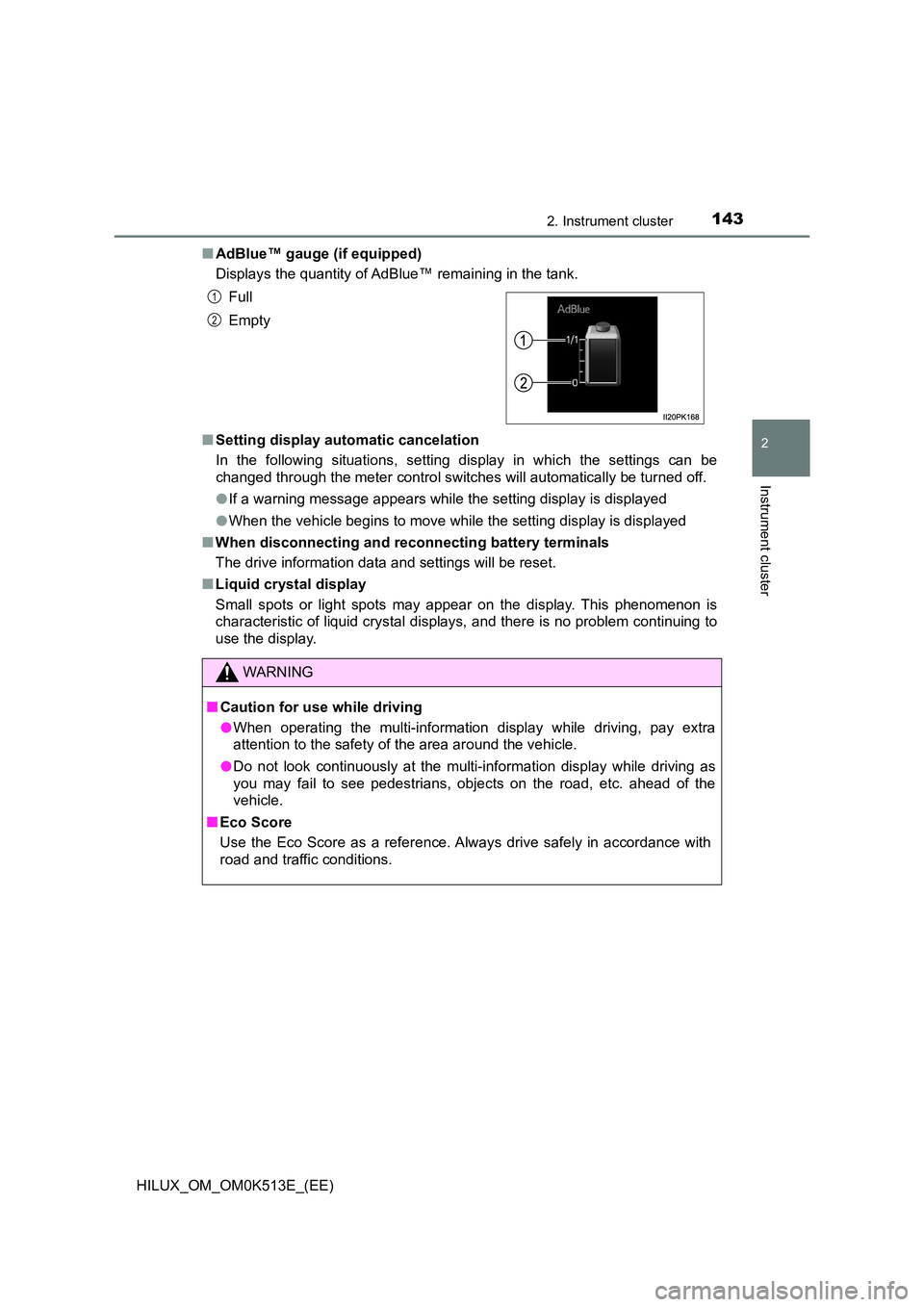

Q AdBlue™ gauge (if equipped)
Displays the quantity of AdBlue™ remaining in the tank.
Q Setting display automatic cancelation
In the following situations, setting display in which the settings can be
changed through the meter control switches will automatically be turned off.
O If a warning message appears while the setting display is displayed
O When the vehicle begins to move while the setting display is displayed
Q When disconnecting and reconnecting battery terminals
The drive information data and settings will be reset.
Q Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
Full
Empty
WARNING
Q Caution for use while driving
O When operating the multi-information display while driving, pay extra
attention to the safety of the area around the vehicle.
O Do not look continuously at the multi-information display while driving as
you may fail to see pedestrians, objects on the road, etc. ahead of the
vehicle.
Q Eco Score
Use the Eco Score as a reference. Always drive safely in accordance with
road and traffic conditions.
1
2

1442. Instrument cluster
HILUX_OM_OM0K513E_(EE)

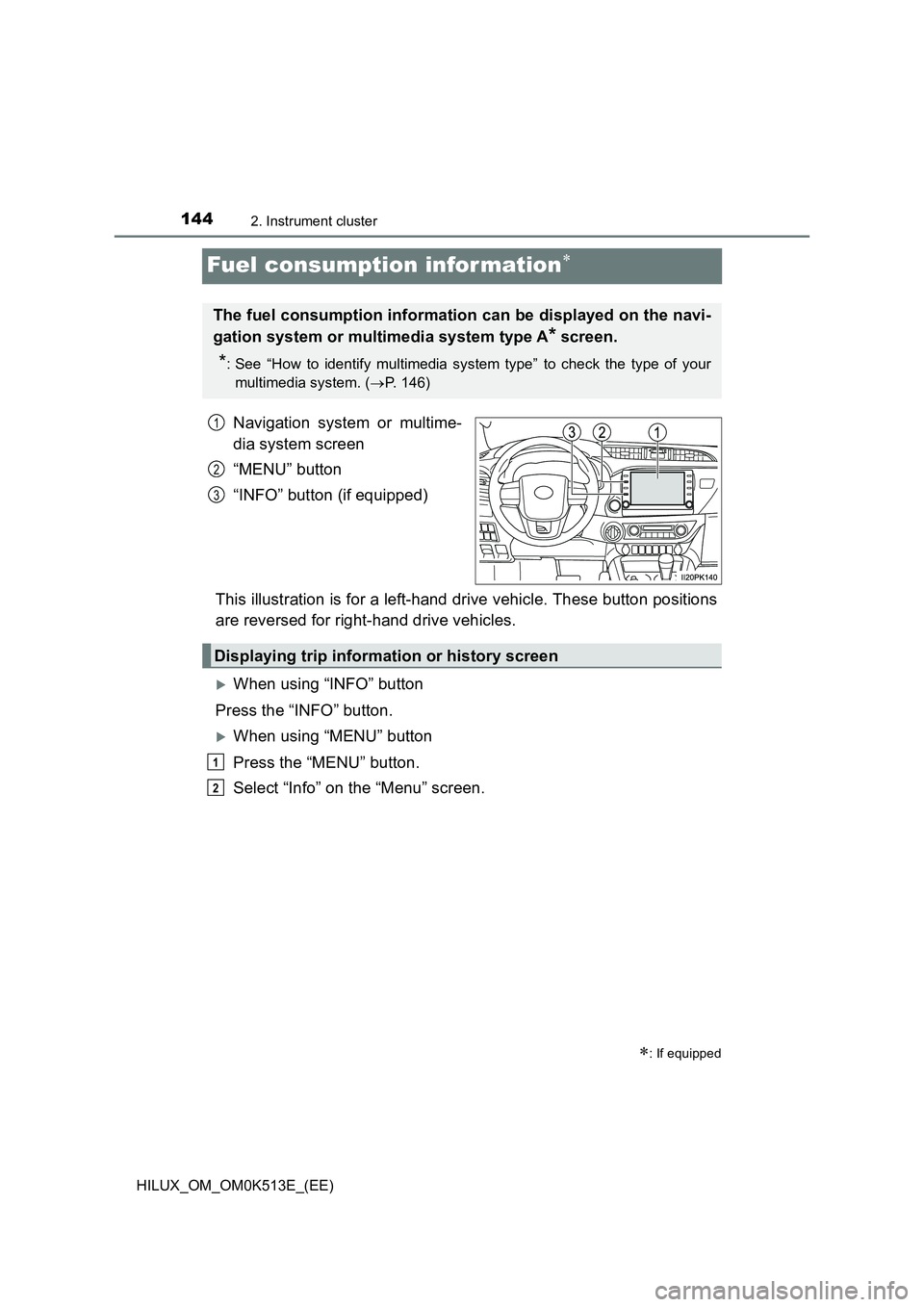

Fuel consumption infor mation
Navigation system or multime-
dia system screen
“MENU” button
“INFO” button (if equipped)
This illustration is for a left-hand drive vehicle. These button positions
are reversed for right-hand drive vehicles.
When using “INFO” button
Press the “INFO” button.
When using “MENU” button
Press the “MENU” button.
Select “Info” on the “Menu” screen.
: If equipped
The fuel consumption information can be displayed on the navi-
gation system or multimedia system type A* screen.
*: See “How to identify multimedia system type” to check the type of your
multimedia system. ( P. 146)
1
2
3
Displaying trip information or history screen
1
2

1452. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K513E_(EE)

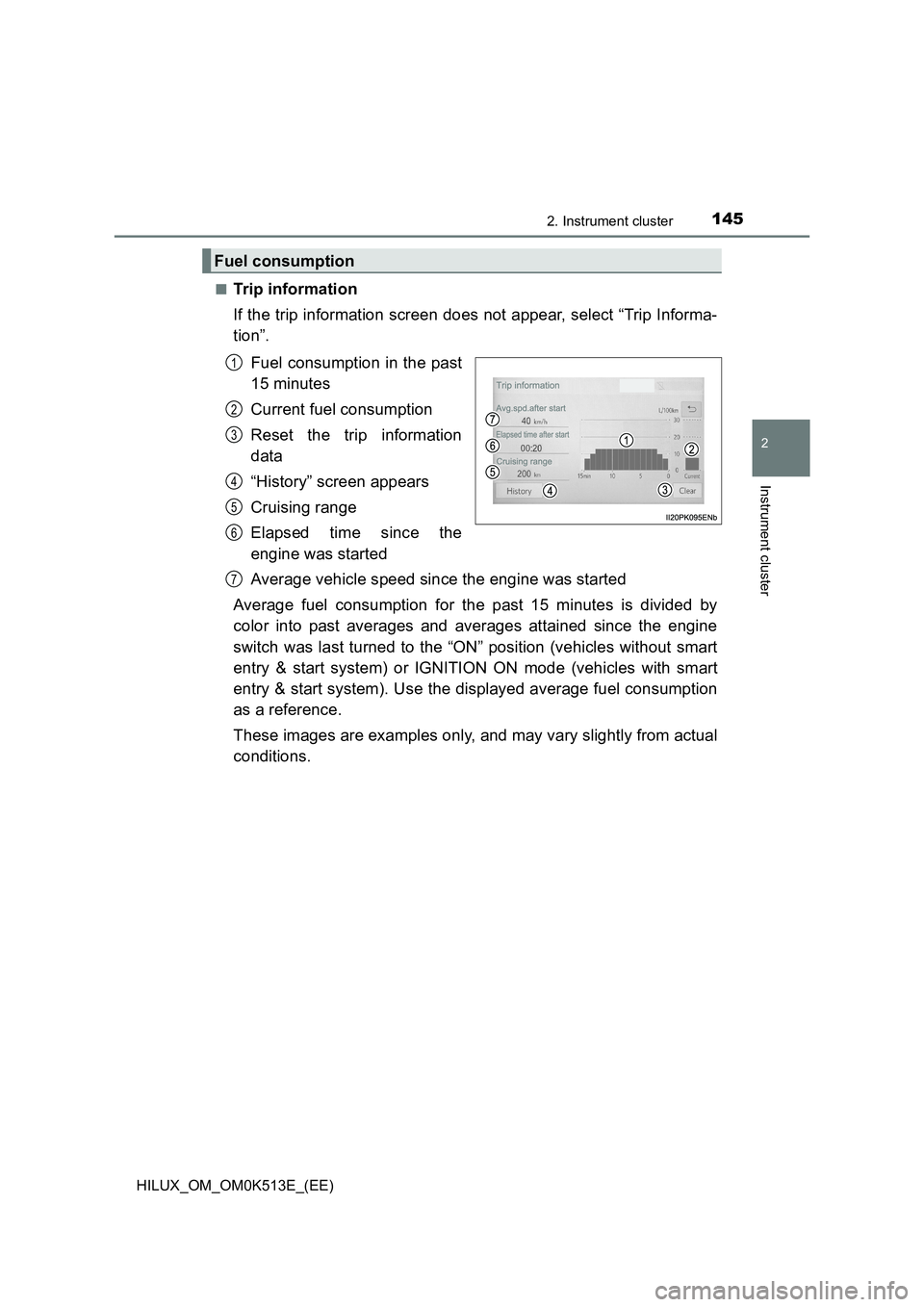

QTrip information
If the trip information screen does not appear, select “Trip Informa-
tion”.
Fuel consumption in the past
15 minutes
Current fuel consumption
Reset the trip information
data
“History” screen appears
Cruising range
Elapsed time since the
engine was started
Average vehicle speed since the engine was started
Average fuel consumption for the past 15 minutes is divided by
color into past averages and averages attained since the engine
switch was last turned to the “ON” position (vehicles without smart
entry & start system) or IGNITION ON mode (vehicles with smart
entry & start system). Use the displayed average fuel consumption
as a reference.
These images are examples only, and may vary slightly from actual
conditions.
Fuel consumption
1
2
3
4
5
6
7

1462. Instrument cluster
HILUX_OM_OM0K513E_(EE)

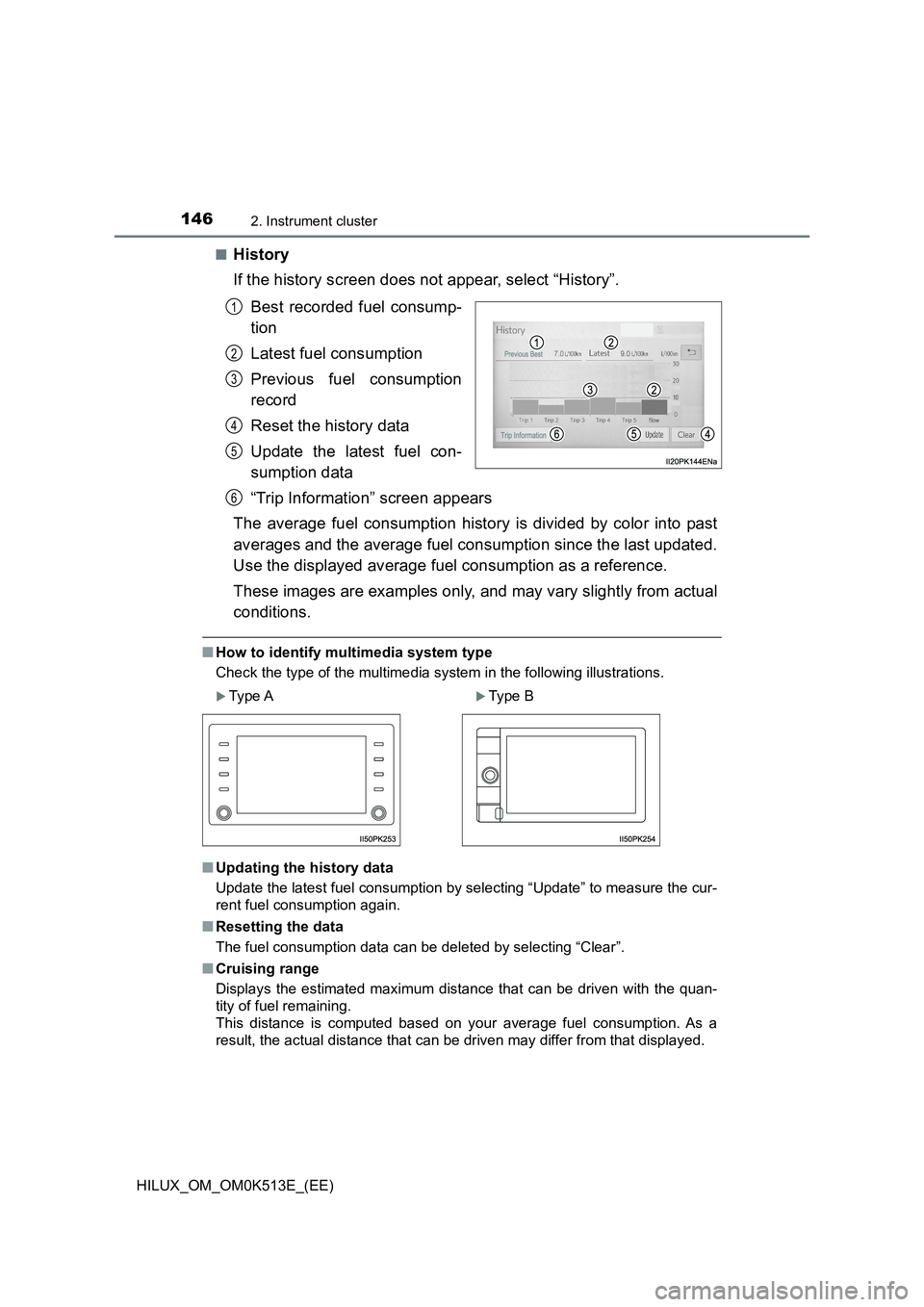

QHistory
If the history screen does not appear, select “History”.
Best recorded fuel consump-
tion
Latest fuel consumption
Previous fuel consumption
record
Reset the history data
Update the latest fuel con-
sumption data
“Trip Information” screen appears
The average fuel consumption history is divided by color into past
averages and the average fuel consumption since the last updated.
Use the displayed average fuel consumption as a reference.
These images are examples only, and may vary slightly from actual
conditions.
Q How to identify multimedia system type
Check the type of the multimedia system in the following illustrations.
Q Updating the history data
Update the latest fuel consumption by selecting “Update” to measure the cur-
rent fuel consumption again.
Q Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.
Q Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumption. As a
result, the actual distance that can be driven may differ from that displayed.
1
2
3
4
5
Type AType B
6

147
3
Operation of
each component
HILUX_OM_OM0K513E_(EE)

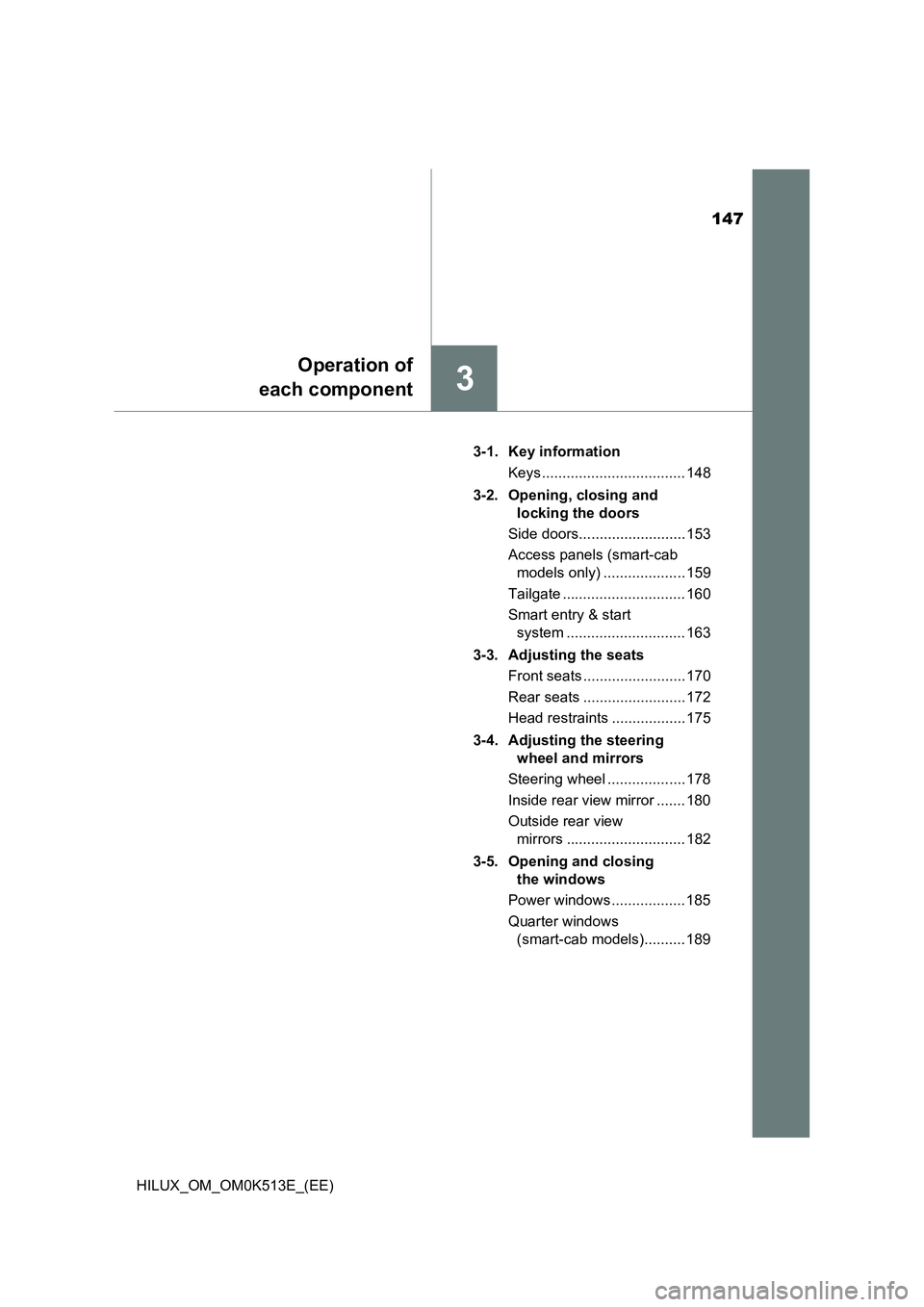

3-1. Key information
Keys ................................... 148
3-2. Opening, closing and
locking the doors
Side doors.......................... 153
Access panels (smart-cab
models only) .................... 159
Tailgate .............................. 160
Smart entry & start
system ............................. 163
3-3. Adjusting the seats
Front seats ......................... 170
Rear seats ......................... 172
Head restraints .................. 175
3-4. Adjusting the steering
wheel and mirrors
Steering wheel ................... 178
Inside rear view mirror ....... 180
Outside rear view
mirrors ............................. 182
3-5. Opening and closing
the windows
Power windows .................. 185
Quarter windows
(smart-cab models).......... 189

1483-1. Key information
HILUX_OM_OM0K513E_(EE)
Keys
The following keys are provided with the vehicle.
Ty pe A
Master keys
Va l e t k e y
Key number plate
Ty pe B
Master keys
Operating the wireless remote con-
trol function ( P. 149)
Va l e t k e y
Key number plate
Type C (vehicles with smart entry & start system)
Electronic keys
• Operating the smart entry & start
system ( P. 163)
• Operating the wireless remote
control function ( P. 149)
Mechanical keys
Key number plate
Mechanical keys (supplemen-
tary keys)
Locking and unlocking the tailgate
( P. 160)
The keys
1
2
3
1
2
3
1
2
3
4
