1663-2. Opening, closing and locking the doors
HILUX_OM_OM0K513E_(EE)

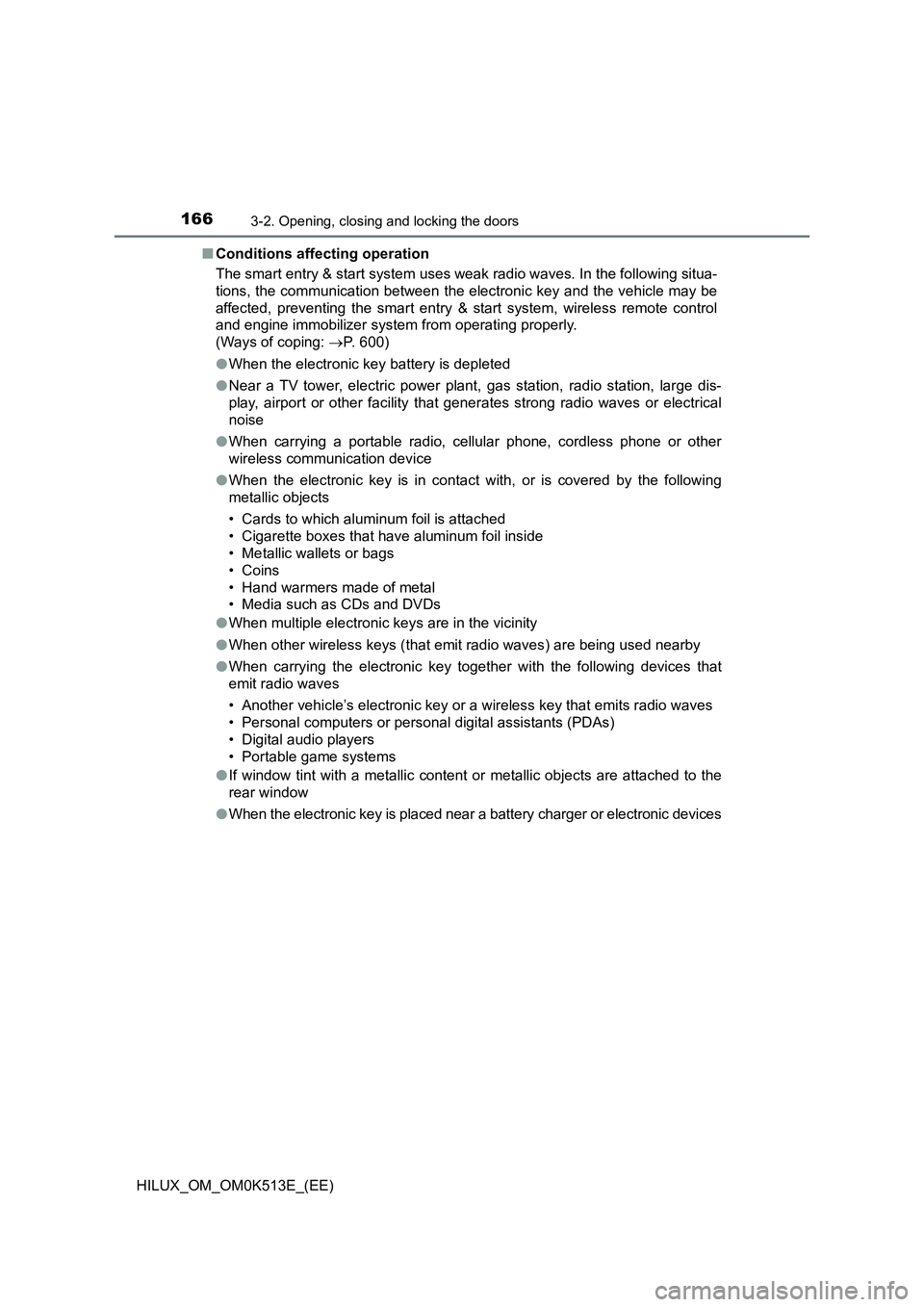

Q Conditions affecting operation
The smart entry & start system uses weak radio waves. In the following situa-
tions, the communication between the electronic key and the vehicle may be
affected, preventing the smart entry & start system, wireless remote control
and engine immobilizer system from operating properly.
(Ways of coping: P. 600)
O When the electronic key battery is depleted
O Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise
O When carrying a portable radio, cellular phone, cordless phone or other
wireless communication device
O When the electronic key is in contact with, or is covered by the following
metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
O When multiple electronic keys are in the vicinity
O When other wireless keys (that emit radio waves) are being used nearby
O When carrying the electronic key together with the following devices that
emit radio waves
• Another vehicle’s electronic key or a wireless key that emits radio waves
• Personal computers or pers onal digital assistants (PDAs)
• Digital audio players
• Portable game systems
O If window tint with a metallic content or metallic objects are attached to the
rear window
O When the electronic key is placed near a battery charger or electronic devices

1673-2. Opening, closing and locking the doors
3
Operation of each component
HILUX_OM_OM0K513E_(EE)

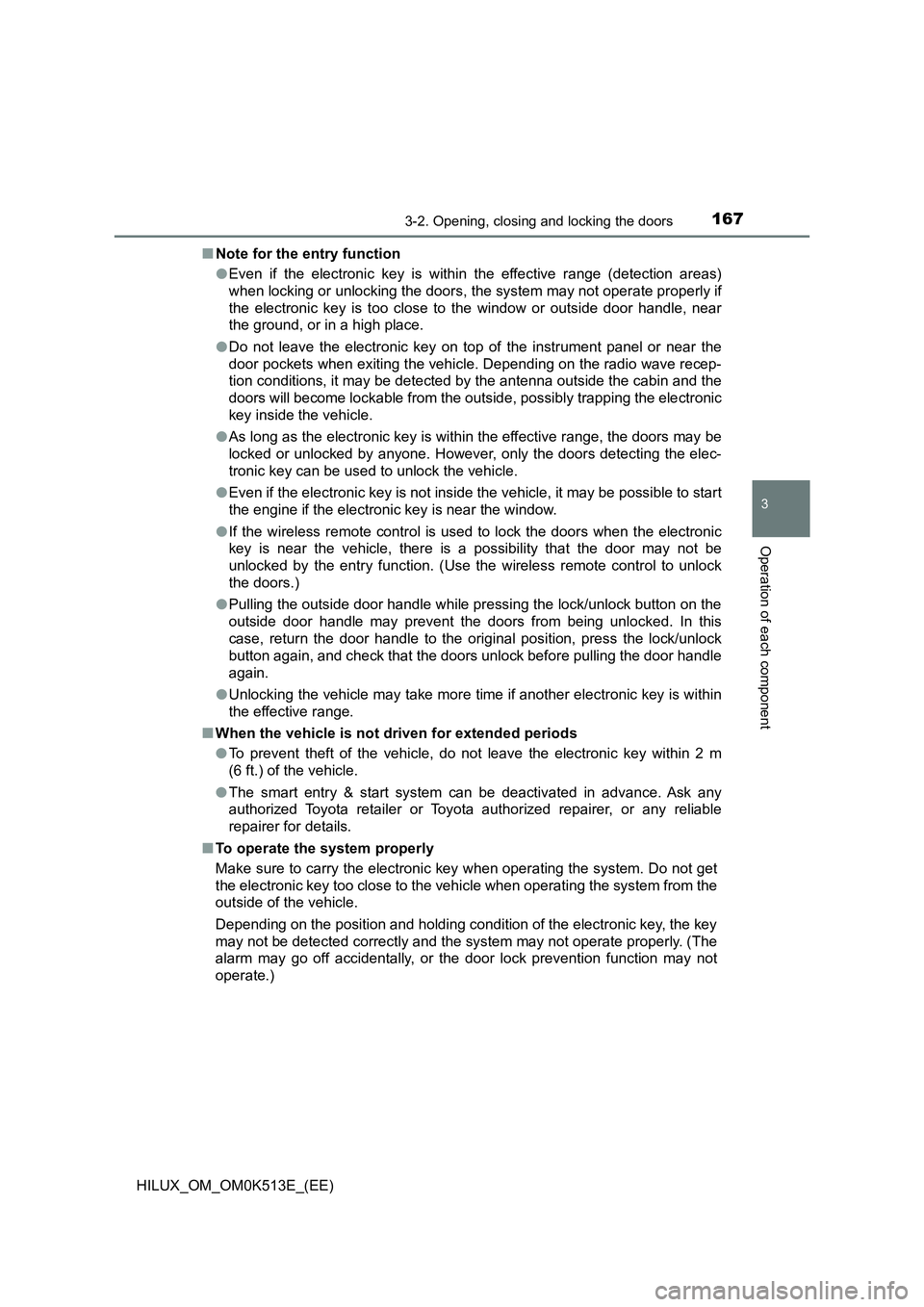

Q Note for the entry function
O Even if the electronic key is within the effective range (detection areas)
when locking or unlocking the doors, the system may not operate properly if
the electronic key is too close to the window or outside door handle, near
the ground, or in a high place.
O Do not leave the electronic key on top of the instrument panel or near the
door pockets when exiting the vehicle. Depending on the radio wave recep-
tion conditions, it may be detected by the antenna outside the cabin and the
doors will become lockable from the outside, possibly trapping the electronic
key inside the vehicle.
O As long as the electronic key is within the effective range, the doors may be
locked or unlocked by anyone. However, only the doors detecting the elec-
tronic key can be used to unlock the vehicle.
O Even if the electronic key is not inside the vehicle, it may be possible to start
the engine if the electronic key is near the window.
O If the wireless remote control is used to lock the doors when the electronic
key is near the vehicle, there is a possibility that the door may not be
unlocked by the entry function. (Use the wireless remote control to unlock
the doors.)
O Pulling the outside door handle while pressing the lock/unlock button on the
outside door handle may prevent the doors from being unlocked. In this
case, return the door handle to the original position, press the lock/unlock
button again, and check that the doors unlock before pulling the door handle
again.
O Unlocking the vehicle may take more time if another electronic key is within
the effective range.
Q When the vehicle is not driven for extended periods
O To prevent theft of the vehicle, do not leave the electronic key within 2 m
(6 ft.) of the vehicle.
O The smart entry & start system can be deactivated in advance. Ask any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer for details.
Q To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get
the electronic key too close to the vehicle when operating the system from the
outside of the vehicle.
Depending on the position and holding condition of the electronic key, the key
may not be detected correctly and the system may not operate properly. (The
alarm may go off accidentally, or the door lock prevention function may not
operate.)

1683-2. Opening, closing and locking the doors
HILUX_OM_OM0K513E_(EE)
Q If the smart entry & start system does not operate properly
O Locking and unlocking the doors: Use the mechanical key. (P. 600)
O Starting the engine: P. 601
Q Electronic key battery depletion
O The standard battery life is 1 to 2 years.
O If the battery becomes low, an alarm will sound in the cabin when the engine
stops.
O As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate that the electronic key battery may be depleted. Replace the battery
when necessary. ( P. 516)
• The smart entry & start system or the wireless remote control does not
operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
O To avoid serious deterioration, do not leave the electronic key within 1 m (3
ft.) of the following electrical appliances that produce a magnetic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Table lamps
• Induction cookers
Q If “Key left inside vehicle” is shown on the multi-information display
An attempt was made to lock the doors using the smart entry & start system
while the electronic key was still inside the vehicle, or an attempt was made
to lock either front door by opening a door and putting the inside lock button
into the lock position, then closing the door by pulling on the outside door
handle with the electronic key still inside the vehicle.
Retrieve the electronic key from the vehicle and lock the doors again.
Q Customization that can be configured at any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer
Settings (e.g. smart entry & start system) can be changed.
(Customizable features: P. 646)
Q If the smart entry & start system has been deactivated in a customized
setting
O Locking and unlocking the doors:
Use the wireless remote control or mechanical key. ( P. 153, 600)
O Starting the engine and changing engine switch modes: P. 601
O Stopping the engine: P. 225

191
4Driving
HILUX_OM_OM0K513E_(EE)
4-1. Before driving
Driving the vehicle ............. 192
Cargo and luggage ............ 205
Trailer towing (without
towing hitch) .................... 206
Trailer towing (with towing
hitch)................................ 207
4-2. Driving procedures
Engine (ignition) switch
(vehicles without smart
entry & start system)........ 220
Engine (ignition) switch
(vehicles with smart
entry & start system)........ 223
Automatic transmission ..... 231
Manual transmission.......... 239
Turn signal lever ................ 246
Parking brake .................... 247
4-3. Operating the lights
and wipers
Headlight switch ................ 248
Fog light switch .................. 255
Windshield wipers and
washer ............................. 258
4-4. Refueling
Opening the fuel tank
cap ................................... 261
4-5. Using the driving support
systems
Toyota Safety Sense ......... 266
PCS (Pre-Collision
System) ........................... 273
LDA (Lane Departure
Alert With Yaw Assist
Function).......................... 284
RSA (Road Sign Assist)..... 295
Dynamic radar cruise
control .............................. 301
Cruise control..................... 317
Toyota parking
assist-sensor ................... 321
Four-wheel drive
system ............................. 331
Rear differential
lock system ...................... 341
Stop & Start system ........... 345
Driving assist systems ....... 355
Downhill assist control
system ............................. 364
AUTO LSD ......................... 367
DPF (Diesel Particulate
Filter) system ................... 369
4-6. Driving tips
Winter driving tips .............. 374

1944-1. Before driving
HILUX_OM_OM0K513E_(EE)
Automatic transmission
Make sure that the parking brake is set and shift the shift lever to D.
Gently depress the accelerator pedal.
Release the parking brake.
Manual transmission
With the parking brake firmly set and the clutch pedal fully
depressed, shift the shift lever to 1.
Lightly depress the accelerator pedal at the same time as gradually
releasing the clutch pedal.
Release the parking brake.
Q When starting off on an uphill (vehicles with hill-start assist control sys-
tem)
The hill-start assist control will activate. ( P. 355)
Q Driving in the rain
O Drive carefully when it is raining, because visibility will be reduced, the win-
dows may become fogged-up, and the road will be slippery.
O Drive carefully when it starts to rain, because the road surface will be espe-
cially slippery.
O Refrain from high speeds when driving on an expressway in the rain,
because there may be a layer of water between the tires and the road sur-
face, preventing the steering and brakes from operating properly.
Q Engine speed while driving (automatic transmission)
In the following conditions, the engine speed may become high while driving.
This is due to automatic up-shifting c ontrol or down-shifting implementation to
meet driving conditions. It does not indicate sudden acceleration.
O The vehicle is judged to be driving uphill or downhill
O When the accelerator pedal is released
Starting off on a steep uphill
1
2
3
1
2
3

1954-1. Before driving
4
Driving
HILUX_OM_OM0K513E_(EE)

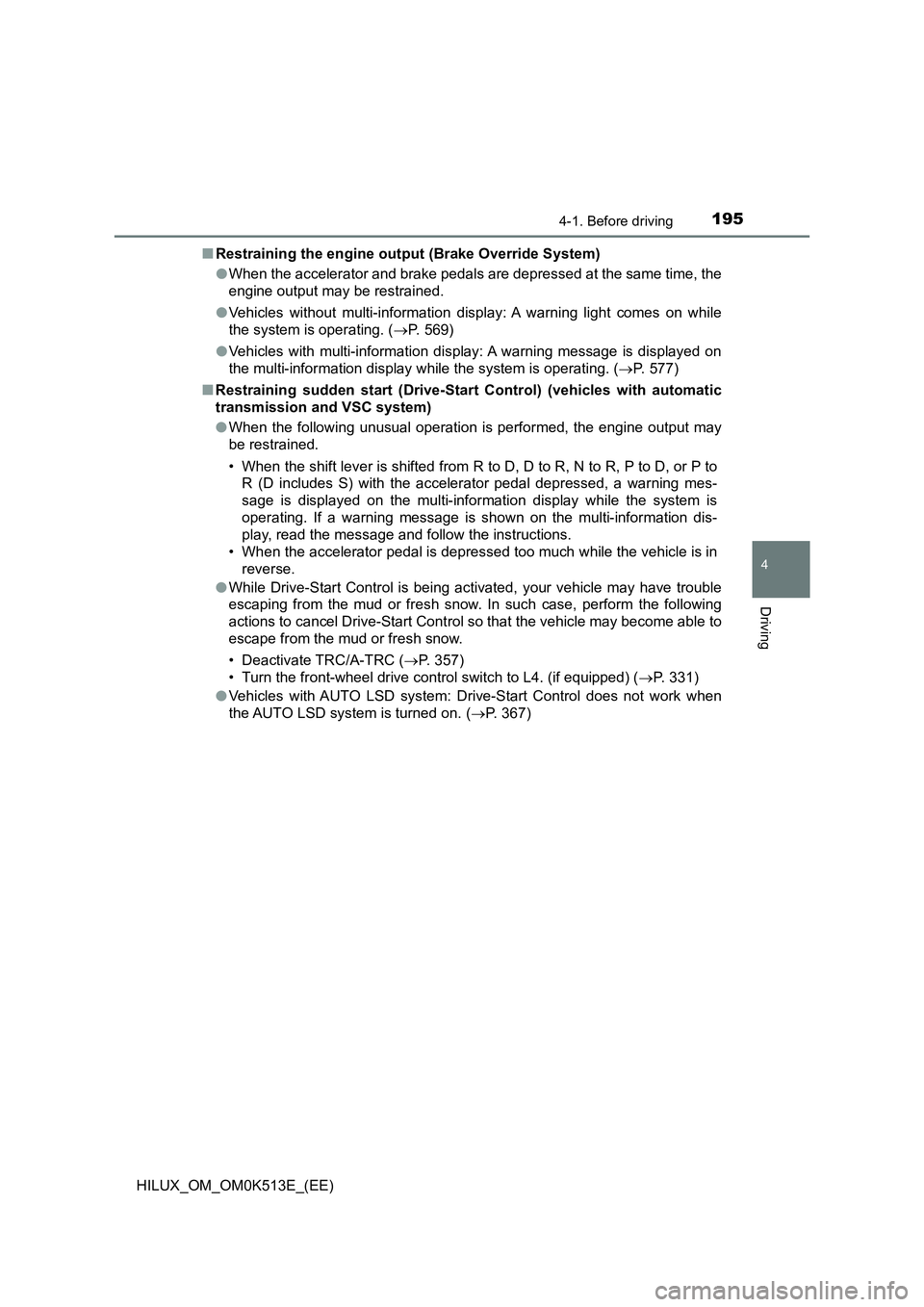

Q Restraining the engine output (Brake Override System)
O When the accelerator and brake pedals are depressed at the same time, the
engine output may be restrained.
O Vehicles without multi-information display: A warning light comes on while
the system is operating. ( P. 569)
O Vehicles with multi-information display: A warning message is displayed on
the multi-information display while the system is operating. ( P. 577)
Q Restraining sudden start (Drive-Start Control) (vehicles with automatic
transmission and VSC system)
O When the following unusual operation is performed, the engine output may
be restrained.
• When the shift lever is shifted from R to D, D to R, N to R, P to D, or P to
R (D includes S) with the accelerator pedal depressed, a warning mes-
sage is displayed on the multi-information display while the system is
operating. If a warning message is shown on the multi-information dis-
play, read the message and follow the instructions.
• When the accelerator pedal is depressed too much while the vehicle is in
reverse.
O While Drive-Start Control is being activated, your vehicle may have trouble
escaping from the mud or fresh snow. In such case, perform the following
actions to cancel Drive-Start Control so that the vehicle may become able to
escape from the mud or fresh snow.
• Deactivate TRC/A-TRC ( P. 357)
• Turn the front-wheel drive control switch to L4. (if equipped) ( P. 331)
O Vehicles with AUTO LSD system: Drive-Start Control does not work when
the AUTO LSD system is turned on. ( P. 367)

1974-1. Before driving
4
Driving
HILUX_OM_OM0K513E_(EE)
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
Q When starting the vehicle
On vehicles with automatic transmission, always keep your foot on the
brake pedal while stopped with the engine running. This prevents the vehi-
cle from creeping.
Q When driving the vehicle
O Do not drive if you are unfamiliar with the location of the brake and accel-
erator pedals to avoid depressing the wrong pedal.
• Accidentally depressing the accelerator pedal instead of the brake
pedal will result in sudden acceleration that may lead to an accident.
• When backing up, you may twist your body around, leading to a diffi-
culty in operating the pedals. Make sure to operate the pedals properly.
• Make sure to keep a correct driving posture even when moving the
vehicle only slightly. This allows you to depress the brake and accelera-
tor pedals properly.
• Depress the brake pedal using your right foot. Depressing the brake
pedal using your left foot may delay response in an emergency, result-
ing in an accident.
O Do not drive the vehicle over or stop the vehicle near flammable materials.
The exhaust system and exhaust gases can be extremely hot. These hot
parts may cause a fire if there is any flammable material nearby.
O During normal driving, do not turn off the engine. Turning the engine off
while driving will not cause loss of steering or braking control, but the
power assist to these systems will be lost. This will make it more difficult to
steer and brake, so you should pull over and stop the vehicle as soon as it
is safe to do so.
However, in the event of an emergency, such as if it becomes impossible
to stop the vehicle in the normal way: P. 555

1984-1. Before driving
HILUX_OM_OM0K513E_(EE)
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
Q When driving the vehicle
O Use engine braking (downshift) to maintain a safe speed when driving
down a steep hill.
Using the brakes continuously may cause the brakes to overheat and lose
effectiveness. ( P. 2 3 2 )
O Do not adjust the positions of the steering wheel, the seat, or the inside or
outside rear view mirrors while driving.
Doing so may result in a loss of vehicle control.
O Always check that all passengers’ arms, heads or other parts of their body
are not outside the vehicle.
O On vehicles with manual transmission, observe the following to prevent
the clutch from being damaged.
• Do not operate the clutch halfway for a long period of time unless it is
necessary.
• Do not operate the clutch half or partial engaged to control the vehicle
speed, such as to drive the vehicle at a low speed, to hold the vehicle
on a slope, etc.
• Do not depress the brake pedal during operating the clutch half or par-
tial engaged.
Doing so could not only speed up the clutch wear, but also damage the
clutch or even cause a fatal accident such as vehicle fire.
Q When driving on slippery road surfaces
O Sudden braking, acceleration and steering may cause tire slippage and
reduce your ability to control the vehicle.
O Sudden acceleration, engine braking due to shifting, or changes in engine
speed could cause the vehicle to skid.
O After driving through a puddle, lightly depress the brake pedal to make
sure that the brakes are functioning properly. Wet brake pads may prevent
the brakes from functioning properly. If the brakes on only one side are wet
and not functioning properly, steering control may be affected.

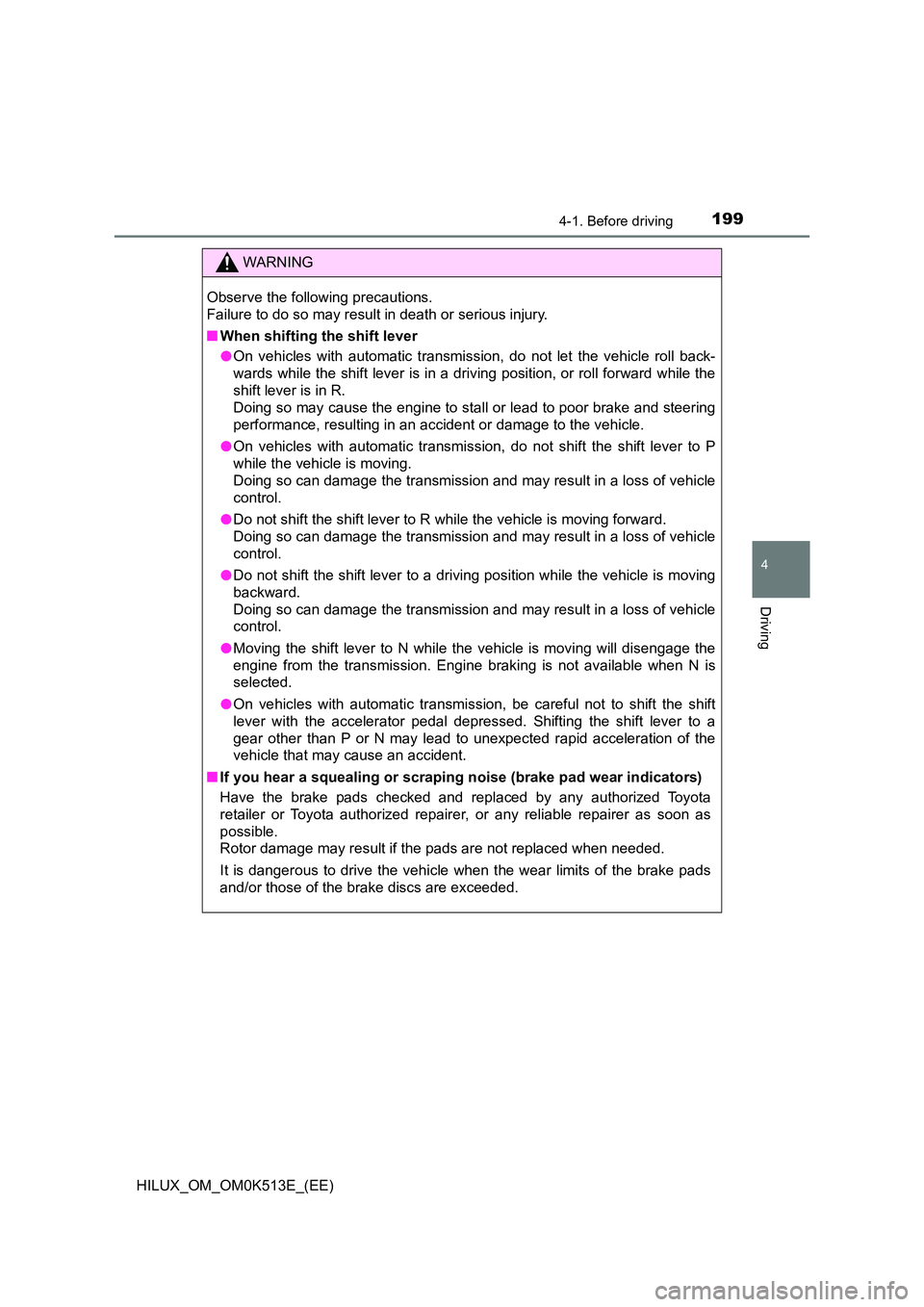

1994-1. Before driving
4
Driving
HILUX_OM_OM0K513E_(EE)
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
Q When shifting the shift lever
O On vehicles with automatic transmission, do not let the vehicle roll back-
wards while the shift lever is in a driving position, or roll forward while the
shift lever is in R.
Doing so may cause the engine to stall or lead to poor brake and steering
performance, resulting in an accident or damage to the vehicle.
O On vehicles with automatic transmission, do not shift the shift lever to P
while the vehicle is moving.
Doing so can damage the transmission and may result in a loss of vehicle
control.
O Do not shift the shift lever to R while the vehicle is moving forward.
Doing so can damage the transmission and may result in a loss of vehicle
control.
O Do not shift the shift lever to a driving position while the vehicle is moving
backward.
Doing so can damage the transmission and may result in a loss of vehicle
control.
O Moving the shift lever to N while the vehicle is moving will disengage the
engine from the transmission. Engine braking is not available when N is
selected.
O On vehicles with automatic transmission, be careful not to shift the shift
lever with the accelerator pedal depressed. Shifting the shift lever to a
gear other than P or N may lead to unexpected rapid acceleration of the
vehicle that may cause an accident.
Q If you hear a squealing or scraping noise (brake pad wear indicators)
Have the brake pads checked and replaced by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer as soon as
possible.
Rotor damage may result if the pads are not replaced when needed.
It is dangerous to drive the vehicle w hen the wear limits of the brake pads
and/or those of the brake discs are exceeded.

2034-1. Before driving
4
Driving
HILUX_OM_OM0K513E_(EE)
NOTICE
QWhen parking the vehicle
On vehicles with automatic transmission, always set the parking brake, and
shift the shift lever to P. Failure to do so may cause the vehicle to move or
the vehicle may accelerate suddenly if the accelerator pedal is accidentally
depressed.
Q Avoiding damage to vehicle parts
O Do not turn the steering wheel fully in either direction and hold it there for
an extended period of time.
Doing so may damage the power steering pump.
O When driving over bumps in the road, drive as slowly as possible to avoid
damaging the wheels, underside of the vehicle, etc.
O Diesel engine: Make sure to idle the engine immediately after high-load
driving. Stop the engine only after the turbocharger has cooled down.
Failure to do so may cause damage to the turbocharger.
O Diesel engine: In an extremely cold environment, idle the engine for more
than 30 seconds after starting the engine. Do not race the engine while
idling.
Q If you get a flat tire while driving
A flat or damaged tire may cause the following situations. Hold the steering
wheel firmly and gradually depress the brake pedal to slow down the vehi-
cle.
O It may be difficult to control your vehicle.
O The vehicle will make abnormal sounds or vibrations.
O The vehicle will lean abnormally.
Information on what to do in case of a flat tire. ( P. 581)
