2324-2. Driving procedures
HILUX_OM_OM0K513E_(EE)
*1: To improve fuel efficiency and reduce noises, set the shift lever in the D
position for normal driving.
*2: Selecting shift ranges using S mode restricts the upper limit of the possi-
ble gear ranges, controls engine braking force, and prevents unneces-
sary upshifting.

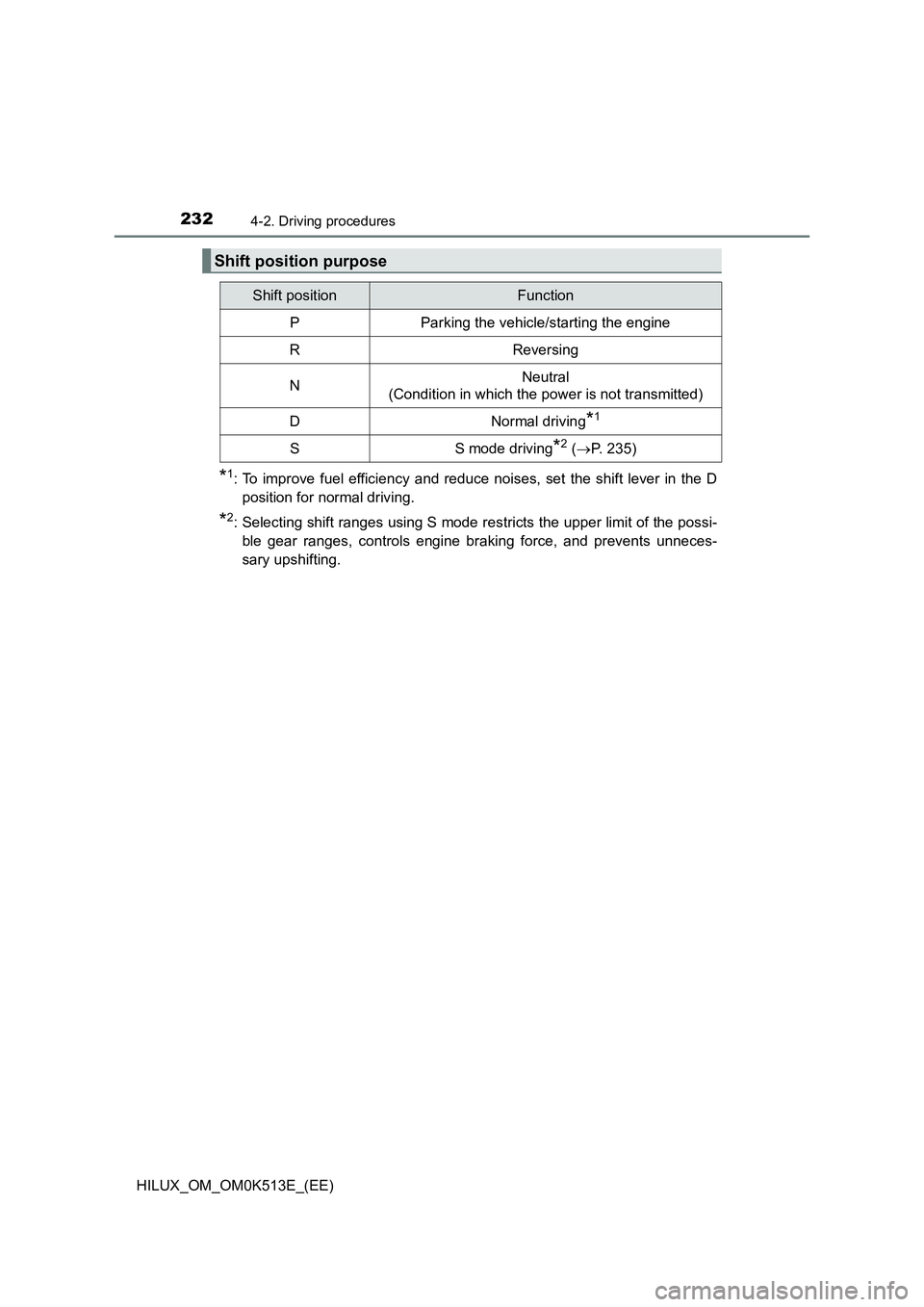

Shift position purpose
Shift positionFunction
PParking the vehicle/starting the engine
RReversing
NNeutral
(Condition in which the power is not transmitted)
DNormal driving*1
SS mode driving*2 ( P. 235)

2364-2. Driving procedures
HILUX_OM_OM0K513E_(EE)

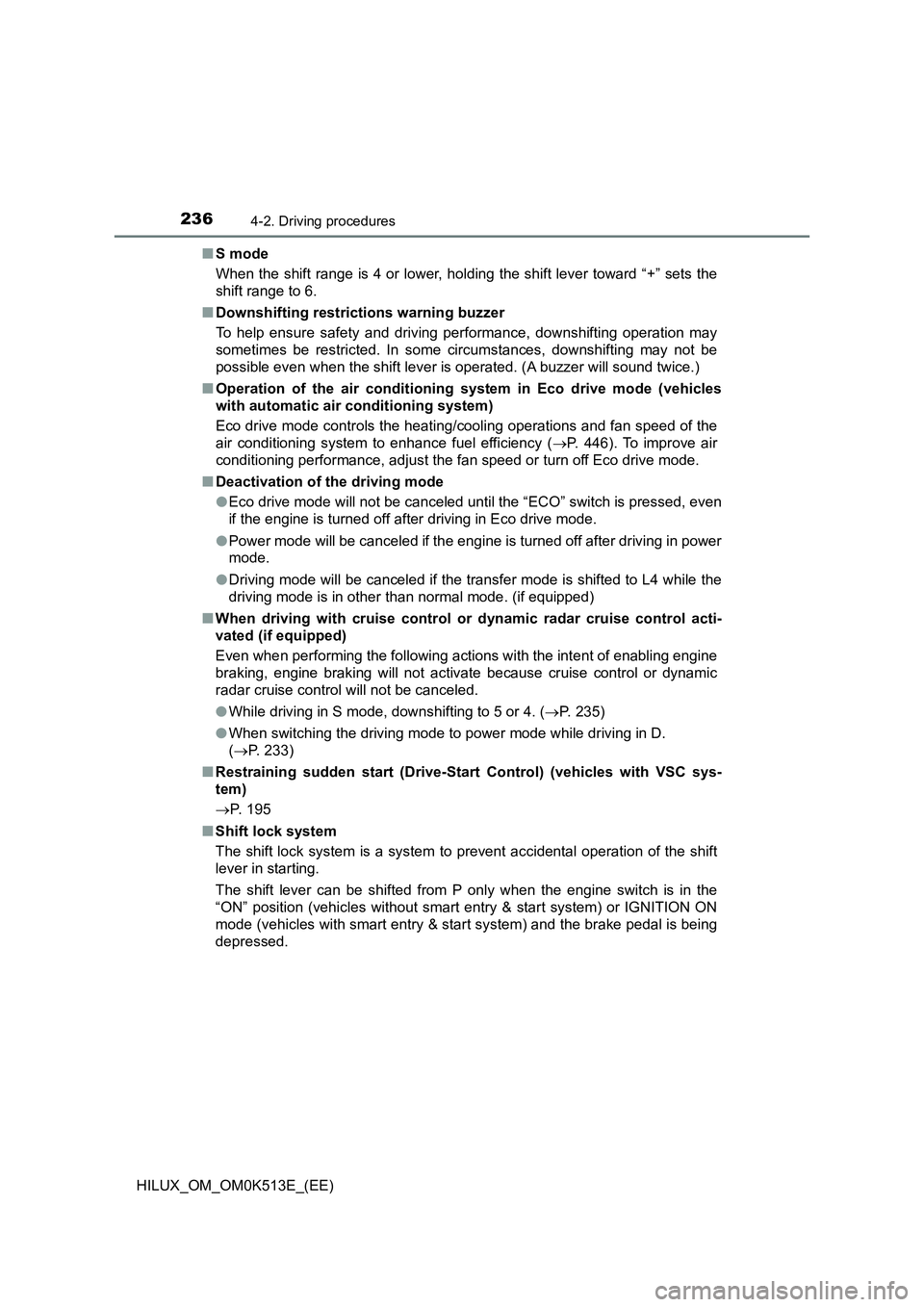

Q S mode
When the shift range is 4 or lower, holding the shift lever toward “+” sets the
shift range to 6.
Q Downshifting restrictions warning buzzer
To help ensure safety and driving per formance, downshifting operation may
sometimes be restricted. In some circumstances, downshifting may not be
possible even when the shift lever is operated. (A buzzer will sound twice.)
Q Operation of the air conditioning system in Eco drive mode (vehicles
with automatic air conditioning system)
Eco drive mode controls the heating/cooling operations and fan speed of the
air conditioning system to enhance fuel efficiency ( P. 446). To improve air
conditioning performance, adjust the fan speed or turn off Eco drive mode.
Q Deactivation of the driving mode
O Eco drive mode will not be canceled until the “ECO” switch is pressed, even
if the engine is turned off after driving in Eco drive mode.
O Power mode will be canceled if the engine is turned off after driving in power
mode.
O Driving mode will be canceled if the transfer mode is shifted to L4 while the
driving mode is in other than normal mode. (if equipped)
Q When driving with cruise control or dynamic radar cruise control acti-
vated (if equipped)
Even when performing the following actions with the intent of enabling engine
braking, engine braking will not activate because cruise control or dynamic
radar cruise control will not be canceled.
O While driving in S mode, downshifting to 5 or 4. (P. 235)
O When switching the driving mode to power mode while driving in D.
( P. 233)
Q Restraining sudden start (Drive-Start Control) (vehicles with VSC sys-
tem)
 P. 195
Q Shift lock system
The shift lock system is a system to prevent accidental operation of the shift
lever in starting.
The shift lever can be shifted from P only when the engine switch is in the
“ON” position (vehicles without smart entry & start system) or IGNITION ON
mode (vehicles with smart entry & start system) and the brake pedal is being
depressed.

2414-2. Driving procedures
4
Driving
HILUX_OM_OM0K513E_(EE)

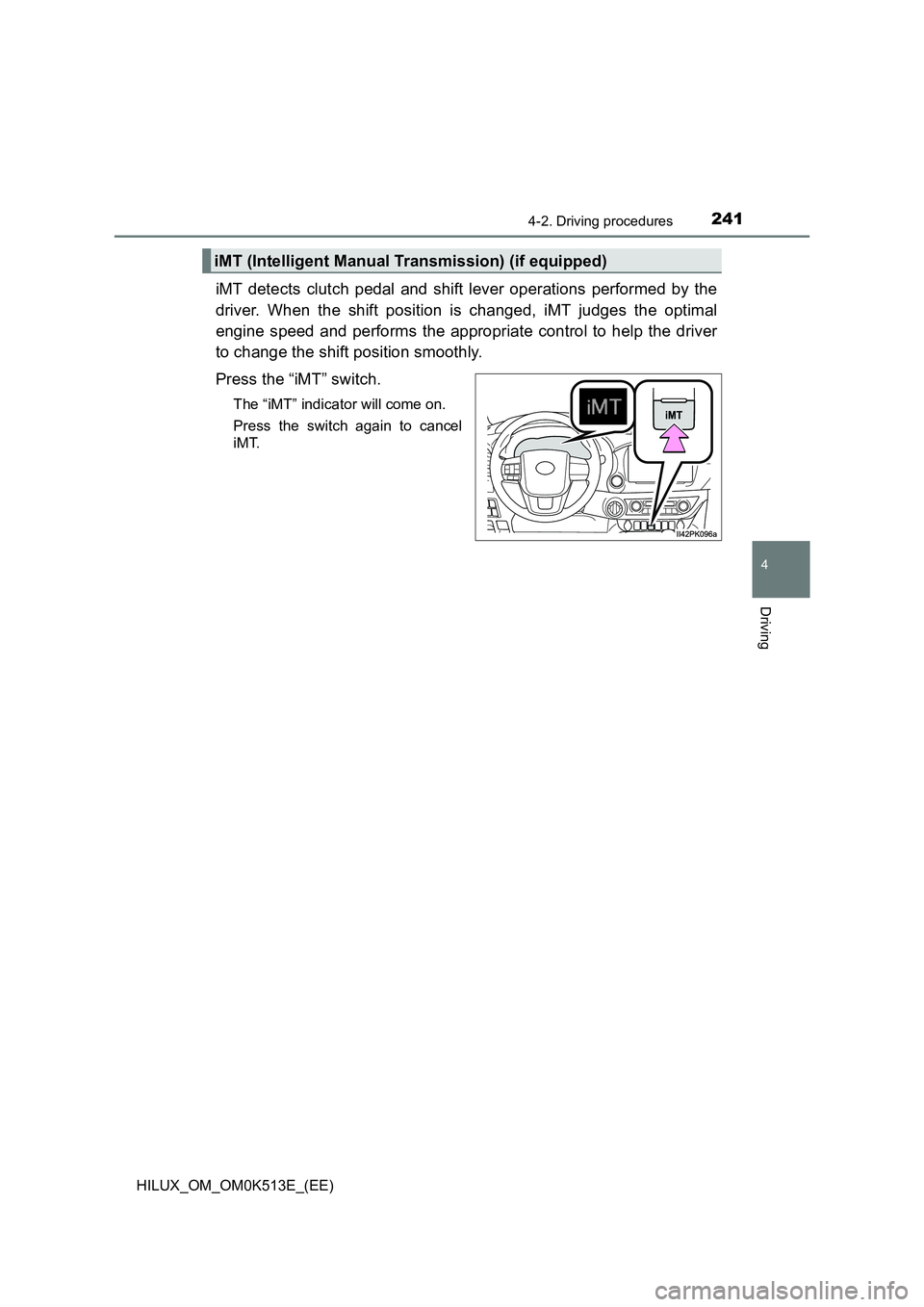

iMT detects clutch pedal and shift lever operations performed by the
driver. When the shift position is changed, iMT judges the optimal
engine speed and performs the appropriate control to help the driver
to change the shift position smoothly.
Press the “iMT” switch.
The “iMT” indicator will come on.
Press the switch again to cancel
iMT.
iMT (Intelligent Manual Transmission) (if equipped)

2424-2. Driving procedures
HILUX_OM_OM0K513E_(EE)

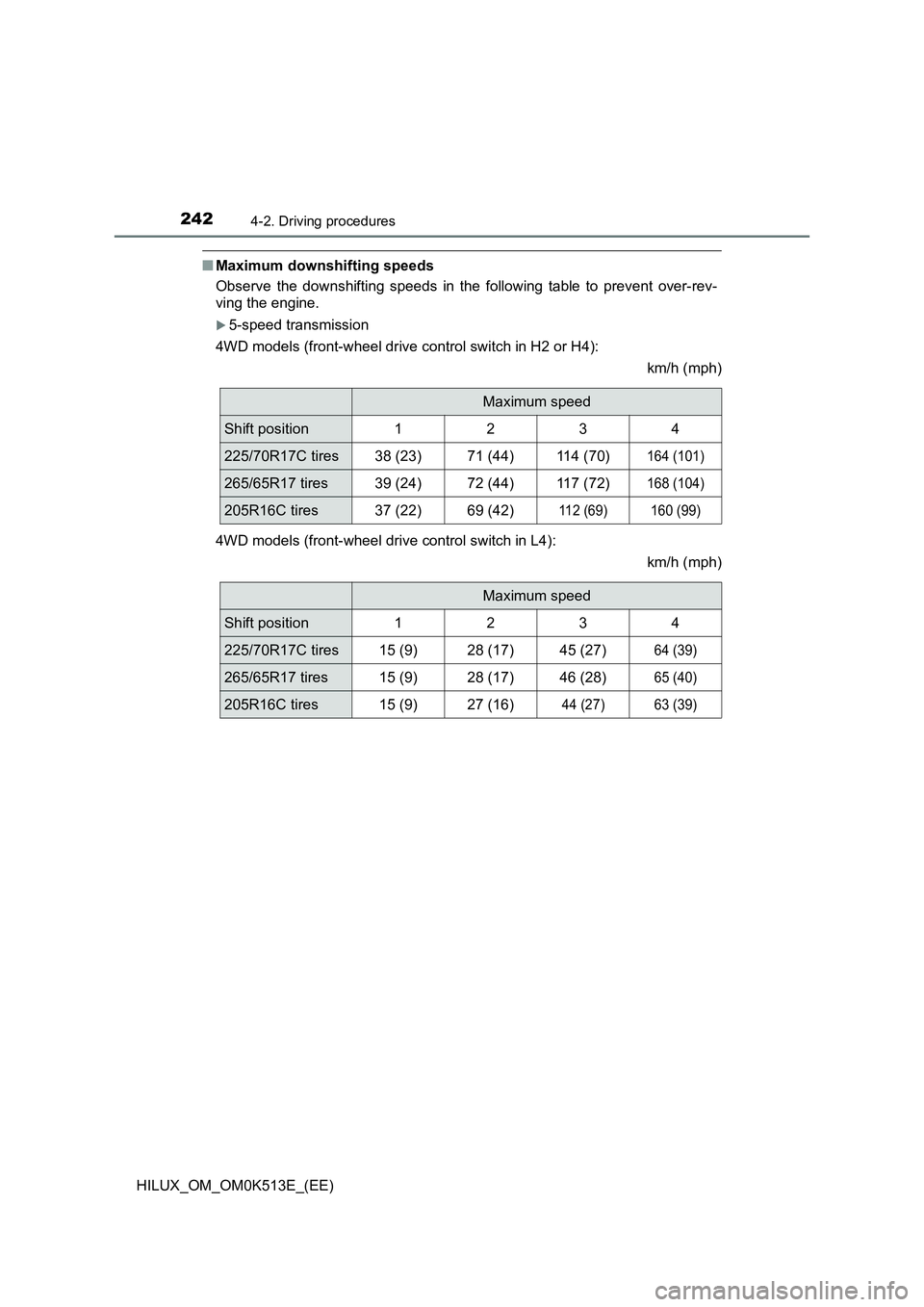

QMaximum downshifting speeds
Observe the downshifting speeds in the following table to prevent over-rev-
ving the engine.
5-speed transmission
4WD models (front-wheel drive control switch in H2 or H4):
km/h (mph)
4WD models (front-wheel drive control switch in L4):
km/h (mph)
Maximum speed
Shift position1234
225/70R17C tires38 (23)71 (44)114 (70)164 (101)
265/65R17 tires39 (24)72 (44)117 (72)168 (104)
205R16C tires37 (22)69 (42)112 (69)160 (99)
Maximum speed
Shift position1234
225/70R17C tires15 (9)28 (17)45 (27)64 (39)
265/65R17 tires15 (9)28 (17)46 (28)65 (40)
205R16C tires15 (9)27 (16)44 (27)63 (39)

2444-2. Driving procedures
HILUX_OM_OM0K513E_(EE)

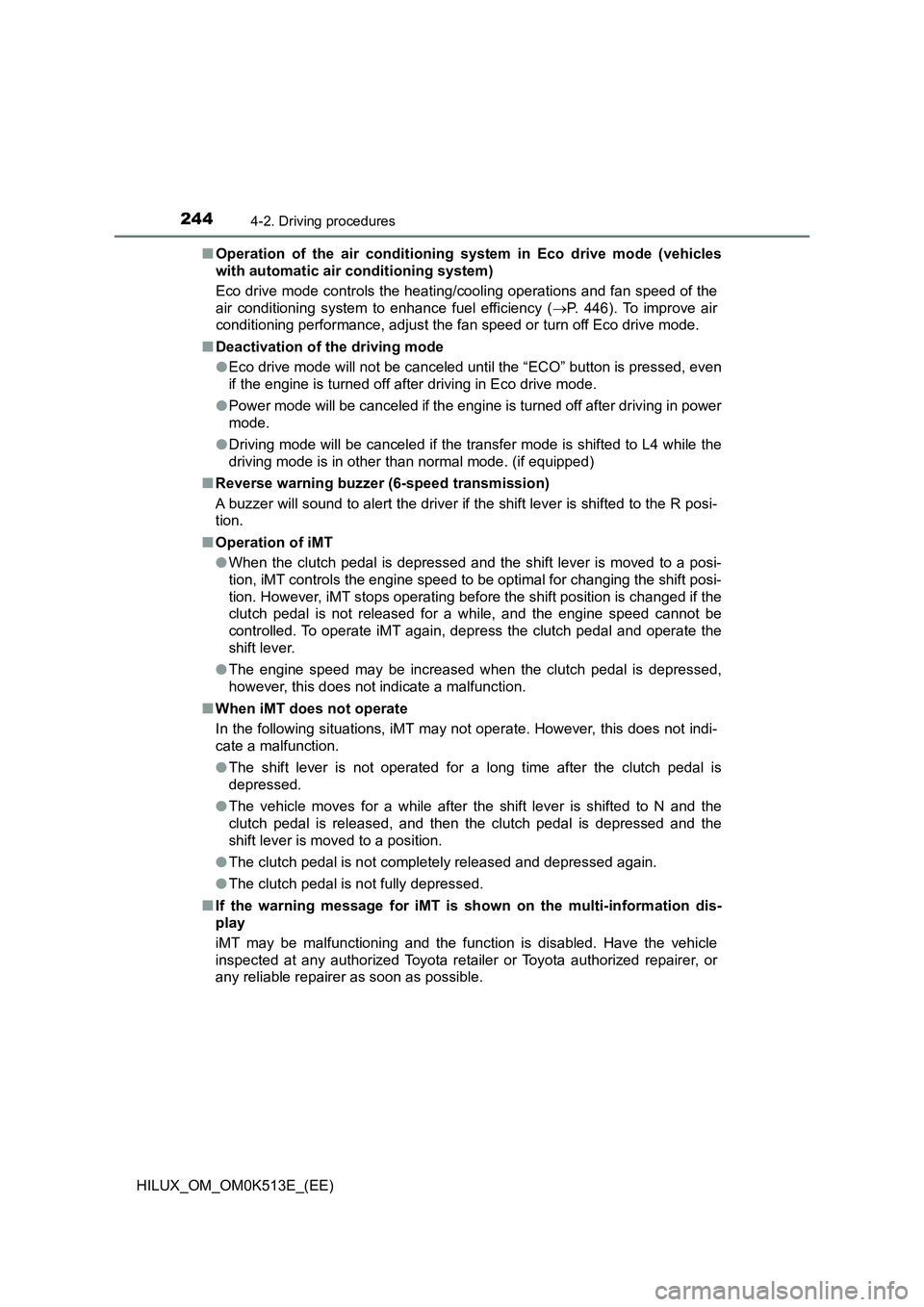

Q Operation of the air conditioning system in Eco drive mode (vehicles
with automatic air conditioning system)
Eco drive mode controls the heating/cooling operations and fan speed of the
air conditioning system to enhance fuel efficiency ( P. 446). To improve air
conditioning performance, adjust the fan speed or turn off Eco drive mode.
Q Deactivation of the driving mode
O Eco drive mode will not be canceled until the “ECO” button is pressed, even
if the engine is turned off after driving in Eco drive mode.
O Power mode will be canceled if the engine is turned off after driving in power
mode.
O Driving mode will be canceled if the transfer mode is shifted to L4 while the
driving mode is in other than normal mode. (if equipped)
Q Reverse warning buzzer (6-speed transmission)
A buzzer will sound to alert the driver if the shift lever is shifted to the R posi-
tion.
Q Operation of iMT
O When the clutch pedal is depressed and the shift lever is moved to a posi-
tion, iMT controls the engine speed to be optimal for changing the shift posi-
tion. However, iMT stops operating before the shift position is changed if the
clutch pedal is not released for a while, and the engine speed cannot be
controlled. To operate iMT again, depress the clutch pedal and operate the
shift lever.
O The engine speed may be increased when the clutch pedal is depressed,
however, this does not indicate a malfunction.
Q When iMT does not operate
In the following situations, iMT may not operate. However, this does not indi-
cate a malfunction.
O The shift lever is not operated for a long time after the clutch pedal is
depressed.
O The vehicle moves for a while after the shift lever is shifted to N and the
clutch pedal is released, and then the clutch pedal is depressed and the
shift lever is moved to a position.
O The clutch pedal is not completely released and depressed again.
O The clutch pedal is not fully depressed.
Q If the warning message for iMT is shown on the multi-information dis-
play
iMT may be malfunctioning and the function is disabled. Have the vehicle
inspected at any authorized Toyota reta iler or Toyota authorized repairer, or
any reliable repairer as soon as possible.

2524-3. Operating the lights and wipers
HILUX_OM_OM0K513E_(EE)
This system allows the headlights and front position lights to be turned
on for 30 seconds when the engine switch is turned to the “LOCK”
position (vehicles without smart entry & start system) or off (vehicles
with smart entry & start system).
Pull the lever toward you and
release it with the light switch is in
or after turning the
engine switch to the “LOCK” posi-
tion (vehicles without smart entry
& start system) or off (vehicles
with smart entry & start system).
Pull the lever toward you and
release it again to turn off the
lights.
Q Daytime running light system (if equipped)
To make your vehicle more visible to other drivers during daytime driving, the
daytime running lights turn on automatically whenever the engine is started
and the parking brake is released with the headlight switch in . (Illuminate
brighter than the front position lights.) The daytime running light system is not
designed for use at night.
Q Headlight control sensor (if equipped)
Extended Headlight Lighting system (if equipped)
The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the
windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.

3134-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K513E_(EE)
QDynamic radar cruise control can be set when
O The shift lever is in D. (Vehicles with automatic transmission)
O The shift lever is in range 2nd or higher. (Vehicles with manual transmission)
O Depending on the control mode, this item can be set at the following
speeds.
• Vehicle-to-vehicle distance control mode: Approximately 30 km/h (20
mph) or more
• Constant speed control mode: Approximately 30 km/h (20 mph) or more
Q Accelerating after setting the vehicle speed
The vehicle can accelerate by operating the accelerator pedal. After acceler-
ating, the set speed resumes. However, during vehicle-to-vehicle distance
control mode, the vehicle speed may decrease below the set speed in order
to maintain the distance to the preceding vehicle.
Q Shift position selection (vehicles with manual transmission)
Select a shift position according to the vehicle speed. If the engine speed is
too high or too low, control may be automatically canceled.
Q Automatic cancelation of vehicle-to-vehicle distance control mode
Vehicle-to-vehicle distance control mode is automatically canceled in the fol-
lowing situations.
O Actual vehicle speed falls below approximately 25 km/h (16 mph).
O VSC is activated.
O TRC/A-TRC is activated for a period of time.
O When the VSC or TRC/A-TRC system is turned off.
O The sensor cannot detect correctly because it is covered in some way.
O When the brake control or output restriction control of a driving support sys-
tem operates. (For example: Pre-Coll ision System, Drive-Start Control)
O When the shift lever is in N or the clutch pedal is depressed for a certain
amount of time or more. (Vehicles with manual transmission)
O 4WD models: Switching the transfer mode is not completed within 5 sec-
onds while the cruise control system is on.
If vehicle-to-vehicle distance control mode is automatically canceled for any
reasons other than the above, there may be a malfunction in the system.
Contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.

3444-5. Using the driving support systems
HILUX_OM_OM0K513E_(EE)
QLocking the rear differential
The following systems do not operate w hen the rear differential is locked.
It is normal operation for the ABS warning light, VSC OFF indicator (if
equipped) and “TRC OFF” indicator (if equipped) to be on or for “TRC turned
off” to be displayed on the multi-information display (if equipped) at this time.
•ABS
• Brake assist (if equipped)
• VSC (if equipped)
• TRC/A-TRC (if equipped)
• Trailer Sway Control (if equipped)
• Hill-start assist control (if equipped)
• Downhill assist control (if equipped)
Q Unlocking the rear differential
If the rear differential lock indicator still flashes even after unlocking the rear
differential, check the safety of the surrounding area and slightly turn the
steering wheel in either direction while the vehicle is in motion.
Q Automatic system cancelation of the rear differential lock system
The rear differential lock is also unlocked in any of the following situations:
O The front-wheel drive control switch is turned to H2 or H4 (4WD models)
O The engine switch is turned to the “ACC” or “LOCK” position (vehicles with-
out smart entry & start system) or A CCESSORY or off (vehicles with smart
entry & start system)
Q After unlocking the rear differential
Check that the indicator goes off.
WARNING
Q To avoid an accident
Failure to observe the following precautions may result in an accident.
O Do not use the rear differential lock system except when wheel spinning
occurs in a ditch or on a slippery or rugged surface. Large steering effort
and careful cornering control will be required.
O Do not lock the rear differential until the wheels have stopped spinning.
Otherwise, the vehicle may move in an unexpected direction when the dif-
ferential lock is engaged, resulting in an accident. This may also lead to
possible damage to rear differential lock component parts.
O Do not drive over 8 km/h (5 mph) when the differential is locked.
O Do not keep driving with the rear differential lock switch on.

3474-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K513E_(EE)
When the engine is stopped by the Stop & Start system when the

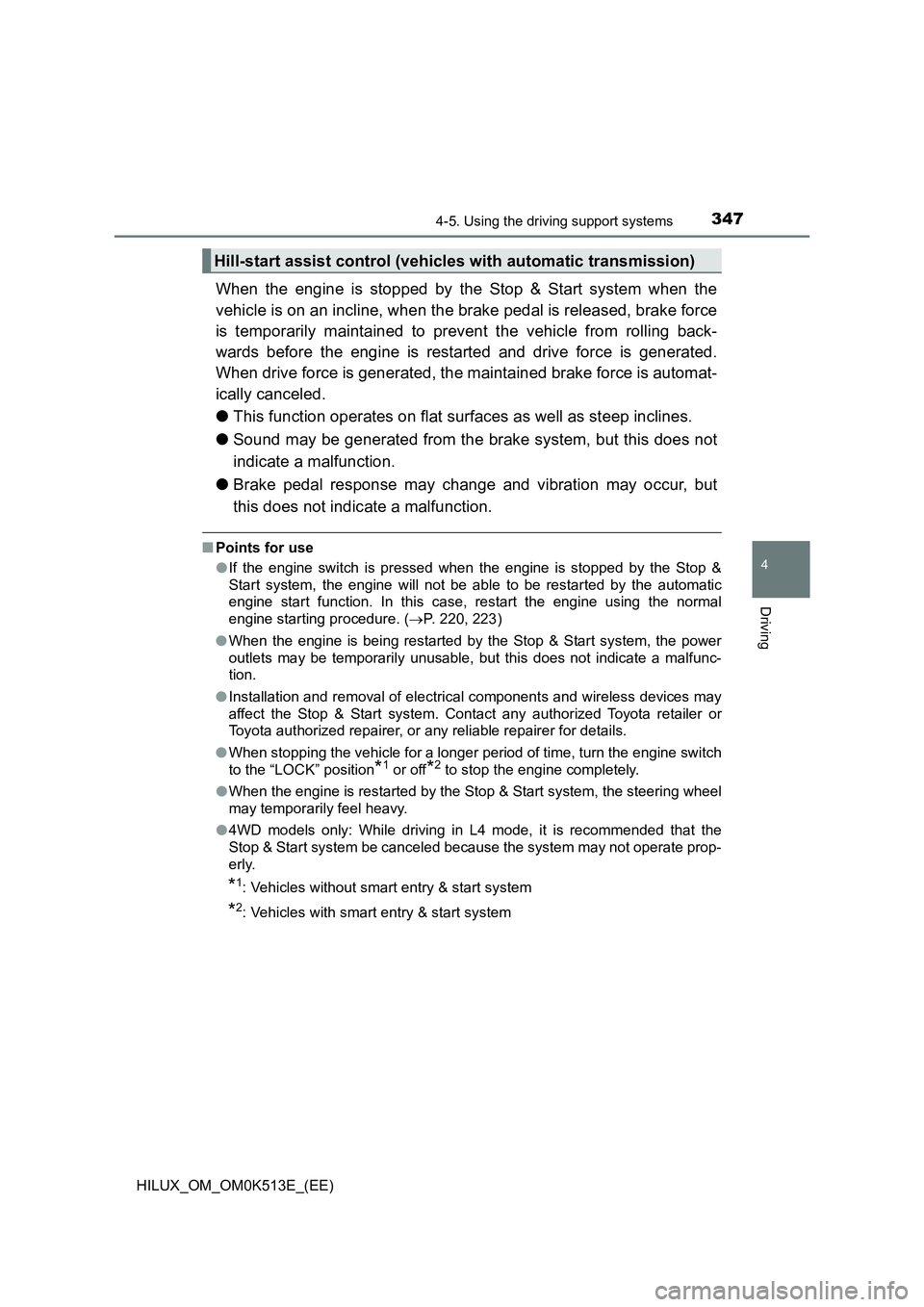

vehicle is on an incline, when the brake pedal is released, brake force
is temporarily maintained to prevent the vehicle from rolling back-
wards before the engine is restarted and drive force is generated.
When drive force is generated, the maintained brake force is automat-
ically canceled.
O This function operates on flat surfaces as well as steep inclines.
O Sound may be generated from the brake system, but this does not
indicate a malfunction.
O Brake pedal response may change and vibration may occur, but
this does not indicate a malfunction.
Q Points for use
O If the engine switch is pressed when the engine is stopped by the Stop &
Start system, the engine will not be able to be restarted by the automatic
engine start function. In this case, restart the engine using the normal
engine starting procedure. ( P. 220, 223)
O When the engine is being restarted by the Stop & Start system, the power
outlets may be temporarily unusable, but this does not indicate a malfunc-
tion.
O Installation and removal of electrical components and wireless devices may
affect the Stop & Start system. Contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer for details.
O When stopping the vehicle for a longer period of time, turn the engine switch
to the “LOCK” position*1 or off*2 to stop the engine completely.
O When the engine is restarted by the Stop & Start system, the steering wheel
may temporarily feel heavy.
O 4WD models only: While driving in L4 mode, it is recommended that the
Stop & Start system be canceled because the system may not operate prop-
erly.
*1: Vehicles without smart entry & start system
*2: Vehicles with smart entry & start system
Hill-start assist control (vehicles with automatic transmission)

3524-5. Using the driving support systems
HILUX_OM_OM0K513E_(EE)

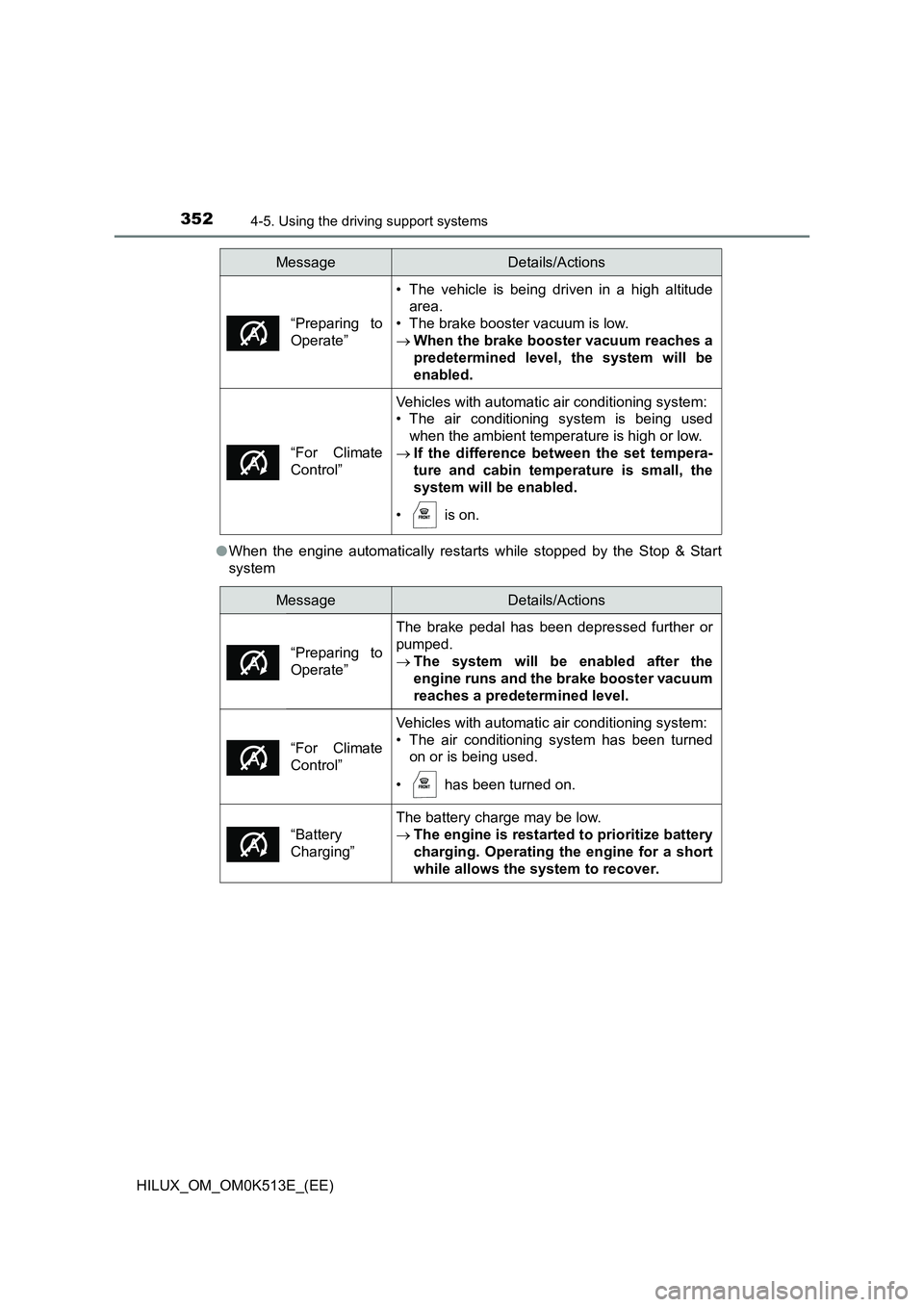

O When the engine automatically restarts while stopped by the Stop & Start
system
“Preparing to
Operate”
• The vehicle is being driven in a high altitude
area.
• The brake booster vacuum is low.
 When the brake booster vacuum reaches a
predetermined level, the system will be
enabled.
“For Climate
Control”
Vehicles with automatic air conditioning system:
• The air conditioning system is being used
when the ambient temperature is high or low.
 If the difference between the set tempera-
ture and cabin temperature is small, the
system will be enabled.
• is on.
MessageDetails/Actions
MessageDetails/Actions
“Preparing to
Operate”
The brake pedal has been depressed further or
pumped.
 The system will be enabled after the
engine runs and the brake booster vacuum
reaches a predetermined level.
“For Climate
Control”
Vehicles with automatic air conditioning system:
• The air conditioning system has been turned
on or is being used.
• has been turned on.
“Battery
Charging”
The battery charge may be low.
 The engine is restarted to prioritize battery
charging. Operating the engine for a short
while allows the system to recover.
