9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K513E_(EE)
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.

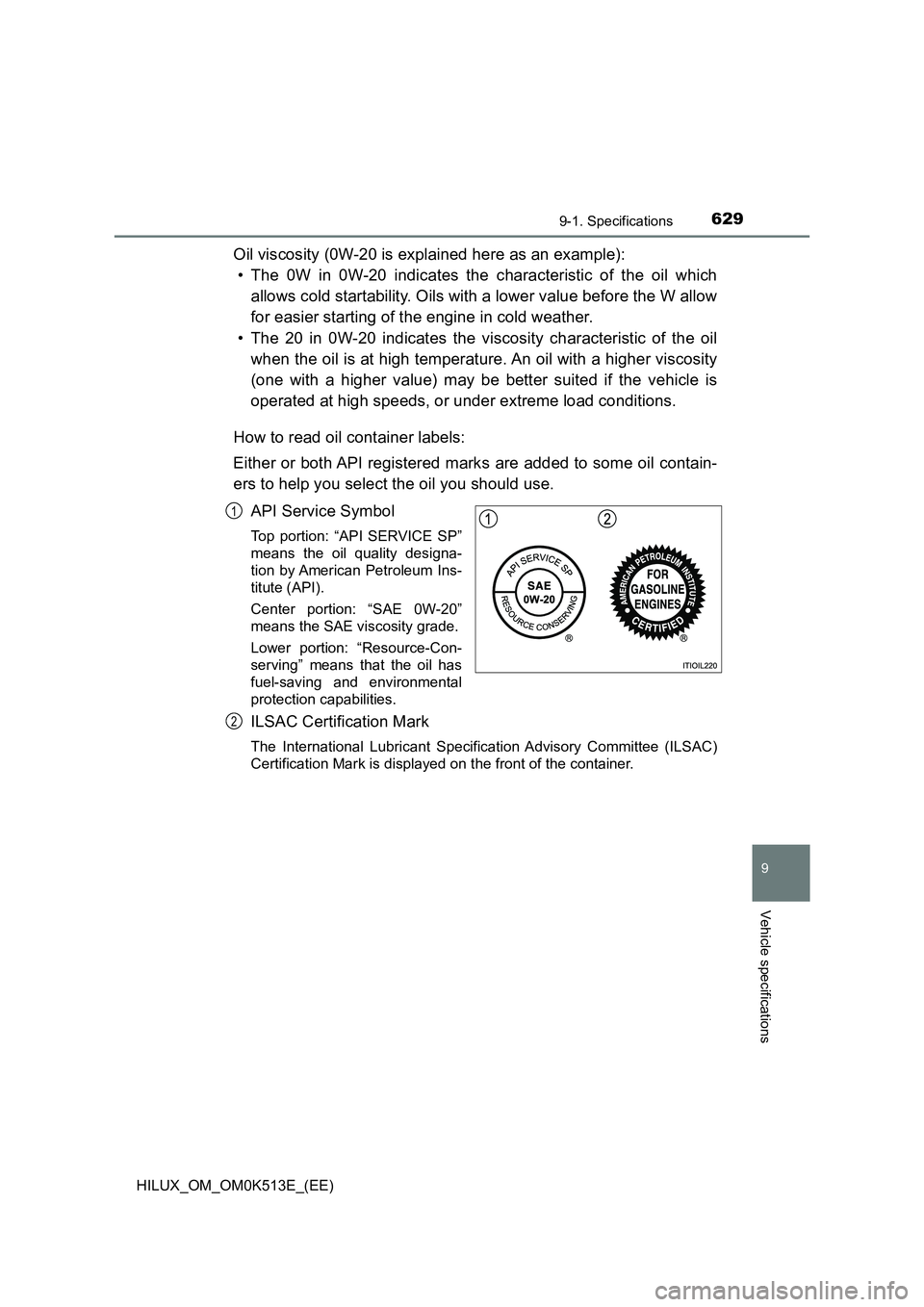

API Service Symbol
Top portion: “API SERVICE SP”
means the oil quality designa-
tion by American Petroleum Ins-
titute (API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-Con-
serving” means that the oil has
fuel-saving and environmental
protection capabilities.
ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
1
2

6309-1. Specifications
HILUX_OM_OM0K513E_(EE)
Diesel engine (except for EURO V and VI models*1)
*1: EURO V and VI are emission standards. If it is not clear that your vehicle
meets relevant standards, contact any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
*2: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.

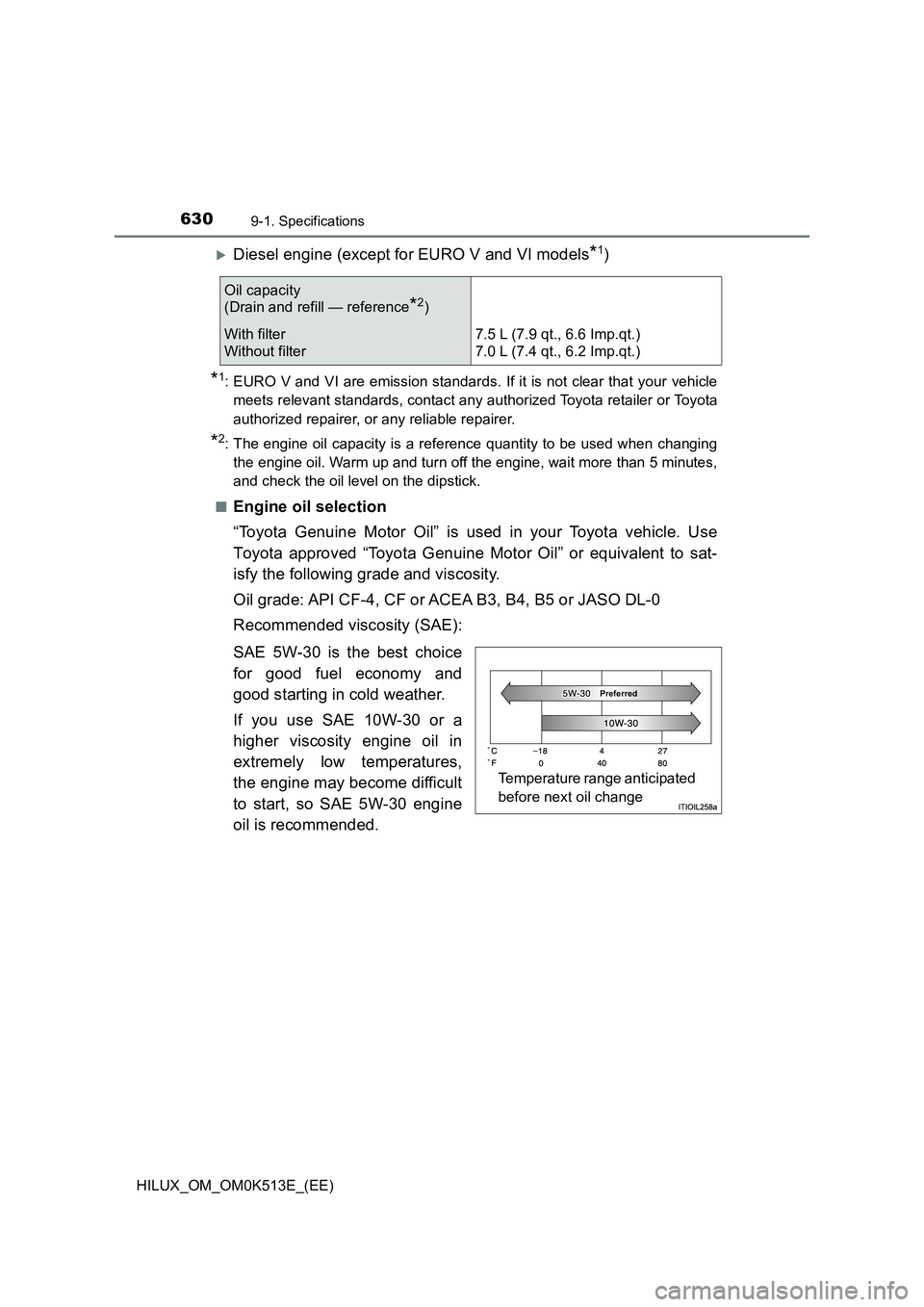

QEngine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to sat-
isfy the following grade and viscosity.
Oil grade: API CF-4, CF or ACEA B3, B4, B5 or JASO DL-0
Recommended viscosity (SAE):
SAE 5W-30 is the best choice
for good fuel economy and
good starting in cold weather.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 5W-30 engine
oil is recommended.
Oil capacity
(Drain and refill — reference*2)
With filter
Without filter
7.5 L (7.9 qt., 6.6 Imp.qt.)
7.0 L (7.4 qt., 6.2 Imp.qt.)
Temperature range anticipated
before next oil change
Preferred

631
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K513E_(EE)
How to read oil container label:
The Japanese Automobile
Standard Organization (JASO)
DL-0 Mark is added to some oil
containers to help you select
the oil you should use.
Oil viscosity (5W-30 is explained here as an example):
• The 5W in 5W-30 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 30 in 5W-30 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.

6329-1. Specifications
HILUX_OM_OM0K513E_(EE)
Diesel engine (for EURO V and VI models*1)
*1: EURO V and VI are emission standards. If it is not clear that your vehicle
meets relevant standards, contact any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
*2: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
QEngine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade:
0W-20: ACEA C5
0W-30 and 5W-30: ACEA C2
Oil capacity
(Drain and refill reference*2)
With filter
Without filter
7.5 L (7.9 qt., 6.6 Imp.qt.)
7.0 L (7.4 qt., 6.2 Imp.qt.)
NOTICE
Using engine oil other than ACEA C5 or C2 may damage the catalytic con-
verter.

633
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K513E_(EE)

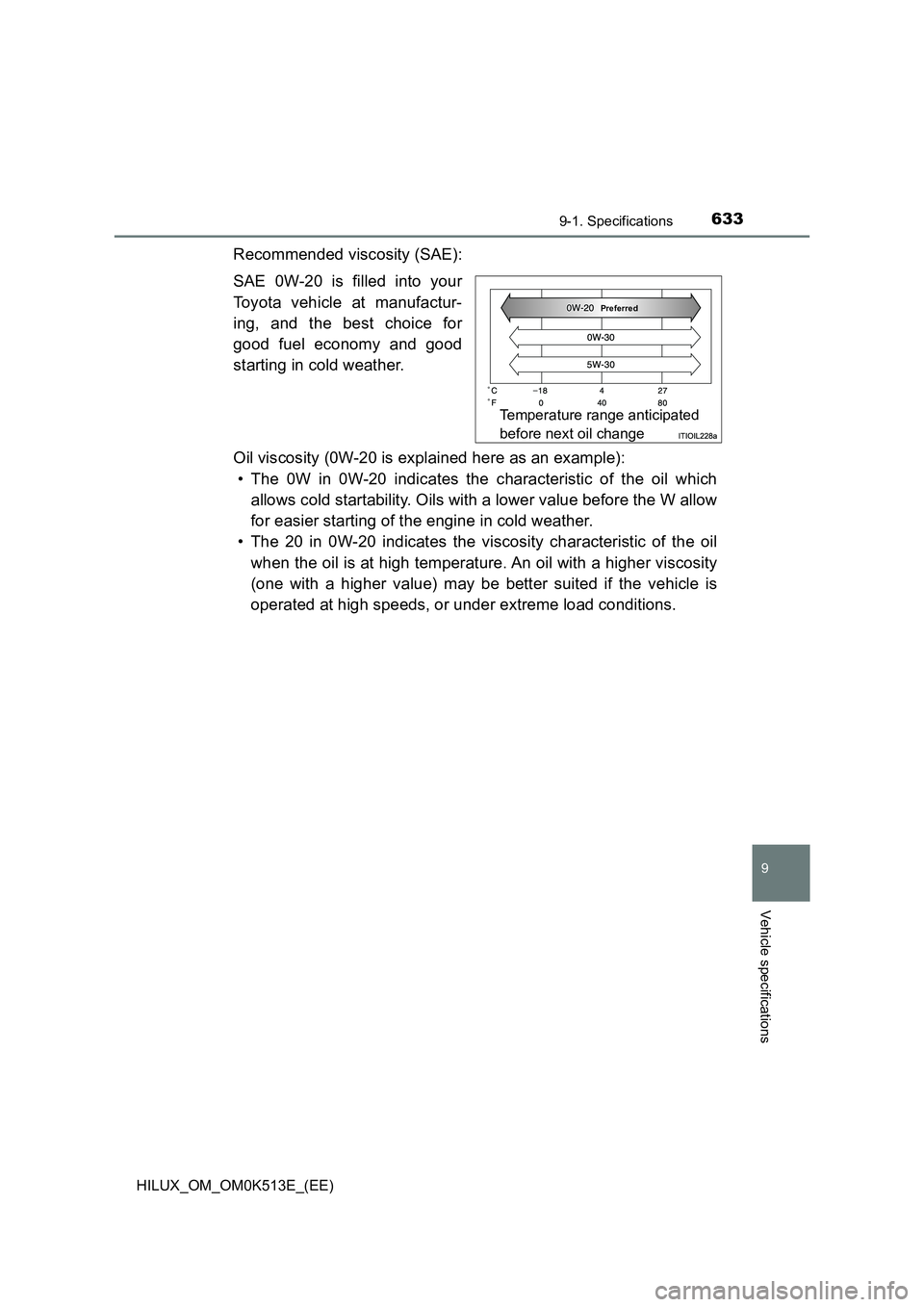

Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
Temperature range anticipated
before next oil change
Preferred

6349-1. Specifications
HILUX_OM_OM0K513E_(EE)
*1: EURO IV, V and VI are emission standards. If it is not clear that your vehi-
cle meets relevant standards, contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
*2: Without power heater
*3: With power heater

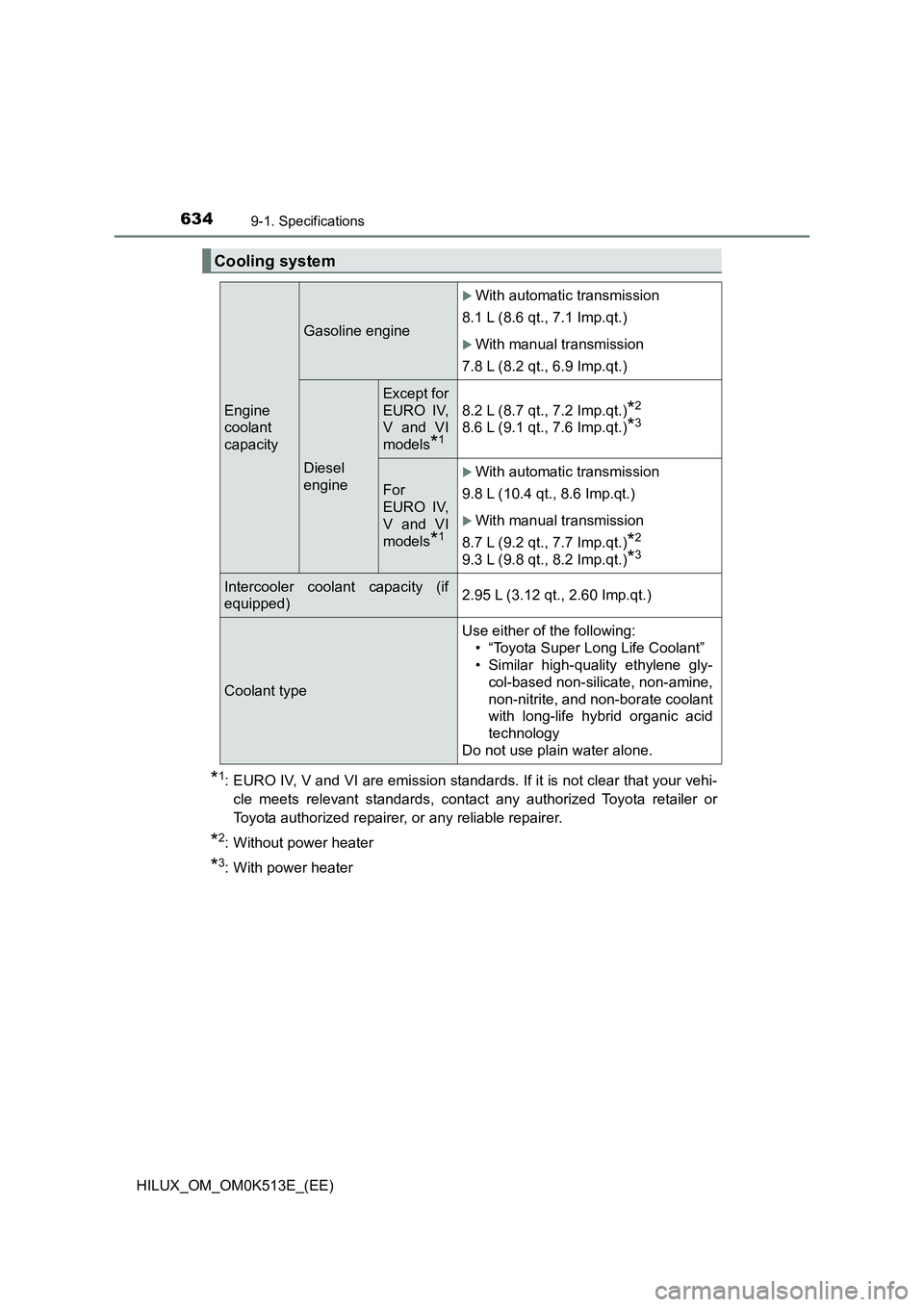

Cooling system
Engine
coolant
capacity
Gasoline engine
With automatic transmission
8.1 L (8.6 qt., 7.1 Imp.qt.)
With manual transmission
7.8 L (8.2 qt., 6.9 Imp.qt.)
Diesel
engine
Except for
EURO IV,
V and VI
models*1
8.2 L (8.7 qt., 7.2 Imp.qt.)*2
8.6 L (9.1 qt., 7.6 Imp.qt.)*3
For
EURO IV,
V and VI
models*1
With automatic transmission
9.8 L (10.4 qt., 8.6 Imp.qt.)
With manual transmission
8.7 L (9.2 qt., 7.7 Imp.qt.)*2
9.3 L (9.8 qt., 8.2 Imp.qt.)*3
Intercooler coolant capacity (if
equipped)2.95 L (3.12 qt., 2.60 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene gly-
col-based non-silicate, non-amine,
non-nitrite, and non-borate coolant
with long-life hybrid organic acid
technology
Do not use plain water alone.

635
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K513E_(EE)
Vehicles with maintenance type battery
Vehicles with maintenance-free type battery
Ignition system (gasoline engine)
Spark plug

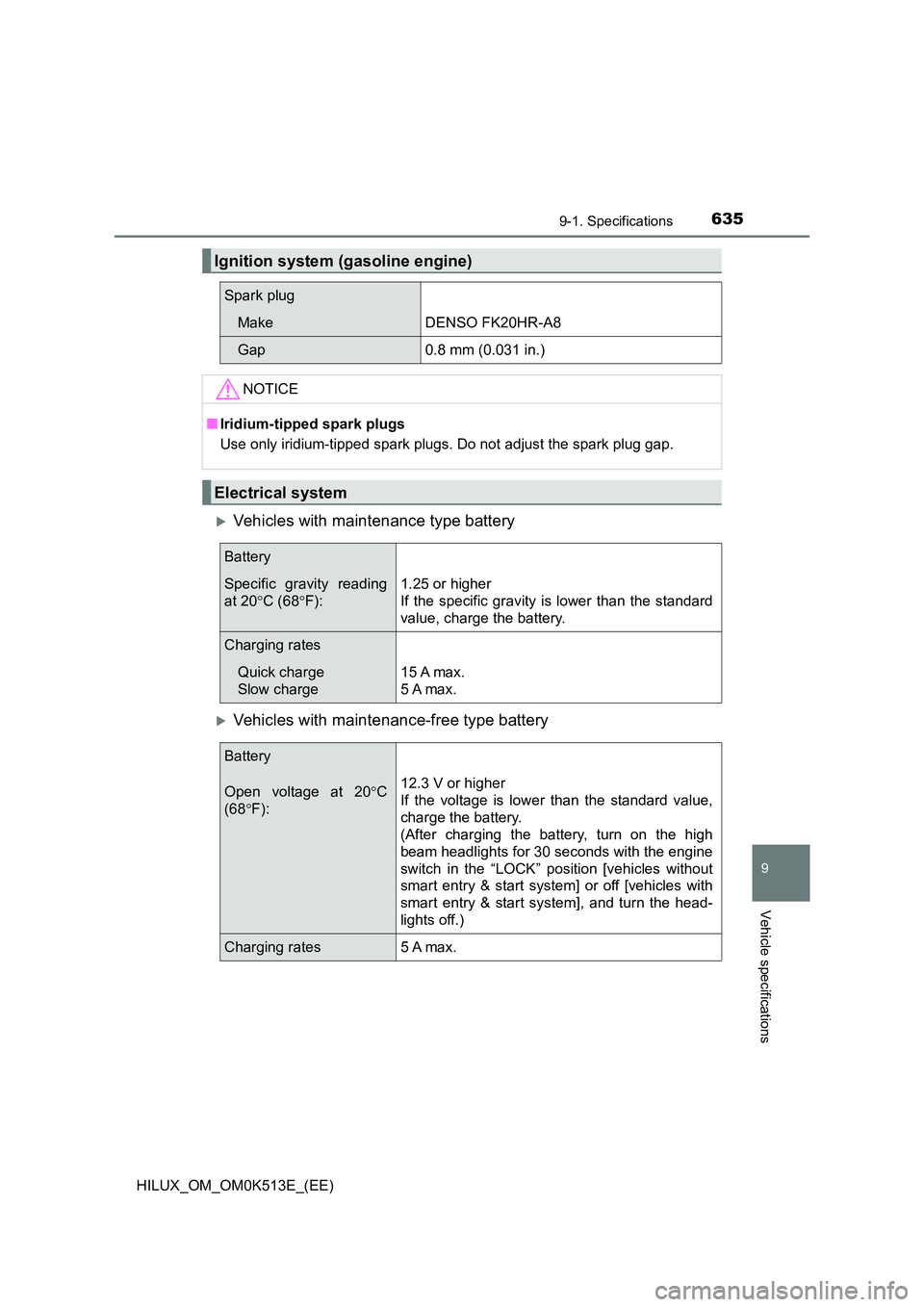

MakeDENSO FK20HR-A8
Gap0.8 mm (0.031 in.)
NOTICE
QIridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Electrical system
Battery
Specific gravity reading
at 20 C (68F):
1.25 or higher
If the specific gravity is lower than the standard
value, charge the battery.
Charging rates
Quick charge
Slow charge
15 A max.
5 A max.
Battery
Open voltage at 20 C
(68 F):
12.3 V or higher
If the voltage is lower than the standard value,
charge the battery.
(After charging the battery, turn on the high
beam headlights for 30 seconds with the engine
switch in the “LOCK” position [vehicles without
smart entry & start system] or off [vehicles with
smart entry & start system], and turn the head-
lights off.)
Charging rates 5 A max.

6369-1. Specifications
HILUX_OM_OM0K513E_(EE)
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
Automatic transmission

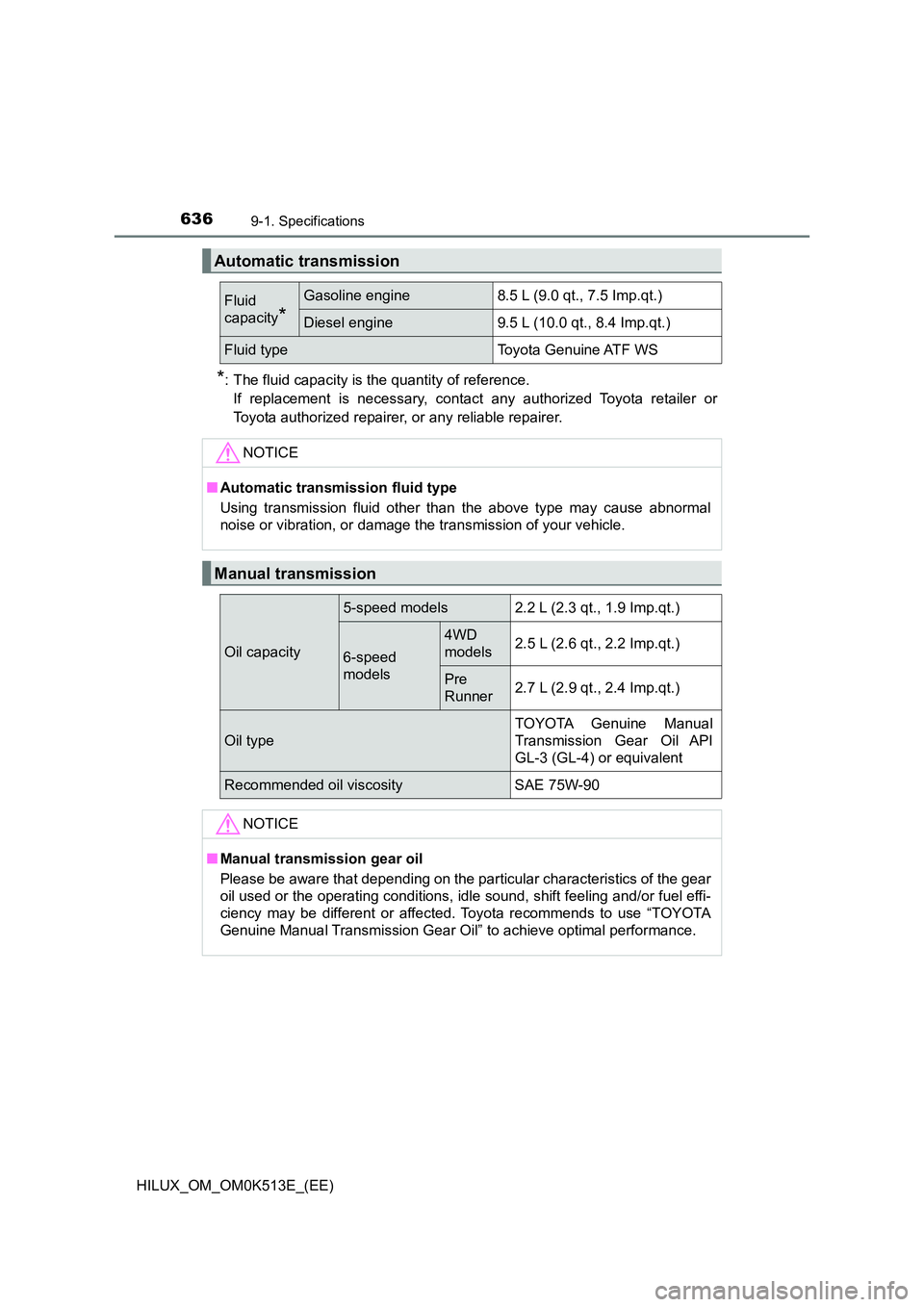

Fluid
capacity*
Gasoline engine8.5 L (9.0 qt., 7.5 Imp.qt.)
Diesel engine9.5 L (10.0 qt., 8.4 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
Q Automatic transmission fluid type
Using transmission fluid other than the above type may cause abnormal
noise or vibration, or damage t he transmission of your vehicle.
Manual transmission
Oil capacity
5-speed models 2.2 L (2.3 qt., 1.9 Imp.qt.)
6-speed
models
4WD
models 2.5 L (2.6 qt., 2.2 Imp.qt.)
Pre
Runner 2.7 L (2.9 qt., 2.4 Imp.qt.)
Oil type
TOYOTA Genuine Manual
Transmission Gear Oil API
GL-3 (GL-4) or equivalent
Recommended oil viscosity SAE 75W-90
NOTICE
Q Manual transmission gear oil
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feeling and/or fuel effi-
ciency may be different or affected. Toyota recommends to use “TOYOTA
Genuine Manual Transmission Gear Oil” to achieve optimal performance.

637
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K513E_(EE)
*: Your Toyota vehicle is filled with “Toyota Genuine Transfer Gear oil LF” at
the factory. Use Toyota approved “Toyota Genuine Transfer Gear oil LF” or
an equivalent oil of matching quality that satisfies the above specifications.
Please contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer for further details.
*1: Your Toyota vehicle is filled with “Toyota Genuine Differential Gear Oil” at
the factory. Use Toyota approved “Toyota Genuine Differential Gear Oil” or
an equivalent oil of matching quality that satisfies the above specifications.
Please contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer for further details.
*2: Models made in Thailand*4
*3: Models made in South Africa*4
*4: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. ( P. 1 2 )
Transfer (4WD models)
Oil capacity1.0 L (1.1 qt., 0.9 Imp.qt.)
Oil type*Toyota Genuine Transfer Gear oil LF or
equivalent
Recommended oil viscositySAE 75W
Differential
Oil
capacity
Front
(4WD
models)
Without A.D.D.1.45 L (1.53 qt., 1.28 Imp.qt.)
With A.D.D.1.60 L (1.69 qt., 1.41 Imp.qt.)
Rear
Without rear differ-
ential lock system
3.65 L (3.86 qt., 3.21 Imp.qt.)*2
3.75 L (3.96 qt., 3.30 Imp.qt.)*3
With rear differential
lock system3.60 L (3.80 qt., 3.17 Imp.qt.)
Oil type*1 and oil viscosity
Toyota Genuine Differential
gear oil LT 75W-85 GL-5 or
equivalent
Clutch (vehicles with manual transmission)
Pedal free play 5  15 mm (0.2  0.6 in.)
Fluid type SAE J1703 or FMVSS No.116 DOT 3 or
SAE J1704 or FMVSS No.116 DOT 4

6389-1. Specifications
HILUX_OM_OM0K513E_(EE)
*1: Minimum pedal clearance when depressed with a force of 490 N (50 kgf,
110 lbf) while the engine is running
*2: Parking brake lever travel when pulled up with a force of 200 N (20 kgf,
45 lbf)
*3: Without 205R16C tires
*4: With 205R16C tires
*1: Models made in Thailand*3
*2: With grease fitting only
*3: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. ( P. 1 2 )

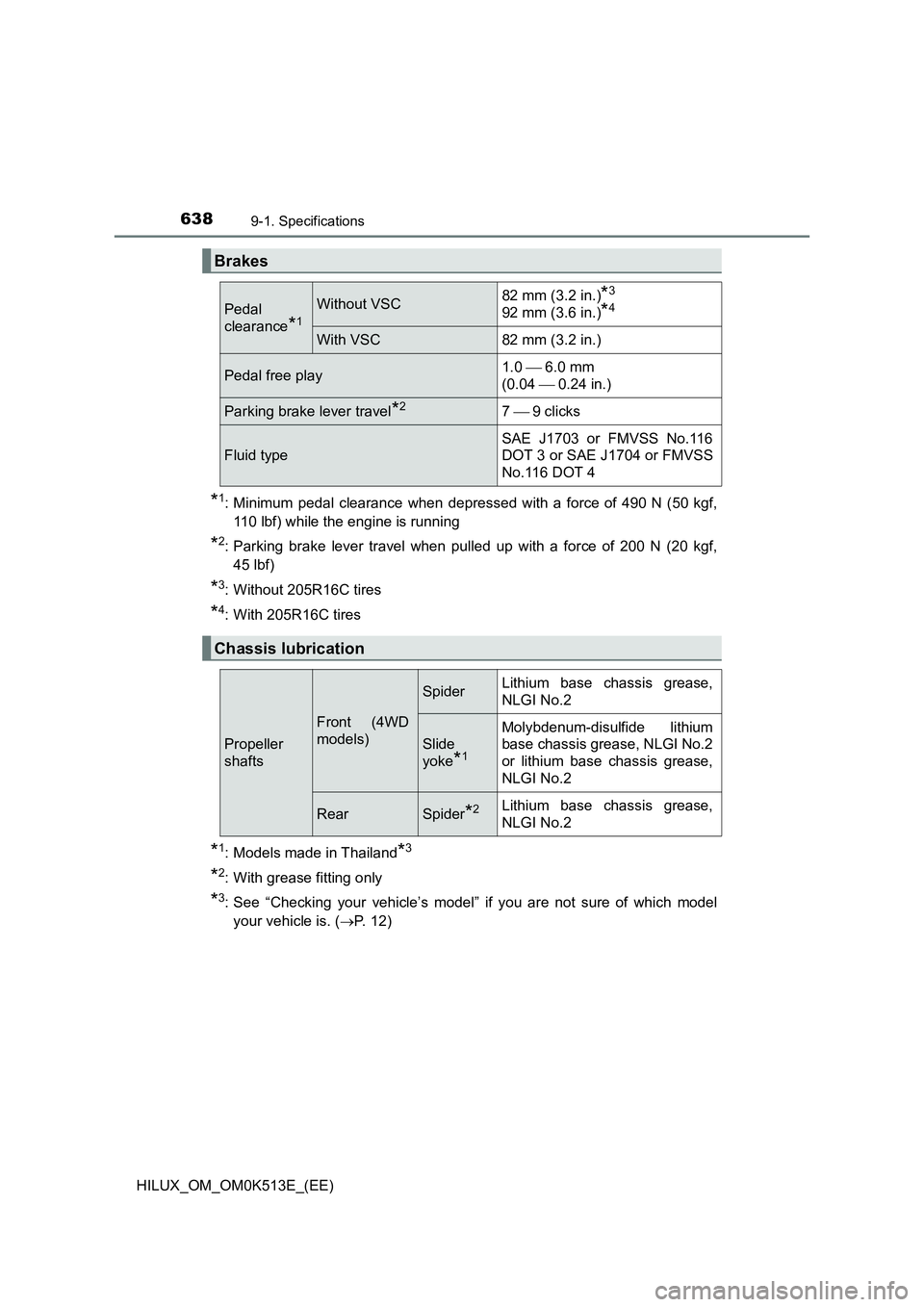

Brakes
Pedal
clearance*1
Without VSC82 mm (3.2 in.)*3
92 mm (3.6 in.)*4
With VSC82 mm (3.2 in.)
Pedal free play1.0  6.0 mm
(0.04  0.24 in.)
Parking brake lever travel*27 9 clicks
Fluid type
SAE J1703 or FMVSS No.116
DOT 3 or SAE J1704 or FMVSS
No.116 DOT 4
Chassis lubrication
Propeller
shafts
Front (4WD
models)
SpiderLithium base chassis grease,
NLGI No.2
Slide
yoke*1
Molybdenum-disulfide lithium
base chassis grease, NLGI No.2
or lithium base chassis grease,
NLGI No.2
RearSpider*2Lithium base chassis grease,
NLGI No.2
