TOYOTA HILUX 2021 Owners Manual (in English)

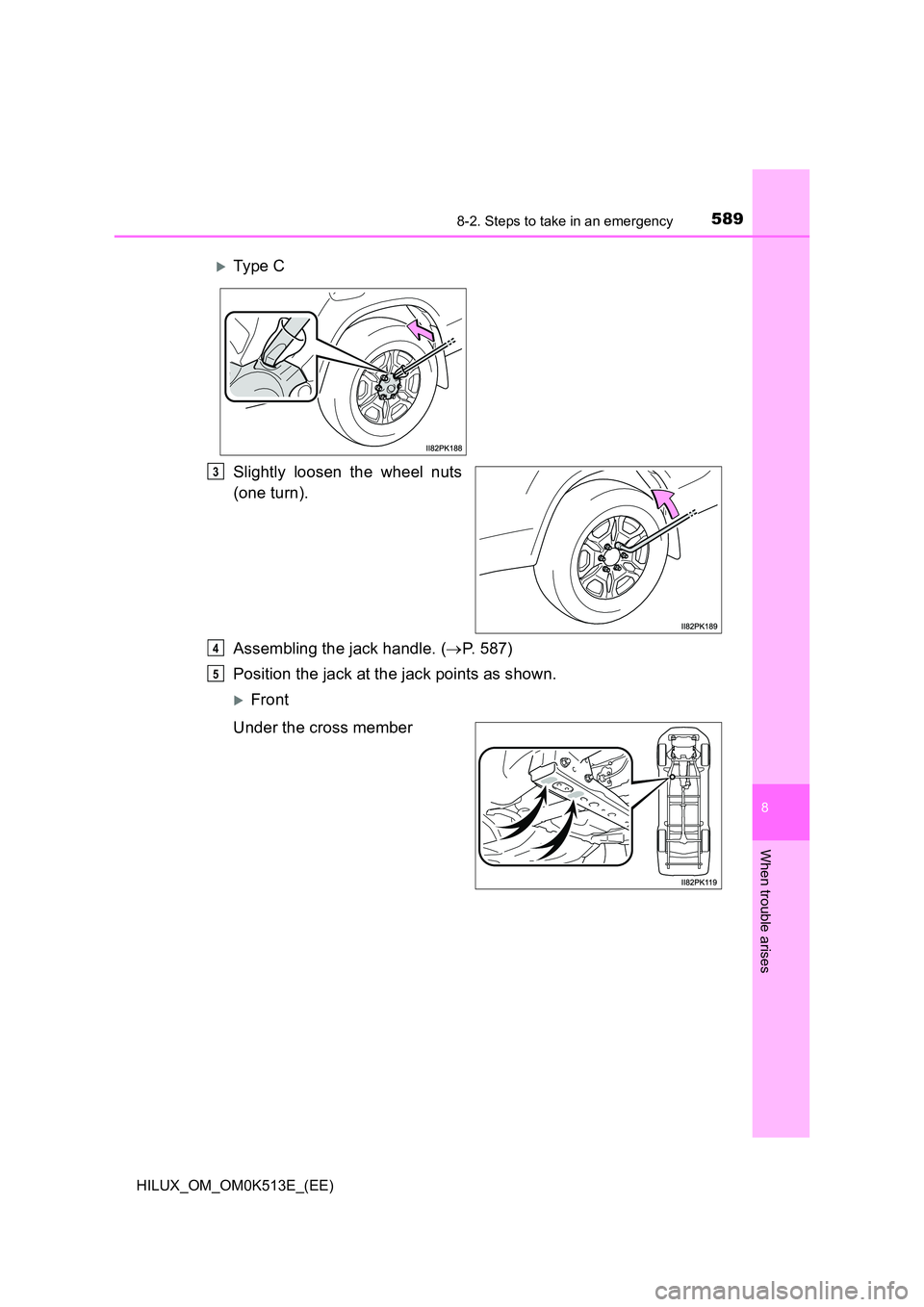

5898-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
8
When trouble arises
Slightly loosen the wheel nuts
(one turn).
Assembling the jack handle. ( P. 587)
Position the jack at the jack points as shown.
Front
Under the cross member
Ty pe C
3
4
5

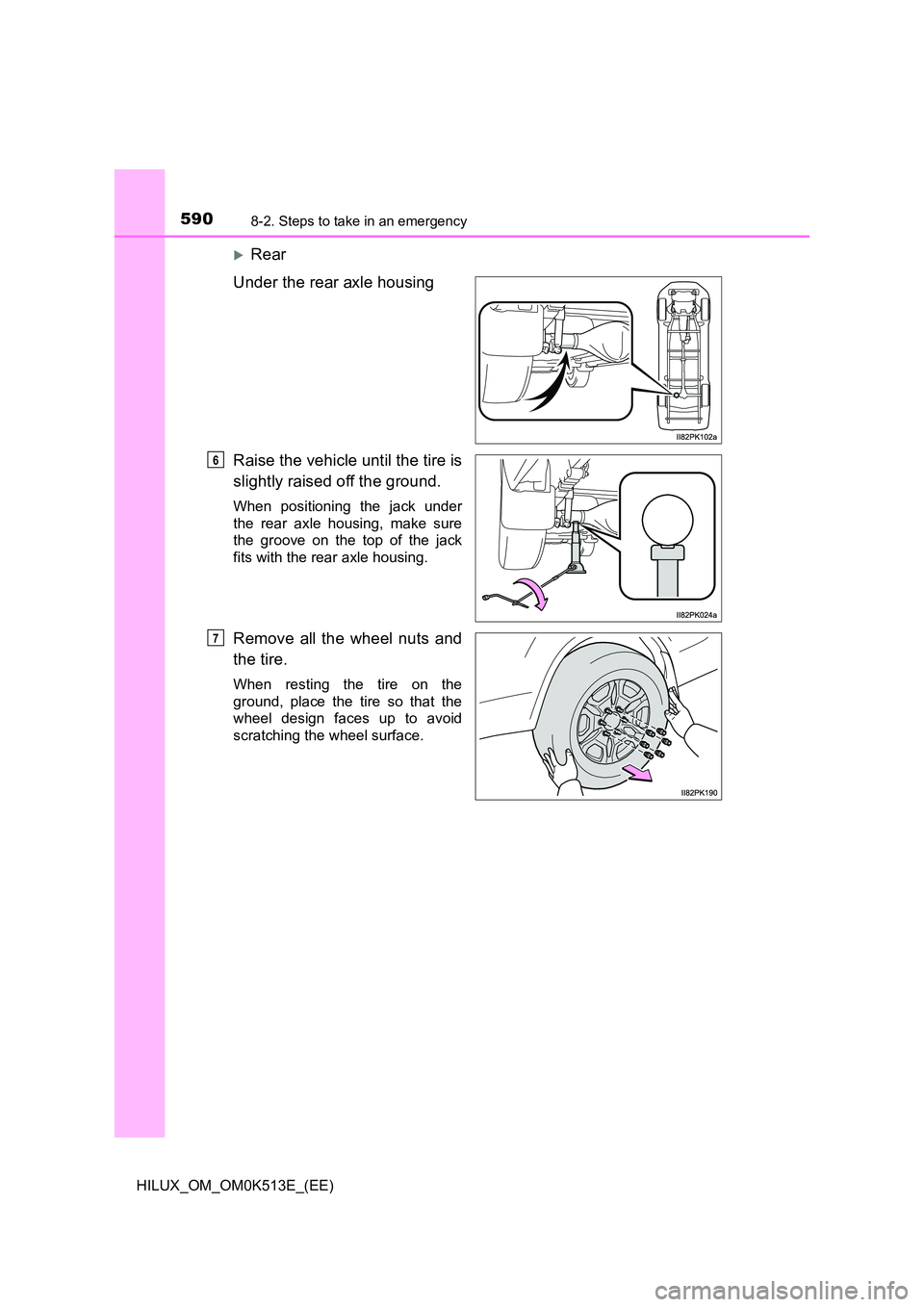

5908-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
Rear
Under the rear axle housing
Raise the vehicle until the tire is
slightly raised off the ground.
When positioning the jack under
the rear axle housing, make sure
the groove on the top of the jack
fits with the rear axle housing.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
6
7

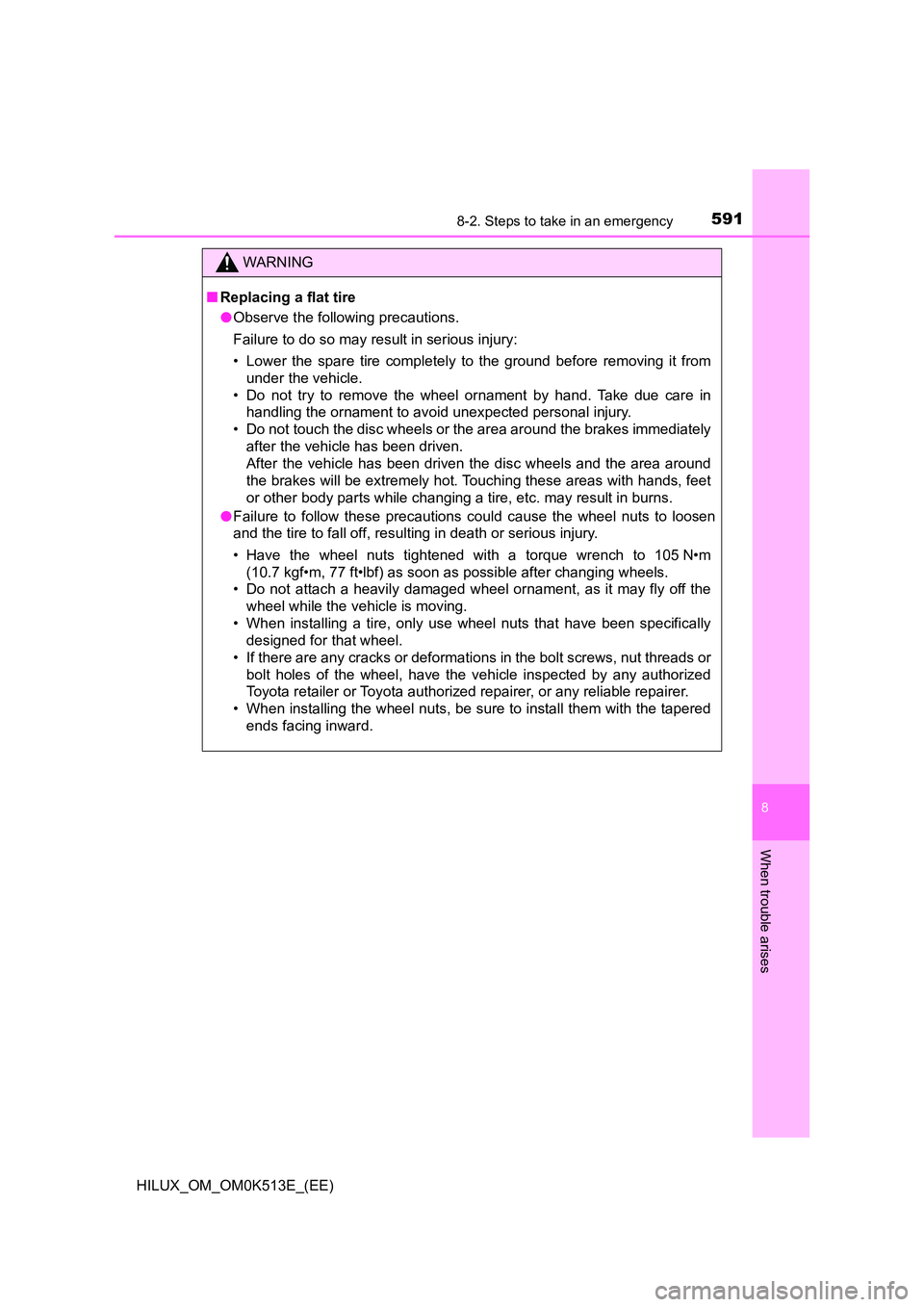

5918-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
8
When trouble arises
WARNING
QReplacing a flat tire
O Observe the following precautions.
Failure to do so may result in serious injury:
• Lower the spare tire completely to the ground before removing it from
under the vehicle.
• Do not try to remove the wheel ornament by hand. Take due care in
handling the ornament to avoid unexpected personal injury.
• Do not touch the disc wheels or the area around the brakes immediately
after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around
the brakes will be extremely hot. Touching these areas with hands, feet
or other body parts while changing a tire, etc. may result in burns.
O Failure to follow these precautions could cause the wheel nuts to loosen
and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 105 N•m
(10.7 kgf•m, 77 ft•lbf) as soon as possible after changing wheels.
• Do not attach a heavily damaged wheel ornament, as it may fly off the
wheel while the vehicle is moving.
• When installing a tire, only use wheel nuts that have been specifically
designed for that wheel.
• If there are any cracks or deformations in the bolt screws, nut threads or
bolt holes of the wheel, have the vehicle inspected by any authorized
Toyota retailer or Toyota authoriz ed repairer, or any reliable repairer.
• When installing the wheel nuts, be sure to install them with the tapered
ends facing inward.

5928-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)

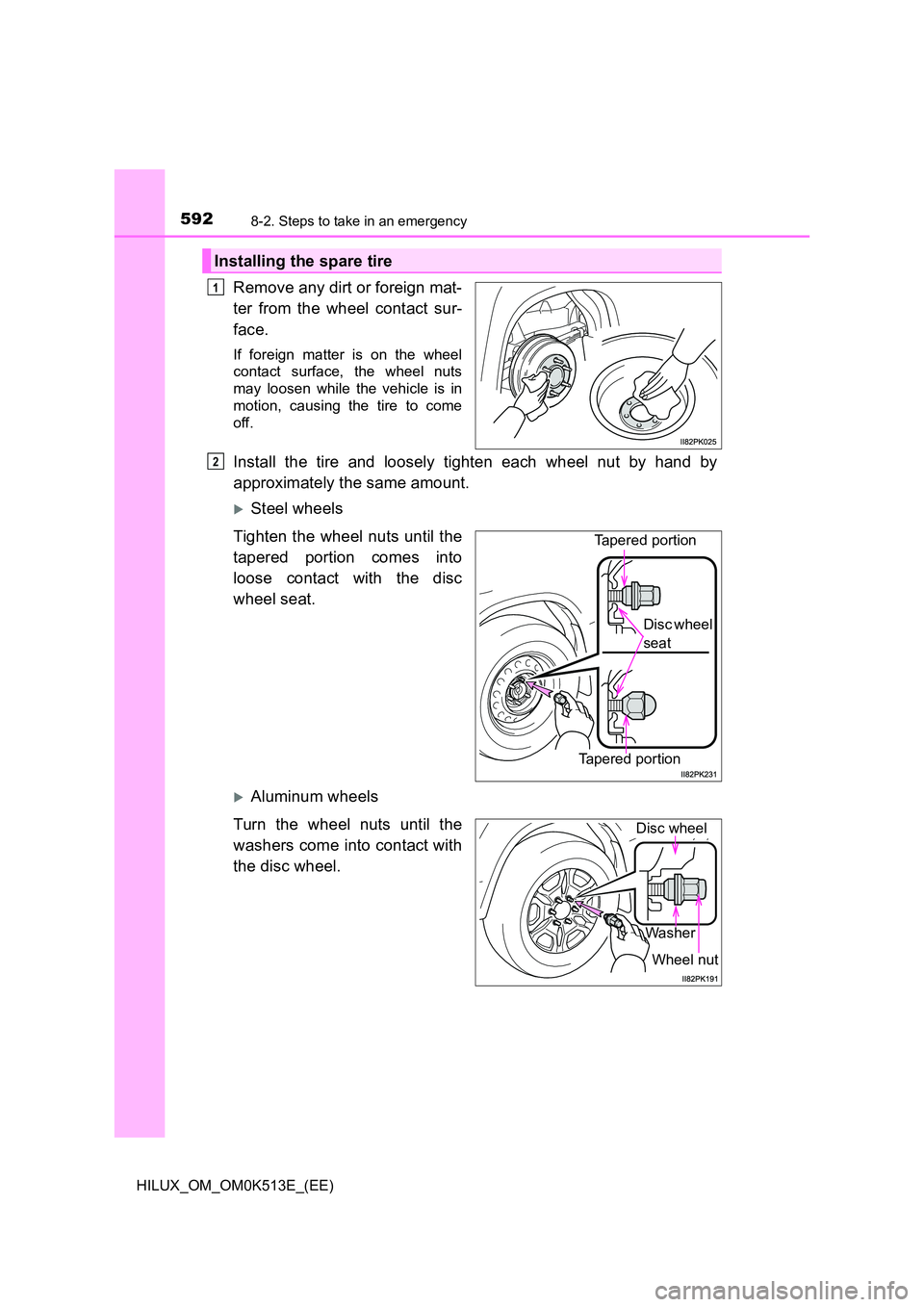

Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, causing the tire to come
off.
Install the tire and loosely tighten each wheel nut by hand by
approximately the same amount.
Steel wheels
Tighten the wheel nuts until the
tapered portion comes into
loose contact with the disc
wheel seat.
Aluminum wheels
Turn the wheel nuts until the
washers come into contact with
the disc wheel.
Installing the spare tire
1
2
Tapered portion
Disc wheel
seat
Tapered portion
Washer
Wheel nut
Disc wheel

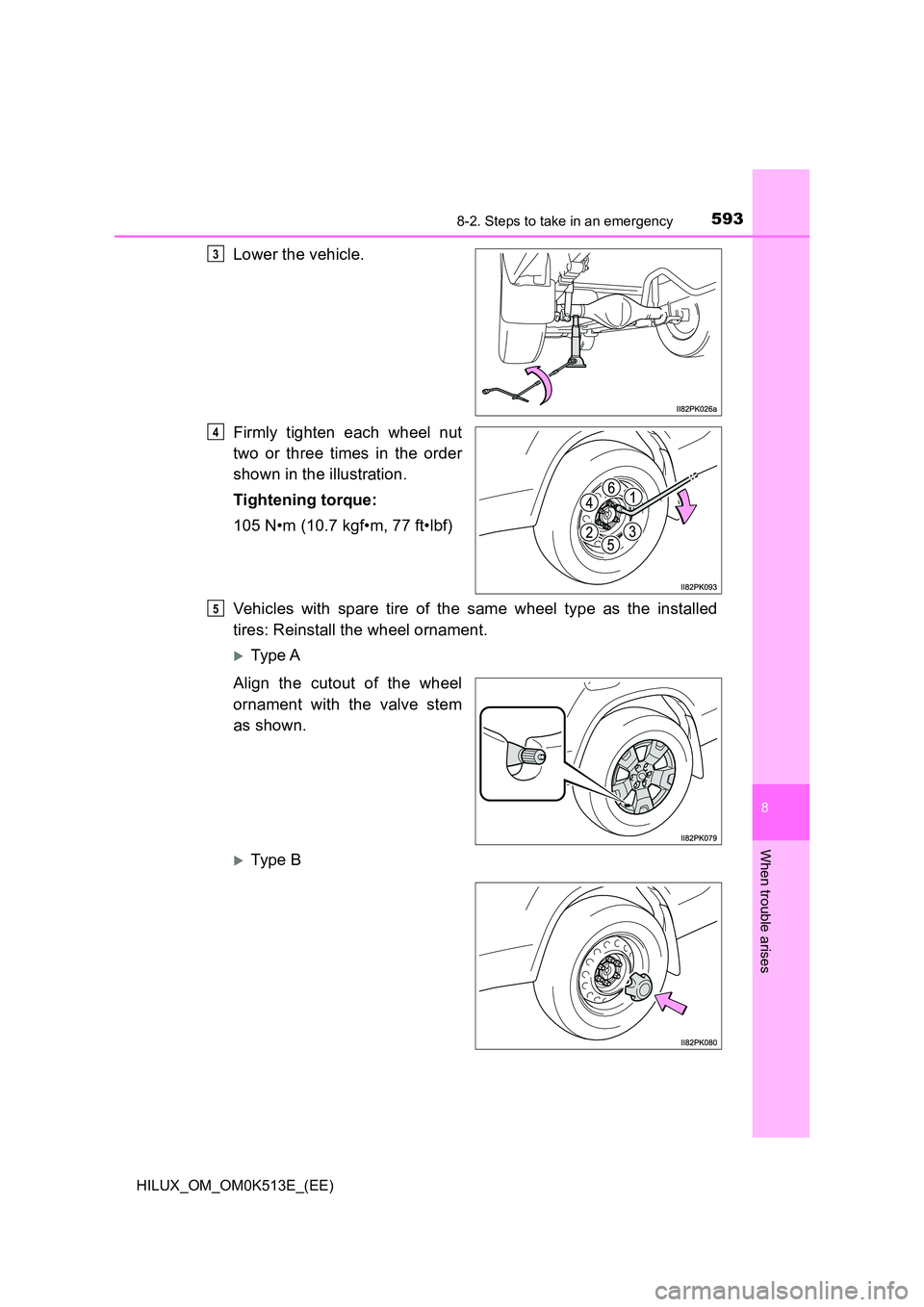

5938-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
8
When trouble arises
Lower the vehicle.
Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.
Tightening torque:
105 N•m (10.7 kgf•m, 77 ft•lbf)
Vehicles with spare tire of the same wheel type as the installed
tires: Reinstall the wheel ornament.
Type A
Align the cutout of the wheel
ornament with the valve stem
as shown.
Type B
3
4
5

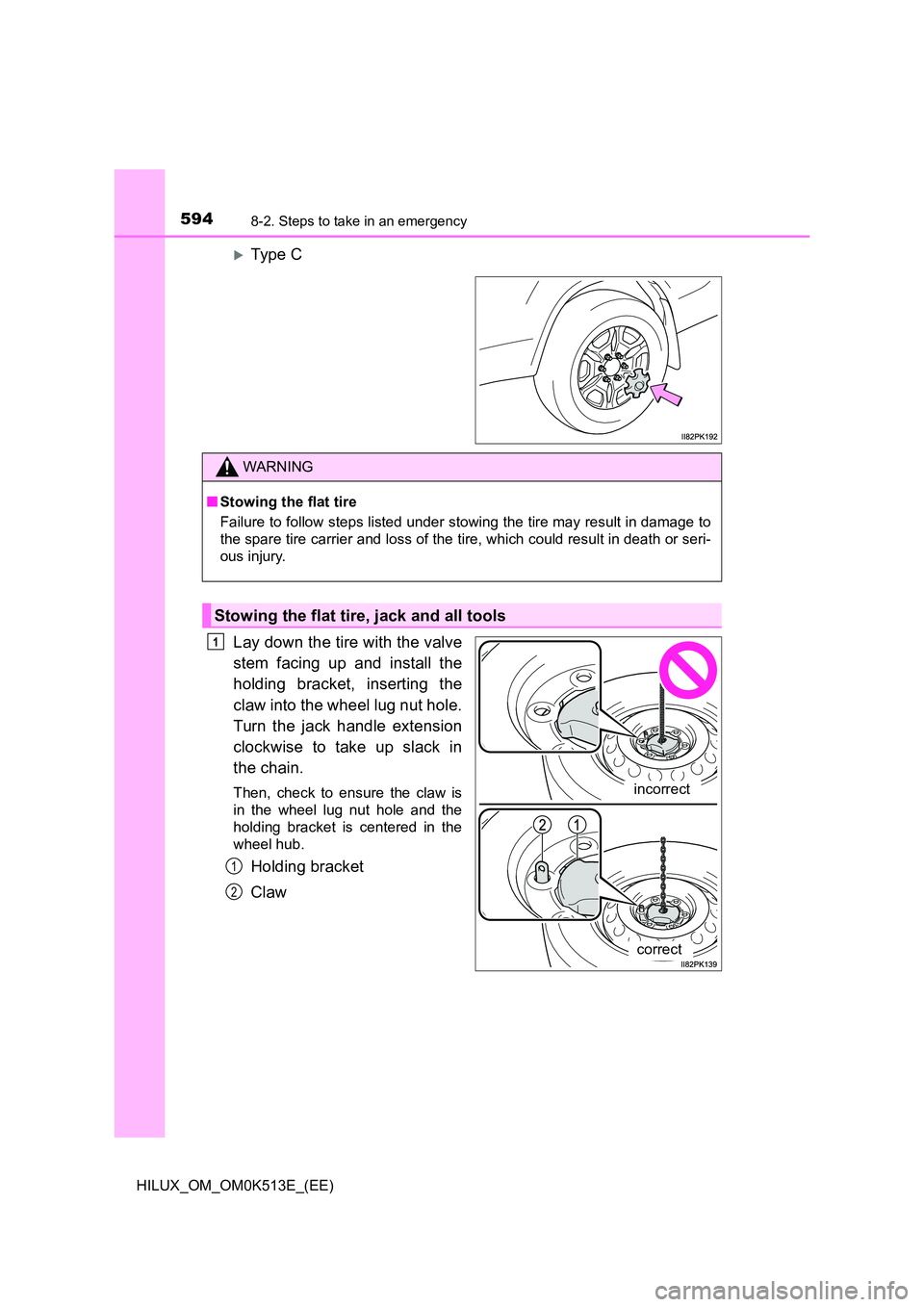

5948-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
Type C
Lay down the tire with the valve
stem facing up and install the
holding bracket, inserting the
claw into the wheel lug nut hole.
Turn the jack handle extension
clockwise to take up slack in
the chain.
Then, check to ensure the claw is
in the wheel lug nut hole and the
holding bracket is centered in the
wheel hub.
Holding bracket
Claw
WARNING
Q Stowing the flat tire
Failure to follow steps listed under stowing the tire may result in damage to
the spare tire carrier and loss of the tire, which could result in death or seri-
ous injury.
Stowing the flat tire, jack and all tools
incorrect
correct
1
1
2

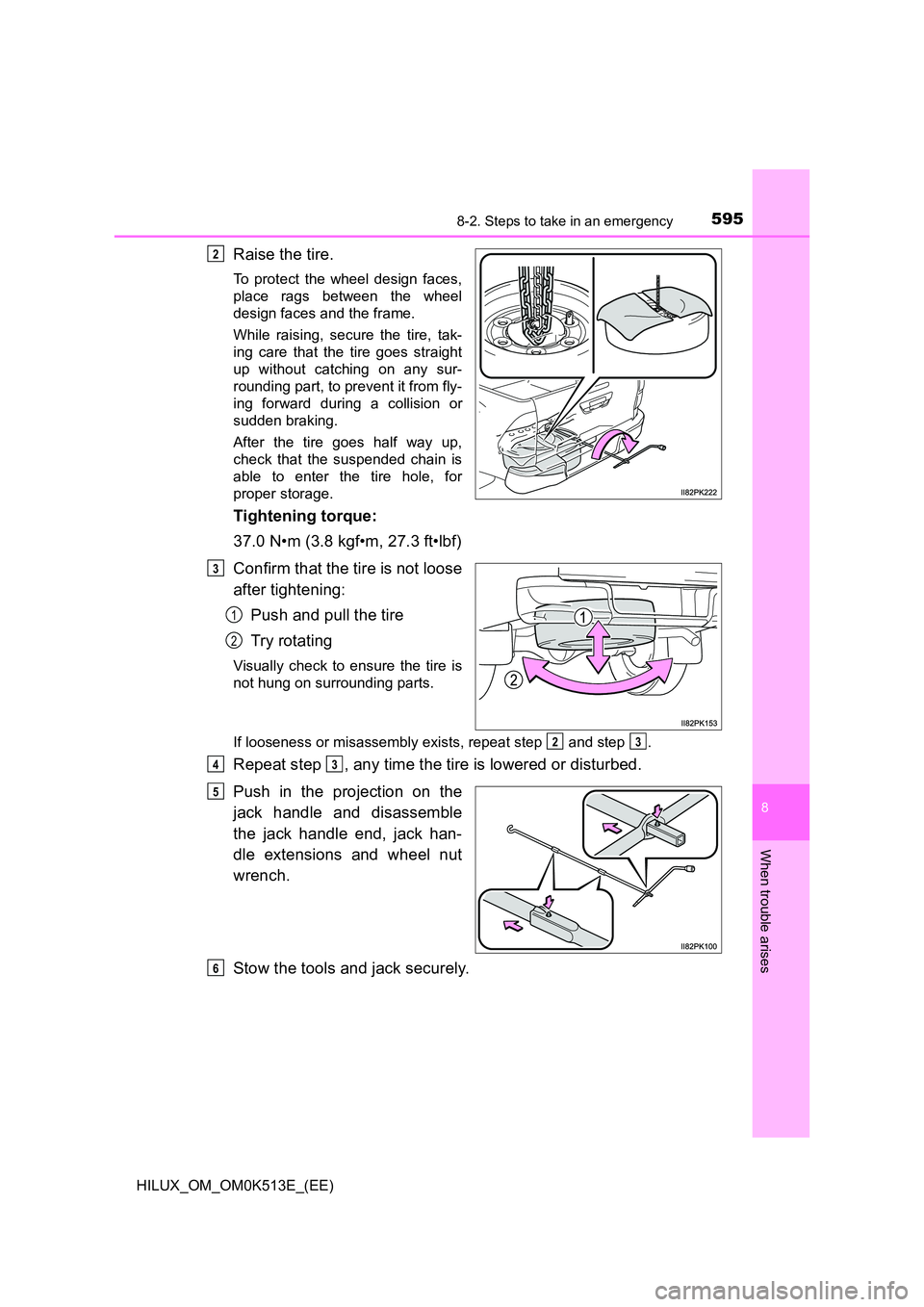

5958-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
8
When trouble arises
Raise the tire.
To protect the wheel design faces,
place rags between the wheel
design faces and the frame.
While raising, secure the tire, tak-
ing care that the tire goes straight
up without catching on any sur-
rounding part, to prevent it from fly-
ing forward during a collision or
sudden braking.
After the tire goes half way up,
check that the suspended chain is
able to enter the tire hole, for
proper storage.
Tightening torque:
37.0 N•m (3.8 kgf•m, 27.3 ft•lbf)
Confirm that the tire is not loose
after tightening:
Push and pull the tire
Try rotating
Visually check to ensure the tire is
not hung on surrounding parts.
If looseness or misassembly exists, repeat step and step .
Repeat step , any time the tire is lowered or disturbed.
Push in the projection on the
jack handle and disassemble
the jack handle end, jack han-
dle extensions and wheel nut
wrench.
Stow the tools and jack securely.
2
3
1
2
23
43
5
6

5968-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)

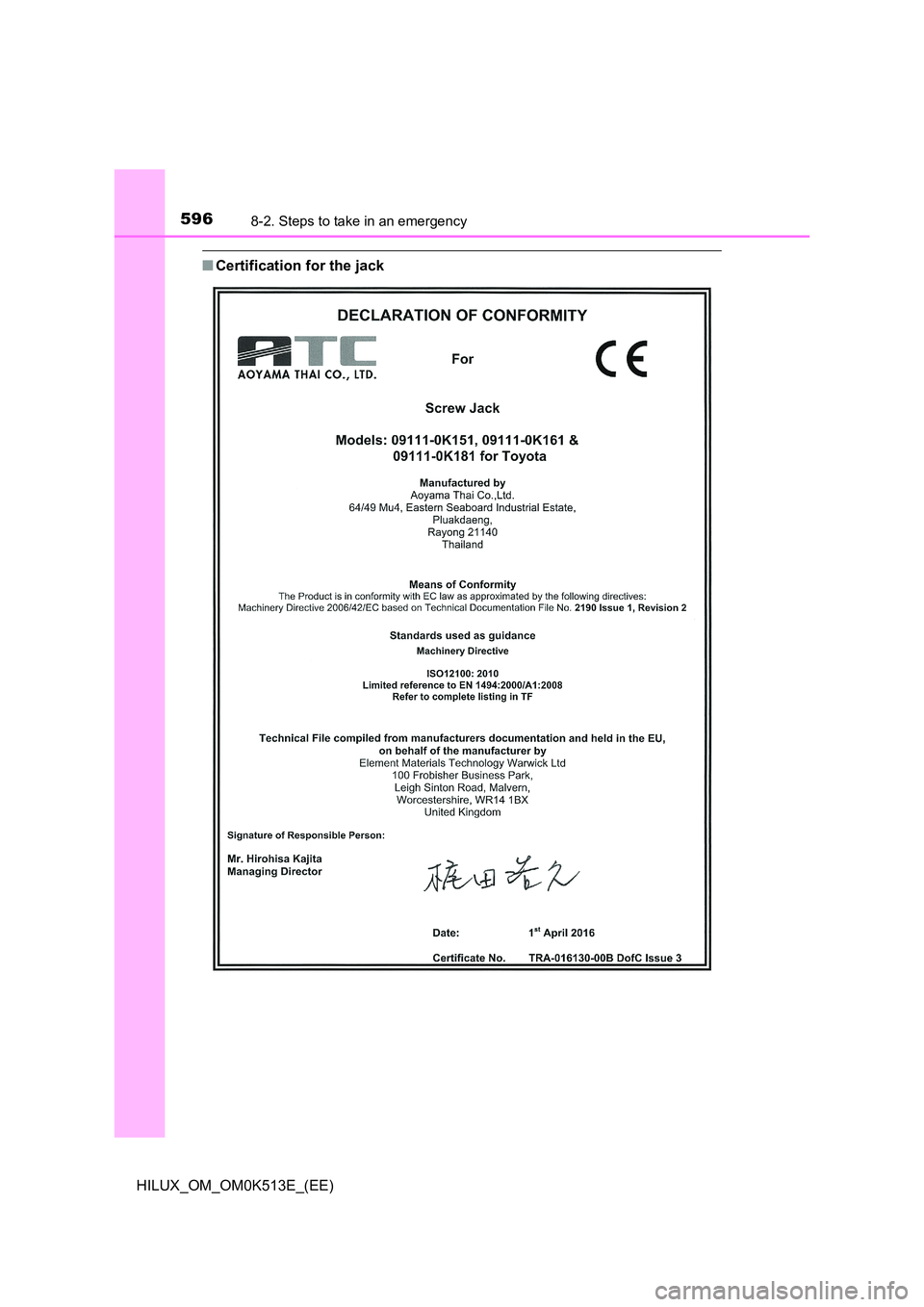

QCertification for the jack

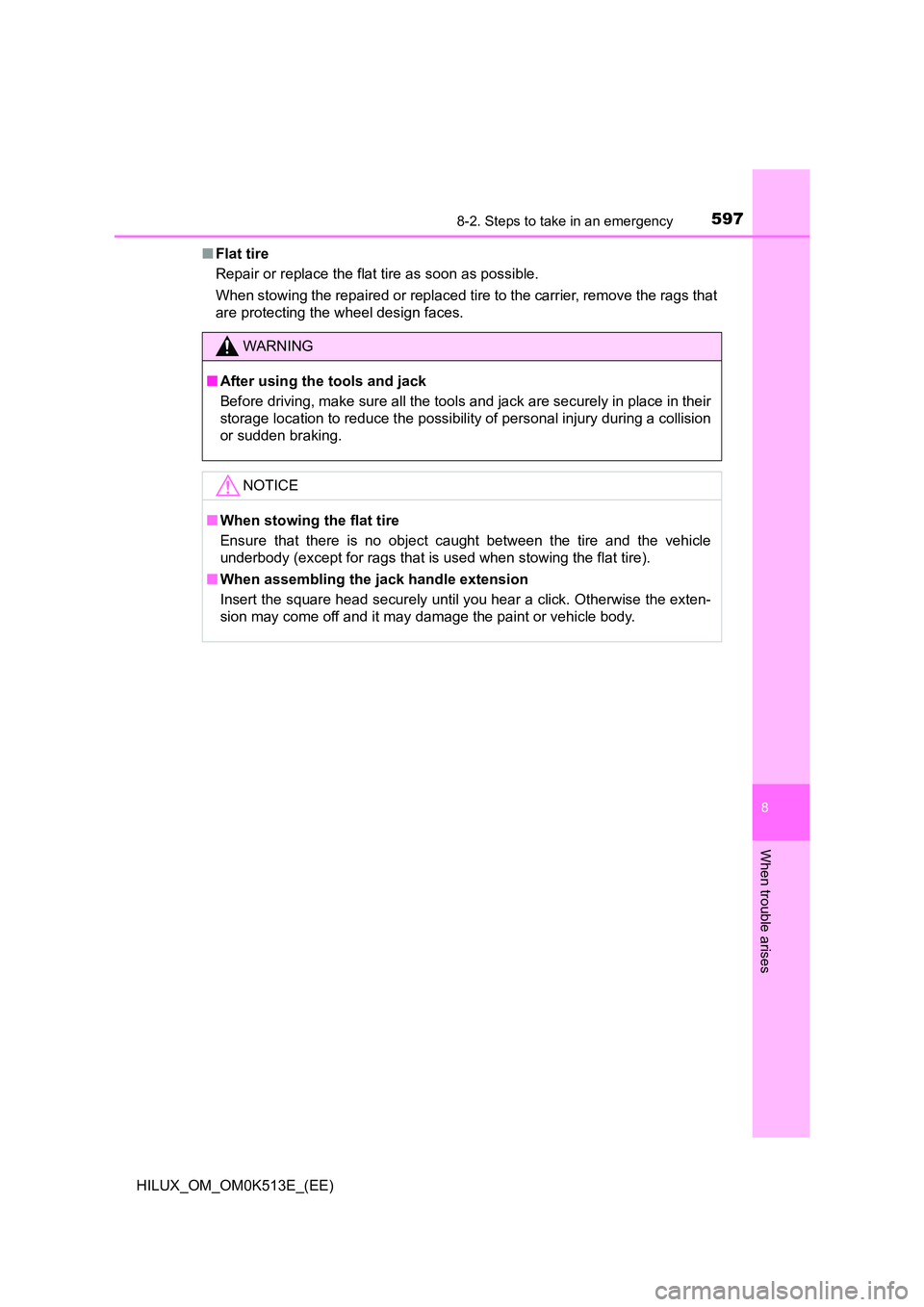

5978-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
8
When trouble arises
QFlat tire
Repair or replace the flat tire as soon as possible.
When stowing the repaired or replaced tire to the carrier, remove the rags that
are protecting the wheel design faces.
WARNING
Q After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their
storage location to reduce the possibility of personal injury during a collision
or sudden braking.
NOTICE
Q When stowing the flat tire
Ensure that there is no object caught between the tire and the vehicle
underbody (except for rags that is used when stowing the flat tire).
Q When assembling the jack handle extension
Insert the square head securely until you hear a click. Otherwise the exten-
sion may come off and it may damage the paint or vehicle body.

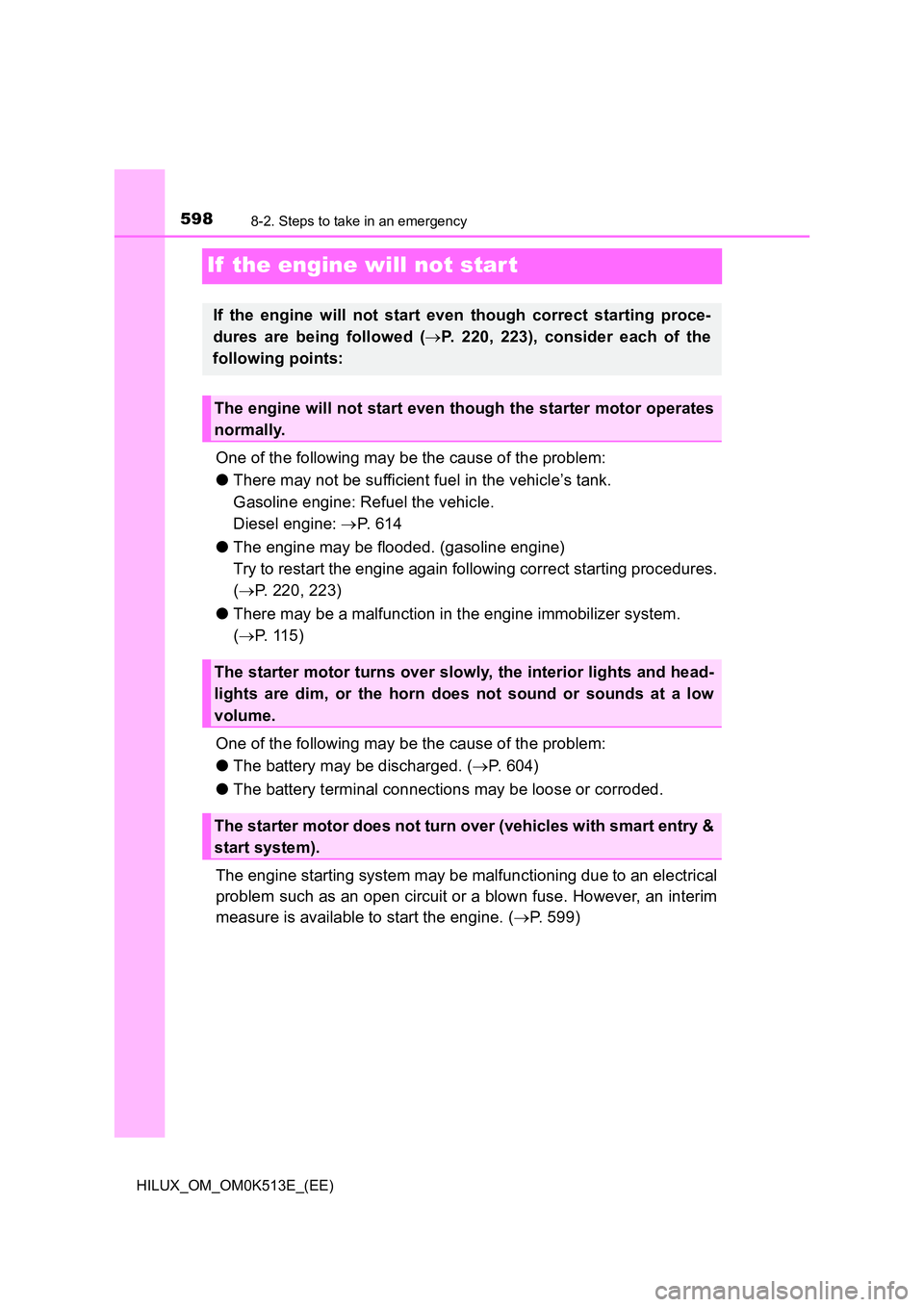

5988-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
If the engine will not star t
One of the following may be the cause of the problem:
O There may not be sufficient fuel in the vehicle’s tank.
Gasoline engine: Refuel the vehicle.
Diesel engine: P. 6 1 4
O The engine may be flooded. (gasoline engine)
Try to restart the engine again following correct starting procedures.
( P. 220, 223)
O There may be a malfunction in the engine immobilizer system.
( P. 1 1 5 )
One of the following may be the cause of the problem:
O The battery may be discharged. (P. 604)
O The battery terminal connections may be loose or corroded.
The engine starting system may be malfunctioning due to an electrical
problem such as an open circuit or a blown fuse. However, an interim
measure is available to start the engine. ( P. 599)
If the engine will not start even though correct starting proce-
dures are being followed ( P. 220, 223), consider each of the
following points:
The engine will not start even though the starter motor operates
normally.
The starter motor turns over slowly, the interior lights and head-
lights are dim, or the horn does not sound or sounds at a low
volume.
The starter motor does not turn over (vehicles with smart entry &
start system).
