981-3. Emergency assistance
HILUX_OM_OM0K513E_(EE)

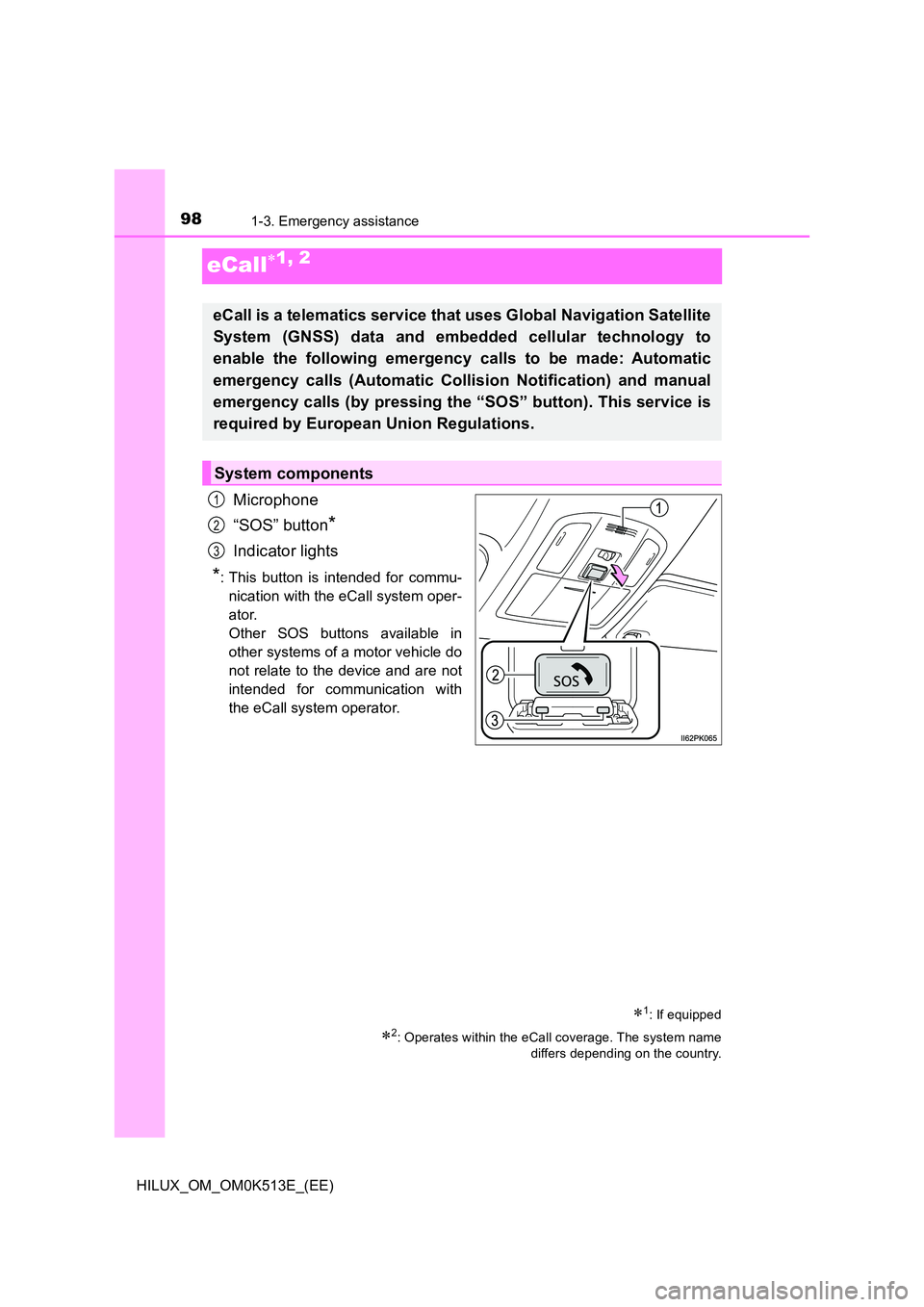

eCall1, 2
Microphone
“SOS” button*
Indicator lights
*: This button is intended for commu-
nication with the eCall system oper-
ator.
Other SOS buttons available in
other systems of a motor vehicle do
not relate to the device and are not
intended for communication with
the eCall system operator.
1: If equipped
2: Operates within the eCall coverage. The system name
differs depending on the country.
eCall is a telematics service that uses Global Navigation Satellite
System (GNSS) data and embedded cellular technology to
enable the following emergency calls to be made: Automatic
emergency calls (Automatic Collision Notification) and manual
emergency calls (by pressing the “SOS” button). This service is
required by European Union Regulations.
System components
1
2
3

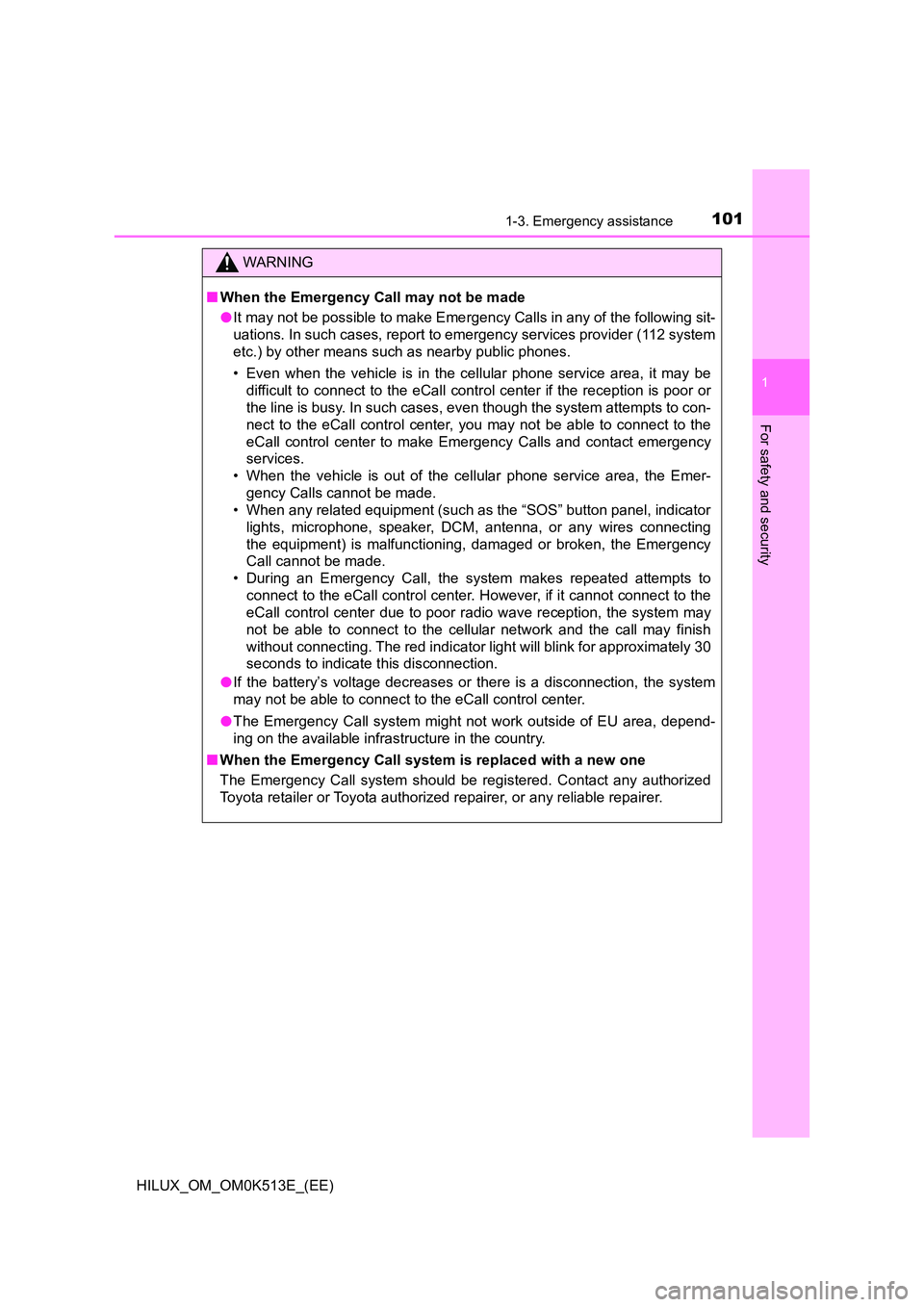

1011-3. Emergency assistance
1
HILUX_OM_OM0K513E_(EE)
For safety and security
WARNING
QWhen the Emergency Call may not be made
O It may not be possible to make Emergency Calls in any of the following sit-
uations. In such cases, report to emergency services provider (112 system
etc.) by other means such as nearby public phones.
• Even when the vehicle is in the cellular phone service area, it may be
difficult to connect to the eCall control center if the reception is poor or
the line is busy. In such cases, even though the system attempts to con-
nect to the eCall control center, you may not be able to connect to the
eCall control center to make Emergency Calls and contact emergency
services.
• When the vehicle is out of the cellular phone service area, the Emer-
gency Calls cannot be made.
• When any related equipment (such as the “SOS” button panel, indicator
lights, microphone, speaker, DCM, antenna, or any wires connecting
the equipment) is malfunctioning, damaged or broken, the Emergency
Call cannot be made.
• During an Emergency Call, the system makes repeated attempts to
connect to the eCall control center. However, if it cannot connect to the
eCall control center due to poor radio wave reception, the system may
not be able to connect to the cellular network and the call may finish
without connecting. The red indicator light will blink for approximately 30
seconds to indicate this disconnection.
O If the battery’s voltage decreases or there is a disconnection, the system
may not be able to connect to the eCall control center.
O The Emergency Call system might not work outside of EU area, depend-
ing on the available infrastructure in the country.
Q When the Emergency Call system is replaced with a new one
The Emergency Call system should be registered. Contact any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer.

1101-3. Emergency assistance
HILUX_OM_OM0K513E_(EE)

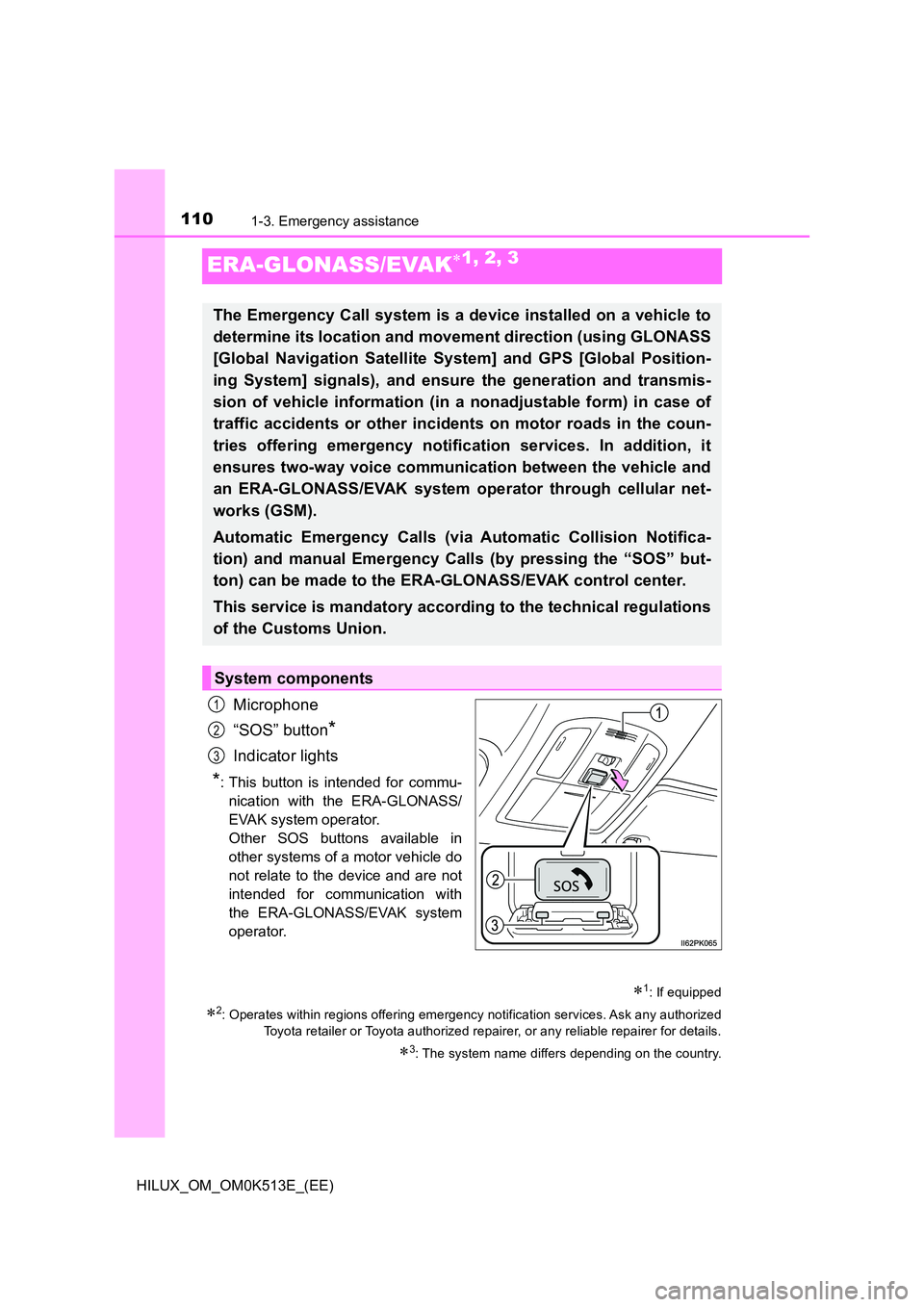

ERA-GLONASS/EVAK1, 2, 3
Microphone
“SOS” button*
Indicator lights
*: This button is intended for commu-
nication with the ERA-GLONASS/
EVAK system operator.
Other SOS buttons available in
other systems of a motor vehicle do
not relate to the device and are not
intended for communication with
the ERA-GLONASS/EVAK system
operator.
1: If equipped
2: Operates within regions offering emergency notification services. Ask any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer for details.
3: The system name differs depending on the country.
The Emergency Call system is a device installed on a vehicle to
determine its location and movement direction (using GLONASS
[Global Navigation Satellite System] and GPS [Global Position-
ing System] signals), and ensure the generation and transmis-
sion of vehicle information (in a nonadjustable form) in case of
traffic accidents or other incidents on motor roads in the coun-
tries offering emergency notification services. In addition, it
ensures two-way voice communication between the vehicle and
an ERA-GLONASS/EVAK system operator through cellular net-
works (GSM).
Automatic Emergency Calls (via Automatic Collision Notifica-
tion) and manual Emergency Calls (by pressing the “SOS” but-
ton) can be made to the ERA-GLONASS/EVAK control center.
This service is mandatory according to the technical regulations
of the Customs Union.
System components
1
2
3

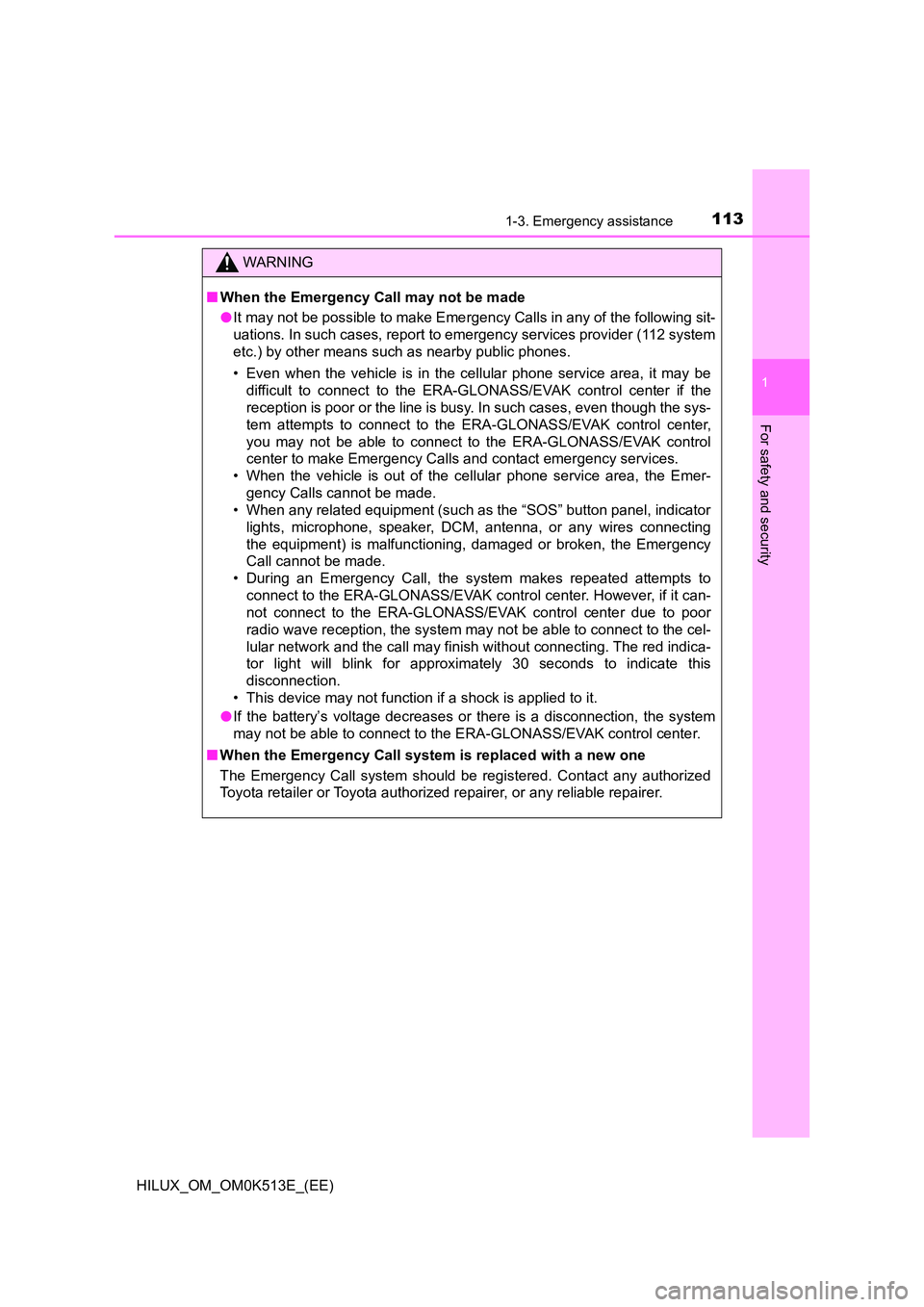

1131-3. Emergency assistance
1
HILUX_OM_OM0K513E_(EE)
For safety and security
WARNING
QWhen the Emergency Call may not be made
O It may not be possible to make Emergency Calls in any of the following sit-
uations. In such cases, report to emergency services provider (112 system
etc.) by other means such as nearby public phones.
• Even when the vehicle is in the cellular phone service area, it may be
difficult to connect to the ERA-GLONASS/EVAK control center if the
reception is poor or the line is busy. In such cases, even though the sys-
tem attempts to connect to the ERA-GLONASS/EVAK control center,
you may not be able to connect to the ERA-GLONASS/EVAK control
center to make Emergency Calls and contact emergency services.
• When the vehicle is out of the cellular phone service area, the Emer-
gency Calls cannot be made.
• When any related equipment (such as the “SOS” button panel, indicator
lights, microphone, speaker, DCM, antenna, or any wires connecting
the equipment) is malfunctioning, damaged or broken, the Emergency
Call cannot be made.
• During an Emergency Call, the system makes repeated attempts to
connect to the ERA-GLONASS/EVAK control center. However, if it can-
not connect to the ERA-GLONASS/EVAK control center due to poor
radio wave reception, the system may not be able to connect to the cel-
lular network and the call may finish without connecting. The red indica-
tor light will blink for approximately 30 seconds to indicate this
disconnection.
• This device may not function if a shock is applied to it.
O If the battery’s voltage decreases or there is a disconnection, the system
may not be able to connect to the ERA-GLONASS/EVAK control center.
Q When the Emergency Call system is replaced with a new one
The Emergency Call system should be registered. Contact any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer.

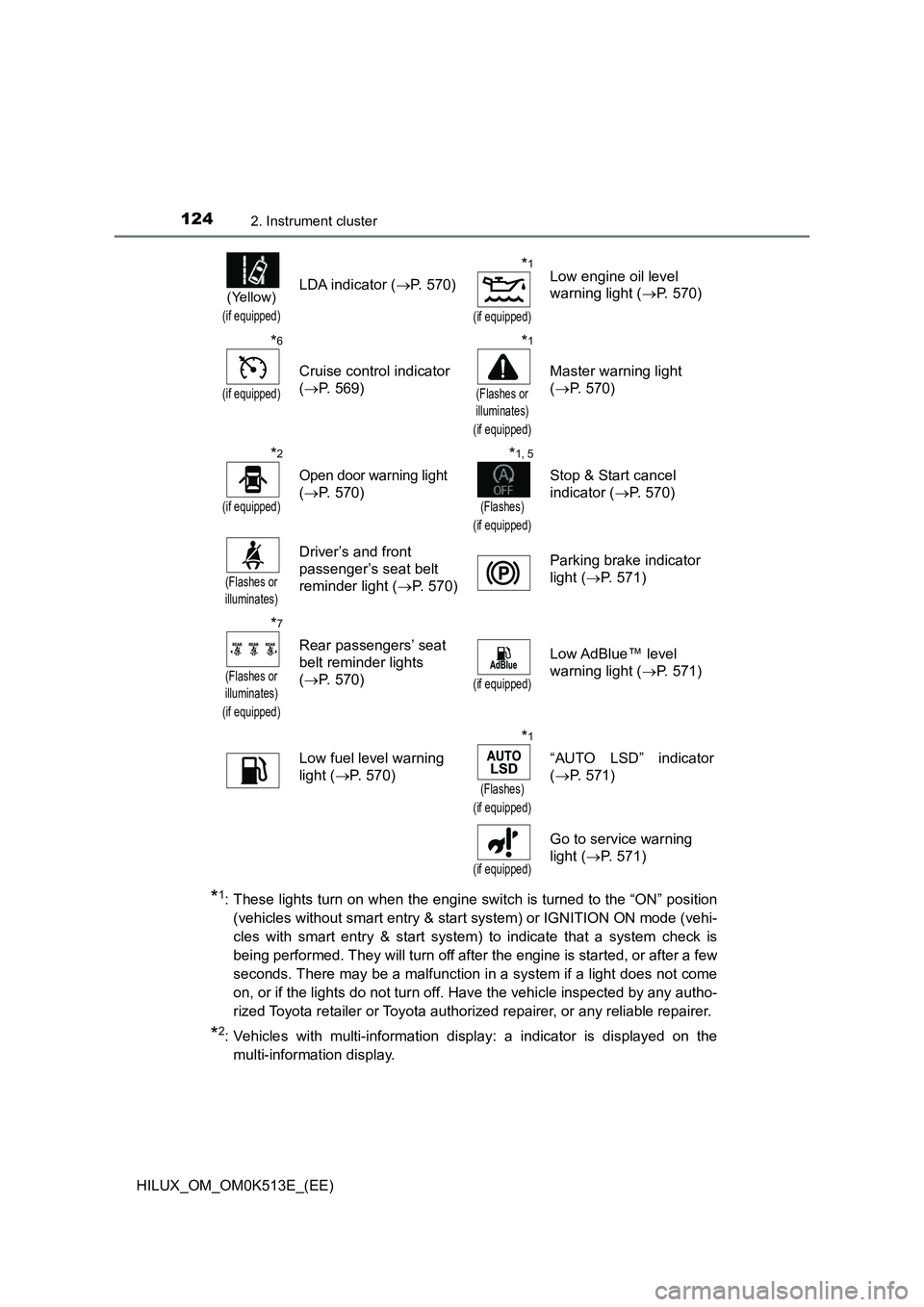

1242. Instrument cluster
HILUX_OM_OM0K513E_(EE)
*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without smart entry & start system) or IGNITION ON mode (vehi-
cles with smart entry & start system) to indicate that a system check is
being performed. They will turn off after the engine is started, or after a few
seconds. There may be a malfunction in a system if a light does not come
on, or if the lights do not turn off. Have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
*2: Vehicles with multi-information display: a indicator is displayed on the
multi-information display.
(Yellow)
(if equipped)
LDA indicator ( P. 570)
*1
(if equipped)
Low engine oil level
warning light ( P. 570)
*6
(if equipped)
Cruise control indicator
( P. 569)
*1
(Flashes or
illuminates)
(if equipped)
Master warning light
( P. 570)
*2
(if equipped)
Open door warning light
( P. 570)
*1, 5
(Flashes)
(if equipped)
Stop & Start cancel
indicator ( P. 570)
(Flashes or
illuminates)
Driver’s and front
passenger’s seat belt
reminder light ( P. 570)
Parking brake indicator
light ( P. 571)
*7
(Flashes or
illuminates)
(if equipped)
Rear passengers’ seat
belt reminder lights
( P. 570)(if equipped)
Low AdBlue™ level
warning light ( P. 571)
Low fuel level warning
light ( P. 570)
*1
(Flashes)
(if equipped)
“AUTO LSD” indicator
( P. 571)
(if equipped)
Go to service warning
light ( P. 571)

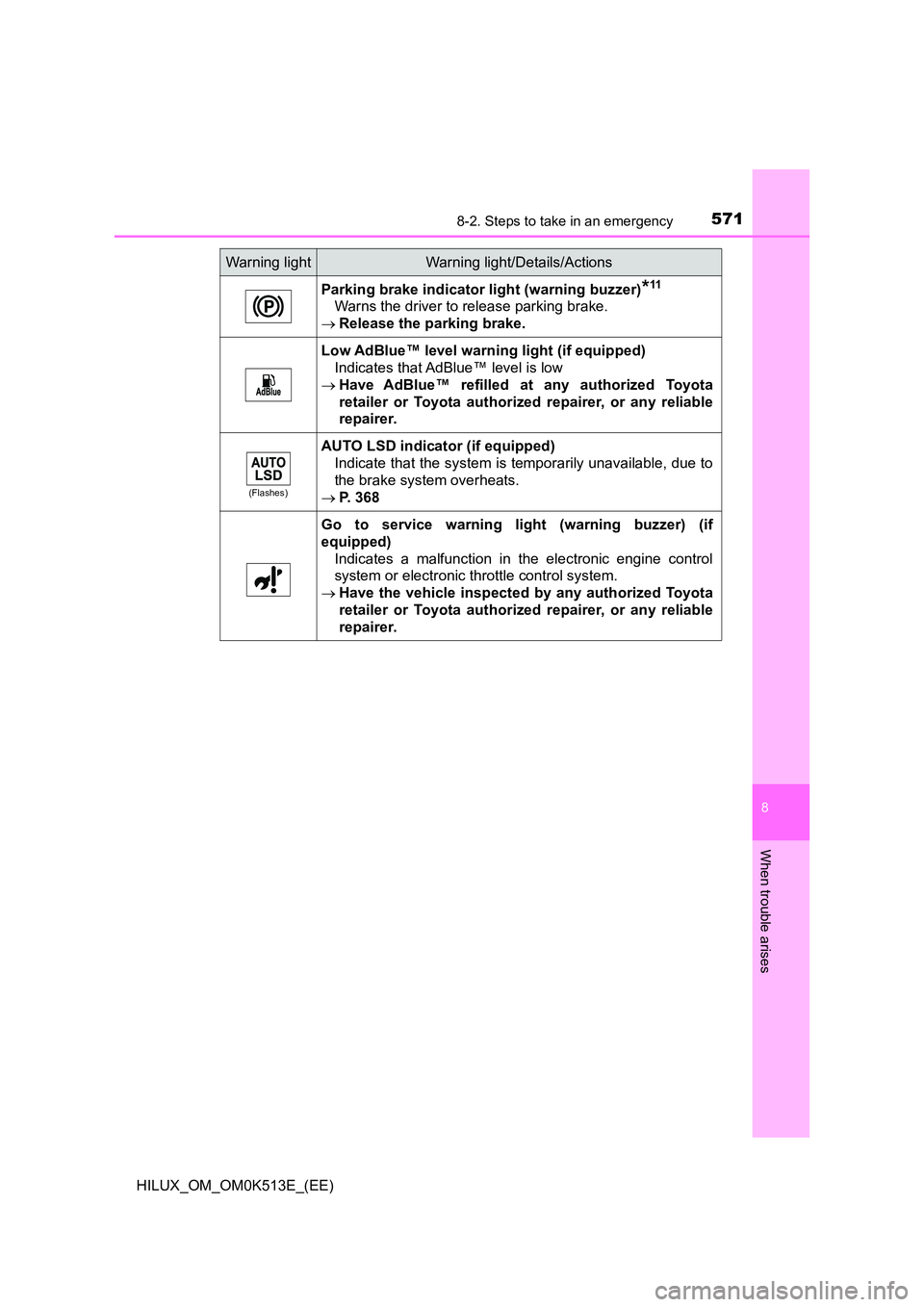

5718-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
8
When trouble arises
Parking brake indicator light (warning buzzer)*11
Warns the driver to release parking brake.
 Release the parking brake.
Low AdBlue™ level warning light (if equipped)
Indicates that AdBlue™ level is low
 Have AdBlue™ refilled at any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer.
(Flashes)
AUTO LSD indicator (if equipped)
Indicate that the system is temporarily unavailable, due to
the brake system overheats.
 P. 368
Go to service warning light (warning buzzer) (if
equipped)
Indicates a malfunction in the electronic engine control
system or electronic throttle control system.
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer.
Warning lightWarning light/Details/Actions

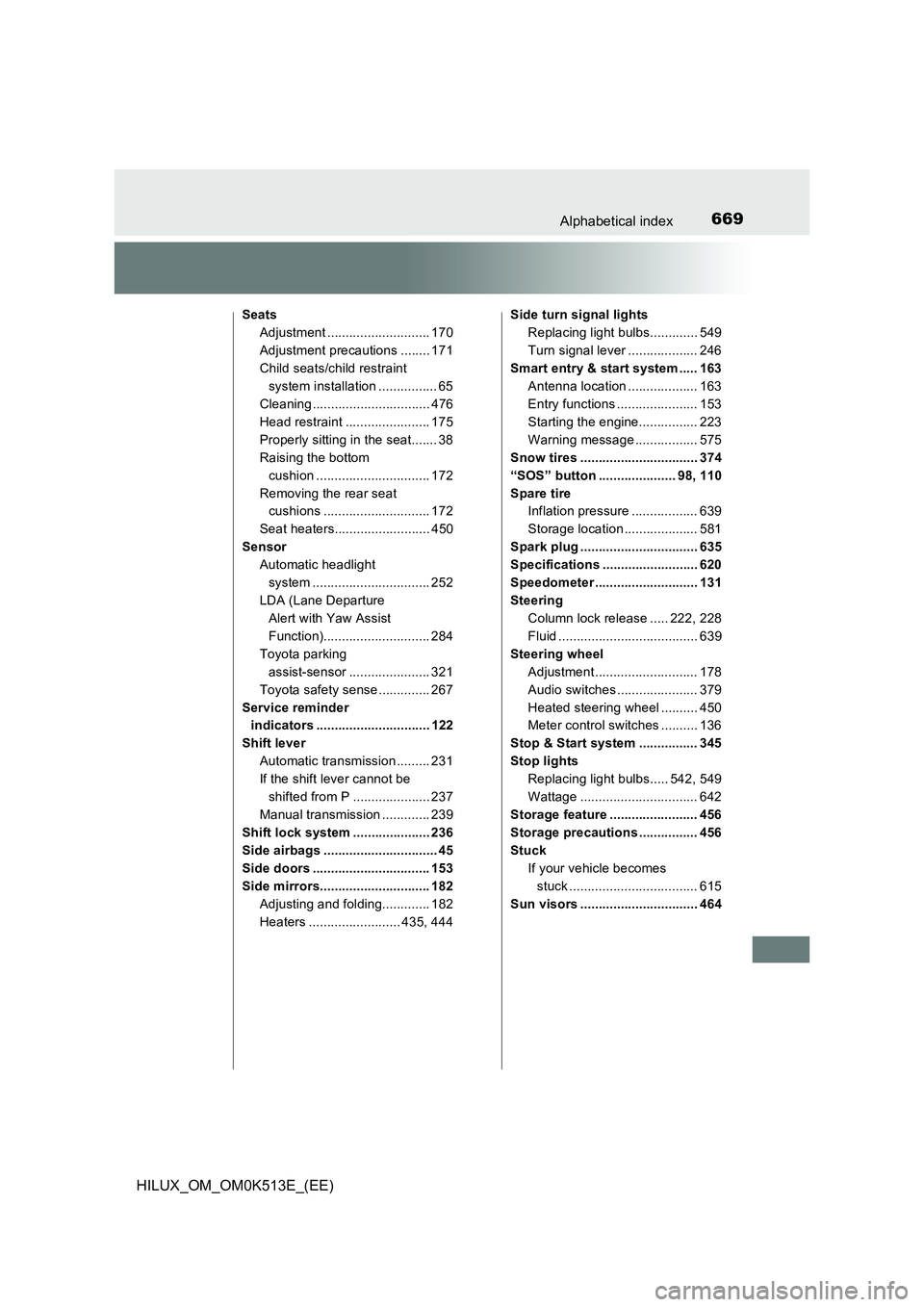

669Alphabetical index
HILUX_OM_OM0K513E_(EE)
Seats
Adjustment ............................ 170
Adjustment precautions ........ 171
Child seats/child restraint
system installation ................ 65
Cleaning ................................ 476
Head restraint ....................... 175
Properly sitting in the seat....... 38
Raising the bottom
cushion ............................... 172
Removing the rear seat
cushions ............................. 172
Seat heaters.......................... 450
Sensor
Automatic headlight
system ................................ 252
LDA (Lane Departure
Alert with Yaw Assist
Function)............................. 284
Toyota parking
assist-sensor ...................... 321
Toyota safety sense .............. 267
Service reminder
indicators ............................... 122
Shift lever
Automatic transmission ......... 231
If the shift lever cannot be
shifted from P ..................... 237
Manual transmission ............. 239
Shift lock system ..................... 236
Side airbags ............................... 45
Side doors ................................ 153
Side mirrors.............................. 182
Adjusting and folding............. 182
Heaters ......................... 435, 444
Side turn signal lights
Replacing light bulbs............. 549
Turn signal lever ................... 246
Smart entry & start system ..... 163
Antenna location ................... 163
Entry functions ...................... 153
Starting the engine................ 223
Warning message ................. 575
Snow tires ................................ 374
“SOS” button ..................... 98, 110
Spare tire
Inflation pressure .................. 639
Storage location .................... 581
Spark plug ................................ 635
Specifications .......................... 620
Speedometer ............................ 131
Steering
Column lock release ..... 222, 228
Fluid ...................................... 639
Steering wheel
Adjustment ............................ 178
Audio switches ...................... 379
Heated steering wheel .......... 450
Meter control switches .......... 136
Stop & Start system ................ 345
Stop lights
Replacing light bulbs..... 542, 549
Wattage ................................ 642
Storage feature ........................ 456
Storage precautions ................ 456
Stuck
If your vehicle becomes
stuck ................................... 615
Sun visors ................................ 464

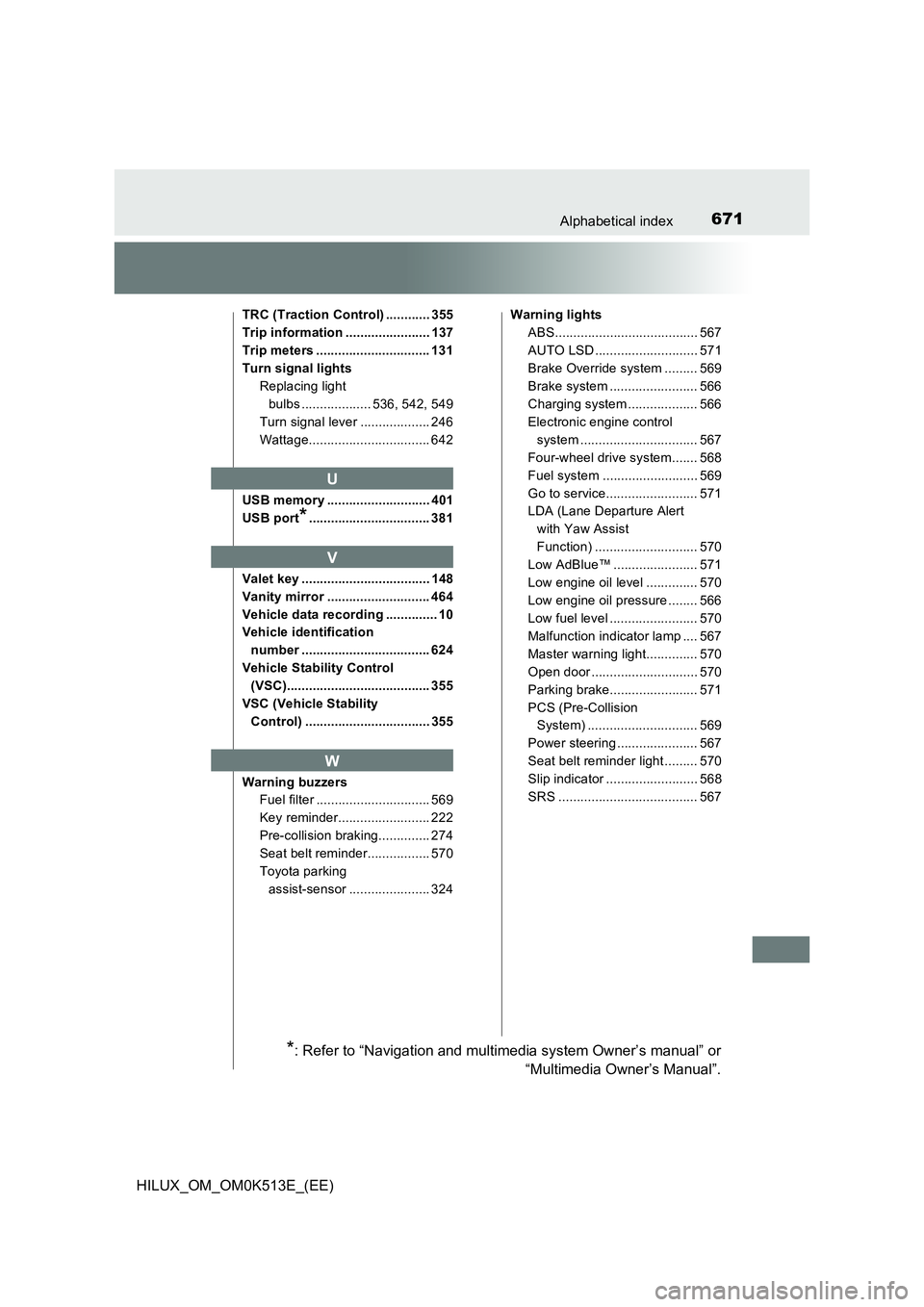

671Alphabetical index
HILUX_OM_OM0K513E_(EE)
TRC (Traction Control) ............ 355
Trip information ....................... 137
Trip meters ............................... 131
Turn signal lights
Replacing light
bulbs ................... 536, 542, 549
Turn signal lever ................... 246
Wattage................................. 642
USB memory ............................ 401
USB port*................................. 381
Valet key ................................... 148
Vanity mirror ............................ 464
Vehicle data recording .............. 10
Vehicle identification
number ................................... 624
Vehicle Stability Control
(VSC)....................................... 355
VSC (Vehicle Stability
Control) .................................. 355
Warning buzzers
Fuel filter ............................... 569
Key reminder......................... 222
Pre-collision braking.............. 274
Seat belt reminder................. 570
Toyota parking
assist-sensor ...................... 324
Warning lights
ABS....................................... 567
AUTO LSD ............................ 571
Brake Override system ......... 569
Brake system ........................ 566
Charging system ................... 566
Electronic engine control
system ................................ 567
Four-wheel drive system....... 568
Fuel system .......................... 569
Go to service......................... 571
LDA (Lane Departure Alert
with Yaw Assist
Function) ............................ 570
Low AdBlue™ ....................... 571
Low engine oil level .............. 570
Low engine oil pressure ........ 566
Low fuel level ........................ 570
Malfunction indicator lamp .... 567
Master warning light.............. 570
Open door ............................. 570
Parking brake........................ 571
PCS (Pre-Collision
System) .............................. 569
Power steering ...................... 567
Seat belt reminder light ......... 570
Slip indicator ......................... 568
SRS ...................................... 567
U
V
W
*: Refer to “Navigation and multimedia system Owner’s manual” or
“Multimedia Owner’s Manual”.
