29Pictorial index
HILUX_OM_OM0K789E_(EE)
Audio remote control switches*2 . . . . . . . . . . . . . . . . P. 379, 470
Paddle shift switches*1 . . . . . . . . . . . . . . . . . . . . . . . . P. 233, 234
Talk switch*2, 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 470
Meter control switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 134
Vehicle-to-vehicle distance switch . . . . . . . . . . . . . . . . . . . P. 308
LDA (Lane Departure Alert with Yaw Assist Function)
switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 283
Cruise control switch
Dynamic radar cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . P. 300
Tilt steering lock release lever . . . . . . . . . . . . . . . . . . . . . . . P. 176
Telephone switches*2. . . . . . . . . . . . . . . . . . . . . . P. 134, 413, 470
*1: If equipped
*2: Refer to “Navigation and multimedia system Owner’s manual” or
“Multimedia Owner’s Manual”.
*3: The switch can not be used depending on the type of
audio system or navigation system.
1
2
3
4
5
6
7
8
9

30Pictorial index
HILUX_OM_OM0K789E_(EE)
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 554
Front-wheel drive control switch . . . . . . . . . . . . . . . . . . . . . P. 330
Power outlets*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 466
VSC OFF switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 356
Rear differential lock switch*1. . . . . . . . . . . . . . . . . . . . . . . P. 340
“DAC” (Downhill Assist Control system) switch*1 . . . . . . P. 363
Stop & Start cancel switch*1 . . . . . . . . . . . . . . . . . . . . . . . . P. 345
“iMT” switch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 240
Seat heater switches*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 450
USB port*1, 2
1
2
3
4
5
6
7
8
9
10

31Pictorial index
HILUX_OM_OM0K789E_(EE)
■Interior (Right-hand drive vehicles)
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 45
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 36
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 168
Rear seats*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 170
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 173
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 40
Console box*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 457
Inside lock buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 153
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 458
Auxiliary boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 460
Bottle holders*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 459
*1: If equipped
*2: Refer to “Navigation and multimedia system Owner’s manual” or
“Multimedia Owner’s Manual”.
1
2
3
4
5
6
7
8
9
10

32Pictorial index
HILUX_OM_OM0K789E_(EE)
Cup holders*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 458
Auxiliary boxes*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 460
Driving mode select switches . . . . . . . . . . . . . . . . . . . P. 232, 239
1
2
3

33Pictorial index
HILUX_OM_OM0K789E_(EE)

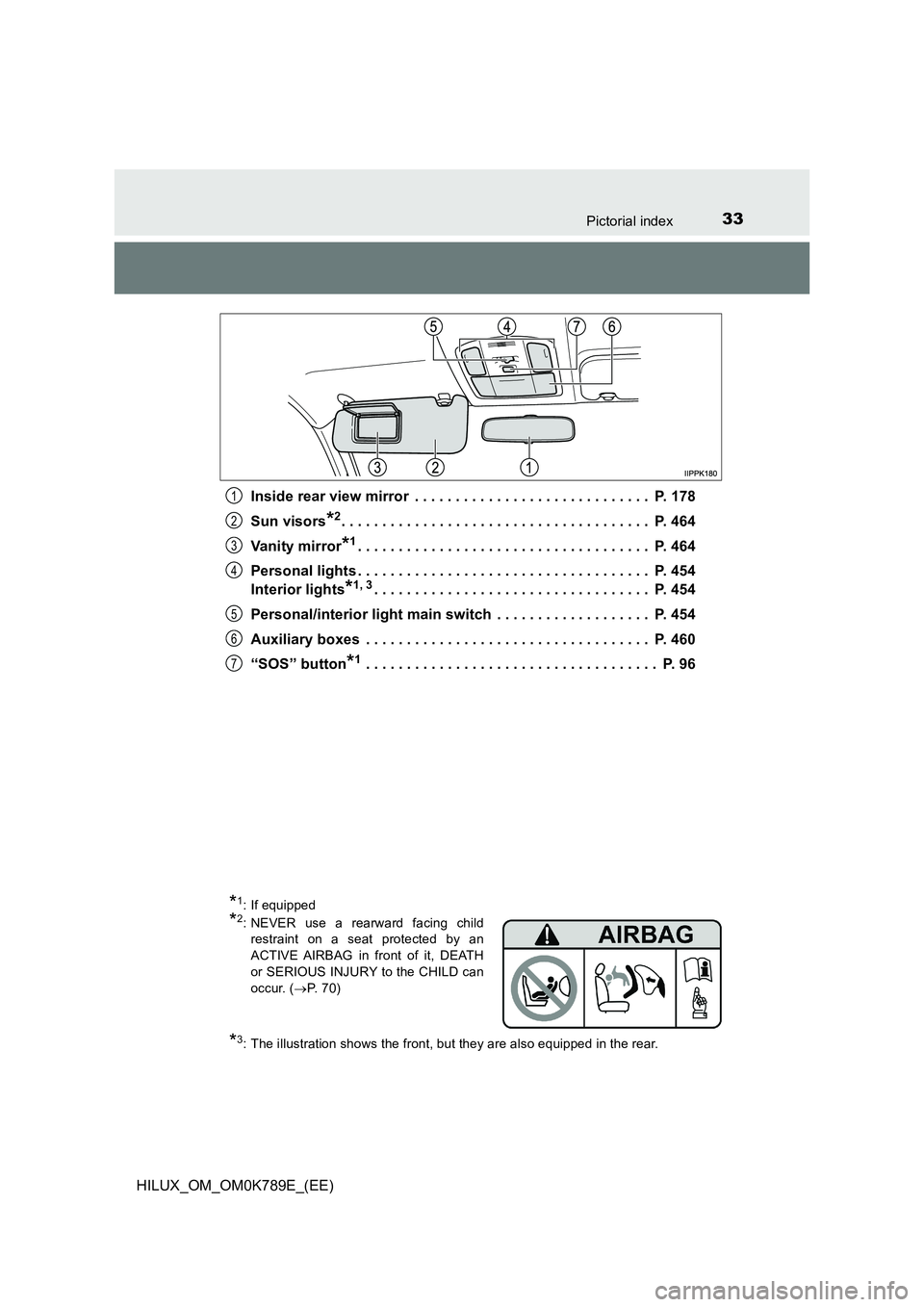

Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 178
Sun visors*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 464
Vanity mirror*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 464
Personal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 454
Interior lights*1, 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 454
Personal/interior light main switch . . . . . . . . . . . . . . . . . . . P. 454
Auxiliary boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 460
“SOS” button*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 96
1
2
3
4
5
6
7
*1: If equipped
*2: NEVER use a rearward facing child
restraint on a seat protected by an
ACTIVE AIRBAG in front of it, DEATH
or SERIOUS INJURY to the CHILD can
occur. ( P. 70)
*3: The illustration shows the front, but they are also equipped in the rear.

34Pictorial index
HILUX_OM_OM0K789E_(EE)

35
1For safety and security
HILUX_OM_OM0K789E_(EE)
1-1. For safe use
Before driving....................... 36
For safe driving .................... 38
Seat belts ............................. 40
SRS airbags......................... 45
Exhaust gas precautions ..... 56
1-2. Child safety
Front passenger occupant
classification system .......... 57
Airbag manual on-off
system ............................... 62
Riding with children.............. 64
Child restraint systems ........ 65
1-3. Emergency assistance
eCall..................................... 96
ERA-GLONASS/EVAK ...... 108
1-4. Theft deterrent system
Engine immobilizer
system ............................. 113
Alarm ................................. 115

361-1. For safe use
HILUX_OM_OM0K789E_(EE)
Before driving
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Insert the retaining hooks (clips)
into the floor mat eyelets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
Floor mat
1
*
2

371-1. For safe use
1
HILUX_OM_OM0K789E_(EE)
For safety and security
WARNING
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle. This could lead to an accident, resulting in
death or serious injury.
■ When installing the driver’s floor mat
● Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
●Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
● With the engine stopped and the shift
lever in P (automatic transmission) or N
(manual transmission), fully depress
each pedal to the floor to make sure it
does not interfere with the floor mat.

381-1. For safe use
HILUX_OM_OM0K789E_(EE)
For safe driving
Adjust the angle of the seat-
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. ( P. 168)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. ( P. 168)
Vehicles with adjustable type head restraint: Lock the head restraint
in place with the center of the head restraint closest to the top of
your ears. ( P. 173)
Wear the seat belt correctly. ( P. 4 0 )
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle. ( P. 4 0 )
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
( P. 6 5 )
For safe driving, adjust the seat and mirror to an appropriate
position before driving.
Correct driving posture
1
2
Correct use of the seat belts
3
4
