691-2. Child safety
1
HILUX_OM_OM0K789E_(EE)
For safety and security
WARNING

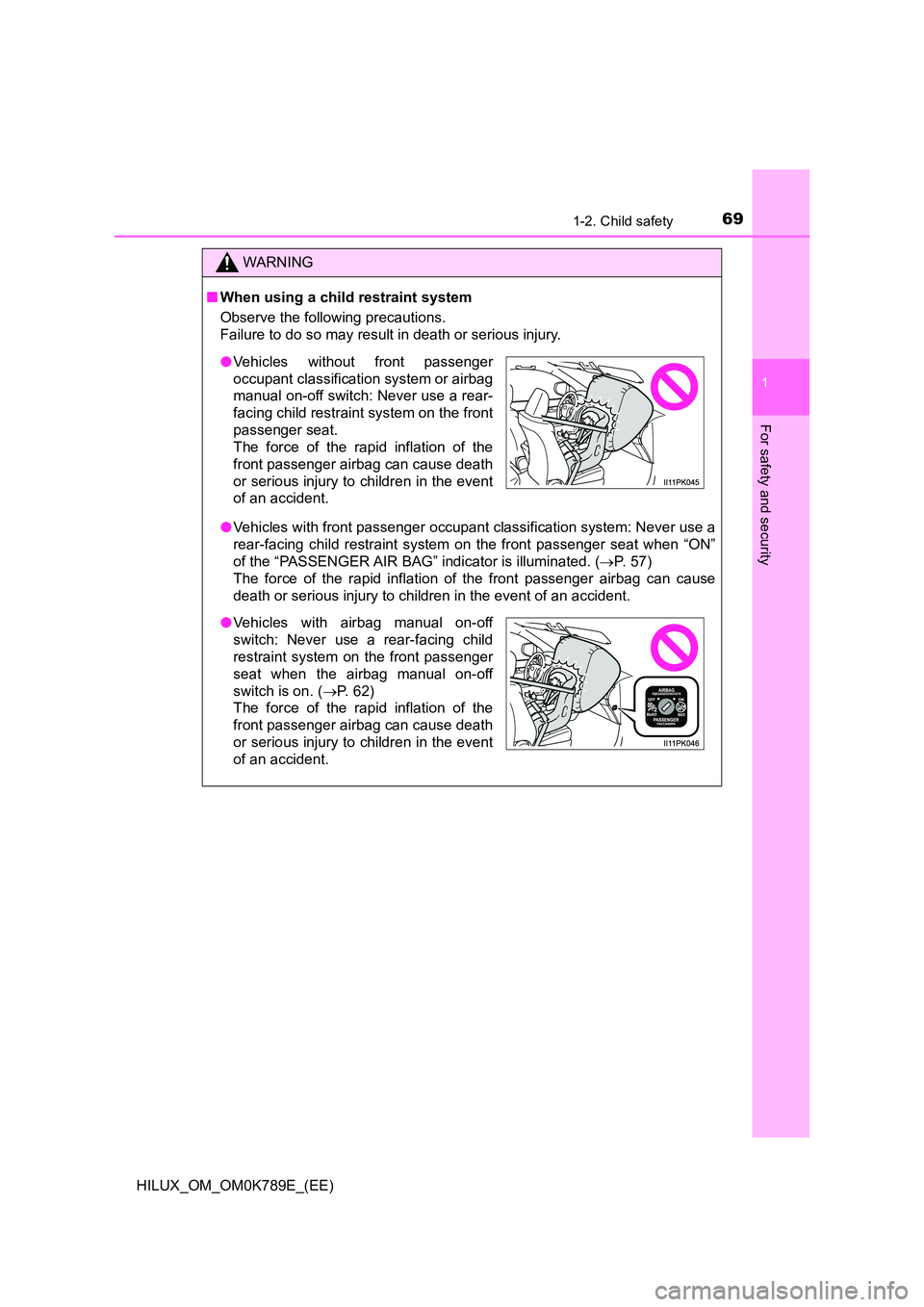

■When using a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Vehicles with front passenger occupant classification system: Never use a
rear-facing child restraint system on the front passenger seat when “ON”
of the “PASSENGER AIR BAG” indicator is illuminated. ( P. 57)
The force of the rapid inflation of the front passenger airbag can cause
death or serious injury to children in the event of an accident.
● Vehicles without front passenger
occupant classification system or airbag
manual on-off switch: Never use a rear-
facing child restraint system on the front
passenger seat.
The force of the rapid inflation of the
front passenger airbag can cause death
or serious injury to children in the event
of an accident.
● Vehicles with airbag manual on-off
switch: Never use a rear-facing child
restraint system on the front passenger
seat when the airbag manual on-off
switch is on. ( P. 62)
The force of the rapid inflation of the
front passenger airbag can cause death
or serious injury to children in the event
of an accident.

701-2. Child safety
HILUX_OM_OM0K789E_(EE)
WARNING

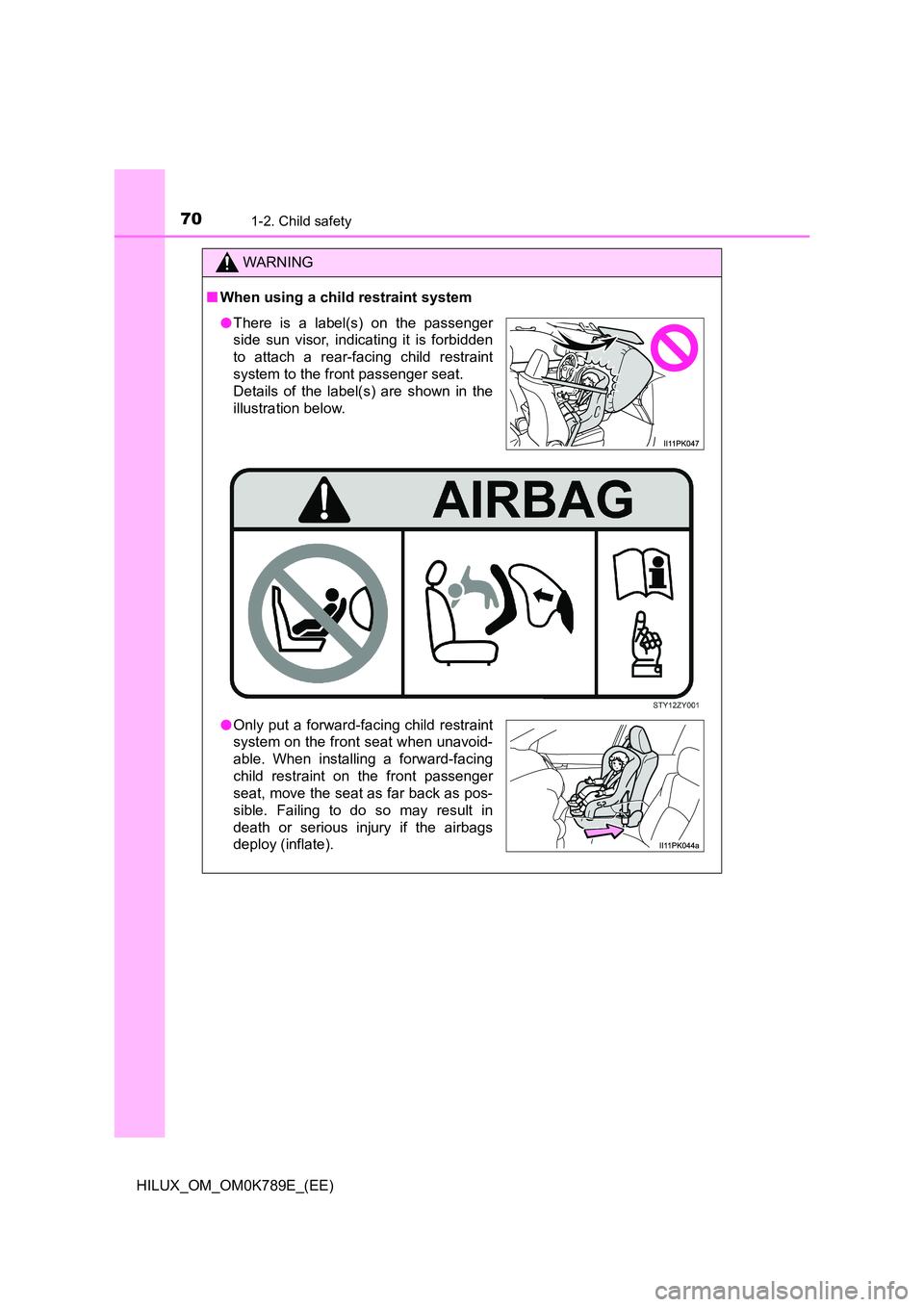

■When using a child restraint system
●There is a label(s) on the passenger
side sun visor, indicating it is forbidden
to attach a rear-facing child restraint
system to the front passenger seat.
Details of the label(s) are shown in the
illustration below.
●Only put a forward-facing child restraint
system on the front seat when unavoid-
able. When installing a forward-facing
child restraint on the front passenger
seat, move the seat as far back as pos-
sible. Failing to do so may result in
death or serious injury if the airbags
deploy (inflate).

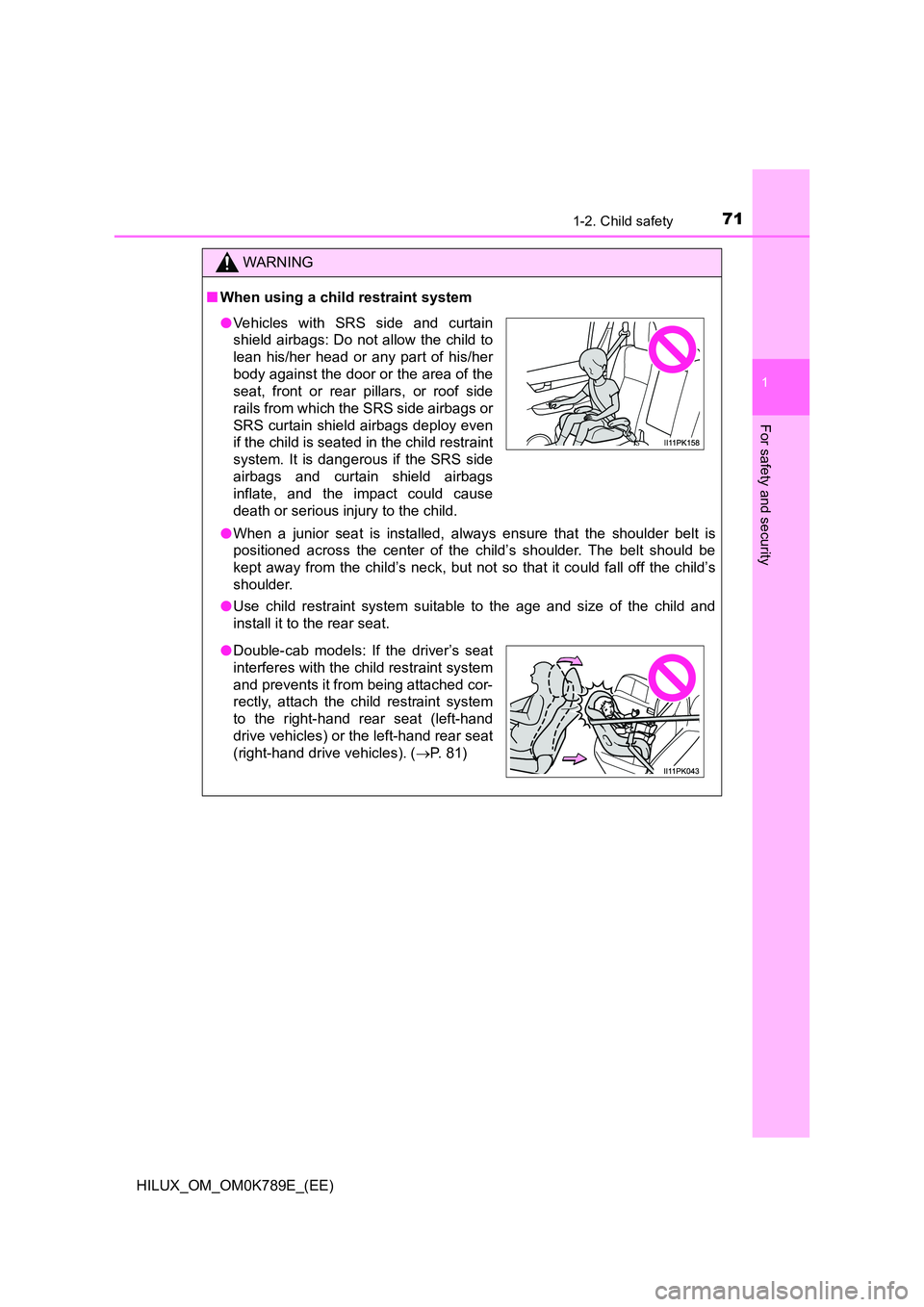

711-2. Child safety
1
HILUX_OM_OM0K789E_(EE)
For safety and security
WARNING
■When using a child restraint system
● When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder.
● Use child restraint system suitable to the age and size of the child and
install it to the rear seat.
● Vehicles with SRS side and curtain
shield airbags: Do not allow the child to
lean his/her head or any part of his/her
body against the door or the area of the
seat, front or rear pi llars, or roof side
rails from which the SRS side airbags or
SRS curtain shield airbags deploy even
if the child is seated in the child restraint
system. It is dangerous if the SRS side
airbags and curtain shield airbags
inflate, and the impact could cause
death or serious injury to the child.
● Double-cab models: If the driver’s seat
interferes with the child restraint system
and prevents it from being attached cor-
rectly, attach the child restraint system
to the right-hand rear seat (left-hand
drive vehicles) or the left-hand rear seat
(right-hand drive vehicles). ( P. 8 1 )

721-2. Child safety
HILUX_OM_OM0K789E_(EE)

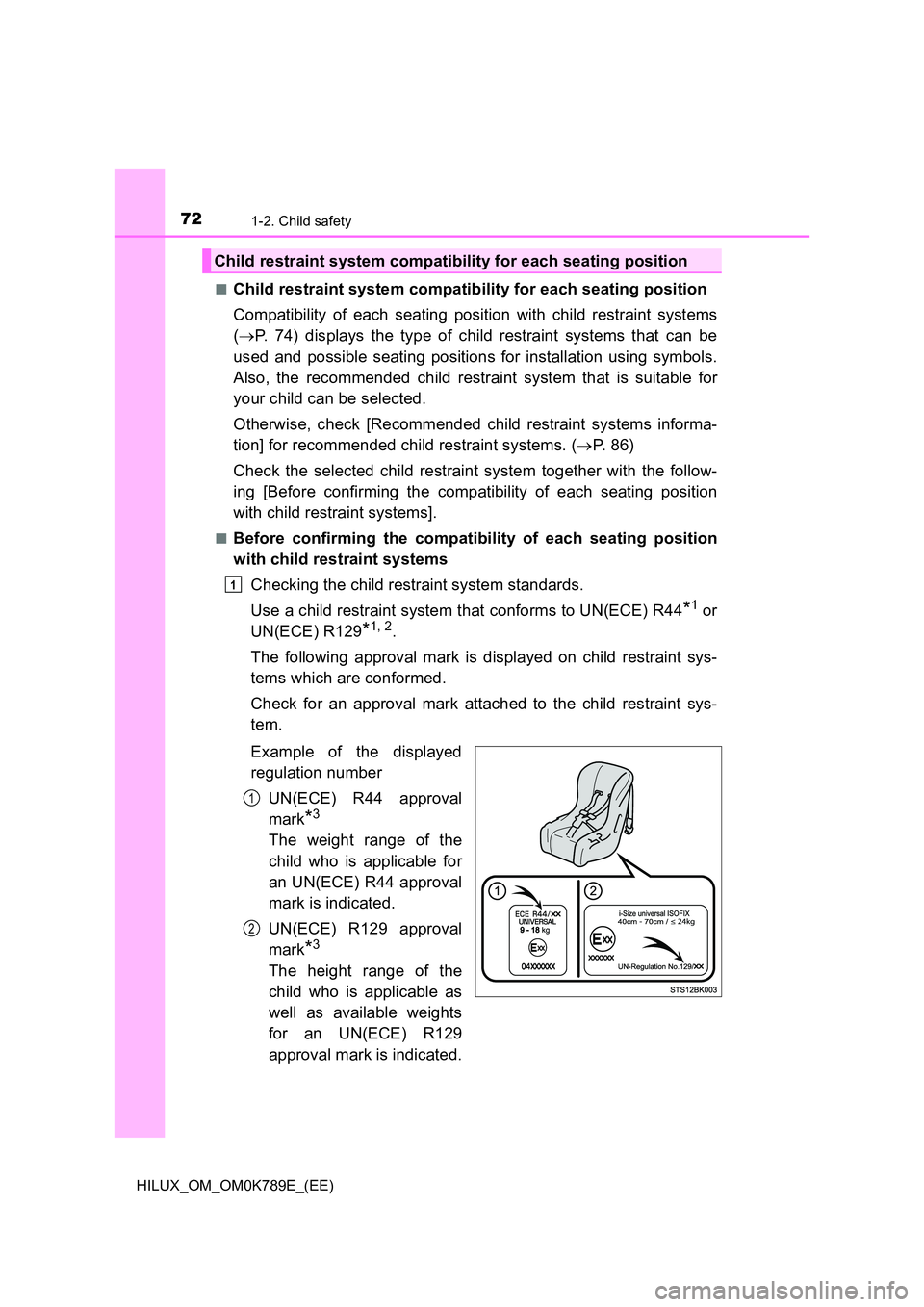

■Child restraint system compatibility for each seating position
Compatibility of each seating position with child restraint systems
( P. 74) displays the type of child restraint systems that can be
used and possible seating positions for installation using symbols.
Also, the recommended child restraint system that is suitable for
your child can be selected.
Otherwise, check [Recommended child restraint systems informa-
tion] for recommended child restraint systems. ( P. 8 6 )
Check the selected child restraint system together with the follow-
ing [Before confirming the compatibility of each seating position
with child restraint systems].
■Before confirming the compatibility of each seating position
with child restraint systems
Checking the child restraint system standards.
Use a child restraint system that conforms to UN(ECE) R44*1 or
UN(ECE) R129*1, 2.
The following approval mark is displayed on child restraint sys-
tems which are conformed.
Check for an approval mark attached to the child restraint sys-
tem.
Example of the displayed
regulation number
UN(ECE) R44 approval
mark*3
The weight range of the
child who is applicable for
an UN(ECE) R44 approval
mark is indicated.
UN(ECE) R129 approval
mark*3
The height range of the
child who is applicable as
well as available weights
for an UN(ECE) R129
approval mark is indicated.
Child restraint system compatibility for each seating position
1
1
2

731-2. Child safety
1
HILUX_OM_OM0K789E_(EE)
For safety and security
*1: UN(ECE) R44 and UN(ECE) R129 are U.N. regulations for child
restraint systems.
*2: The child restraint systems mentioned in the table may not be avail-
able outside of the EU area.
*3: The displayed mark may differ depending on the product.

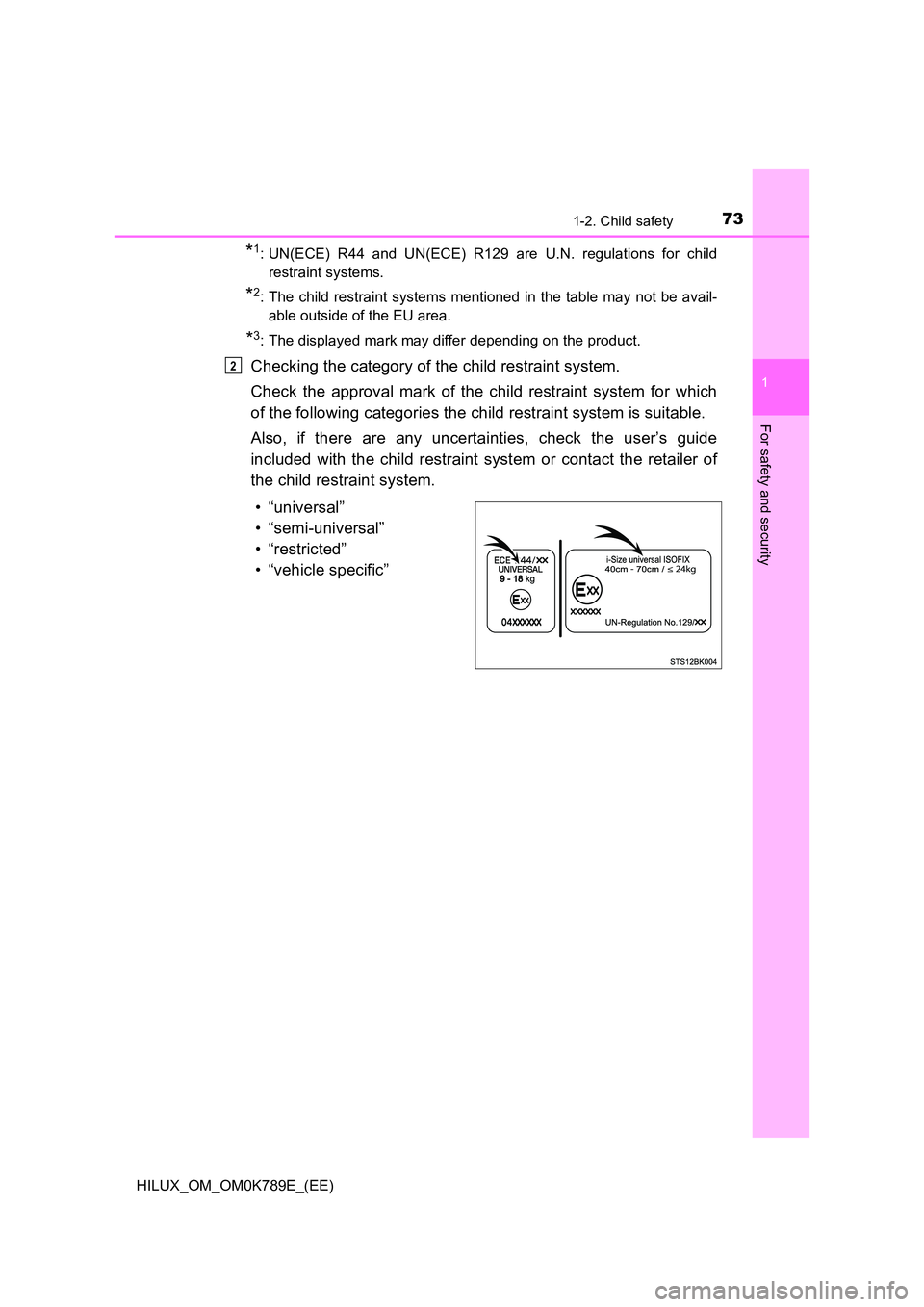

Checking the category of the child restraint system.
Check the approval mark of the child restraint system for which
of the following categories the child restraint system is suitable.
Also, if there are any uncertainties, check the user’s guide
included with the child restraint system or contact the retailer of
the child restraint system.
•“universal”
• “semi-universal”
• “restricted”
• “vehicle specific”
2

741-2. Child safety
HILUX_OM_OM0K789E_(EE)

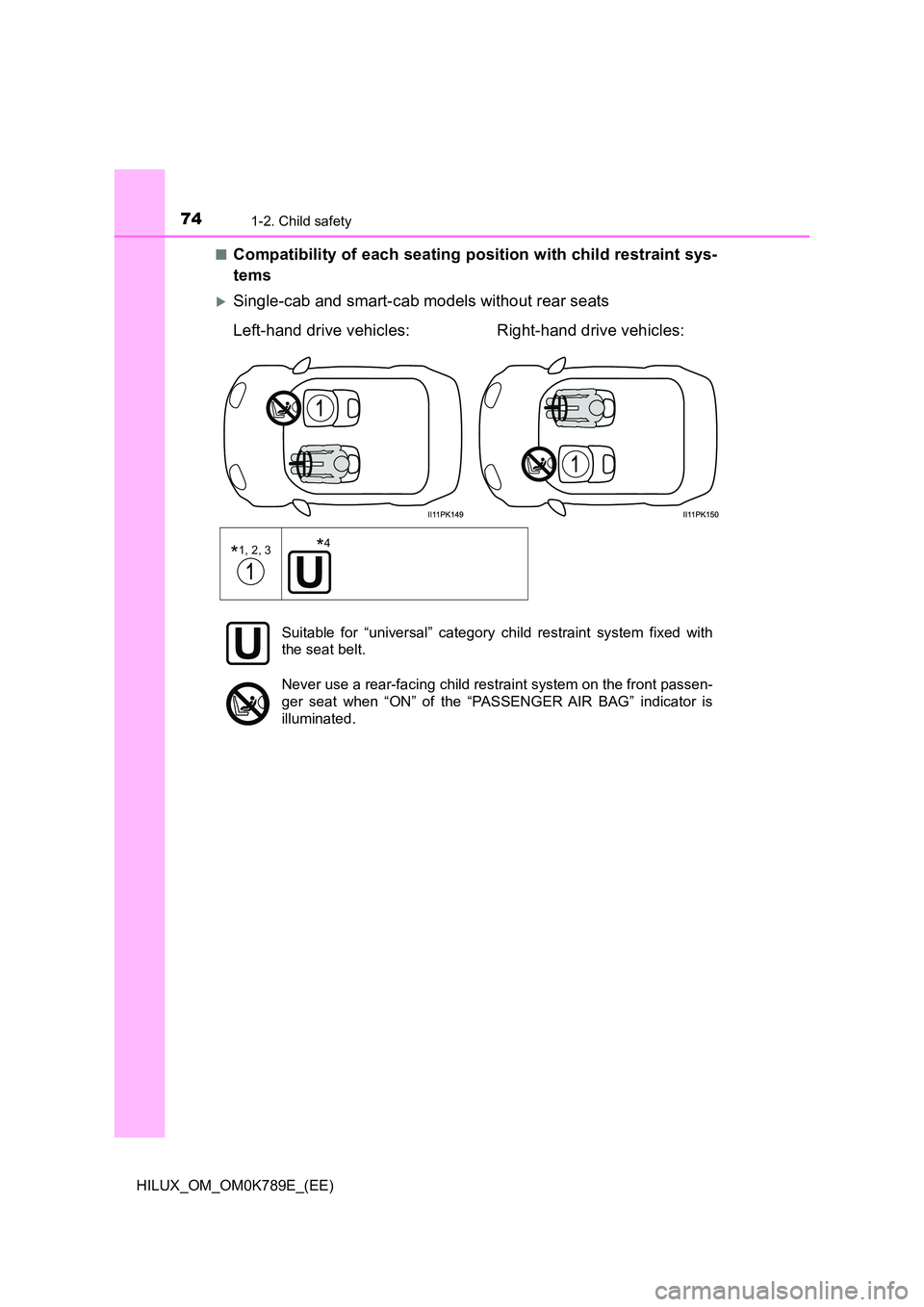

■Compatibility of each seating position with child restraint sys-
tems
Single-cab and smart-cab models without rear seats
Left-hand drive vehicles: Right-hand drive vehicles:
*1, 2, 3*4
Suitable for “universal” category child restraint system fixed with
the seat belt.
Never use a rear-facing child restraint system on the front passen-
ger seat when “ON” of the “PASSENGER AIR BAG” indicator is
illuminated.

751-2. Child safety
1
HILUX_OM_OM0K789E_(EE)
For safety and security

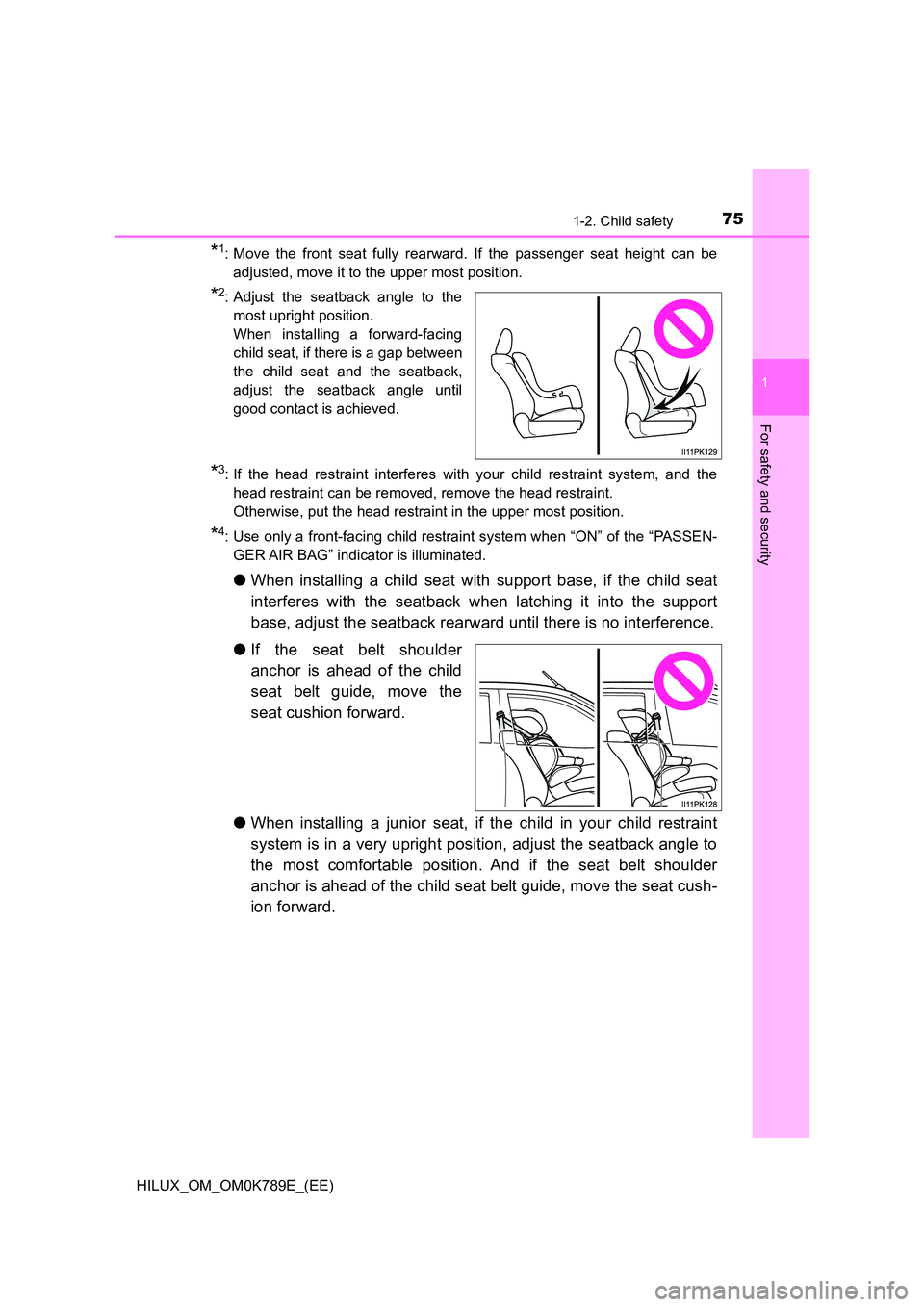

*1: Move the front seat fully rearward. If the passenger seat height can be
adjusted, move it to the upper most position.
*2: Adjust the seatback angle to the
most upright position.
When installing a forward-facing
child seat, if there is a gap between
the child seat and the seatback,
adjust the seatback angle until
good contact is achieved.
*3: If the head restraint interferes with your child restraint system, and the
head restraint can be removed, remove the head restraint.
Otherwise, put the head restraint in the upper most position.
*4: Use only a front-facing child restraint system when “ON” of the “PASSEN-
GER AIR BAG” indicator is illuminated.
● When installing a child seat with support base, if the child seat
interferes with the seatback when latching it into the support
base, adjust the seatback rearward until there is no interference.
● If the seat belt shoulder
anchor is ahead of the child
seat belt guide, move the
seat cushion forward.
● When installing a junior seat, if the child in your child restraint
system is in a very upright position, adjust the seatback angle to
the most comfortable position. And if the seat belt shoulder
anchor is ahead of the child seat belt guide, move the seat cush-
ion forward.

761-2. Child safety
HILUX_OM_OM0K789E_(EE)

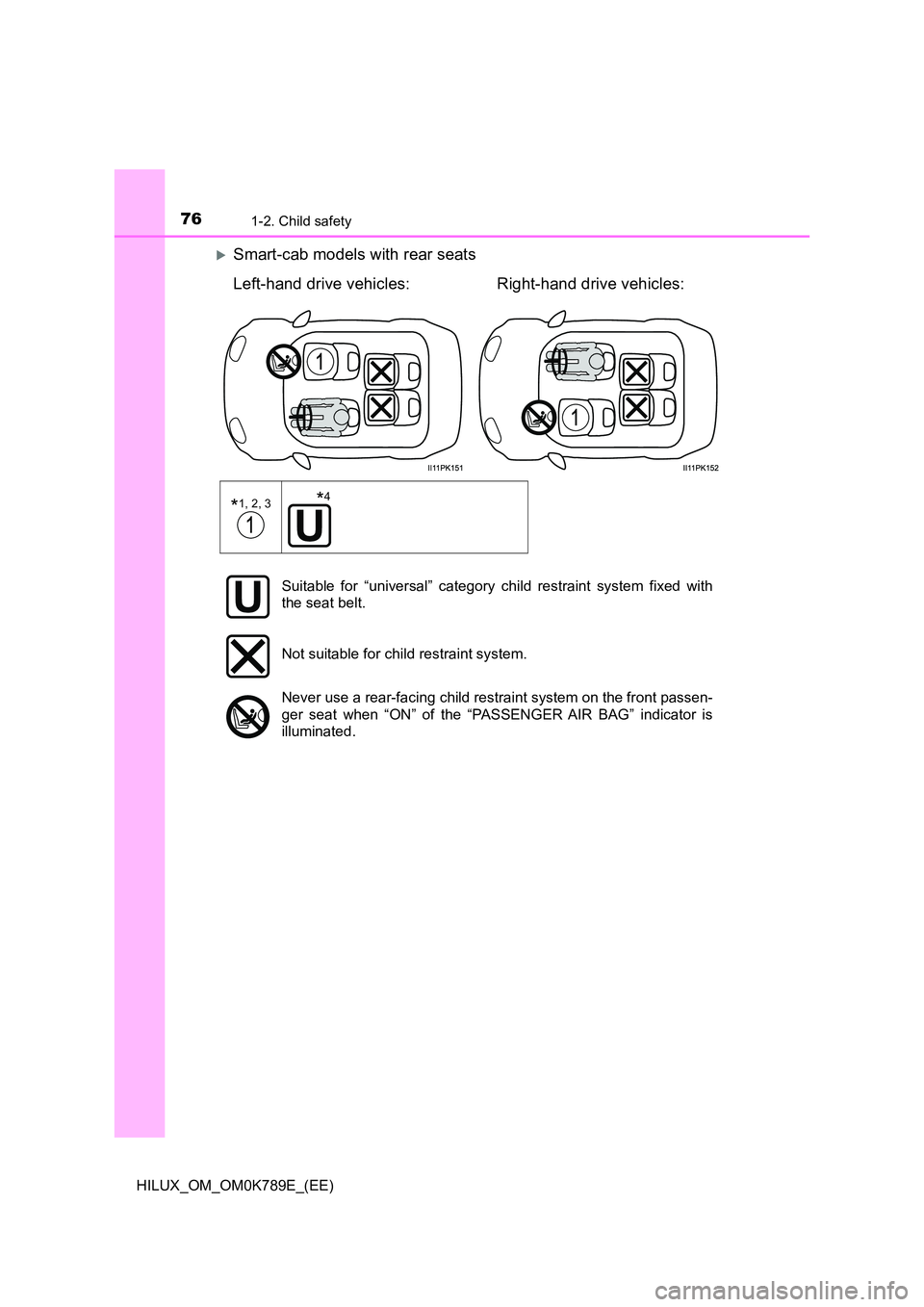

Smart-cab models with rear seats
Left-hand drive vehicles: Right-hand drive vehicles:
*1, 2, 3*4
Suitable for “universal” category child restraint system fixed with
the seat belt.
Not suitable for child restraint system.
Never use a rear-facing child restraint system on the front passen-
ger seat when “ON” of the “PASSENGER AIR BAG” indicator is
illuminated.

771-2. Child safety
1
HILUX_OM_OM0K789E_(EE)
For safety and security
*1: Move the front seat fully rearward. If the passenger seat height can be
adjusted, move it to the upper most position.
*2: Adjust the seatback angle to the
most upright position.
When installing a forward-facing
child seat, if there is a gap between
the child seat and the seatback,
adjust the seatback angle until
good contact is achieved.
*3: If the head restraint interferes with your child restraint system, and the
head restraint can be removed, remove the head restraint.
Otherwise, put the head restraint in the upper most position.
*4: Use only a front-facing child restraint system when “ON” of the “PASSEN-
GER AIR BAG” indicator is illuminated.
● When installing a child seat with support base, if the child seat
interferes with the seatback when latching it into the support
base, adjust the seatback rearward until there is no interference.
● If the seat belt shoulder
anchor is ahead of the child
seat belt guide, move the
seat cushion forward.
● When installing a junior seat, if the child in your child restraint
system is in a very upright position, adjust the seatback angle to
the most comfortable position. And if the seat belt shoulder
anchor is ahead of the child seat belt guide, move the seat cush-
ion forward.

781-2. Child safety
HILUX_OM_OM0K789E_(EE)

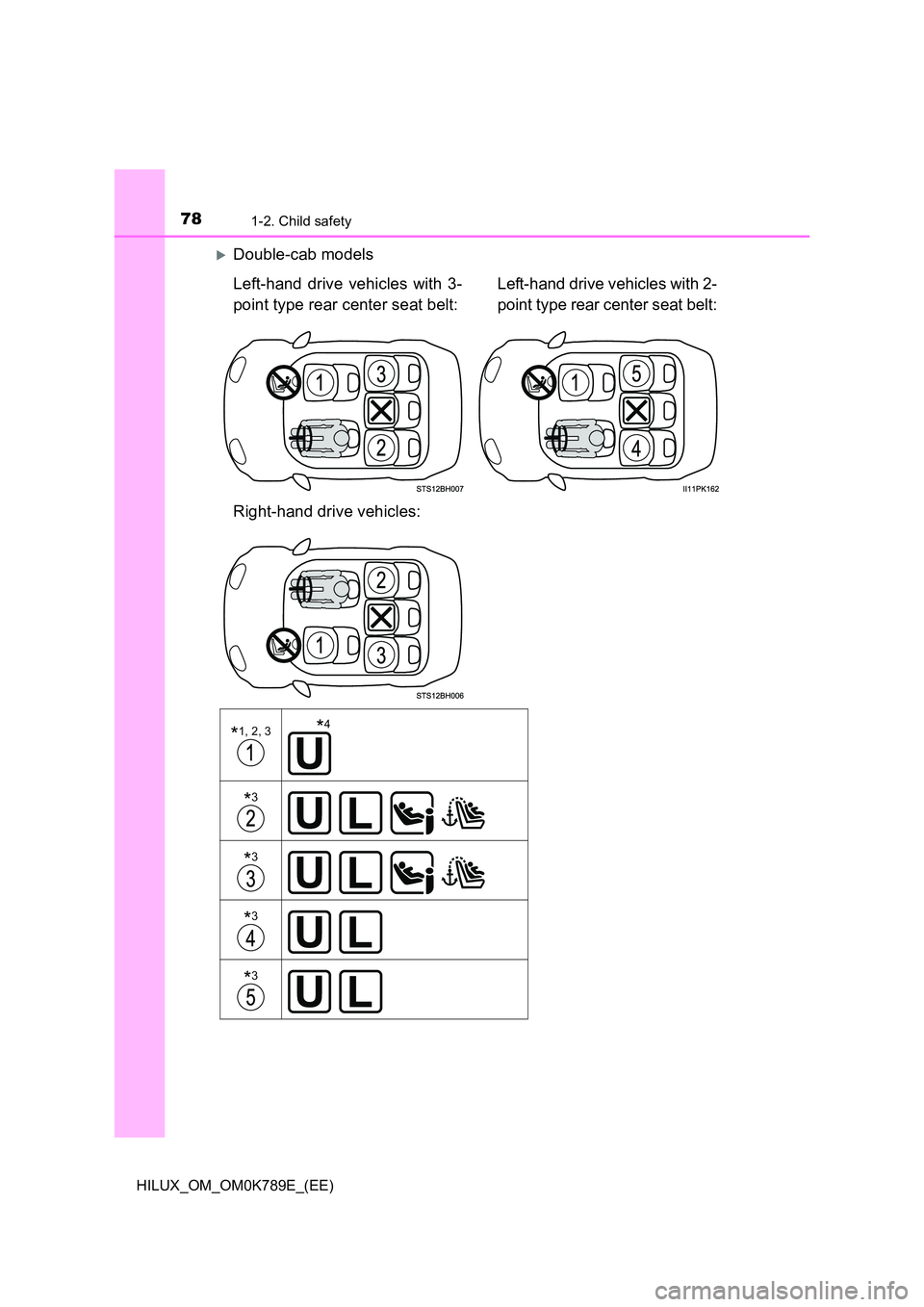

Double-cab models
Left-hand drive vehicles with 3-
point type rear center seat belt:
Left-hand drive vehicles with 2-
point type rear center seat belt:
Right-hand drive vehicles:
*1, 2, 3
*3

*3

*3

*3

*4
