stop start TOYOTA HILUX 2023 Manual PDF

6038-2. Steps to take in an emergency
HILUX_OM_OM0K789E_(EE)
8
When trouble arises
■Stopping the engine
Shift the shift lever to P (automatic transmission) or N (manual transmission)
and press the engine switch as you normally do when stopping the engine.
■ Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery is depleted.
( P. 516)
■ Alarm (vehicles with alarm for models for model code destination Blank
[for Kazakhstan, Kyrgyzstan and Russia] and W*)
Using the mechanical key to lock the doors will not set the alarm system.
If a door is unlocked using the mechanical key and is opened when the alarm
system is set, the alarm may be triggered.
*: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. ( P. 12)
■ Changing engine switch modes
Release the brake pedal (automatic transmission) or clutch pedal (manual
transmission) and press the engine switch in step above.
The engine does not start and modes will be changed each time the switch is
pressed. ( P. 225)
■ When the electronic key does not work properly
● Make sure that the smart entry & start system has not been deactivated in
the customization setting. If it is off, turn the function on.
(Customizable features: P. 647)
● Check if battery-saving mode is set. If it is set, cancel the function.
( P. 162)
3

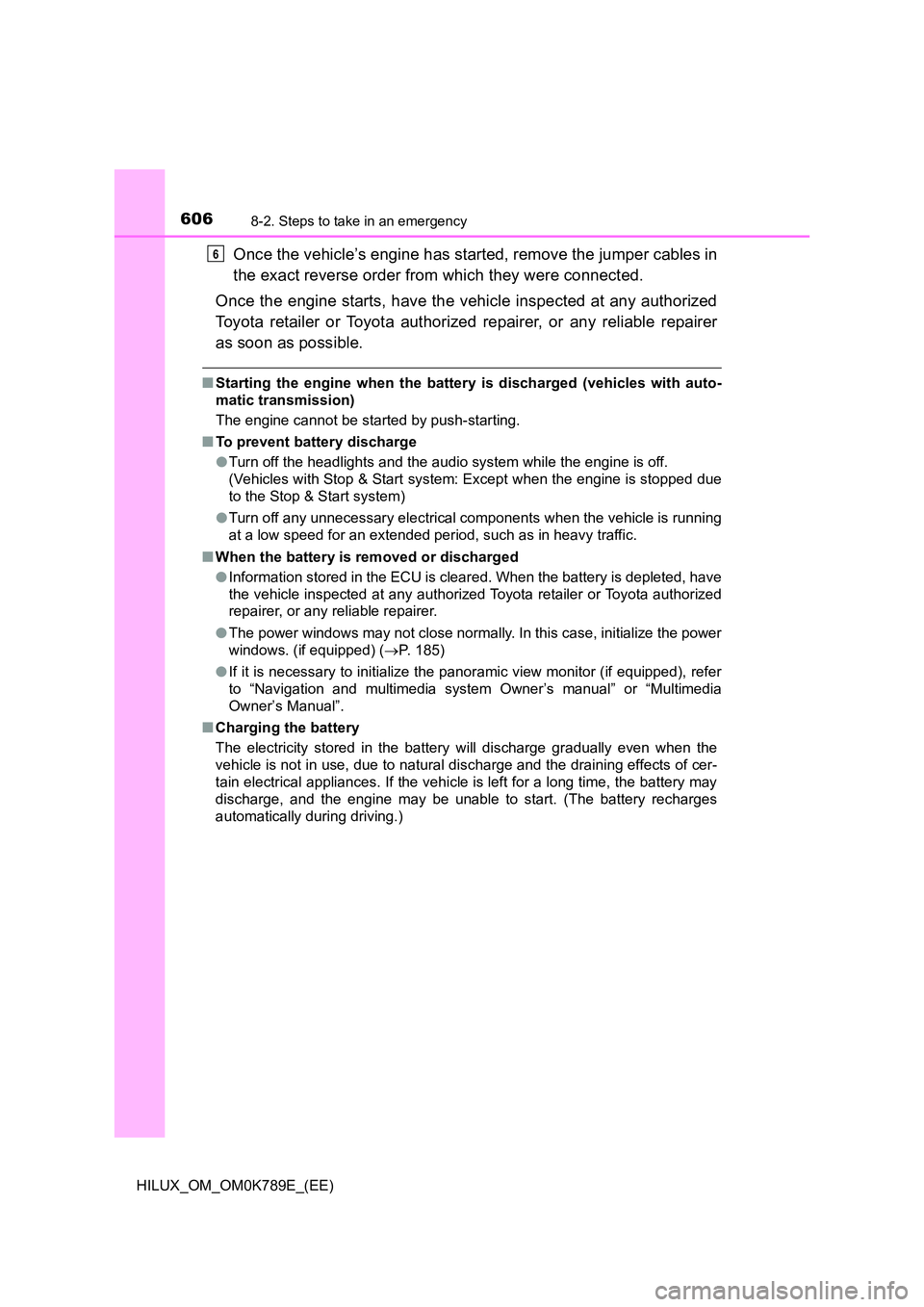

6068-2. Steps to take in an emergency
HILUX_OM_OM0K789E_(EE)
Once the vehicle’s engine has started, remove the jumper cables in
the exact reverse order from which they were connected.
Once the engine starts, have the vehicle inspected at any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer
as soon as possible.
■ Starting the engine when the battery is discharged (vehicles with auto-
matic transmission)
The engine cannot be started by push-starting.
■ To prevent battery discharge
● Turn off the headlights and the audio system while the engine is off.
(Vehicles with Stop & Start system: Except when the engine is stopped due
to the Stop & Start system)
● Turn off any unnecessary electrical components when the vehicle is running
at a low speed for an extended period, such as in heavy traffic.
■ When the battery is removed or discharged
● Information stored in the ECU is cleared. When the battery is depleted, have
the vehicle inspected at any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
● The power windows may not close normally. In this case, initialize the power
windows. (if equipped) ( P. 185)
● If it is necessary to initialize the panoramic view monitor (if equipped), refer
to “Navigation and multimedia system Owner’s manual” or “Multimedia
Owner’s Manual”.
■ Charging the battery
The electricity stored in the battery will discharge gradually even when the
vehicle is not in use, due to natural discharge and the draining effects of cer-
tain electrical appliances. If the vehicle is left for a long time, the battery may
discharge, and the engine may be unable to start. (The battery recharges
automatically during driving.)
6

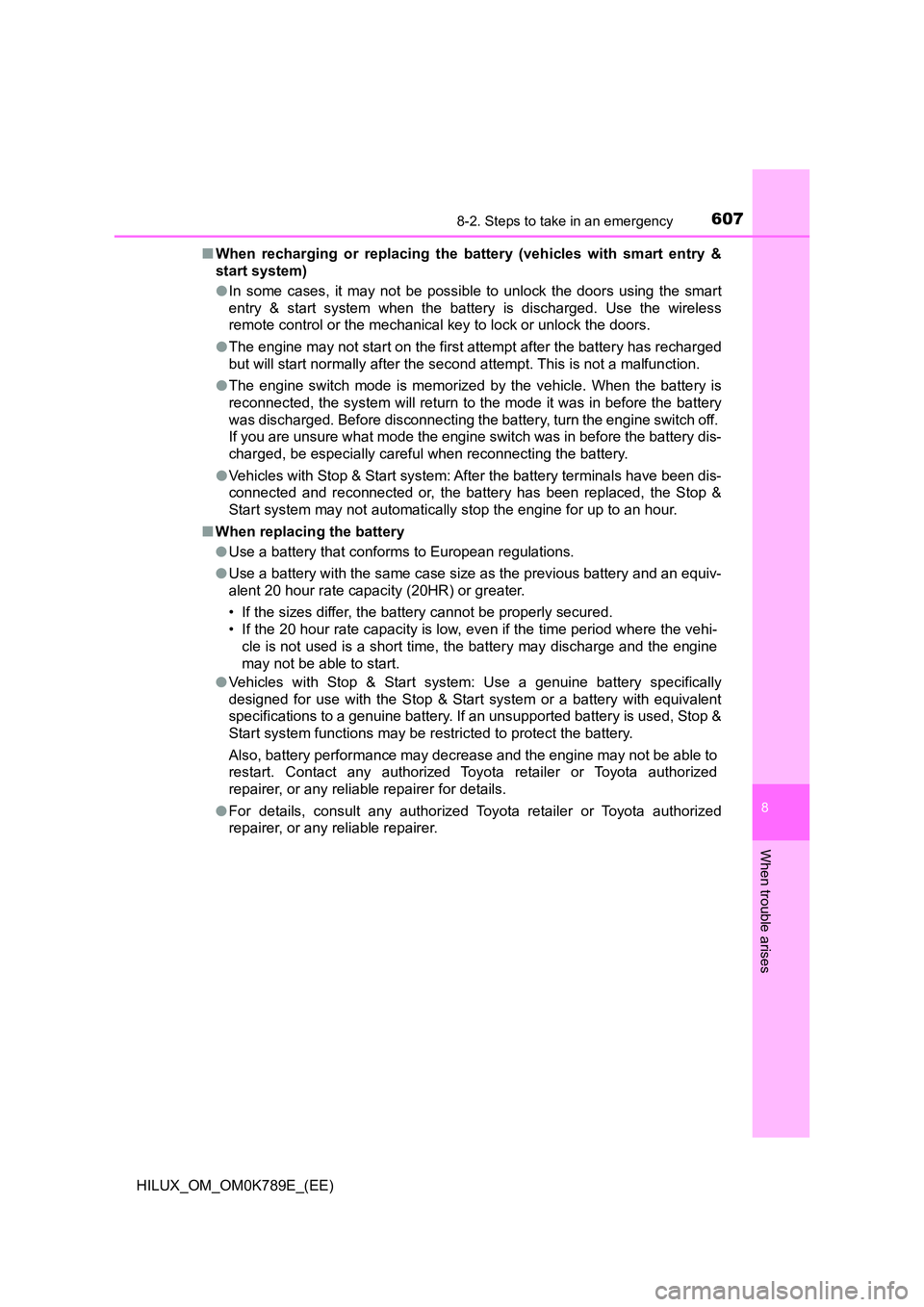

6078-2. Steps to take in an emergency
HILUX_OM_OM0K789E_(EE)
8
When trouble arises
■When recharging or replacing the battery (vehicles with smart entry &
start system)
● In some cases, it may not be possible to unlock the doors using the smart
entry & start system when the battery is discharged. Use the wireless
remote control or the mechanical key to lock or unlock the doors.
● The engine may not start on the first attempt after the battery has recharged
but will start normally after the second attempt. This is not a malfunction.
● The engine switch mode is memorized by the vehicle. When the battery is
reconnected, the system will return to the mode it was in before the battery
was discharged. Before disconnecting the battery, turn the engine switch off.
If you are unsure what mode the engine switch was in before the battery dis-
charged, be especially careful when reconnecting the battery.
● Vehicles with Stop & Start system: After the battery terminals have been dis-
connected and reconnected or, the battery has been replaced, the Stop &
Start system may not automatically stop the engine for up to an hour.
■ When replacing the battery
● Use a battery that conforms to European regulations.
● Use a battery with the same case size as the previous battery and an equiv-
alent 20 hour rate capacity (20HR) or greater.
• If the sizes differ, the battery cannot be properly secured.
• If the 20 hour rate capacity is low, even if the time period where the vehi-
cle is not used is a short time, the battery may discharge and the engine
may not be able to start.
● Vehicles with Stop & Start system: Use a genuine battery specifically
designed for use with the Stop & Start system or a battery with equivalent
specifications to a genuine battery. If an unsupported battery is used, Stop &
Start system functions may be restricted to protect the battery.
Also, battery performance may decrease and the engine may not be able to
restart. Contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer for details.
● For details, consult any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.

6138-2. Steps to take in an emergency
HILUX_OM_OM0K789E_(EE)
8
When trouble arises
Start the engine to check that the radiator cooling fan operates and
to check for coolant leaks from the radiator or hoses.
If the fan is not operating:
Stop the engine immediately and contact any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
If the fan is operating:
Have the vehicle inspected at the nearest authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer.
WARNING
■ When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
● If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot.
● Keep hands and clothing (especially a tie, a scarf or a muffler) away from
the fans and belts. Failure to do so may cause the hands or clothing to be
caught, resulting in serious injury.
● Do not loosen the radiator cap (if equipped), the engine coolant reservoir
cap or intercooler coolant reservoir cap (if equipped) while the engine and
radiator are hot. High temperature steam or coolant could spray out.
NOTICE
■ When adding engine coolant
Add coolant slowly after the engine has cooled down sufficiently. Adding
cool coolant to a hot engine too quickly can cause damage to the engine.
■ To prevent damage to the cooling system
Observe the following precautions:
● Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).
● Do not use any coolant additive.
6
7

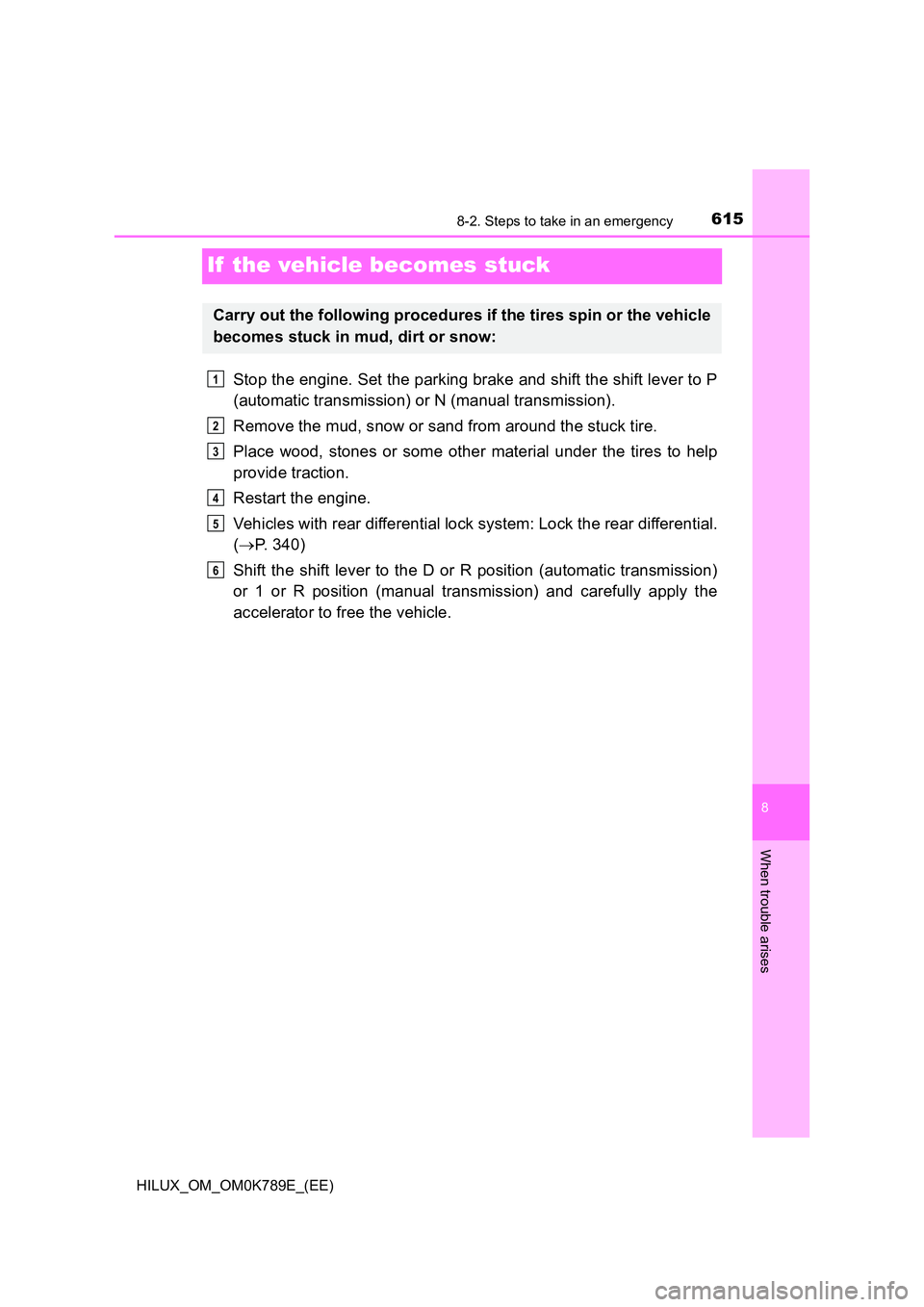

6158-2. Steps to take in an emergency
HILUX_OM_OM0K789E_(EE)
8
When trouble arises
If the vehicle becomes stuck
Stop the engine. Set the parking brake and shift the shift lever to P
(automatic transmission) or N (manual transmission).
Remove the mud, snow or sand from around the stuck tire.
Place wood, stones or some other material under the tires to help
provide traction.
Restart the engine.
Vehicles with rear differential lock system: Lock the rear differential.
( P. 340)
Shift the shift lever to the D or R position (automatic transmission)
or 1 or R position (manual transmission) and carefully apply the
accelerator to free the vehicle.
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
1
2
3
4
5
6

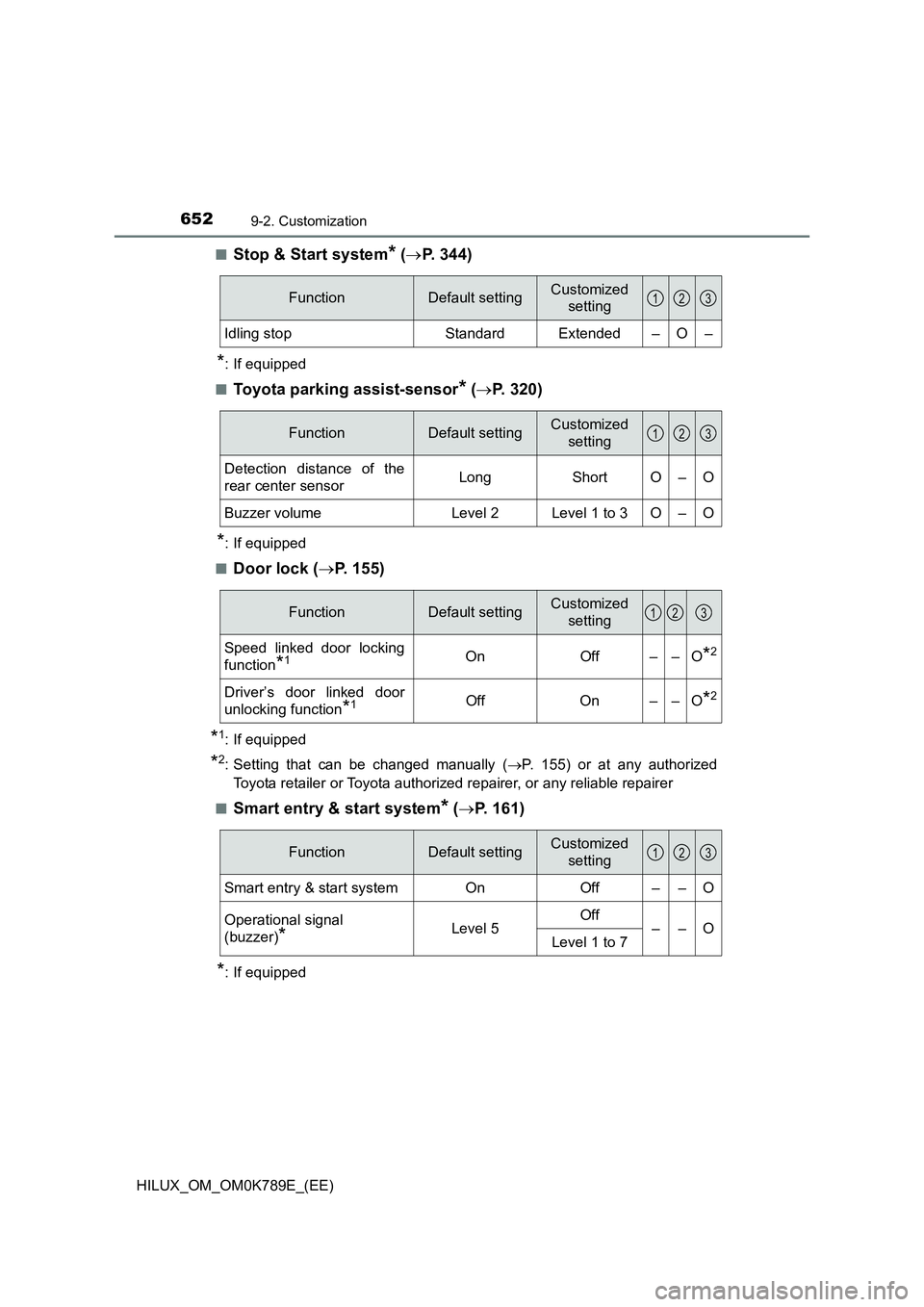

6529-2. Customization
HILUX_OM_OM0K789E_(EE)
■Stop & Start system* ( P. 344)
*: If equipped
■Toyota parking assist-sensor* ( P. 320)
*: If equipped
■Door lock ( P. 155)
*1: If equipped
*2: Setting that can be changed manually (P. 155) or at any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer
■Smart entry & start system* ( P. 161)
*: If equipped
FunctionDefault settingCustomized
setting
Idling stopStandardExtended–O–
123
FunctionDefault settingCustomized
setting
Detection distance of the
rear center sensorLongShortO–O
Buzzer volumeLevel 2Level 1 to 3O–O
123
FunctionDefault settingCustomized
setting
Speed linked door locking
function*1OnOff––O*2
Driver’s door linked door
unlocking function*1OffOn––O*2
123
FunctionDefault settingCustomized
setting
Smart entry & start systemOnOff––O
Operational signal
(buzzer)*Level 5Off––OLevel 1 to 7
123

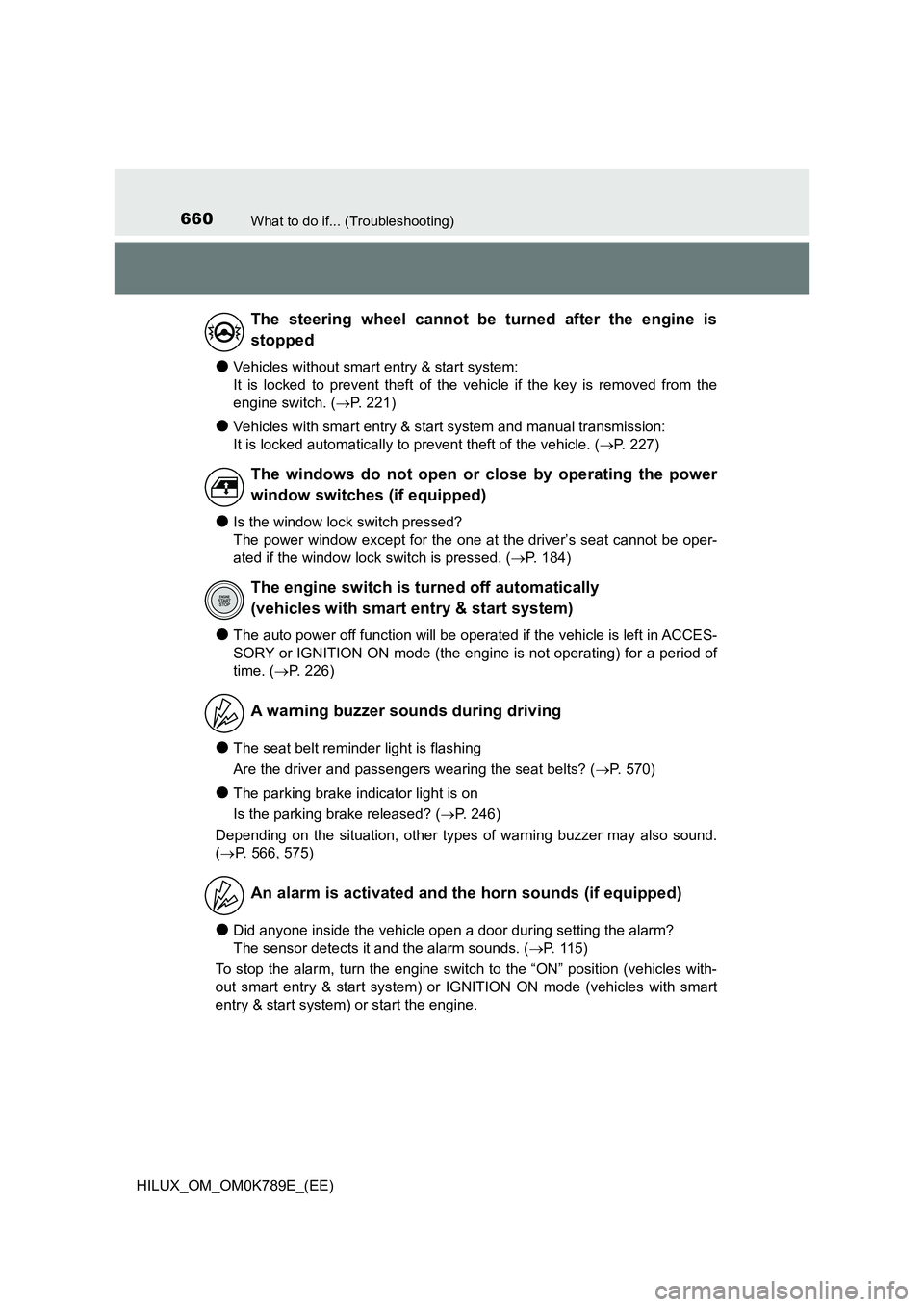

660What to do if... (Troubleshooting)
HILUX_OM_OM0K789E_(EE)
●Vehicles without smart entry & start system:
It is locked to prevent theft of the vehicle if the key is removed from the
engine switch. ( P. 2 2 1 )
●Vehicles with smart entry & start system and manual transmission:
It is locked automatically to prevent theft of the vehicle. ( P. 227)
●Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be oper-
ated if the window lock switch is pressed. ( P. 184)
●The auto power off function will be operated if the vehicle is left in ACCES-
SORY or IGNITION ON mode (the engine is not operating) for a period of
time. ( P. 226)
●The seat belt reminder light is flashing
Are the driver and passengers wearing the seat belts? ( P. 570)
●The parking brake indicator light is on
Is the parking brake released? ( P. 246)
Depending on the situation, other types of warning buzzer may also sound.
( P. 566, 575)
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. ( P. 115)
To stop the alarm, turn the engine switch to the “ON” position (vehicles with-
out smart entry & start system) or IGNITION ON mode (vehicles with smart
entry & start system) or start the engine.
The steering wheel cannot be turned after the engine is
stopped
The windows do not open or close by operating the power
window switches (if equipped)
The engine switch is turned off automatically
(vehicles with smart entry & start system)
A warning buzzer sounds during driving
An alarm is activated and the horn sounds (if equipped)

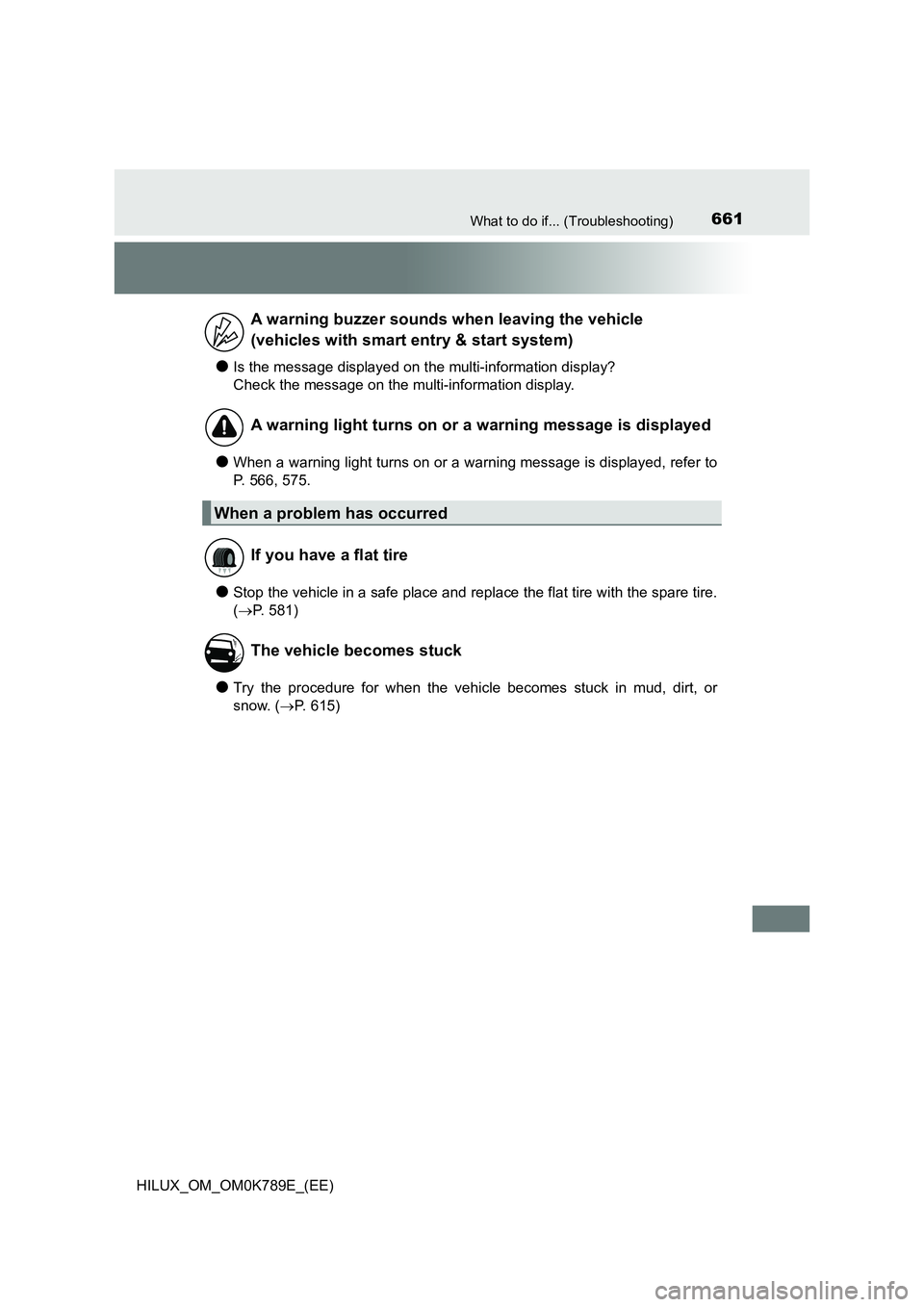

661What to do if... (Troubleshooting)
HILUX_OM_OM0K789E_(EE)
●Is the message displayed on the multi-information display?
Check the message on the multi-information display.
●When a warning light turns on or a warning message is displayed, refer to
P. 566, 575.
●Stop the vehicle in a safe place and replace the flat tire with the spare tire.
( P. 581)
●Try the procedure for when the vehicle becomes stuck in mud, dirt, or
snow. ( P. 615)
A warning buzzer sounds when leaving the vehicle
(vehicles with smart entry & start system)
A warning light turns on or a warning message is displayed
When a problem has occurred
If you have a flat tire
The vehicle becomes stuck

665Alphabetical index
HILUX_OM_OM0K789E_(EE)
Driving
Break-in tips .......................... 194
Correct posture ....................... 38
Procedures............................ 190
Winter drive tips .................... 373
Dynamic radar cruise
control .................................... 300
Function ................................ 300
Warning message ................. 580
Eco Driving Indicator....... 124, 126
Emergency flashers................. 554
Electronic key
If the electronic key does
not operate properly ........... 600
Replacing the battery ............ 516
Emergency, in case of
If a warning buzzer
sounds ................................ 566
If a warning light turns on ...... 566
If the electronic key does
not operate properly ........... 600
If the engine will not start ...... 598
If the vehicle battery is
discharged .......................... 604
If the vehicle is submerged or
water on the road is
rising ................................... 557
If you have a flat tire.............. 581
If you lose your keys ............. 149
If you run out of fuel and
the engine stalls.................. 614
If you think something is
wrong .................................. 564
If your vehicle becomes
stuck ................................... 615
If your vehicle has to be
stopped in an
emergency.......................... 555
If your vehicle needs to be
towed .................................. 559
If your vehicle overheats ....... 610
Engine
“ACC” position ...................... 220
Compartment ........................ 486
Engine switch................ 219, 222
Hood ..................................... 484
How to start the
engine......................... 219, 222
Identification number ............ 625
If the engine will not start ...... 598
If you run out of fuel and the
engine stalls ....................... 614
If your vehicle has to be
stopped in an
emergency.......................... 555
Ignition switch
(engine switch) ........... 219, 222
Overheating .......................... 610
Engine coolant
Capacity ................................ 634
Checking ............................... 492
Preparing and checking
before winter....................... 373
Engine coolant
temperature gauge ................ 129
Engine immobilizer system .... 113
Engine oil
Capacity ................................ 628
Checking ............................... 489
Oil level warning light ............ 570
Oil pressure warning light ..... 566
Preparing and checking
before winter....................... 373
E

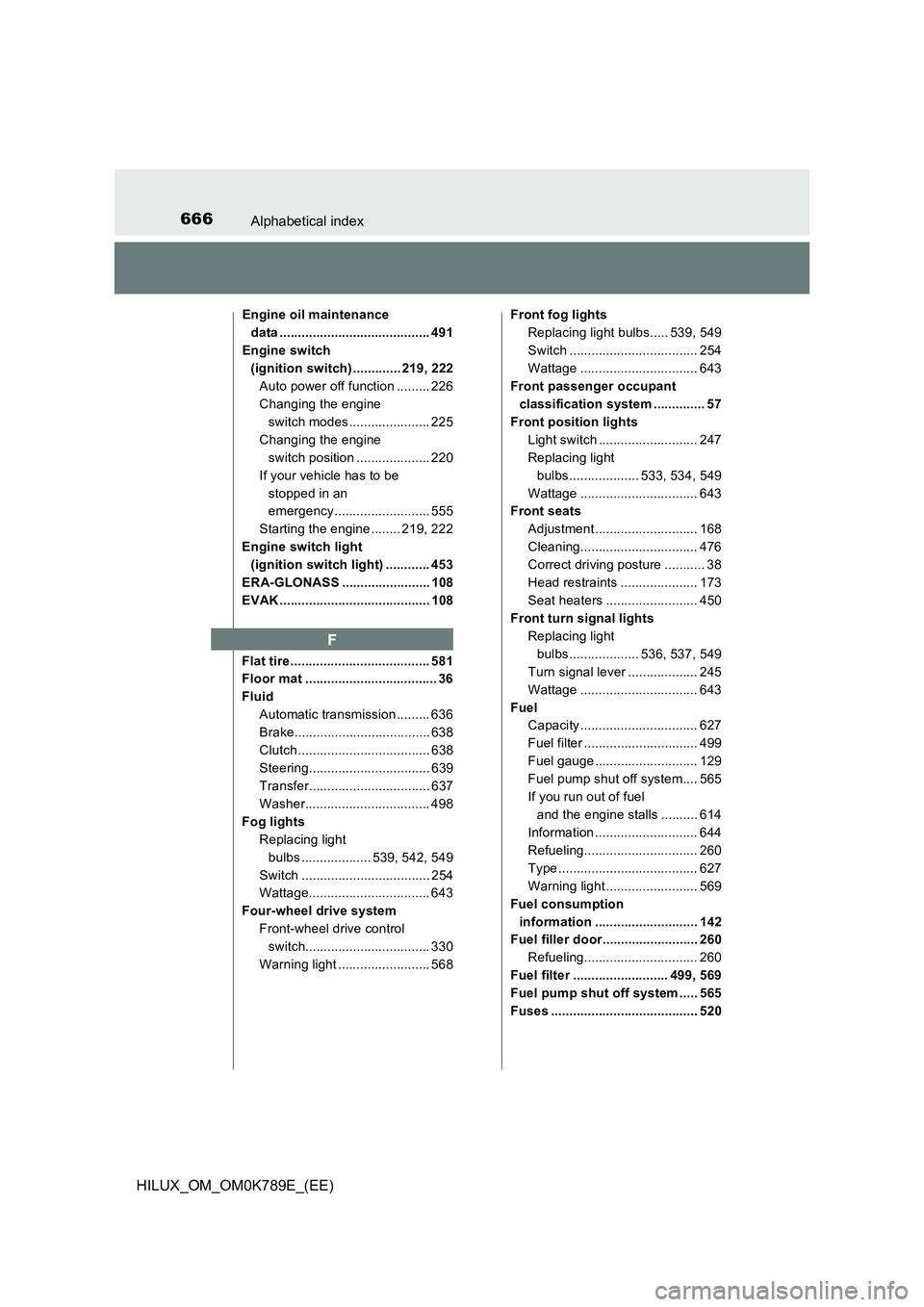

666Alphabetical index
HILUX_OM_OM0K789E_(EE)
Engine oil maintenance
data ......................................... 491
Engine switch
(ignition switch) ............. 219, 222
Auto power off function ......... 226
Changing the engine
switch modes...................... 225
Changing the engine
switch position .................... 220
If your vehicle has to be
stopped in an
emergency.......................... 555
Starting the engine ........ 219, 222
Engine switch light
(ignition switch light) ............ 453
ERA-GLONASS ........................ 108
EVAK ......................................... 108
Flat tire ...................................... 581
Floor mat .................................... 36
Fluid
Automatic transmission ......... 636
Brake..................................... 638
Clutch .................................... 638
Steering................................. 639
Transfer................................. 637
Washer.................................. 498
Fog lights
Replacing light
bulbs ................... 539, 542, 549
Switch ................................... 254
Wattage................................. 643
Four-wheel drive system
Front-wheel drive control
switch.................................. 330
Warning light ......................... 568
Front fog lights
Replacing light bulbs..... 539, 549
Switch ................................... 254
Wattage ................................ 643
Front passenger occupant
classification system .............. 57
Front position lights
Light switch ........................... 247
Replacing light
bulbs................... 533, 534, 549
Wattage ................................ 643
Front seats
Adjustment ............................ 168
Cleaning................................ 476
Correct driving posture ........... 38
Head restraints ..................... 173
Seat heaters ......................... 450
Front turn signal lights
Replacing light
bulbs................... 536, 537, 549
Turn signal lever ................... 245
Wattage ................................ 643
Fuel
Capacity ................................ 627
Fuel filter ............................... 499
Fuel gauge ............................ 129
Fuel pump shut off system.... 565
If you run out of fuel
and the engine stalls .......... 614
Information ............................ 644
Refueling............................... 260
Type ...................................... 627
Warning light ......................... 569
Fuel consumption
information ............................ 142
Fuel filler door.......................... 260
Refueling............................... 260
Fuel filter .......................... 499, 569
Fuel pump shut off system ..... 565
Fuses ........................................ 520
F
