2814-2. Audio System
4
Interior Features
●Brightness adjustment
Adjust the center display brightness using the slider.
● Contrast adjustment
Adjust the center display contrast using the slider.
● Display setting reset
All of the screen setting values can be reset to their initial set-
tings.
Select .
Select .
■Audio sound adjustment
Select the icon on the home screen and display the Settings
screen.
Select the tab to select the item you would like to change.
1
2
IndicationSetting value
Bass (Low pitch sound)
Side: Low pitch enhance-
ment
Side: Low pitch reduction
Treble (Treble sound) Side: Treble enhancement
Side: Treble reduction
Fade (Front/Rear volume balance)
Front: Front speaker volume
enhancement
Rear:
Rear speaker volume
enhancement
Balance (Left/right volume balance)
Right: Right speaker volume
enhancement
Left: Left speaker volume enhance-
ment
ALC (Automatic volume adjustment)Off—Adjustment at seven levels
Beep (Audio operation sound)On/Off

282
iA_OM_OM99M17z_(U)
4-2. Audio System
●ALC (Automatic volume adjustment)
The automatic level control (ALC) is a feature that automatically
adjusts audio volume and sound quality according to the vehicle
speed. The volume increases in accordance with the increase in
vehicle speed, and decreases as vehicle speed decreases.
■Radio ON
Select the icon on the home screen and display the Enter-
tainment screen. When selecting the desired radio, the following
icons are indicated in the lower part of the center display.
● AM/FM Radio
Operating the Radio
IconFunction
Displays the Entertainment menu. Use to switch to a
different audio source.
Displays the station list.
Select to display the frequencies of
up to ten radio stations on the auto memory preset
list.
Select the desired frequency.
Displays the Favorites list. Long-press to store radio
station currently being aired.
Switches the on and off. Displays the
multi-cast channel list of the .
You can search for receivable radio stations. Scan-
ning stops at each station for about five seconds.
Select again to continue receiving the radio station.

iA_OM_OM99M17z_(U)
2834-2. Audio System
4
Interior Features

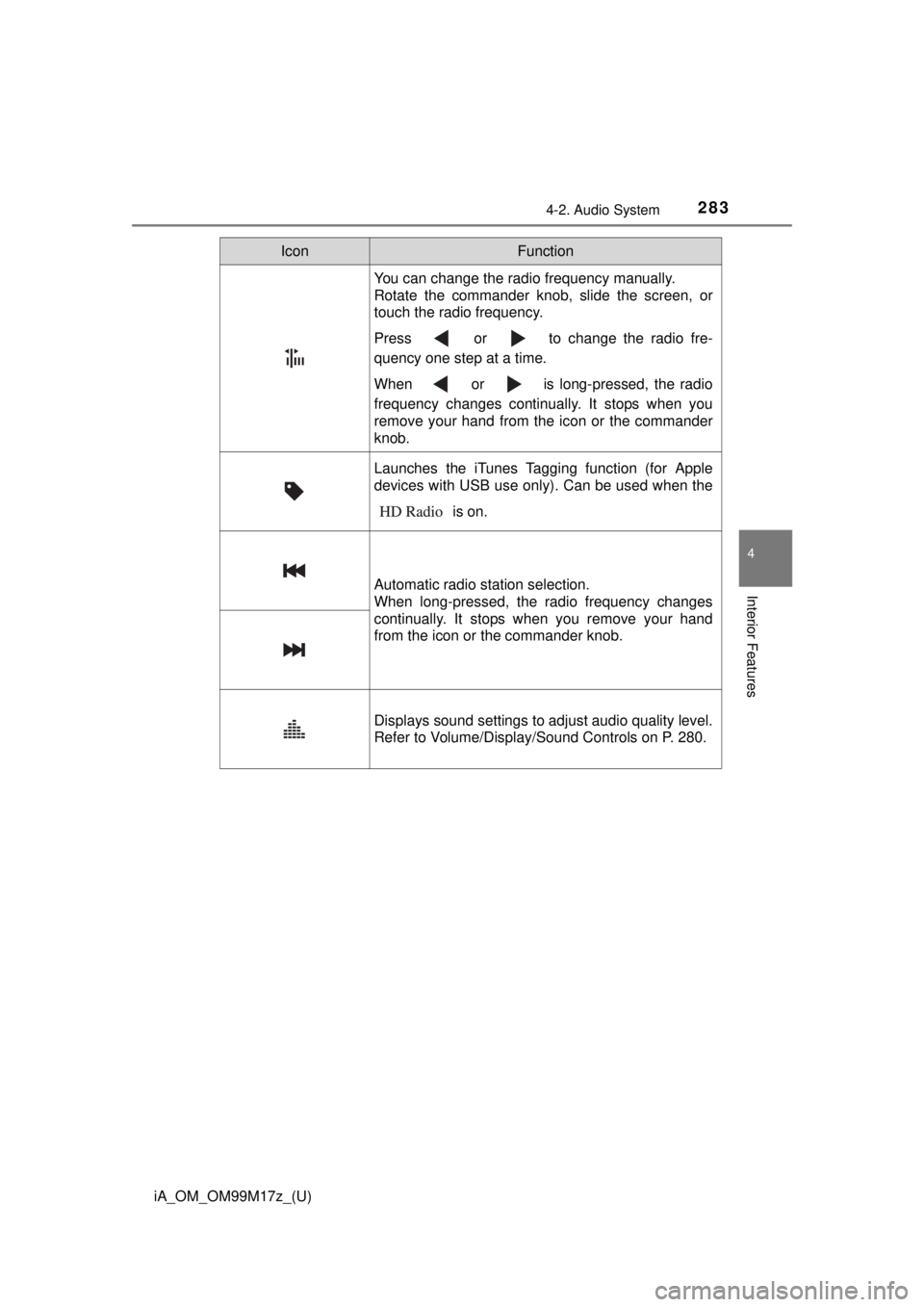

You can change the radio frequency manually.
Rotate the commander knob, slide the screen, or
touch the radio frequency.
Press or to change the radio fre-
quency one step at a time.
When or is long-pressed, the radio
frequency changes continually. It stops when you
remove your hand from the icon or the commander
knob.
Launches the iTunes Tagging function (for Apple
devices with USB use only). Can be used when the is on.
Automatic radio station selection.
When long-pressed, the radio frequency changes
continually. It stops when you remove your hand
from the icon or the commander knob.
Displays sound settings to adjust audio quality level.
Refer to Volume/Display/Sound Controls on P. 280.
IconFunction

284
iA_OM_OM99M17z_(U)
4-2. Audio System
■Favorites Radio
Selected stations can be registered for convenient operation. Up to
50 stations can be registered. T he Favorites list is common to AM,
FM, and satellite radio.
● Registering to Favorites
Long-press the icon to register the current radio station.
The registration can also be performed using the following proce-
dure.
Select the icon to display the Favorites list.
Select .
Select .
The station is added to the bottom of the Favorites list.
● Selecting radio station from Favorites
Select the icon to display the Favorites list.
Select the radio station name or radio frequency to tune in the
radio station.
● Deleting from Favorites
Select the icon to display the Favorites list.
Select .
Select .
Select the radio station or radio frequency you want to delete.
Select .
● Changing Favorites list order
Select the icon to display the Favorites list.
Select .
Select .
Select a radio station or radio frequency. The selected radio
station can be moved.
Slide the radio station or move it using the commander switch,
then select .
1
2
3
4
1
2
1
2
3
4
5
1
2
3
4
5

iA_OM_OM99M17z_(U)
2854-2. Audio System
4
Interior Features
■Radio Broadcast Data System (RBDS) (if equipped)
● Radio text information display
Radio text information sent from a broadcasting station is dis-
played in the center display.
● Genre Seek
Some FM stations transmit Ge nre codes (Program type like a
Rock, News, and so on). This co de enables alternative stations
transmitting the same Genre code to be found quickly.
● To scan for Genre Seek:
Select the icon while in the FM mode.
Select to open the genre list.
Select the genre type you want to select.
Select the , icon.
■HD Radio
●What is HD Radio™ Technology and how does it work?
HD Radio™ Technology is the di gital evolution of analog AM/FM
radio. Your radio product has a s pecial receiver which allows it to
receive digital broadcasts (where available) in addition to the
analog broadcasts it already receives. Digital broadcasts have
better sound quality than analog broadcasts as digital broadcasts
provide free, crystal clear audio. For more information, and a
guide to available radio stations and programming, please visit
www.hdradio.com.
● Benefits of HD Radio™ Technology
Information:
The song title, artist name, album name
and genre will appear on the screen when available by the radio
station.
Multicast:
On the FM radio frequency most di gital stations have “multiple”
or supplemental programs on each FM station.
1
2
3
4

286
iA_OM_OM99M17z_(U)
4-2. Audio System
●Listening to HD Radio™ Technology
If icon turns on by selecting a radio station which is an
broadcasting station, the analog broadcast is
switched to an broadcast automatically after a few
seconds and then received.
If the broadcast is stopped and changed to an analog
broadcast, press down to turn off .

iA_OM_OM99M17z_(U)
2874-2. Audio System
4
Interior Features
●Multicast channel selection (FM)
If multi-cast channels are av ailable for an broadcast
currently being received, the multi-cast channel list is displayed.
Select the desired radio station.
● iTunes Tagging (for Apple devices with USB use only)
By tagging a song currently being aired, the song can be easily
purchased from the iTunes Store. Up to 100 tags can be stored. Select the icon. The tag is stored in the audio unit.
Connect the device via USB. The tag is sent to the connected
device automatically.
Synchronize the device with iTunes. The tagged song can now
be purchased from the iTunes Store.
■Operating the Radio
●If the battery is disconnected, your Favorites list will be not deleted.
● Radio text information is a function of FM radio. Text information is not dis-
played in the following:
• During reception
• Not an RBDS broadcast
• RBDS broadcast, but radio text is not transmitted from the radio station
● To change the desired genre, select the icon.
Ex.)
89.3 is currently being received. With Rock selected as the Genre, the
radio stations broadcasting Rock are at the following frequencies.
98.3
*1, 98.7, 104.3*1, 107.1
*1Radio stations with good reception
The frequency changes as foll ows each time is pressed.
89.3 98.3 104.3 98.3
●Only one Genre can be selected.
● It may not be possible to receive any station even if the Genre Seek function
is used.
● If a program in the selected genre is not broadcast to a region, reception is
not possible even if the Genre Seek function is used.
● The Genre Seek function searches for genre code (program type) which FM
analog broadcasts transmit. specialty programs (HD2-HD8) can-
not be searched because they are not FM analog broadcasts.
1
2
3

288
iA_OM_OM99M17z_(U)
4-2. Audio System
●If radio stations which are selected by scanning using the Genre Seek func-
tion are broadcasting stations, they are changed from analog
broadcasts to broadcdiffer.
● Both AM and FM can be used.
● Because iTunes Tagging only supports purchasing from the iTunes Store,
direct downloading from the equipped vehicle audio is not possible.
● If the available memory for the connected device is insufficient, the tag is not
sent.
● If an error occurs while the tag is being sent, reconnect the device.
● If an analog broadcast is received once and is received while HD1
is selected, the audio unit switches to the station automatically.
● When the icon is illuminated, there could be a noticeable difference in
sound quality and volume when a change from digital to analog signals
occurs. If the sound quality and volume become noticeably diminished or
cut off, select the icon to turn off ( icon is not illumi-
nated).
● Once an analog broadcast is received when HD1 is selected from the
Favorite channels, it is switched to automatically. If the radio
reception conditions are poor, or HD is off, switching to broadcasts
is not possible.
● When an HD specialty channel (HD2 to HD8) is selected from the Favorite
channels, “Signal Lost” is displayed and no audio is output until is
received. If the radio reception conditions are poor, “Signal Lost” continues
to be displayed.
● If the icon is not illuminated, information such as song titles of the
station are received, however, the audio output is analog.

iA_OM_OM99M17z_(U)
2894-2. Audio System
4
Interior Features
■What is satellite radio?
With over 130 channels, SiriusXM Satellite Radio brings you more
of what you love. Get channels and channels of commercial-free
music, plus sports, news, talk, entertainment and more.
● Commercial-free music from nearly every genre-rock to pop, hip-
hop to country, jazz, classical and more. Plus live performances
and artist-dedicated channels.
● Live sports Play-by-Play & Expert Talk-every NFL game, every
NASCAR
® race, 24/7 sports talk, college sports and more.
● Exclusive entertainment, comedy and talk-The biggest names,
compelling talk, hilarious comedy.
● World-class news plus local traffic and weather.
Sign up for SiriusXM Satellite Radio today!
■How to Activate Satellite Radio
You must call SiriusXM to activate your service. Activation is free
and takes only a few minutes.
SiriusXM service uses an ID code to identify your radio. This code
is needed to activate SiriusXM service, and report any problems.
Please have the following information ready:
● Radio ID (8-digit electronic serial no - See below for how to find
your ESN)
● Valid credit card inform ation (may not be required at initial sign-
up)
Be sure you are parked outside with a clear view of open sky, you
will be instructed to turn on your radio (in SiriusXM mode and tuned
to channel 184 (Sirius)/1 (XM and SiriusXM)). Activation typically
takes only 2-5 minutes.
■Displaying the Radio ID (ESN)
When channel 0 is selected, the radio ID is displayed. Use the
PREVIOUS or NEXT channel buttons to select channel 0.
Operating the Satellit e Radio (if equipped)

290
iA_OM_OM99M17z_(U)
4-2. Audio System

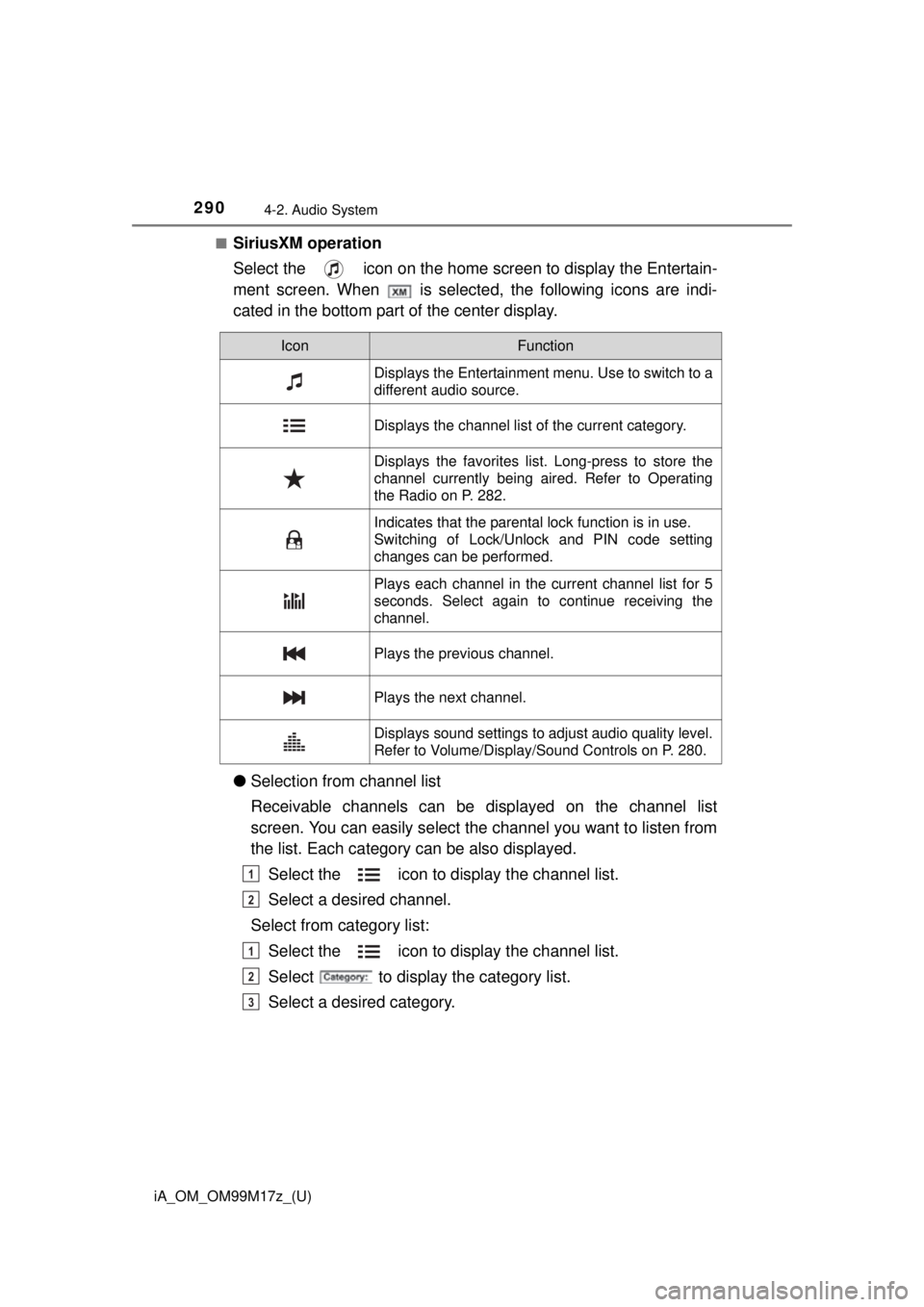

■SiriusXM operation
Select the icon on the home screen to display the Entertain-
ment screen. When is selected, the following icons are indi-
cated in the bottom part of the center display.
●Selection from channel list
Receivable channels can be disp layed on the channel list
screen. You can easily select the channel you want to listen from
the list. Each category can be also displayed.
Select the icon to display the channel list.
Select a desired channel.
Select from category list: Select the icon to display the channel list.
Select to display the category list.
Select a desired category.
IconFunction
Displays the Entertainment menu. Use to switch to a
different audio source.
Displays the channel list of the current category.
Displays the favorites list. Long-press to store the
channel currently being aired. Refer to Operating
the Radio on P. 282.
Indicates that the parental lock function is in use.
Switching of Lock/Unlock and PIN code setting
changes can be performed.
Plays each channel in the current channel list for 5
seconds. Select again to continue receiving the
channel.
Plays the previous channel.
Plays the next channel.
Displays sound settings to adjust audio quality level.
Refer to Volume/Display/Sound Controls on P. 280.
1
2
1
2
3
