TOYOTA iA 2016 Owners Manual (in English)

iA_OM_OM99M17z_(U)
2614-2. Audio System
4
Interior Features

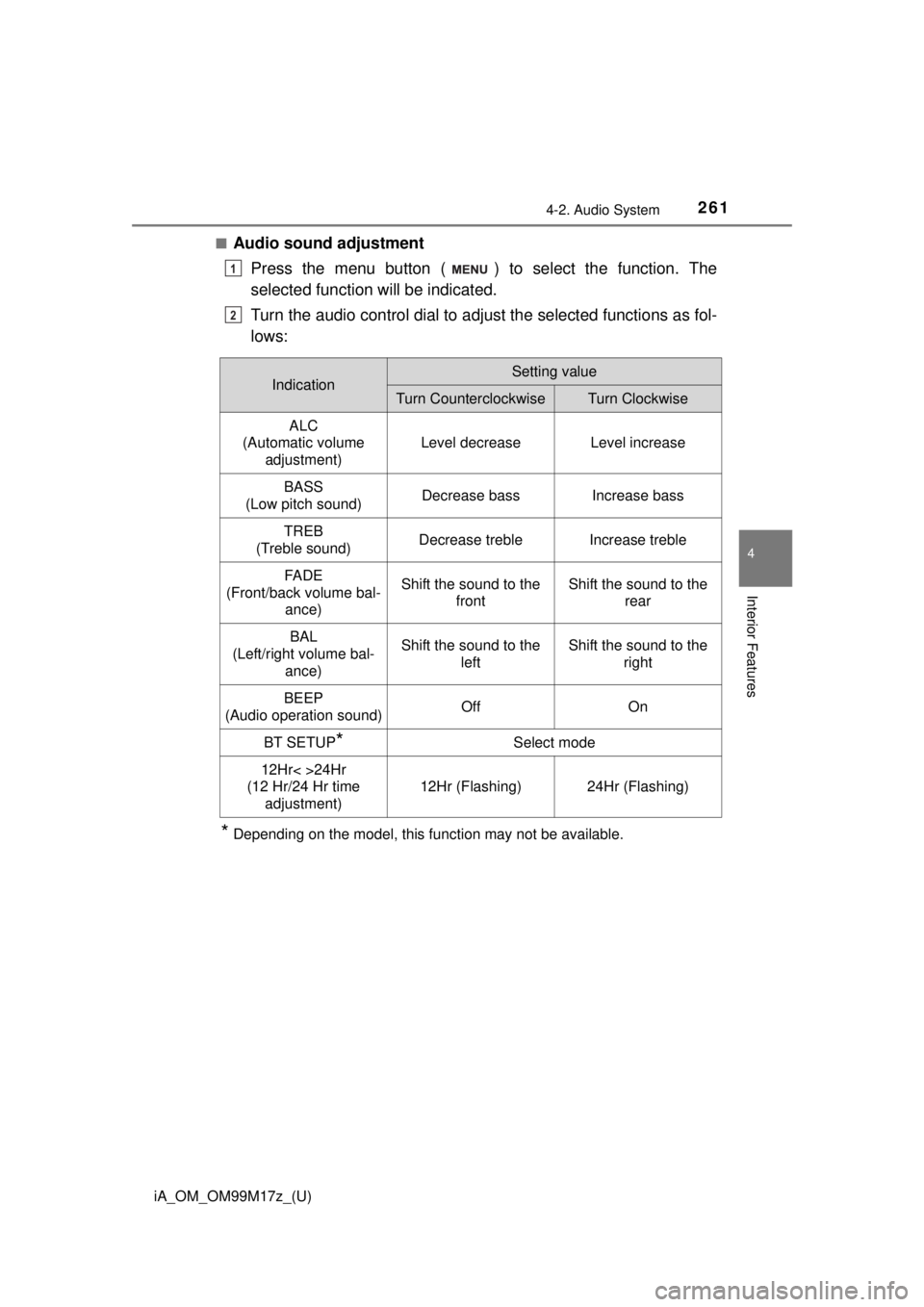

■Audio sound adjustmentPress the menu button ( ) to select the function. The
selected function will be indicated.
Turn the audio control dial to adjust the selected functions as fol-
lows:
*Depending on the model, this function may not be available.
1
2
IndicationSetting value
Turn CounterclockwiseTurn Clockwise
ALC
(Automatic volume
adjustment)
Level decreaseLevel increase
BASS
(Low pitch sound)Decrease bassIncrease bass
TREB
(Treble sound)Decrease trebleIncrease treble
FA D E
(Front/back volume bal- ance)Shift the sound to the frontShift the sound to the rear
BAL
(Left/right volume bal- ance)Shift the sound to the
leftShift the sound to the right
BEEP
(Audio operation sound)OffOn
BT SETUP*Select mode
12Hr< >24Hr
(12 Hr/24 Hr time
adjustment)
12Hr (Flashing)24Hr (Flashing)

262
iA_OM_OM99M17z_(U)
4-2. Audio System
●ALC (Automatic volume adjustment)
The automatic level control (ALC) changes the audio volume auto-
matically according to the vehicle speed. The faster the vehicle
speed, the higher the volume increases. ALC has ALC OFF and
ALC LEVEL 1 to 7 modes. At ALC LEVEL 7, the amount that the
volume can increase is at the ma ximum. Select the mode according
to the driving conditions.
● BEEP (Audio operation sound)
The setting for the operation sound when pressing and holding a
button can be changed. The initial setting is ON. Set to OFF to
mute the operation sound.
● BT SETUP mode (if equipped)
Music and other audio such as voice data recorded on portable
audio devices and mobile phones available on the market which
are equipped with the Bluetooth
® transmission function can be lis-
tened to via wireless transmissi on over the vehicle’s speakers.
Using the BT SETUP mode, thes e devices can be programmed to
the Bluetooth
® unit or changed ( P. 327).
● 12Hr< >24Hr (12 Hr/24 Hr time adjustment)
Rotating the audio control dial switches the display between 12 and
24-hour clock time ( P. 263).
If not operated for several seconds, the display returns to the previous dis-
play. To reset bass, treble, fade, and balance, press the menu button ( )
for 2 seconds.
The unit will beep and “CLEAR” will be displayed.

iA_OM_OM99M17z_(U)
2634-2. Audio System
4
Interior Features
■Setting the time
The clock can be set at any time when the ignition is switched to
ACC or ON.
To adjust the time, press the clock button ( ) for about 2
seconds until a beep is heard.
The clock’s current time will flash.
Time adjustment
●To adjust the time, press the hour/minute set button ( ,
) while the clock’s curr ent time is flashing.
● The hours advance while the hour set button ( ) is
pressed. The minutes advance while the minute set button
( ) is pressed.
Press the clock button ( ) again to start the clock.
Clock
:00 button
Audio display
Menu button Audio control dial
Clock button
Hour/Minute set switch1
2
3
4
5
6
1
2
3

264
iA_OM_OM99M17z_(U)
4-2. Audio System
■Time resettingPress the clock button ( ) fo r about 2 seconds until a beep
is heard.
Press the :00 button (1).
When the button is pressed, the ti me will be reset as follows:
(Example) 12:01 - 12:29 12:00
12:30 - 12:59 1:00
●When the :00 button (1) is pressed, the seconds will start at “00”.
● Switching between 12 and 24-hour clock time:
Press the menu button ( ) several times until 12 and 24-hour clock time
are displayed. Turn the audio control dial in either direction, select the
desired clock setting while the preferred clock time is flashing.
■
Radio ON
Press a band selector button ( ) to turn the radio on.
■Band selection
Successively pressing the band selector button ( ) switches
the bands as follows: FM1 FM2 AM.
The selected mode will be indicated.
Operating the Radio
1
2
3
Audio display
Channel preset buttons
Auto memory button Scan button
Band selector button
Tuning button1
2
3
4
5
6

iA_OM_OM99M17z_(U)
2654-2. Audio System
4
Interior Features
■Tuning
The radio has the following tuning methods: Manual, Seek, Scan,
Preset channel, and Auto memory tuning. The easiest way to tune
stations is to set t hem on preset channels.
● Manual tuning
Select the station by pressing the tuning button ( , )
lightly.
● Seek tuning
Automatic search for radio stations starts when the tuning button
( , ) is pressed until a beep sound is heard. The
search stops when a station is found.
● Scan tuning
Press and hold the scan button ( ) to automatically sample
strong stations.
Scanning stops at each station fo r about 5 seconds. To hold a
station, press and hol d the scan button ( ) again during this
interval.
● Preset channel tuning
The 6 preset channels can be used to store 6 AM and 12 FM sta-
tions.
To set a channel first select AM , FM1, or FM2. Tune to the
desired station.
Press a channel preset button for about 2 seconds until a beep
is heard. The preset channel num ber or station frequency will
be displayed. The station is now held in the memory.
Repeat this operation for the other stations and bands you
want to store. To tune one in the memory, select AM, FM1, or
FM2 and then press its channel preset button. The station fre-
quency or the channel number will be displayed.
1
2
3

266
iA_OM_OM99M17z_(U)
4-2. Audio System
●Auto memory tuning
This is especially useful when driving in an area where the local
stations are not known.
Press and hold the auto memory button ( ) for about 2 sec-
onds until a beep is heard; t he system will automatically scan
and temporarily store up to 6 stations with the strongest frequen-
cies in each selected band in that area.
After scanning is completed, the station with the strongest fre-
quency will be tuned and its frequency displayed. Press and
release the auto memory button ( ) to recall stations from
the auto-stored stations. One stor ed station will be selected each
time and its frequenc y and channel number will be displayed.
■Operating the Radio
●If the FM broadcast signal becomes weak, reception automatically changes
from STEREO to MONO for reduced noise.
● If you continue to press and hold the button, the frequency will continue
changing without stopping.
● If no stations can be tuned after scanning operations, “A” will be displayed.

iA_OM_OM99M17z_(U)
2674-2. Audio System
4
Interior Features
Operating the Compact Disc (CD) Player (if equipped)
Repeat button
Random button
Text button
Audio display
Play/Pause button
Folder up buttonFolder down button
CD eject button
CD slot
Media/Scan button
Track up/Fast-forward button
Track down/Reverse button1
2
3
4
5
6
7
8
9
10
11
12
Ty pePlayable data
Music/MP3/WMA/ AAC CD player• Music data (CD-DA)
• MP3/WMA/AAC file

268
iA_OM_OM99M17z_(U)
4-2. Audio System
■Inserting the CD
Insert the CD into the slot, label-side up. The auto-loading mecha-
nism will set the CD and begin play.
■Ejecting the CD
Press the CD eject button ( ) to eject the CD.
■Playback
Press the media button ( ) to switch to CD mode and start
playback.
■Pause
To stop playback, press the Play/Pause button (4).
Press the button again to resume playback.
■Fast-forward/Reverse
Press and hold the fast-forward button ( ) to advance through
a track at high speed. Press and hold the reverse button ( ) to
reverse through a track at high speed.
■Track search
Press the track up button ( ) once to skip forward to the
beginning of the next track. Press the track down button ( )
within a few seconds after playback begins to track down to the
beginning of the previous track.
Press the track down button ( ) after a few seconds have
elapsed to start playback from the beginning of the current track.
■Folder search (during MP3/WMA/AAC CD playback)
To change to the previous folder, press the folder down button
( ), or press the folder up button ( ) to advance to the
next folder.

iA_OM_OM99M17z_(U)
2694-2. Audio System
4
Interior Features
■Music scan
●During music CD playback
This function scans the titles on a CD and plays 10 seconds of
each song to aid you in finding a song you want to listen to.
Press and hold the scan button ( ) during playback to start
the scan play operation (the trac k number will flash). Press and
hold the scan button ( ) again to cancel scan playback.
● During MP3/WMA/AAC CD playback
This function scans the titles in a folder currently being played
and plays 10 seconds of each s ong to aid you in finding a song
you want to listen to. Press and hold the scan button ( )
during playback to start the scan play operation (the track num-
ber will flash).
Press and hold the scan button ( ) again to cancel scan
playback.

270
iA_OM_OM99M17z_(U)
4-2. Audio System
■Repeat playback
●During music CD playback
Press the repeat button (1) during playback to play the current
track repeatedly. “TRACK RP T” is displayed ( is dis-
played next to RPT at the bottom of the display area).
Press the button again to cancel the repeat playback.
● During MP3/WMA/AAC CD playback
Track repeat
Press the repeat button (1) during playback to play the current
track repeatedly. “TRACK RP T” is displayed ( is dis-
played next to RPT at the bottom of the display area).
To cancel the repeat playback, press the button again after 3
seconds.
Folder repeat
Press the repeat button (1) du ring playback, and then press
the button again within 3 seconds to play the tracks in the cur-
rent folder repeatedly. “FOLDER RPT” is displayed ( is
displayed next to RPT at the bottom of the display area).
Press the button again to cancel the repeat playback.
■Random playback
Tracks are randomly selected and played.
●During music CD playback
Press the random button (2) during playback to play the tracks
on the CD randomly. “DISC RDM” is displayed ( is dis-
played next to RDM at the bottom of the display area).
Press the button again to c ancel the random playback.
1
2
1
2
1
2
1
2
