DI−184
−
DIAGNOSTICS AUTOMATIC TRANSMISSION
1996 LAND CRUISER (RM451U)
3 Check 2nd start switch.
PREPARATION:
Disconnect the pattern select switch connector.
CHECK:
Check the resistance between terminals 2 and 5 of the pattern
select switch connector when the pattern select switch is set to
2nd start switch ON and OFF.
OK:
2nd Start SwitchResistance
ON0 Ω (continuity)
OFF∞ Ω (open)
NG Replace pattern select switch.
OK
4 Check voltage between terminals HOLD and HI of ECM and body ground.
PREPARATION:
(a) Turn ignition switch ON.
(b) Disconnect the connector from the ECM.
CHECK:
Check the voltage between terminal HOLD of the ECM and
body ground when the select switch is set to 2nd start switch ON
and OFF.
OK:
2nd Start SwitchVoltage
ON9 − 14 V
OFFBelow 1.5 V
CHECK:
Check the voltage between terminal HI of the ECM and body
ground.
OK:
Voltage: 7.5 − 14 V
OK Check and replace ECM.
NG
Check and replace harness and connector between battery and patten select switch, pattern se-
lect switch and ECM, battery and 2nd start indicator light, and 2nd start in\
dicator light and ECM
(See page IN−28 ).
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010

Q08580
R-W
J1
A
W 5BRY
IG3
O
Ignition Switch
Fuse Block
GAUGE
(*) Pattern Select Switch
(2nd Start Switch)
B
ECM
18
IH2 12
HI
1
113
9
E4
2
C12
Battery
FL AM1
Fuse Block
B-L
W
B-Y
2
4
F6
6 A
A
Y
3
1
E4HOLD
2
EA2
AM1
22
1
AM1 IG1
B
C12
IG3 IL2
O
R-W
2 2
3
42nd STRT Indicator Light
(Combination Meter)
12
Y
R/B No.2 R/B No.2
DI-185
-
DIAGNOSTICS AUTOMATIC TRANSMISSION
1996 LAND CRUISER (RM451U)
Pattern Select Switch Circuit (2nd Start Switch) & 2nd Start
Switch Indicator Light Circuit
CIRCUIT DESCRIPTION
When 2nd start mode is selected with the pattern select switch, the ECM cont\
rols the solenoid valves and
the transmission starts from 2nd gear.
In D position, the transmission automatically shifts up through 3rd to O\
/D as usual.
In 2nd position, the transmission is held in 2nd gear.
WIRING DIAGRAM
(*) Pattern Select Switch (2nd Start Switch)
When the 2nd start switch is pushed, the switch is contacted and the 2nd\
mode is selected.
To cancel the 2nd start, push the 2nd start switch once again. The 2nd sta\
rt is automatically cancelled out
when the ignition switch is turned OFF.
DI5L8-02
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010

BE3840
Q07359D00023
ON
-
DIAGNOSTICS AUTOMATIC TRANSMISSION
DI-186
1996 LAND CRUISER (RM451U)
INSPECTION PROCEDURE
1 Check operation of 2nd start switch.
CHECK:
(a) Turn the ignition switch ON.
(b) Check º2nd STRTº indicator light when 2nd start switch is
pushed in to ON.
OK:
º2nd STRTº indicator light lights up.
CHECK:
Check º2nd STRTº indicator light when 2nd start switch is
pushed again, or PWR mode switch is pushed into OFF.
OK:
º2nd STRTº indicator light goes off. When PWR mode
switch is pushed in to ON, º2nd STRTº indicator light
goes off, and ºPWRº indicator light lights up.
OK Proceed to next circuit inspection shown on matrix chart (See page DI-150).
NG
2 Check 2nd start indicator bulb.
NG Replace 2nd start indicator bulb.
OK
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010

Q08234
D00096
ONHOLD
HI
DI-187
-
DIAGNOSTICS AUTOMATIC TRANSMISSION
1996 LAND CRUISER (RM451U)
3 Check 2nd start switch.
PREPARATION:
Disconnect the pattern select switch connector.
CHECK:
Check continuity between terminals 2 and 5 of pattern select
switch connector when pattern select switch is set to 2nd start
switch ON and OFF.
OK:
2nd start switchSpecified condition
Press continuously º2ndº switch0 W (Continuity)
Release º2ndº switch8 W (open)
NG Replace pattern select switch.
OK
4 Check voltage between terminals HOLD and HI of ECM and body ground.
PREPARATION:
(a) Turn ignition switch ON.
(b) Disconnect the connector of ECM.
CHECK:
Check voltage between terminal HOLD of ECM and body
ground when the select switch is set to 2nd start switch ON and
OFF.
OK:
2nd start switchVoltage
ON9 - 14 V
OFFBelow 1.5 V
CHECK:
Check voltage between terminal HI of ECM and body ground.
OK:
Voltage: 7.5 - 14 V
OK Check and replace the ECM.
NG
Check and replace harness and connector between battery and patten select swi\
tch, pattern se-
lect switch and ECM, battery and 2nd start indicator light , 2nd start indic\
ator light and ECM
(See page IN-27 ).
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010

DI5LT−02
Vehicle Brought to Workshop
Customer Problem Analysis
P. DI−189
Check and Clear DTC (Pre−check)
P.
DI−190
Items inside are titles of pages in this manual,
with the page number in the bottom portion. See
the indicated pages for detailed explanations.
Problem Symptom ConfirmationSymptom Simulation
P. IN−18

Symptom
does not occur
Symptom
occurs
DTC Check
P. DI−190
Sensor CheckCircuit Inspection
P. DI−201 − DI−235
DTC Chart
P. DI−196
Malfunction codeProblem Symptoms Table
P. DI−200
Check for Fluid Leakage
P. DI−237
Identification of Problem
Normal code
Repair
Confirmation Test
End
1
2
3
4
5
6 7
8 9
10 11 Step 8: Diagnostic steps permitting the use of the
TOYOTA hand−held tester or TOYOTA
breake −out−box.
DI−188
−
DIAGNOSTICS ANTI−LOCK BRAKE SYSTEM
355
Author: Date:
1996 LAND CRUISER (RM451U)
ANTI−LOCK BRAKE SYSTEM
HOW TO PROCEED WITH TROUBLESHOOTING
Troubleshoooting in accordance with the procedure on the following pages.
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010

DI5LU−01

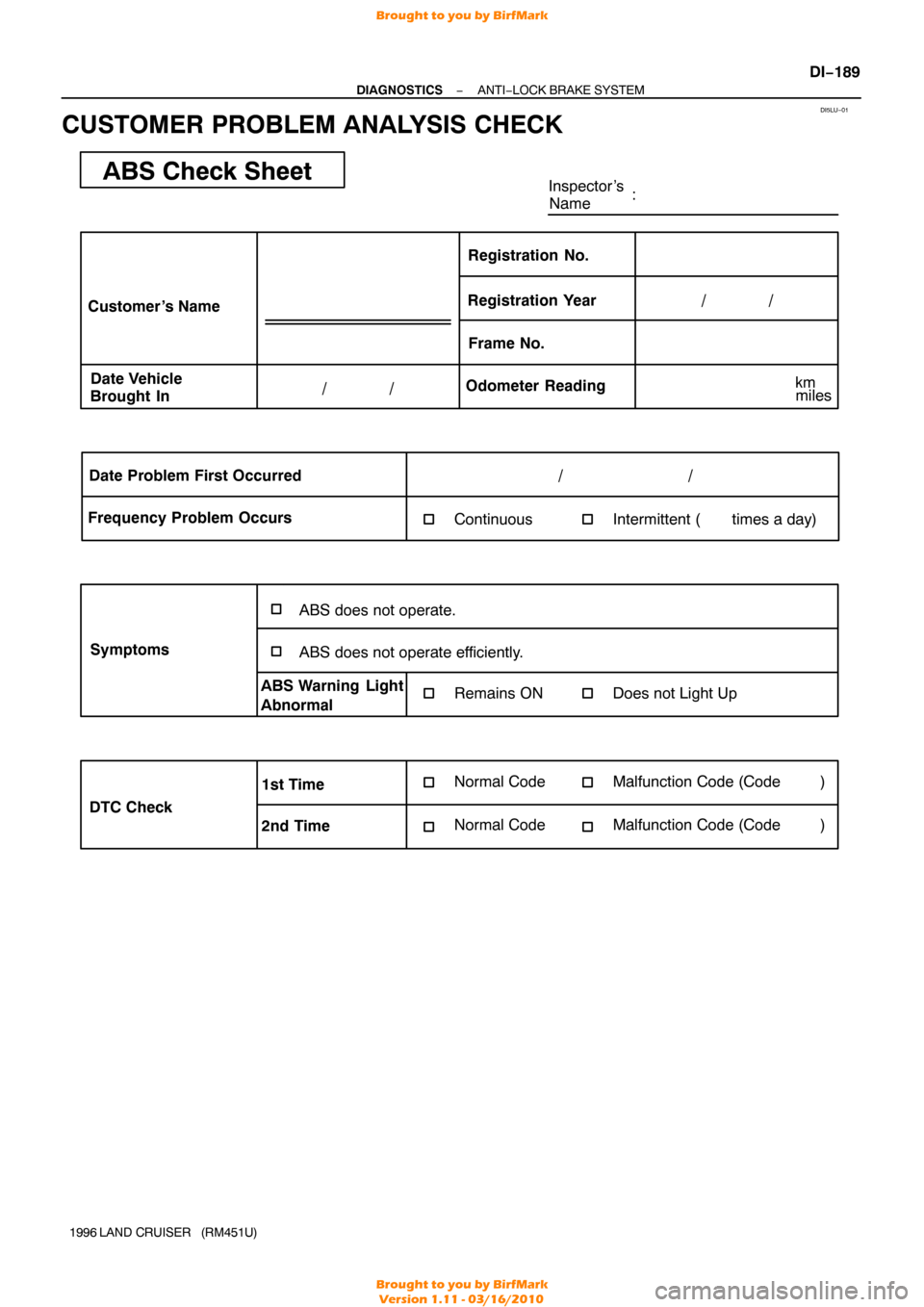

ABS Check SheetInspector ’sName :
Customer ’s Name Date Vehicle
Brought In Registration Year
Registration No.
Frame No.
Odometer Reading / /
/ /
Date Problem First Occurred
Frequency Problem Occurs / /
ContinuousIntermittent ( times a day)
ABS does not operate.
ABS does not operate efficiently.
ABS Warning Light
Abnormal
Remains ONDoes not Light Up
DTC Check1st Time
2nd Time Normal Code
Malfunction Code (Code )
Normal CodeMalfunction Code (Code )
Symptoms km
miles
−
DIAGNOSTICS ANTI−LOCK BRAKE SYSTEM
DI−189
1996 LAND CRUISER (RM451U)
CUSTOMER PROBLEM ANALYSIS CHECK
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010

R04751
DI5LV−02
F00006
DLC1Short Pin
F00007
DLC1
E1Tc
DI−190
−
DIAGNOSTICS ANTI−LOCK BRAKE SYSTEM
1996 LAND CRUISER (RM451U)
PRE−CHECK
1. DIAGNOSIS SYSTEM
(a) Check the indicator.
When the ignition switch is turned ON, check that the ABS
warning light goes on for 3 seconds.
HINT:
If the indicator check result is not normal, proceed to trou-
bleshooting for the ABS warning light circuit (See page
DI−230 ).
When the transfer is in L position (center dif ferential lock),
the ABS does not operate and the ABS warning light
stays ON.
(b) Check the DTC. (1) Confirm that the center differential is free.
(2) Disconnect the short pin from the DLC1.
(3) Using SST, connect terminals Tc and E
1 of the
DLC1.
SST 09843−18020
(4) Turn the ignition switch ON.
(5) Read the DTC from the ABS warning light on the combination meter.
HINT:
If no code appears, inspect the diagnostic circuit or ABS
warning light circuit (See page DI−233 or DI−230 ).
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010

R01346
Normal Code
0.25 sec.
0.25 sec.
2 sec.
ON
OFF
ON
OFF 0.5 sec. 0.5 sec.
Code 11 and 21
4 sec.
1.5 sec.
2.5 sec.
Code 11 Code 21
BR1804
F00006DLC1 Short Pin
−
DIAGNOSTICS ANTI−LOCK BRAKE SYSTEM
DI−191
1996 LAND CRUISER (RM451U)
As an example, the blinking patterns for normal code and
codes 11 and 21 are shown in the illustration.
(6) Code are explained in the code table on page
DI−196 .
(7) After completing the check, disconnect terminals Tc
and E
1, and turn off the display.
If 2 or more malfunctions are indicated at the same time the low-
est numbered DTC will be displayed 1st.
(c) Clear the DTC.
(1) Confirm that the center differential is free.
(2) Using SST, connect terminals Tc and E
1 of the
DLC1 and remove the short pin from the DLC1.
SST 09843−18020
(3) Turn the ignition switch ON.
(4) Clear the DTC stored in ECU by depressing the
brake pedal 8 or more times within 3 seconds.
(5) Check that the warning light shows the normal
code.
(6) Remove the SST from the terminals of the DLC1.
SST 09843−18020
(7) Connect the short pin to the DLC1.
HINT:
Cancellation can also be done by removing the ECU −B fuse,
but in this case, other memory systems will also be cancelled
out.
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010

N09348
Interface BoxHarness VehicleTOYOTA
Tester
Hand
−held
TOYOTA Break −out− box
F00007
DLC1
Ts Tc
E
1
BR3904
0.25 sec. 0.25 sec.
ON
OFF
DI−192
−
DIAGNOSTICS ANTI−LOCK BRAKE SYSTEM
1996 LAND CRUISER (RM451U)
(d) Using TOYOTA break −out− box and TOYOTA hand− held
tester, measure the ECU terminal values.
(1) Hook up the T OYOTA hand−held tester and TOYO-
TA break−out−box to the vehicle.
(2) Read the ECU input/output values by following the prompts on the tester screen.
HINT:
TOYOTA hand −held tester has a ”Snapshot ” function. This re-
cords the measured values and is effective in the diagnosis of
intermittent problems.
Please refer to the TOYOTA hand−held tester/TOYOTA break
out−box operators manual for further details.
2. SPEED SENSOR SIGNAL AND DECELERATION SEN-
SOR CHECK
(a) Check the speed sensor signal. (1) Conform that the center differential is free.
(2) Turn the ignition switch OFF.
(3) Using SST, connect terminals Ts and E
1 of the
DLC1.
SST 09843−18020
(4) Start the engine.
(5) Check that the ABS warning light blinks.
HINT:
If the ABS warning light does not blink, inspect the ABS warning
light circuit (See page DI−230).
(6) Drive vehicle straight forward.
HINT:
Drive vehicle faster than 45 km/h (28 mph) for several seconds.
(7) Stop the vehicle.
(8) Using SST, connect terminals Tc and E
1 of the
DLC1.
SST 09843−18020
(9) Read the number of blinks of the ABS warning light.
HINT:
See the list of DTC on page DI−190 .
If every sensor is normal, a normal code is output (A cycle of
0.25 sec. ON and 0.25 sec. OFF is repeated).
If 2 or more malfunction are indicated at the same time, the low-
est numbered code will be displayed 1st.
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010

BR3893
Malfunction Code (Example Code 72, 76)
72 6
7
ON
OFF
0.5 sec.
0.5 sec.
0.5 sec.
0.5 sec. 1.5 sec.
2.5 sec. 4 sec.
Repeat
F00007
E1
Ts
DLC1
R05599
0.13 sec.
0.13 sec.
3 sec.
ON
OFF
R05037
860
30 mm
33.86  1.18 in.
−
DIAGNOSTICS ANTI−LOCK BRAKE SYSTEM
DI−193
1996 LAND CRUISER (RM451U)
(10) After doing the check, disconnect terminals Ts and
E
1, Tc and E1 of the DLC1, and turn the ignition
switch OFF.
(b) Deceleration sensor detection point check. (1) Confirm that the center differential is free.
(2) Turn the ignition switch OFF.
(3) Using SST, connect terminals Ts and E
1 of the
DLC1.
SST 09843−18020
(4) Start the engine.
(5) Check that the ABS warning light blinks.
HINT:
If the ABS warning light does not blink, inspect the ABS warning
light circuit (See page DI−230).
(6) Jack up the rear side of the vehicle slowly.
HINT:
When measuring the height, measure at the center of the lower
body of the vehicle. (7) Check that the warning light blinks.
If the warning light turns on, inspect the deceleration sensor
installation. If the sensor installation is OK, replace the decel-
eration sensor. (8) Jack down the vehicle slowly.
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010
