TOYOTA LAND CRUISER 2010 J200 Owners Manual

571
6-2. Customization
6
Vehicle specifications
L/C200_U
*1: The settings can be changed when the mechanical key linked operation of
the power window is set to ON.
*2: The settings can be changed when the wireless remote control linked oper-ation of the power window is set to ON.
*3: The settings can be changed when the entry function linked operation of thepower window is set to ON.
Moon roof
(
P. 89) Mechanical key
linked operation
(open)
*1OFF
ON — — O
Mechanical key
linked operation
(close)
*1OFF ON — — O
Linked operation
of components
when door key is
use Slide only Tilt only — — O
Wireless remote
control linked
operation
(open)
*2
OFF ON — — O
Linked operation
of components
when wireless
remote control
used Slide only Tilt only — — O
Linked entry
function
*3OFF ON — — O
ItemFunctionDefault
settingCustomized setting

572 6-2. Customization
L/C200_U
ItemFunctionDefault settingCustomized setting
Illumination
(P. 369) Time period
before the interior
lights turn off
15 secondsOFF
O—O
7.5 seconds
30 seconds
Time period
before the exte-
rior lights turn off 15 secondsOFF
O—O
7.5 seconds
30 seconds
Operation after
the “ENGINE
START STOP”
switch is turned
off ON OFF — — O
Operation when
the doors are
unlocked ON OFF — — O
Operation when
you approach the
vehicle with the
electronic key on
your person
(When the inte-
rior light switch is
door position) ON OFF — — O
Foot lights ON OFF — — O
Sensitivity of the
ambient light sen-
sor used for dim-
ming the meter
lights etc. Standard -2 to 2 O — O
Sensitivity of the
ambient light sen-
sor used for
brightening the
meter lights etc. Standard -2 to 2 O — O

573
6-2. Customization
6
Vehicle specifications
L/C200_U
Automatic
light control
system
(
P. 175) Light sensor sen-
sitivity
Standard -2 to 2 O — O
Daytime running
light system ON OFF O — O
Time elapsed
before head-
lights automati-
cally turn off after
doors are closed 30 seconds
OFF
O—O
60 seconds
90 seconds
Automatic
air
conditioning
system
( P. 246) Switching
between outside
air and recircu-
lated air mode
linked to “AUTO”
switch operation
Auto Manual O — O
A/C Auto switch
operation Auto Manual O — O
ItemFunctionDefault
settingCustomized setting

574 6-2. Customization
L/C200_U
■Vehicle customization
● If the smart key system is turned “OFF”, unlock door cannot be selected.
● If the doors are not opened after locking and are then automatically re-
locked, a signal will be given if “Operation signal (Emergency flashers)”
or “Operation signal (Buzzer)” are set to ON.
■ When setting using the vehicle sw itches (vehicles with navigation sys-
tem)
When using the vehicle switches to set an item that can also be set using the
touch screen, the item displayed on the touch screen will not change imme-
diately.
If the “ENGINE START STOP” switch is first turned to OFF, the screen dis-
play will change once the “ENGINE START STOP” switch is turned to IGNI-
TION ON mode again.
■ When customizing using the touch screen (vehicles with navigation
system)
Stop the vehicle in a safe place, apply the parking brake, and shift the shift
lever to “P”. Also, to prevent battery discharge, leave the engine running
while customizing the features.

575
6-2. Customization
6
Vehicle specifications
L/C200_U
Multi-information display (
P. 170)
CAUTION
■During customization
As the engine needs to be running during customization, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may
collect and enter the vehicle. This may lead to death or a serious health haz-
ard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while cus-
tomizing features.
Available languages
English (U.S.A.), English (UK), French,
German, Spanish, Italian, Japanese, Sim-
plified Chinese and Traditional Chinese

576
L/C200_U
6-3. Initialization
Items to initialize
ItemWhen to initializeReference
Engine oil mainte-
nance data After changing engine oil P. 432
Tire pressure warning
system • When rotating the tires on vehicles
differing with front and rear tire infla-
tion pressures.
• When changing the tire inflation pressure by changing traveling
speed or load weight, etc.
• When changing the tire size. P. 444
The following items must be init
ialized for normal system operation
in cases such as after the battery is reconnected, or maintenance is
performed on the vehicle.

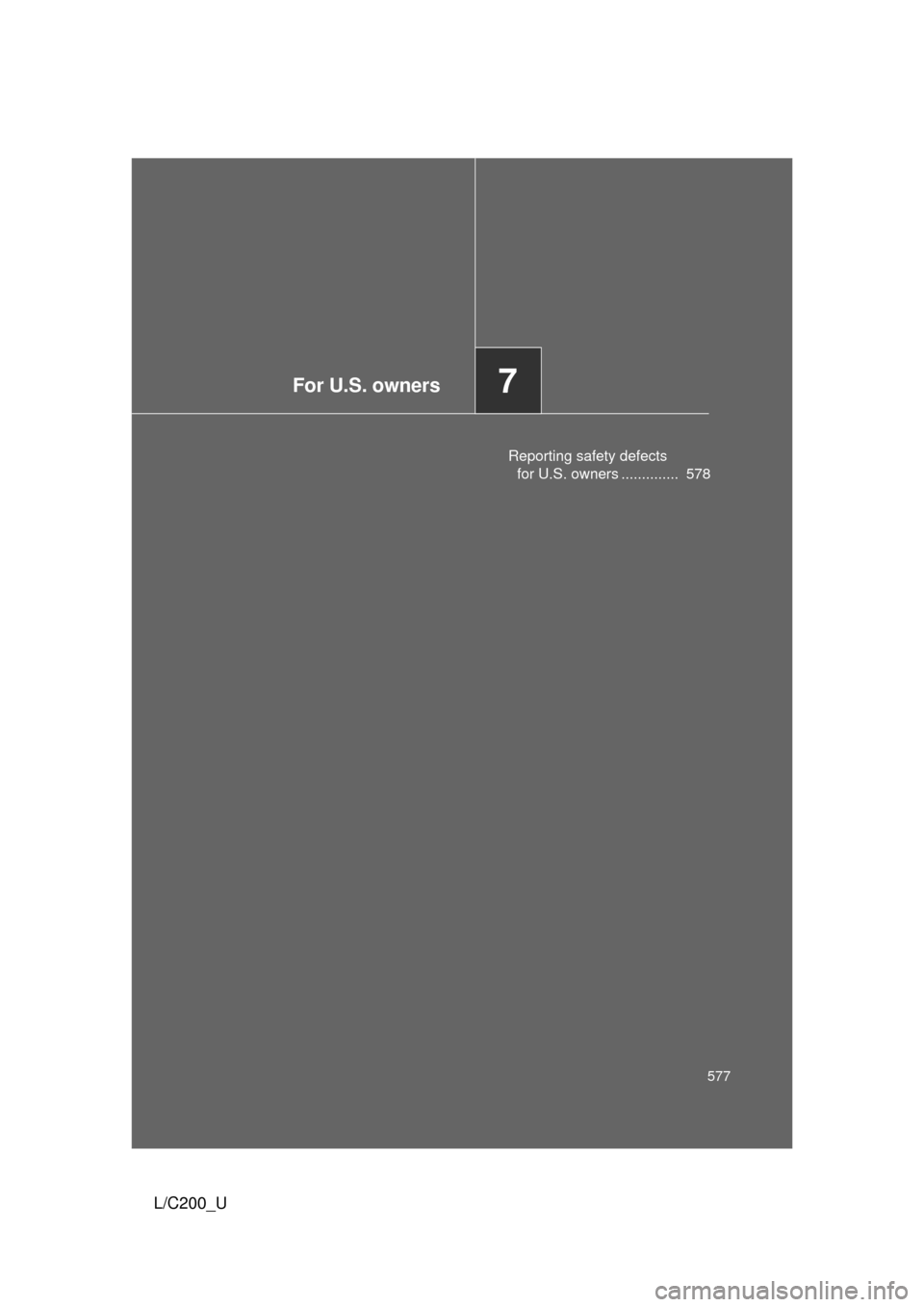

For U.S. owners7
577
L/C200_U
Reporting safety defects for U.S. owners .............. 578

578
L/C200_U

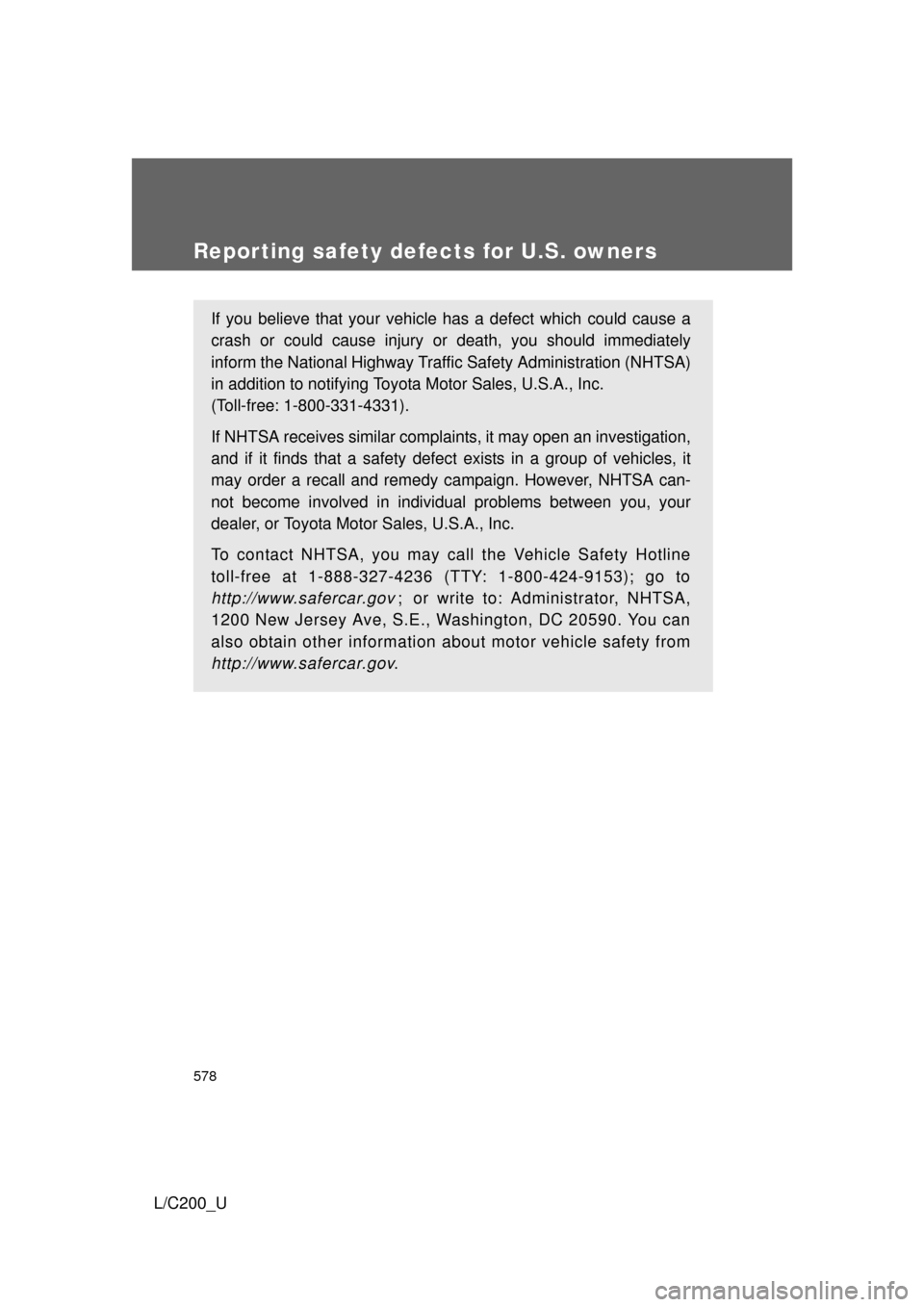

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately
inform the National Highway Traffi c Safety Administration (NHTSA)
in addition to notifying Toyota Motor Sales, U.S.A., Inc.
(Toll-free: 1-800-331-4331).
If NHTSA receives similar complaints, it may open an investigation,
and if it finds that a safety defec t exists in a group of vehicles, it
may order a recall and remedy campaign. However, NHTSA can-
not become involved in individ ual problems between you, your
dealer, or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline
toll-free at 1-888-327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov ; or write to: Administrator, NHTSA,
1200 New Jersey Ave, S.E., Washington, DC 20590. You can
also obtain other information about motor vehicle safety from
http://www.safercar.gov .

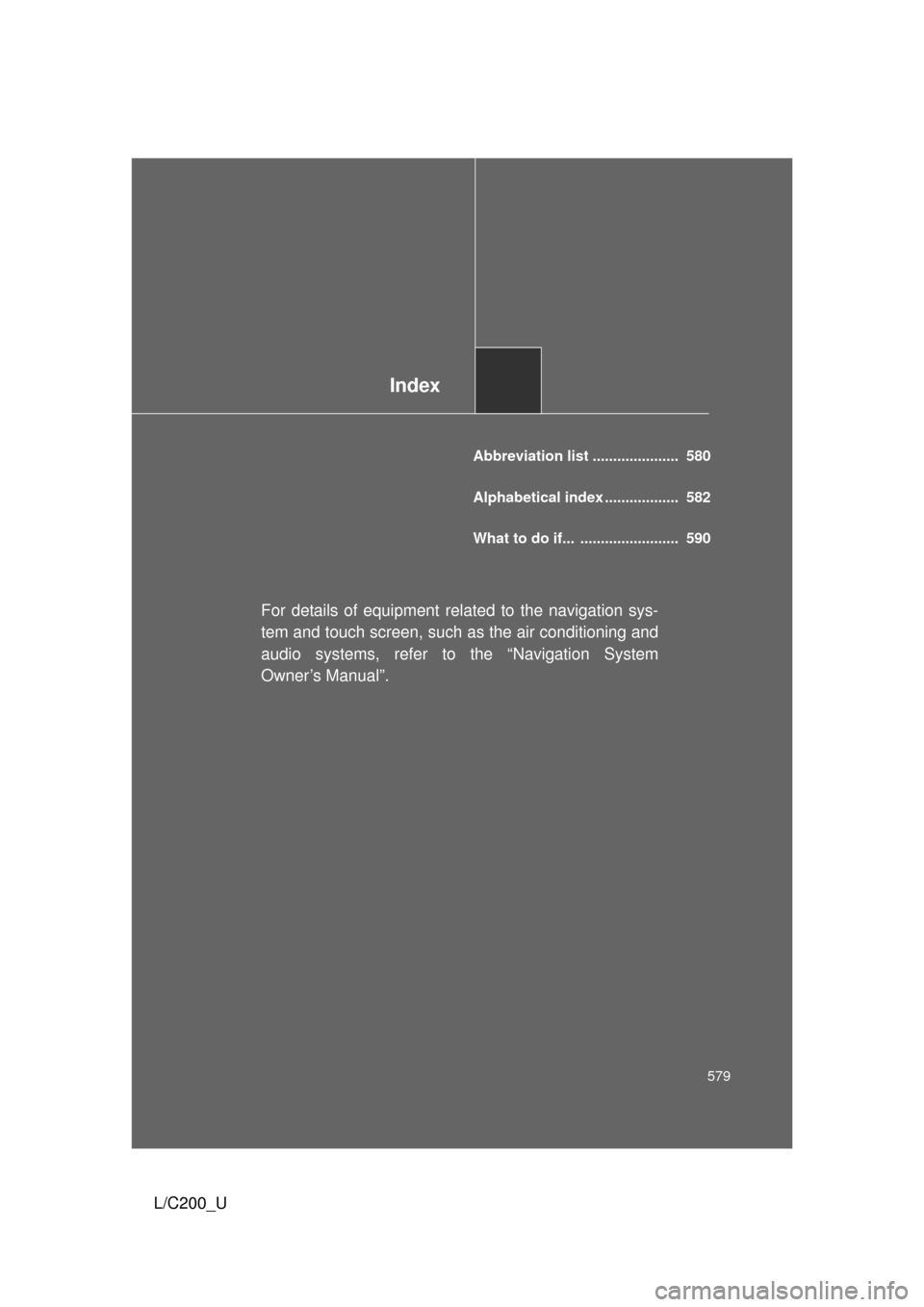

Index
579
L/C200_U
Abbreviation list ..................... 580
Alphabetical index .................. 582
What to do if... ........................ 590
For details of equipment related to the navigation sys-
tem and touch screen, such as the air conditioning and
audio systems, refer to the “Navigation System
Owner’s Manual”.

580
L/C200_U
Abbreviation list
Abbreviation/Acronym list
ABBREVIATIONSMEANING
A/C Air conditioning
ABS Anti-lock Brake System
ALR Automatic Locking Retractor
AUX Auxiliary
CRS Child Restraint System
DISP Display
ECT Electronic Controlled Transmission
ECU Electronic Control Unit
EDR Event Data Recorder
ELR Emergency Locking Retractor
GAWR Gross Axle Weight Rating
GVWR Gross Vehicle Weight Rating
I/M Emission inspection and maintenance
INT Intermittent
KDSS Kinetic Dynamic Suspension System
LATCH Lower Anchors and Tethers for Children
LED Light Emitting Diode
MMT Methylcy clopentadienyl Manganese Tricarbonyl
