4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_EE (OM60G38E)

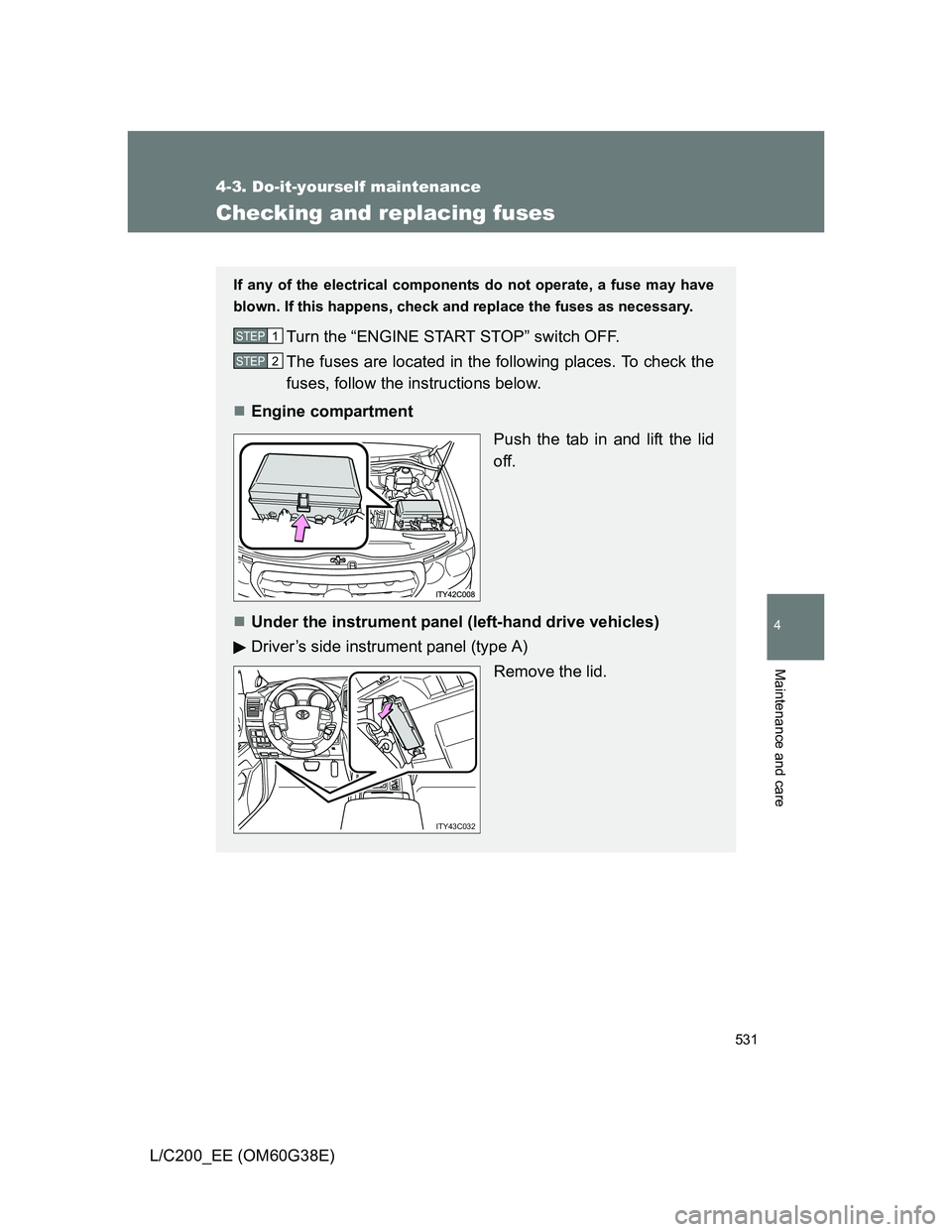

Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Turn the “ENGINE START STOP” switch OFF.
The fuses are located in the following places. To check the
fuses, follow the instructions below.
Engine compartment
Push the tab in and lift the lid
off.
Under the instrument panel (left-hand drive vehicles)
Driver’s side instrument panel (type A)
Remove the lid.
STEP1
STEP2
ITY43C032

532 4-3. Do-it-yourself maintenance
L/C200_EE (OM60G38E)
Passenger’s side instrument panel (type B) Remove the cover.
Remove the lid.
Under the instrument panel (right-hand drive vehicles)
Passenger’s side instrument panel (type A)
Remove the cover.
ITY43C033
ITY43C034
ITY42C009

533 4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_EE (OM60G38E)

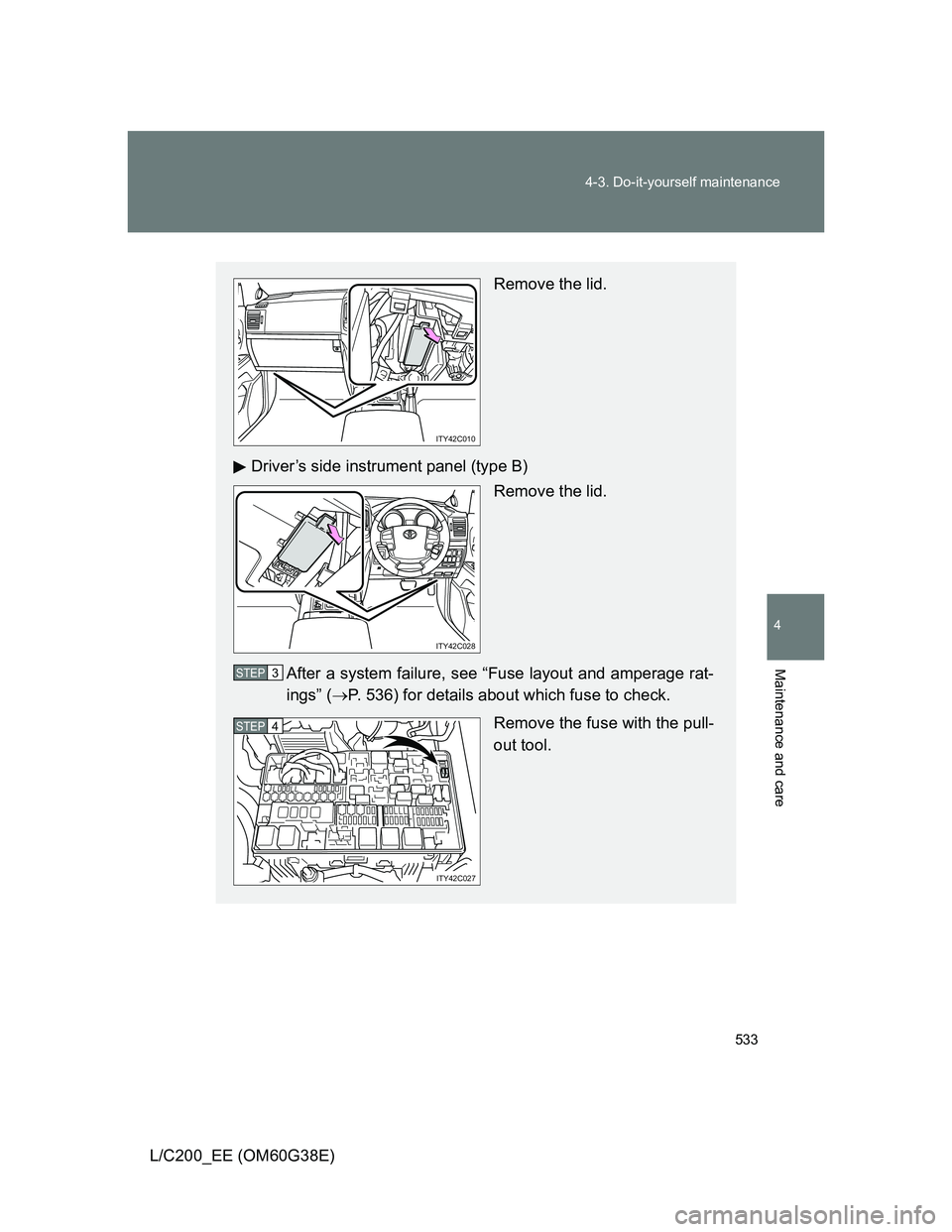

Remove the lid.
Driver’s side instrument panel (type B)
Remove the lid.
After a system failure, see “Fuse layout and amperage rat-
ings” (P. 536) for details about which fuse to check.
Remove the fuse with the pull-
out tool.
ITY42C010
ITY42C028
STEP3
ITY42C027
STEP4

534 4-3. Do-it-yourself maintenance
L/C200_EE (OM60G38E)

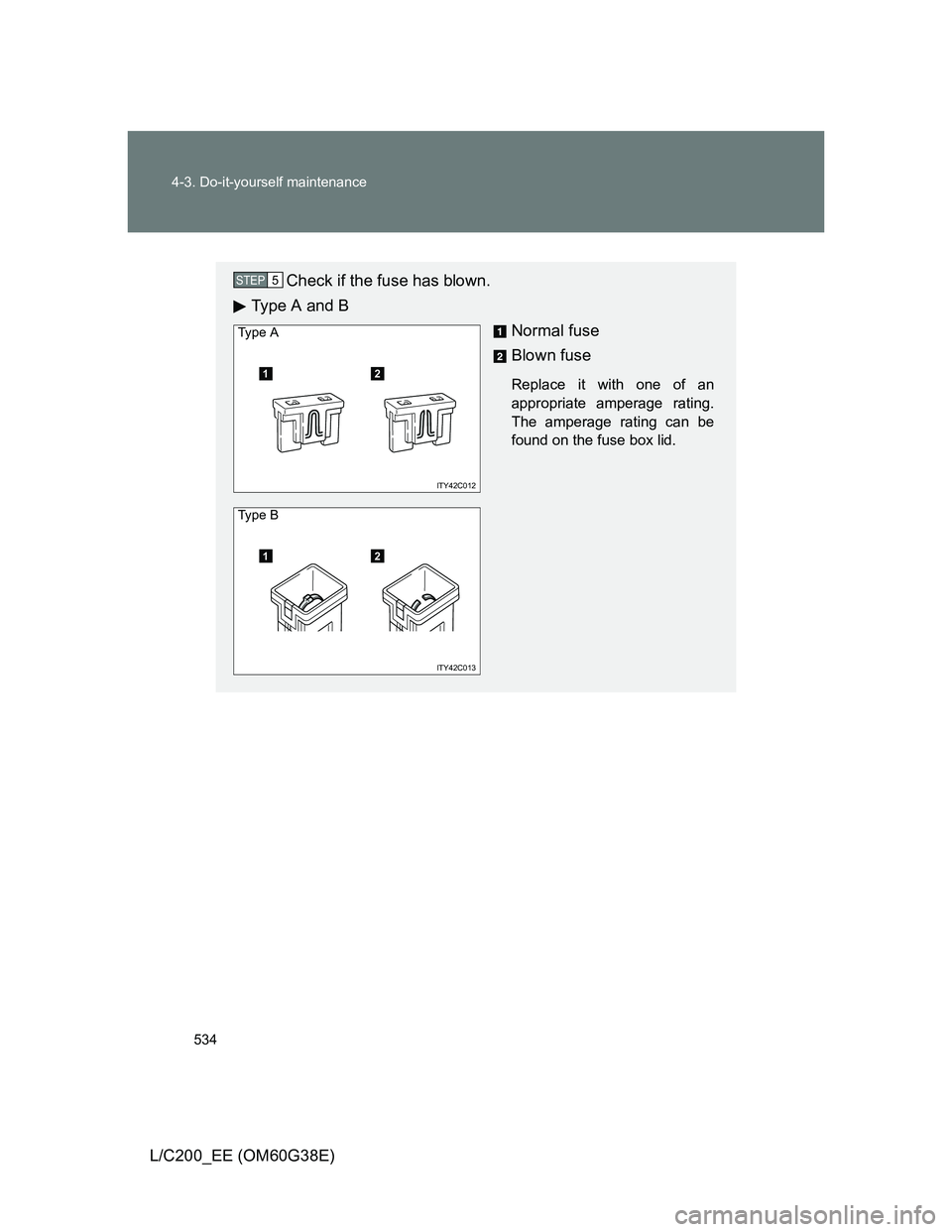

Check if the fuse has blown.
Type A and B
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
STEP5
12
ITY42C012
Ty p e A
12
ITY42C013
Ty p e B

535 4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_EE (OM60G38E)

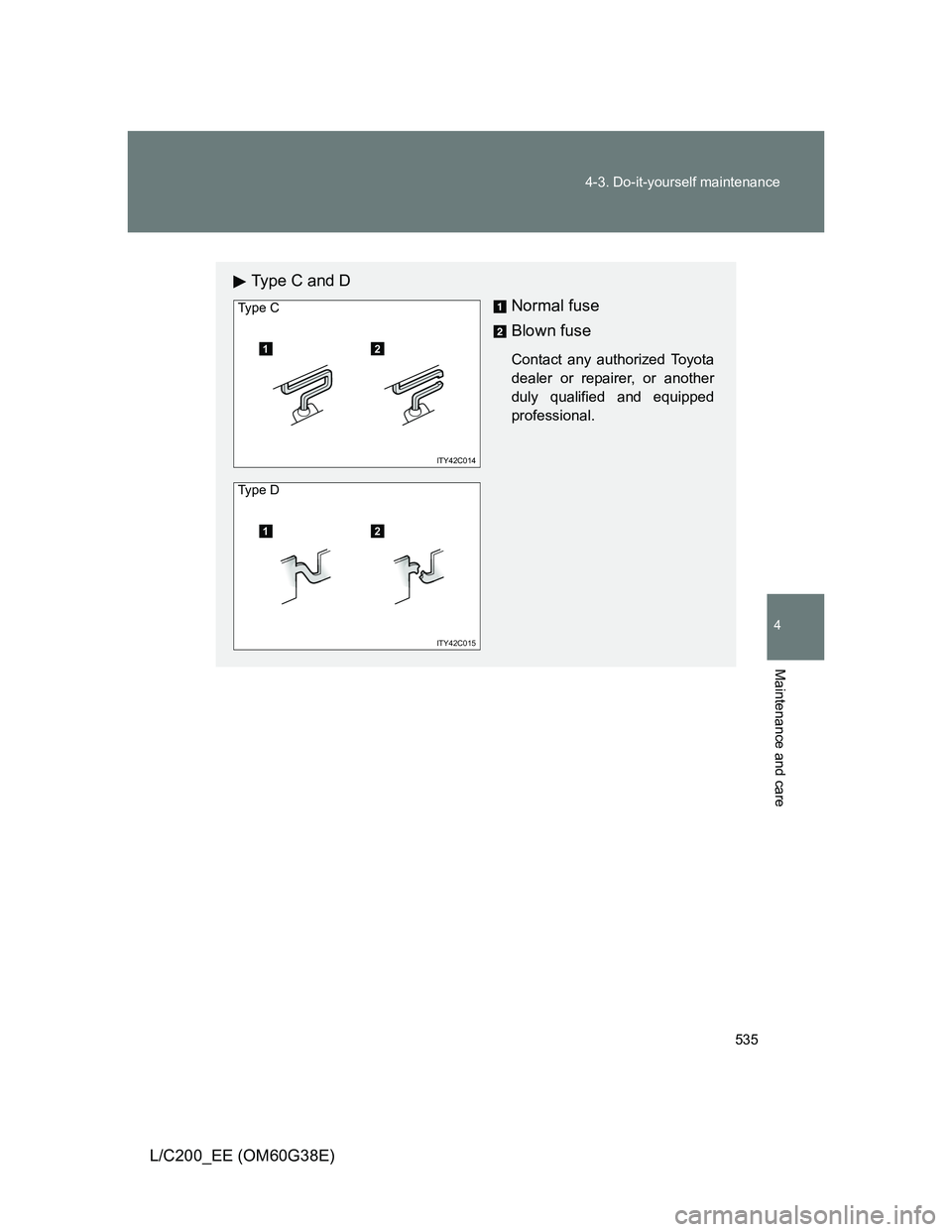

Type C and D
Normal fuse
Blown fuse
Contact any authorized Toyota
dealer or repairer, or another
duly qualified and equipped
professional.12
ITY42C014
Ty p e C
12
ITY42C015
Ty p e D

536 4-3. Do-it-yourself maintenance
L/C200_EE (OM60G38E)

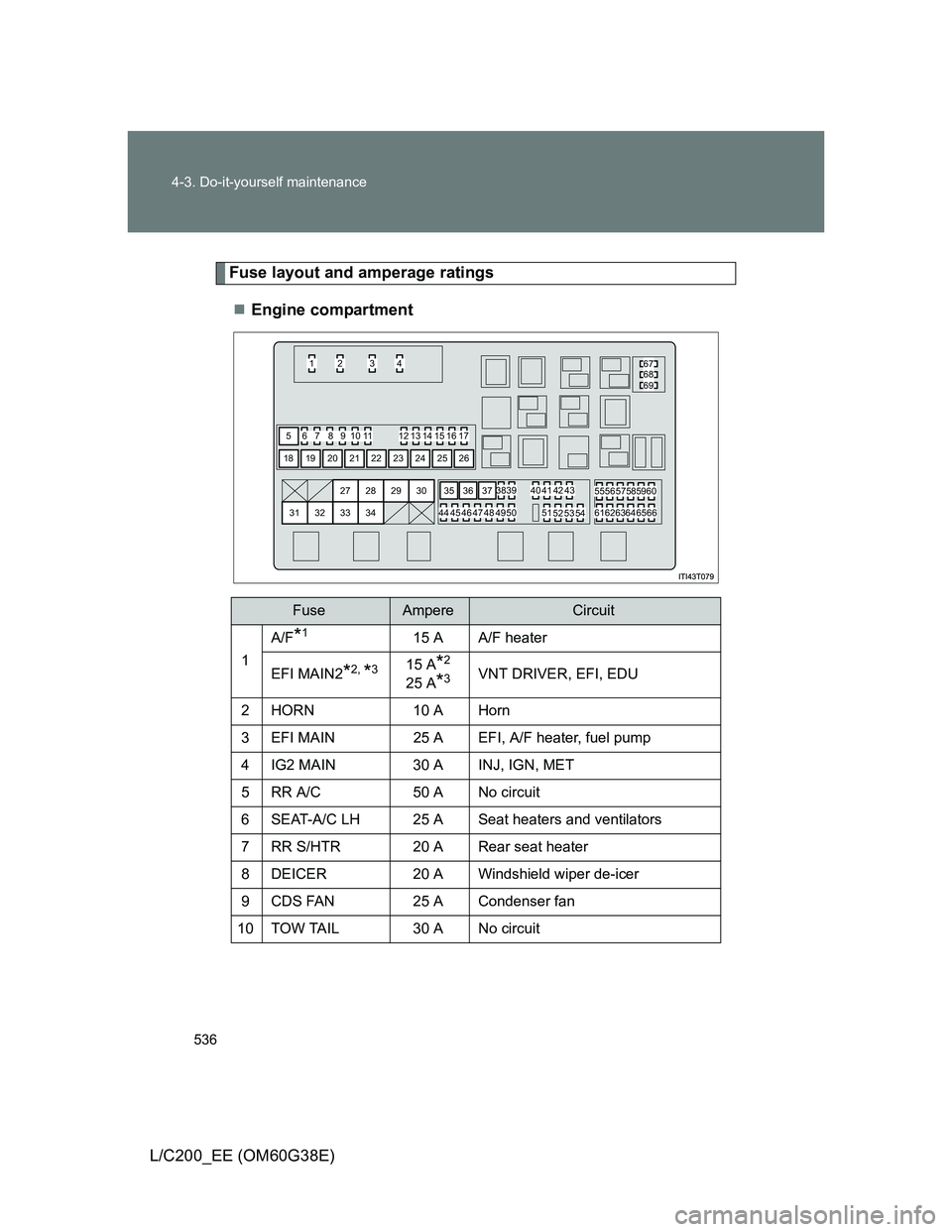

Fuse layout and amperage ratings
Engine compartment
FuseAmpereCircuit
1
A/F*115 A A/F heater
EFI MAIN2*2, *315 A*2
25 A*3VNT DRIVER, EFI, EDU
2HORN10 A Horn
3 EFI MAIN 25 A EFI, A/F heater, fuel pump
4 IG2 MAIN 30 A INJ, IGN, MET
5 RR A/C 50 A No circuit
6 SEAT-A/C LH 25 A Seat heaters and ventilators
7 RR S/HTR 20 A Rear seat heater
8 DEICER 20 A Windshield wiper de-icer
9 CDS FAN 25 A Condenser fan
10 TOW TAIL 30 A No circuit
12 34
5
39 18 19 20 21 22 23 24 25 26
40 41 42 43
44 45 46 47
48 27 28
33 34 31 3229 30 35 36 37
52 53 5455
49 50 515667
68
69
57585960
616263646566 6 7 8 9 10 11 12 13 14 15 16 17
38

537 4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_EE (OM60G38E)

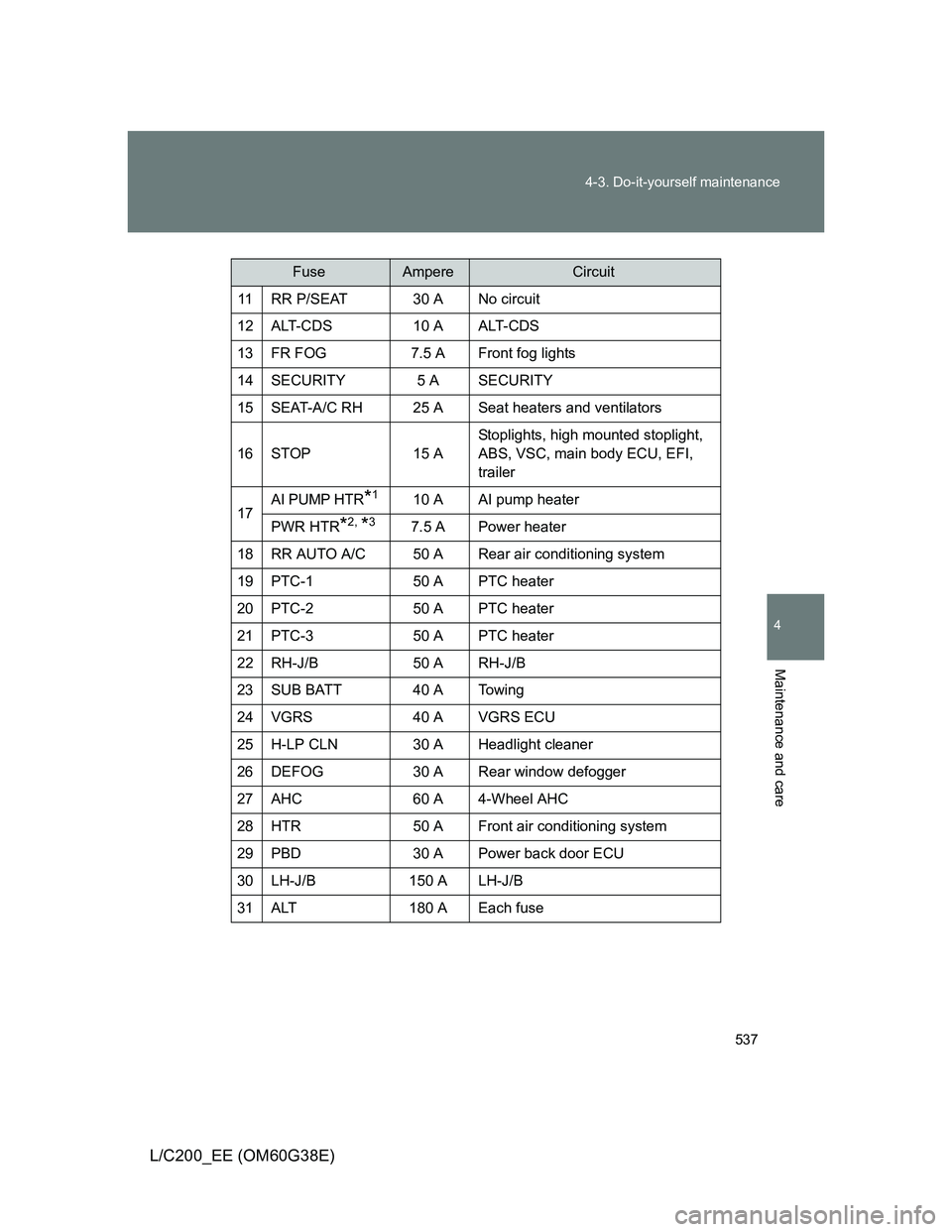

11 RR P/SEAT 30 A No circuit
12 ALT-CDS 10 A ALT-CDS
13 FR FOG 7.5 A Front fog lights
14 SECURITY 5 A SECURITY
15 SEAT-A/C RH 25 A Seat heaters and ventilators
16 STOP 15 AStoplights, high mounted stoplight,
ABS, VSC, main body ECU, EFI,
trailer
17
AI PUMP HTR*110 A AI pump heater
PWR HTR
*2, *37.5 A Power heater
18 RR AUTO A/C 50 A Rear air conditioning system
19 PTC-1 50 A PTC heater
20 PTC-2 50 A PTC heater
21 PTC-3 50 A PTC heater
22 RH-J/B 50 A RH-J/B
23 SUB BATT 40 A Towing
24 VGRS 40 A VGRS ECU
25 H-LP CLN 30 A Headlight cleaner
26 DEFOG 30 A Rear window defogger
27 AHC 60 A 4-Wheel AHC
28 HTR 50 A Front air conditioning system
29 PBD 30 A Power back door ECU
30 LH-J/B 150 A LH-J/B
31 ALT 180 A Each fuse
FuseAmpereCircuit

538 4-3. Do-it-yourself maintenance
L/C200_EE (OM60G38E)

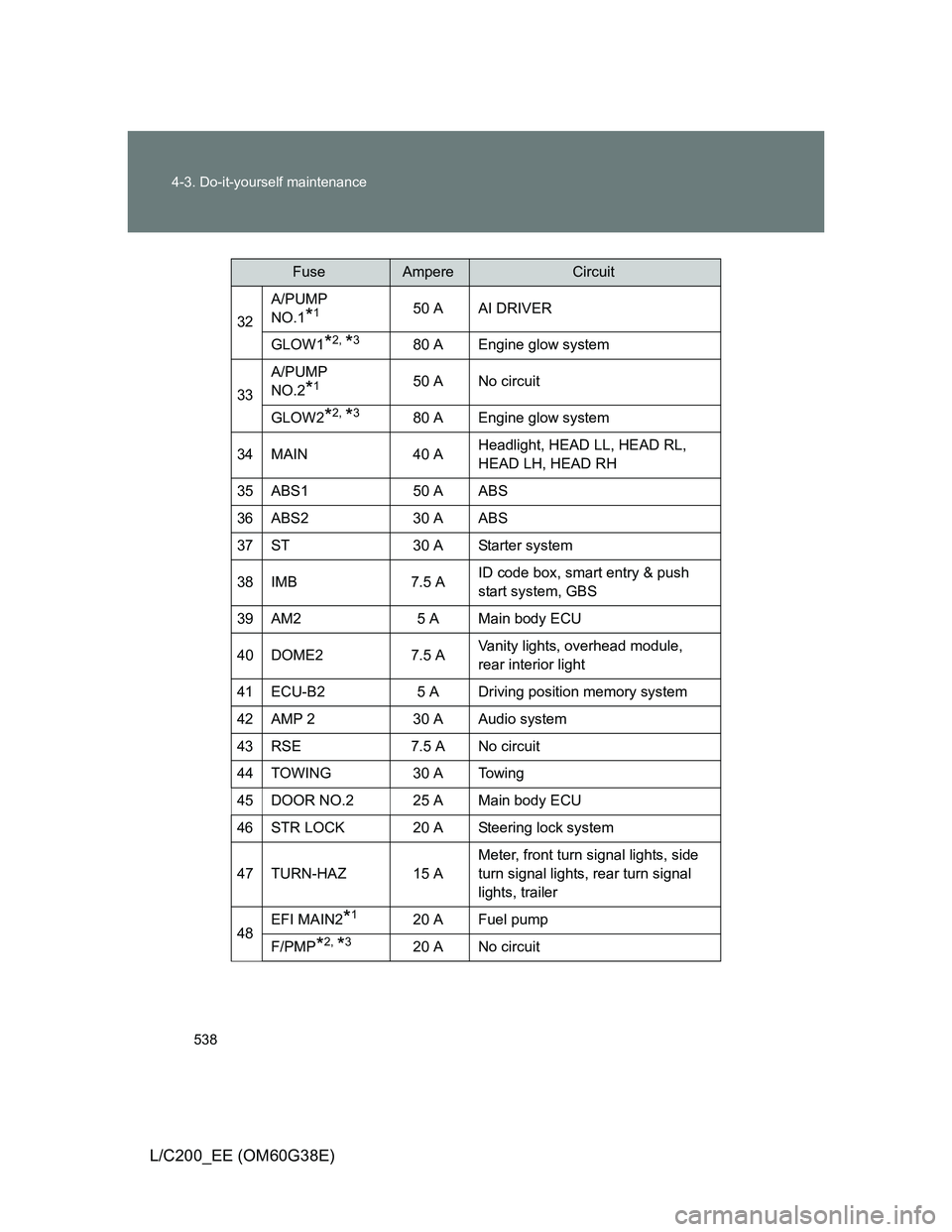

32A/PUMP
NO.1*150 A AI DRIVER
GLOW1
*2, *380 A Engine glow system
33A/PUMP
NO.2
*150 A No circuit
GLOW2
*2, *380 A Engine glow system
34 MAIN 40 AHeadlight, HEAD LL, HEAD RL,
HEAD LH, HEAD RH
35 ABS1 50 A ABS
36 ABS2 30 A ABS
37 ST 30 A Starter system
38 IMB 7.5 AID code box, smart entry & push
start system, GBS
39 AM2 5 A Main body ECU
40 DOME2 7.5 AVanity lights, overhead module,
rear interior light
41 ECU-B2 5 A Driving position memory system
42 AMP 2 30 A Audio system
43 RSE 7.5 A No circuit
44 TOWING 30 A Towing
45 DOOR NO.2 25 A Main body ECU
46 STR LOCK 20 A Steering lock system
47 TURN-HAZ 15 AMeter, front turn signal lights, side
turn signal lights, rear turn signal
lights, trailer
48EFI MAIN2*120 A Fuel pump
F/PMP*2, *320 A No circuit
FuseAmpereCircuit

539 4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_EE (OM60G38E)

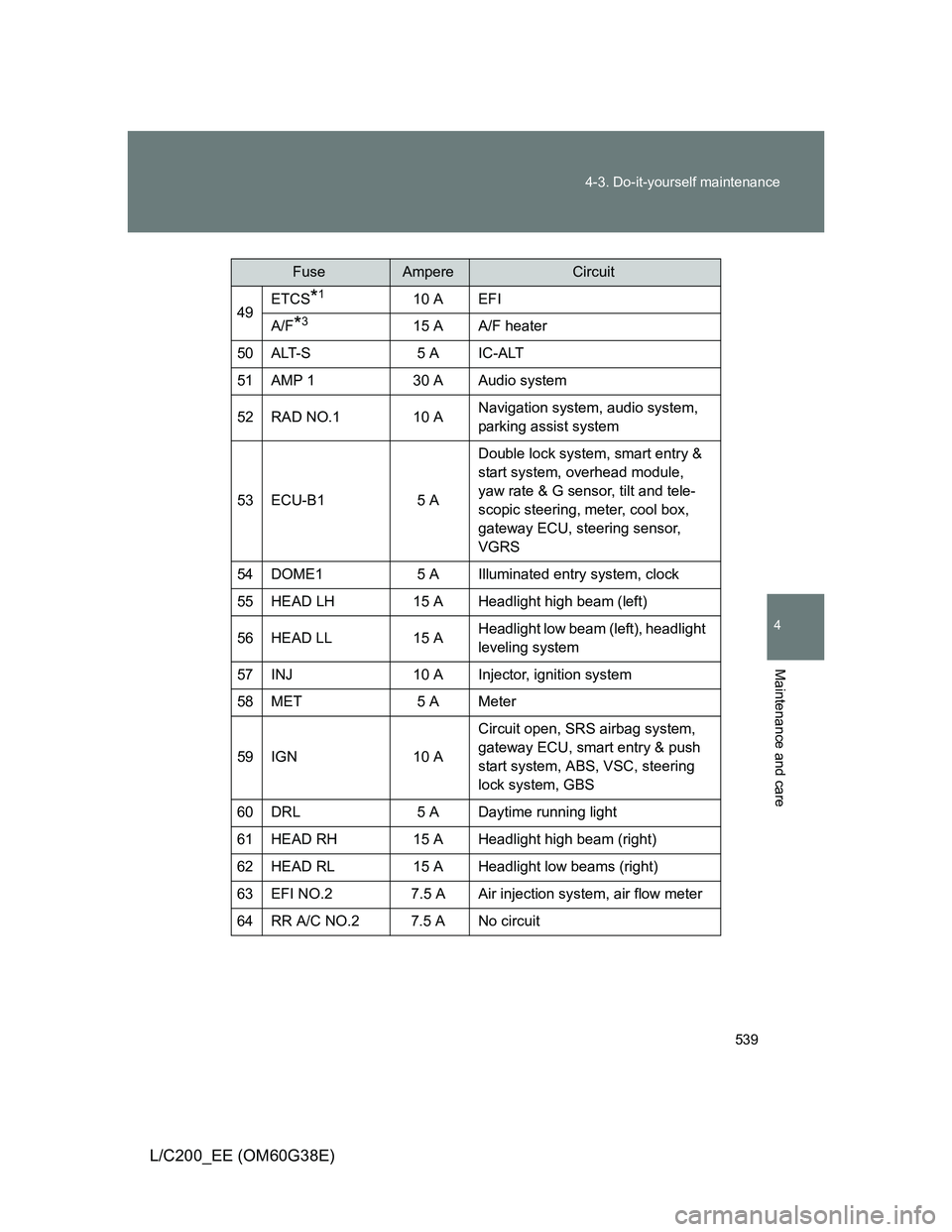

49ETCS*110 A EFI
A/F*315 A A/F heater
50ALT-S5 A IC-ALT
51AMP 130 A Audio system
52 RAD NO.1 10 ANavigation system, audio system,
parking assist system
53 ECU-B1 5 ADouble lock system, smart entry &
start system, overhead module,
yaw rate & G sensor, tilt and tele-
scopic steering, meter, cool box,
gateway ECU, steering sensor,
VGRS
54 DOME1 5 A Illuminated entry system, clock
55 HEAD LH 15 A Headlight high beam (left)
56 HEAD LL 15 AHeadlight low beam (left), headlight
leveling system
57 INJ 10 A Injector, ignition system
58 MET 5 A Meter
59 IGN 10 ACircuit open, SRS airbag system,
gateway ECU, smart entry & push
start system, ABS, VSC, steering
lock system, GBS
60 DRL 5 A Daytime running light
61 HEAD RH 15 A Headlight high beam (right)
62 HEAD RL 15 A Headlight low beams (right)
63 EFI NO.2 7.5 A Air injection system, air flow meter
64 RR A/C NO.2 7.5 A No circuit
FuseAmpereCircuit

540 4-3. Do-it-yourself maintenance
L/C200_EE (OM60G38E)

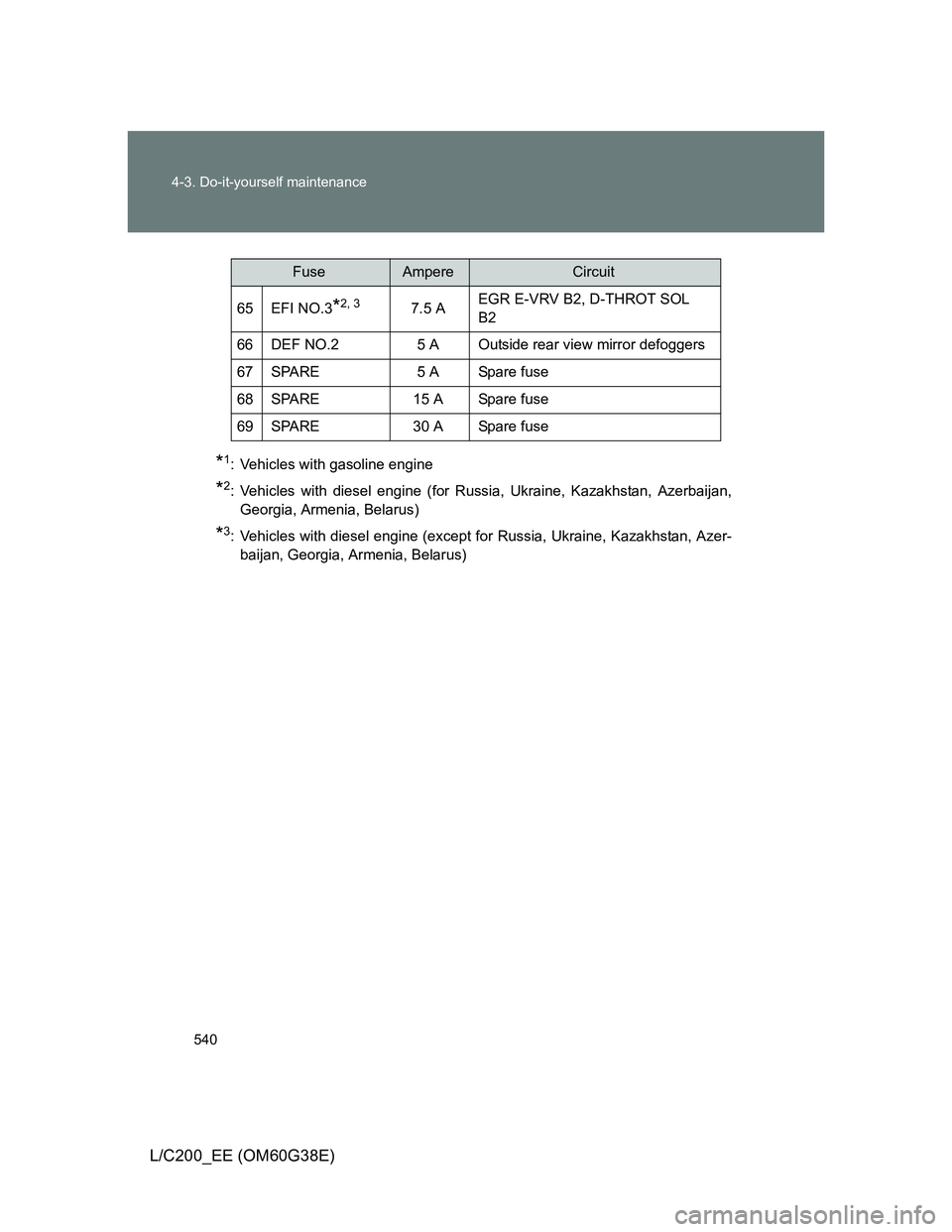

*1: Vehicles with gasoline engine
*2: Vehicles with diesel engine (for Russia, Ukraine, Kazakhstan, Azerbaijan,
Georgia, Armenia, Belarus)
*3: Vehicles with diesel engine (except for Russia, Ukraine, Kazakhstan, Azer-
baijan, Georgia, Armenia, Belarus) 65 EFI NO.3
*2, 37.5 AEGR E-VRV B2, D-THROT SOL
B2
66 DEF NO.2 5 A Outside rear view mirror defoggers
67 SPARE 5 A Spare fuse
68 SPARE 15 A Spare fuse
69 SPARE 30 A Spare fuse
