551 4-3. Do-it-yourself maintenance
4
Maintenance and care

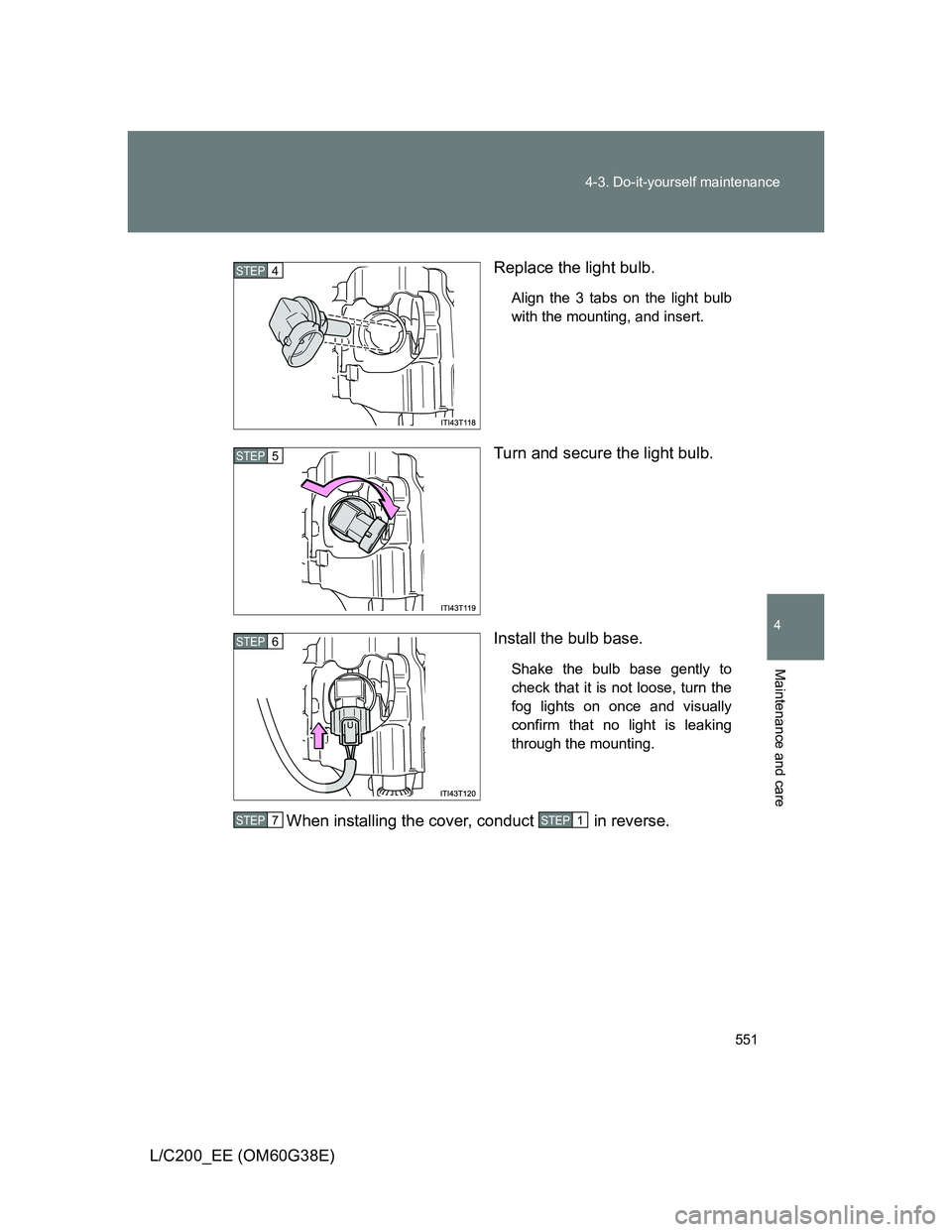

L/C200_EE (OM60G38E)Replace the light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the light bulb.
Install the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
fog lights on once and visually
confirm that no light is leaking
through the mounting.
When installing the cover, conduct in reverse.
STEP4
STEP5
STEP6
STEP7STEP1
Page 552 of 692
552 4-3. Do-it-yourself maintenance

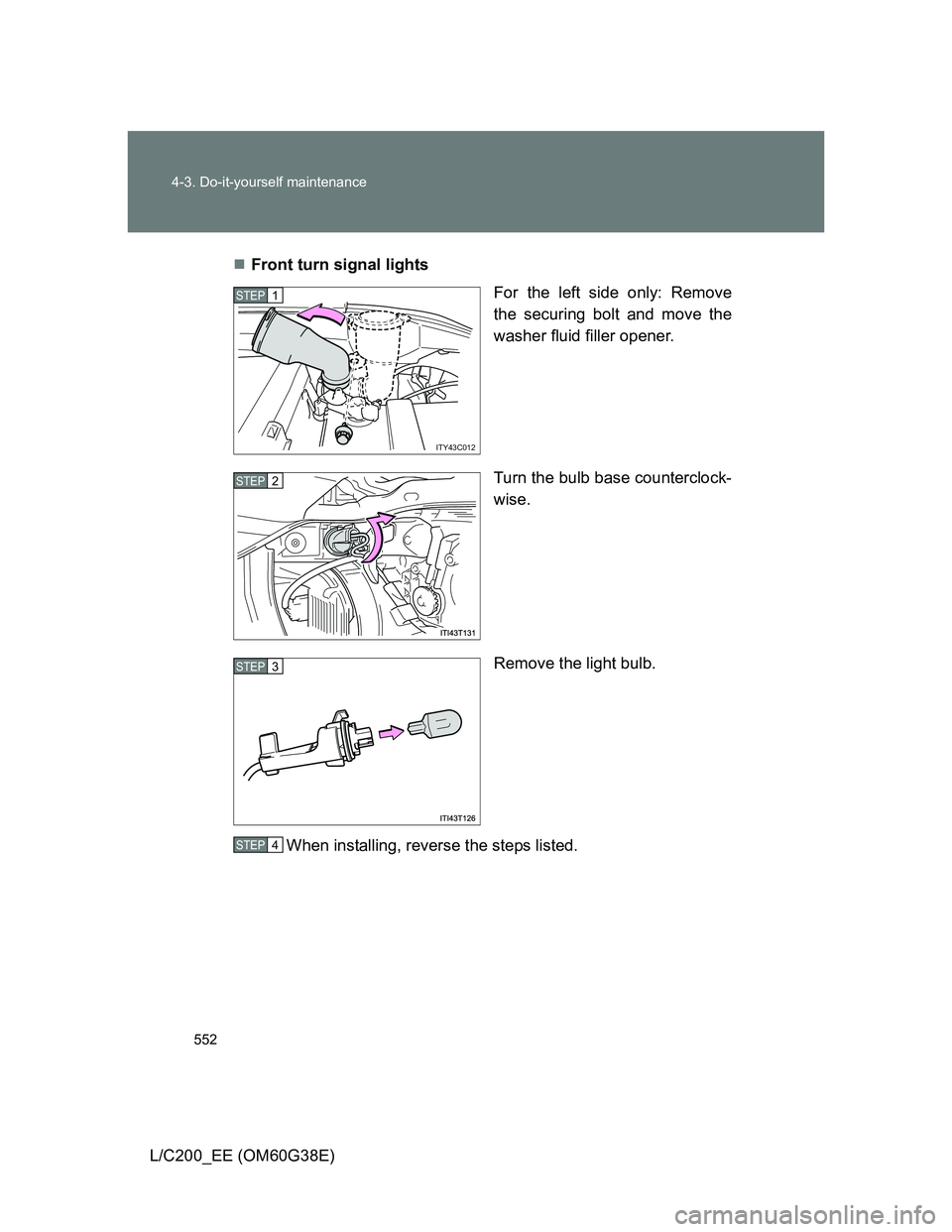

L/C200_EE (OM60G38E)Front turn signal lights
For the left side only: Remove
the securing bolt and move the
washer fluid filler opener.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
ITY43C012
STEP1
STEP2
STEP3
STEP4
Page 553 of 692
553 4-3. Do-it-yourself maintenance
4
Maintenance and care

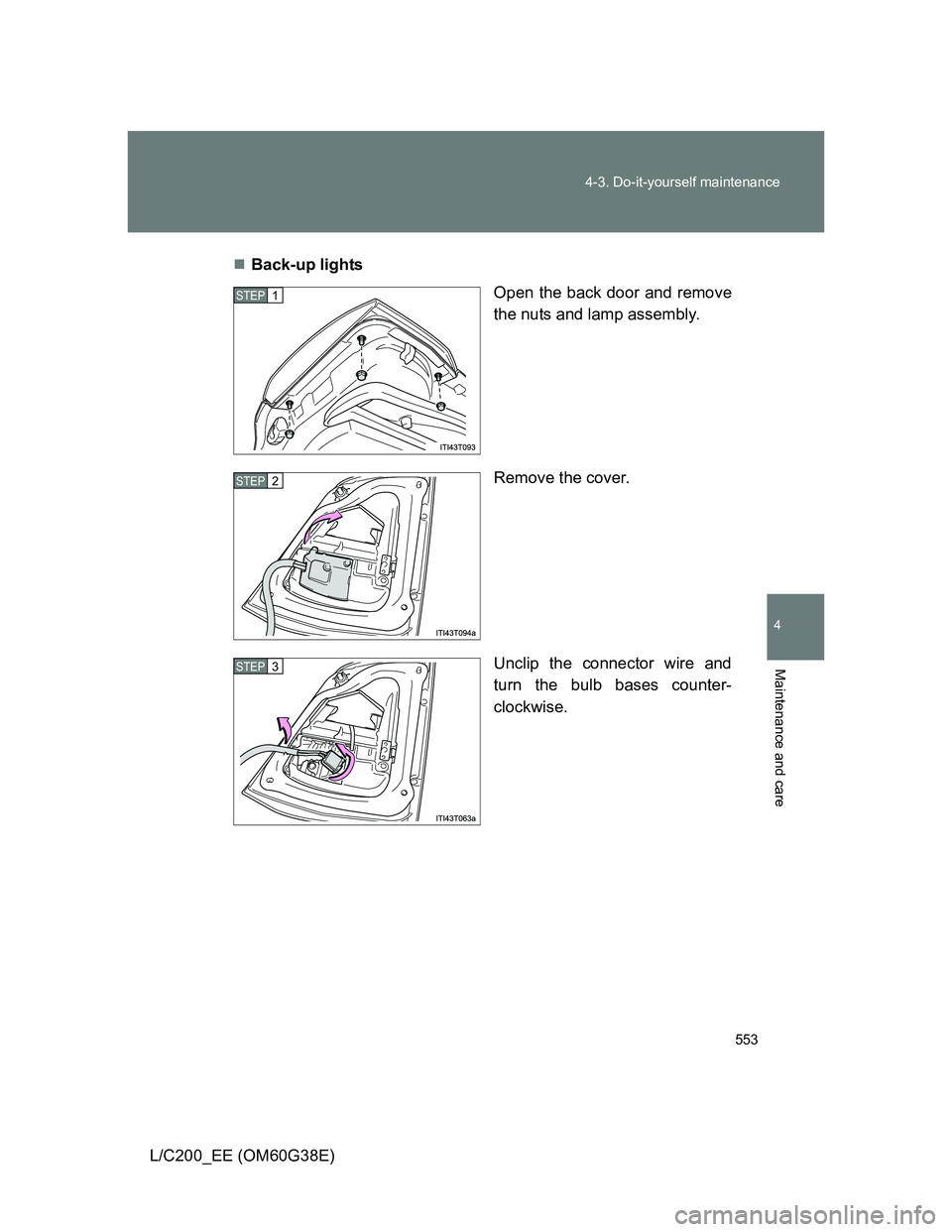

L/C200_EE (OM60G38E)Back-up lights
Open the back door and remove
the nuts and lamp assembly.
Remove the cover.
Unclip the connector wire and
turn the bulb bases counter-
clockwise.
STEP1
STEP2
STEP3
Page 554 of 692
554 4-3. Do-it-yourself maintenance

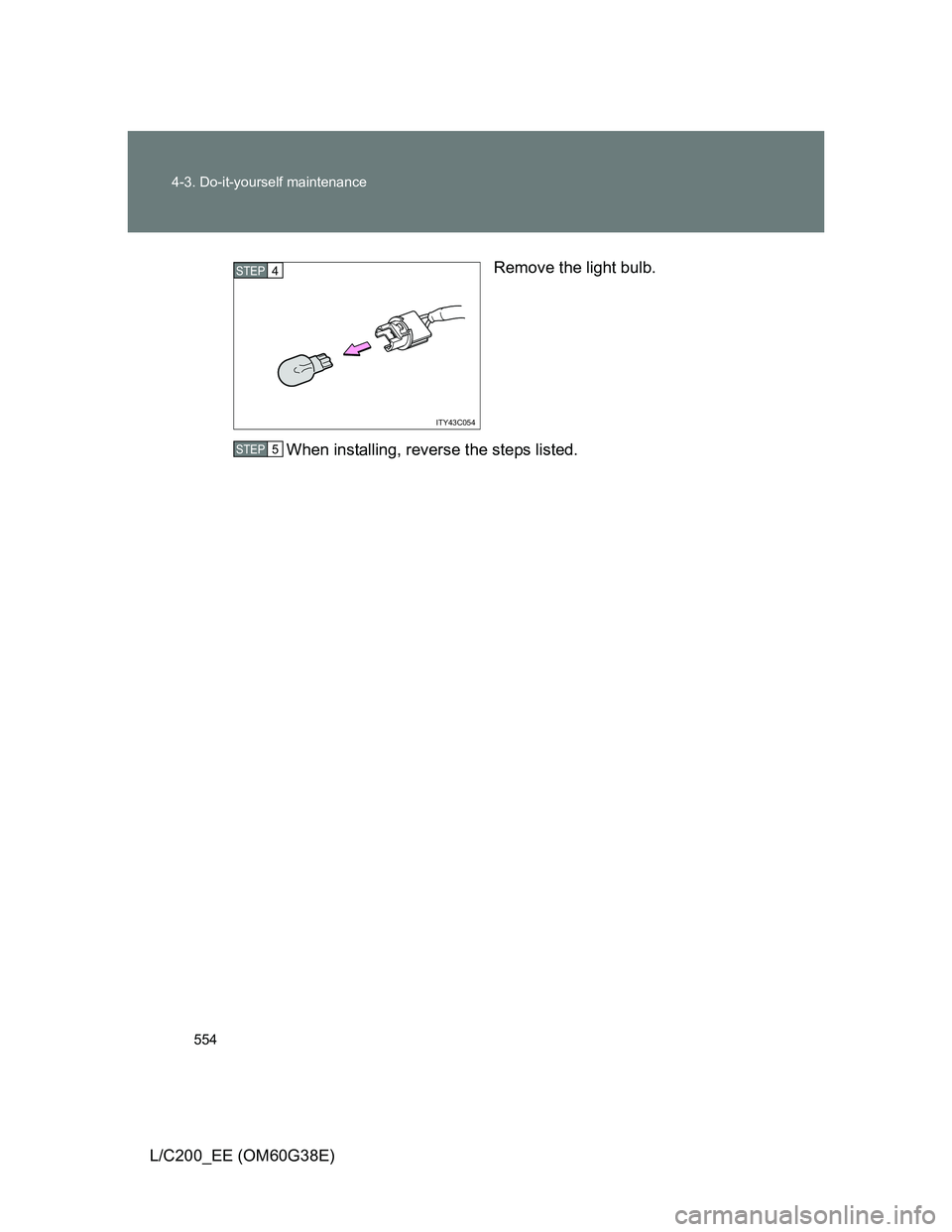

L/C200_EE (OM60G38E)Remove the light bulb.
When installing, reverse the steps listed.
ITY43C054
STEP4
STEP5
Page 555 of 692
555 4-3. Do-it-yourself maintenance
4
Maintenance and care

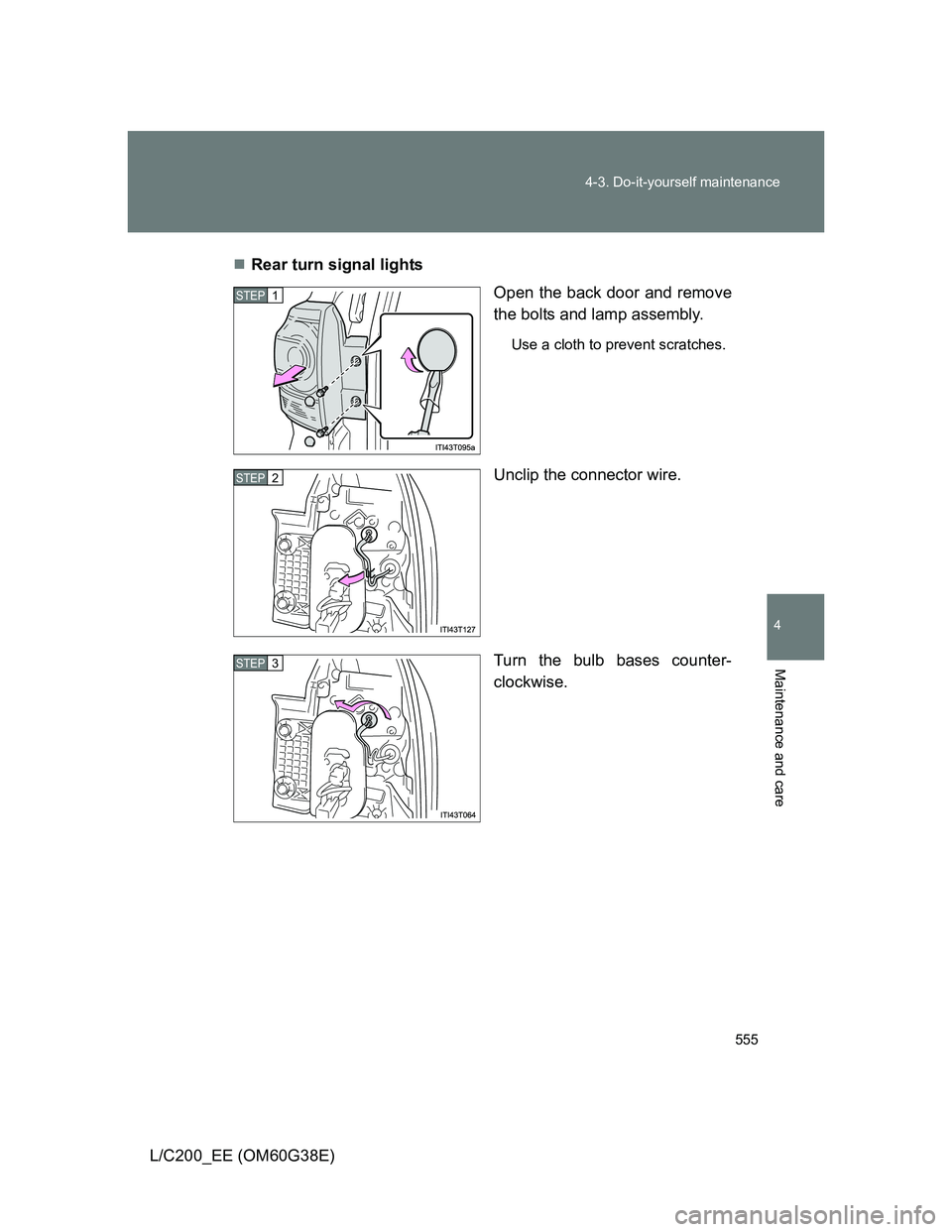

L/C200_EE (OM60G38E)Rear turn signal lights
Open the back door and remove
the bolts and lamp assembly.
Use a cloth to prevent scratches.
Unclip the connector wire.
Turn the bulb bases counter-
clockwise.
STEP1
STEP2
STEP3
Page 556 of 692
556 4-3. Do-it-yourself maintenance

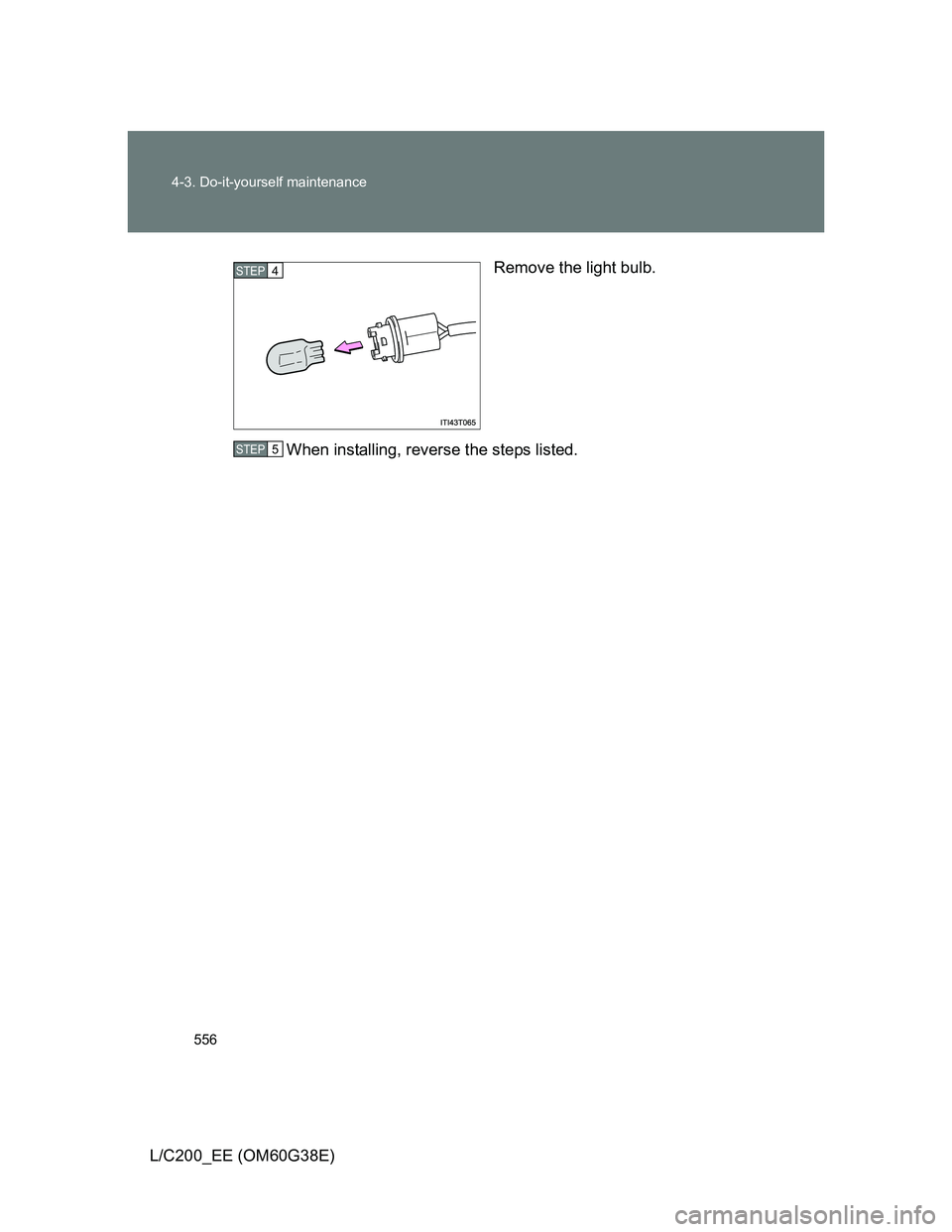

L/C200_EE (OM60G38E)Remove the light bulb.
When installing, reverse the steps listed.
STEP4
STEP5
Page 557 of 692
557 4-3. Do-it-yourself maintenance
4
Maintenance and care

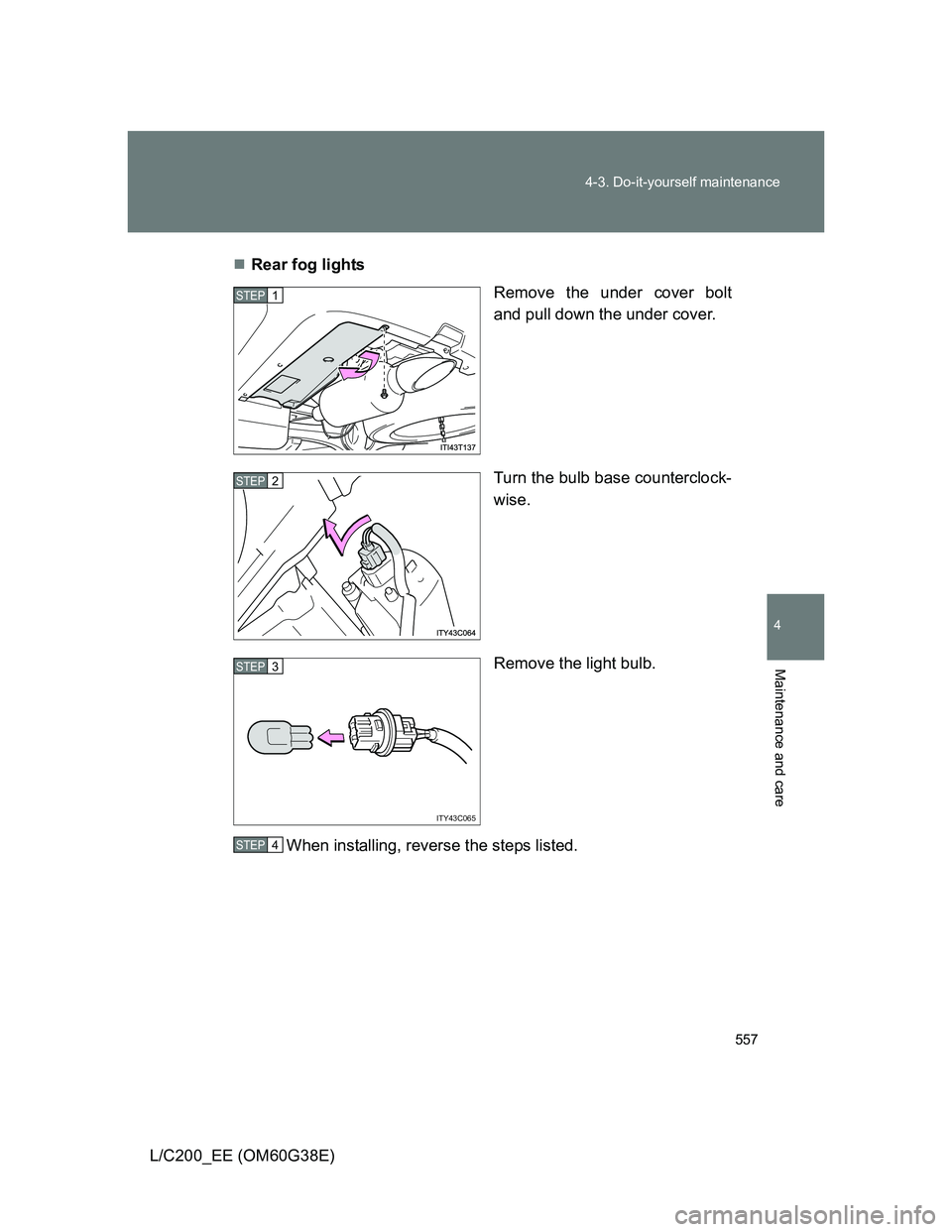

L/C200_EE (OM60G38E)Rear fog lights
Remove the under cover bolt
and pull down the under cover.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP1
STEP2
ITY43C065
STEP3
STEP4
Page 558 of 692
558 4-3. Do-it-yourself maintenance

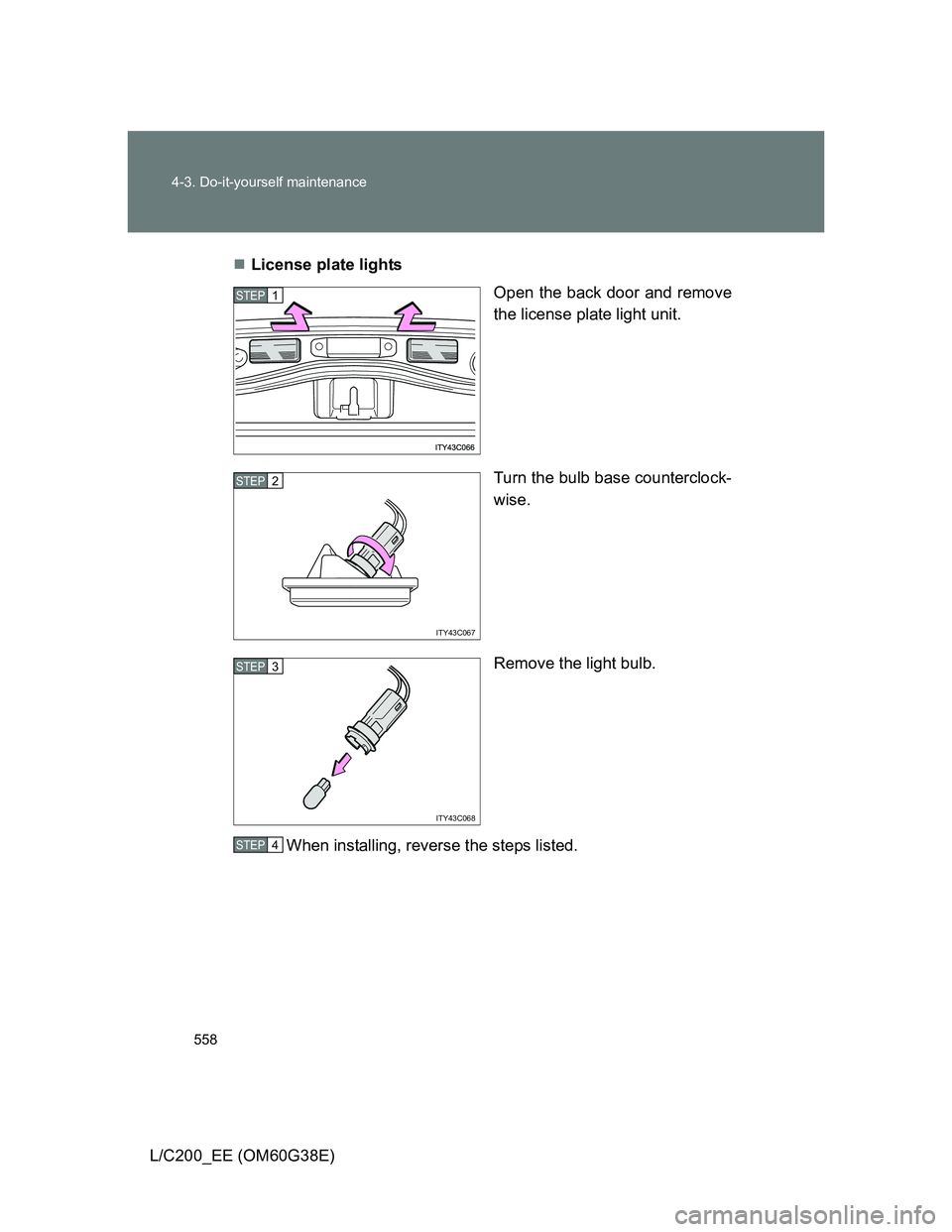

L/C200_EE (OM60G38E)License plate lights
Open the back door and remove
the license plate light unit.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP1
ITY43C067
STEP2
ITY43C068
STEP3
STEP4
Page 559 of 692

559 4-3. Do-it-yourself maintenance
4
Maintenance and care

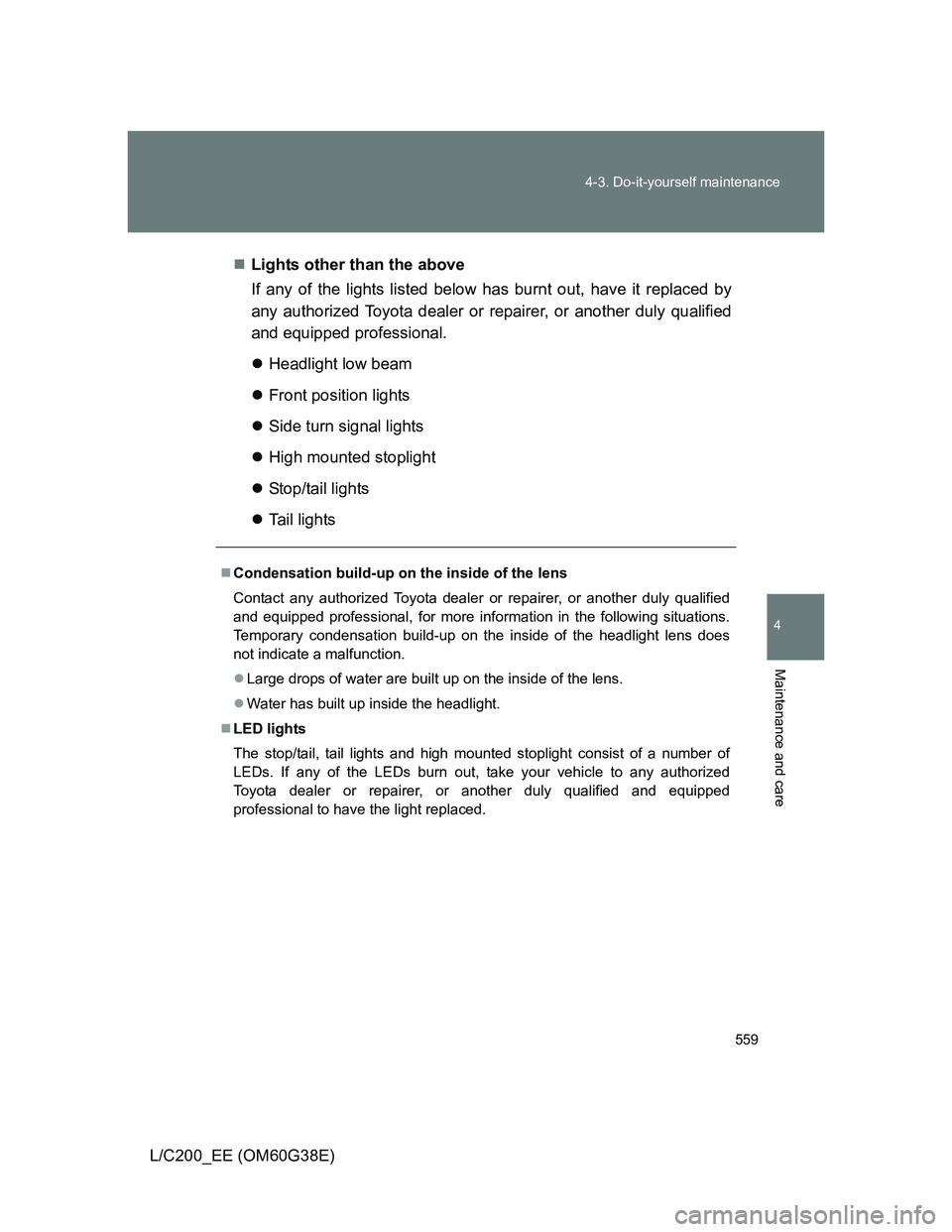

L/C200_EE (OM60G38E)Lights other than the above
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
Headlight low beam
Front position lights
Side turn signal lights
High mounted stoplight
Stop/tail lights
Tail lights
Condensation build-up on the inside of the lens
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
Large drops of water are built up on the inside of the lens.
Water has built up inside the headlight.
LED lights
The stop/tail, tail lights and high mounted stoplight consist of a number of
LEDs. If any of the LEDs burn out, take your vehicle to any authorized
Toyota dealer or repairer, or another duly qualified and equipped
professional to have the light replaced.
Page 560 of 692
560 4-3. Do-it-yourself maintenance
L/C200_EE (OM60G38E)

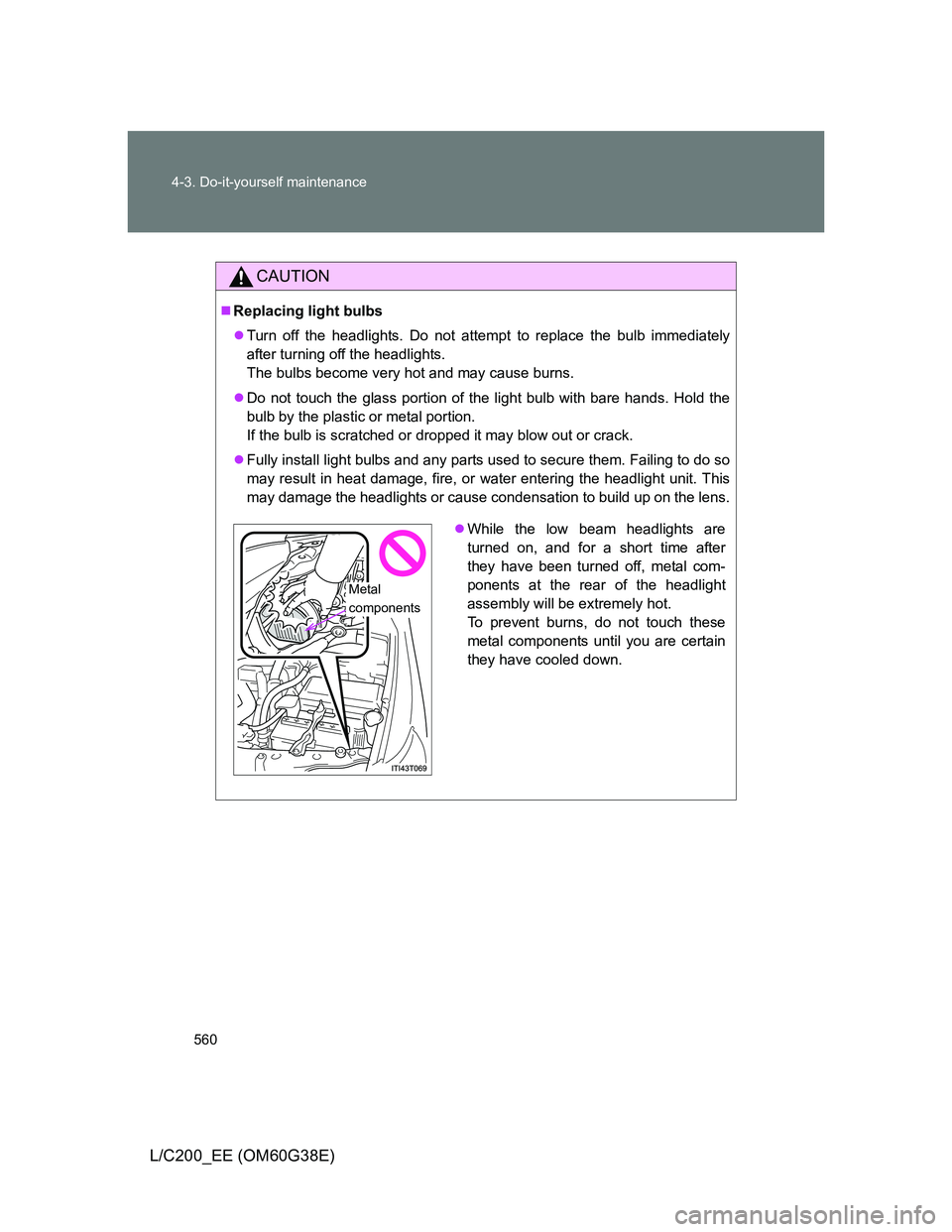

CAUTION
Replacing light bulbs
Turn off the headlights. Do not attempt to replace the bulb immediately
after turning off the headlights.
The bulbs become very hot and may cause burns.
Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
While the low beam headlights are
turned on, and for a short time after
they have been turned off, metal com-
ponents at the rear of the headlight
assembly will be extremely hot.
To prevent burns, do not touch these
metal components until you are certain
they have cooled down.
Metal
components
