1. REAR VIEW MONITOR SYSTEM
1. REAR VIEW MONITOR SYSTEM*
REAR VIEW MONITOR
SYSTEM
The rear view monitor system assists
the driver by displaying an image of the
view behind the vehicle while backing
up, for example while parking.
INFORMATION
●The screen illustrations used in this text
are intended as examples, and may dif-
fer from the image that is actually dis-
played on the screen.
DRIVING PRECAUTIONS
The rear view monitor system is a sup-
plemental device intended to assist the
driver when backing up. When backing
up, be sure to visually check all around
the vehicle both directly and using the
mirrors before proceeding. If you do
not, you may hit another vehicle, and
could possibly cause an accident.
Pay attention to the following precau-
tions when using the rear view monitor
system.
CAUTION
●Never depend on the rear view monitor
system entirely when backing up. The
image and the position of the guide lines
displayed on the screen may differ from
the actual state.
Use caution, just as you would when
backing up any vehicle.
● Be sure to back up slowly, depressing
the brake pedal to control vehicle speed.
● When parking, be sure to check that the
parking space will accommodate your
vehicle before maneuvering into it.
● In low temperatures, the screen may
darken or the image may become faint.
The image could distort when the vehi-
cle is moving, or you may become
unable to see the image on the screen.
Be sure to visually check all around the
vehicle both directly and using the mir-
rors before proceeding.
● The camera uses a special lens. The
distances between objects and pedestri-
ans that appear in the image displayed
on the screen will differ from the actual
distances.
*: If equipped

361
1. REAR VIEW MONITOR SYSTEM
L/C200_Navi_OM60M04U_(U)
14.05.28 15:38
10
PERIPHERAL MONITORING SYSTEM
Intuitive parking assist
If an obstacle is detected while the intuitive parking assist is on, a display is
shown in the top right corner of the screen.
When the shift lever is shifted to the “R” position and any mode button (such as
“MAP/VOICE” ) is pressed
The rear view monitor system is canceled , and the screen is switched to the mode
of the button that was pressed.
SCREEN DISPLAY
The rear view monitor system screen will be displayed if the shift lever is shifted to
the “R” position while the “ENGINE START STOP” switch is in IGNITION ON
mode.
CANCELING REAR VIEW MONITOR SYSTEM
The rear view monitor system is canceled when the shift lever is shifted into any
position other than the “R” position.

362
1. REAR VIEW MONITOR SYSTEM
L/C200_Navi_OM60M04U_(U)
14.05.28 15:38

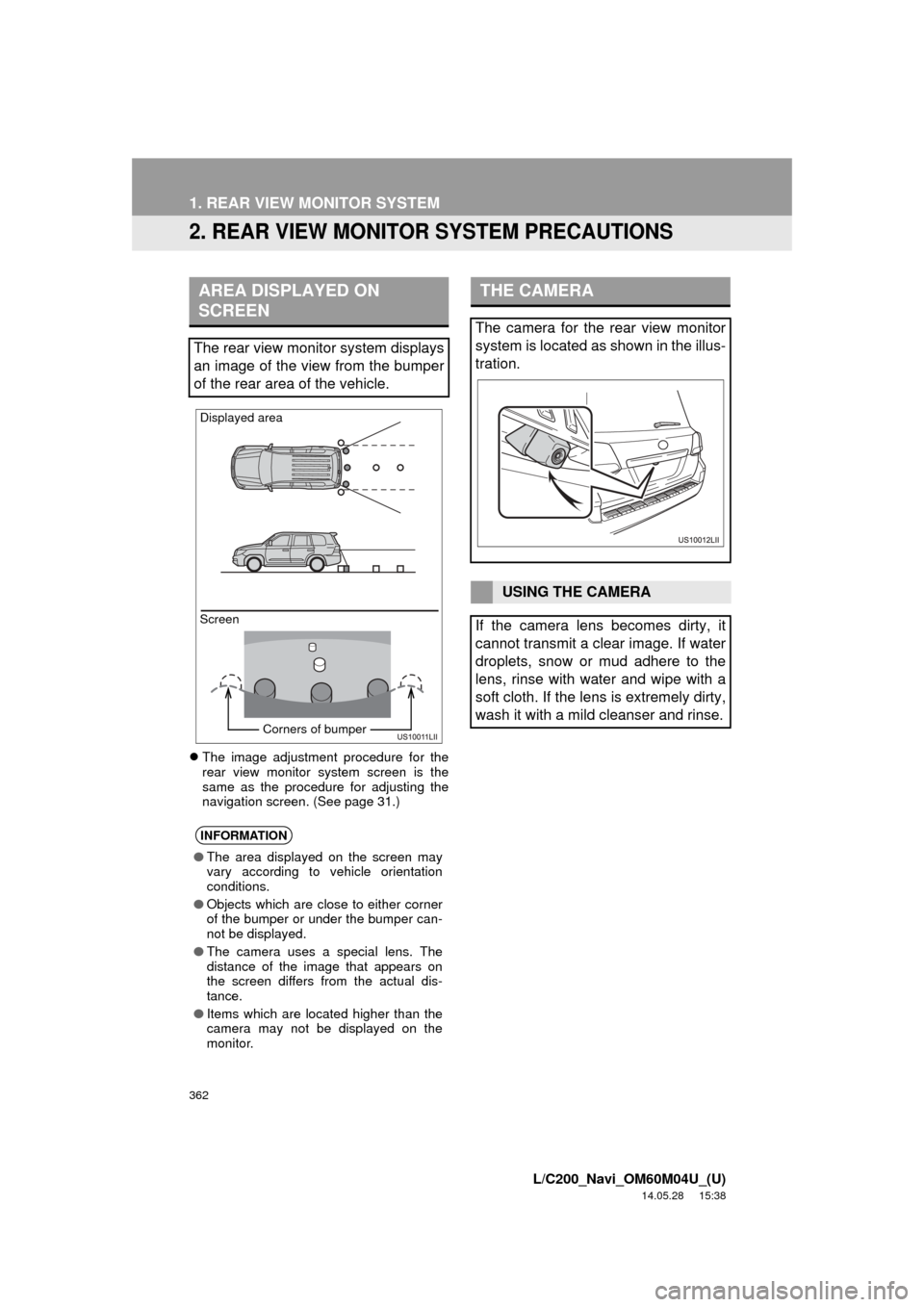

2. REAR VIEW MONITOR SYSTEM PRECAUTIONS
The image adjustment procedure for the
rear view monitor system screen is the
same as the procedure for adjusting the
navigation screen. (See page 31.)
AREA DISPLAYED ON
SCREEN
The rear view monitor system displays
an image of the view from the bumper
of the rear area of the vehicle.
INFORMATION
● The area displayed on the screen may
vary according to vehicle orientation
conditions.
● Objects which are close to either corner
of the bumper or under the bumper can-
not be displayed.
● The camera uses a special lens. The
distance of the image that appears on
the screen differs from the actual dis-
tance.
● Items which are located higher than the
camera may not be displayed on the
monitor.
Screen Displayed area
Corners of bumper
THE CAMERA
The camera for the rear view monitor
system is located as shown in the illus-
tration.
USING THE CAMERA
If the camera lens becomes dirty, it
cannot transmit a clear image. If water
droplets, snow or mud adhere to the
lens, rinse with water and wipe with a
soft cloth. If the lens is extremely dirty,
wash it with a mild cleanser and rinse.

365
10
L/C200_Navi_OM60M04U_(U)
14.05.28 15:38
PERIPHERAL MONITORING SYSTEM
2. TOYOTA PARKING ASSIST MONITOR
1. TOYOTA PARKING ASSIST MONITOR*
TOYOTA PARKING ASSIST
MONITOR
The parking assist monitor assists the
driver by displaying an image of the
view behind the vehicle while backing
up, for example while parking.
The parking assist monitor assists with
the following 2 backing-up operations:
(1) Perpendicular parking (parking in agarage, etc.)
(2) Parallel parking (parking at the side of the road, etc.)
INFORMATION
●The screen illustrations used in this text
are intended as examples, and may dif-
fer from the image that is actually dis-
played on the screen.
DRIVING PRECAUTIONS
The parking assist monitor is a supple-
mental device intended to assist the
driver when backing up. When backing
up, be sure to visually check all around
the vehicle both directly and using the
mirrors before proceeding. If you do
not, you may hit another vehicle, and
could possibly cause an accident.
Pay attention to the following precau-
tions when using the parking assist
monitor.
CAUTION
●Never depend on the parking assist
monitor entirely when backing up. The
image and the position of the guide lines
displayed on the screen may differ from
the actual state.
Use caution, just as you would when
backing up any vehicle.
● Be sure to back up slowly, depressing
the brake pedal to control vehicle speed.
● If you seem likely to hit nearby vehicles,
obstacles, people or mount the shoulder,
depress the brake pedal to stop the
vehicle, then disable the assist system
by
touching on the screen to can-
cel the system.
● The instructions given are only guide-
lines. When and how much to turn the
steering wheel will vary according to
traffic conditions, road surface condi-
tions, vehicle condition, etc. when park-
ing. It is necessary to be fully aware of
this before using the parking assist sys-
tem.
● When parking, be sure to check that the
parking space will accommodate your
vehicle before maneuvering into it.
*: If equipped

366
2. TOYOTA PARKING ASSIST MONITOR
L/C200_Navi_OM60M04U_(U)
14.05.28 15:38
CAUTION
●Do not use the parking assist monitor
system in the following cases:
• On icy or slick road surfaces, or in
snow
• When using tire chains
• When the back door is not closed com-
pletely
• On roads that are not flat or straight, such as curves or slopes.
● In low temperatures, the screen may
darken or the image may become faint.
The image could distort when the vehi-
cle is moving, or you may become
unable to see the image on the screen.
Be sure to visually check all around the
vehicle both directly and using the mir-
rors before proceeding.
● If the tire sizes are changed, the position
of the guide lines displayed on the
screen may change.
● The camera uses a special lens. The
distances between objects and pedestri-
ans that appear in the image displayed
on the screen will differ from the actual
distances. (See page 383.)

367
2. TOYOTA PARKING ASSIST MONITOR
10
PERIPHERAL MONITORING SYSTEM
L/C200_Navi_OM60M04U_(U)
14.05.28 15:38
The parking assist monitor displays the last-used parking mode first.
Perpendicular parking Parallel parking
 When the shift lever is shifted to the “R” position and any mode button (such as
“MAP/VOICE” ) is pressed
The parking assist monitor is canceled, and the screen is switched to the mode of
the button that was pressed.
SCREEN DISPLAY
The parking assist monitor screen will be displayed if the shift lever is shifted to the
“R” position while the “ENGINE START STOP” switch is in IGNITION ON mode.
No.DisplayFunction
Display mode switch screen but-
tonSwitches the display mode.
Parking mode switch screen but-
tonSwitches the parking mode (between perpendic-
ular parking and parallel parking assist screens)
Narrow mode screen on-off but-
tonSwitch the narrow mode on and off. (See page
370.)
Intuitive parking assist
If an obstacle is detected while the intuitive park-
ing assist is on, a display is shown in the top right
corner of the screen.
CANCELING TOYOTA PARKING ASSIST MONITOR
The parking assist monitor is canceled when the shift lever is shifted into any posi-
tion other than the “R” position.

368
2. TOYOTA PARKING ASSIST MONITOR
L/C200_Navi_OM60M04U_(U)
14.05.28 15:38
Estimated course line display mode
(See page 371.) 
Parking assist guide line display mode
(See page 373.)
 Distance guide line display mode

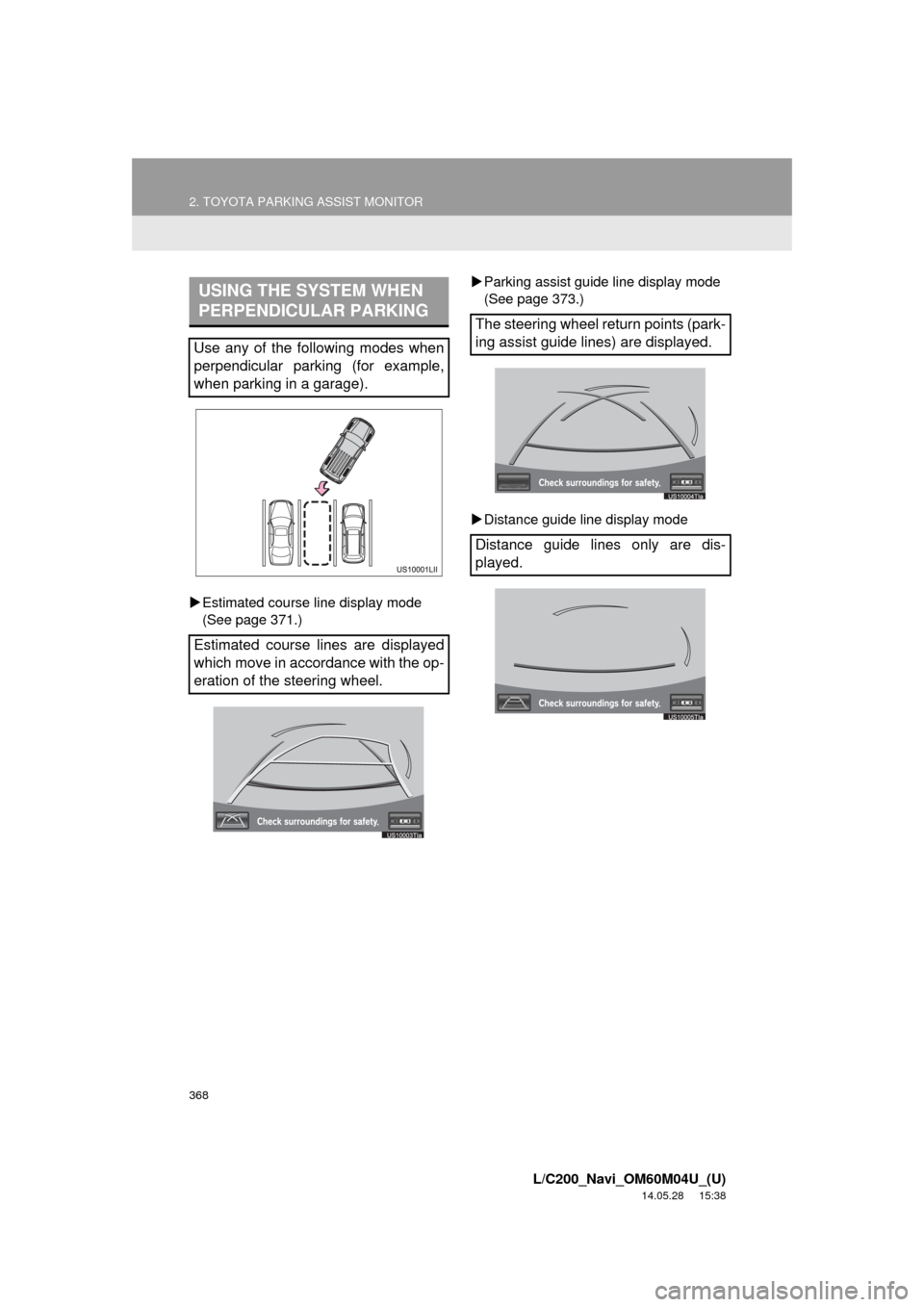

USING THE SYSTEM WHEN
PERPENDICULAR PARKING
Use any of the following modes when
perpendicular parking (for example,
when parking in a garage).
Estimated course lines are displayed
which move in accordance with the op-
eration of the steering wheel.
The steering wheel return points (park-
ing assist guide lines) are displayed.
Distance guide lines only are dis-
played.

369
2. TOYOTA PARKING ASSIST MONITOR
10
PERIPHERAL MONITORING SYSTEM
L/C200_Navi_OM60M04U_(U)
14.05.28 15:38

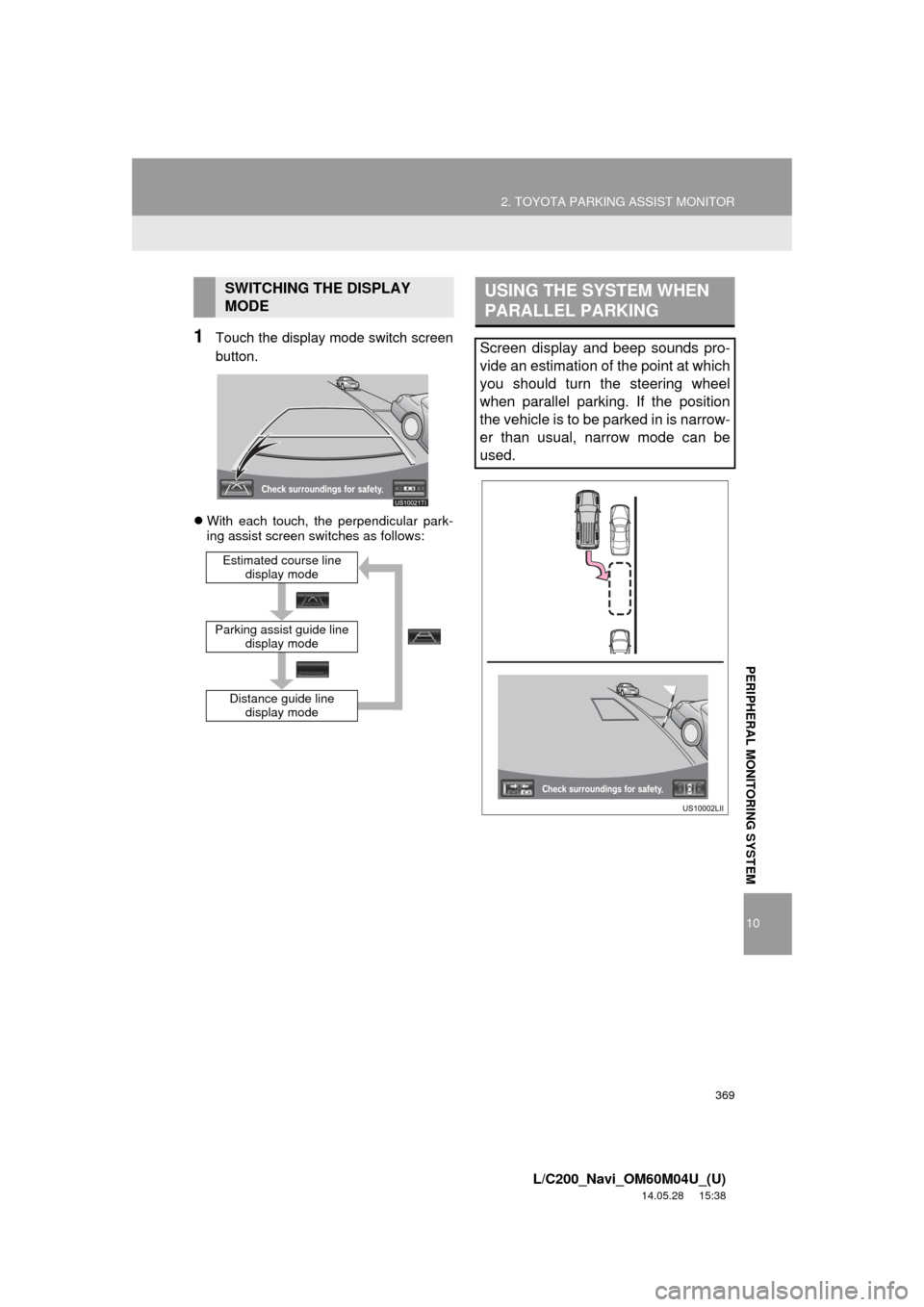

1Touch the display mode switch screen
button.
With each touch, the perpendicular park-
ing assist screen switches as follows:
SWITCHING THE DISPLAY
MODE
Distance guide line
display mode
Parking assist guide line display mode
Estimated course line display mode
USING THE SYSTEM WHEN
PARALLEL PARKING
Screen display and beep sounds pro-
vide an estimation of the point at which
you should turn the steering wheel
when parallel parking. If the position
the vehicle is to be parked in is narrow-
er than usual, narrow mode can be
used.

370
2. TOYOTA PARKING ASSIST MONITOR
L/C200_Navi_OM60M04U_(U)
14.05.28 15:38

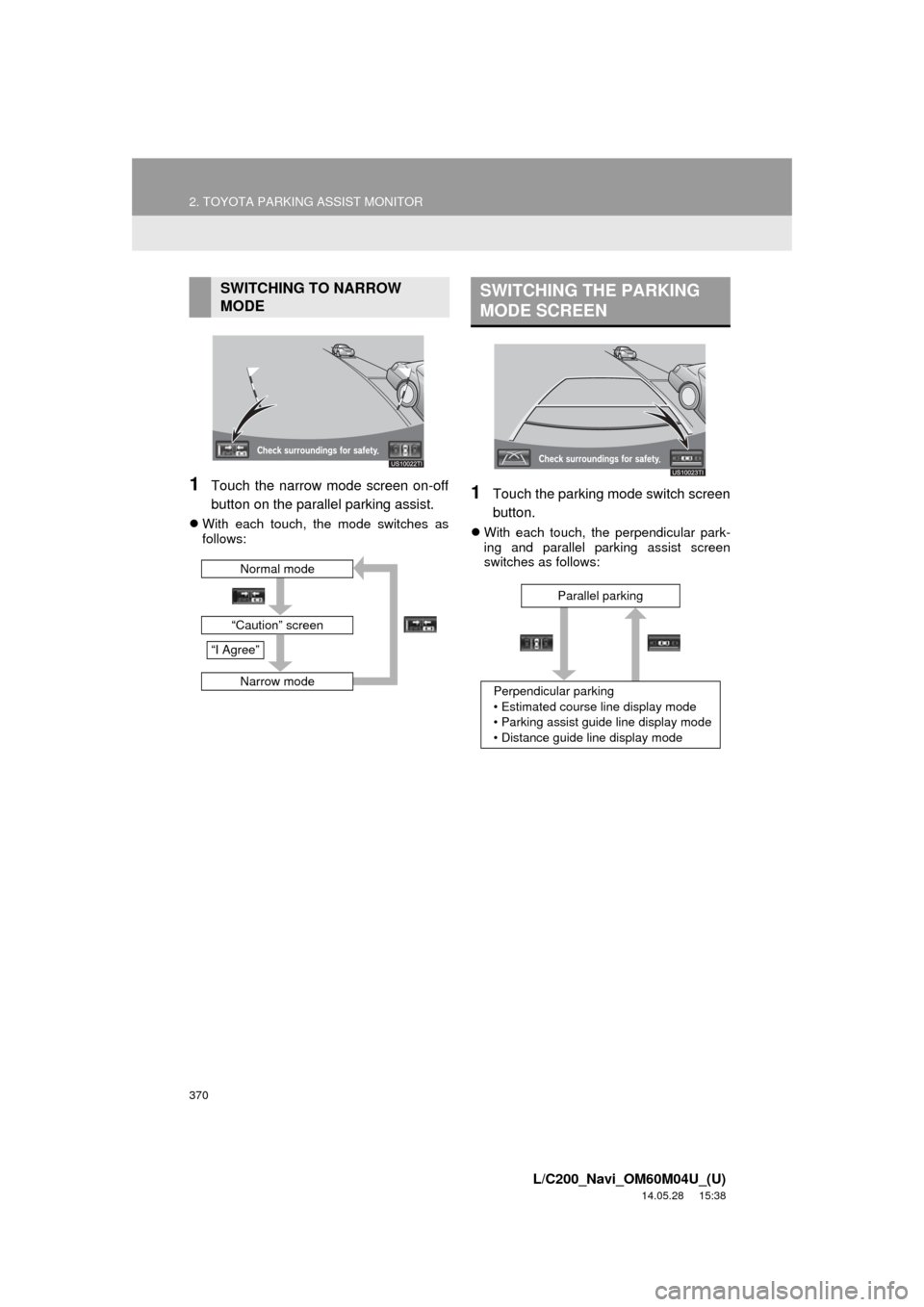

1Touch the narrow mode screen on-off
button on the parallel parking assist.
With each touch, the mode switches as
follows:
1Touch the parking mode switch screen
button.
 With each touch, the perpendicular park-
ing and parallel parking assist screen
switches as follows:
SWITCHING TO NARROW
MODE
“Caution” screen
Normal mode
Narrow mode
“I Agree”
SWITCHING THE PARKING
MODE SCREEN
Perpendicular parking
• Estimated course line display mode
• Parking assist guide line display mode
• Distance guide line display mode Parallel parking

371
2. TOYOTA PARKING ASSIST MONITOR
10
L/C200_Navi_OM60M04U_(U)
14.05.28 15:38
PERIPHERAL MONITORING SYSTEM

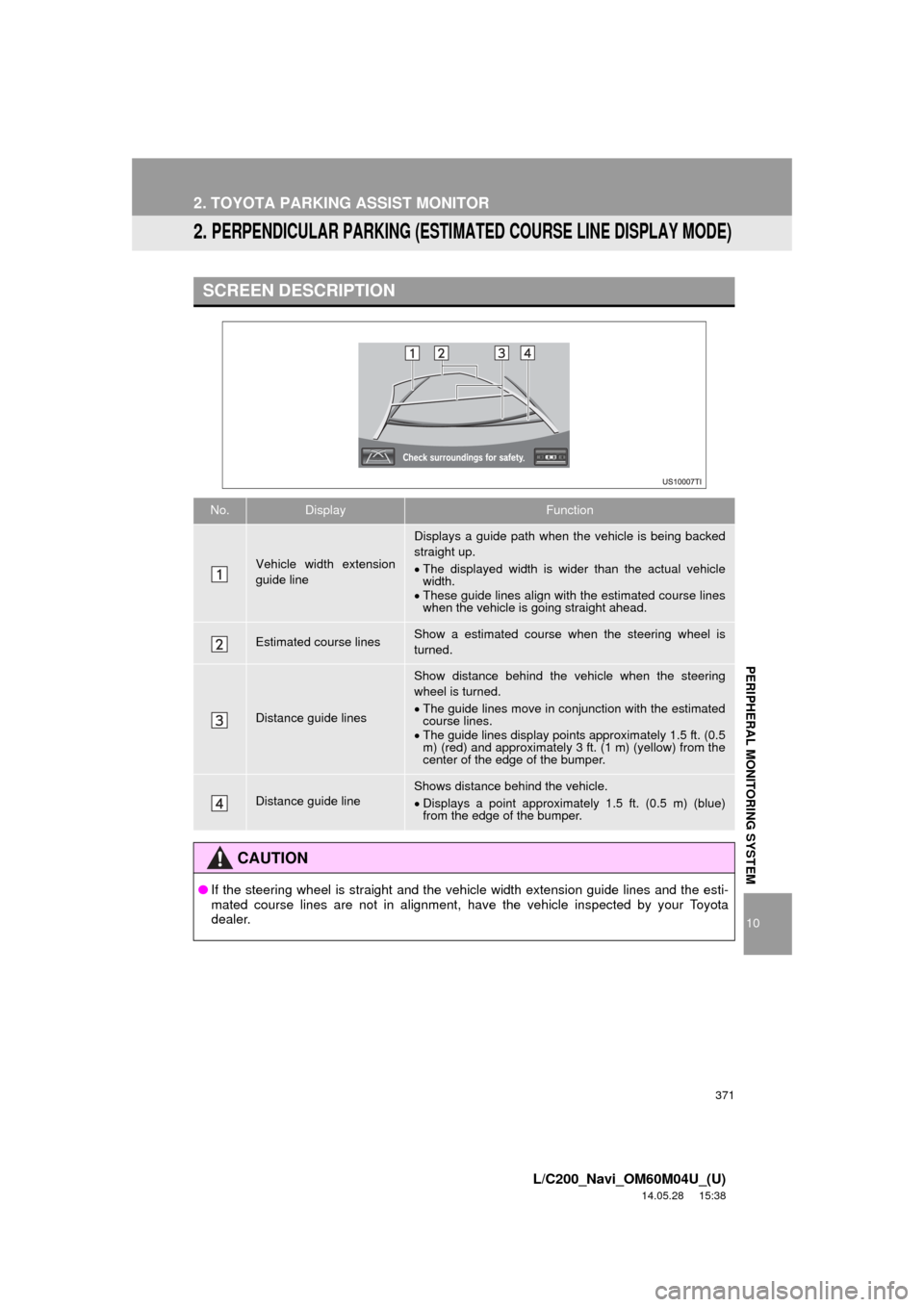

2. PERPENDICULAR PARKING (ESTIMATED COURSE LINE DISPLAY MODE)
SCREEN DESCRIPTION
No.DisplayFunction
Vehicle width extension
guide line
Displays a guide path when the vehicle is being backed
straight up.
 The displayed width is wider than the actual vehicle
width.
 These guide lines align with the estimated course lines
when the vehicle is going straight ahead.
Estimated course linesShow a estimated course when the steering wheel is
turned.
Distance guide lines
Show distance behind the vehicle when the steering
wheel is turned.
The guide lines move in conjunction with the estimated
course lines.
 The guide lines display points approximately 1.5 ft. (0.5
m) (red) and approximately 3 ft. (1 m) (yellow) from the
center of the edge of the bumper.
Distance guide lineShows distance behind the vehicle.
Displays a point approximately 1.5 ft. (0.5 m) (blue)
from the edge of the bumper.
CAUTION
● If the steering wheel is straight and the vehicle width extension guide lines and the esti-
mated course lines are not in alignment, have the vehicle inspected by your Toyota
dealer.
