Audio/visual system
4
1212. Radio operation
2Select “TYPE ” or “ TYPE” to
move forward and backward through
the program list.
 Once a program type has been set,
“TYPE SEEK” will appear on the screen.
 The program list is in the following order:
• “Classical”
• “Country”
• “EasyLis” (Easy Listening)
• “Inform” (Information)
• “Jazz”
• “News”
• “Oldies”
•“Other”
•“Pop Music”
•“Religion”
• “Rock”
• “R&B” (Rhythm and Blues)
•“Sports”
•“Talk”
• “Traffic” (Not available when “HD Radio” indicator is off.)
• “Alert” (Emergency Alert)
3Select “TYPE SEEK” and the system
will start to seek for stations in the rele-
vant program type.
1Select “Options”.
2Select “Traffic” to seek a traffic pro-
gram station. “TRAF SEEK” will appear
on the screen.
INFORMATION
● If no relevant program can be found, “no
type” will appear on the screen.
Traffic announcem ent (FM radio)
A station that regularly broadcasts traf-
fic information is automatically located.
INFORMATION
● If no traffic program station is found, “No
Traffic” will appear on the screen.
● If a traffic program station is found, the
name of the traffic program station will
be displayed for a while.

LC200_Navi_OM60R15U_(U)
18.06.06 10:09
1222. Radio operation
Using HD Radio™
technology
HD Radio ™
Technology is the digital evolution of analog AM/FM radio. You r radio
product has a special receiver which allows it to receive digit al broadcasts (where
available) in addition to the analog broadcasts it already receives. Digital broadcasts
have better sound quality than analog broadcasts as digital broadcasts provide free,
crystal clear audio with no static or distortion. For more info rmation, and a guide to
available radio stations and pr ogramming, refer to www.hdradio. com
.
HD Radio features included in Toyota radios:
 Digital Sound  HD Radio broadcasts deliver crystal-clear, digital audio quality to listen-
ers.
 HD2/HD3 Channels  FM stations can provide additional digital only audio programm ing
with expanded content and format choices on HD2/HD3 channels.
 PSD  Program Service Data (PSD) gives you on-screen information suc h as artist
name and song title.
 iTunes Tagging  Listeners can tag (store) songs they like for later review and purchase
through iTunes.
 Artist Experience  Images related to the broadcast are displayed on the radio screen,
such as album cover art and station logos.

LC200_Navi_OM60R15U_(U)
18.06.06 10:09
Audio/visual system
4
1232. Radio operation
1Select the “HD)” logo.
2Select the desired channel.
Turning the “TUNE·SCROLL” knob can
also select the desired multicast channel.
1Select “Tag” to bookmark the music
information.
2Connect an iPod. ( P.113)
 Turn on the power of the iPod if it is not
turned on.
 Once an iPod is connected, the music tag
moves from the radio into the iPod.
 When the iPod is connected to iTunes, the
“tagged” information of the songs which
were tagged while listening to the radio
can be viewed. Then a user may decide to
purchase the song or CD/Album which
had been listened to on their radio.
Available HD Radio ™
technology
Multicast
On the FM radio frequency most digital
stations have “multiple” or supplemen-
tal programs on one FM station.
Preserving a music information
Tag information in the music broad-
casting is preserved in the system and
transmits to an iPod.
INFORMATION
● The tag information can not be pre-
served while scanning or caching the
radio station.
● If tagging the music information fails,
“Saving the HD Radio tag failed.” will be
displayed on the screen. If this occurs,
tag the information again.
● HD Radio™ stations can be preset.
● An orange “HD)” logo indicator will be
displayed on the screen when in digital.
The “HD)” logo will first appear in a gray
color indicating the station is indeed (an
analog and) a digital station. Once the
digital signal is acquired, the logo will
change to a bright orange color.
● The song title, artist name and music
genre will appear on the screen when
available by the radio station. In addi-
tion, radios stations may send album
cover pictures when available.
● As a user works through the analog
radio stations, (where applicable) the
radio receiver will automatically tune
from an analog signal to a digital signal
within 5 seconds.

LC200_Navi_OM60R15U_(U)
18.06.06 10:09
1242. Radio operation

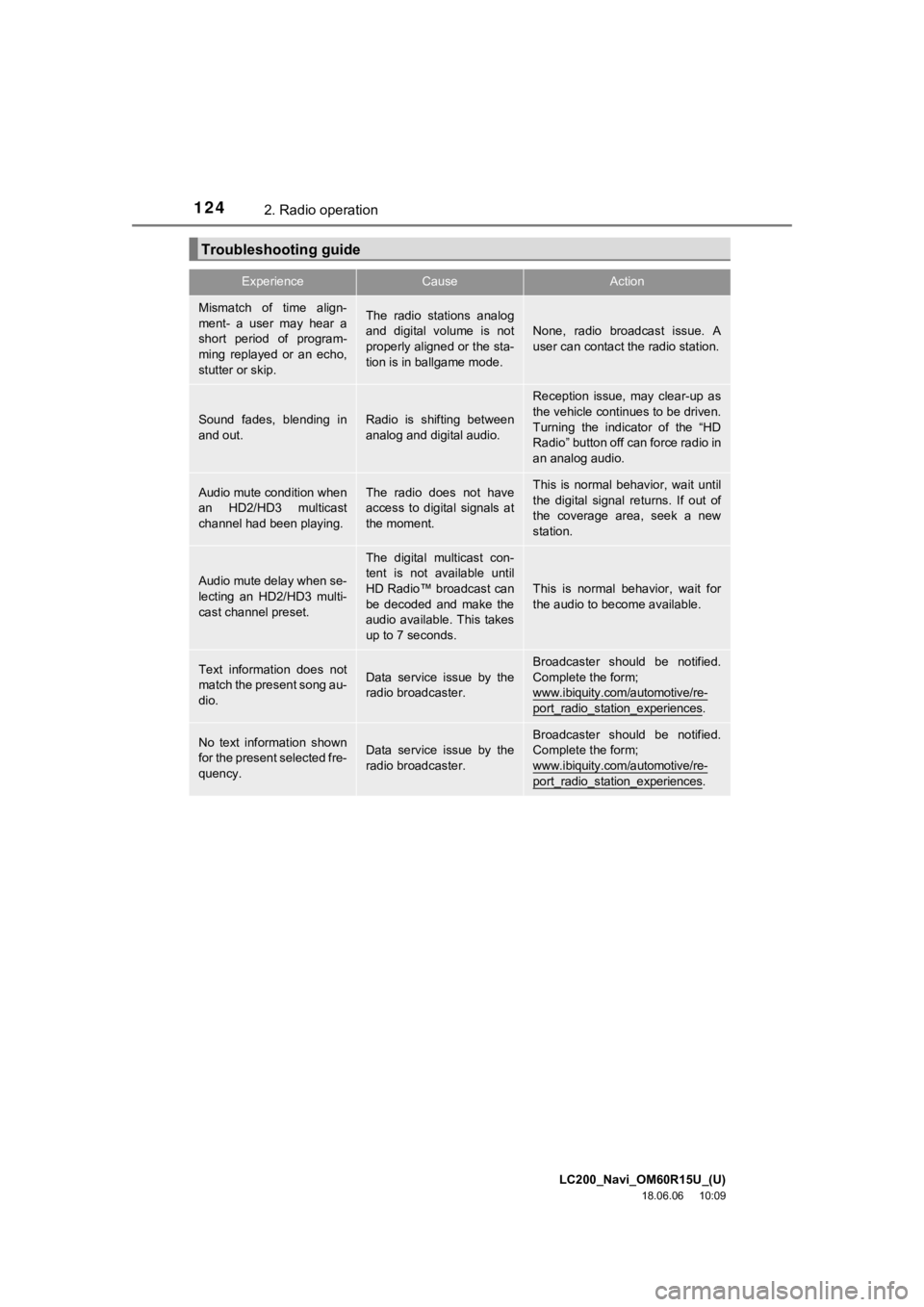

Troubleshooting guide
ExperienceCauseAction
Mismatch of time align-
ment- a user may hear a
short period of program-
ming replayed or an echo,
stutter or skip.The radio stations analog
and digital volume is not
properly aligned or the sta-
tion is in ballgame mode.
None, radio broadcast issue. A
user can contact the radio station.
Sound fades, blending in
and out.Radio is shifting between
analog and digital audio.
Reception issue, may clear-up as
the vehicle continues to be driven.
Turning the indicator of the “HD
Radio” button off can force radio in
an analog audio.
Audio mute condition when
an HD2/HD3 multicast
channel had been playing.The radio does not have
access to digital signals at
the moment.This is normal behavior, wait until
the digital signal returns. If out of
the coverage area, seek a new
station.
Audio mute delay when se-
lecting an HD2/HD3 multi-
cast channel preset.
The digital multicast con-
tent is not available until
HD Radio™ broadcast can
be decoded and make the
audio available. This takes
up to 7 seconds.
This is normal behavior, wait for
the audio to become available.
Text information does not
match the present song au-
dio.Data service issue by the
radio broadcaster.
Broadcaster should be notified.
Complete the form;
www.ibiquity.com/automotive/re-
port_radio_station_experiences.
No text information shown
for the present selected fre-
quency.Data service issue by the
radio broadcaster.Broadcaster should be notified.
Complete the form;
www.ibiquity.com/automotive/re-
port_radio_station_experiences.

LC200_Navi_OM60R15U_(U)
18.06.06 10:09
Audio/visual system
4
1252. Radio operation
■Control screen
■Control panel

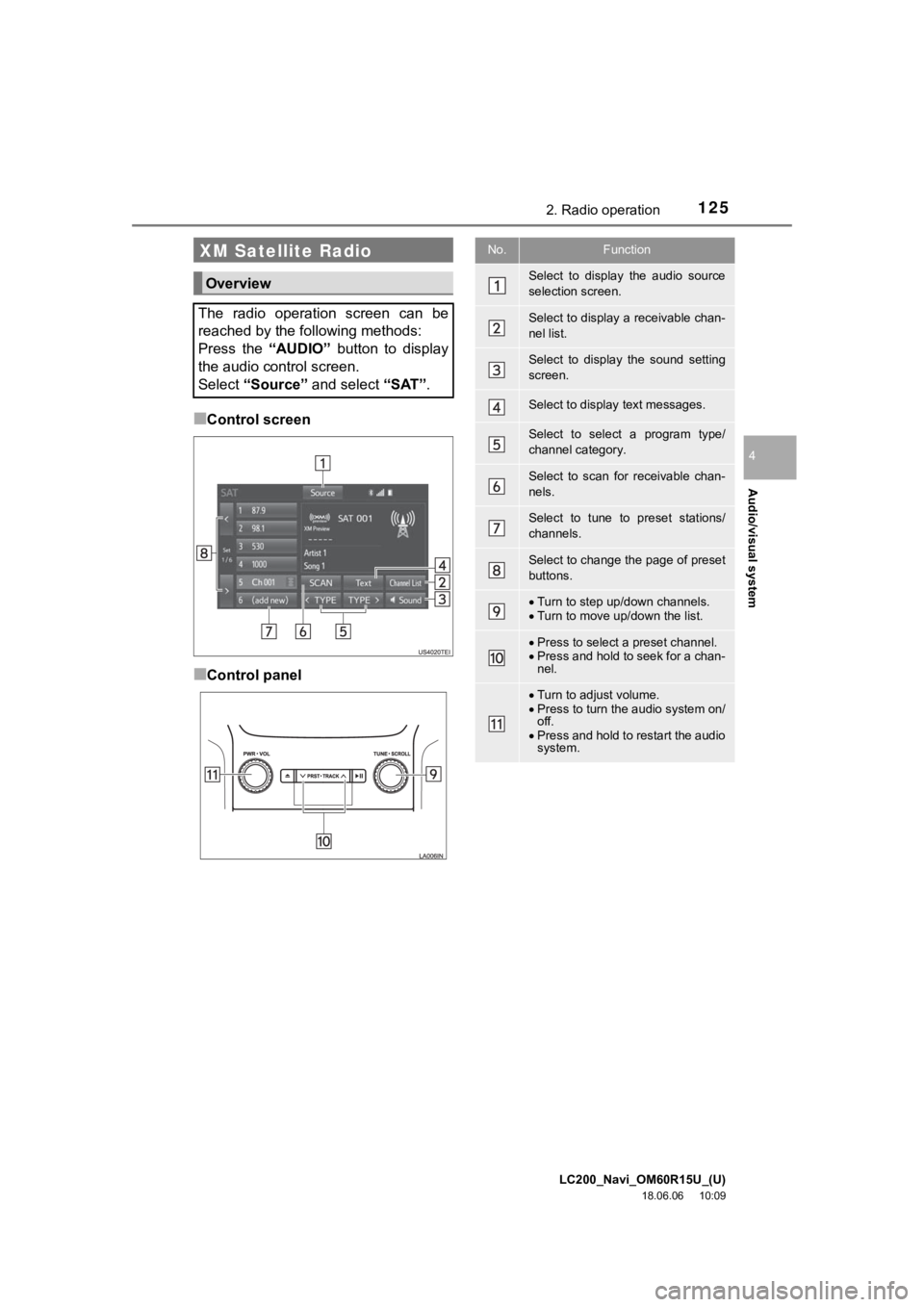

XM Satellite Radio
Overview
The radio operation screen can be
reached by the following methods:
Press the “AUDIO” button to display
the audio control screen.
Select “Source” and select “SAT” .
No.Function
Select to display the audio source
selection screen.
Select to display a receivable chan-
nel list.
Select to display the sound setting
screen.
Select to display text messages.
Select to select a program type/
channel category.
Select to scan for receivable chan-
nels.
Select to tune to preset stations/
channels.
Select to change the page of preset
buttons.
Turn to step up/down channels.
 Turn to move up/down the list.
Press to select a preset channel.
 Press and hold to seek for a chan-
nel.
Turn to adjust volume.
 Press to turn the audio system on/
off.
 Press and hold to restart the audio
system.

LC200_Navi_OM60R15U_(U)
18.06.06 10:09
1262. Radio operation
How to subscribe to SiriusXM radio
services
All SiriusXM services, including satel-
lite radio and data services, plus
streaming services, require a subscrip-
tion, sold separately or as a package
by Sirius XM Radio Inc. (U.S.A.) or Sir-
ius XM Canada Inc. (Canada), after
any trial subscription which may be in-
cluded with your vehicle purchase or
lease. To subscribe after your trial sub-
scription, call 1-877-447-0011 (U.S.A.)
or 1-877-438-9677 (Canada).Important information about
your subscription
Your SiriusXM services will automati-
cally stop at the end of your trial unless
you decide to subscribe. If you decide
to continue service, the paid subscrip-
tion plan you choose will automatically
renew and you will be charged the rate
in effect at that time and according to
your chosen payment method. Fees
and taxes apply. You may cancel at
any time by calling 1-866-635-2349.
See SiriusXM Customer Agreement
for complete terms at
www.siriusxm.com
(U.S.A.) or
www.siriusxm.ca
(Canada). All fees
and programming subject to change.
Traffic information not available in all
markets.

LC200_Navi_OM60R15U_(U)
18.06.06 10:09
Audio/visual system
4
1272. Radio operation
NOTICE
●It is prohibited to copy, decompile, disas-
semble, reverse engineer, hack, manip-
ulate, or otherwise make available any
technology or software incorporated in
receivers compatible with the SiriusXM
Satellite Radio System or that support
the SiriusXM website, the streaming ser-
vice or any of its content. Furthermore,
the AMBE
® voice compression software
included in this product is protected by
intellectual property rights including pat-
ent rights, copyrights, and trade secrets
of Digital Voice Systems, Inc.
● Note: this applies to SiriusXM Satellite
Radio receivers only and not SiriusXM
Ready devices.
INFORMATION
●About SiriusXM Services:
Most in-car trials today include Siri-
usXM’s best package — All Access. It
includes every channel available on your
radio, plus streaming.
● SiriusXM All Access subscription:
Listen everywhere with All Access. You
get every channel available in your ride,
plus you can listen on the app and
online — so you can enjoy the best Siri-
usXM has to offer, anywhere life takes
you. It’s the only package that gives you
all of our premium programming, includ-
ing Howard Stern, every NFL, MLB
® and
NBA game, every NASCAR® race,
NHL® games, 24/7 talk channels dedi-
cated to the biggest leagues, and more.
You get all kinds of commercial-free
music, including artistdedicated chan-
nels and more, plus sports, news, talk
and entertainment.
● SiriusXM radio operation:
Look for the Sirius, XM, SiriusXM, Band,
SAT, AUX, Radio or Source button and
you’re in.
If you can’t hear us, it’s easy to get
started:
U.S.A.
• Locate your Radio ID by turning to
Channel 0. If you don’t see your num-
ber there, go to siriusxm.com/
activationhelp to find it.
• Visit siriusxm.com/refresh or call
1-855-MYREFRESH (697-3373) to
send a refresh signal to your radio.

LC200_Navi_OM60R15U_(U)
18.06.06 10:09
1282. Radio operation
If “Ch 000” is selected using the
“TUNE·SCROLL” knob, the ID code,
which is 8 alphanumeric characters, will
be displayed. If another channel is
selected, the ID code will no longer be dis-
played. The channel (000) alternates
between displaying the radio ID and the
specific radio code.
1Tune in the desired channel.
2Select “(add new)” .
To change the preset channel to a differ-
ent one, select and hold the preset station/
channel.
3Select “Yes” on the confirmation
screen.
4Select “OK” after setting the new pre-
set channel.
INFORMATION
 Canada
• Locate your Radio ID by turning to
Channel 0.
• Visit siriusxm.ca/refresh
to send a
refresh signal to your radio or call
1-888-539-7474 for service.
Displaying the radio ID
Each XM tuner is identified with a
unique radio ID. The radio ID is re-
quired when activating an XM service
or when reporting a problem.
Presetting a channel

LC200_Navi_OM60R15U_(U)
18.06.06 10:09
Audio/visual system
4
1292. Radio operation
1Select “Channel List” .
2Select the desired program type.
3Select the desired channel and select
“OK”.
Selecting a channel from the list

LC200_Navi_OM60R15U_(U)
18.06.06 10:09
1302. Radio operation

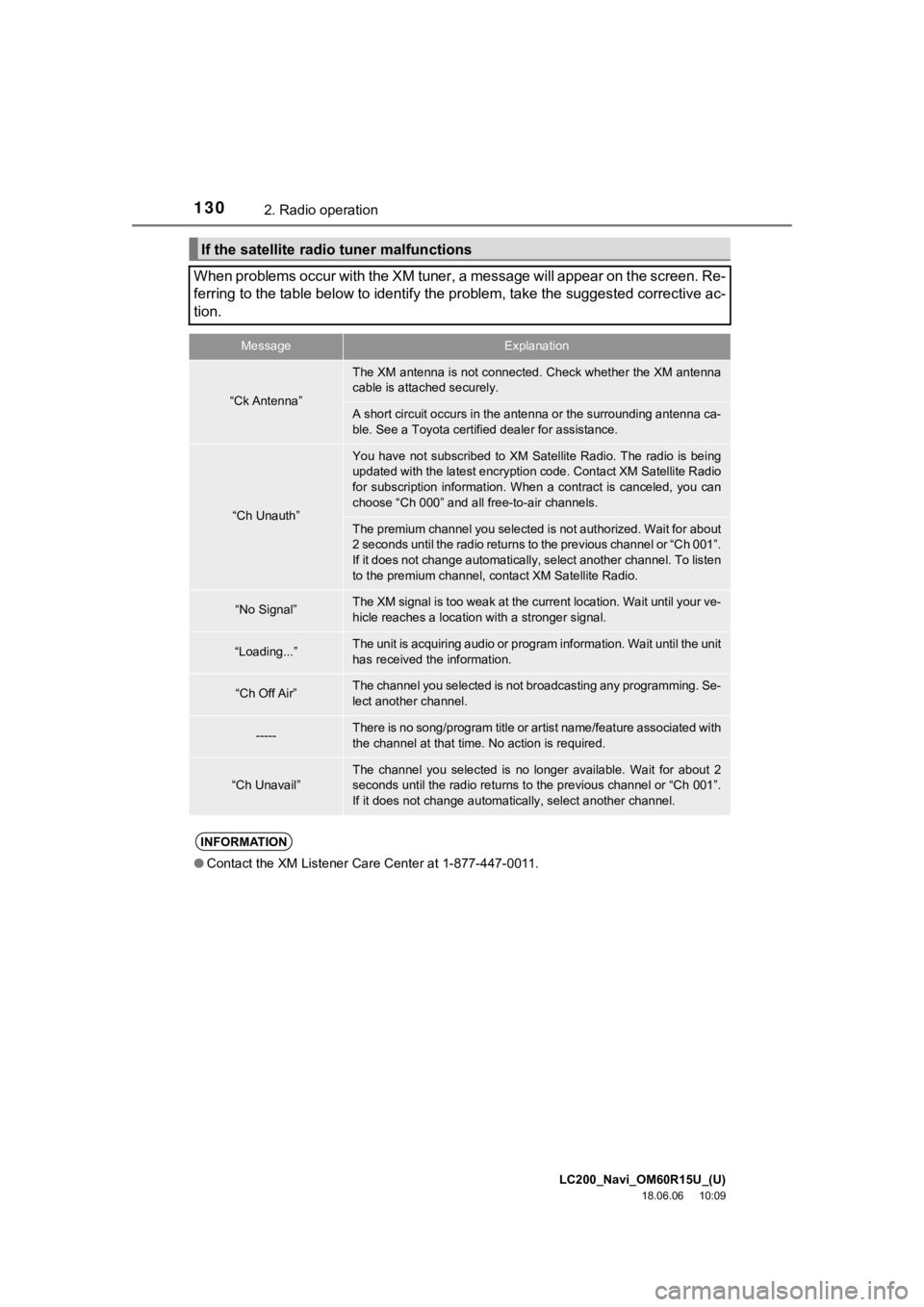

If the satellite radio tuner malfunctions
When problems occur with the XM tuner, a message will appear on the screen. Re-
ferring to the table below to identify the problem, take the suggested corrective ac-
tion.
MessageExplanation
“Ck Antenna”
The XM antenna is not connected. Check whether the XM antenna
cable is attached securely.
A short circuit occurs in the antenna or the surrounding antenn a ca-
ble. See a Toyota certified dealer for assistance.
“Ch Unauth”
You have not subscribed to XM Satellite Radio. The radio is bei ng
updated with the latest encryption code. Contact XM Satellite R adio
for subscription information. When a contract is canceled, you can
choose “Ch 000” and all free-to-air channels.
The premium channel you selected is not authorized. Wait for ab out
2 seconds until the radio returns to the previous channel or “C h 001”.
If it does not change automatically, select another channel. To listen
to the premium channel, contact XM Satellite Radio.
“No Signal”The XM signal is too weak at the current location. Wait until y our ve-
hicle reaches a location with a stronger signal.
“Loading...”The unit is acquiring audio or program information. Wait until the unit
has received the information.
“Ch Off Air”The channel you selected is not b roadcasting any programming. Se-
lect another channel.
-----There is no song/program title or artist name/feature associate d with
the channel at that time. No action is required.
“Ch Unavail”The channel you selected is no longer available. Wait for about 2
seconds until the radio returns to the previous channel or “Ch 001”.
If it does not change automatic ally, select another channel.
INFORMATION
●Contact the XM Listener Care Center at 1-877-447-0011.
