TOYOTA MATRIX 2010 E140 / 2.G Owners Manual

251
3-6. Other interior features
3
Interior features
Vanity mirrors
Slide the cover.

252
3-6. Other interior features
Clock
■The clock is displayed when
The engine switch is in the “ACC” or “ON” position.
Adjusts the hour.
Adjusts the minutes.
Rounds to the nearest
hour.*
*: e.g. 1:00 to 1:29  1:00
1:30 to 1:59  2:00

253
3-6. Other interior features
3
Interior features
Ashtrays
CAUTION
■When not in use
Keep the ashtray closed.
Injuries may result in the event of an sudden braking, sudden swerving or an
accident.
■To prevent fire
●Fully extinguish matches and cigarettes before putting them in the ashtray,
then make sure the ashtray is fully closed.
●Do not place paper or any other type of flammable object in the ashtray.
An ashtray can be installed in
a cup holder.
: If equipped

254
3-6. Other interior features
Cigarette lighter
■The cigarette lighter can be used when
The engine switch is in the “ACC” or “ON” position.
CAUTION
■To avoid burns or fires
●Do not touch the metal parts of the cigarette lighter.
●Do not hold the cigarette lighter down. It could overheat and cause a fire.
●Do not insert anything other than the cigarette lighter into the outlet.
Push the cigarette lighter
down.
The cigarette lighter will pop up
when it is ready for use.
: If equipped

255
3-6. Other interior features
3
Interior features
Power outlet
■The power outlet can be used when
12 V
The engine switch is in the “ACC” or “ON” position.
115 V
The engine switch is in the “ON” position.
The power outlet can be used for a following component.
12 V: Accessories that run on less than 10 A.
115 V: Accessories that uses less than 100 W.
Type A (12 V)
Type B (115 V)
Main switch
To use the power outlet,
turn on the main switch.
Power outlet socket
: If equipped

256 3-6. Other interior features
NOTICE
■To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
■To prevent the fuse from being blown
12 V
Do not use an accessory that uses more than 12 V 10 A.
115 V
Do not use a 115 V appliance that requires more than 100 W.
If a 115 V appliance that consumes more than 100 W is used, the protection
circuit will cut the power supply.
■To prevent the battery from being discharged
Do not use the power outlet longer than necessary when the engine is off.
■Appliances that may not operate properly (115 V)
The following 115 V appliances may not operate properly even if their power
consumption is under 100 W.
●Appliances with high initial peak wattage
●Measuring devices that process precise data
●Other appliances that require an extremely stable power supply

257
3-6. Other interior features
3
Interior features

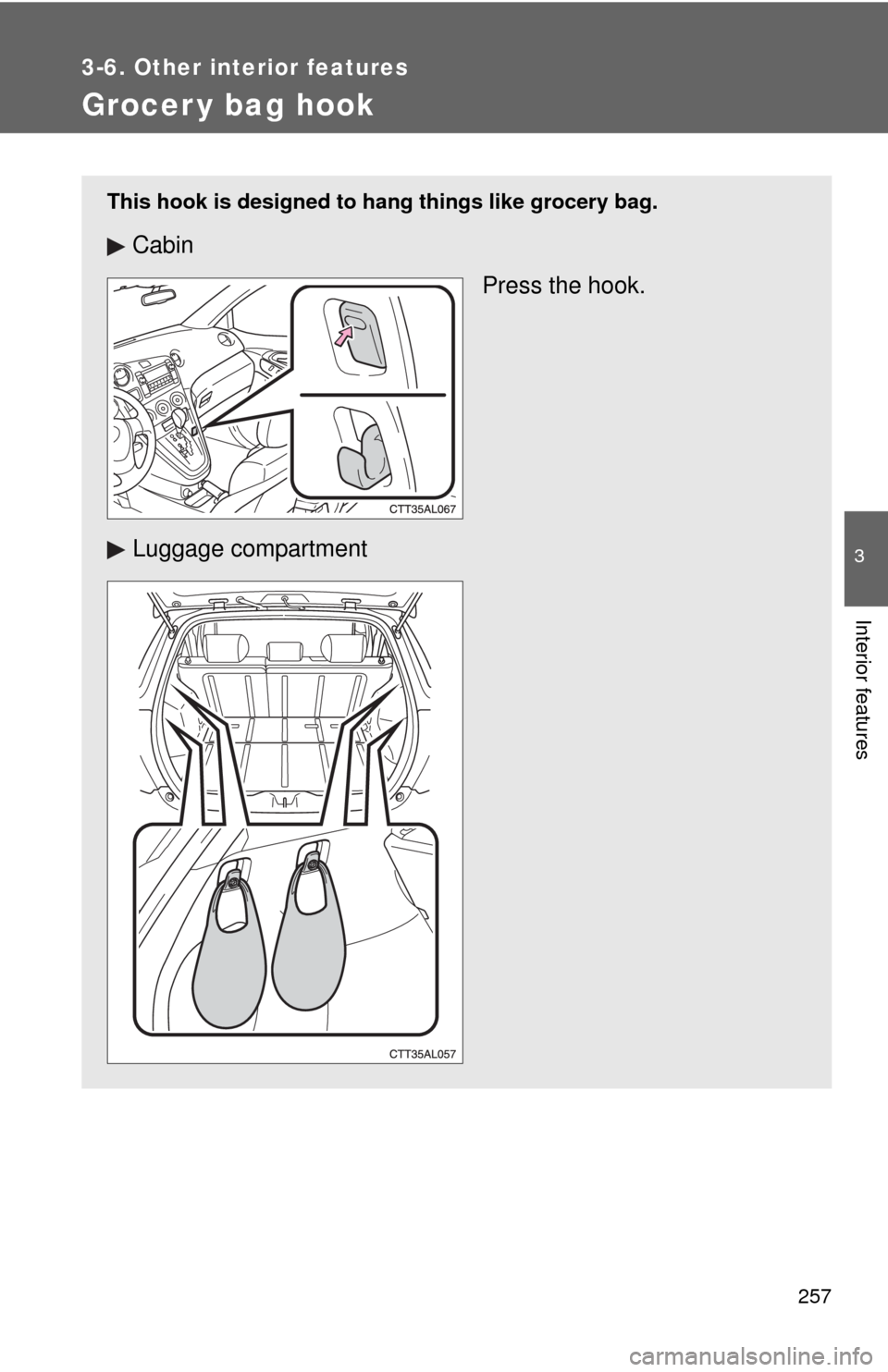

Grocer y bag hook
This hook is designed to hang things like grocery bag.
Cabin
Press the hook.
Luggage compartment

258 3-6. Other interior features
NOTICE
■Grocery bag hook weight capacity
Cabin
Do not hang any object heavier than 44 lb. (20 kg) on the grocery bag hook.
Luggage compartment
Do not hang any object heavier than 7 lb. (3 kg) on the grocery bag hooks.

259
3-6. Other interior features
3
Interior features
Seatback table
CAUTION
■Caution while driving
Observe the following precautions to avoid death or serious injury.
●Do not set up the seatback table.
●Do not sit on or place anything on the seatback table.
NOTICE
■To prevent damage to the seatback table
Do not put heavy loads on the table.
Front passenger's seatback can be used as a temporary table only
when the vehicle is stopped.
Fold down the front passen-
ger's seat to use the seatback
table. (P. 37)
: If equipped

260
3-6. Other interior features
Floor mat
CAUTION
■When inserting the floor mat
Observe the following precautions.
Failure to do so may result in the floor mat slipping and interfering with the
movement of the pedals during driving, resulting in an accident.
●Make sure the floor mat is properly placed on the vehicle carpet and the
correct side faces upward.
●Do not place floor mats on top of existing mats.
Securely place a mat that matches the size of the space on the car-
pet.
Secure the driver's floor mat
using the hooks provided.
