TOYOTA MATRIX 2010 E140 / 2.G Owners Manual

261
3-6. Other interior features
3
Interior features

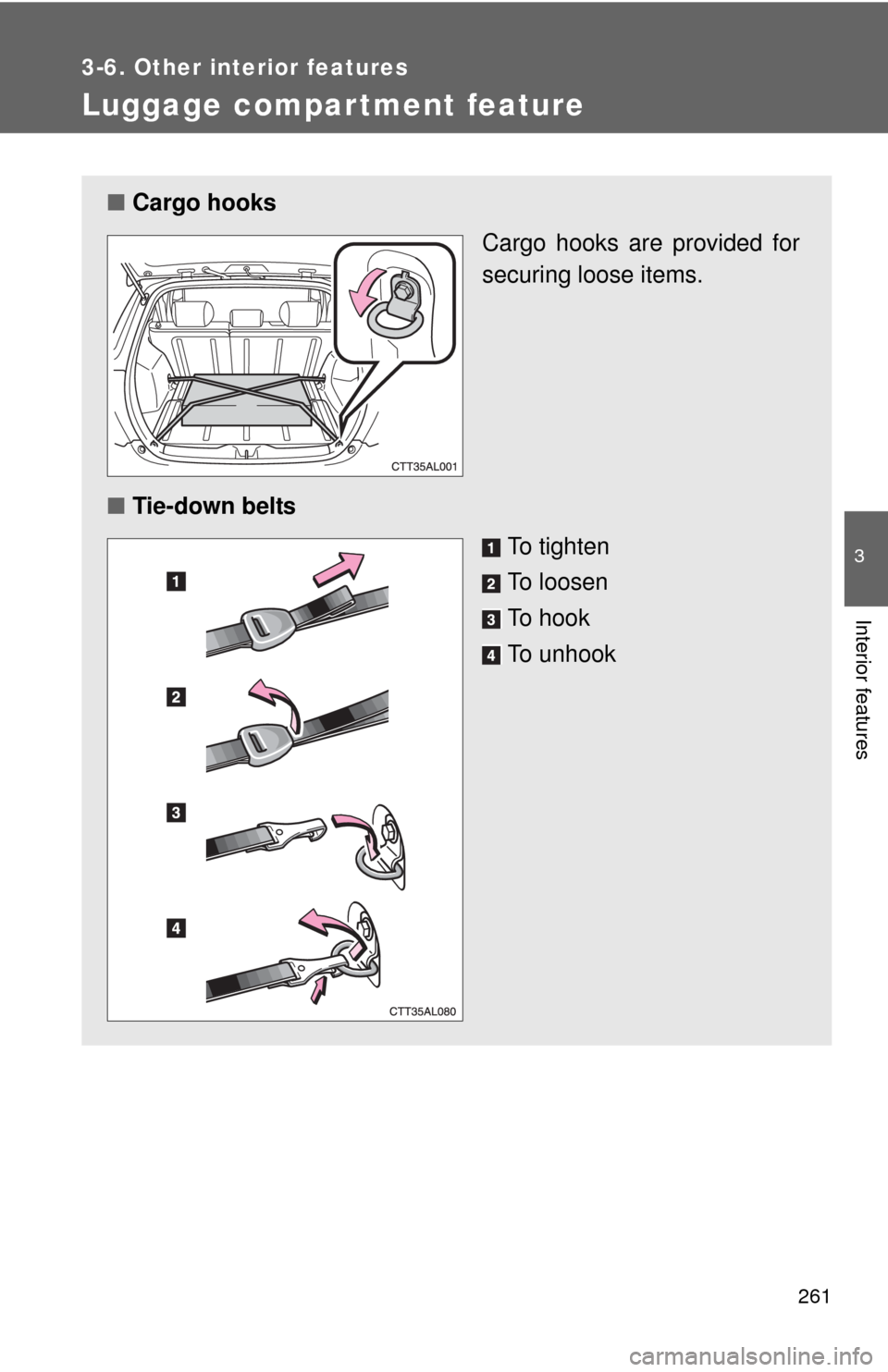

Luggage compar tment feature
■Cargo hooks
Cargo hooks are provided for
securing loose items.
■Tie-down belts
To tighten
To loosen
To hook
To unhook

262 3-6. Other interior features

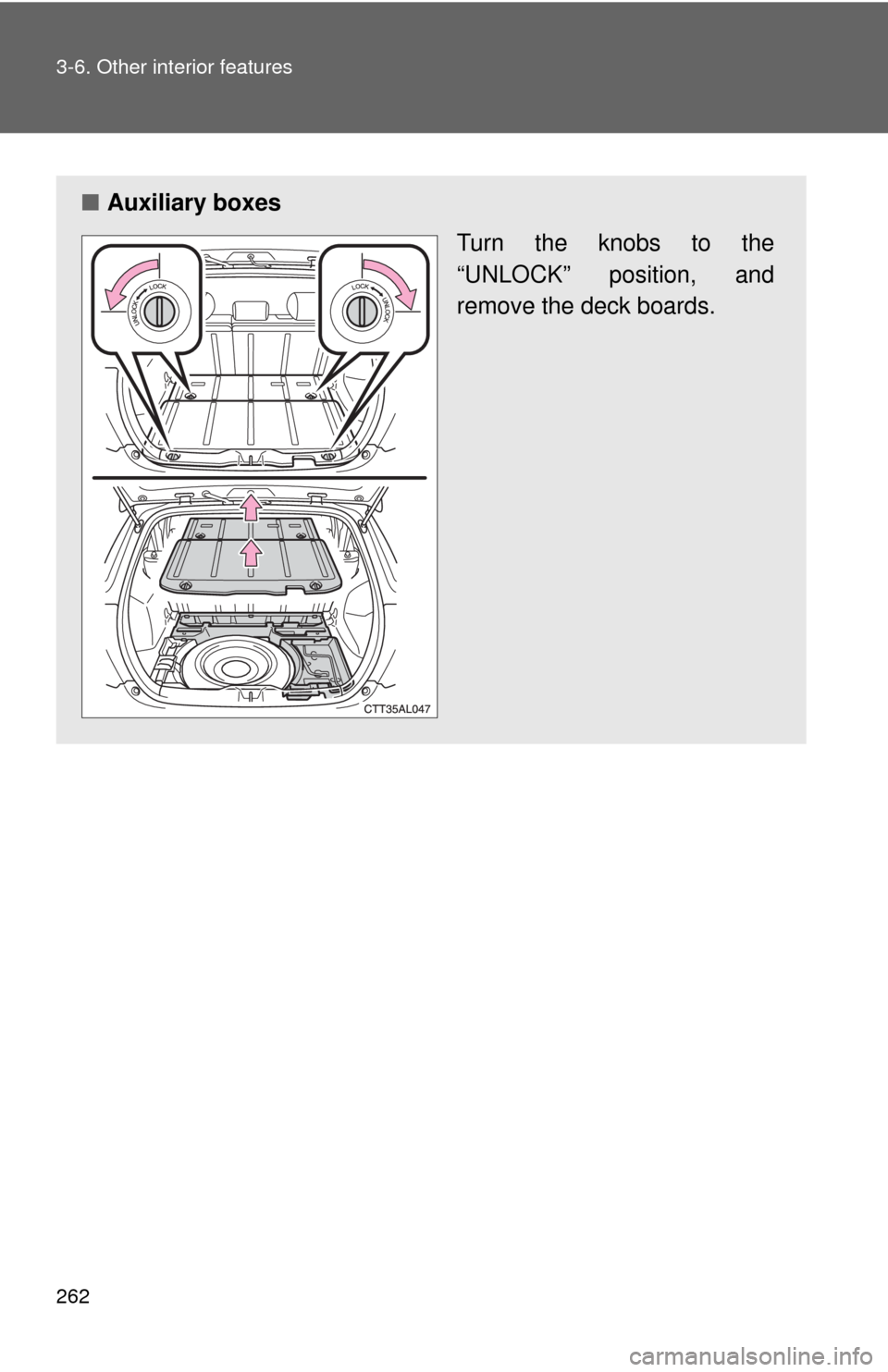

■Auxiliary boxes
Turn the knobs to the
“UNLOCK” position, and
remove the deck boards.

263 3-6. Other interior features
3
Interior features

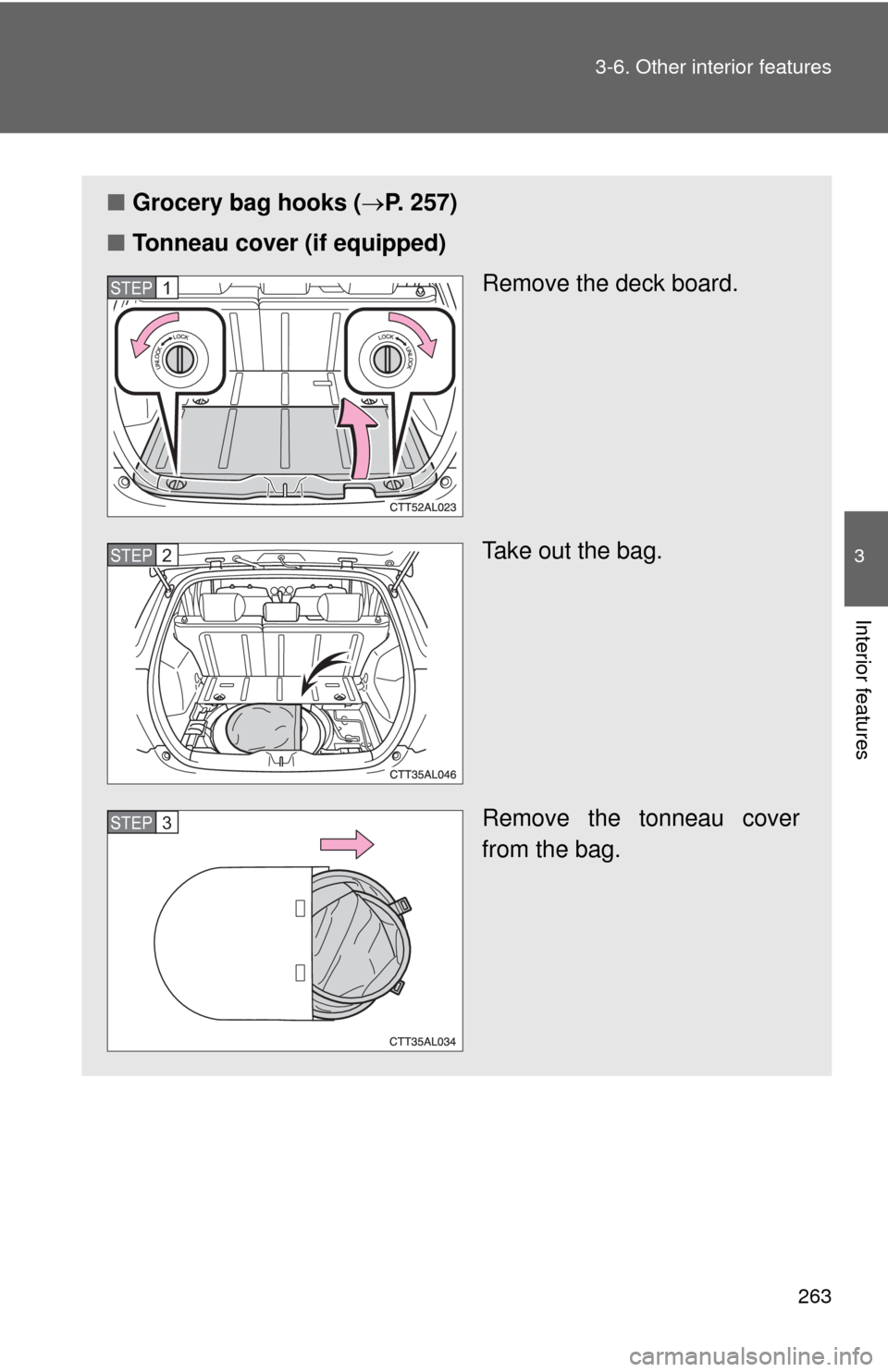

■Grocery bag hooks (P. 257)
■Tonneau cover (if equipped)
Remove the deck board.
Take out the bag.
Remove the tonneau cover
from the bag.
STEP1
STEP2
STEP3

264 3-6. Other interior features

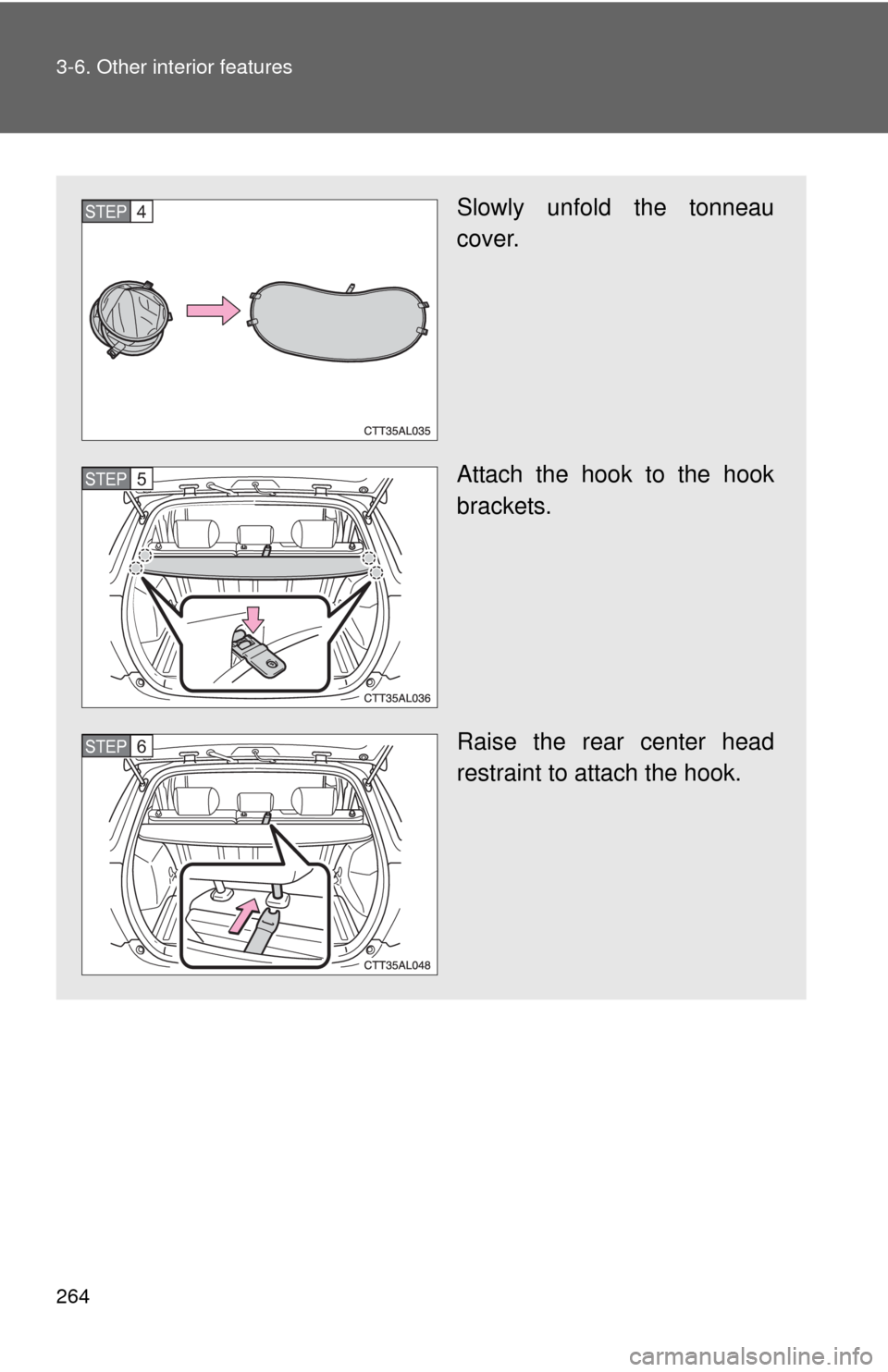

Slowly unfold the tonneau
cover.
Attach the hook to the hook
brackets.
Raise the rear center head
restraint to attach the hook.STEP4
STEP5
STEP6

265 3-6. Other interior features
3
Interior features

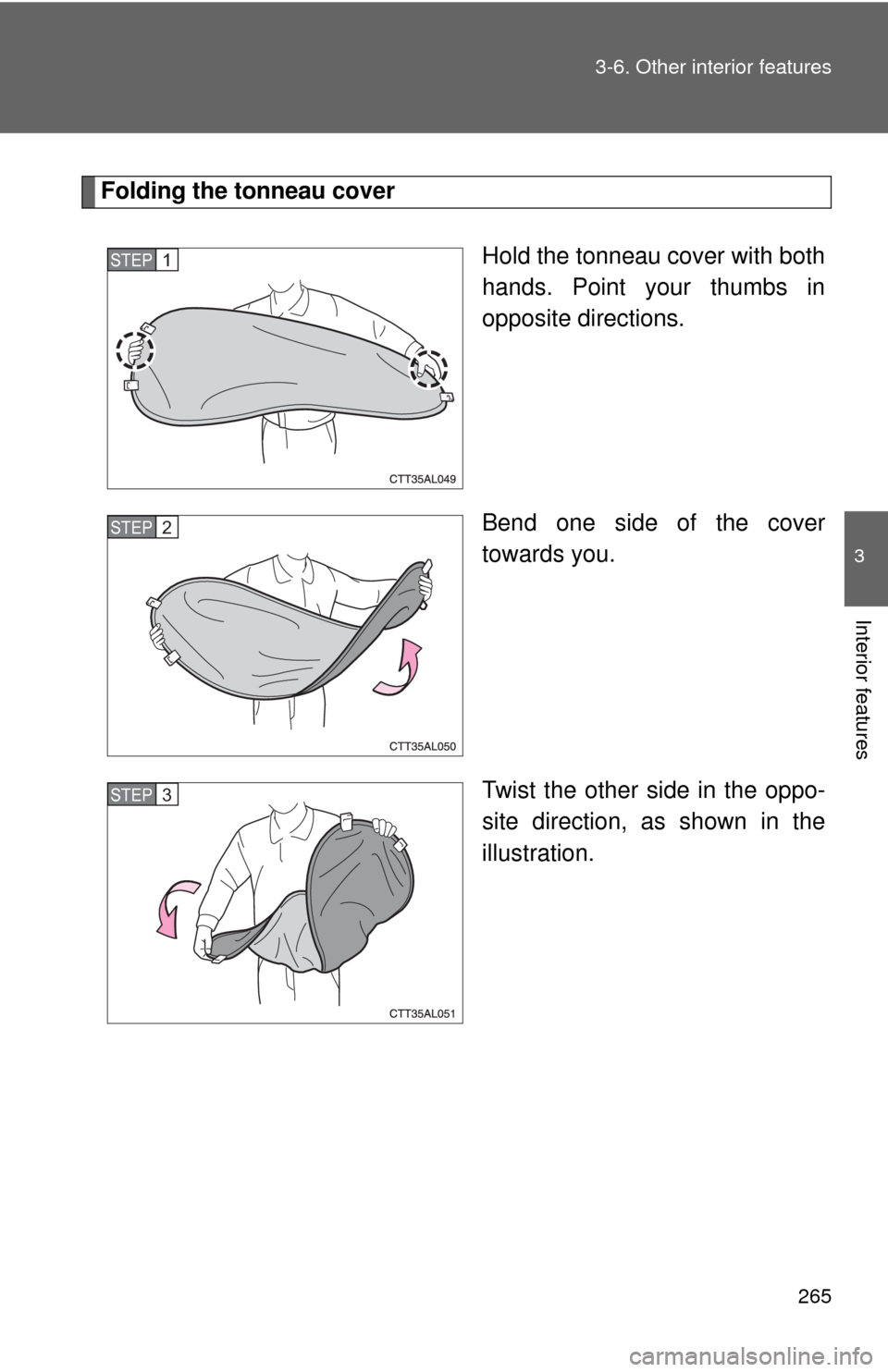

Folding the tonneau cover
Hold the tonneau cover with both
hands. Point your thumbs in
opposite directions.
Bend one side of the cover
towards you.
Twist the other side in the oppo-
site direction, as shown in the
illustration.
STEP1
STEP2
STEP3

266 3-6. Other interior features

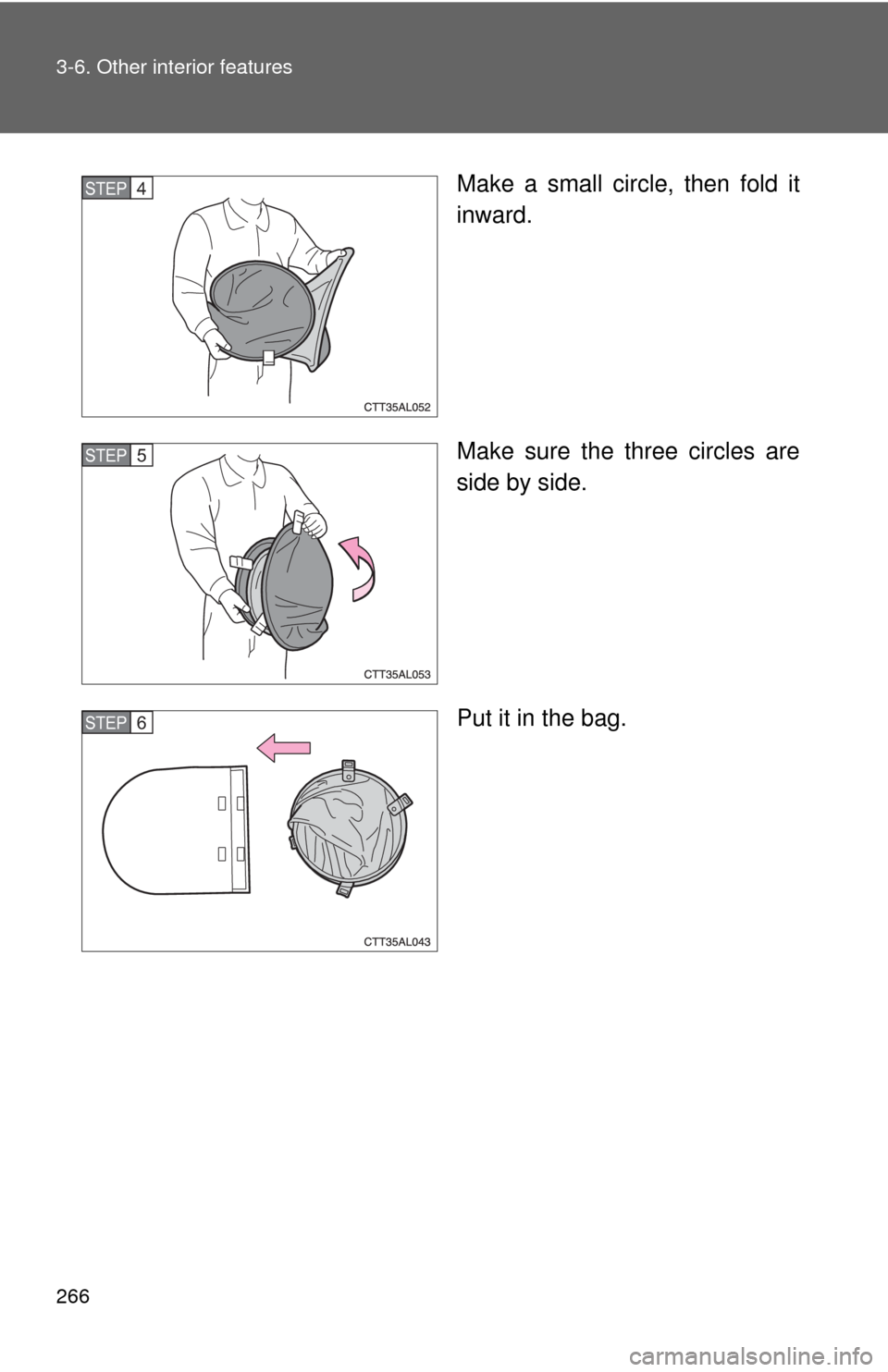

Make a small circle, then fold it
inward.
Make sure the three circles are
side by side.
Put it in the bag.STEP4
STEP5
STEP6

267 3-6. Other interior features
3
Interior features
CAUTION
■When unfolding the tonneau cover
Be careful not to hit yourself when unfolding the tonneau cover.
■Caution while driving
Keep the deck boards locked.
Injuries may result in the event of an accident or sudden braking.

268
3-6. Other interior features

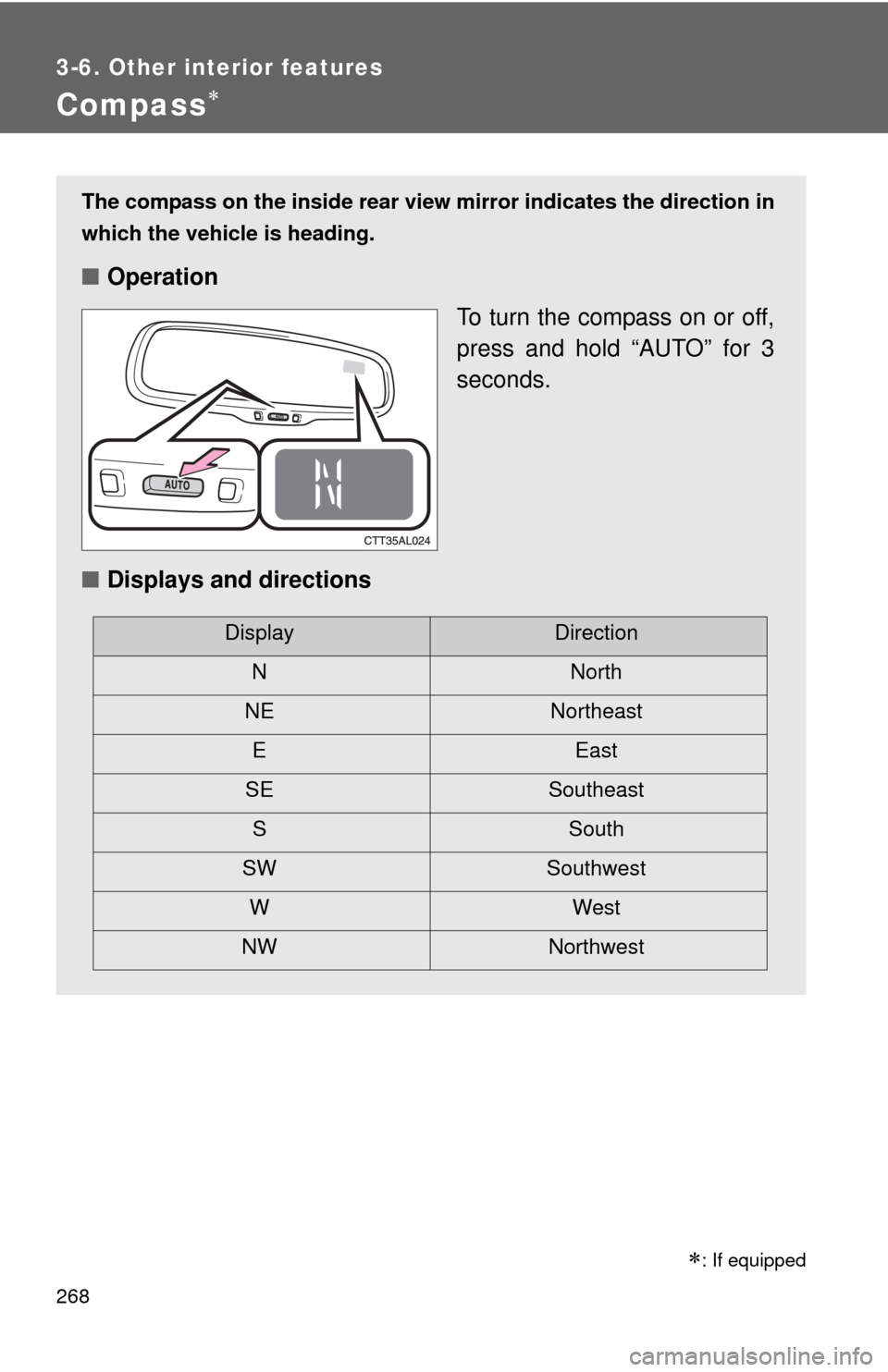

Compass
The compass on the inside rear view mirror indicates the direction in
which the vehicle is heading.
■Operation
To turn the compass on or off,
press and hold “AUTO” for 3
seconds.
■Displays and directions
DisplayDirection
NNorth
NE Northeast
EEast
SE Southeast
S South
SW Southwest
WWest
NW Northwest

: If equipped

269 3-6. Other interior features
3
Interior features

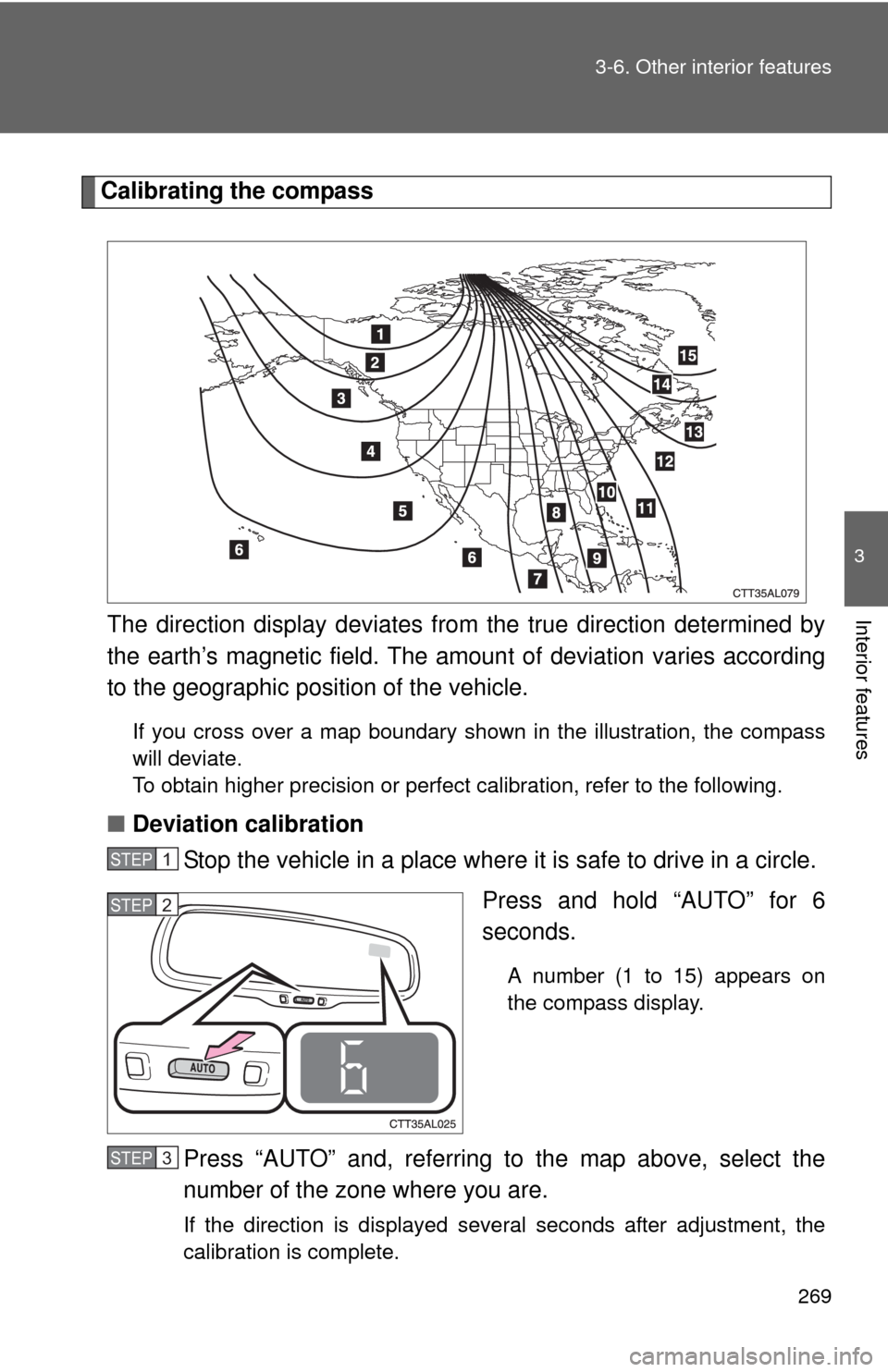

Calibrating the compass
The direction display deviates from the true direction determined by
the earth’s magnetic field. The amount of deviation varies according
to the geographic position of the vehicle.
If you cross over a map boundary shown in the illustration, the compass
will deviate.
To obtain higher precision or perfect calibration, refer to the following.
■Deviation calibration
Stop the vehicle in a place where it is safe to drive in a circle.
Press and hold “AUTO” for 6
seconds.
A number (1 to 15) appears on
the compass display.
Press “AUTO” and, referring to the map above, select the
number of the zone where you are.
If the direction is displayed several seconds after adjustment, the
calibration is complete.
STEP1
STEP2
STEP3

270 3-6. Other interior features

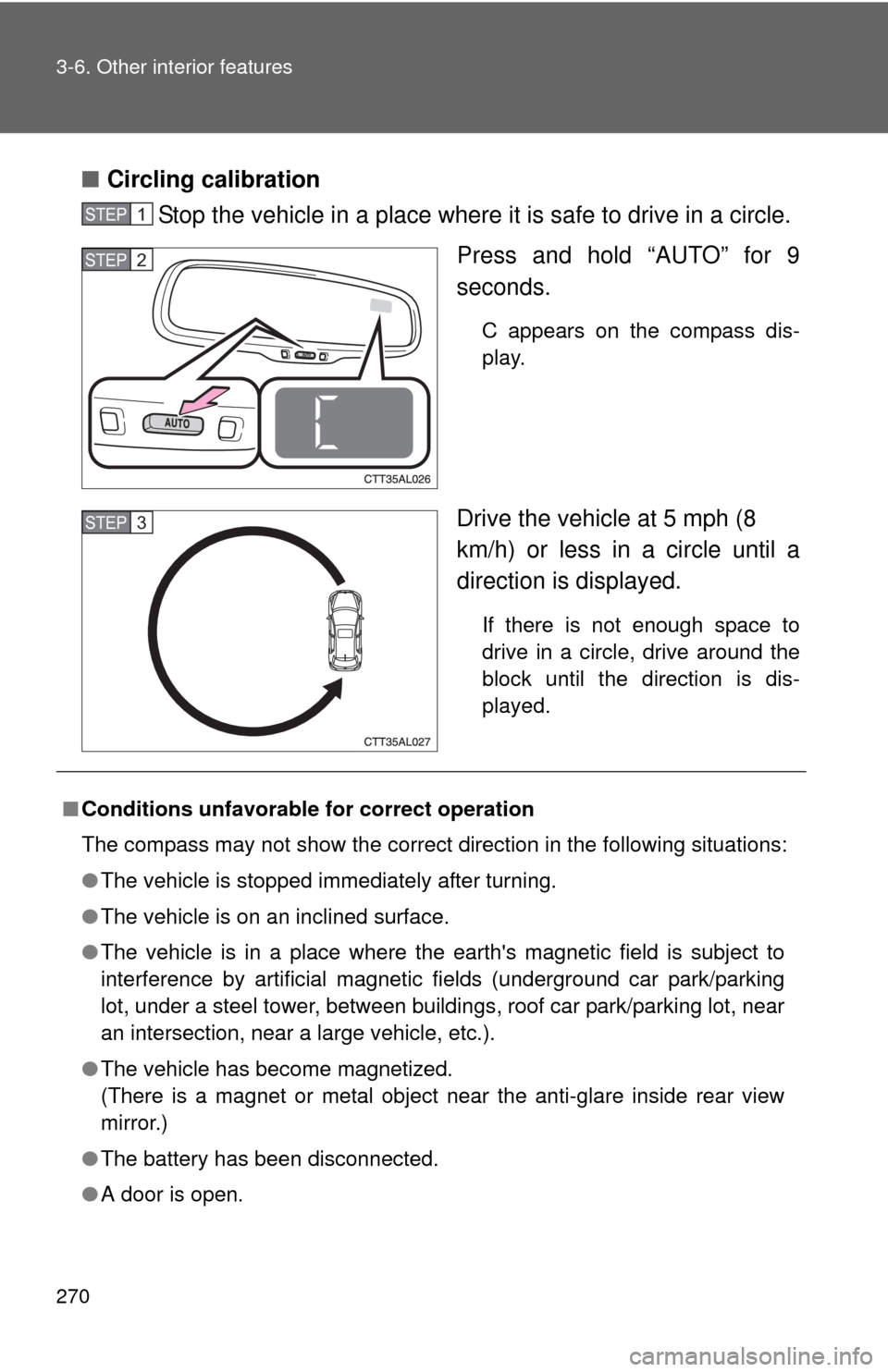

■Circling calibration
Stop the vehicle in a place where it is safe to drive in a circle.
Press and hold “AUTO” for 9
seconds.
C appears on the compass dis-
play.
Drive the vehicle at 5 mph (8
km/h) or less in a circle until a
direction is displayed.
If there is not enough space to
drive in a circle, drive around the
block until the direction is dis-
played.
STEP1
STEP2
STEP3
■Conditions unfavorable for correct operation
The compass may not show the correct direction in the following situations:
●The vehicle is stopped immediately after turning.
●The vehicle is on an inclined surface.
●The vehicle is in a place where the earth's magnetic field is subject to
interference by artificial magnetic fields (underground car park/parking
lot, under a steel tower, between buildings, roof car park/parking lot, near
an intersection, near a large vehicle, etc.).
●The vehicle has become magnetized.
(There is a magnet or metal object near the anti-glare inside rear view
mirror.)
●The battery has been disconnected.
●A door is open.
