display TOYOTA PRIUS 2002 1.G Navigation Manual

20
EMV3111U
If the same two streets cross at more than
one intersection, the screen changes and
displays the menu to select the city name
where the streets intersect. Select the city
and the map location of the selected destina-
tion and the route preference. (See “(a) En-

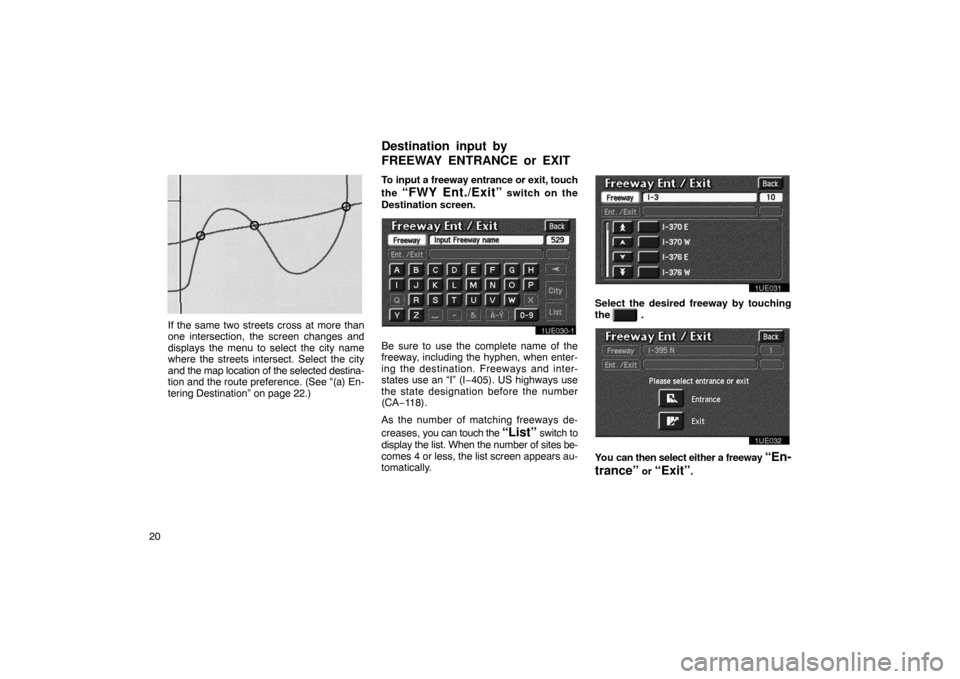

tering Destination” on page 22.)To input a freeway entrance or exit, touch
the
“FWY Ent./Exit” switch on the
Destination screen.
1UE0301
Be sure to use the complete name of the
freeway, including the hyphen, when enter-
ing the destination. Freeways and inter-
states use an “I” (I −405). US highways use
the state designation before the number
(CA−118).
As the number of matching freeways de-
creases, you can touch the
“List” switch to
display the list. When the number of sites be-
comes 4 or less, the list screen appears au-
tomatically.
1UE031
Select the desired freeway by touching
the
.
1UE032
You can then select either a freeway “En-
trance”
or “Exit”.
Destination input by
F
REEWAY ENTRANCE or EXIT

21
1UE033
Touch the of the desired entrance
or exit name. The screen changes and
displays the map location of the selected
destination and the route preference.
(See “(a) Entering Destination” on page
22.) There are 2 ways to list the freeway en-
trance or exit.
Dist. sort: Touch this switch to list the en-
trances or exits in order of distance from your
current location.1UE034
Name sort: Touch this switch to list the en-
trances or exits in alphabetical order. Touch
the
“Previous starting point”
switch on the Destination screen.
The screen changes and displays the
map location of the previous starting
point and the route preference. (See “En-
tering Destination” on page 22.)
If you have not used the navigation yet, the
“Previous starting point” switch is
dimmed.
Destination input by
P
REVIOUS STARTING POINT

22Touch
the
“Map” switch on the Destina-
tion screen.
1UE035
The screen changes and displays the
map location that is previously displayed
just before the operation and the route
preference. (See “( a) Entering Destina-
tion” on page 22.)
(a) Entering destination
After you input the destination, the
screen changes and displays the map
location of the selected destination and
the route preference.
1UE036
You can move and set the cursor at a de-
sired point. (For the method of how to move
the cursor, see page 3.)
When you touch the
“Enter” switch, the
system starts searching for a route to your
destination using the conditions entered.
Route preference
Touch the
“Change” switch to change the
conditions which are to determine the route
to your destination. You are given a number of choices on the
conditions which the system uses to deter-
mine the route to your destination.
1UE037
Touch the “Detour” switch of “Free-
way” to search for a route other than free-
ways as much as possible. (In some cases,
the route cannot avoid running on a free-
way.)
Touch the
“Detour” switch of “Toll
road” to search for a route other than toll
roads as much as possible.
Touch the
“Detour” switch of “Ferry” to
search for a route without using a ferry as
much as possible.
Destination input by MAP
Setting and deleting
d
estination

23
Touch the

“Detour” switch of “Re-
stricted road” to search for a route other
than restricted road.
Touching the
“Allow” switch on each item
allows to use it.
The switches you select are highlighted in
green. After choosing conditions, touch the
“OK” switch.

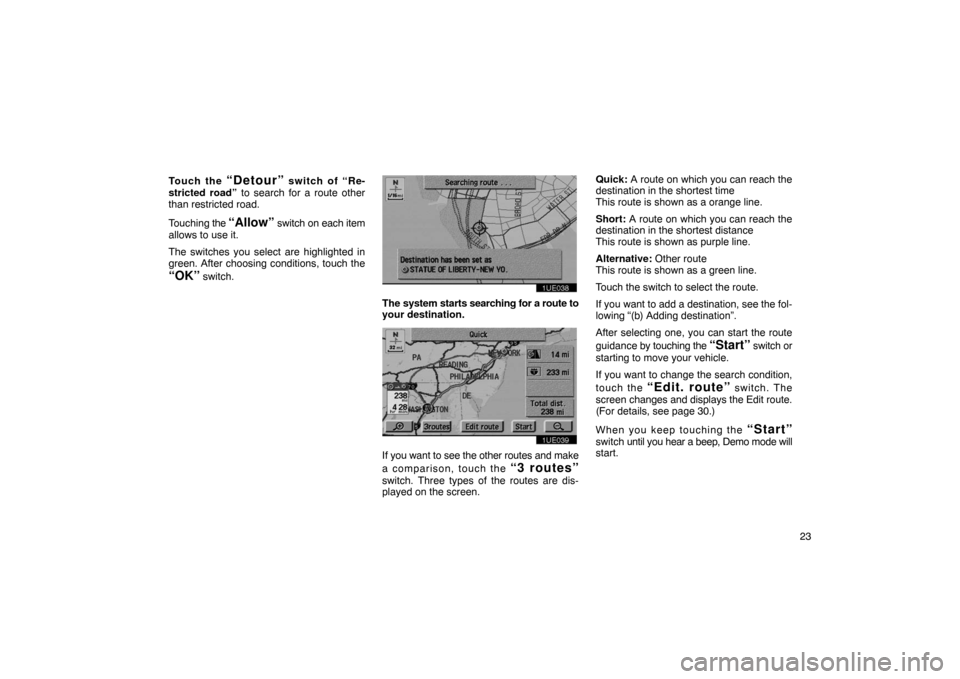

1UE038
The system starts searching for a route to
your destination.
1UE039
If you want to see the other routes and make
a comparison, touch the
“3 routes”
switch. Three types of the routes are dis-
played on the screen. Quick:
A route on which you can reach the
destination in the shortest time
This route is shown as a orange line.
Short: A route on which you can reach the
destination in the shortest distance
This route is shown as purple line.
Alternative: Other route
This route is shown as a green line.
Touch the switch to select the route.
If you want to add a destination, see the fol-
lowing “(b) Adding destination”.
After selecting one, you can start the route
guidance by touching the
“Start” switch or
starting to move your vehicle.
If you want to change the search condition,
touch the
“Edit. route” switch. The
screen changes and displays the Edit route.
(For details, see page 30.)
When you keep touching the
“Start”
switch until you hear a beep, Demo mode will
start.

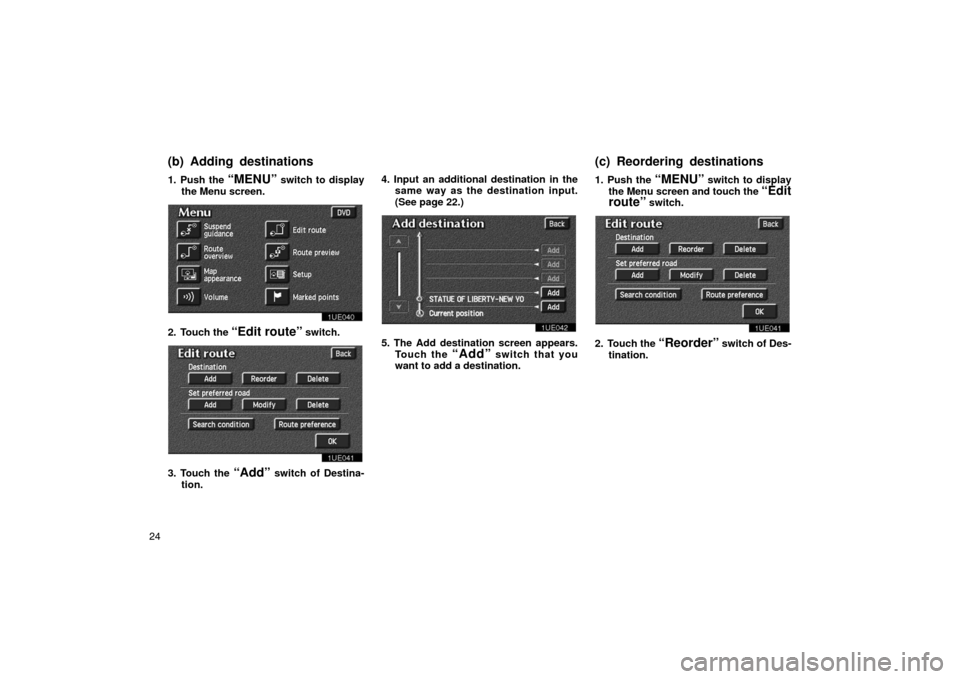

241. Push the
“MENU” switch to display
the Menu screen.
1UE040
2. Touch the “Edit route” switch.
1UE041
3. Touch the “Add” switch of Destina-
tion. 4. Input an additional destination in the
same way as the destination input.
(See page 22.)
1UE042
5. The Add destination screen appears.Touch the “Add” switch that you
want to add a destination. 1. Push the
“MENU” switch to display
the Menu screen and touch the “Edit
route” switch.
1UE041
2. Touch the “Reorder” switch of Des-
tination.
(b) Adding destinations(c) Reordering destinations

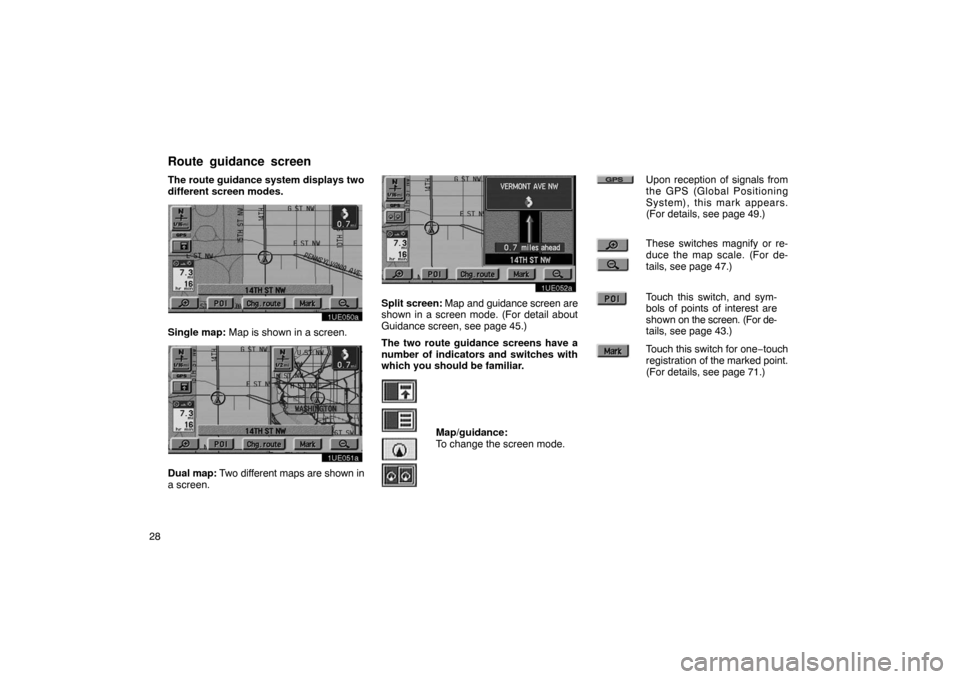

28The route guidance system displays two
different screen modes.
1UE050a
Single map: Map is shown in a screen.
1UE051a
Dual
map: Two different maps are shown in
a screen.
1UE052a
Split screen: Map and guidance screen are
shown in a screen mode. (For detail about
Guidance screen, see page 45.)
The two route guidance screens have a
number of indicators and switches with
which you should be familiar.
Map/guidance:
To change the screen mode.
Upon reception of signals from
the GPS (Global Positioning
System), this mark appears.
(For details, see page 49.)
These switches magnify or re-
duce the map scale. (For de-
tails, see page 47.)
Touch this switch, and sym-
bols of points of interest are
shown on the screen. (For de-
tails, see page 43.)
Touch this switch for one −touch
registration of the marked point.
(For details, see page 71.)
Route guidance screen

29
INFORMATION
The distance to your destination ap-
pears on the left of the screen.
 The time to your destination can also
be displayed. (For the setting steps,
see page 82.)

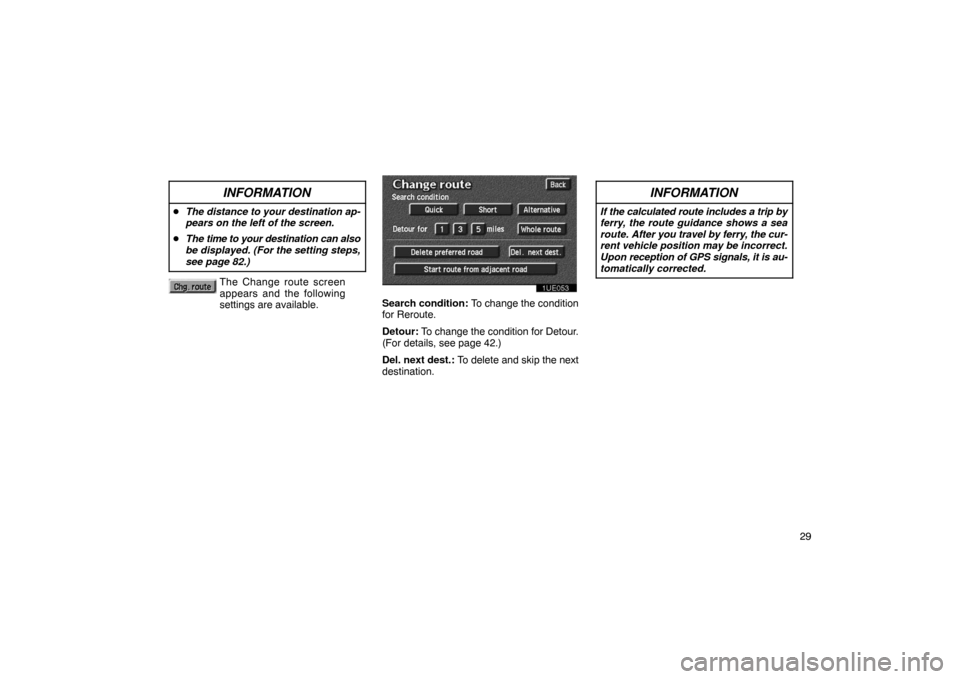

The Change route screen
appears and the following
settings are available.
1UE053
Search condition: To change the condition
for Reroute.
Detour: To change the condition for Detour.
(For details, see page 42.)
Del. next dest.: To delete and skip the next
destination.
INFORMATION
If the calculated route includes a trip by
ferry, the route guidance shows a sea
route. After you travel by ferry, the cur-
rent vehicle position may be incorrect.
Upon reception of GPS signals, it is au-
tomatically corrected.

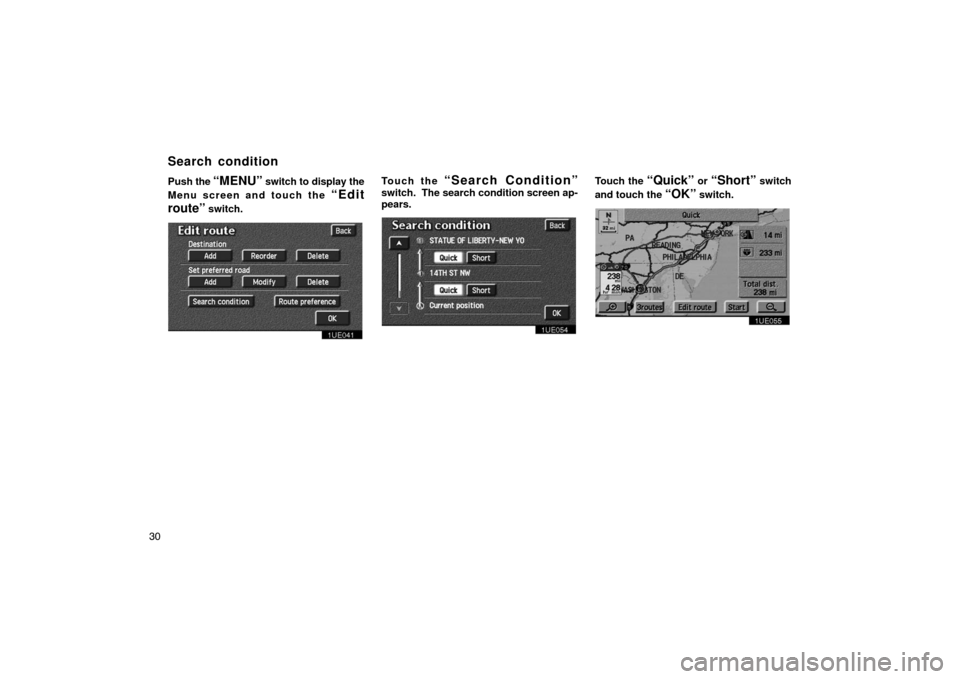

30Push
the
“MENU” switch to display the
Menu screen and touch the
“Edit
route”
switch.
1UE041
Touch the “Search Condition”
switch. The search condition screen ap-
pears.
1UE041
Touch the “Quick” or “Short” switch
and touch the
“OK” switch.
1UE055
Search condition

31

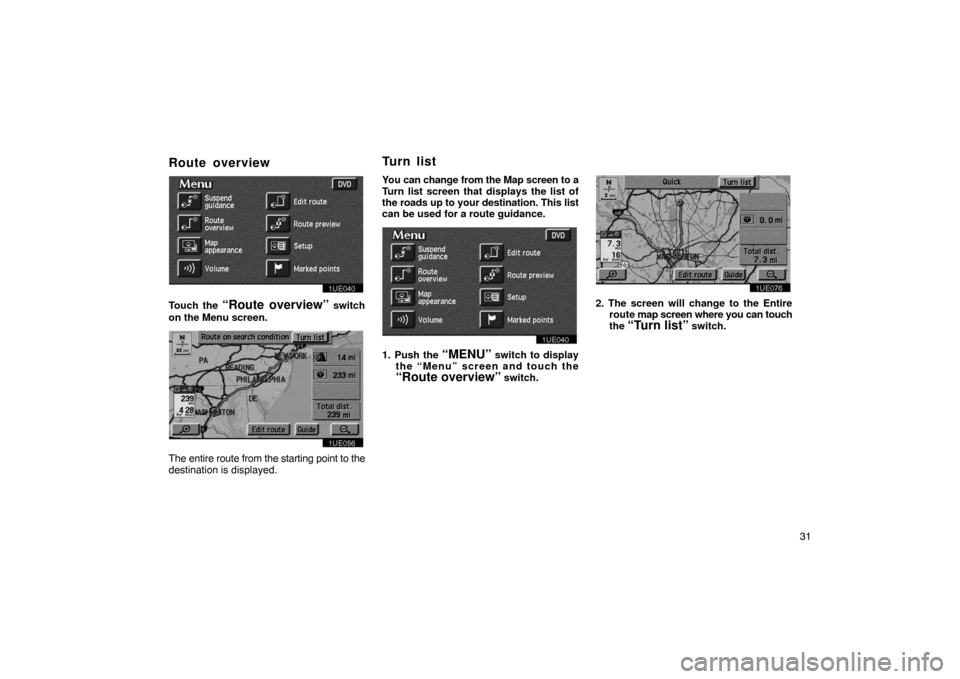

Route overview
1UE040
Touch the “Route overview” switch
on the Menu screen.
1UE056
The entire route from the starting point to the
destination is displayed. You can change from the Map screen to a
Turn list screen that displays the list of
the roads up to your destination. This list
can be used for a route guidance.
1UE040
1. Push the “MENU” switch to display
the “Menu” screen and touch the
“Route overview” switch.
1UE076
2. The screen will change to the Entire route map screen where you can touch
the
“Turn list” switch.
Tu r n l i s t

32
1UE077
You can scroll through the list of roads by
touching
or switch. However,
not all road names in the route may appear
on the list. If a road changes its name without
requiring a turn (such as on a street that runs
through two or more cities), the name
change will not appear on the list. The street
name closest to the starting point will be dis-
played with a mileage to the next turn.
These marks indicate the di-
rection which you should turn
at an intersection. Touch
the
“Map” switch of your desired
point. The point which you choose is dis-
played on the Map screen.
1UE078
INFORMATION
 The current vehicle position mark
appears at the bottom of the screen
next to the name of the street you are
driving on. The mark does not move.
 If you leave the guidance route, the
name of the street you are on is not
shown on the list next to the current
vehicle position mark.
 If the road type you are on changes
between a highway, a main street or
a residential street (at an inter-
change or fork), it will appear on the
turn list.
 If a long route has been selected, it
may take a long time to display the
turn list.
 Push the
“MAP” switch to return to
the map display with a route guid-
ance.
