display TOYOTA PRIUS 2002 1.G Navigation Manual

47

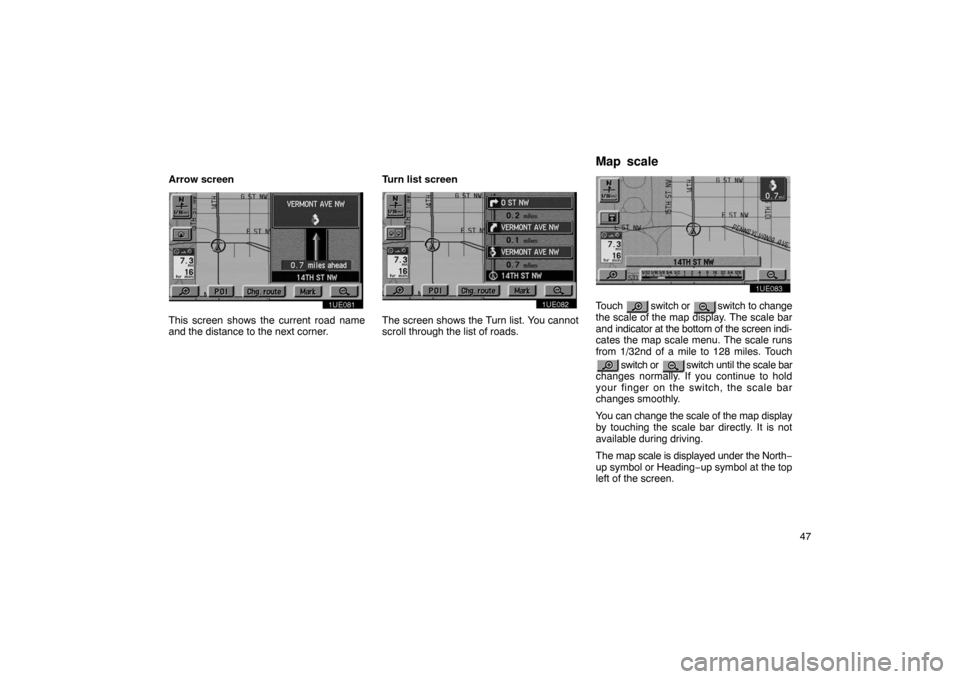

Arrow screen
1UE081
This screen shows the current road name
and the distance to the next corner.
Turn list screen
1UE082
The screen shows the Turn list. You cannot
scroll through the list of roads.
1UE083
Touch switch or switch to change
the scale of the map display. The scale bar
and indicator at the bottom of the screen indi-
cates the map scale menu. The scale runs
from 1/32nd of a mile to 128 miles. Touch
switch or switch until the scale bar
changes normally. If you continue to hold
your finger on the switch, the scale bar
changes smoothly.
You can change the scale of the map display
by touching the scale bar directly. It is not
available during driving.
The map scale is displayed under the North −
up symbol or Heading −up symbol at the top
left of the screen.
Map scale

50
1UE087a
When your vehicle is receiving signals from
the satellites, the “GPS” mark appears at the
top left of the screen.
The GPS signal may be physically ob-
structed, leading to inaccurate vehicle posi-
tion on the map display. Tunnels, tall build-
ings, trucks, or even the placement of
objects on the instrument panel may obstruct
the GPS signals.
The installation of window tinting may also
obstruct the GPS signals. Most window tint-
ing contains some metallic content that will
interfere with the GPS signal reception. We
recommend not to use the window tinting on
vehicles equipped with navigation systems. The GPS satellites may not send signals due
to repairs or improvements being made to
them.
Even when the navigation system is receiv-
ing good GPS signals, the vehicle position
may not be shown accurately or inappropri-
ate route guidance may occur in some
cases.

When driving on a small angled Y −
shaped road.
 When driving on a spiral road.
 When driving on a slippery road such as
in sand, gravel, snow, etc.
 When driving on a long straight road.
 When freeway and surface streets run in
parallel.
 After moving by ferry or vehicle carrier.
 When a long route is searched during high
speed driving.
 When driving without setting the current
position calibration correctly.
 After repeating a change of directions by
going forward and backward, or turning
on a turntable in the parking lot.
 When leaving a covered parking lot or
parking garage.
 When a roof carrier is installed.
 When driving with the tire chains installed.
 When the tires are worn.
 After replacing a tire or tires.
(a) Accurate current vehicle
p
osition may not be shown in
the following cases:

51

When using tires that are smaller or larger
than the factory specifications.
 When the tire pressure in any of the four
tires is not correct.
INFORMATION
If your vehicle cannot receive GPS sig-
nals, you can correct the current posi-
tion manually. For the information on
setting the current position calibration,
see page 77.
When turning at a wrong intersection off
the designated route guidance
 If you set more than one destinations,
auto reroute will display a route returning
to the destination on the previous route
when you try to skip any of the destina-
tions.
 When turning at an intersection, there is
no route guidance.
 When passing through the intersection,
there is no route guidance.
 During automatic rerouting, the route
guidance may not be available for the next
turn to the right or left.
 It may take a long time to operate auto re-
route during high speed driving. In auto
reroute, a detour route may be shown.
 After auto reroute, the route may not be
changed.
 An unnecessary U −turn may be shown or
announced.
 A location may have multiple names and
the system will announce one or more.
Some routes may not be searched.
 If the route to your destination includes
gravel, unpaved roads or alleys, the route
guidance may not be shown.
 Your destination point might be shown on
the opposite side of the street.
 When a portion of the route has regula-
tions prohibiting the entry of the vehicle
that vary by time or season or other rea-
son.
 The road and map data stored in your
navigation system may not be complete
or may not be the latest release.
When replacing the tire(s), do the calibra-
tion. See page 77 for detailed information.
(b) Inappropriate route guid-
a
nce may occur in the follow-
i
ng cases:

52Map database is made based on the
maps, 2001 edition of DENSO, whose in-
formation source comes from NavTech
maps and GDT maps.
2000 Navigation Technologies. All
rights reserved.
GDT, Geographic Data T echnology, Inc.
This product contains proprietary and
confidential property of Geographic Data
Technology, Inc. Unauthorized use, in-
cluding duplication of this product is ex-
pressly prohibited. There
are two types of areas available for
route guidance. (See the following
pages.) In one type of area, primarily
around metropolitan centers, detailed
route guidance is available for the entire
area. In the other type of area, all roads
are displayed on the map but route guid-
ance is limited. The navigation route
might lack precision because the data (no
right turns, oneway traffic, etc.) is not
complete. It is still possible to reach the
destination by following the arrow direc-
tion and distance as shown on the bottom
left of the screen. The arrow points in the
direction of the destination. The distance
shown is as measured in a straight line
from the current vehicle position to the
destination area.
1UE088a
In order to provide you with accurate map in-
formation as much as possible, we are al-
ways gathering information such as road re-
pairs and doing site investigation. However,
the names of roads, streets, facilities, and
their locations are often changed. In some
places, construction on roads may be in pro-
gress. For that reason, information on some
areas in this system might be different from
the actual location.
Map database information and
u
pdates

66You can register and keep your own
marked
points of interest list (like restau-
rants, sports facilities, etc.) and use the
marked points to input a destination.
1UE040

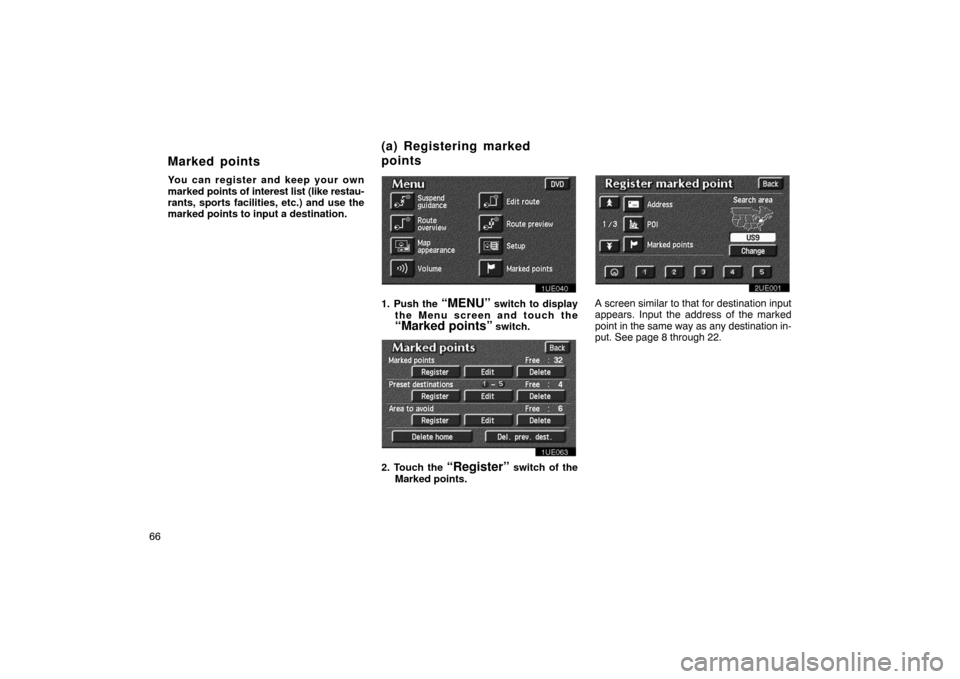

1. Push the “MENU” switch to display
the Menu screen and touch the
“Marked points” switch.
1UE063
2. Touch the “Register” switch of the
Marked points.
2UE001
A screen similar to that for destination input
appears. Input the address of the marked
point in the same way as any destination in-
put. See page 8 through 22.
Marked points
(a) Registering marked
p
oints

67

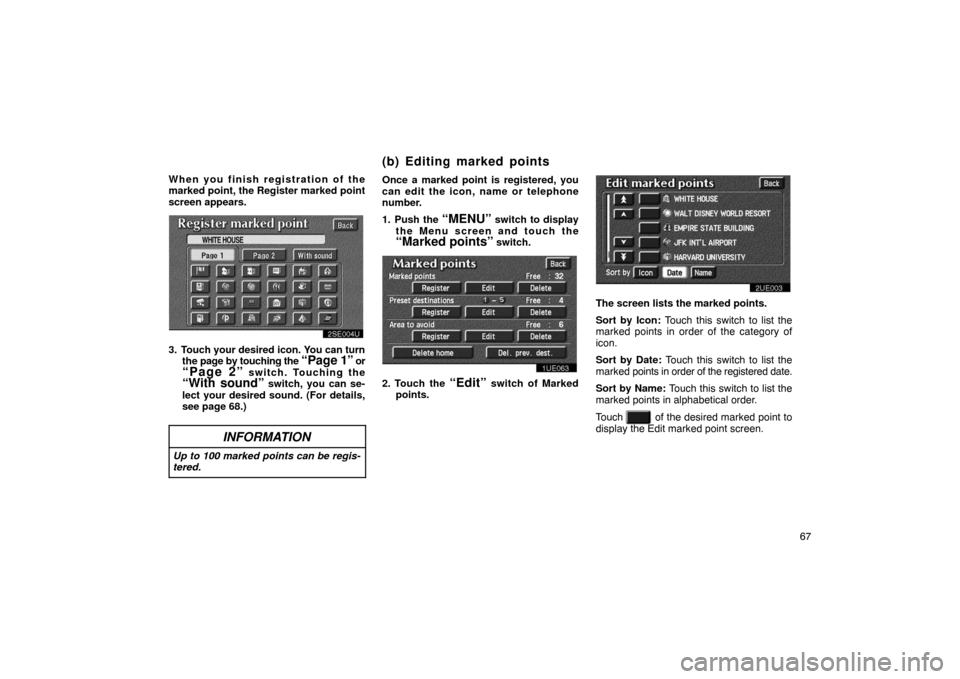

When you finish registration of the
marked point, the Register marked point
screen appears.
2SE004U
3. Touch your desired icon. You can turn
the page by touching the “Page 1” or“Page 2” switch. Touching the“With sound” switch, you can se-
lect your desired sound. (For details,
see page 68.)
INFORMATION
Up to 100 marked points can be regis-
tered.
Once a marked point is registered, you
can edit the icon, name or telephone
number.
1. Push the
“MENU” switch to display
the Menu screen and touch the
“Marked points” switch.
1UE063
2. Touch the “Edit” switch of Marked
points.
2UE003
The screen lists the marked points.
Sort by Icon: Touch this switch to list the
marked points in order of the category of
icon.
Sort by Date: Touch this switch to list the
marked points in order of the registered date.
Sort by Name: Touch this switch to list the
marked points in alphabetical order.
Touch
of the desired marked point to
display the Edit marked point screen.
(b) Editing marked points

68

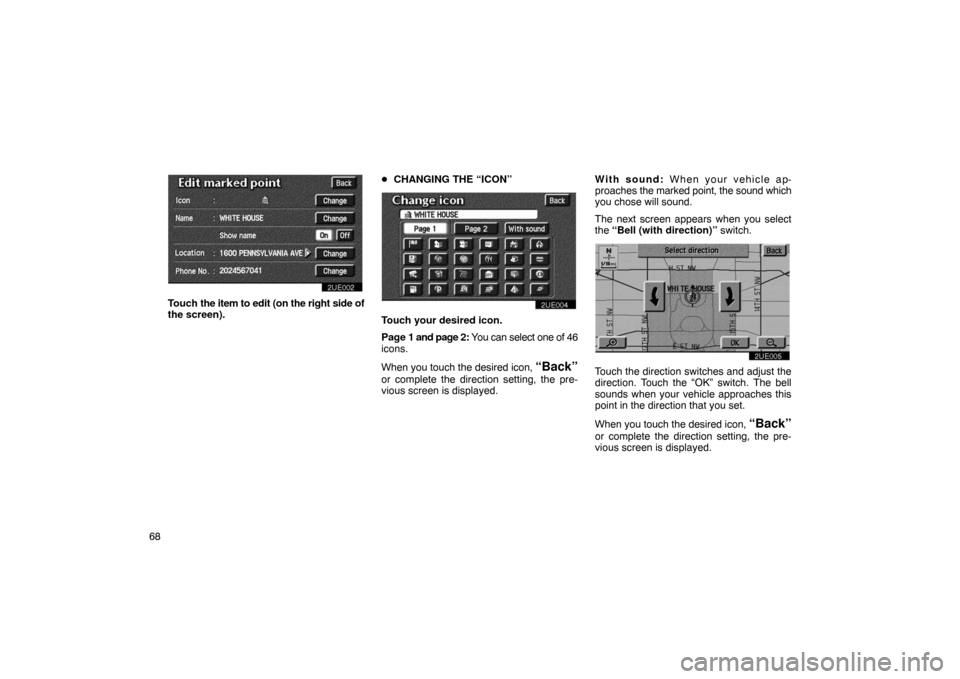

2UE002
Touch the item to edit (on the right side of
the screen).
CHANGING THE “ICON”
2UE004
Touch your desired icon.
Page 1 and page 2: You can select one of 46
icons.
When you touch the desired icon,
“Back”
or complete the direction setting, the pre-
vious screen is displayed. With sound:
When your vehicle ap-
proaches the marked point, the sound which
you chose will sound.
The next screen appears when you select
the “Bell (with direction)” switch.
2UE005
Touch the direction switches and adjust the
direction. Touch the “OK” switch. The bell
sounds when your vehicle approaches this
point in the direction that you set.
When you touch the desired icon,
“Back”
or complete the direction setting, the pre-
vious screen is displayed.

69

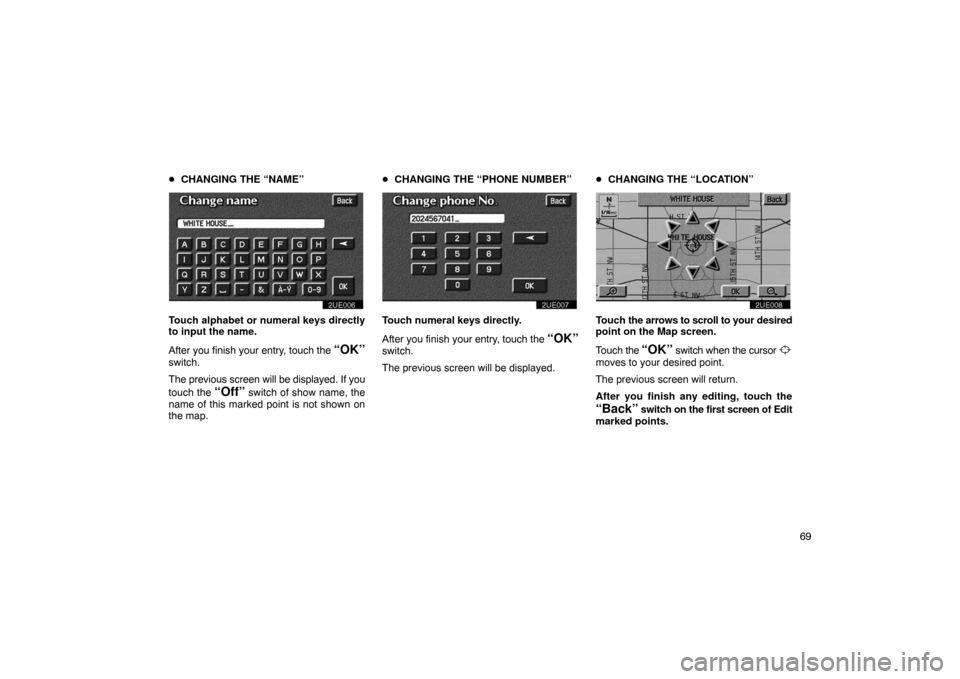

CHANGING THE “NAME”
2UE006
Touch alphabet or numeral keys directly
to input the name.
After you finish your entry, touch the
“OK”
switch.
The previous screen will be displayed. If you
touch the
“Off” switch of show name, the
name of this marked point is not shown on
the map.
CHANGING THE “PHONE NUMBER”
2UE007
Touch numeral keys directly.
After you finish your entry, touch the
“OK”
switch.
The previous screen will be displayed.
CHANGING THE “LOCATION”
2UE008
Touch the arrows to scroll to your desired
point on the Map screen.
Touch the
“OK” switch when the cursor
moves to your desired point.
The previous screen will return.
After you finish any editing, touch the
“Back” switch on the first screen of Edit
marked points.

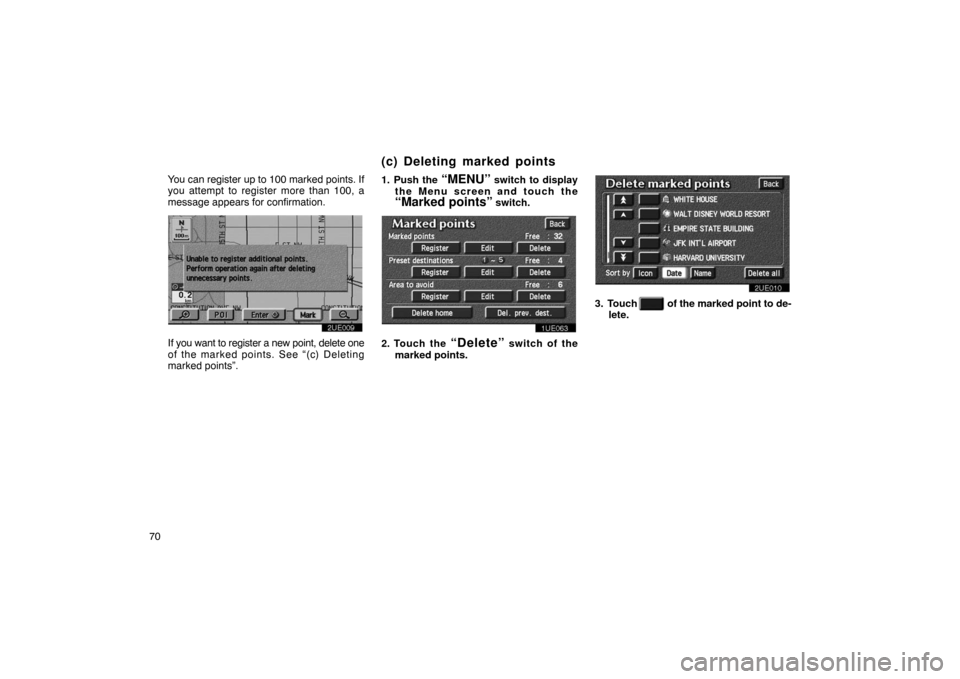

70You can register up to 100 marked points. If
you attempt to register more than 100, a
message appears for confirmation.
2UE009
If you want to register a new point, delete one
of the marked points. See “(c) Deleting
marked points”.
1. Push the
“MENU” switch to display
the Menu screen and touch the
“Marked points” switch.
1UE063
2. Touch the “Delete” switch of the
marked points.
2UE010
3. Touch of the marked point to de-
lete.
(c) Deleting marked points

71
The screen for confirmation will appear
with the map of the marked point. If you
want to delete, touch
“Yes”. Touching
“No” or “Back” will return to the pre-
vious screen.
If you want to delete all of the marked
points, touch the
“Delete all” switch.
The screen for confirmation will appear.
Touching
“Yes” will delete all of the
marked points. Touching
“No” or
“Back” will return to the previous
screen.
To delete only specified marked points, use
the
“Icon”, “Date” or “Name” switch
to display the screen, so that you can easily
find the marked points.

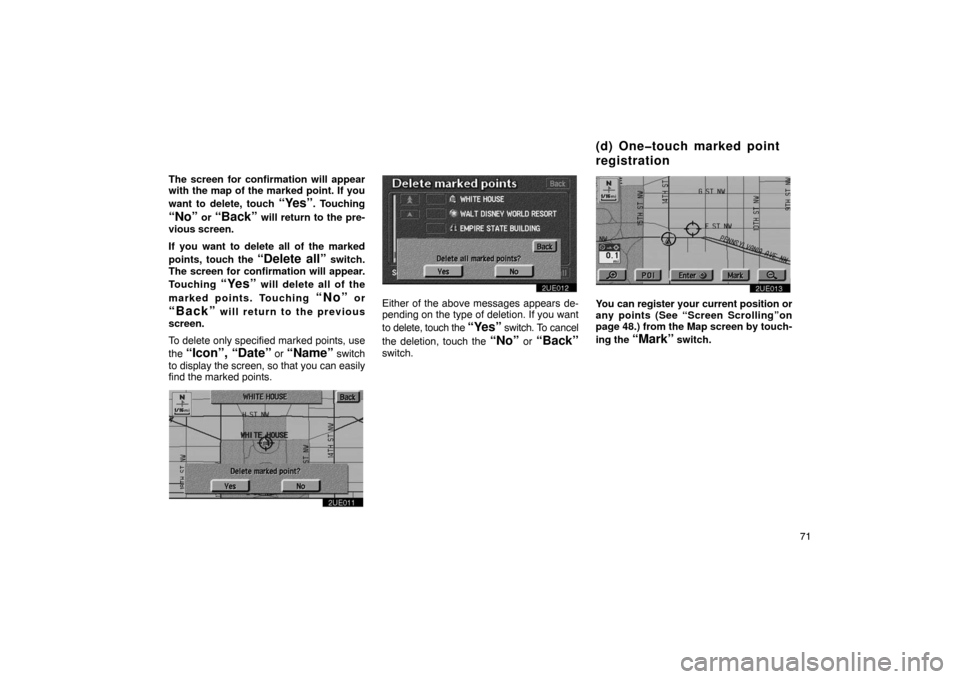

2UE011
2UE012
Either of the above messages appears de-
pending on the type of deletion. If you want
to delete, touch the
“Yes” switch. To cancel
the deletion, touch the
“No” or “Back”
switch.
2UE013
You can register your current position or
any points (See “Screen Scrolling”on
page 48.) from the Map screen by touch-
ing the
“Mark” switch.
(d) Onetouch marked point
r
egistration
