CAUTION
High Voltage
Your vehicle is equipped with
cables connected to parts of
the vehicle subject to high volt-
age (about 300 V). There are
some other parts which reach
high temperatures when you are
driving. Never touch battery
cables (wrapped in orangecol-
ored harnesses) and their con-
nector since high voltages are
applied and they are dangerous.
Caution labels are applied to
these parts to identify them.
Carefully observe the instruc-
tions on these caution labels.
00p001

13

1
FEATURES ON NEW TOYOTA VEHICLE
Overview of instruments and controls
Instrument panel overvieww2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster and multi −information display overview 4
. . . . . . . .
Indicator symbols on the instrument panel and multi −information
display 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
SECTION 1– 1

2
Instrument panel overview

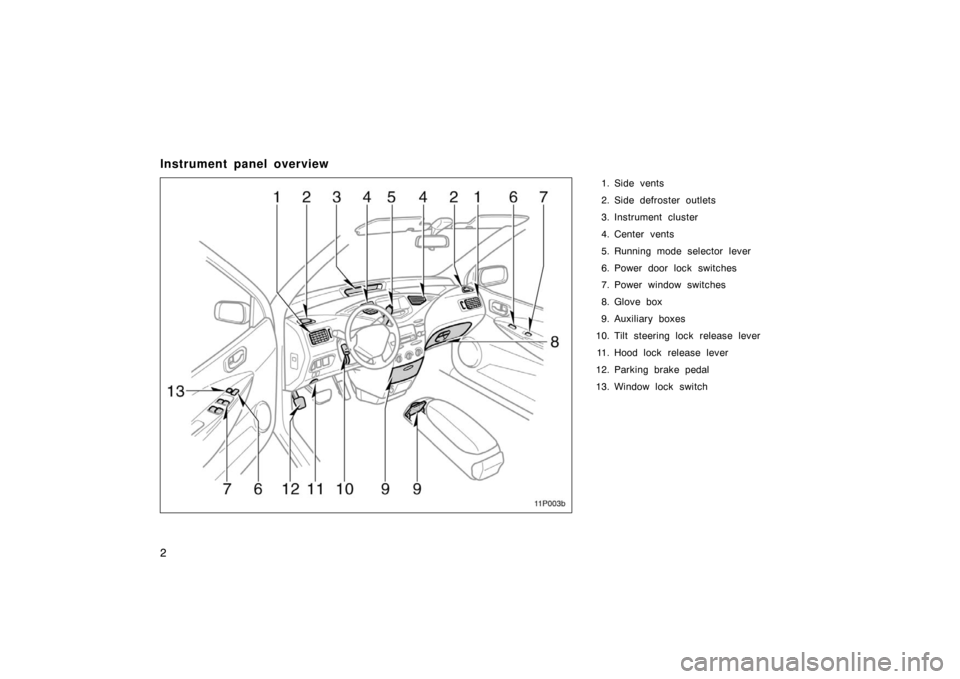

1. Side vents
2. Side defroster outlets
3. Instrument cluster
4. Center vents
5. Running mode selector lever
6. Power door lock switches
7. Power window switches
8. Glove box
9. Auxiliary boxes
10. Tilt steering lock release lever 11. Hood lock release lever
12. Parking brake pedal
13. Window lock switch
11p003b

3

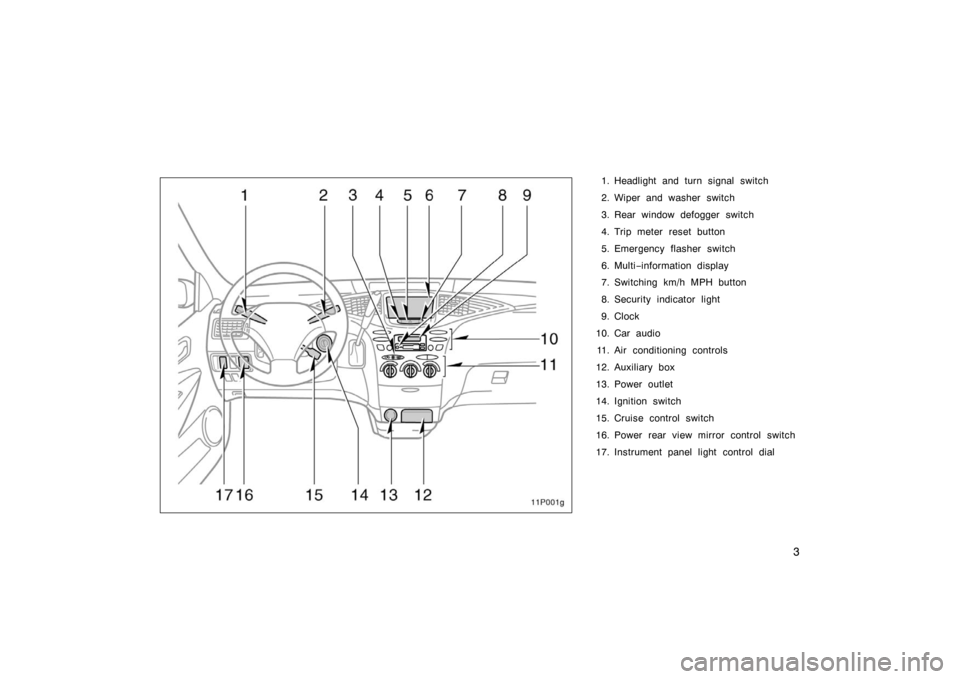

1. Headlight and turn signal switch
2. Wiper and washer switch
3. Rear window defogger switch
4. Trip meter reset button
5. Emergency flasher switch
6. Multi−information display
7. Switching km/h MPH button
8. Security indicator light
9. Clock
10. Car audio 11. Air conditioning controls
12. Auxiliary box
13. Power outlet
14. Ignition switch
15. Cruise control switch
16. Power rear view mirror control switch
17. Instrument panel light control dial
11p001g

4

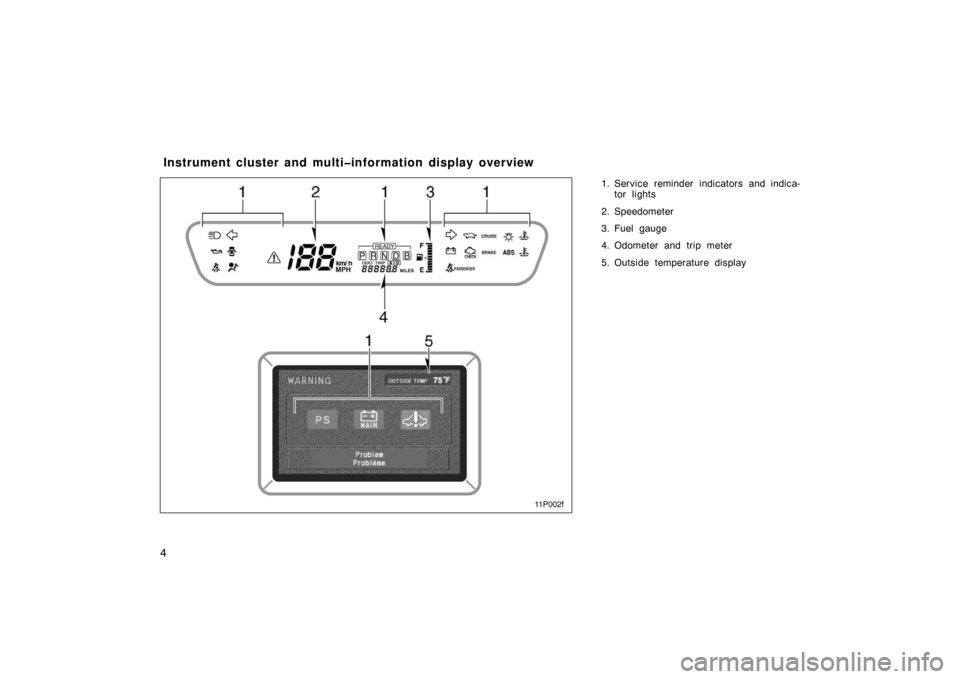

1. Service reminder indicators and indica-tor lights
2. Speedometer
3. Fuel gauge
4. Odometer and trip meter
5. Outside temperature display
Instrument cluster and multiinformation display overview
11p002f

5
Indicator symbols on the instrument panel and Multiinformation display
or
orBrake system warning light∗1
Discharge warning light∗1
Seat belt reminder light∗1
Front passenger ’s seat belt reminder light∗1
Malfunction indicator lamp∗1
Low coolant temperature indicator light
(in blue)∗1
High coolant temperature warning light (in red)∗1
Low fuel level indicator light∗1
Low engine oil pressure warning light∗1
Open door warning light∗1
Master warning light∗1
Anti −lock brake system warning light∗
1
Headlight high beam indicator light
Headlight indicator light Turn signal indicator lights SRS warning light
∗1

6
Tail light indicator light
Output control warning light
∗1
Cruise control indicator light∗3
Running mode position indicator light
Driving ready light
Hybrid system warning light
∗2
Power steering warning light∗2
Hybrid vehicle battery warning light∗2
∗1: For details, see ”Service reminder indicators and warning
buzzers— —Instrument cluster” on page 91 in Section 2 −4.
∗
2: For details, see “Service reminder indicators and warning
buzzers— —Multi −information display” on page 97 in Section
2 −4.
∗
3: If this light flashes, see ”Cruise control” on page 107 in
Section 2 −5.

7
FEATURES ON NEW TOYOTA VEHICLE
Toyota hybrid system
Toyota hybrid system8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
Toyota hybrid system operating conditionn 8
. . . . . . . . . . . . . . . . . . . . . .
Starting your vehicle 11
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
For efficient use of your vehicle 11
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Precautions for use 12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
SECTION 1– 2
