TOYOTA PRIUS 2002 1.G Owner's Guide

18
Keys

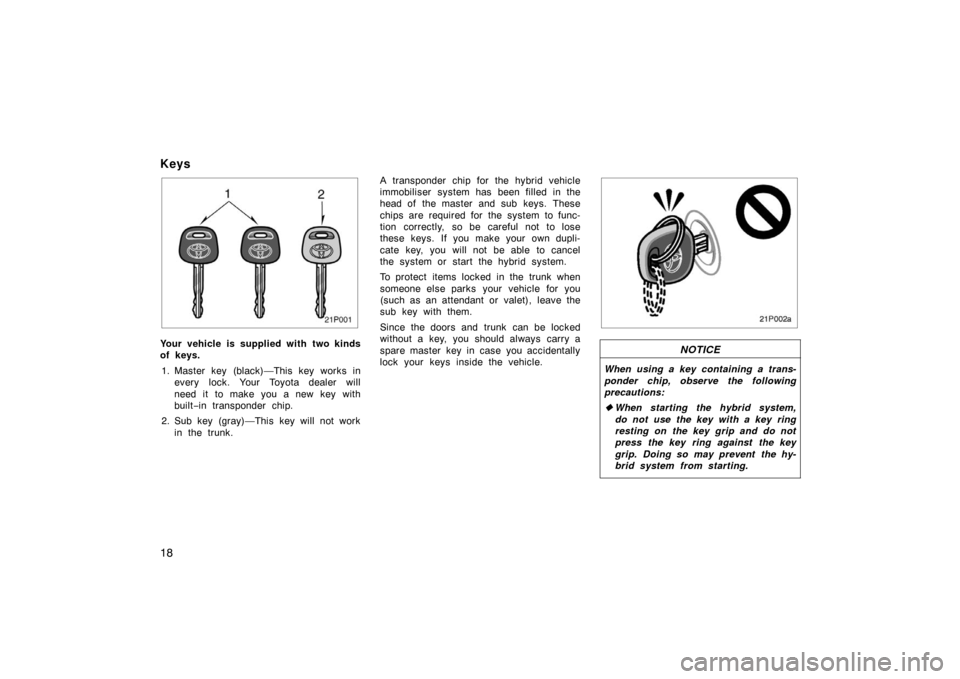

21p001
Your vehicle is supplied with two kinds
of keys.1. Master key (black)—This key works in every lock. Your Toyota dealer will
need it to make you a new key with
built −in transponder chip.
2. Sub key (gray)—This key will not work in the trunk. A transponder chip for the hybrid vehicle
immobiliser system has been filled in the
head of the master and sub keys. These
chips are required for the system to func-
tion correctly, so be careful not to lose
these keys. If you make your own dupli-
cate key, you will not be able to cancel
the system or start the hybrid system.
To protect items locked in the trunk when
someone else parks your vehicle for you
(such as an attendant or valet), leave the
sub key with them.
Since the doors and trunk can be locked
without a key, you should always carry a
spare master key in case you accidentally
lock your keys inside the vehicle.
21p002a
NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:

When starting the hybrid system,
do not use the key with a key ring
resting on the key grip and do not
press the key ring against the key
grip. Doing so may prevent the hy-
brid system from starting.

19

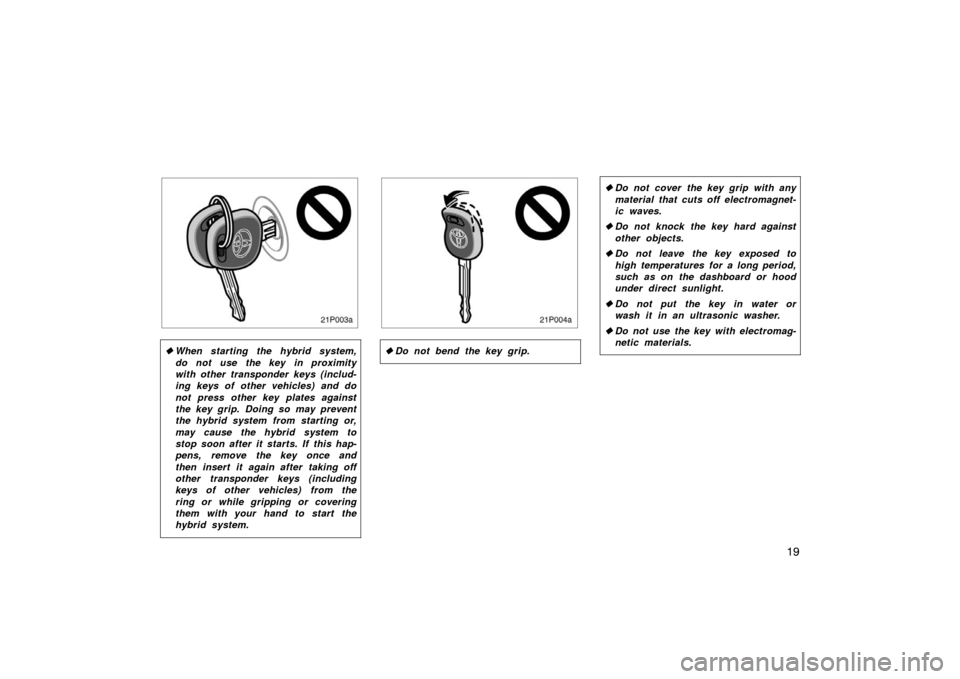

21p003a
When starting the hybrid system,
do not use the key in proximity
with other transponder keys (includ-
ing keys of other vehicles) and do
not press other key plates against
the key grip. Doing so may prevent
the hybrid system from starting or,
may cause the hybrid system to
stop soon after it starts. If this hap-
pens, remove the key once and
then insert it again after taking off
other transponder keys (including
keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
hybrid system.
21p004a
Do not bend the key grip.
Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
 Do not knock the key hard against
other objects.
 Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard or hood
under direct sunlight.
 Do not put the key in water or
wash it in an ultrasonic washer.
 Do not use the key with electromag-
netic materials.

20

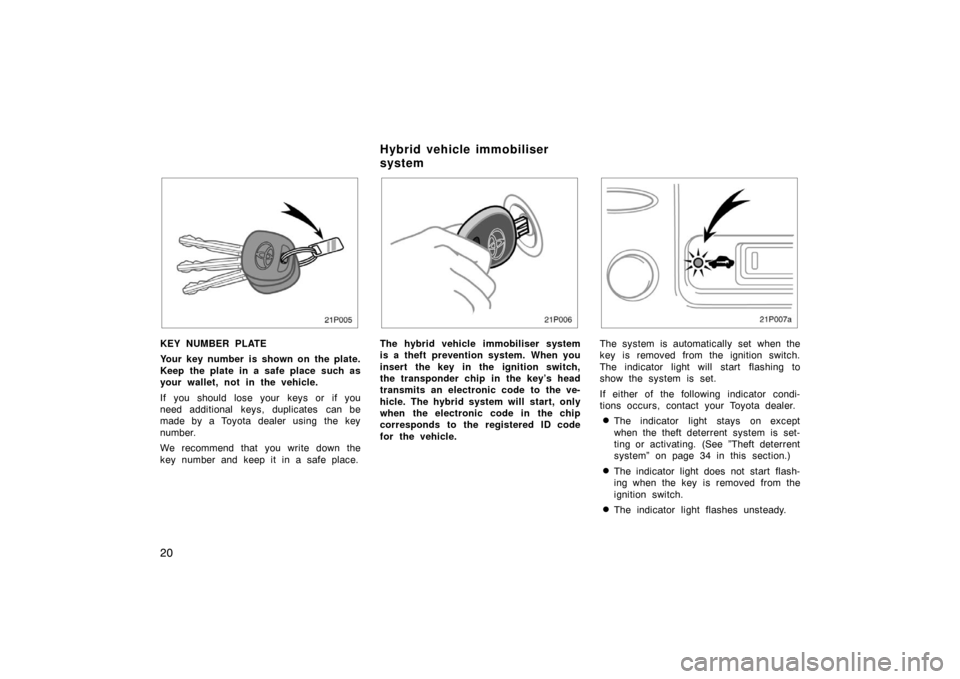

21p005
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend that you write down the
key number and keep it in a safe place.
21p006
The hybrid vehicle immobiliser system
is a theft prevention system. When you
insert the key in the ignition switch,
the transponder chip in the key’s head
transmits an electronic code to the ve-
hicle. The hybrid system will start, only
when the electronic code in the chip
corresponds to the registered ID code
for the vehicle.
21p007a
The system is automatically set when the
key is removed from the ignition switch.
The indicator light will start flashing to
show the system is set.
If either of the following indicator condi-
tions occurs, contact your Toyota dealer.
The indicator light stays on except
when the theft deterrent system is set-
ting or activating. (See ”Theft deterrent
system” on page 34 in this section.)
The indicator light does not start flash-
ing when the key is removed from the
ignition switch.
The indicator light flashes unsteady.
Hybrid vehicle immobiliser
system

21
Inserting the registered key in the ignition
switch automatically cancels the system,
which enables the hybrid system to start.
The indicator light will go off.
For your Toyota dealer to make you a
new key with built−in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the sys-
tem or start the hybrid system.
NOTICE
Do not modify, remove or disas-
semble the hybrid vehicle immobiliser
system. If any unauthorized changes
or modifications are made, the proper
operation of the system cannot be
guaranteed.

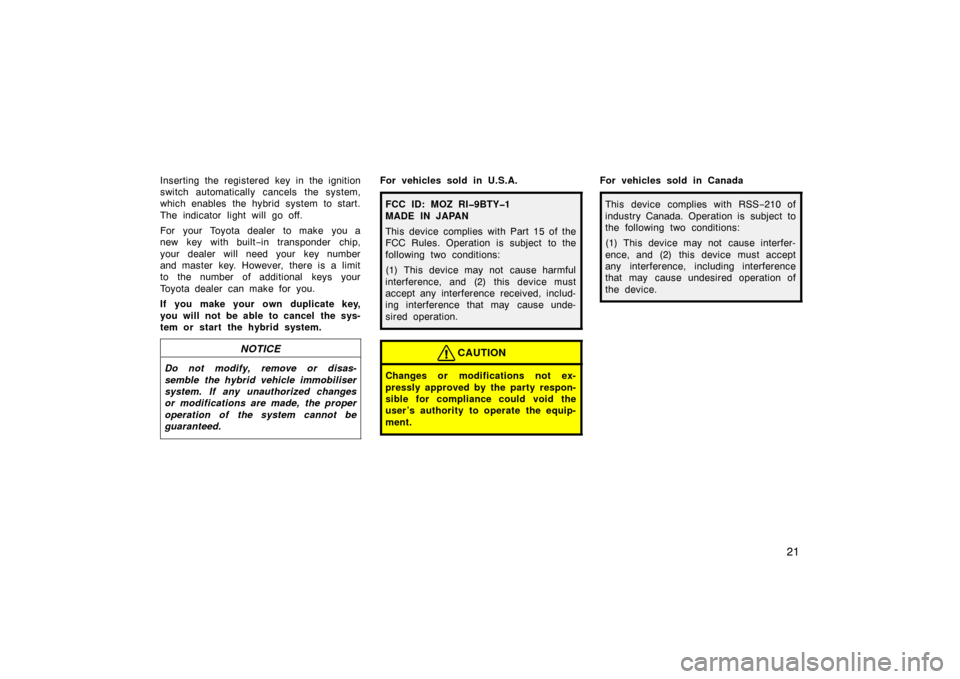

For vehicles sold in U.S.A.
FCC ID: MOZ RI9BTY1
MADE IN JAPAN
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
This device complies with RSS −210 of
industry Canada. Operation is subject to
the following two conditions:
(1) This device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.

22

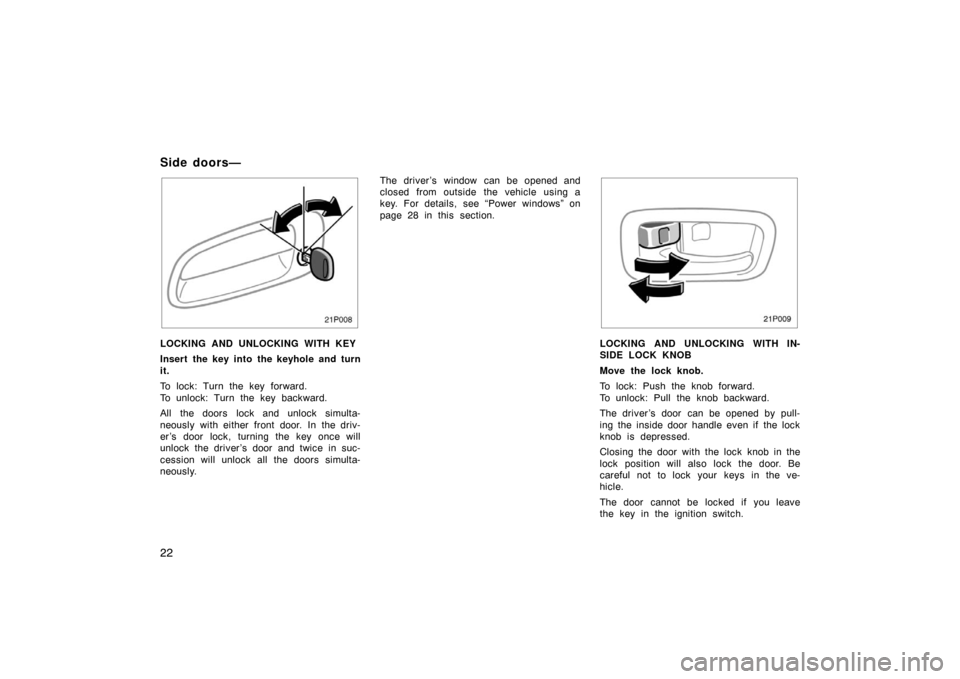

21p008
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
All the doors lock and unlock simulta-
neously with either front door. In the driv-
er’s door lock, turning the key once will
unlock the driver’s door and twice in suc-
cession will unlock all the doors simulta-
neously.The driver ’s window can be opened and
closed from outside the vehicle using a
key. For details, see “Power windows” on
page 28 in this section.
21p009
LOCKING AND UNLOCKING WITH IN-
SIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
The driver ’s door can be opened by pull-
ing the inside door handle even if the lock
knob is depressed.
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the ve-
hicle.
The door cannot be locked if you leave
the key in the ignition switch.
Side doors—

23

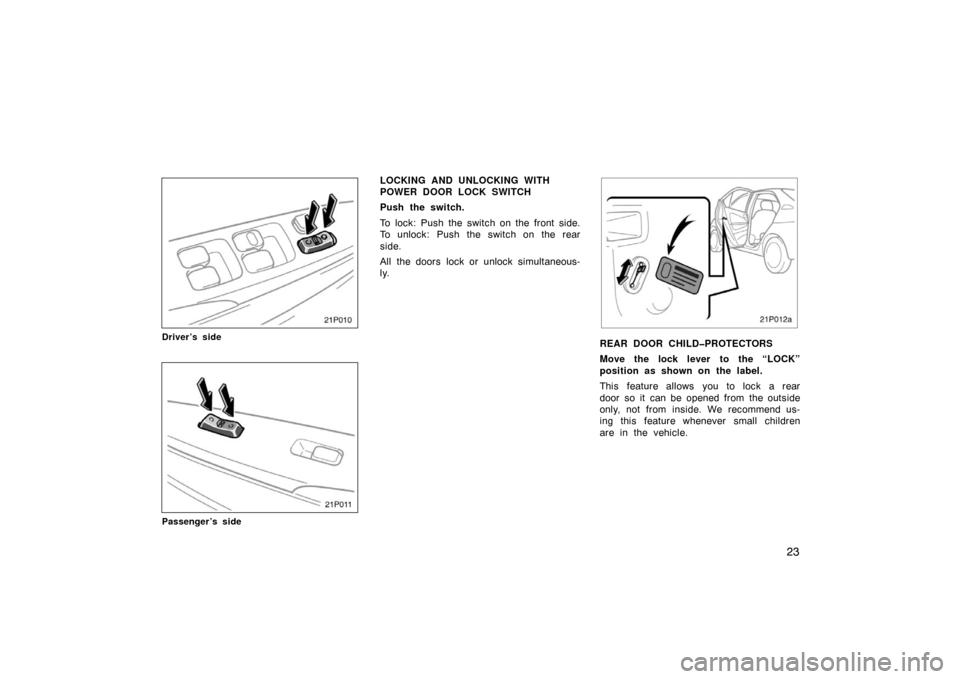

21p010
Driver’s side
21p011
Passenger’s side
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch on the front side.
To unlock: Push the switch on the rear
side.
All the doors lock or unlock simultaneous-
ly.
21p012a
REAR DOOR CHILDPROTECTORS
Move the lock lever to the “LOCK”
position as shown on the label.
This feature allows you to lock a rear
door so it can be opened from the outside
only, not from inside. We recommend us-
ing this feature whenever small children
are in the vehicle.

24

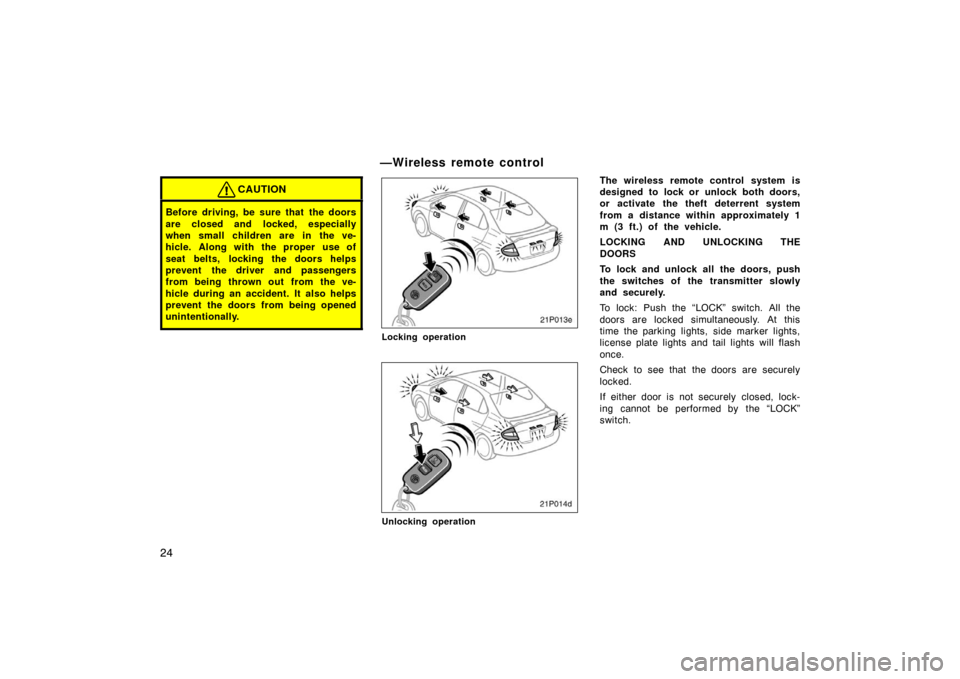

CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle during an accident. It also helps
prevent the doors from being opened
unintentionally.
21p013e
Locking operation
21p014d
Unlocking operation
The wireless remote control system is
designed to lock or unlock both doors,
or activate the theft deterrent system
from a distance within approximately 1
m (3 ft.) of the vehicle.
LOCKING AND UNLOCKING THE
DOORS
To lock and unlock all the doors, push
the switches of the transmitter slowly
and securely.
To lock: Push the “LOCK” switch. All the
doors are locked simultaneously. At this
time the parking lights, side marker lights,
license plate lights and tail lights will flash
once.
Check to see that the doors are securely
locked.
If either door is not securely closed, lock-
ing cannot be performed by the “LOCK”
switch.
—Wireless remote control

25
To unlock: Push the “UNLOCK” switch
once to unlock the only driver’s door.
Pushing the switch twice within 3 seconds
unlocks all the doors simultaneously. Each
time the “UNLOCK” switch is pushed, the
parking lights, side marker lights, license
plate lights and tail lights will flash twice.
When the “UNLOCK” switch is pressed
the interior light comes on. The lights re-
mains on for about 15 seconds unless
either door is opened then and closed.
(For further information, see “Interior
lights” on page 84 in Section 2−3.)
You have 30 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, all the
doors will be automatically locked again.
If the “LOCK” or “UNLOCK” switch is kept
pressed in, the locking or unlocking opera-
tion is not repeated. Release the button
and then push again.

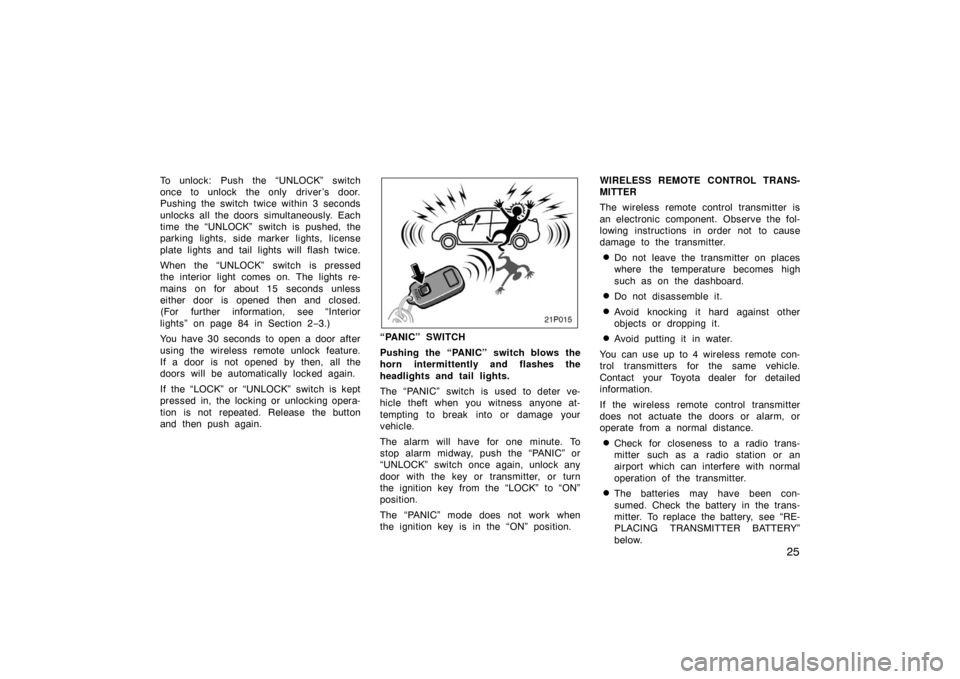

21p015
“PANIC” SWITCH
Pushing the “PANIC” switch blows the
horn intermittently and flashes the
headlights and tail lights.
The “PANIC” switch is used to deter ve-
hicle theft when you witness anyone at-
tempting to break into or damage your
vehicle.
The alarm will have for one minute. To
stop alarm midway, push the “PANIC” or
“UNLOCK” switch once again, unlock any
door with the key or transmitter, or turn
the ignition key from the “LOCK” to “ON”
position.
The “PANIC” mode does not work when
the ignition key is in the “ON” position. WIRELESS REMOTE CONTROL TRANS-
MITTER
The wireless remote control transmitter is
an electronic component. Observe the fol-
lowing instructions in order not to cause
damage to the transmitter.
Do not leave the transmitter on places
where the temperature becomes high
such as on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 4 wireless remote con-
trol transmitters for the same vehicle.
Contact your Toyota dealer for detailed
information.
If the wireless remote control transmitter
does not actuate the doors or alarm, or
operate from a normal distance.
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.

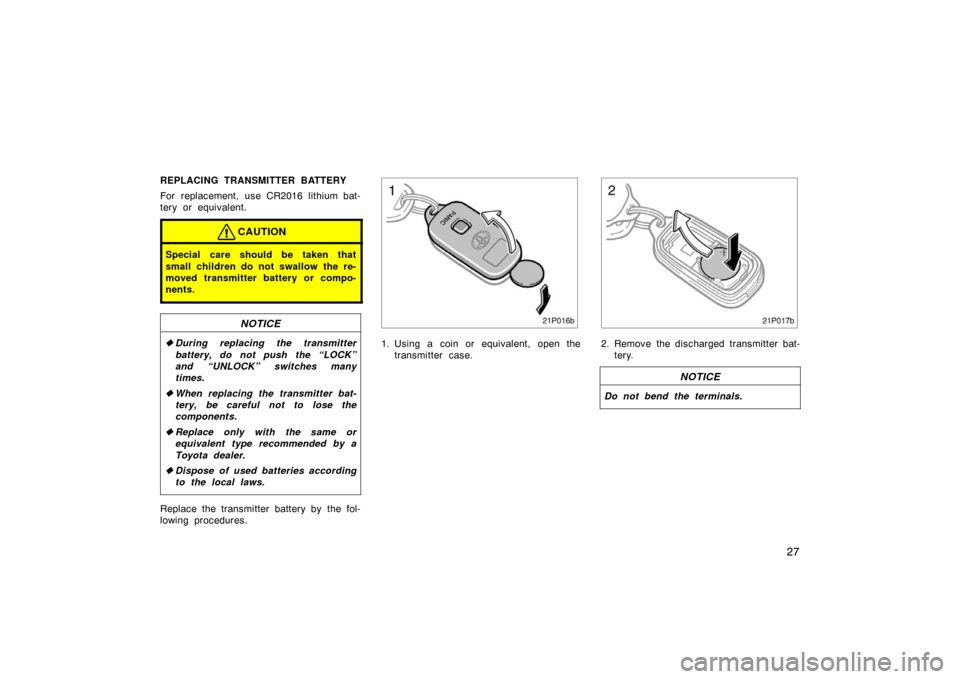

The batteries may have been con-
sumed. Check the battery in the trans-
mitter. To replace the battery, see “RE-
PLACING TRANSMITTER BATTERY”
below.

26
If you lose your transmitter, contact your
Toyota dealer as soon as possible to
avoid the possibility of theft, or an acci-
dent. (See “If you lose your wireless re-
mote control transmitter” on page 183 in
Section 5.)

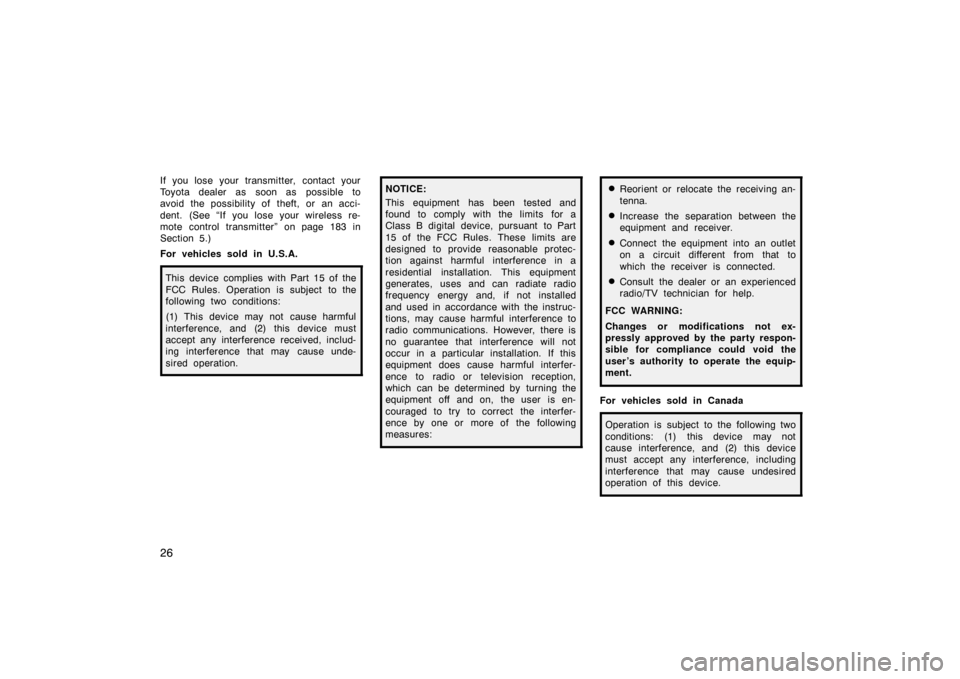

For vehicles sold in U.S.A.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
NOTICE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protec-
tion against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the instruc-
tions, may cause harmful interference to
radio communications. However, there is
no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interfer-
ence to radio or television reception,
which can be determined by turning the
equipment off and on, the user is en-
couraged to try to correct the interfer-
ence by one or more of the following
measures:Reorient or relocate the receiving an-
tenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.
FCC WARNING:
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
Operation is subject to the following two
conditions: (1) this device may not
cause interference, and (2) this device
must accept any interference, including
interference that may cause undesired
operation of this device.

27
REPLACING TRANSMITTER BATTERY
For replacement, use CR2016 lithium bat-
tery or equivalent.
CAUTION
Special care should be taken that
small children do not swallow the re-
moved transmitter battery or compo-
nents.
NOTICE
During replacing the transmitter
battery, do not push the “LOCK”
and “UNLOCK” switches many
times.
 When replacing the transmitter bat-
tery, be careful not to lose the
components.
 Replace only with the same or
equivalent type recommended by a
Toyota dealer.
 Dispose of used batteries according
to the local laws.
Replace the transmitter battery by the fol-
lowing procedures.
21p016b
1. Using a coin or equivalent, open the
transmitter case.
21p017b
2. Remove the discharged transmitter bat-tery.
NOTICE
Do not bend the terminals.
