TOYOTA PRIUS 2009 2.G Navigation Manual

ADVANCED FUNCTIONS
109
4. Touch either or to adjust the
direction of the current vehicle position
mark.
5. Touch “Enter”.
The map screen will be displayed. TIRE CHANGE CALIBRATION
The tire change
calibration function will be
used when replacing the tires. This func-
tion will adjust the miscalculation caused
by the circumference difference between
the old and new tires. If this procedure is
not performed when the tires are replaced,
the current vehicle position mark may be
incorrectly displayed.
To perform a distance calibration pro-
cedure, touch “Tire Change” on the
“Calibration” screen.
The message appears and the quick dis-
tance calibration is automatically started.
A few seconds later, a map screen will be
displayed.
08/06/25 Prius_Navi_U
OM47615U

ADVANCED FUNCTIONS
11 0
08/06/25Prius_Navi_U
OM47615U

SECTION 5
OTHER FUNCTIONS
111
OTHER FUNCTIONS
Maintenance information 11 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance information setting 112 . . . . . . . . . . . . . . . . . . . . . . .
Dealer setting 114 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
 Calendar with memo 11 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adding a memo 118 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Editing a memo 119 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Memo list 119 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
 Speech command system 121
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 Help screen 124
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
 Screen adjustment 125
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 Screen setting 126
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
 Beep setting 129
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
 Selecting a language 129
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
08/06/25 Prius_Navi_U
OM47615U

OTHER FUNCTIONS
11 2
When the navigation System is turned on,
the “Information” screen displays when it is
time to replace a part or certain compo-
nents. (See page 20.)
1. Push the “INFO” button.
5U5600T
2. Touch “Maintenance”.
5U5077T
3. Touch the desired button. For details of each touch
−screen button,
see “INFORMA TION ITEMS” on page 113.
“Delete All”: To cancel all conditions
which have been inputted.
“Reset All”: To reset the item which has
satisfied a condition.
“Set Dealer”: To register or edit dealer in-
formation. (See “ — Dealer setting” on
page 114.)
If “ON” is selected, the system gives main-
tenance information with the “Information”
screen when the system is turned on. (See
page 20.)
If “OFF” is selected, the “Information”
screen is disabled.
When the vehicle needs to be serviced, the
touch−screen button color will change to
orange.
08/06/25 Prius_Navi_U
OM47615U
Maintenance information —
— Maintenance information
setting

OTHER FUNCTIONS
11 3
INFORMATION ITEMS
“ENGINE OIL”: Replace engine oil
“OIL FILTER”: Replace engine oil filter
“ROTATION”: Rotate tires
“TIRES”: Replace tires
“BATTERY”: Replace 12 volt battery
“BRAKE PAD”: Replace brake linings
“WIPERS”: Replace wiper blades
“LLC”: Replace engine coolant
“BRAKE OIL”: Replace brake fluid
“ATF”: Replace ATF (Automatic Trans-
mission Fluid)
“SERVICE”: Scheduled maintenance
“AIR FILTER”: Replace air filter
“PERSONAL”: New information items
can be created separately from provided
ones.
4. Input the conditions.
Notice of “Date”: The next maintenance
date can be input.
Notice of “Distance”: The driving dis-
tance until the next maintenance check
can be input.
“Delete”: To cancel the date and distance
conditions.
“Reset”: To reset the date and distance
conditions .
5. Touch “OK”.
The screen then returns to the “Mainte-
nance” screen.
INFORMATION
 For scheduled maintenance infor-
mation, please refer to the “Own-
er’s Manual Supplement/Sched-
uled Maintenance”.
 Depending on driving or road con-
ditions, the actual date and dis-
tance may differ from the stored
date and distance in the system.
08/06/25 Prius_Navi_U
OM47615U

OTHER FUNCTIONS
11 4
— Dealer setting
It is possible to register a dealer in the sys-
tem. With dealer information registered,
route guidance to the dealer is available.

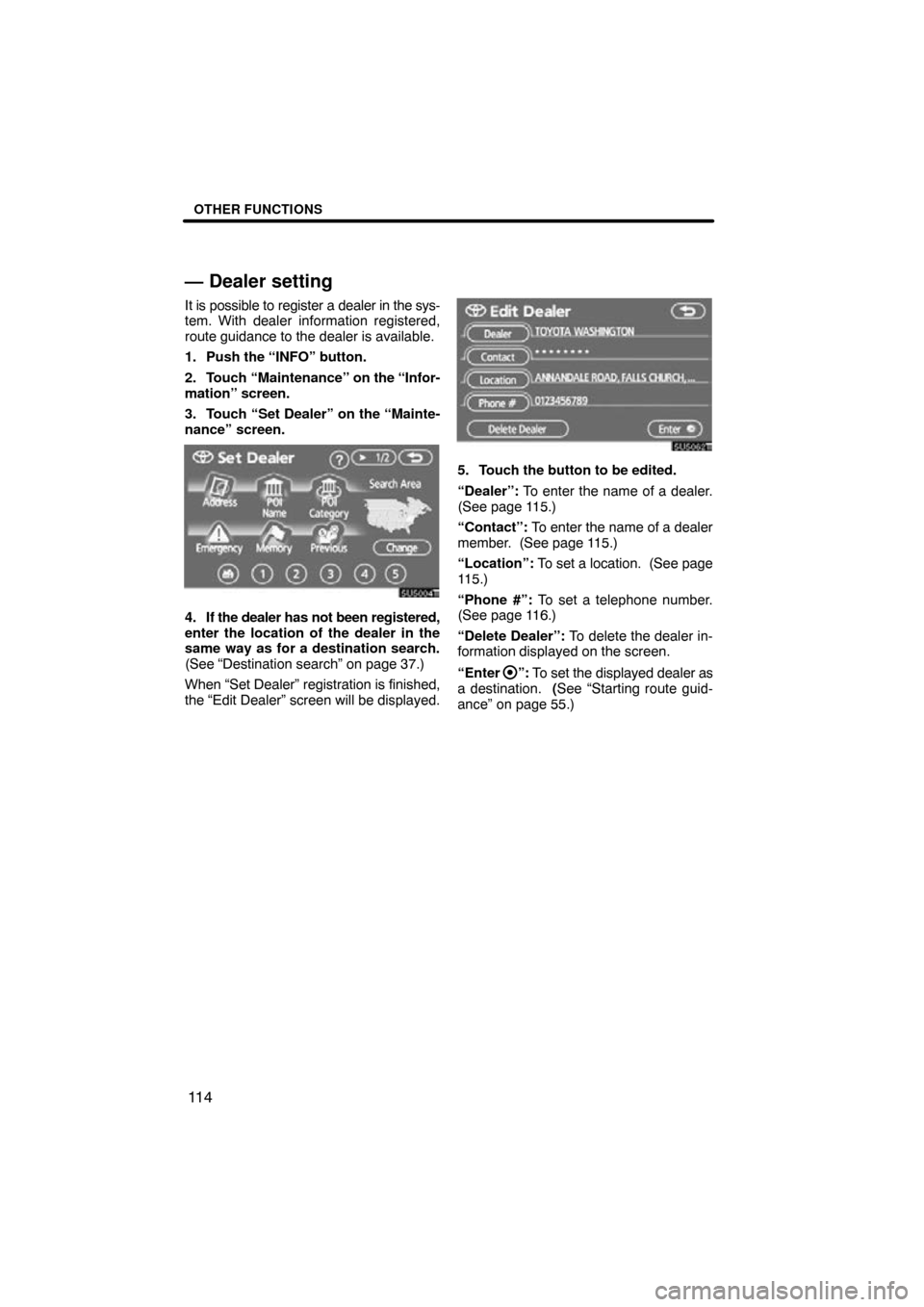

1. Push the “INFO” button.
2. Touch “Maintenance” on the “Infor-
mation” screen.
3. Touch “Set Dealer” on the “Mainte-
nance” screen.
4. If the dealer has not been registered,
enter the location of the dealer in the
same way as for a destination search.
(See “Destination search” on page 37.)
When “Set Dealer” registration is finished,
the “Edit Dealer” screen will be displayed.
5. Touch the button to be edited.
“Dealer”: To enter the name of a dealer.
(See page 115.)
“Contact”: To enter the name of a dealer
member. (See page 115.)
“Location”: To set a location. (See page
115.)
“Phone #”: To set a telephone number.
(See page 116.)
“Delete Dealer”: To delete the dealer in-
formation displayed on the screen.
“Enter
”: To set the displayed dealer as
a destination. (See “Starting route guid-
ance” on page 55.)
08/06/25 Prius_Navi_U
OM47615U

OTHER FUNCTIONS
11 5

To edit “Dealer” or “Contact”
1. Touch “Dealer” or “Contact” on the
“Edit Dealer” screen.
2. Enter the name using the alphanu-
meric keys.
Up to 24 letters can be entered.
3. Touch “OK”.
The previous screen will be displayed.
To edit “Location”
1. Touch “Location” on the “Edit Deal-
er” screen.
2. Touch the eight directional touch
screen button to move the cursor
to
the desired point on the map.
3. Touch “Enter”.
The previous screen will be displayed.
08/06/25 Prius_Navi_U
OM47615U

OTHER FUNCTIONS
11 6

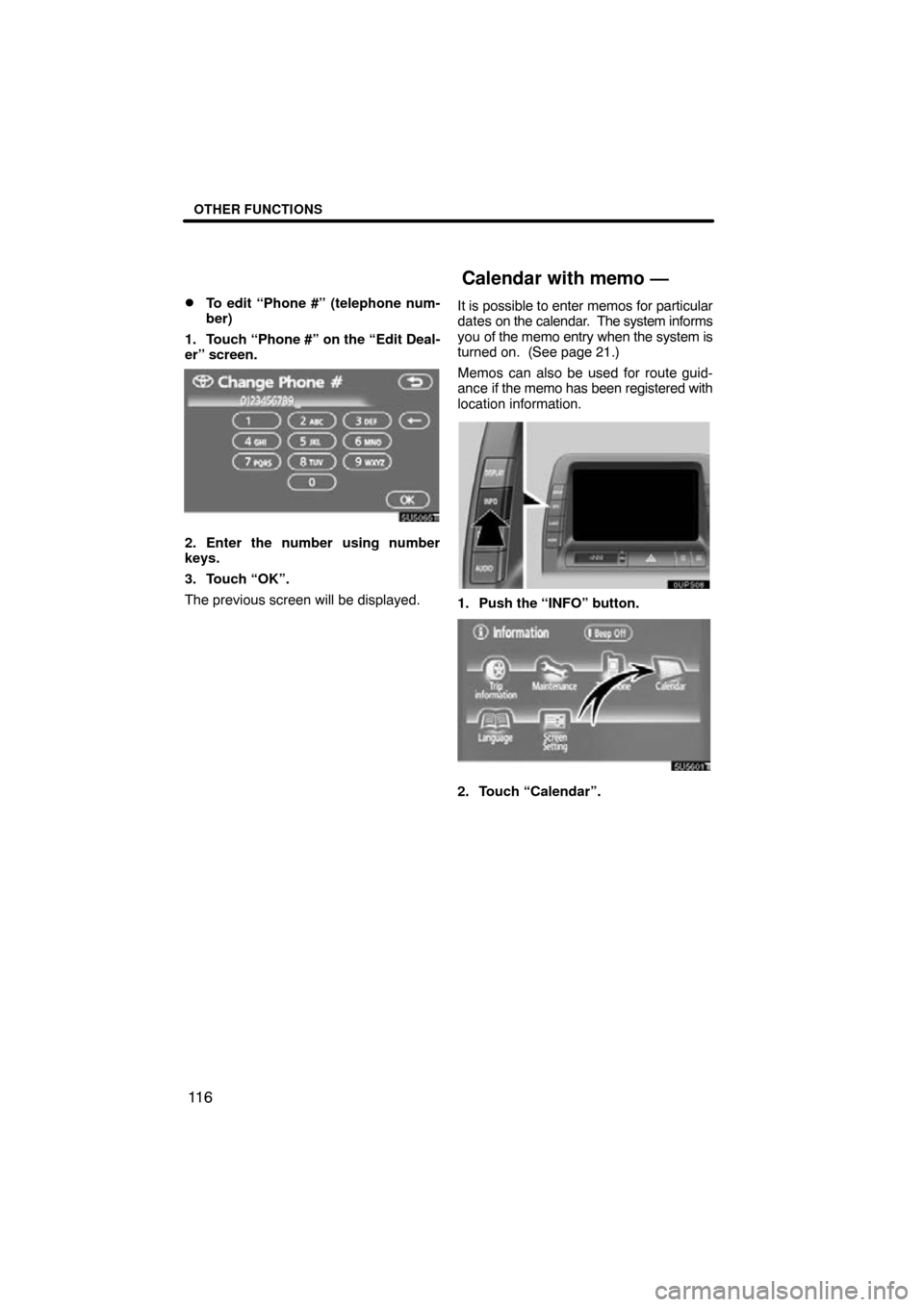

To edit “Phone #” (telephone num-
ber)
1. Touch “Phone #” on the “Edit Deal-
er” screen.
2. Enter the number using number
keys.
3. Touch “OK”.
The previous screen will be displayed. It is possible to enter memos for particular
dates on the calendar.
The system informs
you of the memo entry when the system is
turned on. (See page 21.)
Memos can also be used for route guid-
ance if the memo has been registered with
location information.
1. Push the “INFO” button.
5U5601T
2. Touch “Calendar”.
08/06/25 Prius_Navi_U
OM47615U
Calendar with memo —

OTHER FUNCTIONS
11 7

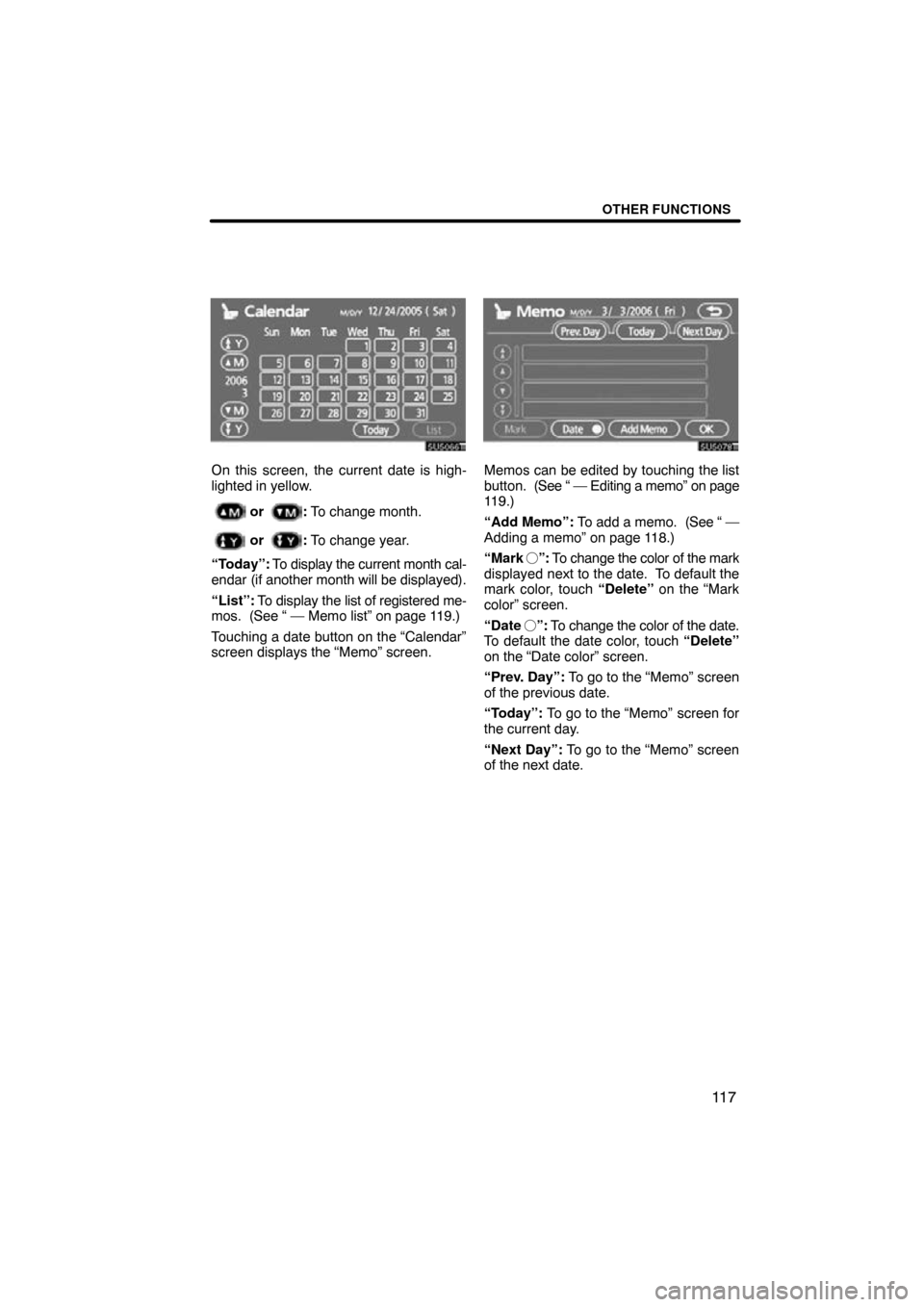

On this screen, the current date is high-
lighted in yellow.
or : To change month.
or : To change year.
“Today”: To display the current month cal-
endar (if another month will be displayed).
“List”: To display the list of registered me-
mos. (See “ — Memo list” on page 119.)
Touching a date button on the “Calendar”
screen displays the “Memo” screen.
Memos can be edited by touching the list
button. (See “ — Editing a memo” on page
119.)
“Add Memo”: To add a memo. (See “ —
Adding a memo” on page 118.)
“Mark ”: To change the color of the mark
displayed next to the date. To default the
mark color, touch “Delete” on the “Mark
color” screen.
“Date ”: To change the color of the date.
To default the date color, touch “Delete”
on the “Date color” screen.
“Prev. Day”: To go to the “Memo” screen
of the previous date.
“Today”: To go to the “Memo” screen for
the current day.
“Next Day”: To go to the “Memo” screen
of the next date.
08/06/25 Prius_Navi_U
OM47615U

OTHER FUNCTIONS
11 8
If a memo is added, the system informs of
the memo entry when the system is started
on the memo date. (See page 21.)

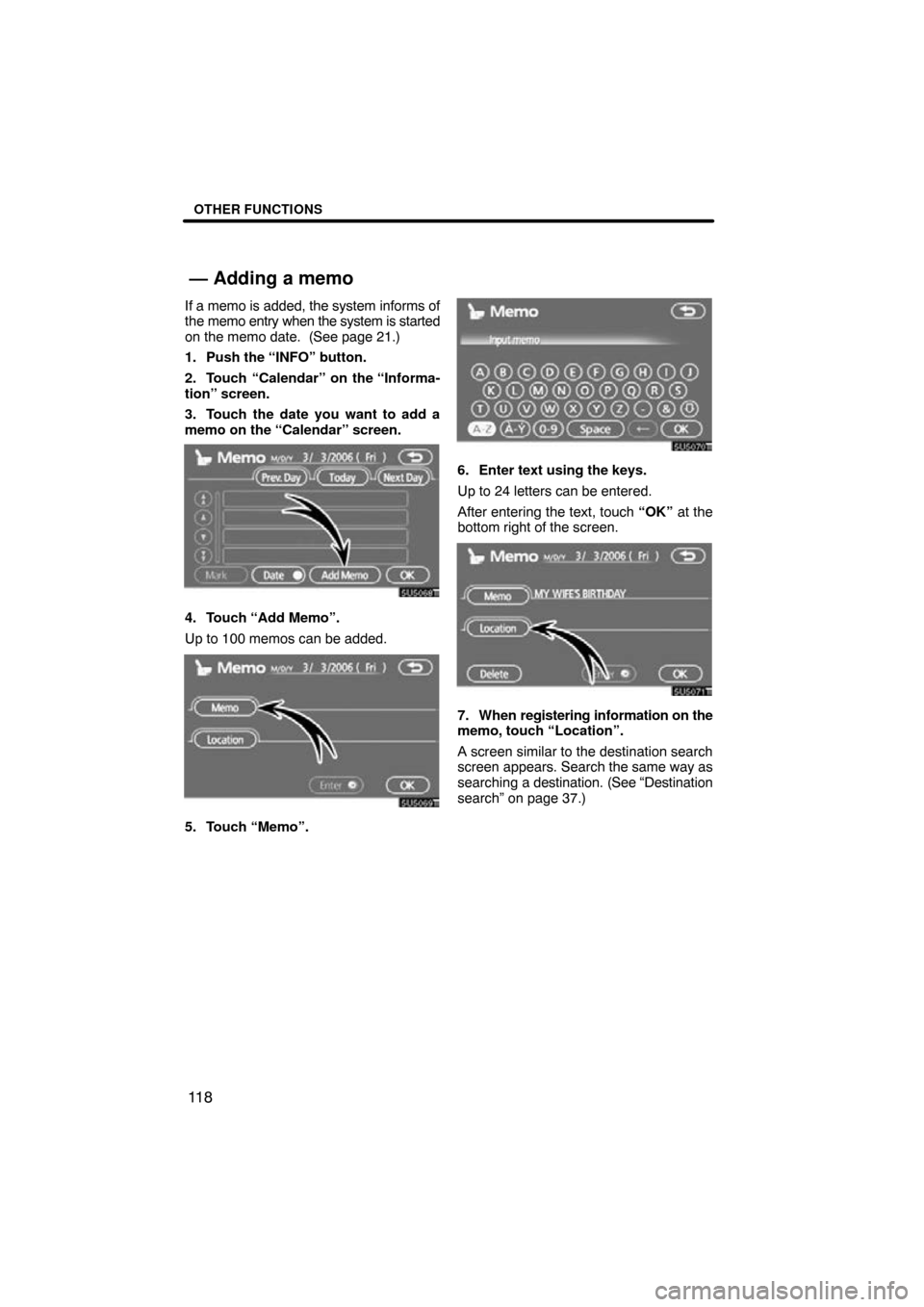

1. Push the “INFO” button.
2. Touch “Calendar” on the “Informa-
tion” screen.
3. Touch the date you want to add a
memo on the “Calendar” screen.
4. Touch “Add Memo”.
Up to 100 memos can be added.
5. Touch “Memo”.
6. Enter text using the keys.
Up to 24 letters can be entered.
After entering the text, touch “OK” at the
bottom right of the screen.
7. When registering information on the
memo, touch “Location”.
A screen similar to the destination search
screen appears. Search the same way as
searching a destination. (See “Destination
search” on page 37.)
08/06/25 Prius_Navi_U
OM47615U
— Adding a memo
