TOYOTA PRIUS 2009 2.G Navigation Manual

OTHER FUNCTIONS
129
Beep setting
You can set a beep sound off.
1. Push the “INFO” button.
5U5603T
2. Touch “Beep Off”.
“Beep Off” is highlighted.
To switch the beep sound on, touch “Beep
Off” again.
Selecting a language
The language of the touch −screen but-
tons, pop−up messages and the voice
guidance can be changed.
1. Push the “INFO” button.
5U5604T
2. Touch “Language”.
08/06/25 Prius_Navi_U
OM47615U

OTHER FUNCTIONS
130
5U5706T

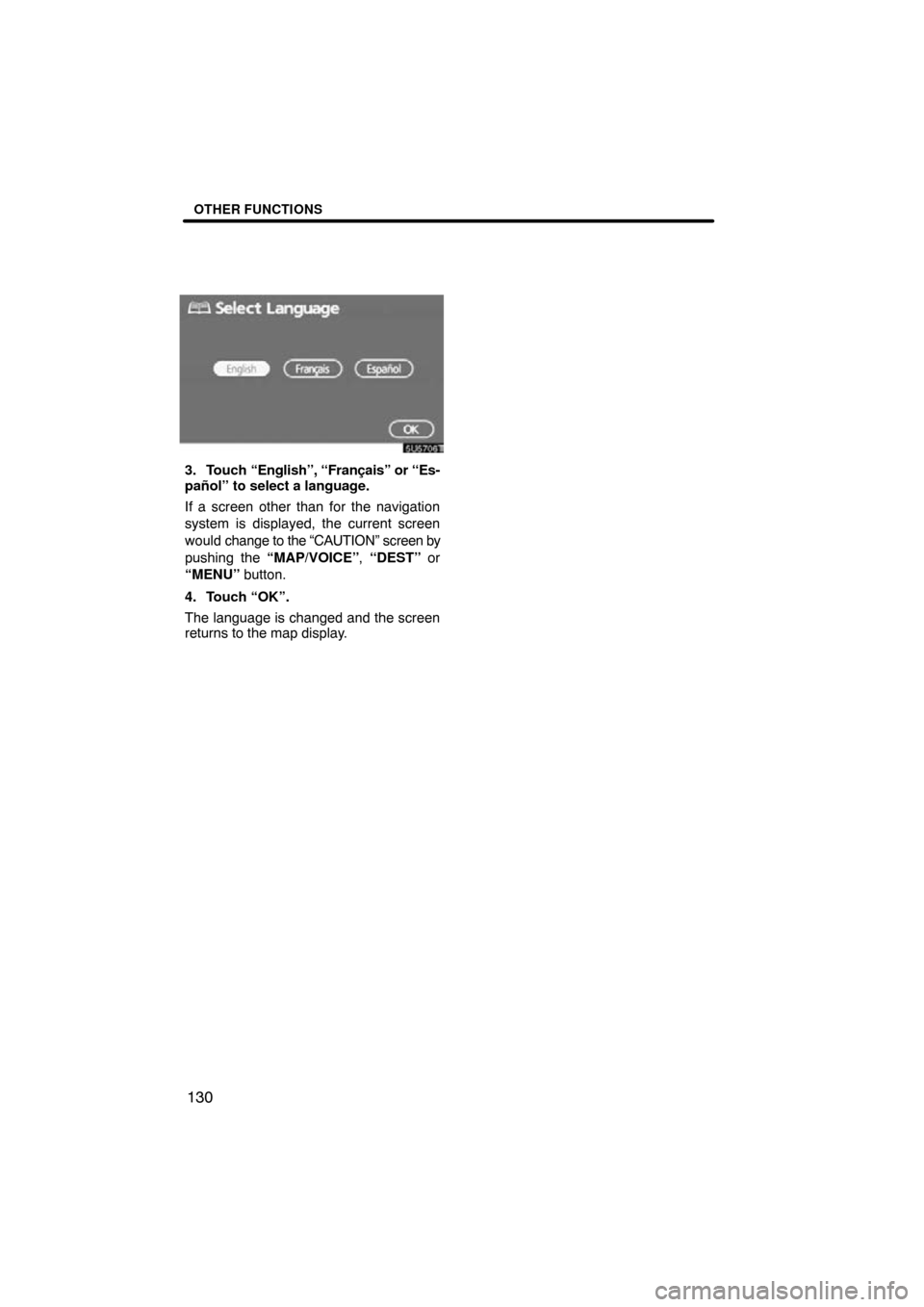

3. Touch “English”, “Français” or “Es-
pañol” to select a language.
If a screen other than for the navigation
system is displayed, the current screen
would change to the “CAUTION” screen by
pushing the “MAP/VOICE” , “DEST” or
“MENU” button.
4. Touch “OK”.
The language is changed and the screen
returns to the map display.
08/06/25 Prius_Navi_U
OM47615U

SECTION 6
APPENDIX
131
APPENDIX
Limitations of the navigation system 132 . . . . . . . . . . . . . . . . . . . . .
 Map database information and updates 134 . . . . . . . . . . . . . . . . . .
08/06/25 Prius_Navi_U
OM47615U

APPENDIX
132
This navigation system calculates the
current vehicle position using satellite
signals, various vehicle signals, map
data, etc. However, the accurate posi-
tion may not be shown depending on
the satellite condition, road configura-
tion, vehicle condition or other circum-
stances.
The Global Positioning System (GPS) de-
veloped and operated by the U.S. Depart-
ment of Defense provides an accurate cur-
rent vehicle position, normally using 4 or
more satellites, and in some cases 3 satel-
lites. The GPS system has a certain level
of inaccuracy. While the navigation sys-
tem will compensate for this most of the
time, occasional positioning errors of up to
300 feet (100 m) can and should be expec-
ted. Generally, position errors will be cor-
rected within a few seconds.When your vehicle is receiving signals
from the satellites, the “GPS” mark ap-
pears at the top left of the screen.
The GPS signal may be physically ob-
structed, leading to inaccurate vehicle
position on the map display. Tunnels, tall
buildings, trucks, or even the placement of
objects on the instrument panel may ob-
struct the GPS signals.
The GPS satellites may not send signals
due to repairs or improvements being
made to them.
Even when the navigation system is re-
ceiving clear GPS signals, the vehicle
position may not be shown accurately or
inappropriate route guidance may occur in
some cases.
NOTICE
The installation of window tinting
may obstruct the GPS signals. Most
window tinting contains some metal-
lic content that will interfere with GPS
signal reception of the antenna in the
instrument panel. We advise against
the use of window tinting on vehicles
equipped with navigation systems.
08/06/25 Prius_Navi_U
OM47615U
Limitations of the
navigation system

APPENDIX
133
(a) Accurate current vehicle position
may not be shown in the following
cases:
When driving on a small angled Y−
shaped road.
When driving on a winding road.
When driving on a slippery road such
as in sand, gravel, snow, etc.
When driving on a long straight road.
When motorway and surface streets
run in parallel.
After moving by ferry or vehicle carrier.
When a long route is searched during
high speed driving.
When driving without setting the cur-
rent position calibration correctly.
After repeating a change of direction by
going forward and backward, or turning
on a turntable in the parking lot.
When leaving a covered parking lot or
parking garage.
When a roof carrier is installed.
When driving with tire chains installed.
When the tires are worn.
After replacing a tire or tires.
When using tires that are smaller or
larger than the factory specifications.
When the tire pressure in any of the
four tires is not correct.
INFORMATION
If your vehicle cannot receive GPS
signals, you can correct the current
position manually. For information
on setting the current position cal-
ibration, see page 108.
(b) Inappropriate route guidance may
occur in the following cases:
When turning at an intersection off the
designated route guidance.
If you set more than one destination but
skip any of them, auto reroute will dis-
play a route returning to the destination
on the previous route.
When turning at an intersection for
which there is no route guidance.
When passing through an intersection
for which there is no route guidance.
During auto reroute, the route guid-
ance may not be available for the next
turn to the right or left.
It may take a long time to operate auto
reroute during high speed driving. In
auto reroute, a detour route may be
shown.
After a uto reroute, the route may not be
changed.
An unnecessary U −turn may be shown
or announced.
A location may have multiple names
and the system will announce one or
more.
Some routes may not be searched.
If the route to your destination includes
gravel, unpaved roads or alleys, the
route guidance may not be shown.
Your destination point might be shown
on the opposite side of the street.
When a portion of the route has regula-
tions prohibiting the entry of the vehicle
that vary by time or season or other
reasons.
The road and map data stored in your
navigation system may not be com-
plete or may not be the latest version.
08/06/25 Prius_Navi_U
OM47615U

APPENDIX
134
After replacing a tire, implement the op-
eration described in the “TIRE
CHANGE CALIBRATION”. (See page
109.)
This navigation system uses tire turning
data and is designed to work with factory −
specified tires for your vehicle. Installing
tires that are larger or smaller than the orig-
inally equipped diameter may cause inac-
curate display of the vehicle’s position.
The tire pressure also affects the diameter
of the tires so please make sure the tire

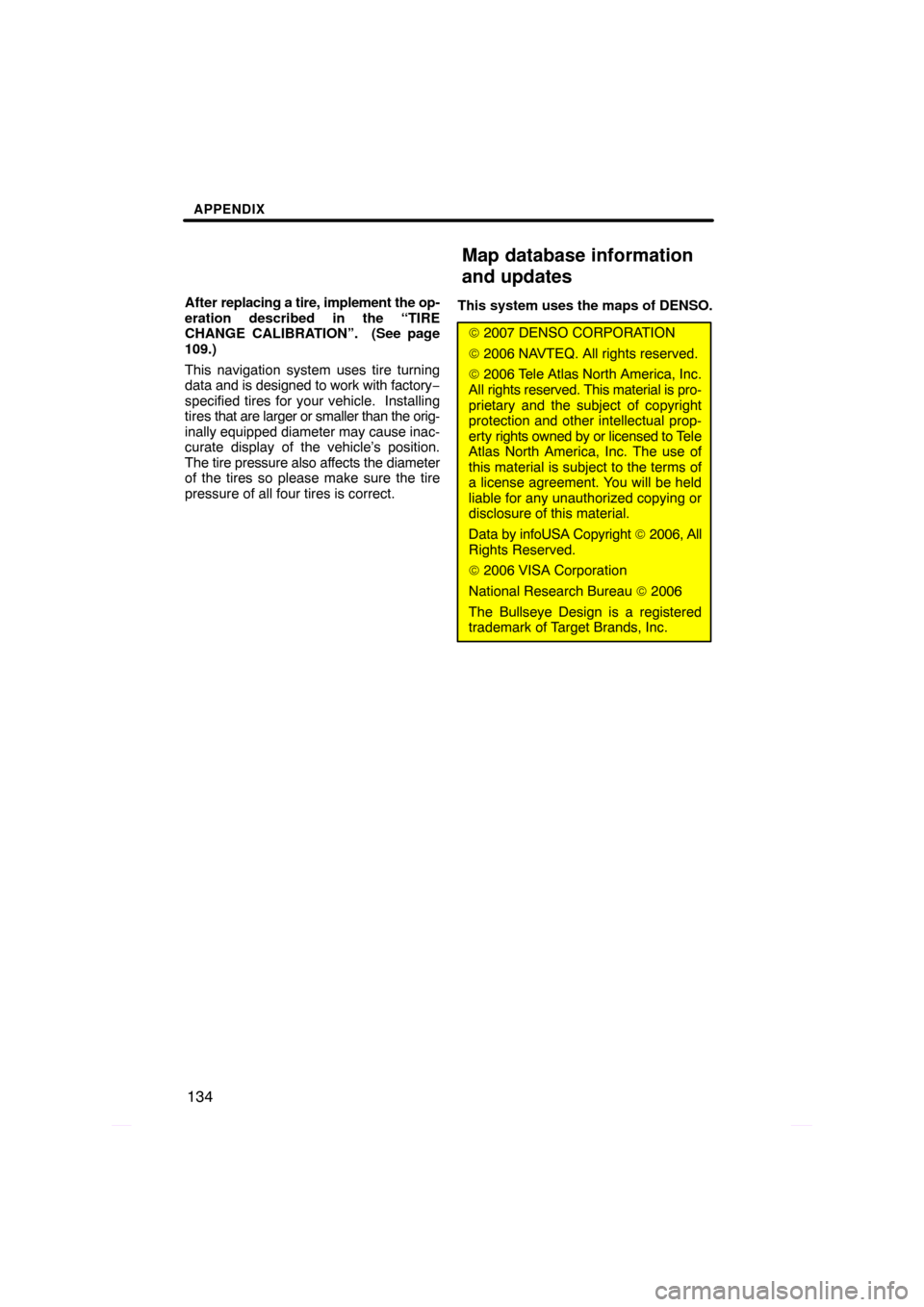

pressure of all four tires is correct. This system uses the maps of DENSO.
©
2007 DENSO CORPORATION
© 2006 NAVTEQ. All rights reserved.
© 2006 Tele Atlas North America, Inc.
All rights reserved. This material is pro-
prietary and the subject of copyright
protection and other intellectual prop-
erty rights owned by or licensed to Tele
Atlas North America, Inc. The use of
this material is subject to the terms of
a license agreement. You will be held
liable for any unauthorized copying or
disclosure of this material.
Data by infoUSA Copyright © 2006, All
Rights Reserved.
© 2006 VISA Corporation
National Research Bureau © 2006
The Bullseye Design is a registered
trademark of Target Brands, Inc.
08/06/25 Prius_Navi_U
OM47615U
Map database information
and updates

APPENDIX
135

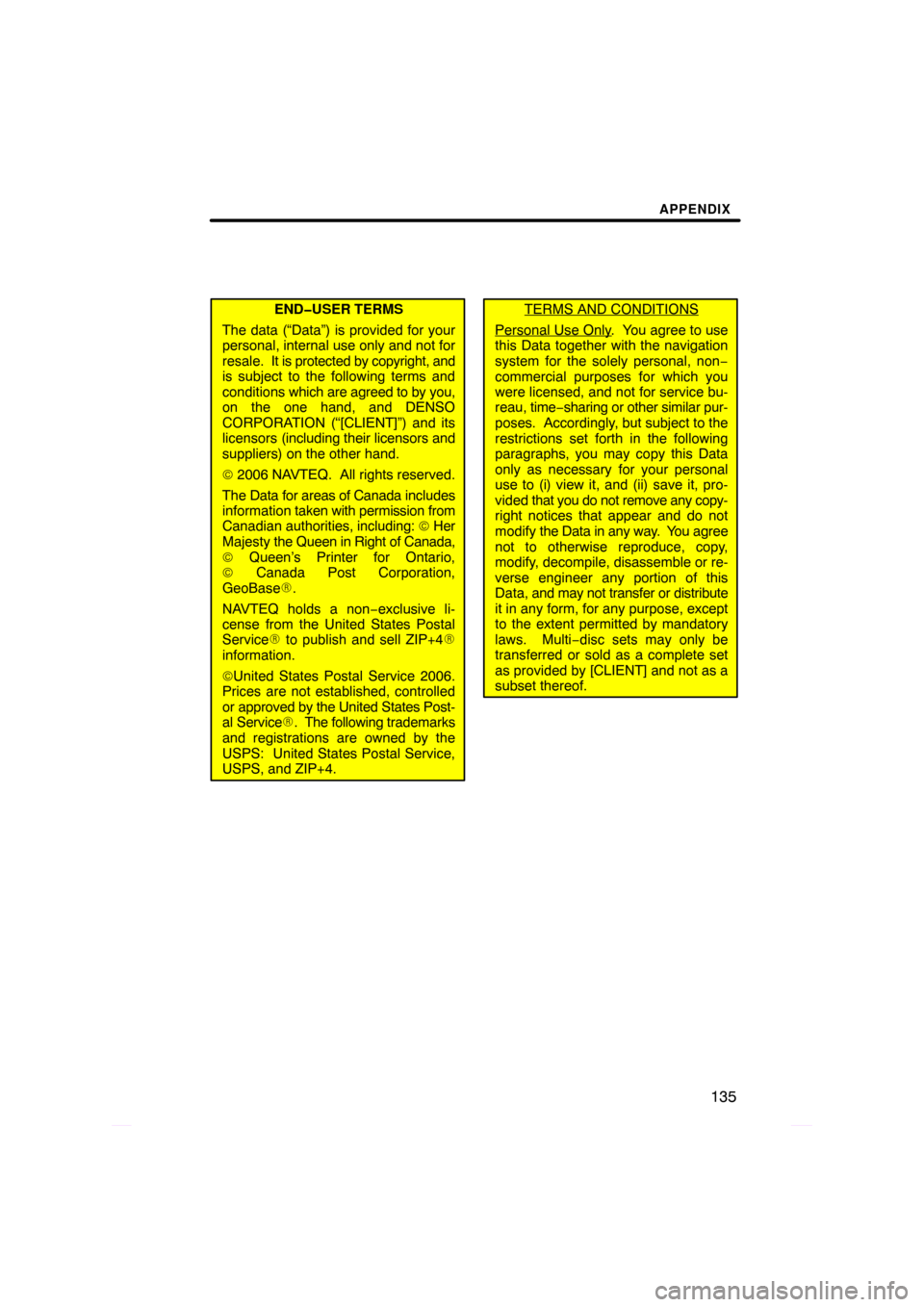

ENDUSER TERMS
The data (“Data”) is provided for your
personal, internal use only and not for
resale. It is protected by copyright, and
is subject to the following terms and
conditions which are agreed to by you,
on the one hand, and DENSO
CORPORATION (“[CLIENT]”) and its
licensors (including their licensors and
suppliers) on the other hand.
© 2006 NAVTEQ. All rights reserved.
The Data for areas of Canada includes
information taken with permission from
Canadian authorities, including: © Her
Majesty the Queen in Right of Canada,
© Queen’s Printer for Ontario,
© Canada Post Corporation,
GeoBase .
NAVTEQ holds a non −exclusive li-
cense from the United States Postal
Service  to publish and sell ZIP+4
information.
© United States Postal Service 2006.
Prices are not established, controlled
or approved by the United States Post-
al Service . The following trademarks
and registrations are owned by the
USPS: United States Postal Service,
USPS, and ZIP+4.TERMS AND CONDITIONS
Personal Use Only. You agree to use
this Data together with the navigation
system for the solely personal, non −
commercial purposes for which you
were licensed, and not for service bu-
reau, time−sharing or other similar pur-
poses. Accordingly, but subject to the
restrictions set forth in the following
paragraphs, you may copy this Data
only as necessary for your personal
use to (i) view it, and (ii) save it, pro-
vided that you do not remove any copy-
right notices that appear and do not
modify the Data in any way. You agree
not to otherwise reproduce, copy,
modify, decompile, disassemble or re-
verse engineer any portion of this
Data, and may not transfer or distribute
it in any form, for any purpose, except
to the extent permitted by mandatory
laws. Multi−disc sets may only be
transferred or sold as a complete set
as provided by [CLIENT] and not as a
subset thereof.
08/06/25 Prius_Navi_U
OM47615U

APPENDIX
136

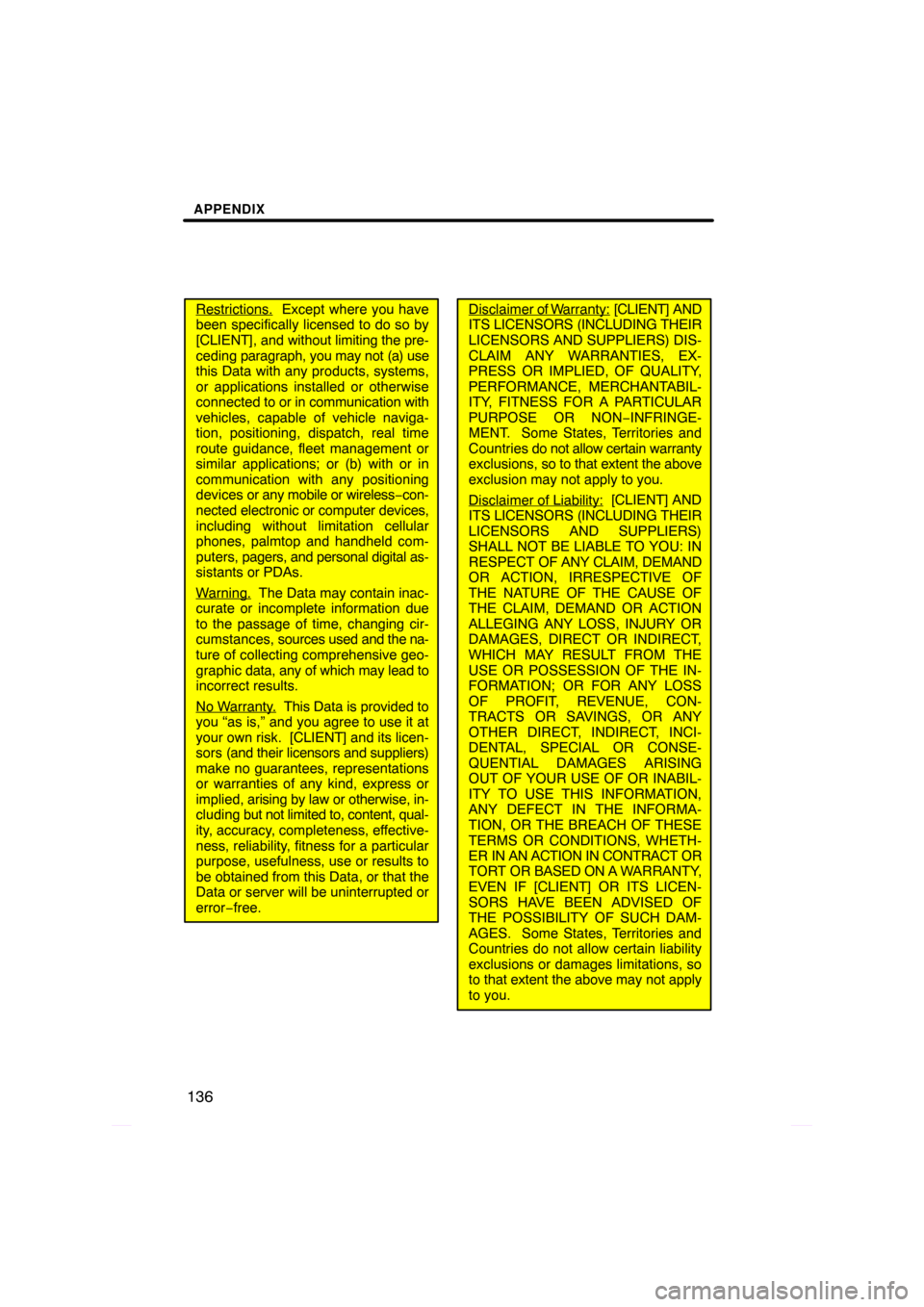

Restrictions. Except where you have
been specifically licensed to do so by
[CLIENT], and without limiting the pre-
ceding paragraph, you may not (a) use
this Data with any products, systems,
or applications installed or otherwise
connected to or in communication with
vehicles, capable of vehicle naviga-
tion, positioning, dispatch, real time
route guidance, fleet management or
similar applications; or (b) with or in
communication with any positioning
devices or any mobile or wireless −con-
nected electronic or computer devices,
including without limitation cellular
phones, palmtop and handheld com-
puters, pagers, and personal digital as-
sistants or PDAs.
Warning.
The Data may contain inac-
curate or incomplete information due
to the passage of time, changing cir-
cumstances, sources used and the na-
ture of collecting comprehensive geo-
graphic data, any of which may lead to
incorrect results.
No Warranty.
This Data is provided to
you “as is,” and you agree to use it at
your own risk. [CLIENT] and its licen-
sors (and their licensors and suppliers)
make no guarantees, representations
or warranties of any kind, express or
implied, arising by law or otherwise, in-
cluding but not limited to, content, qual-
ity, accuracy, completeness, effective-
ness, reliability, fitness for a particular
purpose, usefulness, use or results to
be obtained from this Data, or that the
Data or server will be uninterrupted or
error−free.
Disclaimer of Warranty: [CLIENT] AND
ITS LICENSORS (INCLUDING THEIR
LICENSORS AND SUPPLIERS) DIS-
CLAIM ANY WARRANTIES, EX-
PRESS OR IMPLIED, OF QUALITY,
PERFORMANCE, MERCHANTABIL-
ITY, FITNESS FOR A PARTICULAR
PURPOSE OR NON−INFRINGE-
MENT. Some States, Territories and
Countries do not allow certain warranty
exclusions, so to that extent the above
exclusion may not apply to you.
Disclaimer of Liability:
[CLIENT] AND
ITS LICENSORS (INCLUDING THEIR
LICENSORS AND SUPPLIERS)
SHALL NOT BE LIABLE TO YOU: IN
RESPECT OF ANY CLAIM, DEMAND
OR ACTION, IRRESPECTIVE OF
THE NATURE OF THE CAUSE OF
THE CLAIM, DEMAND OR ACTION
ALLEGING ANY LOSS, INJURY OR
DAMAGES, DIRECT OR INDIRECT,
WHICH MAY RESULT FROM THE
USE OR POSSESSION OF THE IN-
FORMATION; OR FOR ANY LOSS
OF PROFIT, REVENUE, CON-
TRACTS OR SAVINGS, OR ANY
OTHER DIRECT, INDIRECT, INCI-
DENTAL, SPECIAL OR CONSE-
QUENTIAL DAMAGES ARISING
OUT OF YOUR USE OF OR INABIL-
ITY TO USE THIS INFORMATION,
ANY DEFECT IN THE INFORMA-
TION, OR THE BREACH OF THESE
TERMS OR CONDITIONS, WHETH-
ER IN AN ACTION IN CONTRACT OR
TORT OR BASED ON A W ARRANTY,
EVEN IF [CLIENT] OR ITS LICEN-
SORS HAVE BEEN ADVISED OF
THE POSSIBILITY OF SUCH DAM-
AGES. Some States, Territories and
Countries do not allow certain liability
exclusions or damages limitations, so
to that extent the above may not apply
to you.
08/06/25 Prius_Navi_U
OM47615U

APPENDIX
137
Export Control. You agree not to ex-
port from anywhere any part of the
Data provided to you or any direct
product thereof except in compliance
with, and with all licenses and approv-
als required under, applicable export
laws, rules and regulations.
Entire Agreement.
These terms and
conditions constitute the entire agree-
ment between [CLIENT] (and its licen-
sors, including their licensors and sup-
pliers) and you pertaining to the sub-
ject matter hereof, and supersedes in
their entirety any and all written or oral
agreements previously existing be-
tween us with respect to such subject
matter.
Governing Law.
The above terms and
conditions shall be governed by the
laws of the State of Illinois, without
giving effect to (i) its conflict of laws
provisions, or (ii) the United Nations
Convention for Contracts for the
International Sale of Goods, which is
explicitly excluded. You agree to
submit to the jurisdiction of the State of
Illinois for any and all disputes, claims
and actions arising from or in
connection with the Data provided to
you hereunder.
Government End Users.
If the Data is
being acquired by or on behalf of the
United States government or any other
entity seeking or applying rights similar
to those customarily claimed by the
United States government, this Data is
a “commercial item” as that term is
defined at 48 C.F.R. (“FAR”) 2.101, is
licensed in accordance with these End
User T erms, and each copy of the Data
delivered or otherwise furnished shall
be marked and embedded as appropri-
ate with the following “Notice of Use,”
and shall be treated in accordance with
such Notice:
NOTICE OF USE
CONTRACTOR (MANUFACTURER/ SUPPLIER) NAME: NAVTEQ
CONTRACTOR (MANUFACTURER/ SUPPLIER) ADDRESS: 222 Mer-chandise Mart Plaza, Suite 900, Chicago, Illinois 60654
This Data is a commercial item as
defined in FAR 2.101 and is subject to the End User Terms under which this Data was provided.
© 2006 NAVTEQ − All rights re-
served.
If the Contracting Of ficer, federal gov-
ernment agency, or any federal offi-
cial refuses to use the legend pro-
vided herein, the Contracting Officer,
federal government agency, or any
federal official must notify NAVTEQ
prior to seeking additional or alterna-
tive rights in the Data.
08/06/25 Prius_Navi_U
OM47615U

APPENDIX
138
END USER LICENSE AGREEMENTPLEASE READ THIS AGREEMENTCAREFULLY BEFORE USING THE NAVIGATION SYSTEM
THIS IS A LICENSE AGREEMENT
FOR YOUR COPY OF THE SPATIAL
MAP DATABASE, INCLUDING LOCA-
TION CODES AND RELATED PROD-
UCTS (COLLECTIVELY, THE ”DATA-
BASE”), USED IN THE NAVIGATION
SYSTEM. BY USING THE NAVIGA-
TION SYSTEM AND THE DATA-
BASE, YOU ACCEPT AND AGREE
TO BE BOUND BY ALL TERMS AND
CONDITIONS SET FORTH BELOW.
LICENSE GRANT
Denso Corporation (“Denso”), as a li-
censed distributor of the DATABASE,
grants to you a non −exclusive, non−
perpetual license to use your copy of
the DATABASE for your personal use
or for your use in your business’ inter-
nal operations and not for any other
purpose. This license does not include
the right to grant sub −licenses.
OWNERSHIP
The DATABASE and the copyrights
and intellectual property and
neighboring rights therein are owned
by Tele Atlas North America, Inc.
(“TANA”) and its licensors. This
Agreement does not transfer any title
or interest in the DATABASE, except
for the license to use the DATABASE
according and subject to the terms and
conditions of this Agreement. You
shall not alter, obscure or remove any
copyright notices, trademark notices or
other restrictive legends relating to the
DATABASE.The DATABASE comprises confiden-
tial and proprietary information and
materials of TANA. Accordingly, you
shall hold the DATABASE in confi-
dence and trust. You shall take rea-
sonable steps to protect the DATA-
BASE from misappropriation or mis-
use. You shall not extract stand −alone
data from or publish any part of the DA-
TABASE without the prior written con-
sent of TANA and its licensors.
LIMITATIONS ON USE
The DATABASE is restricted for use in
the specific system for which it was
created. Except to the extent explicitly
permitted by mandatory laws, you may
not extract or reutilize any portion of
the contents of the DATABASE, nor re-
produce, copy, duplicate, modify,
adapt, translate, disassemble, decom-
pile, or reverse engineer any portion of
the DATABASE.
TRANSFER
You may not transfer the DATABASE
to third parties, except together with
the system for which it was created,
provided that you do not retain any
copy of the DATABASE, and provided
that the transferee agrees to all terms
and conditions of this AGREEMENT.
08/06/25 Prius_Navi_U
OM47615U
