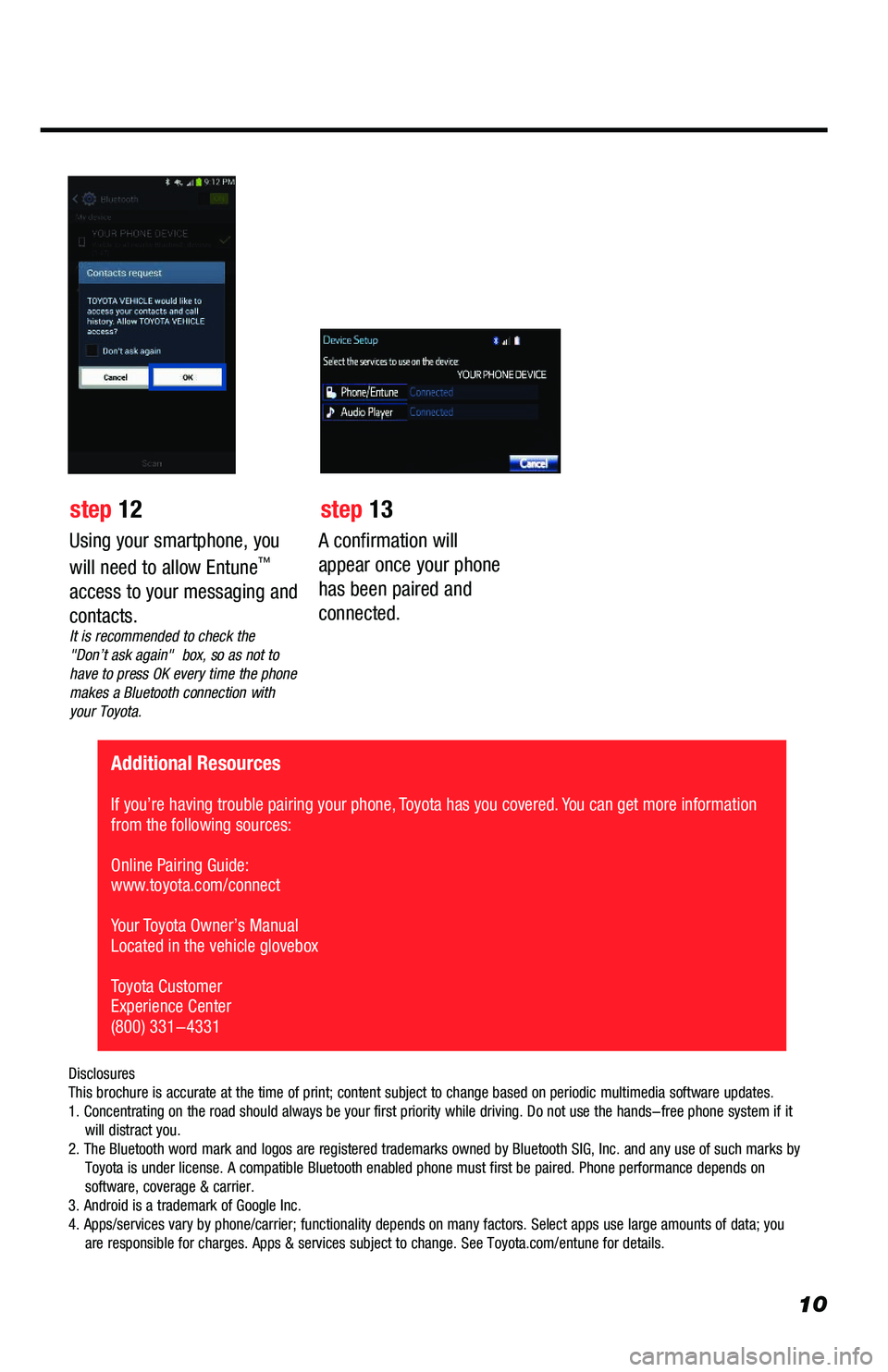

TOYOTA PRIUS 2019 Accessories, Audio & Navigation (in English)

10
A confirmation will
appear once your phone
has been paired and
connected.
Additional Resources
If you’re having trouble pairing your phone, Toyota has you covered. You can get more information from the following sources:
Online Pairing Guide: www.toyota.com/connect
Your Toyota Owner’s Manual Located in the vehicle glovebox
Toyota Customer Experience Center(800) 331-4331
Disclosures This brochure is accurate at the time of print; content subject to change based on periodic multimedia software updates.1. Concentrating on the road should always be your first priority while driving. Do not use the hands-free phone system if it will distract you.2. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Toyota is under license. A compatible Bluetooth enabled phone must first be paired. Phone performance depends on software, coverage & carrier.3. Android is a trademark of Google Inc.4. Apps/services vary by phone/carrier; functionality depends on many factors. Select apps use large amounts of data; you are responsible for charges. Apps & services subject to change. See Toyota.com/entune for details.
Using your smartphone, you
will need to allow Entune™
access to your messaging and
contacts.It is recommended to check the "Don’t ask again" box, so as not to have to press OK every time the phone makes a Bluetooth connection with your Toyota.
step 12 step 13
116673_MY19_Prius_NavAud_QRG_D6_ML_1031_R1.indd 1011/29/18 8:49 PM

11
Pairing your phone is the first step in connecting with your Toyota for hands-free calling and for
audio streaming via Bluetooth®. This pairing process is quick and easy: all iPhone® mobile digital
devices have Bluetooth® integrated; all you have to do is setup the phone and multimedia system to
"talk" to each other and form a connection.
INITIATE BLUETOOTH ON YOUR IPHONE
From the HOME
SCREEN, select
SETTINGS.
Select BLUETOOTH.Ensure
BLUETOOTH
is ON.
Your iPhone will seek
out Bluetooth devices
while remaining
discoverable.
While your iPhone device is seeking
out Bluetooth devices, proceed to your
Entune™ Multimedia Head Unit on your
Toyota vehicle.
BLUETOOTH PAIRING FOR IPHONE AND ENTUNE
TOUCH SCREEN SYSTEM
step 1step 2step 3step 4
step 5
CONNECT A BLUETOOTH PHONE (6.1 INCH DISPLAY)
**Do not attempt the Bluetooth® Pairing process while driving.**
116673_MY19_Prius_NavAud_QRG_D6_ML_1031_R1.indd 1111/29/18 8:49 PM

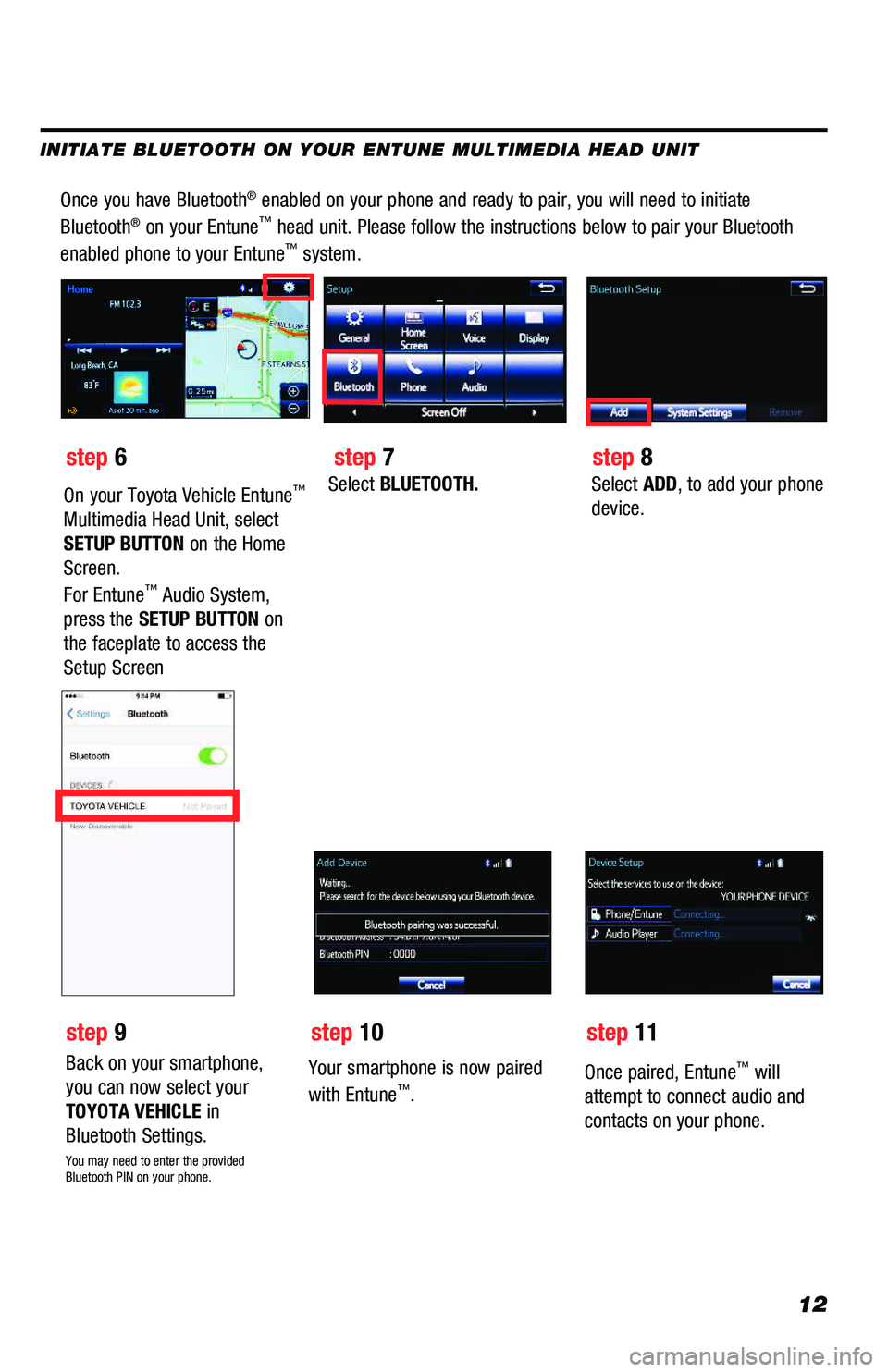

12
Once you have Bluetooth® enabled on your phone and ready to pair, you will need to initiate
Bluetooth® on your Entune™ head unit. Please follow the instructions below to pair your Bluetooth
enabled phone to your Entune™ system.
Select BLUETOOTH.Select ADD, to add your phone
device.
Back on your smartphone,
you can now select your
TOYOTA VEHICLE in
Bluetooth Settings.
You may need to enter the provided Bluetooth PIN on your phone.
Your smartphone is now paired
with Entune™.
Once paired, Entune™ will
attempt to connect audio and
contacts on your phone.
step 6
step 9
step 7
step 10
step 8
step 11
INITIATE BLUETOOTH ON YOUR ENTUNE MULTIMEDIA HEAD UNIT
On your Toyota Vehicle Entune™
Multimedia Head Unit, select
SETUP BUTTON on the Home
Screen.
For Entune™ Audio System,
press the SETUP BUTTON on
the faceplate to access the
Setup Screen
116673_MY19_Prius_NavAud_QRG_D6_ML_1031_R1.indd 1211/29/18 8:49 PM

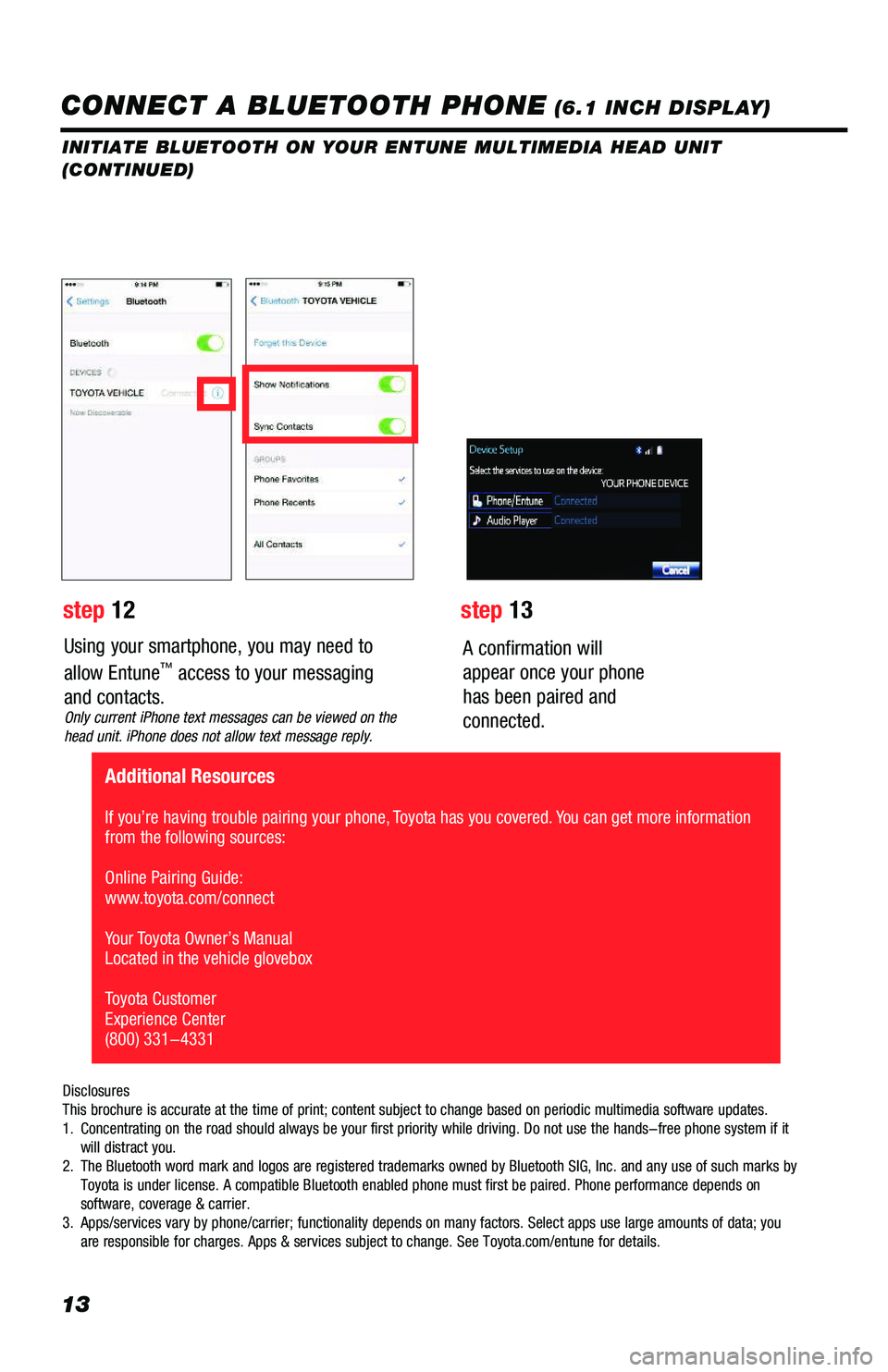

13
Using your smartphone, you may need to
allow Entune™ access to your messaging
and contacts.Only current iPhone text messages can be viewed on the head unit. iPhone does not allow text message reply.
A confirmation will
appear once your phone
has been paired and
connected.
DisclosuresThis brochure is accurate at the time of print; content subject to change based on periodic multimedia software updates.1. Concentrating on the road should always be your first priority while driving. Do not use the hands-free phone system if it will distract you.2. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Toyota is under license. A compatible Bluetooth enabled phone must first be paired. Phone performance depends on software, coverage & carrier.3. Apps/services vary by phone/carrier; functionality depends on many factors. Select apps use large amounts of data; you are responsible for charges. Apps & services subject to change. See Toyota.com/entune for details.
step 12step 13
Additional Resources
If you’re having trouble pairing your phone, Toyota has you covered. You can get more information from the following sources:
Online Pairing Guide: www.toyota.com/connect
Your Toyota Owner’s Manual Located in the vehicle glovebox
Toyota Customer Experience Center(800) 331-4331
CONNECT A BLUETOOTH PHONE (6.1 INCH DISPLAY)
INITIATE BLUETOOTH ON YOUR ENTUNE MULTIMEDIA HEAD UNIT (CONTINUED)
116673_MY19_Prius_NavAud_QRG_D6_ML_1031_R1.indd 1311/29/18 8:49 PM

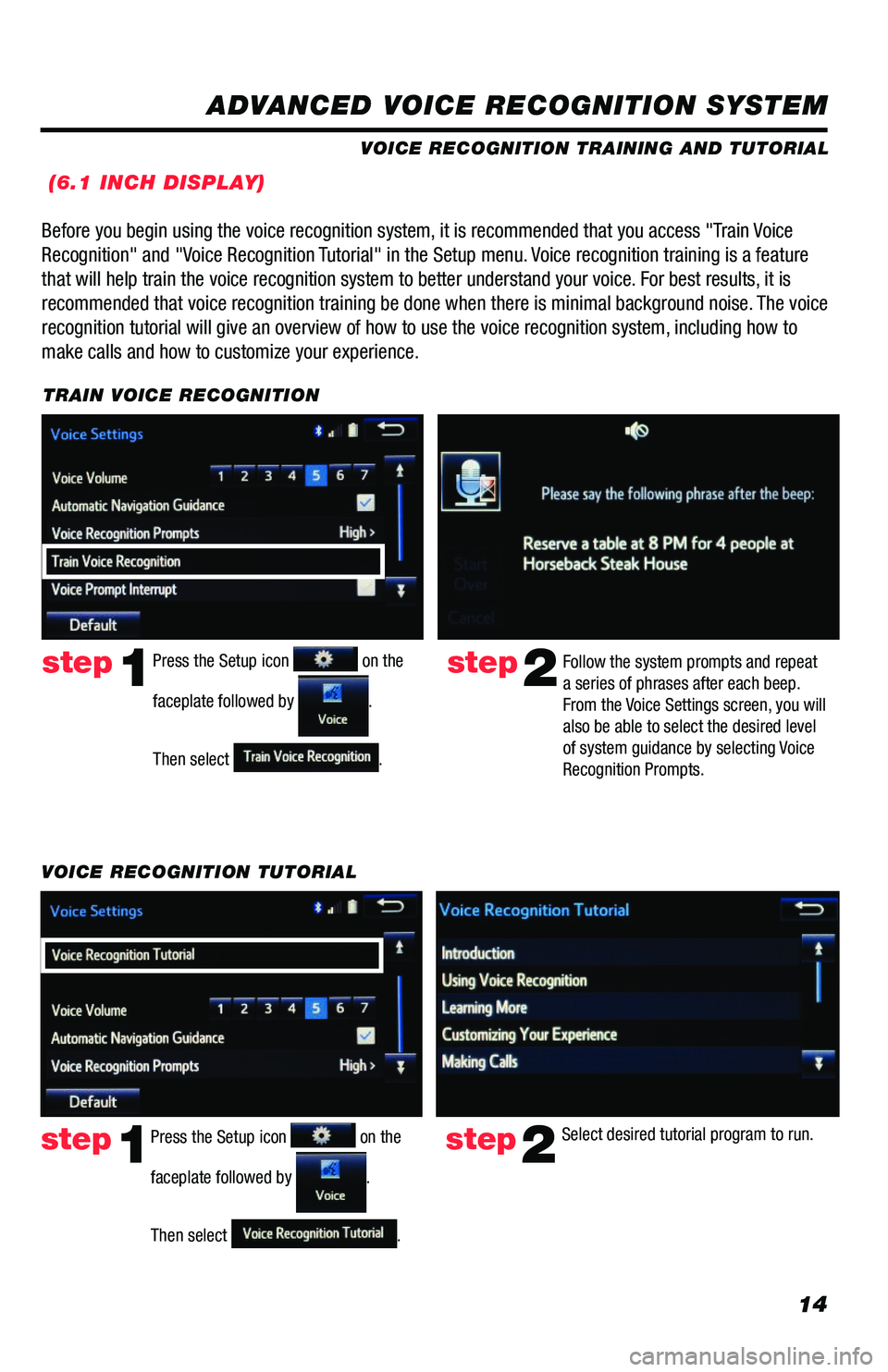

14
ADVANCED VOICE RECOGNITION SYSTEM
VOICE RECOGNITION TRAINING AND TUTORIAL
(6.1 INCH DISPLAY)
Before you begin using the voice recognition system, it is recommended that you access "Train Voice
Recognition" and "Voice Recognition Tutorial" in the Setup menu. Voice recognition training is a feature
that will help train the voice recognition system to better understand your voice. For best results, it is
recommended that voice recognition training be done when there is minimal background noise. The voice
recognition tutorial will give an overview of how to use the voice recognition system, including how to
make calls and how to customize your experience.
step2Follow the system prompts and repeat a series of phrases after each beep. From the Voice Settings screen, you will also be able to select the desired level of system guidance by selecting Voice Recognition Prompts.
Press the Setup icon on the
faceplate followed by .
Then select .
step1
TRAIN VOICE RECOGNITION
step2Select desired tutorial program to run.step1
VOICE RECOGNITION TUTORIAL
Press the Setup icon on the
faceplate followed by .
Then select .
116673_MY19_Prius_NavAud_QRG_D6_ML_1031_R1.indd 1411/29/18 8:49 PM

17
CONNECT A BLUETOOTH PHONE (11.6 INCH DISPLAY)
Pairing your phone is the first step in connecting with your Toyota for hands-free calling and for
audio streaming via Bluetooth®. This pairing process is quick and easy: all Windows Phone® mobile
digital devices have Bluetooth® integrated; all you have to do is setup the phone and multimedia
system to "talk" to each other and form a connection.
BLUETOOTH PAIRING FOR A PHONE AND
TOUCH SCREEN SYSTEM
INITIATE BLUETOOTH ON YOUR ANDROID
step 2step 1step 3step 4
From your APPS
SCREEN, select
SETTINGS.
Select CONNECTIONS
and select
BLUETOOTH.
Ensure BLUETOOTH
is ON.
Select YOUR PHONE DEVICE
to make it discoverable.
Your phone will seek out Bluetooth devices while remaining discoverable.
INITIATE BLUETOOTH ON YOUR IPHONE
From the HOME
SCREEN, select
SETTINGS.
Select BLUETOOTH.Ensure BLUETOOTH
is ON.
Your phone will seek out
Bluetooth devices while
remaining discoverable.
step 1step 2step 3step 4
**Do not attempt the Bluetooth® Pairing process while driving.**
116673_MY19_Prius_NavAud_QRG_D6_ML_1031_R1.indd 1711/29/18 8:49 PM

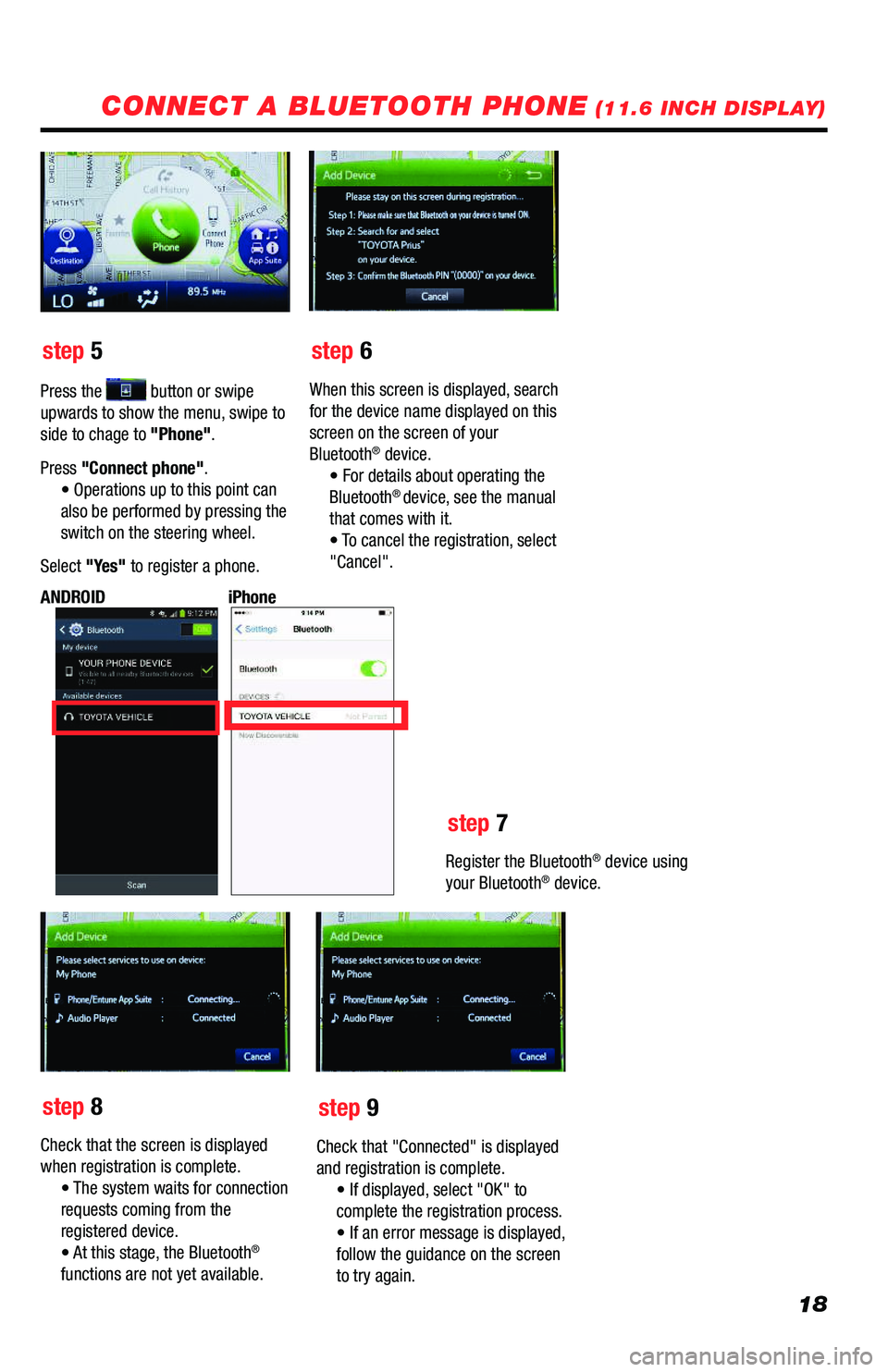

18
CONNECT A BLUETOOTH PHONE (11.6 INCH DISPLAY)
step 5step 6
step 7
step 8step 9
Press the button or swipe upwards to show the menu, swipe to side to chage to "Phone".
Press "Connect phone".• Operations up to this point can also be performed by pressing the switch on the steering wheel.
Select "Yes" to register a phone.
When this screen is displayed, searchfor the device name displayed on thisscreen on the screen of yourBluetooth® device. �� • For details about operating the Bluetooth® device, see the manual that comes with it.�� • To cancel theregistratio n, sel ect"Cancel".
Register the Bluetooth® device usingyour Bluetooth® device.
iPhoneANDROID
Check that the screen is displayedwhen registration is complete.�� • Thesystem waitsfo rco nnectio nrequests coming from the registered device.�� • Atthisstage, theBl ueto o th® functions are not yet available.
Check that "Connected" is displayedand registration is complete.• If displayed, select "OK" to complete the registration process.�� • Ifanerro r m essageisdispl ayed, follow the guidance on the screen to try again.
116673_MY19_Prius_NavAud_QRG_D6_ML_1031_R1.indd 1811/29/18 8:49 PM

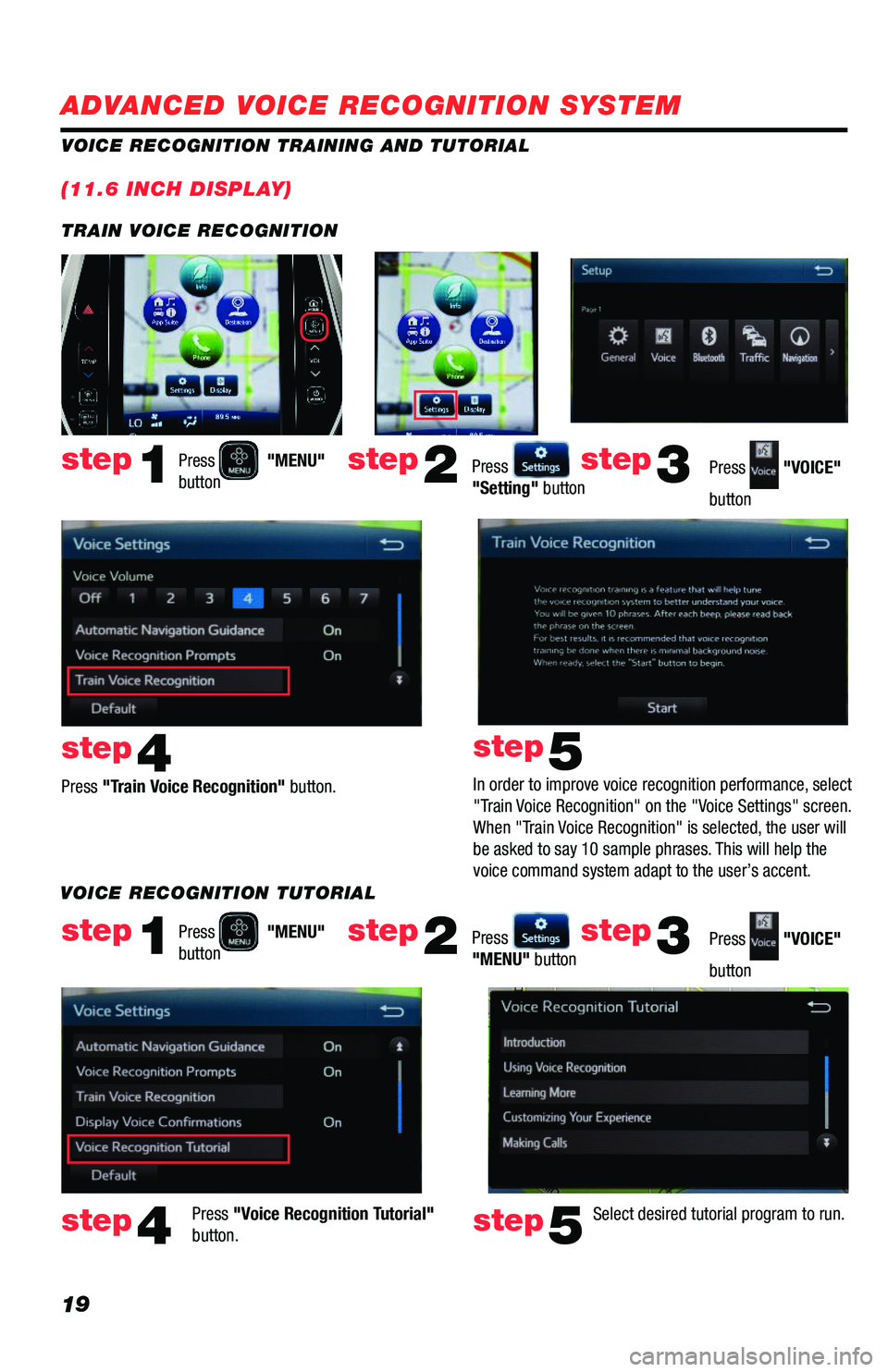

19
ADVANCED VOICE RECOGNITION SYSTEM
(11.6 INCH DISPLAY)
VOICE RECOGNITION TRAINING AND TUTORIAL
Press "MENU" button
Press "MENU" button
Press "Train Voice Recognition" button.
Press "Voice Recognition Tutorial" button.
In order to improve voice recognition performance, select "Train Voice Recognition" on the "Voice Settings" screen.When "Train Voice Recognition" is selected, the user will be asked to say 10 sample phrases. This will help the voice command system adapt to the user’s accent.
Press "Setting" button
Press "MENU" button
Press "VOICE"
button
Press "VOICE"
button
step1
step1
step4
step4
step5
step5
step2
step2
step3
step3
TRAIN VOICE RECOGNITION
Select desired tutorial program to run.
VOICE RECOGNITION TUTORIAL
116673_MY19_Prius_NavAud_QRG_D6_ML_1031_R1.indd 1911/29/18 8:49 PM
