TOYOTA PRIUS 2021 (in English) User Guide

9
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

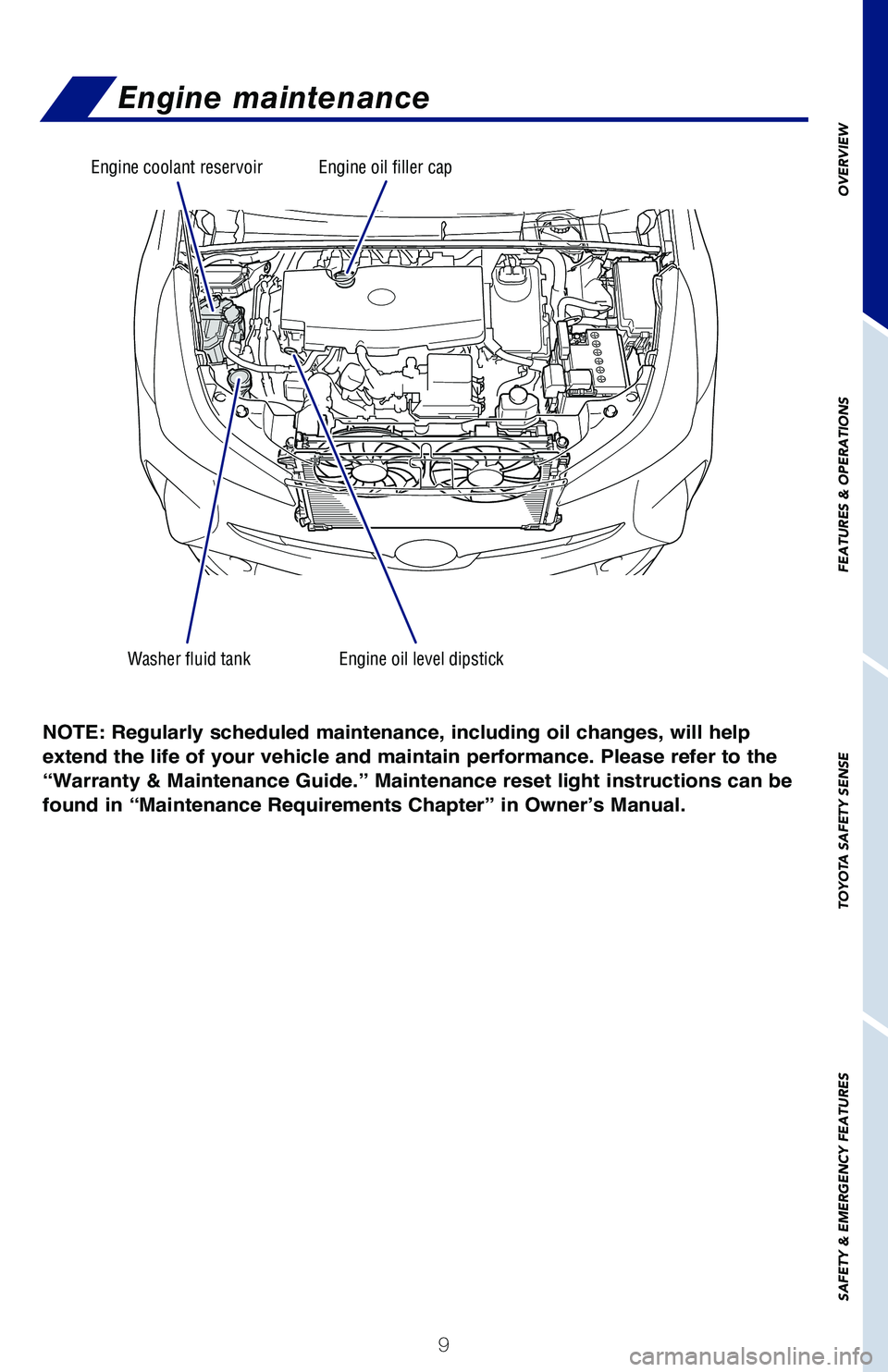

Engine maintenance
Washer fluid tankEngine oil level dipstick
Engine coolant reservoirEngine oil filler cap
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty & Maintenance Guide.” Maintenance reset light instructions can be
found in “Maintenance Requirements Chapter” in Owner’s Manual.
126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 9126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 96/17/20 10:09 AM6/17/20 10:09 AM

10
TIPS FOR IMPROVED FUEL ECONOMY
DEFAULT SETTING
CUSTOMIZED SETTING
STARTING YOUR VEHICLE
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline engine
and electric motor to provide the most efficient combination of power for the
vehicle. To conserve energy, when the brakes are applied the braking force
generates electricity which is then sent to the traction battery. In addition, the
engine shuts off when the vehicle is stopped. The benefits are better fuel economy
and reduced vehicle emissions.
NOTE: Fuel consumption and energy information of the Hybrid System are
shown on the Audio Multimedia System screen or the navigation system (if
equipped).
1. Ensure tire pressures are maintained at levels specified in the Owner’s Manual.
2. When possible, link trips to reduce engine cold starts.
3. Avoid driving at speeds that are higher than necessary, especially on the highway.
4. When possible, avoid sudden stops to maximize regenerative braking energy.
5. Minimize use of the air conditioning.
Hybrid Synergy Drive System
Auto lock/unlock
FEATURES & OPERATIONS
(1) Depress the brake pedal, and “”
will be displayed on the Multi-Information
Display.
(2) Press the “POWER” switch briefly and
firmly.
(3) The “READY” light will blink. After
a few seconds, when the light remains
steady and a beep sounds, shift the
gear to the desired position and you may
begin driving.
Automatic door locks can be programmed to operate in different modes, or turned
OFF.
Shift position linked door locking/unlocking function
-Doors lock when shifting from Park.
-Doors unlock when shifting into Park.
Speed linked door locking function
-Doors lock when the vehicle speed goes above approximately 12 mph.
Driver’s door linked door unlocking function
-Doors unlock when the driver’s door is opened within 45 seconds after turning the
“POWER” switch to OFF.
Refer to the Owner’s Manual for more details.
126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 10126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 106/17/20 10:09 AM6/17/20 10:09 AM

11
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
* The engine brake is the equivalent of downshifting. Shift to “B” when engine
braking is desired (i.e. downhill driving, coasting to a stop, etc.).
Reverse
Park button
Neutral
Drive
Engine brake*
Hybrid transmission
Driving mode select switch
EV Drive Mode ON/OFF switch EV-Drive Mode allows the electric motor (traction
motor), powered by the hybrid battery (traction battery), to be used to drive the
vehicle under certain driving conditions (sufficient battery level, low vehicle speed,
etc.)
Refer to the Owner’s Manual for more details.
Normal - Suitable for
normal driving.
Power mode - Use when
a higher level of response
is desired, such as when
driving in mountainous
regions.
ECO drive mode -
Helps achieve lower fuel
consumption during trips
that involve frequent
accelerating and braking.Refer to the Owner’s Manual for more details.
EV drive mode switch
126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 11126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 116/17/20 10:09 AM6/17/20 10:09 AM

12
Parking brake
Set: DepressRelease: Depress again
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt & telescopic steering wheel
FEATURES & OPERATIONS
The green indicator light on the engine switch will flash and a message will be
shown on the multi-information display. Press the engine switch while turning the
steering wheel left and right.
Push
Turn
Steering lock release
Lock release leverAngle
Length
126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 12126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 126/17/20 10:09 AM6/17/20 10:09 AM

13
OVERVIEW
FEATURES
& OPERATIONS
TOYOTA
SAFETY
SENSE
SAFETY
& EMERGENCY
FEATURES

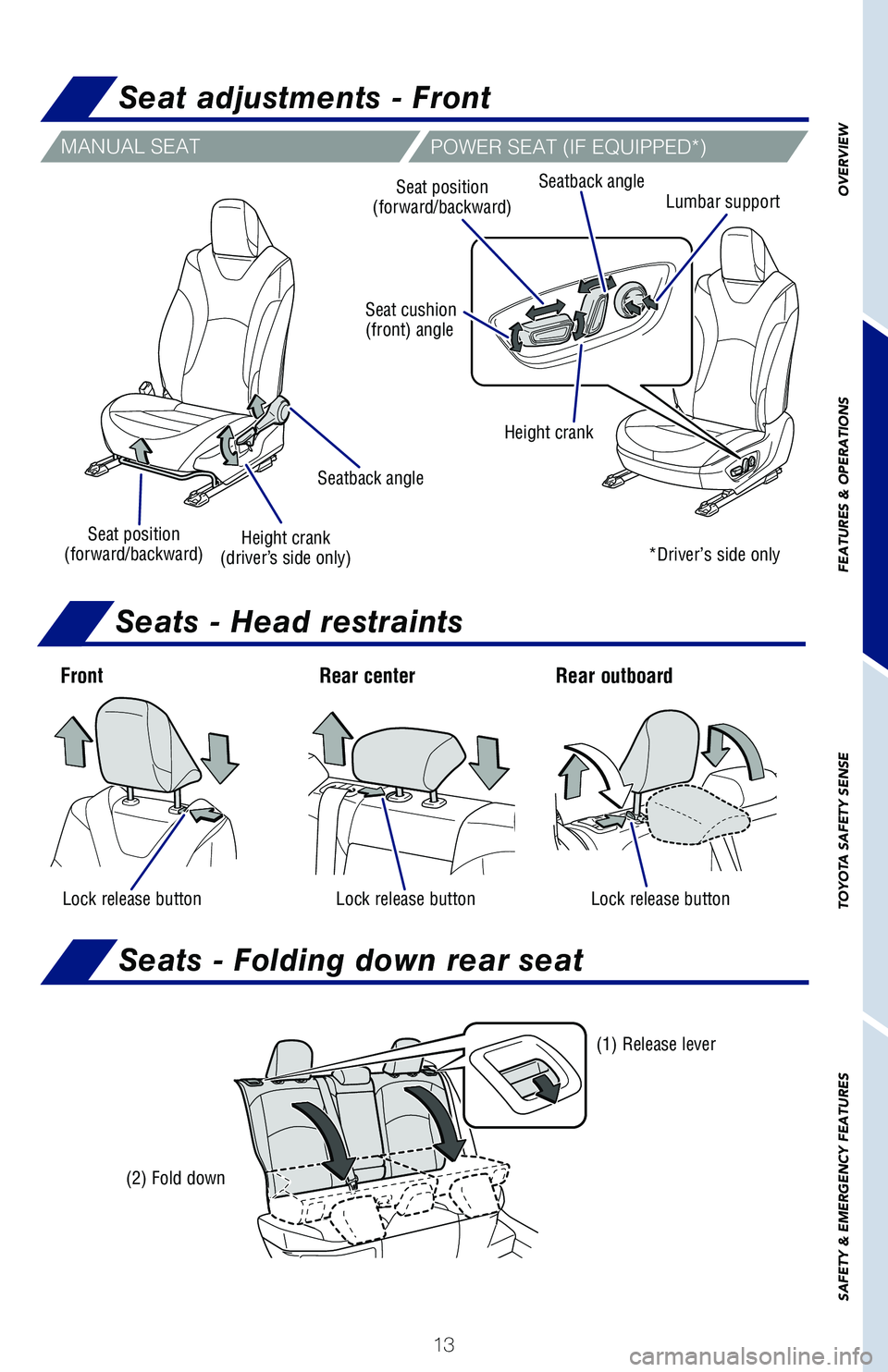

Seat adjustments - Front
Seats - Head restraints
Seats - Folding down rear seat
MANUAL SEATPOWER SEAT (IF EQUIPPED*)
FrontRear center
Lock release buttonLock release button
Rear outboard
Lock release button
*Driver’s side only
Seat position(forward/backward)
Seat cushion (front) angle
Height crank
Seatback angleLumbar support
Seatback angle
Seat position(forward/backward)Height crank(driver’s side only)
(2) Fold down
(1) Release lever
126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 13126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 136/17/20 10:09 AM6/17/20 10:09 AM

14

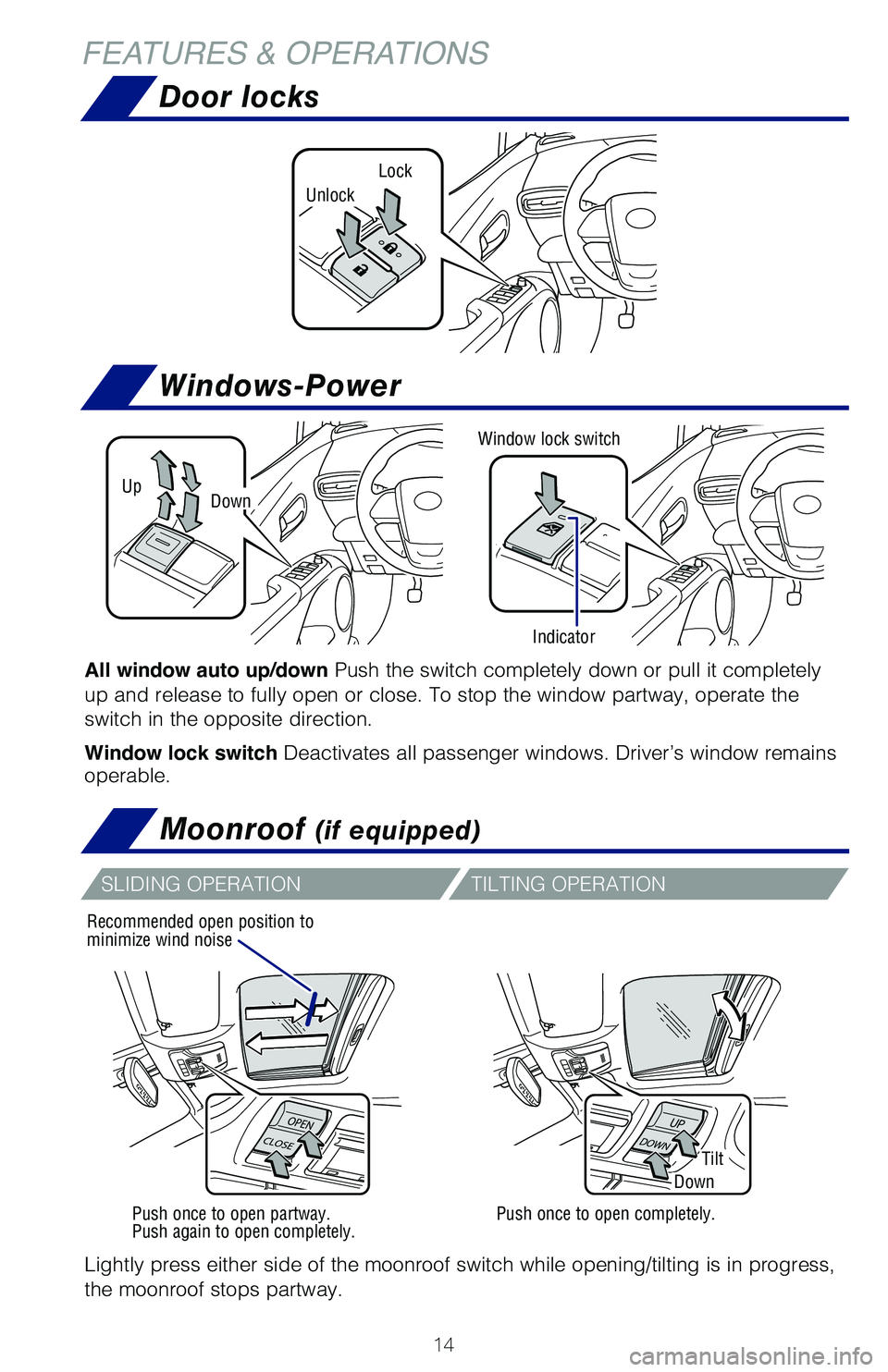

Windows-Power
Door locks
Moonroof (if equipped)
UpDown
Window lock switch
Indicator
All window auto up/down Push the switch completely down or pull it completely
up and release to fully open or close. To stop the window partway, operate the
switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains operable.
Push once to open partway. Push again to open completely.
Unlock
Lock
SLIDING OPERATIONTILTING OPERATION
FEATURES & OPERATIONS
Recommended open position to minimize wind noise
Tilt
Down
Push once to open completely.
Lightly press either side of the moonroof switch while opening/tilting is in progress,
the moonroof stops partway.
126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 14126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 146/17/20 10:09 AM6/17/20 10:09 AM

15
FRONT-INTERMITTENT (IF EQUIPPED)
REAR (IF EQUIPPED)
FRONT-AUTO (RAIN-SENSING) (IF EQUIPPED)
Windshield wipers & washers
1 Intermittent windshield wiper frequency adjustment Rotate to increase/decrease wiper frequency.
2 Rain-sensing windshield wipers Rotate to increase/decrease sensor sensitivity.
Type A
Type A
Type A
Type B
Type B
Type B
OVERVIEW
FEATURES
& OPERATIONS
TOYOTA
SAFETY
SENSE
SAFETY
& EMERGENCY
FEATURES
Mist
Pull to wash and wipe
Adjustment frequency1
Interval wipe
Slow
Fast
Off
Mist
Off
Adjust sensitivity2
Pull to wash and wipe
Rain-sensing (AUTO)
Low
High
Off
On
Interval wipe
Push to wash and wipe
126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 15126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 156/17/20 10:09 AM6/17/20 10:09 AM

16

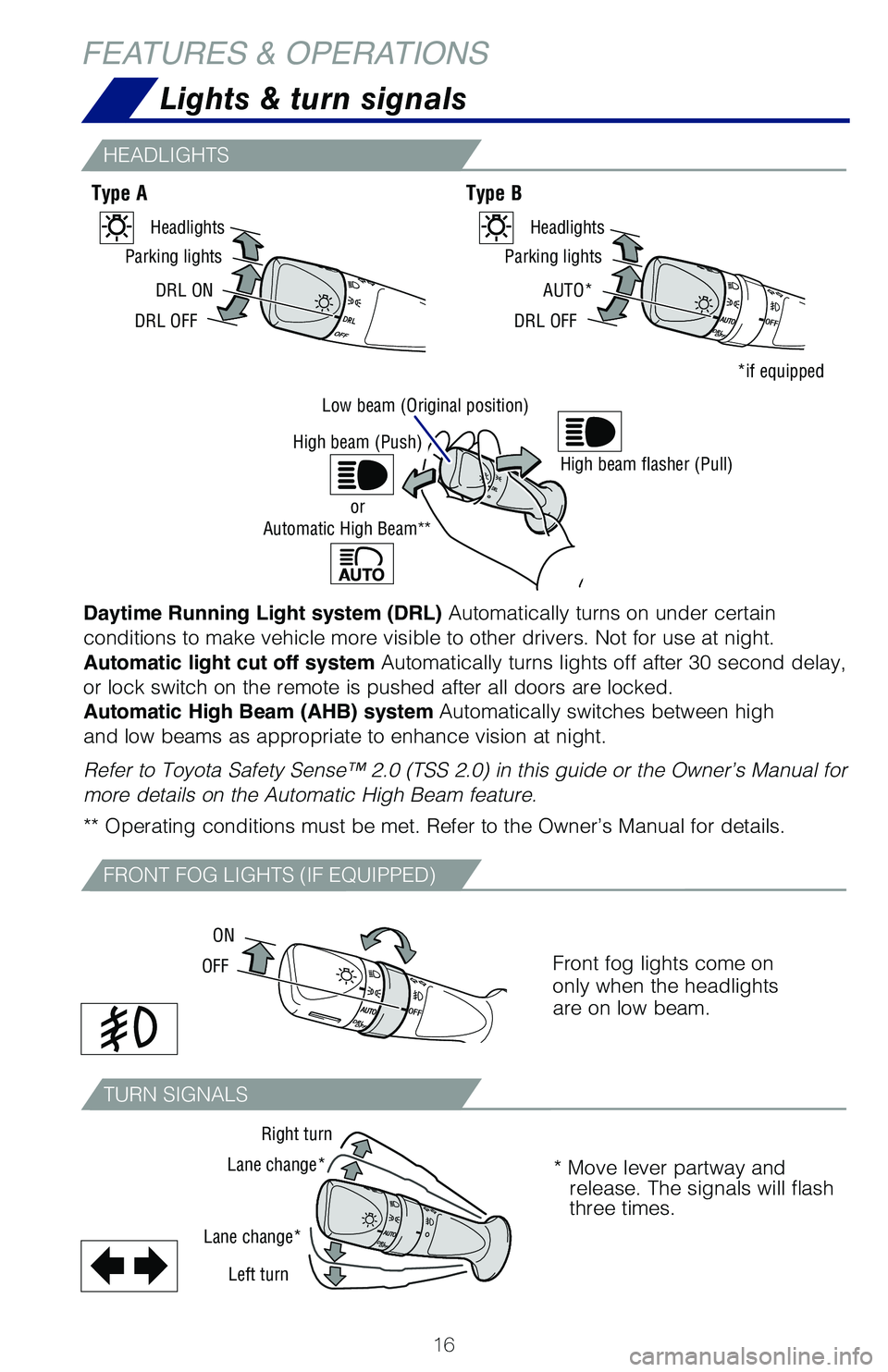

Lights & turn signals
Daytime Running Light system (DRL) Automatically turns on under certain
conditions to make vehicle more visible to other drivers. Not for use at night.
Automatic light cut off system Automatically turns lights off after 30 second delay,
or lock switch on the remote is pushed after all doors are locked.
Automatic High Beam (AHB) system Automatically switches between high
and low beams as appropriate to enhance vision at night.
Refer to Toyota Safety Sense™ 2.0 (TSS 2.0) in this guide or the Owner’s Manual for
more details on the Automatic High Beam feature. ** Operating conditions must be met. Refer to the Owner’s Manual for details.
Front fog lights come on only when the headlights are on low beam.
Type AType B
HEADLIGHTS
FRONT FOG LIGHTS (IF EQUIPPED)
TURN SIGNALS
FEATURES & OPERATIONS
DRL ON
DRL OFF
Parking lights
Headlights
AUTO*
DRL OFF
Parking lights
Headlights
*if equipped
Low beam (Original position)
OFF
ON
Right turn
Lane change*
Lane change*
Left turn
High beam flasher (Pull)High beam (Push)
Automatic High Beam**or
* Move lever partway and release. The signals will flash three times.
126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 16126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 166/17/20 10:09 AM6/17/20 10:09 AM

17
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

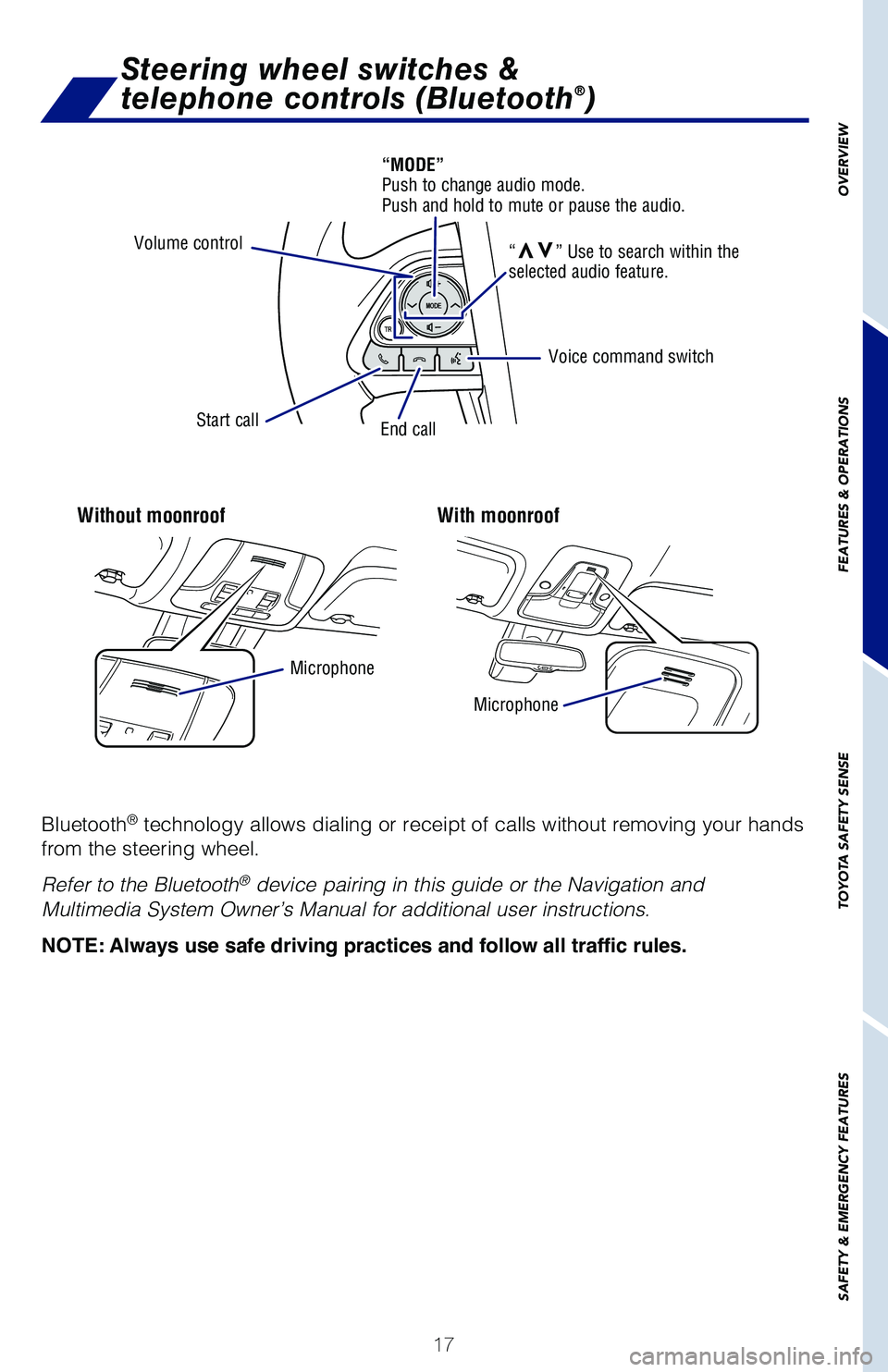

Steering wheel switches &
telephone controls (Bluetooth®)
Without moonroofWith moonroof
Bluetooth® technology allows dialing or receipt of calls without removing your hands
from the steering wheel.
Refer to the Bluetooth® device pairing in this guide or the Navigation and
Multimedia System Owner’s Manual for additional user instructions.
NOTE: Always use safe driving practices and follow all traffic rules.
Volume control
Start callEnd call
Microphone
Microphone
Voice command switch
“MODE” Push to change audio mode. Push and hold to mute or pause the audio.
“vv” Use to search within the selected audio feature.
126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 17126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 176/17/20 10:09 AM6/17/20 10:09 AM

18

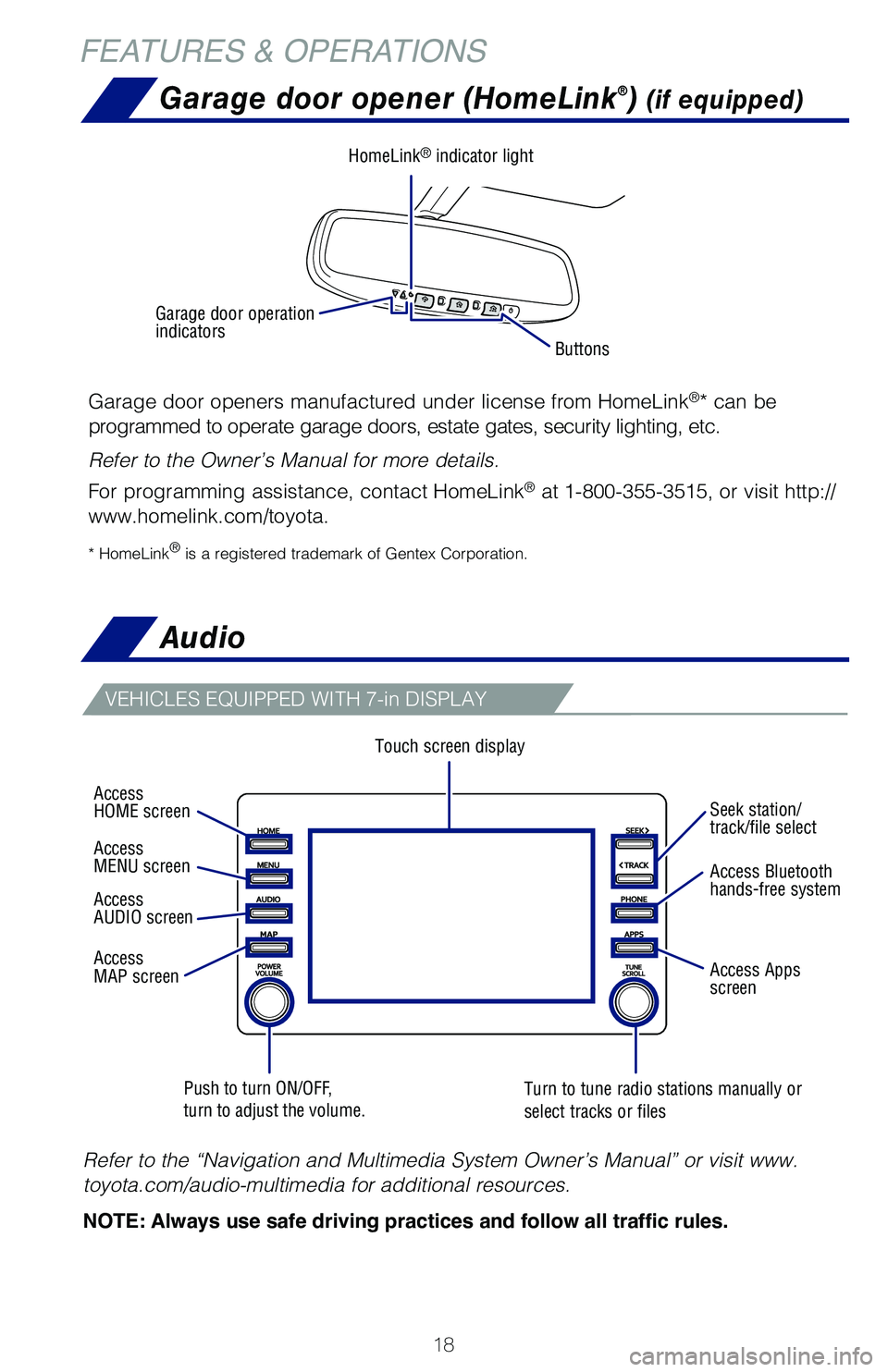

Audio
FEATURES & OPERATIONS
Touch screen display
Push to turn ON/OFF, turn to adjust the volume.Turn to tune radio stations manually or select tracks or files
VEHICLES EQUIPPED WITH 7-in DISPLAY
Refer to the “Navigation and Multimedia System Owner’s Manual” or visit www.
toyota.com/audio-multimedia for additional resources.
NOTE: Always use safe driving practices and follow all traffic rules.
Garage door opener (HomeLink®) (if equipped)
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc.
Refer to the Owner’s Manual for more details.
For programming assistance, contact HomeLink® at 1-800-355-3515, or visit http://
www.homelink.com/toyota.
* HomeLink® is a registered trademark of Gentex Corporation.
Buttons
HomeLink® indicator light
Garage door operation indicators
Access HOME screen
Access MENU screen
Access AUDIO screen
Access MAP screen
Seek station/track/file select
Access Bluetooth hands-free system
Access Apps screen
