TOYOTA PRIUS 2021 (in English) Workshop Manual

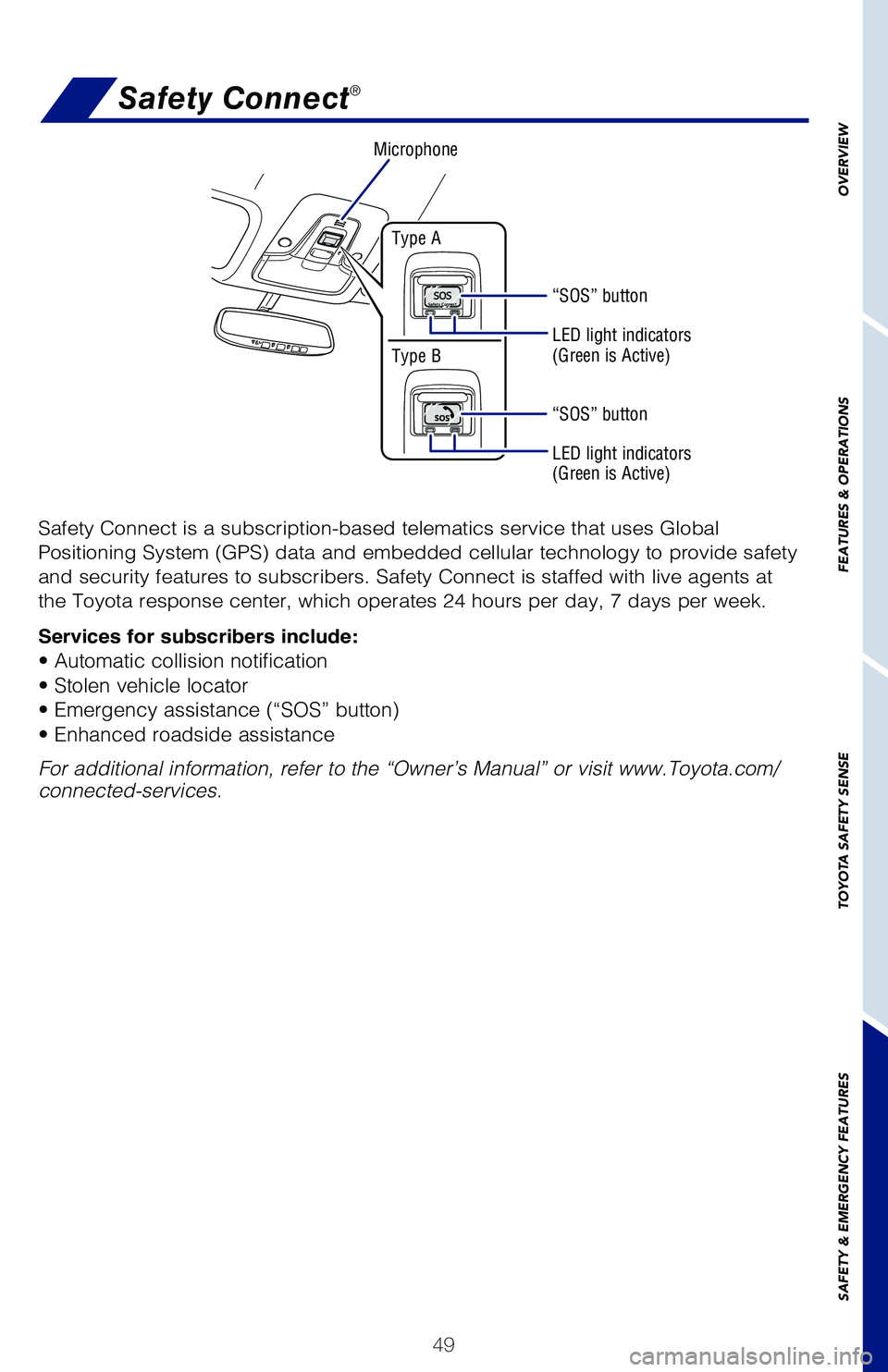

49
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Safety Connect®
Safety Connect is a subscription-based telematics service that uses Global
Positioning System (GPS) data and embedded cellular technology to provide safety
and security features to subscribers. Safety Connect is staffed with live agents at
the Toyota response center, which operates 24 hours per day, 7 days per week.
Services for subscribers include:
• Automatic collision notification
• Stolen vehicle locator
• Emergency assistance (“SOS” button)
• Enhanced roadside assistance
For additional information, refer to the “Owner’s Manual” or visit www.Toyota.com/connected-services.
Microphone
LED light indicators (Green is Active)
LED light indicators (Green is Active)
“SOS” button
Type A
Type B
“SOS” button
126899_MY21_Prius_QRG_V2_ML_0614_R2.indd 49126899_MY21_Prius_QRG_V2_ML_0614_R2.indd 496/18/20 7:02 PM6/18/20 7:02 PM

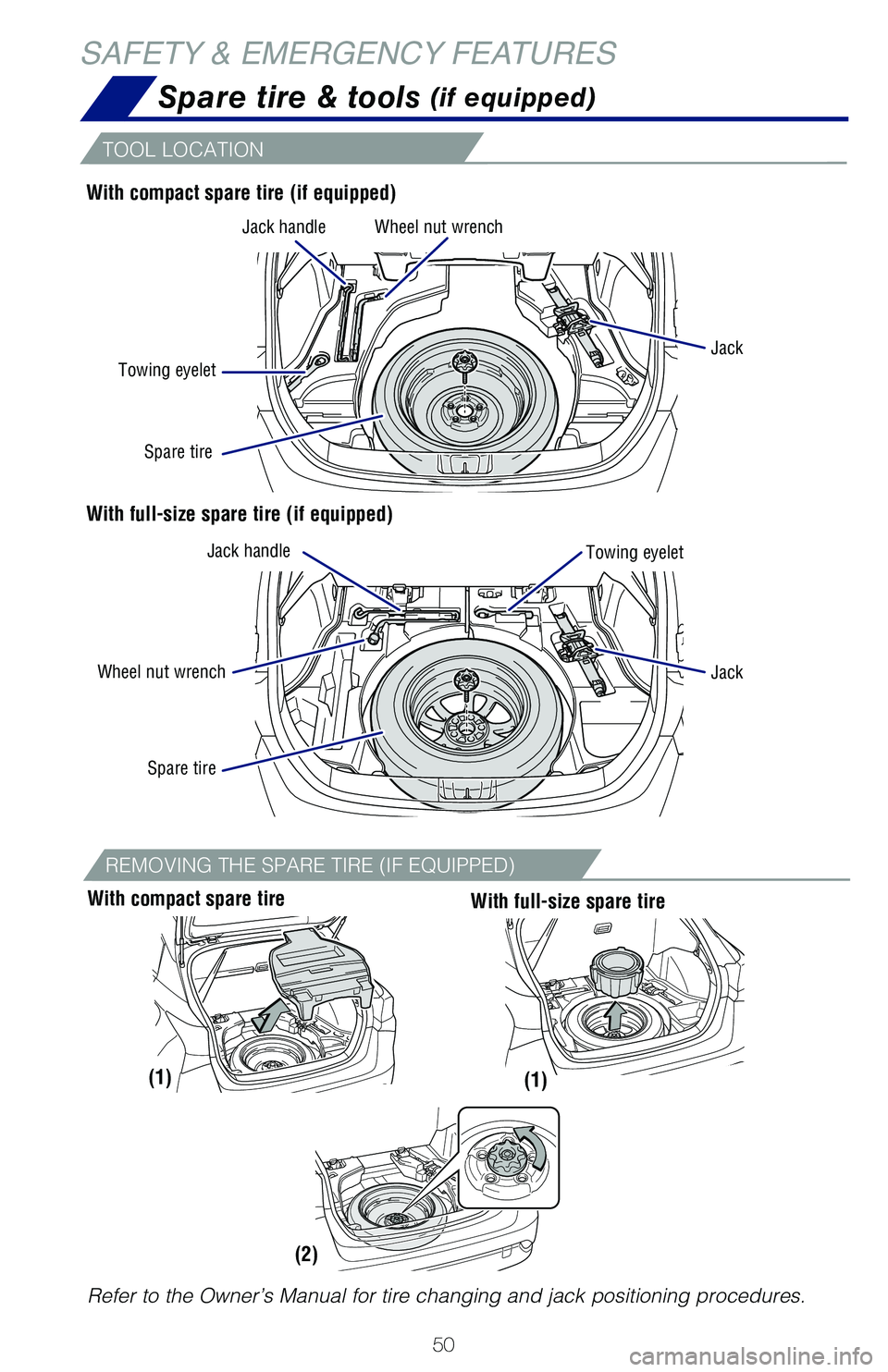

50
With compact spare tire
Spare tire & tools (if equipped)
With compact spare tire (if equipped)
With full-size spare tire (if equipped)
TOOL LOCATION
Jack handle
Jack handle
Jack
Jack
Towing eyelet
Towing eyelet
Wheel nut wrench
Spare tire
Spare tire
Wheel nut wrench
SAFETY & EMERGENCY FEATURES
Refer to the Owner’s Manual for tire changing and jack positioning procedures.
With full-size spare tire
(1)(1)
(2)
REMOVING THE SPARE TIRE (IF EQUIPPED)
126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 50126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 506/17/20 10:09 AM6/17/20 10:09 AM

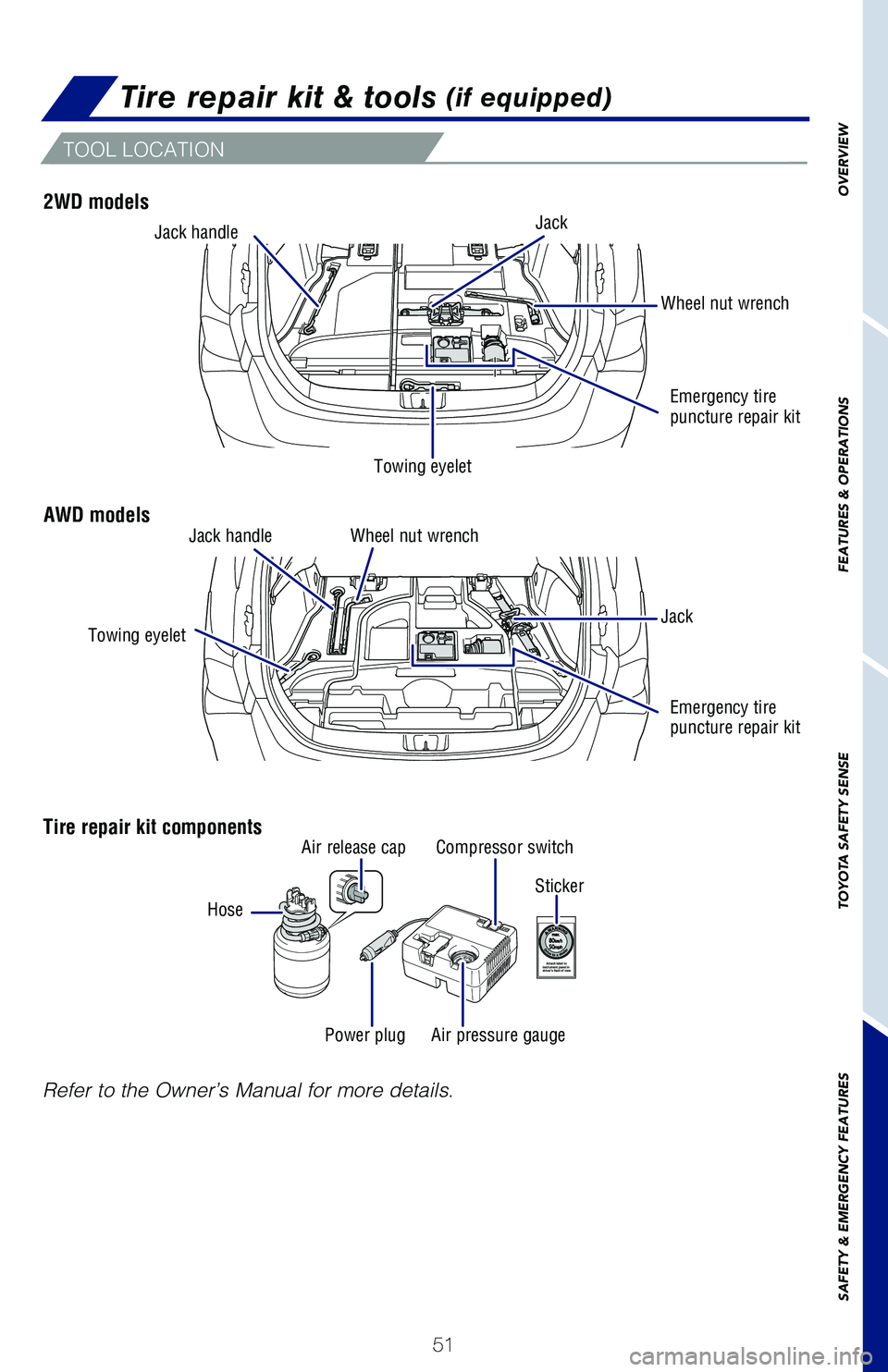

51
Tire repair kit & tools (if equipped)
TOOL LOCATION
Tire repair kit components
Sticker
2WD models
AWD models
Jack
Jack
Towing eyelet
Towing eyelet
Wheel nut wrench
Wheel nut wrench
Emergency tire puncture repair kit
Emergency tire puncture repair kit
Jack handle
Jack handle
Hose
Air release cap
Power plugAir pressure gauge
Compressor switch
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Refer to the Owner’s Manual for more details.
126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 51126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 516/17/20 10:09 AM6/17/20 10:09 AM

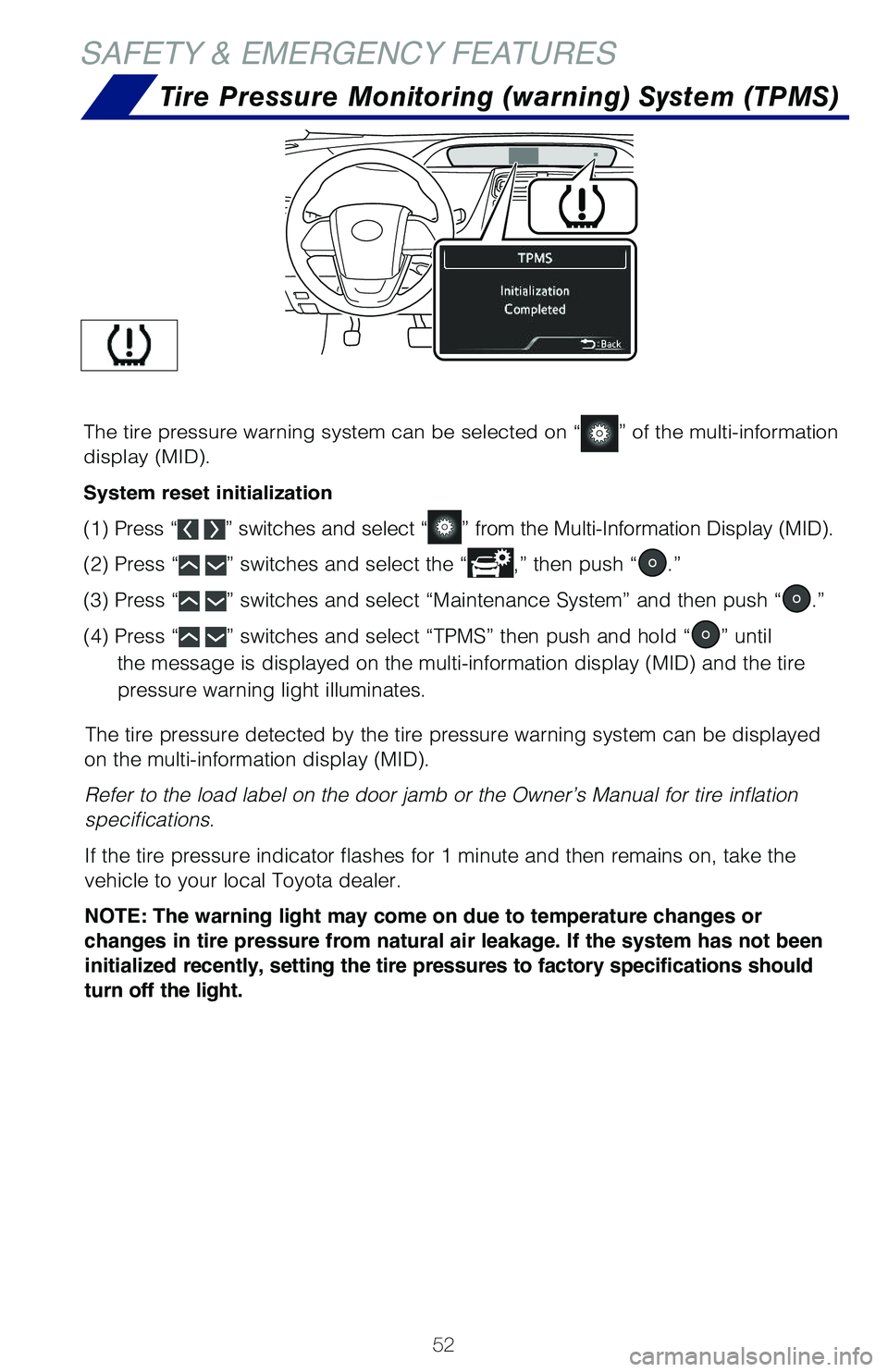

52
SAFETY & EMERGENCY FEATURES
Tire Pressure Monitoring (warning) System (TPMS)
The tire pressure detected by the tire pressure warning system can be displayed
on the multi-information display (MID).
Refer to the load label on the door jamb or the Owner’s Manual for tire inflation
specifications.
If the tire pressure indicator flashes for 1 minute and then remains on, take the
vehicle to your local Toyota dealer.
NOTE: The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not been
initialized recently, setting the tire pressures to factory specifications should
turn off the light.
Until Complete
The tire pressure warning system can be selected on “” of the multi-information
display (MID).
System reset initialization
(1) Press “ ” switches and select “” from the Multi-Information Display (MID).
(2) Press “ ” switches and select the “,” then push “.”
(3) Press “ ” switches and select “Maintenance System” and then push “.”
(4) Press “ ” switches and select “TPMS” then push and hold “” until
the message is displayed on the multi-information display (MID) and the tire
pressure warning light illuminates.
126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 52126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 526/17/20 10:09 AM6/17/20 10:09 AM

53
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
SMART STOP TECHNOLOGY (SST)
Star Safety System™
Smart Stop Technology automatically reduces engine power when the accelerator
and brake pedals are pressed simultaneously under certain conditions.
SST engages when the accelerator is depressed first and the brakes are applied
firmly for longer than one-half second at speeds greater than five miles per hour.
SST doesn’t engage if the brake pedal is depressed before the accelerator pedal,
allowing vehicles to start on a steep hill and safely accelerate without rolling
backward.
Refer to the Brake Override System section in the Owner’s Manual for more
information on Smart Stop Technology.
ENHANCED VEHICLE STABILITY CONTROL (VSC)
Enhanced Vehicle Stability Control provides cooperative control of the ABS, TRAC,
VSC and EPS.
Enhanced VSC helps to maintain directional stability when loss of traction occurs
during a turn.
ANTI-LOCK BRAKE SYSTEM (ABS)
Toyota’s ABS sensors detect which wheels are locking up and limits wheel lockup
by “pulsing” each wheel’s brakes independently. Pulsing releases brake pressure
repeatedly for fractions of a second. This helps the tires attain the traction that
current road conditions will allow, helping you to stay in directional control.
BRAKE ASSIST (BA)
Brake Assist is designed to detect sudden or “panic” braking, and then add braking
pressure to help decrease the vehicle’s stopping distance. When there’s only a split
second to react, Brake Assist can add additional brake pressure more quickly than
just the driver alone can.
ELECTRONIC BRAKE FORCE DISTRIBUTION (EBD)
Toyota’s ABS technology has Electronic Brake-force Distribution (EBD) to help
maintain control and balance when braking. EBD responds to sudden stops by
redistributing brake force to enhance the braking effectiveness of all four wheels.
Your vehicle comes standard with the Star Safety SystemTM, which combines Anti-
lock Braking System (ABS), Brake Assist (BA), Electronic Brake-force Distribution
(EBD), Smart Stop Technology (SST), Traction Control (TRAC) and Vehicle Stability
Control (VSC).
Refer to the Owner’s Manual for more details and important information on limitations
to these systems.
126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 53126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 536/17/20 10:09 AM6/17/20 10:09 AM

54
Floor mat installation
Always align the marks
There are two types of Toyota floor mats: carpeted and all-weather. Each vehicle
has model-specific floor mats. Installation is easy.
To keep your floor mat properly positioned, follow these steps:
• Only use Toyota floor mats designed for your specific model.
• Use only one floor mat at a time, using the retaining hooks to keep the mat in
place.
• Install floor mats right side up.
TRACTION CONTROL (TRAC)
VSC helps prevent loss of traction during cornering by reducing Hybrid System
output, and Traction Control helps maintain traction on loose gravel and wet, icy, or
uneven surfaces by applying brake force to the spinning wheel(s).
Toyota’s TRAC sensors are activated when one of the drive wheels starts to slip.
TRAC limits Hybrid System output and applies the brakes to the spinning wheel.
This transfers power to the wheels that still have traction to help keep you on track.
SAFETY & EMERGENCY FEATURES
126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 54126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 546/17/20 10:09 AM6/17/20 10:09 AM

55
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 55126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 556/17/20 10:09 AM6/17/20 10:09 AM

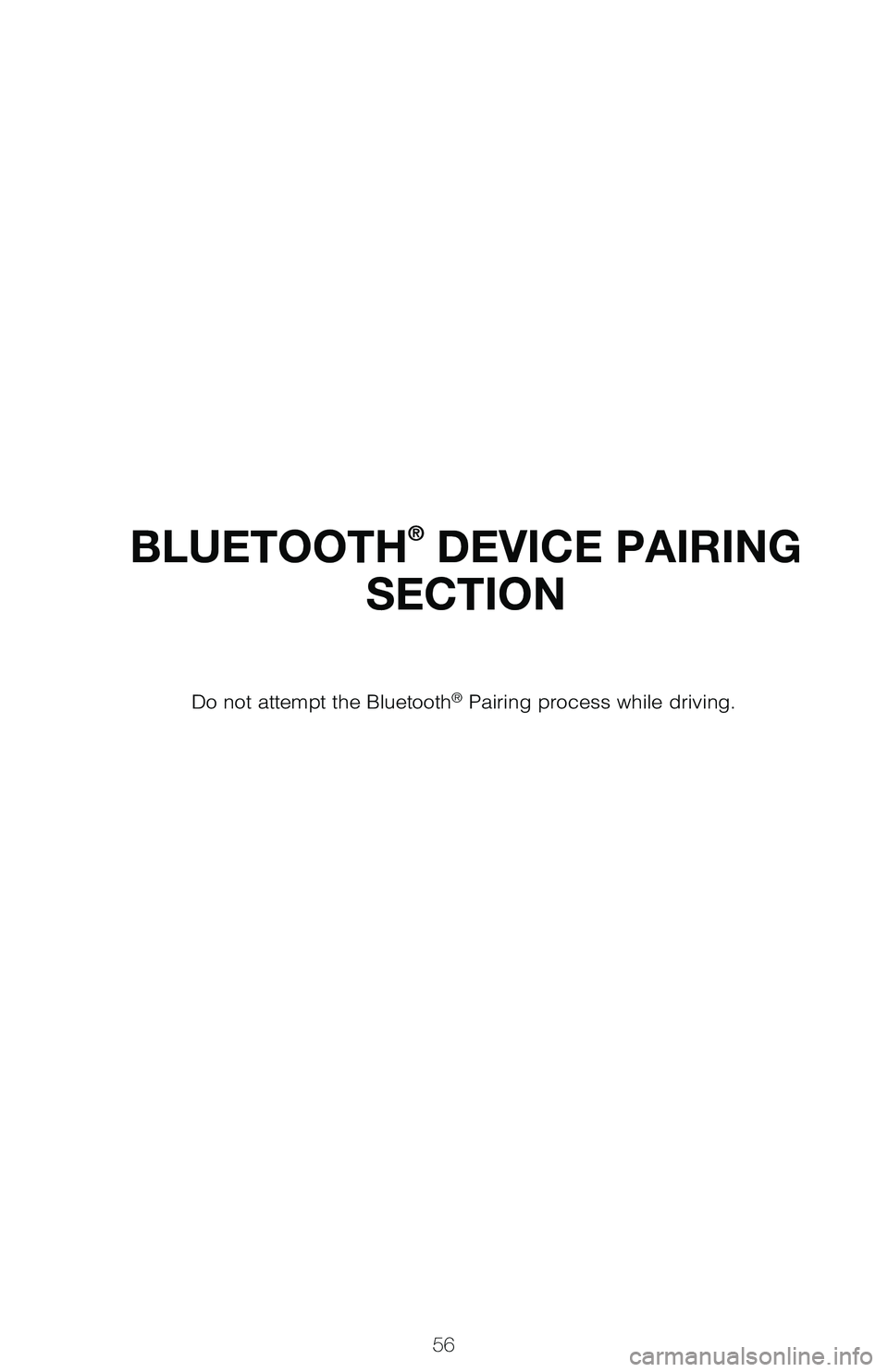

56
BLUETOOTH® DEVICE PAIRING
SECTION
Do not attempt the Bluetooth® Pairing process while driving.
126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 56126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 566/17/20 10:09 AM6/17/20 10:09 AM

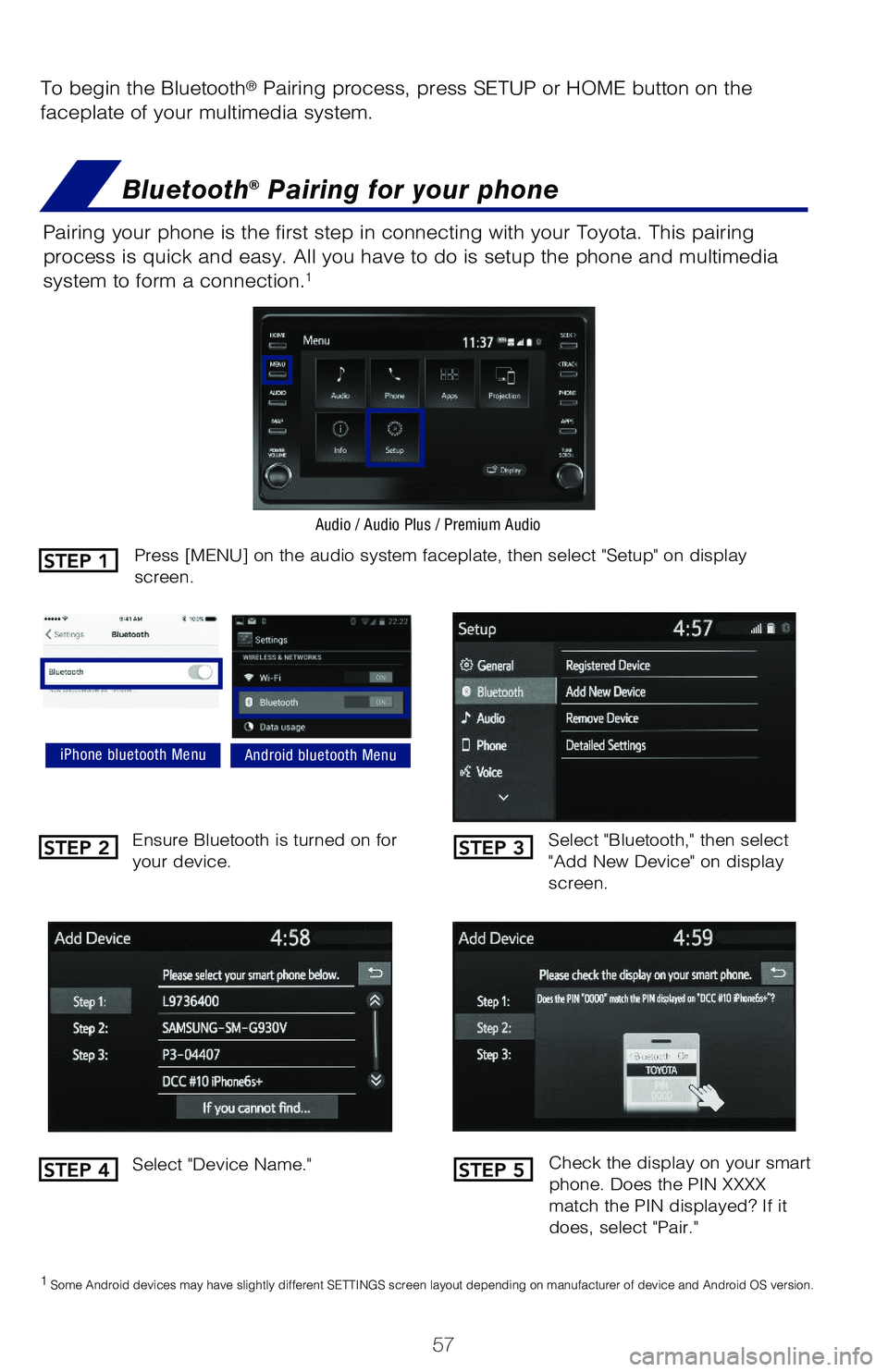

57
To begin the Bluetooth® Pairing process, press SETUP or HOME button on the
faceplate of your multimedia system.
Bluetooth® Pairing for your phone
Pairing your phone is the first step in connecting with your Toyota. This pairing
process is quick and easy. All you have to do is setup the phone and multimedia
system to form a connection.1
Select "Bluetooth," then select "Add New Device" on display screen.
Ensure Bluetooth is turned on for your device.
Select "Device Name."
iPhone bluetooth MenuAndroid bluetooth Menu
1 Some Android devices may have slightly different SETTINGS screen layout depending on manufacturer of device and Android OS version.
Check the display on your smart phone. Does the PIN XXXX match the PIN displayed? If it does, select "Pair."
Press [MENU] on the audio system faceplate, then select "Setup" on display screen.
Audio / Audio Plus / Premium Audio
STEP 1
STEP 2
STEP 4
STEP 3
STEP 5
126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 57126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 576/17/20 12:16 PM6/17/20 12:16 PM

58
BLUETOOTH® DEVICE PAIRING
"Connecting" displays while device is forming the connection to your multimedia system.
Enable Notifications (text message). While pairing your phone, a message will be displayed: "You may need to allow message access on your phone."
Note: You may also select "Skip" on display screen to skip enabling notifications. If skipped, proceed to Step 8.
Turn on "Show Notifications" for iPhone or "ON" for Android.A confirmation will appear once your phone has been paired and connected.
iPhoneAndroid
Bluetooth® Pairing for your phone (cont.)
STEP 6
STEP 8
STEP 7
STEP 9
