TOYOTA PRIUS 2021 (in English) Owner's Manual

19
OVERVIEW
FEATURES
& OPERATIONS
TOYOTA
SAFETY
SENSE
SAFETY
& EMERGENCY
FEATURES
Access to Homescreen.
Access to Menuscreen.
Volume button
Push to turn ON/OFF.
Audio information display area (on the home menu only)
Touch screen displayAccess audio and navigation functions.

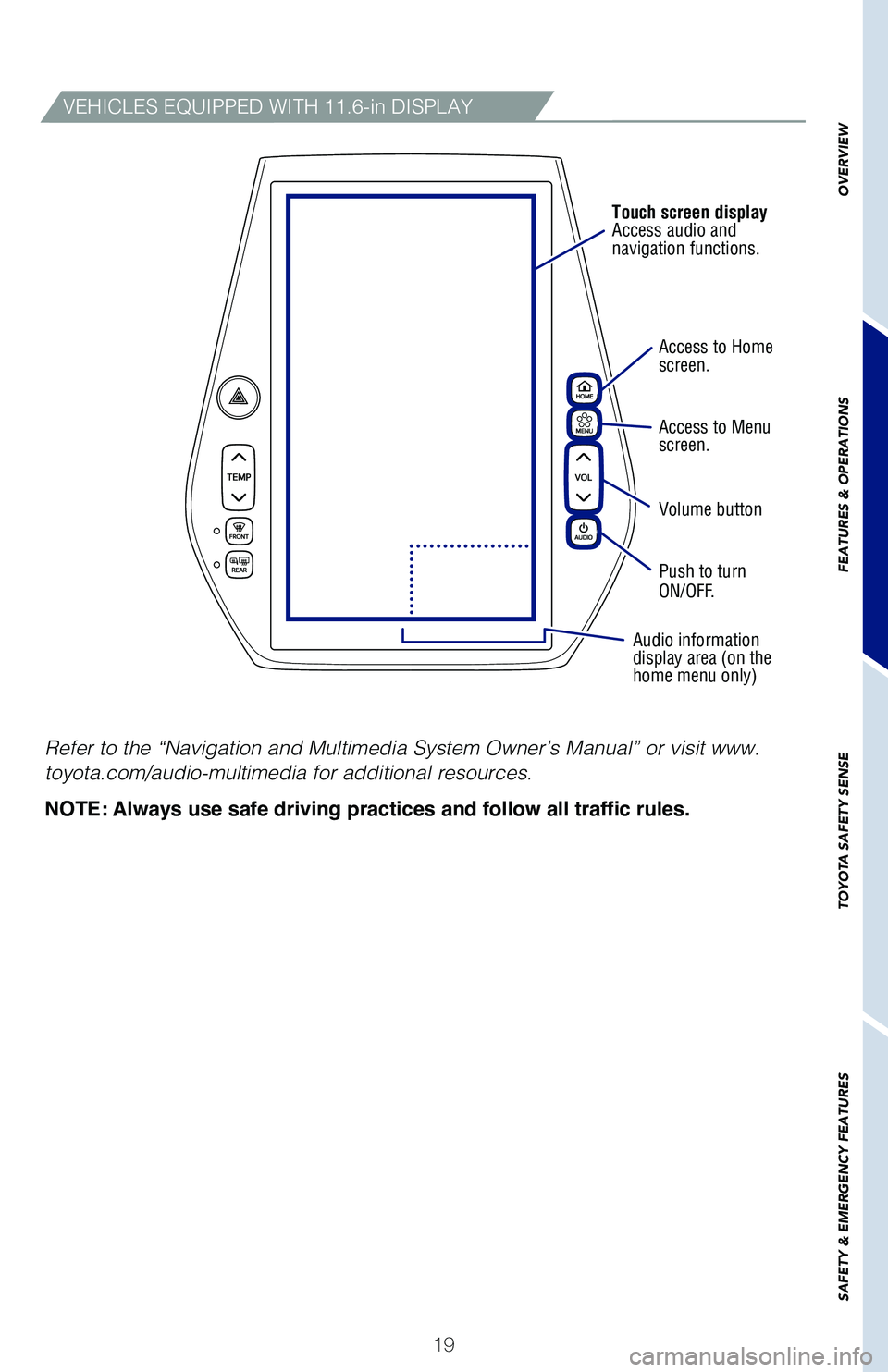

VEHICLES EQUIPPED WITH 11.6-in DISPLAY
Refer to the “Navigation and Multimedia System Owner’s Manual” or visit www.
toyota.com/audio-multimedia for additional resources.
NOTE: Always use safe driving practices and follow all traffic rules.
126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 19126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 196/17/20 10:09 AM6/17/20 10:09 AM

20
FEATURES & OPERATIONS

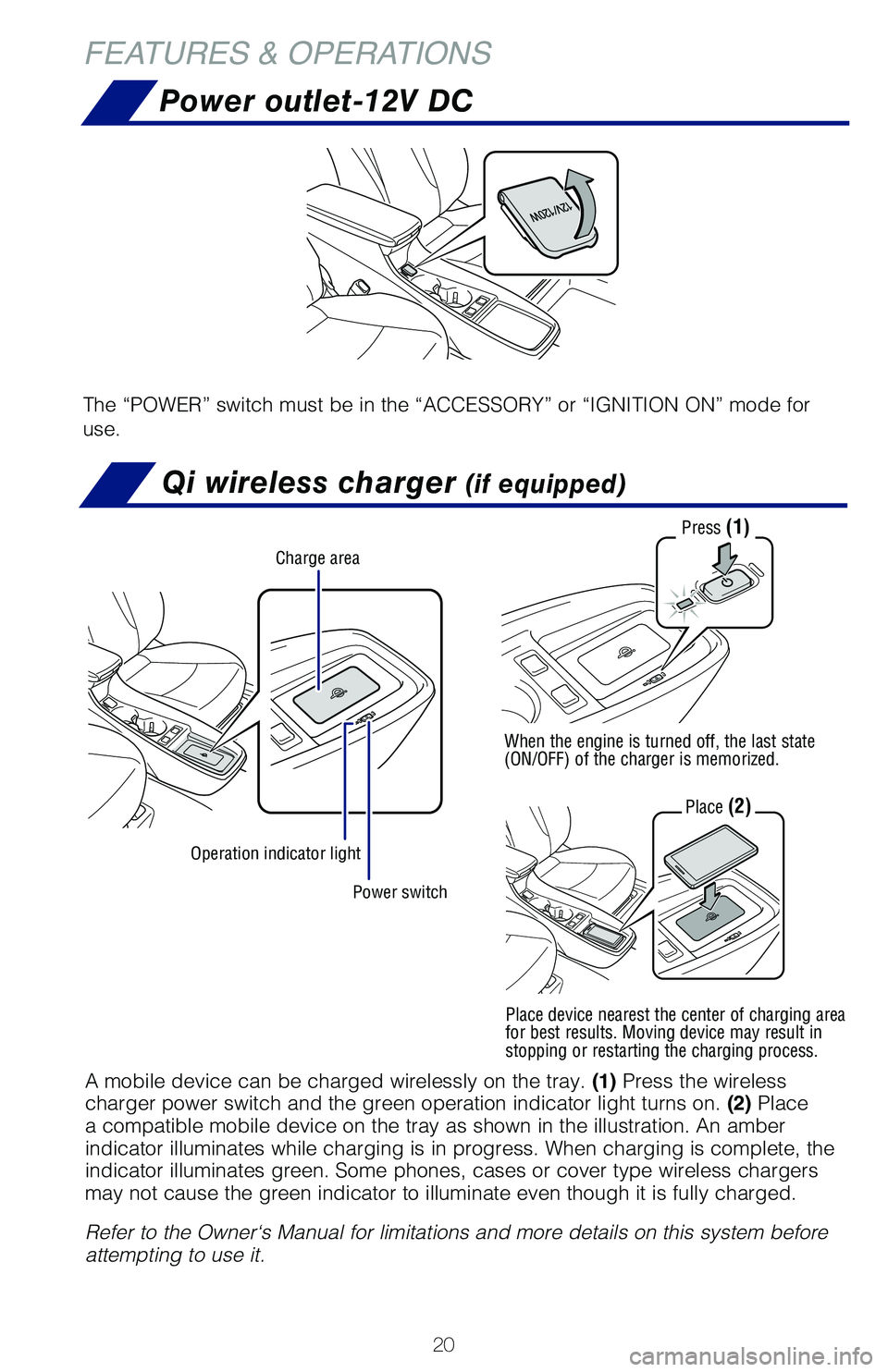

Qi wireless charger (if equipped)
Power outlet-12V DC
The “POWER” switch must be in the “ACCESSORY” or “IGNITION ON” mode for
use.
Power switch
Charge area
Operation indicator light
Press (1)
When the engine is turned off, the last state (ON/OFF) of the charger is memorized.
Place (2)
A mobile device can be charged wirelessly on the tray. (1) Press the wireless charger power switch and the green operation indicator light turns on. (2) Place a compatible mobile device on the tray as shown in the illustration. An amber indicator illuminates while charging is in progress. When charging is complete, the indicator illuminates green. Some phones, cases or cover type wireless chargers may not cause the green indicator to illuminate even though it is fully charged.
Refer to the Owner‘s Manual for limitations and more details on this system before attempting to use it.
Place device nearest the center of charging area for best results. Moving device may result in stopping or restarting the charging process.
126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 20126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 206/17/20 10:09 AM6/17/20 10:09 AM

21

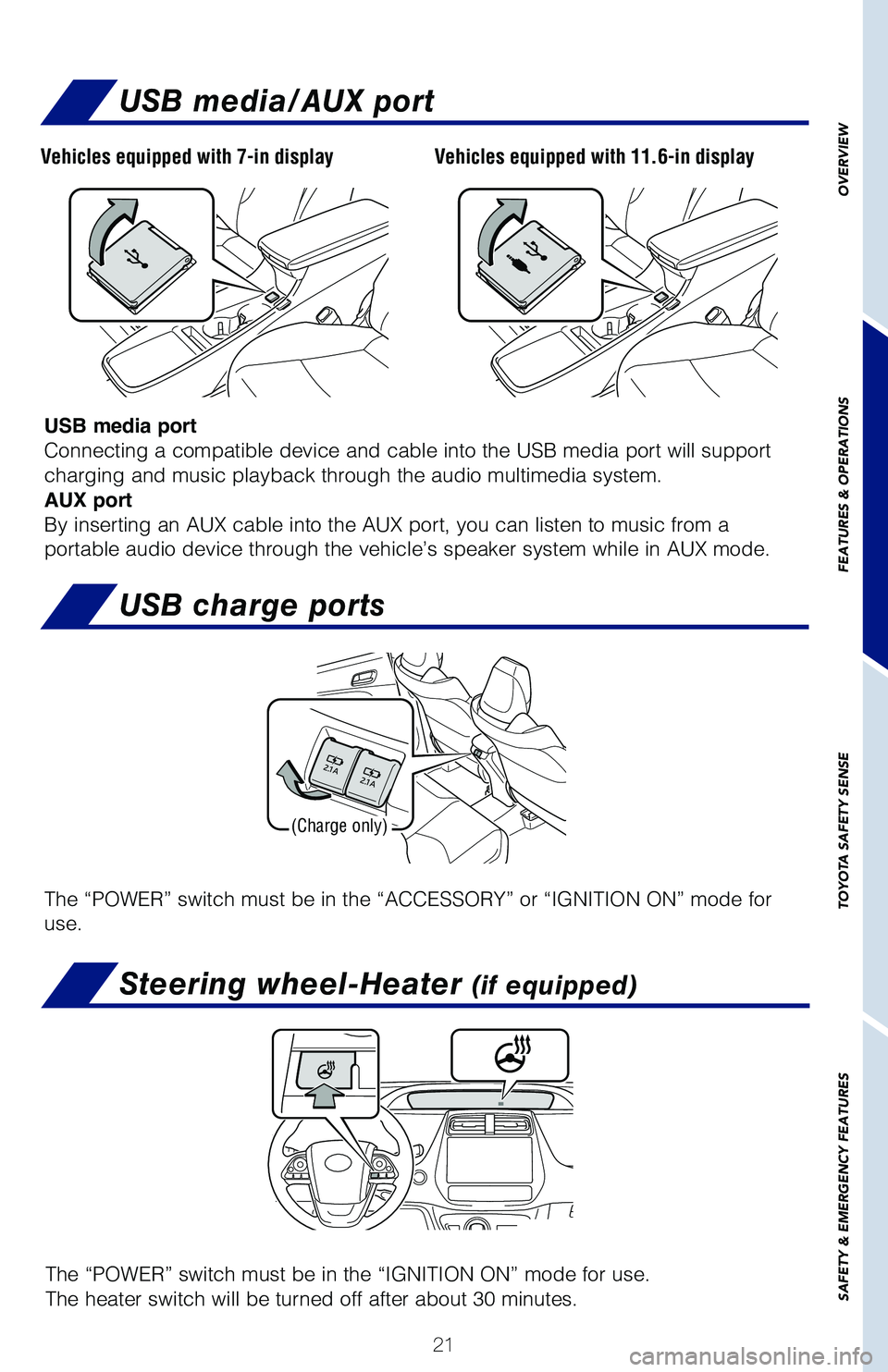

USB media/AUX port
USB media port
Connecting a compatible device and cable into the USB media port will support
charging and music playback through the audio multimedia system.
AUX port
By inserting an AUX cable into the AUX port, you can listen to music from a
portable audio device through the vehicle’s speaker system while in AUX mode.
USB charge ports
(Charge only)
The “POWER” switch must be in the “ACCESSORY” or “IGNITION ON” mode for
use.
Steering wheel-Heater (if equipped)
The “POWER” switch must be in the “IGNITION ON” mode for use.
The heater switch will be turned off after about 30 minutes.
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Vehicles equipped with 7-in displayVehicles equipped with 11.6-in display
126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 21126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 216/17/20 10:09 AM6/17/20 10:09 AM

22
FEATURES & OPERATIONS
AUTOMATIC AIR CONDITIONING - VEHICLES EQUIPPED WITH 7-in DISPLAY
Air conditioning/heating
Air conditioningON/OFF
Recirculate cabin air (outside air when OFF)
Airflow vent
Windshield defogger
Outside rearview mirror/Rear window defogger
Automatic climate control ONAdjusting the temperature setting will cause the airflow vents, air intake and fan to adjust automatically to set temperature.
Smart-flow (S-Flow) mode gives airflow priority to the front seats, reducing the airflow and air conditioning effect onrear seats when there are no passengers.
Climate control OFF
Temperature settingFan speed
ECO mode: Climate control that minimizes fuel consumption. This option may reduce fan speed.
Adjusters Up/Down: Change temperature,change fan speed, change vent mode.
Seat heaters (if equipped)
Driver seatFrontpassenger seat
The “POWER” switch must be in the “IGNITION ON” mode for use.
NOTE: Turn system off when not in use.
126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 22126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 226/17/20 10:09 AM6/17/20 10:09 AM

23

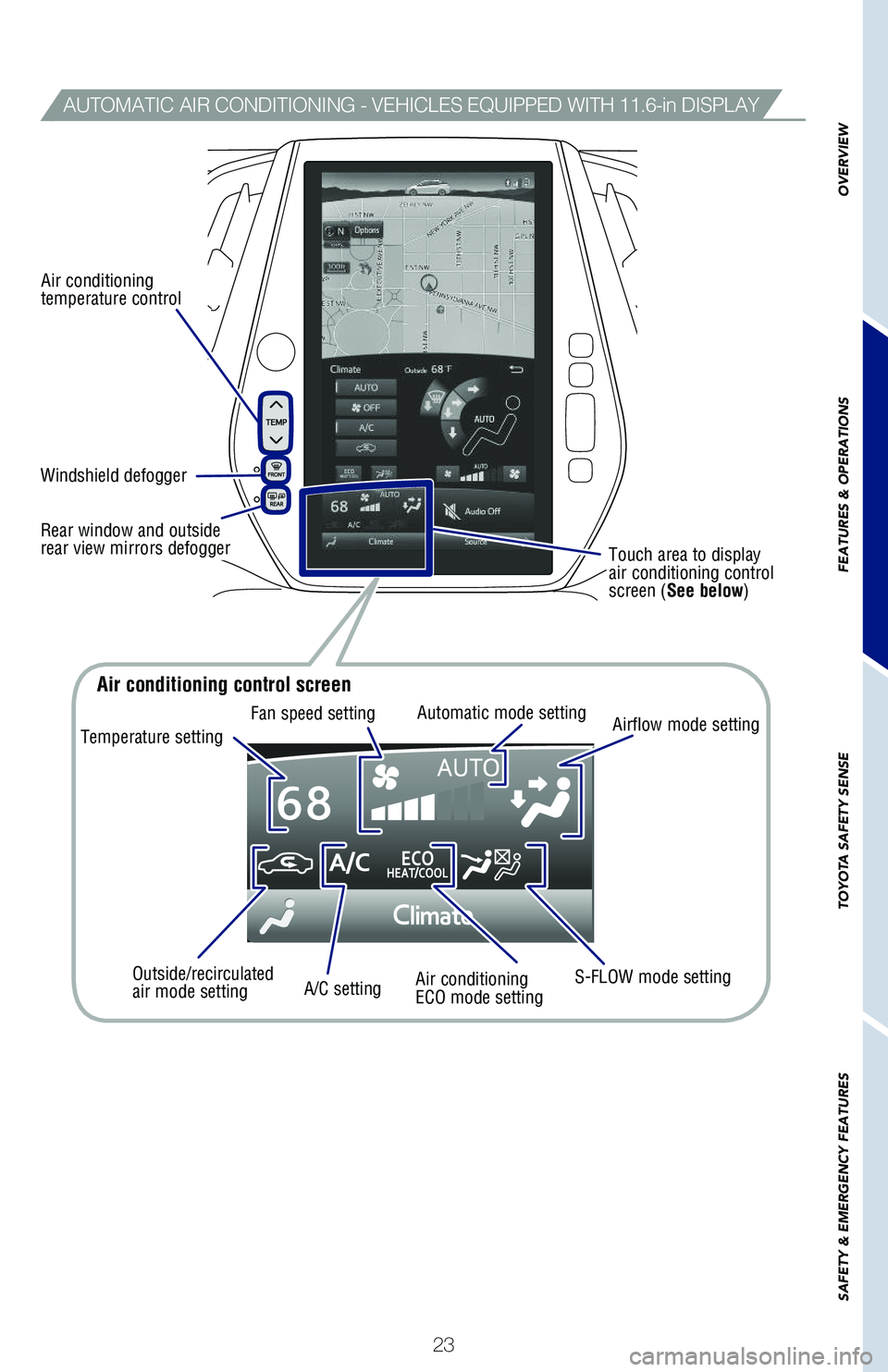

AUTOMATIC AIR CONDITIONING - VEHICLES EQUIPPED WITH 11.6-in DISPLAY
Air conditioning temperature control
Windshield defogger
Rear window and outside rear view mirrors defogger
Temperature setting
Fan speed settingAutomatic mode setting
Air conditioning control screen
Airflow mode setting
S-FLOW mode settingAir conditioningECO mode settingA/C settingOutside/recirculated air mode setting
OVERVIEW
FEATURES
& OPERATIONS
TOYOTA
SAFETY
SENSE
SAFETY
& EMERGENCY
FEATURES
Touch area to display air conditioning control screen (See below)
126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 23126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 236/17/20 10:09 AM6/17/20 10:09 AM

24
Color Dual Multi-Information Display (MID)
Main displayMID
FEATURES & OPERATIONS
MAIN DISPLAY (VEHICLE WITHOUT RSA -ROAD SIGN ASSIST-)
MAIN DISPLAY (VEHICLE WITH RSA -ROAD SIGN ASSIST-)
The default split screen mode can also be viewed in simple screen mode shown
above. The main display shows basic drive information. Push “” to view more
info for mileage and average fuel consumption display.
Refer to the Owner’s Manual for more details.
Simple screenSplit screen
Fuel gauge
Sub-screen
RSA OFFRSA ON*
Mileage display (odometer/trip meters/driving range)
Average fuelconsumption display
Speedometer
Outside temperatureHybrid system indicator and current fuel consumption
* When RSA (Road Sign Assist)
information is displayed in
the “” screen of the multi-
information display, RSA (Road
Sign Assist) information is not
displayed on the sub-screen.
126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 24126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 246/17/20 10:09 AM6/17/20 10:09 AM

25

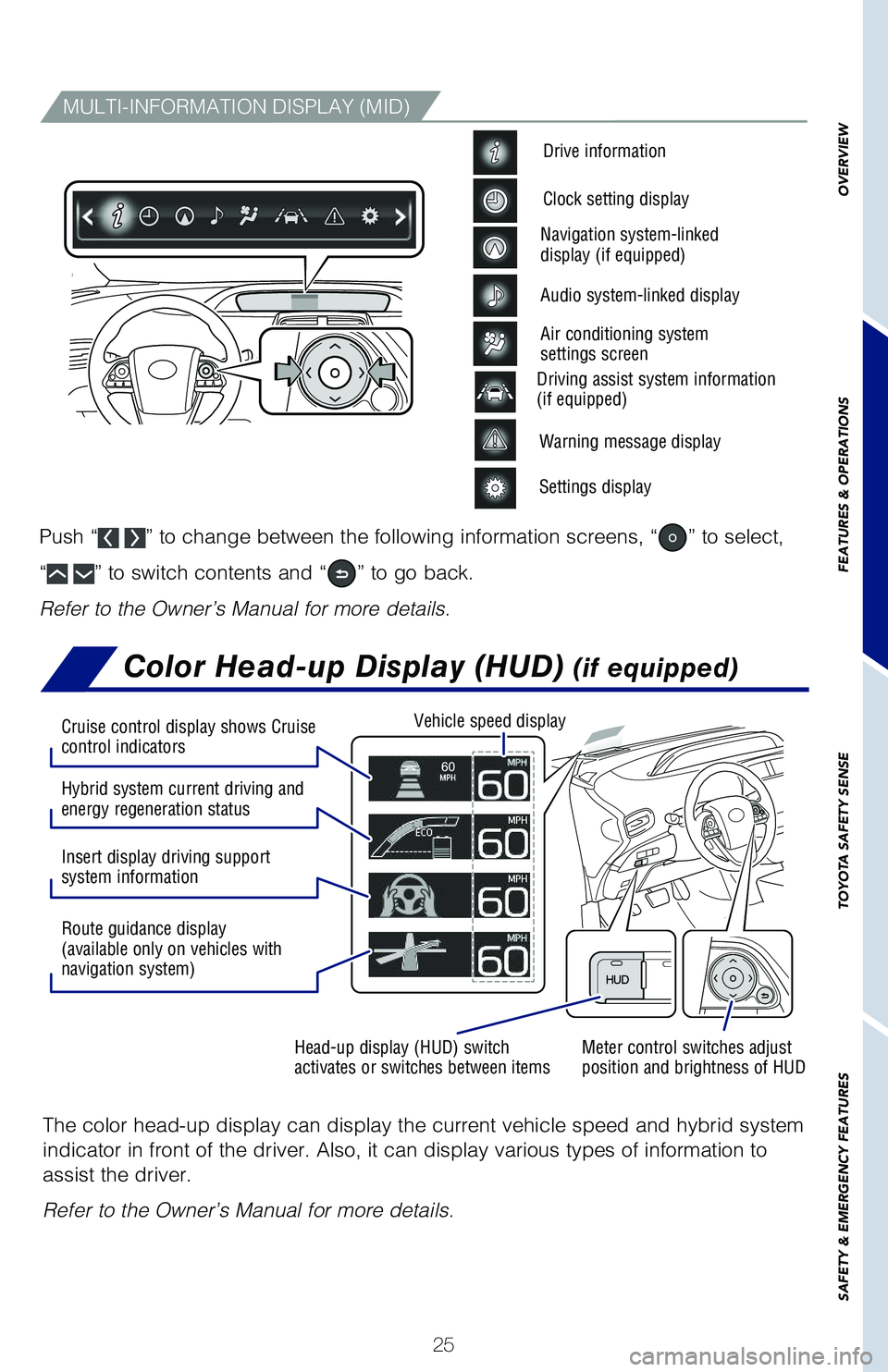

Color Head-up Display (HUD) (if equipped)
The color head-up display can display the current vehicle speed and hybrid system
indicator in front of the driver. Also, it can display various types of information to
assist the driver.
Refer to the Owner’s Manual for more details.
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
MULTI-INFORMATION DISPLAY (MID)
Warning message display
Settings display
Driving assist system information(if equipped)
Drive information
Clock setting display
Navigation system-linked display (if equipped)
Audio system-linked display
Air conditioning system settings screen
Push “ ” to change between the following information screens, “” to select,
“ ” to switch contents and “” to go back.
Refer to the Owner’s Manual for more details.
Meter control switches adjust position and brightness of HUDHead-up display (HUD) switch activates or switches between items
Vehicle speed display
Hybrid system current driving and energy regeneration status
Insert display driving support system information
Route guidance display (available only on vehicles with navigation system)
Cruise control display shows Cruise control indicators
126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 25126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 256/17/20 10:09 AM6/17/20 10:09 AM

26
FEATURES & OPERATIONS
Front and Rear Parking Assist with
Automated Braking (if equipped)
When a collision may occur with an obstacle while parking or traveling at low
speeds, when the vehicle suddenly moves forward due to mistaken accelerator
pedal operation, or when the vehicle moves due to the wrong shift position being
selected, the sensors are designed to detect obstacles to the front or rear in the
traveling direction of the vehicle, and the system operates to lessen impact with
obstacles such as walls, and reduce resulting damage.
(1) Press “ ” switches and select “” from the Multi-Information Display (MID).
(2) Press “ ” switches and select “” and then press “.” The setting
screen is displayed.
(3) Press “ ” switches and press “” to select the desired setting.
(4) Press “” to go back to the menu.
The system will continue in the last state it was in (ON or OFF) when the engine is
started again.
Refer to section PKSB (Parking Support Brake function) in the Owner’s Manual for
limitations and more details.
When traveling at a low speed and the brake pedal is not depressed, or is depressed late
When the accelerator pedal is depressed excessively
When the vehicle moves in the unintended directiondue to the wrong shift position being selected
CHANGE SETTINGS
FUNCTIONS
126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 26126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 266/17/20 10:09 AM6/17/20 10:09 AM

27
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Intuitive Parking Assist (if equipped)
If the sensors detect an obstacle, the buzzer and MID display inform the driver of
the approximate position and distance of the obstacle by illuminating continuously
(far) or blinking (near).
Frontcenter sensor
Rearcenter sensor
Corner sensors (front)
Corner sensors (rear)
Side sensors (front and rear)Side sensors (front and rear)
Corner sensors (front)
Corner sensors (rear)
SYSTEM ON/OFF
(1) Press “ ” switches and select “” from the Multi-Information Display (MID).
(2) Press “ ” switches and select “” and then press “.” The setting
screen is displayed.
(3) Press “ ” switches and select the “On/Off” setting function and then press
“.”
(4) Press “” to go back to the menu.
Note: Once off is selected, the intuitive parking assist will not return to on
until it is turned to on by the screen of multi-information display again. (The
system does not automatically return to on even when the hybrid system is
restarted.)
Refer to the Owner’s Manual for limitations and more details.
126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 27126899_MY21_Prius_QRG_V2_ML_0614_R1.indd 276/17/20 10:09 AM6/17/20 10:09 AM

28
FEATURES & OPERATIONS

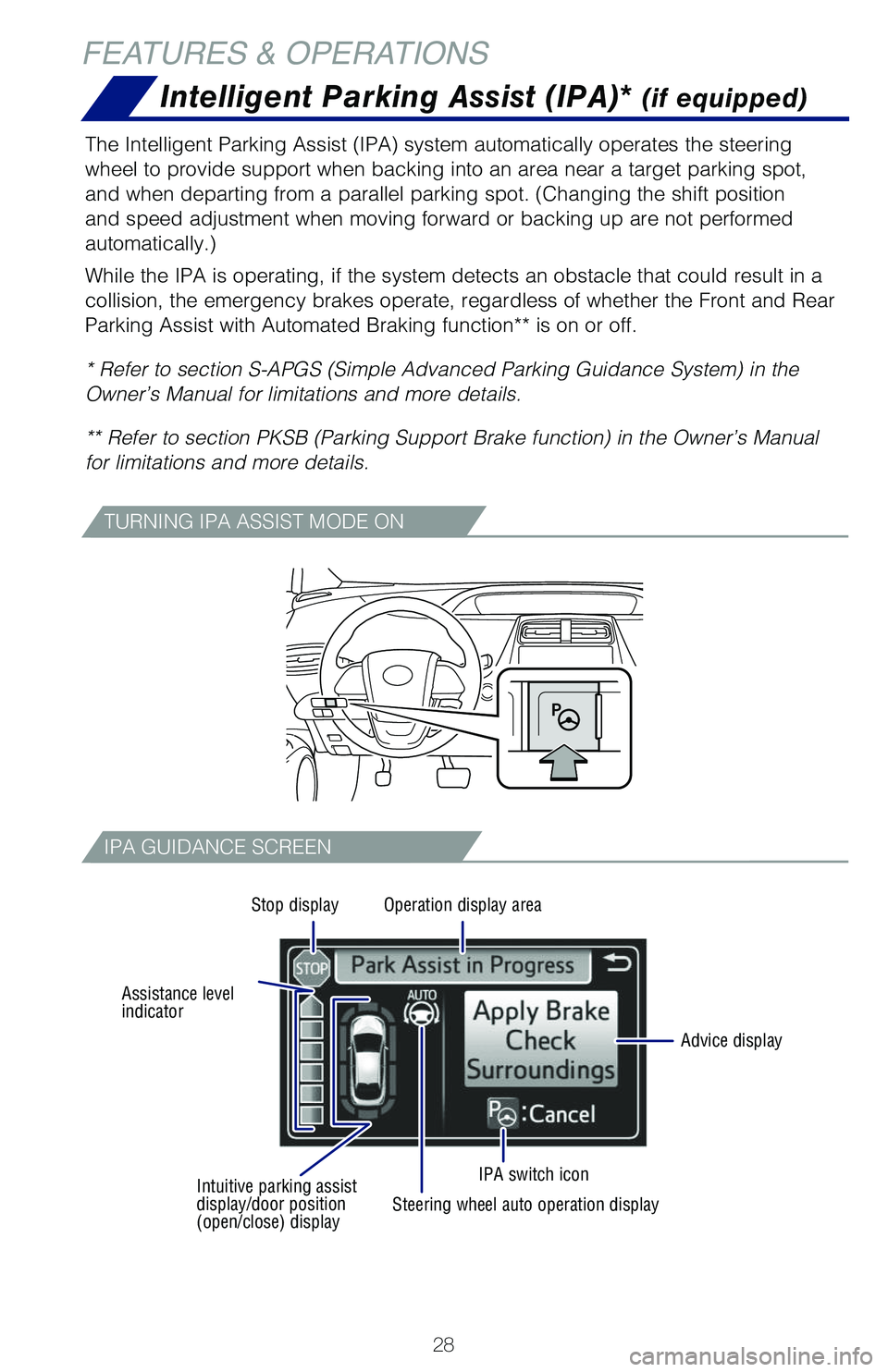

The Intelligent Parking Assist (IPA) system automatically operates the steering
wheel to provide support when backing into an area near a target parking spot,
and when departing from a parallel parking spot. (Changing the shift position
and speed adjustment when moving forward or backing up are not performed
automatically.)
While the IPA is operating, if the system detects an obstacle that could result in a
collision, the emergency brakes operate, regardless of whether the Front and Rear
Parking Assist with Automated Braking function** is on or off.
* Refer to section S-APGS (Simple Advanced Parking Guidance System) in the
Owner’s Manual for limitations and more details.
** Refer to section PKSB (Parking Support Brake function) in the Owner’s Manual
for limitations and more details.
TURNING IPA ASSIST MODE ON
IPA GUIDANCE SCREEN
IPA switch icon
Steering wheel auto operation displayIntuitive parking assist display/door position (open/close) display
Assistance level indicator
Stop displayOperation display area
Advice display
Intelligent Parking Assist (IPA)* (if equipped)
