Page 241 of 306
241
3. ROUTE GUIDANCE
PRIUS PRIME_Navi_OM47C23U_(U)
17.11.06 14:19
NAVIGATION SYSTEM
8
1Select the route information bar.
2Check that the list of the distance and
time is displayed.
By selecting one of the number buttons,
the desired route information is displayed.
1Select “Options” on the map screen.
2Select “Route Overview” .
3Check that the entire route map is dis-
played.
For details about this screen: P.236
INFORMATION
● When the vehicle is on the guidance
route, the distance measured along the
route is displayed. Travel time and
arrival time are calculated based on the
average speed for the specified speed
limit.
● When the vehicle gets off the guidance
route, the arrow facing the destination is
displayed instead of the estimated
travel/arrival time.
● The route information bar fills from left to
right as the vehicle progresses on the
route.
DISTANCE AND TIME TO
DESTINATION
When driving on the guidance route
with more than 1 destination set, a list
of the distance with estimated travel/
arrival time from the current position to
each destination is displayed.
ROUTE OVERVIEW
The entire route from the current posi-
tion to the destination can be displayed
during the route guidance.

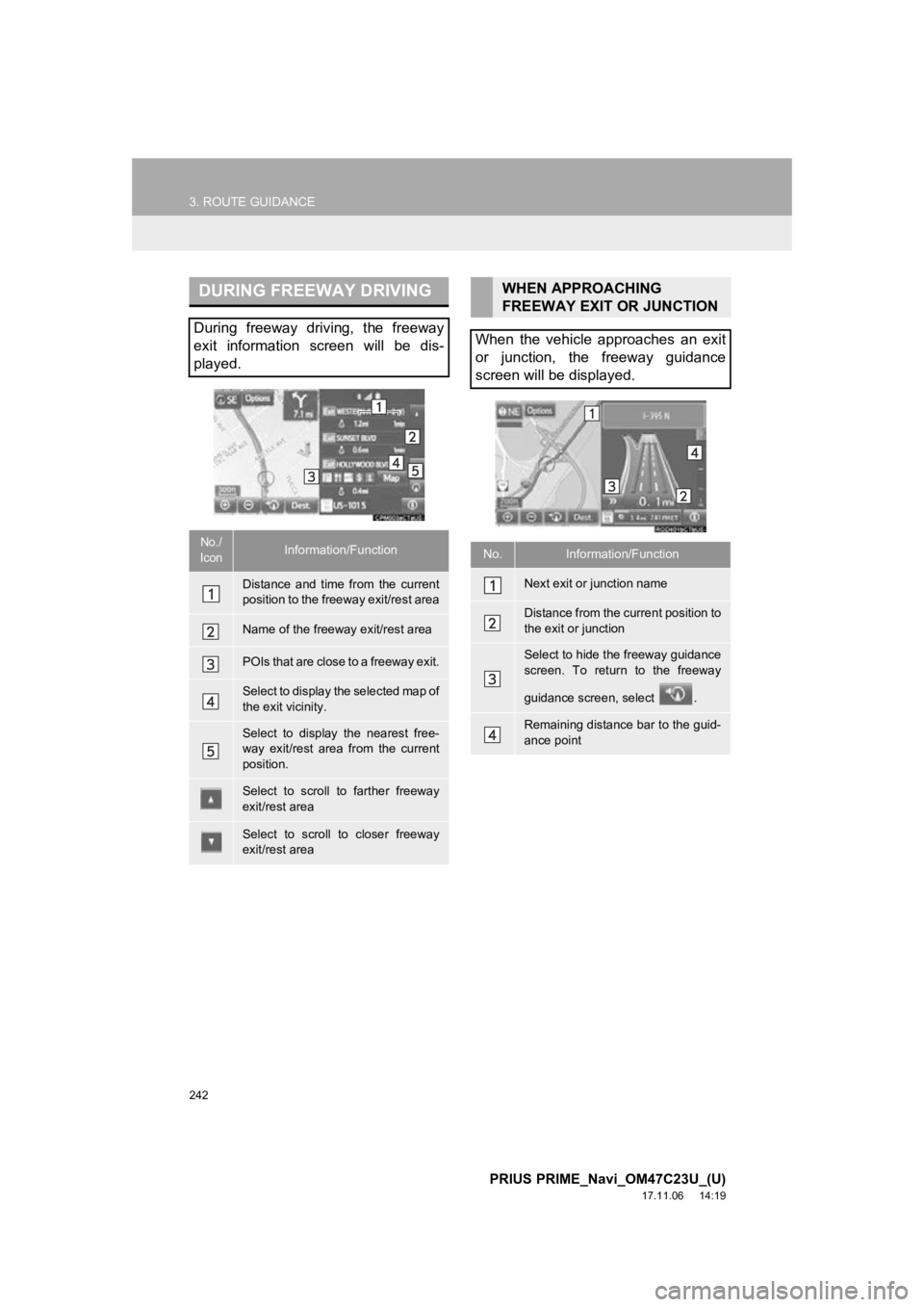

Page 242 of 306
242
3. ROUTE GUIDANCE
PRIUS PRIME_Navi_OM47C23U_(U)
17.11.06 14:19
DURING FREEWAY DRIVING
During freeway driving, the freeway
exit information screen will be dis-
played.
No./
IconInformation/Function
Distance and time from the current
position to the freeway exit/rest area
Name of the freeway exit/rest area
POIs that are close to a freeway exit.
Select to display the selected map of
the exit vicinity.
Select to display the nearest free-
way exit/rest area from the current
position.
Select to scroll to farther freeway
exit/rest area
Select to scroll to closer freeway
exit/rest area
WHEN APPROACHING
FREEWAY EXIT OR JUNCTION
When the vehicle approaches an exit
or junction, the freeway guidance
screen will be displayed.
No.Information/Function
Next exit or junction name
Distance from the current position to
the exit or junction
Select to hide the freeway guidance
screen. To return to the freeway
guidance screen, select .
Remaining distance bar to the guid-
ance point
Page 243 of 306
243
3. ROUTE GUIDANCE
PRIUS PRIME_Navi_OM47C23U_(U)
17.11.06 14:19
NAVIGATION SYSTEM
8
TOLLGATE GUIDANCE
When the vehicle approaches a toll-
gate, the tollgate view will be dis-
played.
No.Information/Function
Distance from the current position to
the tollgate
Select to hide the tollgate guidance
screen. To return to the tollgate
guidance screen, select .
Remaining distance bar to the guid-
ance point
WHEN APPROACHING
INTERSECTION
When the vehicle approaches an inter-
section, the intersection guidance
screen will be displayed.
No.Information/Function
Next street name
Distance to the intersection
Select to hide the intersection guid-
ance screen. To return to the inter-
section guidance screen, select .
Remaining distance bar to the guid-
ance point

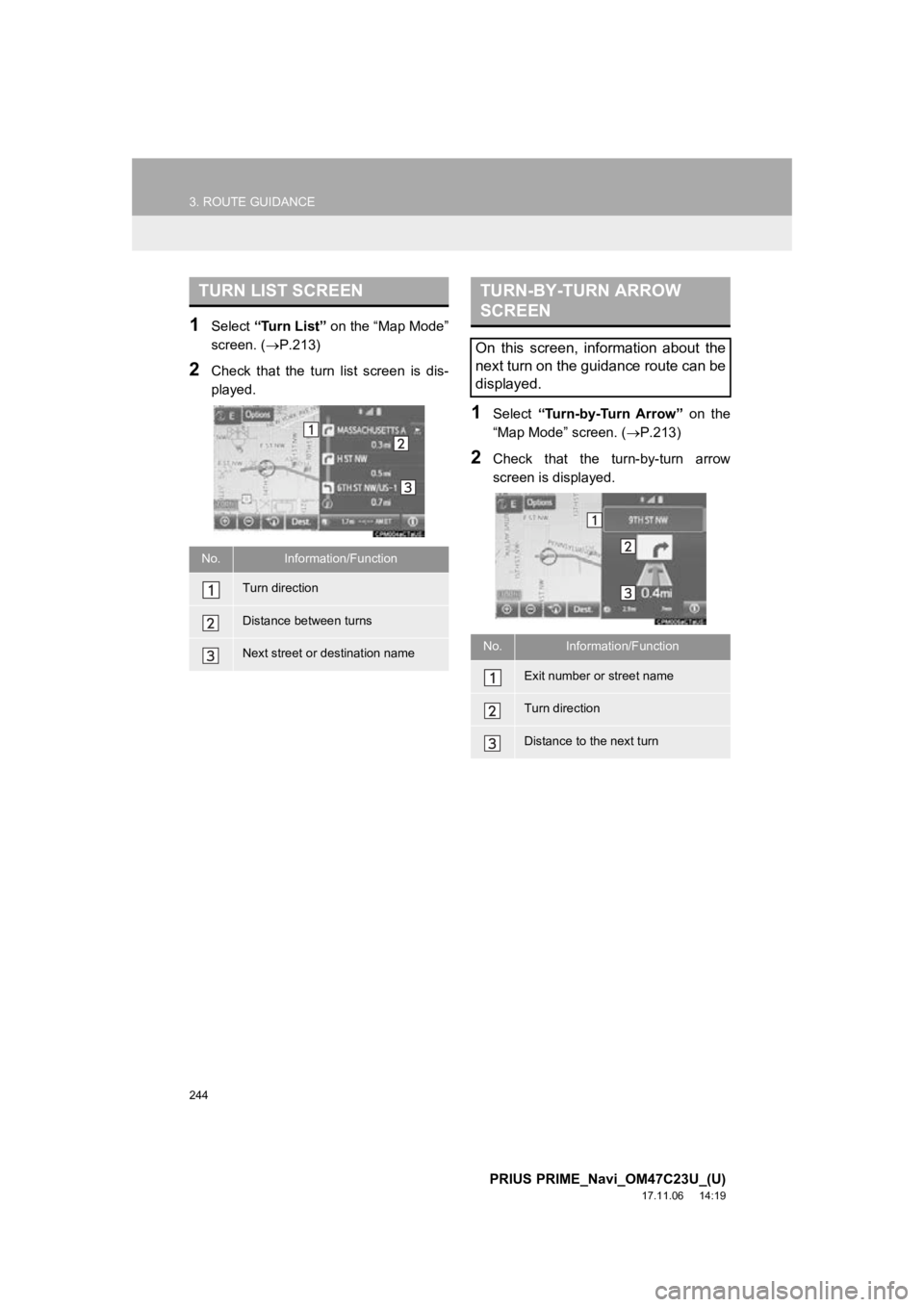

Page 244 of 306
244
3. ROUTE GUIDANCE
PRIUS PRIME_Navi_OM47C23U_(U)
17.11.06 14:19
1Select “Turn List” on the “Map Mode”
screen. ( P.213)
2Check that the turn list screen is dis-
played.
1Select “Turn-by-Turn Arrow” on the
“Map Mode” screen. ( P.213)
2Check that the turn-by-turn arrow
screen is displayed.
TURN LIST SCREEN
No.Information/Function
Turn direction
Distance between turns
Next street or destination name
TURN-BY-TURN ARROW
SCREEN
On this screen, information about the
next turn on the guidance route can be
displayed.
No.Information/Function
Exit number or street name
Turn direction
Distance to the next turn
Page 245 of 306
245
3. ROUTE GUIDANCE
PRIUS PRIME_Navi_OM47C23U_(U)
17.11.06 14:19
NAVIGATION SYSTEM
8
2. TYPICAL VOICE GUIDANCE PROMPTS
As the vehicle approaches an intersec-
tion, or point, where maneuvering the
vehicle is necessary, the system’s
voice guidance will provide various
messages.
WA R N I N G
●Be sure to obey the traffic regulations
and keep the road condition in mind
especially when you are driving on IPD
roads (roads that are not completely dig-
itized in our database). The route guid-
ance may not have the updated
information such as the direction of a
one way street.
INFORMATION
●If a voice guidance command cannot be
heard, select on the map screen
to hear it again.
● To adjust the voice guidance volume:
P. 6 4
● Voice guidance may be made early or
late.
● If the system cannot determine the cur-
rent position correctly, you may not hear
voice guidance or may not see the mag-
nified intersection on the screen.

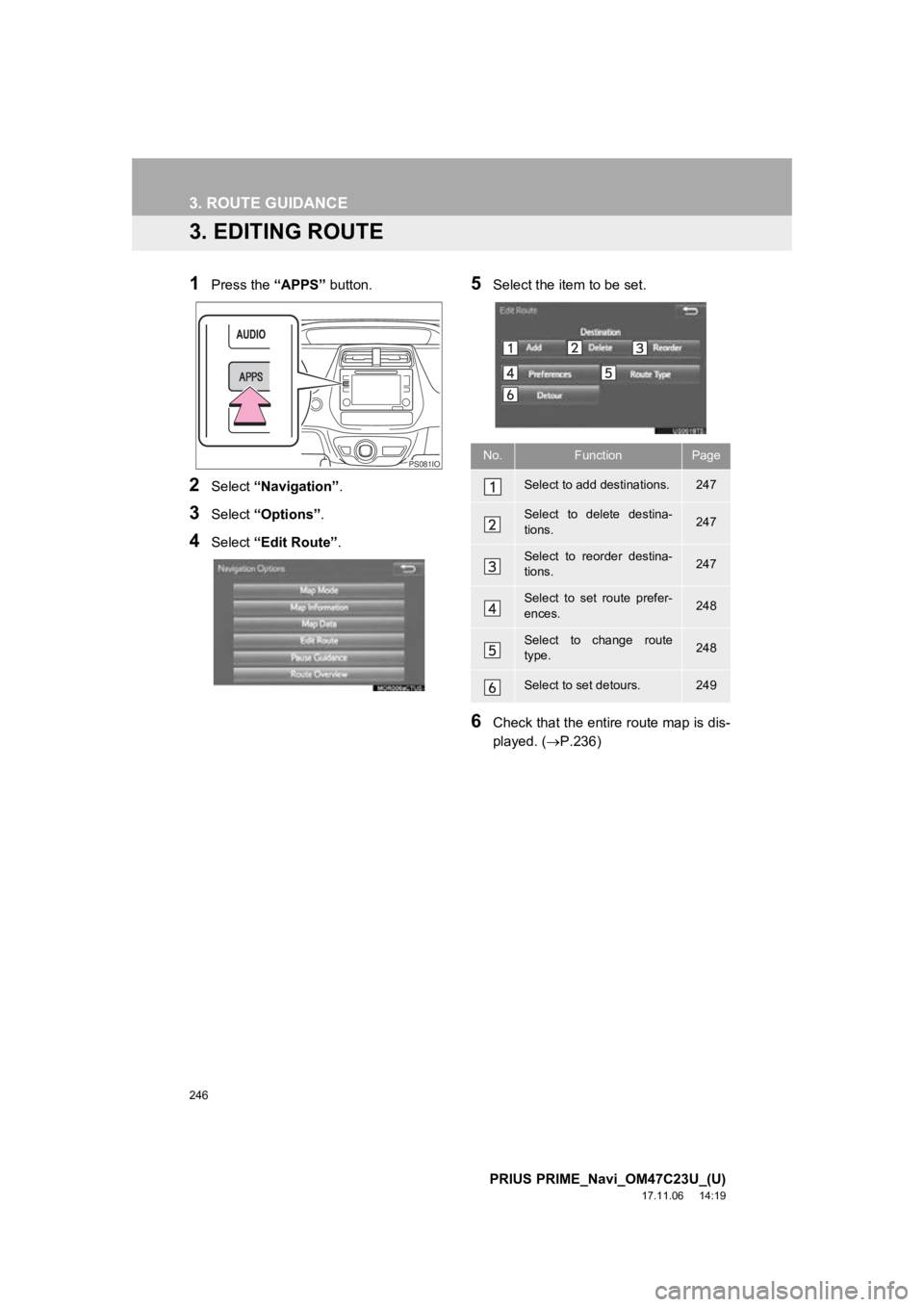

Page 246 of 306
246
3. ROUTE GUIDANCE
PRIUS PRIME_Navi_OM47C23U_(U)
17.11.06 14:19
3. EDITING ROUTE
1Press the “APPS” button.
2Select “Navigation” .
3Select “Options”.
4Select “Edit Route” .
5Select the item to be set.
6Check that the entire route map is dis-
played. (P.236)
PS081IO 1 R ) X Q F W L R Q 3 D J H
6 H O H F W W R D G G G H V W L Q D W L R Q V
6 H O H F W W R G H O H W H G H V W L Q D
W L R Q V
6 H O H F W W R U H R U G H U G H V W L Q D
W L R Q V
6 H O H F W W R V H W U R X W H S U H I H U
H Q F H V
6 H O H F W W R F K D Q J H U R X W H
W \ S H
6 H O H F W W R V H W G H W R X U V
Page 247 of 306
247
3. ROUTE GUIDANCE
PRIUS PRIME_Navi_OM47C23U_(U)
17.11.06 14:19
NAVIGATION SYSTEM
8
1Display the “Edit Route” screen.
(P.246)
2Select “Add”.
3Search for an additional destination in
the same way as a destination search.
(P.224)
4Select “Add Destination Here” to in-
sert the new destina tion into the route.
1Display the “Edit Route” screen.
(P.246)
2Select “Reorder” .
3Select the desired destination and se-
lect “Move Up” or “Move Down” to
change the arrival order. Then select
“OK” .
1Display the “Edit Route” screen.
(P.246)
2Select “Delete” .
3Select “Yes” when the confirmation
screen appears.
When more than 1 destination has been
set, a list will be displayed on the screen.
Select the item(s) to be deleted.
“Delete All” : Select to delete all destina-
tions on the list.
If more than 1 destination has been set,
the system will recalculate the route(s) to
the set destination(s) as necessary.
ADDING DESTINATIONSREORDERING
DESTINATIONS
When more than 1 destination has
been set, the arrival order of the desti-
nations can be changed.
DELETING DESTINATIONS
Page 248 of 306
248
3. ROUTE GUIDANCE
PRIUS PRIME_Navi_OM47C23U_(U)
17.11.06 14:19
1Display the “Edit Route” screen.
(P.246)
2Select “Preferences” .
3Select the desired route preferences
and select “OK”.
When set to on, the indicator will illumi-
nate.
1Display the “Edit Route” screen.
( P.246)
2Select “Route Type” .
3Select the desired route type.
During driving, the route guidance starts
after selecting the desired route type.
4The entire route from the starting point
to the destination is displayed.
For details about this screen: P. 2 3 6
SETTING ROUTE
PREFERENCES
The conditions to determine the route
can be selected from various choices
such as freeways, toll roads, ferries,
etc.
SELECTING ROUTE TYPE
Page 249 of 306
249
3. ROUTE GUIDANCE
PRIUS PRIME_Navi_OM47C23U_(U)
17.11.06 14:19
NAVIGATION SYSTEM
8
1Display the “Edit Route” screen.
(P.246)
2Select “Detour” .
3Select the desired detour distance.
DETOUR SETTING
During the route guidance, the route
can be changed to detour around a
section of the route where a delay is
caused by road repairs, an accident,
etc.
No.Function
Select to detour the route for the
next 1 mile.
Select to detour the route for the
next 3 miles.
Select to detour the route for the
next 5 miles.
Select to detour the entire route.
Select to make the system search
for the route based on traffic con-
gestion information received from
traffic information. ( P.221)
If the “Auto Avoid Traffic” setting is
“Off”, this function does not work.
( P.265)
INFORMATION
● This picture shows an example of how
the system would guide around a delay
caused by a traffic jam.
This position indicates the location of a
traffic jam caused by road repairs, an
accident, etc.
This route indicates the detour sug-
gested by the system.
● When the vehicle is on a freeway, the
detour distance selections are 5, 15 and
25 miles (or 5, 15 and 25 km if units are
in km).
● The system may not be able to calculate
a detour route depending on the
selected distance and surrounding road
conditions.
No.Function
Page 250 of 306
250
PRIUS PRIME_Navi_OM47C23U_(U)
17.11.06 14:19
4. MEMORY POINTS
1. MEMORY POINTS SETTINGS
1Press the “APPS” button.
2Select “Setup” .
3Select “Navigation” .
4Select the desired item to be set.Home, preset destinations, address
book entries, areas to avoid can be set
as memory points. The registered
points can be used as the destinations.
( P.224)
Registered areas to avoid, will be
avoided when the system searches for
a route.
PS081IO
1 R ) X Q F W L R Q 3 D J H
6 H O H F W W R V H W K R P H
6 H O H F W W R V H W S U H V H W G H V W L
Q D W L R Q V
6 H O H F W W R V H W W K H D G G U H V V
E R R N
6 H O H F W W R V H W D U H D V W R
D Y R L G
6 H O H F W W R G H O H W H S U H Y L R X V
G H V W L Q D W L R Q V
6 H O H F W W R V H W G H W D L O H G Q D Y L
J D W L R Q V H W W L Q \
J V
